53 0val · Posted: Mon Aug 07, 2006 6:57 pm Post subject: Mechanical brake adjustment help

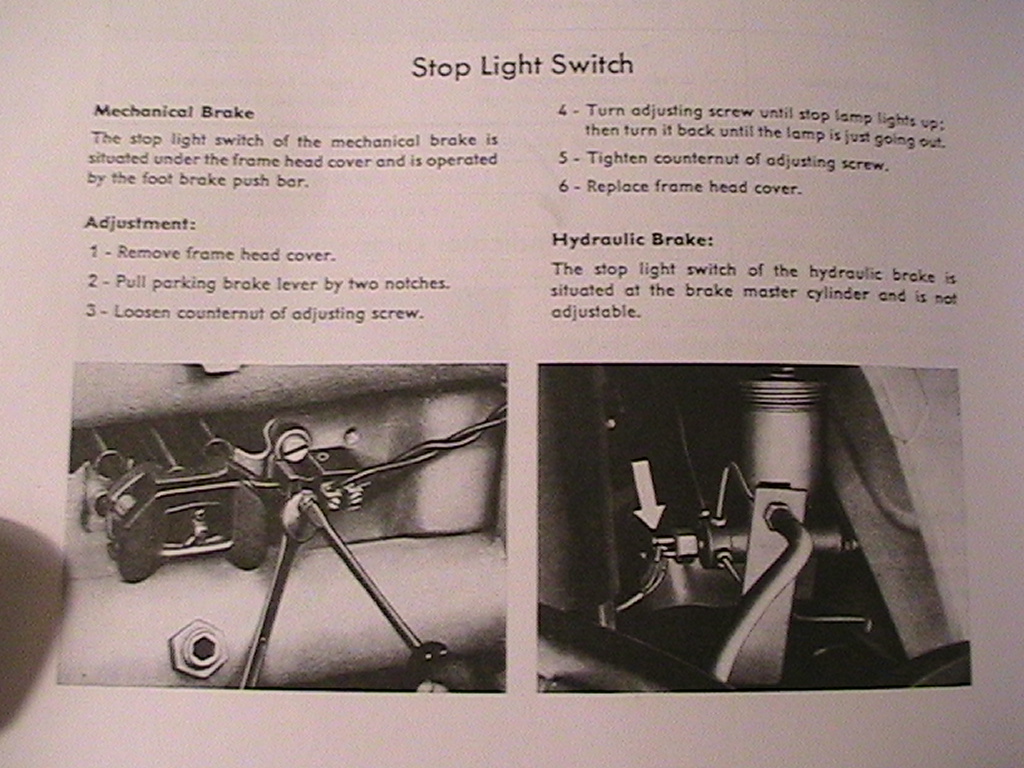

I just sent information from the VW Workshop Manual ....VW Passenger Cars 1952/54.... to a Samba Member who needed to know where to locate and adjust his Stop Light Switch, but I cannot post photos. I was hoping that someone could post a picture of page 6-4 of section E so he can better see what he needs to do. Confused

He has mechanical brakes...
_________________
"What a fool believes he sees, no wise man has the power to reason away." Dobee, Dobee, Do

VWLady · Posted: Mon Aug 07, 2006 7:54 pm Post subject:

Here you go...

Image may have been reduced in size. Click image to view fullscreen.

Thanks to the Bentley folks!

twinwindows · Posted: Mon Aug 07, 2006 8:01 pm Post subject:

_________________
CRG
My builds
BAD TEMPER 11
CHRISTINE
GFK LIFER!

53 0val · Posted: Mon Aug 07, 2006 8:16 pm Post subject:

Thanks you guys......I'll send that along. Cool

_________________
"What a fool believes he sees, no wise man has the power to reason away." Dobee, Dobee, Do

bam · Posted: Mon Aug 07, 2006 8:22 pm Post subject:

better bleed them good!!!!! Laughing

_________________
hi

53 0val · Posted: Mon Aug 07, 2006 8:29 pm Post subject:
