Air Sucker
Samba Member
Joined: October 03, 2005
Posts: 29
Location: Pittsburgh, PA
|
 Posted: Sat Feb 04, 2006 10:51 am Post subject: |
 |
|
Is that a hose attachment point on the back of the shroud where the oil cooler sits behind?
_________________
1971 Super Beetle
///////// |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79249
Location: Sneaking up behind you
|
| Posted: Sat Feb 04, 2006 10:53 am Post subject: |
|
|
Not speaking for Jake, but I don't think that was included in his tests.
And that is a round hose fitting for the outlet of the oil cooler air. It's perfect for a kit car.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Air Sucker
Samba Member
Joined: October 03, 2005
Posts: 29
Location: Pittsburgh, PA
|
| Posted: Sat Feb 04, 2006 11:03 am Post subject: |
|
|
Can you use OEM cooling flaps with this?
_________________
1971 Super Beetle
///////// |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79249
Location: Sneaking up behind you
|
| Posted: Sat Feb 04, 2006 11:05 am Post subject: |
|
|
| Air Sucker wrote: |
| Can you use OEM cooling flaps with this? |
I don't see any holes for mounting the flaps, but that can be solved. The rear dog house looks deeper than stock, so the linkage might need to be tweaked.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Air Sucker
Samba Member
Joined: October 03, 2005
Posts: 29
Location: Pittsburgh, PA
|
| Posted: Sat Feb 04, 2006 11:15 am Post subject: |
|
|
| Glenn wrote: |
| Air Sucker wrote: |
| Can you use OEM cooling flaps with this? |
I don't see any holes for mounting the flaps, but that can be solved. The rear dog house looks deeper than stock, so the linkage might need to be tweaked. |
So you just need to drill a few holes then? This seems like an interesting option to the 181 shroud.
_________________
1971 Super Beetle
///////// |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79249
Location: Sneaking up behind you
|
| Posted: Sat Feb 04, 2006 12:21 pm Post subject: |
|
|
| Air Sucker wrote: |
| Glenn wrote: |
| Air Sucker wrote: |
| Can you use OEM cooling flaps with this? |
I don't see any holes for mounting the flaps, but that can be solved. The rear dog house looks deeper than stock, so the linkage might need to be tweaked. |
So you just need to drill a few holes then? This seems like an interesting option to the 181 shroud. |
Probibly... like I said... you should be able to get some flaps in there.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Banzai KG
Samba Member
Joined: April 10, 2004
Posts: 2992
Location: Sunnyvale, CA
|
| Posted: Sat Feb 04, 2006 1:19 pm Post subject: |
|
|
| Air Sucker wrote: |
| Can you use OEM cooling flaps with this? |
The one pictured above from CB doesn't look like it has the holes for the screws to the flaps.

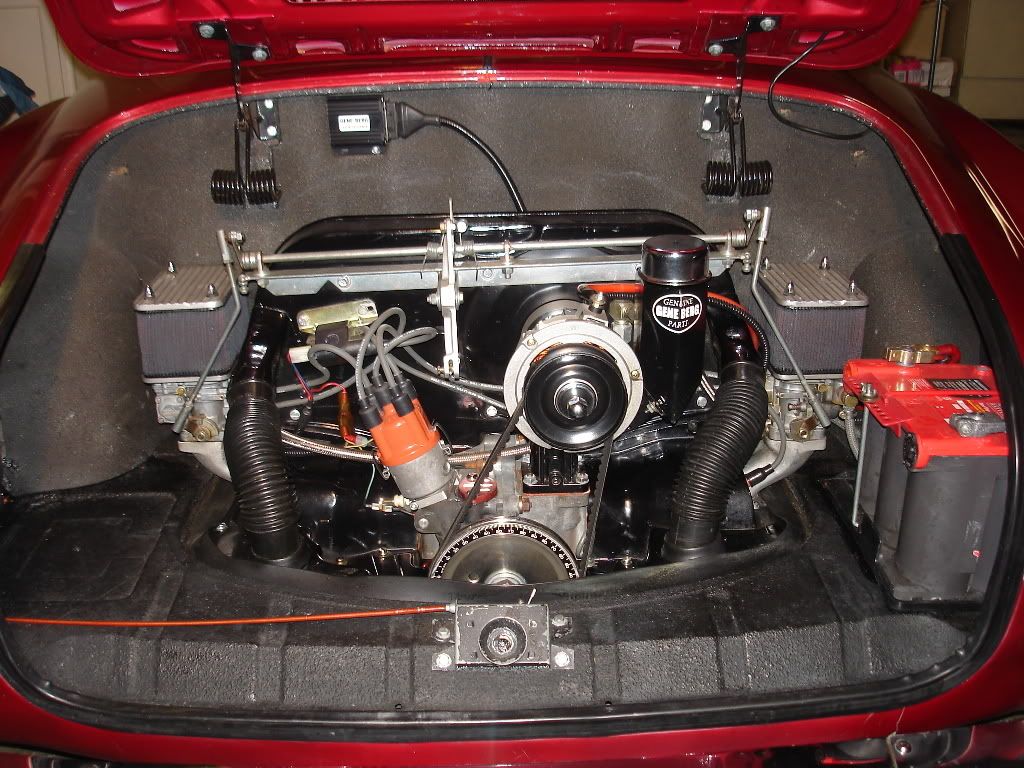

The "Low-Profile" (Puma) Doghouse Fanshroud w/ fresh air outlets that I have on my Ghia has provisions for the OEMs as well as the two other Puma shrouds I have up in the rafters. I am running thermostat and flaps on my engine.
I bought mine as a kit from SCS (Small Car Specialties - Anaheim, CA) back in 1985 and at that time CB Performance (Claude Buggies back then) too also sold them.
You can see on left of the fresh air hose is the screw for the flaps as well as under you can see a partial cutout of the cylinder tin where the flaps swivel.
_________________
Jim Kikuchi
Sunnyvale (near San Jose), CA
1964 Karmann Ghia coupe
V.V.W.C.A. - Golden Gate Chapter: http://www.ggcvvwca.org/
B.L.T.N. (Better Late Than Never) late model VW Club (San Jose/Santa Clara, CA): https://www.facebook.com/groups/bltnvw/
NorCal Aircooled Group (NAG) Facebook Goup: https://www.facebook.com/groups/NAGVW/ |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79249
Location: Sneaking up behind you
|
| Posted: Sat Feb 04, 2006 1:22 pm Post subject: |
|
|
Jim... what took you so long?
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Banzai KG
Samba Member
Joined: April 10, 2004
Posts: 2992
Location: Sunnyvale, CA
|
| Posted: Sat Feb 04, 2006 1:22 pm Post subject: |
|
|
| Air Sucker wrote: |
| Is that a hose attachment point on the back of the shroud where the oil cooler sits behind? |
Yes, that is an hose attachment. I used one of those paper cardboard type fresh air hose connect to that oil cooler outlet and route mine to exit under the engine.
_________________
Jim Kikuchi
Sunnyvale (near San Jose), CA
1964 Karmann Ghia coupe
V.V.W.C.A. - Golden Gate Chapter: http://www.ggcvvwca.org/
B.L.T.N. (Better Late Than Never) late model VW Club (San Jose/Santa Clara, CA): https://www.facebook.com/groups/bltnvw/
NorCal Aircooled Group (NAG) Facebook Goup: https://www.facebook.com/groups/NAGVW/ |
|
| Back to top |
|
|
Jake Raby
Samba Member
Joined: August 23, 2003
Posts: 7433
Location: Aircooled Heaven USA
|
| Posted: Sat Feb 04, 2006 2:24 pm Post subject: |
|
|
I did not test the shroud in question... At that time I could not find one.
_________________
Jake Raby
Raby Engine Development
www.rabyenginedevelopment.com
"I've never given anyone Hell, I just told them the truth and they thought it was Hell" |
|
| Back to top |
|
|
steel buggin
Samba Member
Joined: March 24, 2003
Posts: 415
Location: Arcadia,Ca
|
| Posted: Sat Feb 04, 2006 8:14 pm Post subject: |
|
|
I have tested it and it is the best factory fan shroud you can get other then the DTM I had one on my buddy street car which made 185HP and 173TQ at the real wheel's never had a over heating issue. The best part about the shroud is the 2" exhaust tube for the oil cooler plus the unit is one piece not two like the other oem shround's.
https://www.thesamba.com/vw/classifieds/pix/medium/546322.jpg |
|
| Back to top |
|
|
Steve Arndt
Samba Member
Joined: August 01, 2005
Posts: 1797
Location: Boise, Idaho
|
| Posted: Sun Feb 05, 2006 10:33 am Post subject: |
|
|
How did you fix the front tin where the hose from the cooler exits? Did you wels or pop rivit a piece of metal to seal around the hose? (stock rectangle exit, Puma round..)
Steve |
|
| Back to top |
|
|
Banzai KG
Samba Member
Joined: April 10, 2004
Posts: 2992
Location: Sunnyvale, CA
|
| Posted: Sun Feb 05, 2006 11:30 am Post subject: |
|
|
| Steve Arndt wrote: |
How did you fix the front tin where the hose from the cooler exits? Did you wels or pop rivit a piece of metal to seal around the hose? (stock rectangle exit, Puma round..)
Steve |
Steve, the front tin where the oil cooler exits also has the round hole in which as rubber hose is in conjunction between the two.
I can take a picture of one of the other Puma shroud and front tin that I have and post it here.
_________________
Jim Kikuchi
Sunnyvale (near San Jose), CA
1964 Karmann Ghia coupe
V.V.W.C.A. - Golden Gate Chapter: http://www.ggcvvwca.org/
B.L.T.N. (Better Late Than Never) late model VW Club (San Jose/Santa Clara, CA): https://www.facebook.com/groups/bltnvw/
NorCal Aircooled Group (NAG) Facebook Goup: https://www.facebook.com/groups/NAGVW/ |
|
| Back to top |
|
|
Steve Arndt
Samba Member
Joined: August 01, 2005
Posts: 1797
Location: Boise, Idaho
|
| Posted: Sun Feb 05, 2006 5:47 pm Post subject: |
|
|
| Routing the oil cooler outlet hose into the heater channel would be slick for easy winter heat. |
|
| Back to top |
|
|
Banzai KG
Samba Member
Joined: April 10, 2004
Posts: 2992
Location: Sunnyvale, CA
|
| Posted: Sun Feb 05, 2006 7:23 pm Post subject: |
|
|
Here are the pics of the Puma "Low-Profile" doghouse fanshrouds I retrieved from the rafters...

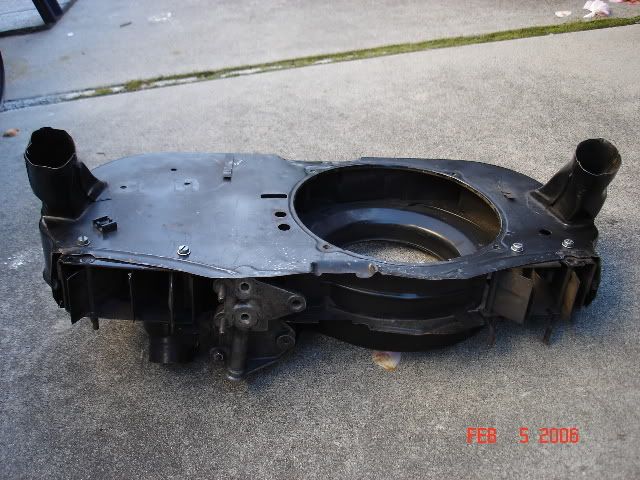

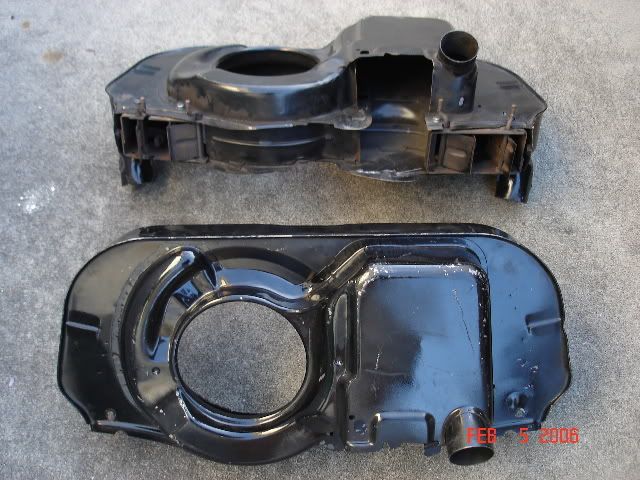

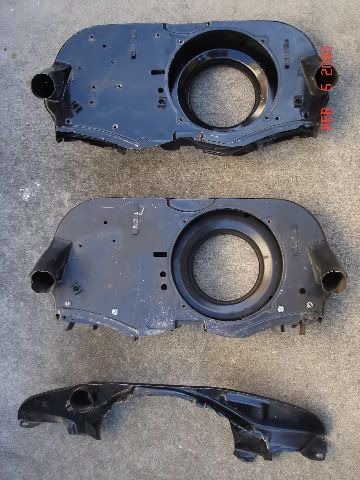

My set of Puma doghouse fanshrouds with the front tin

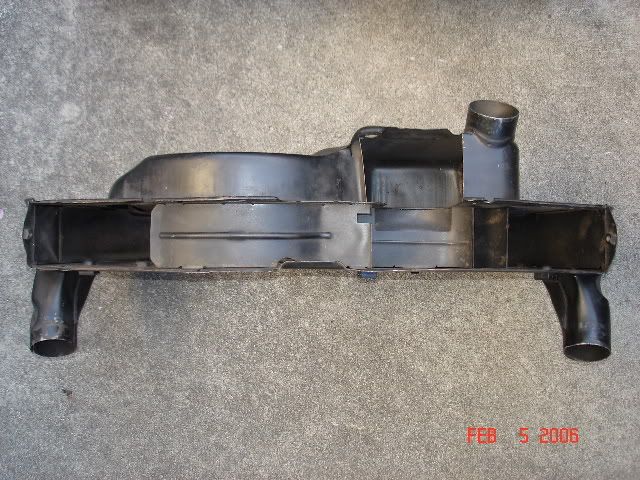

Bottom and rear view of the Puma shrouds

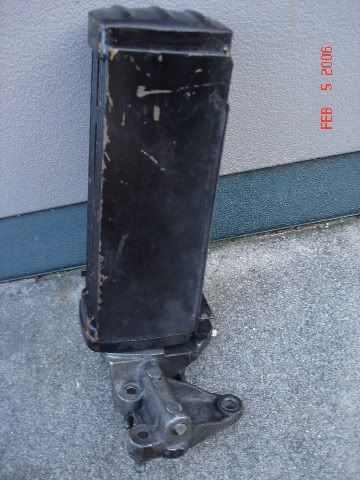

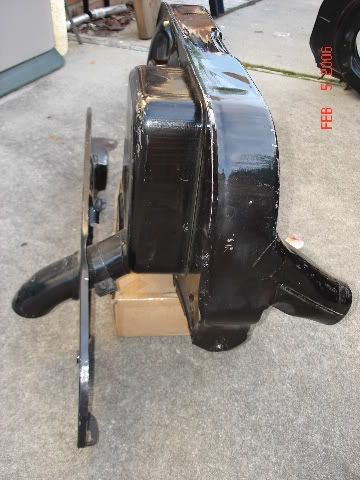

Bottom view with flaps and Brazilian oil cooler mount

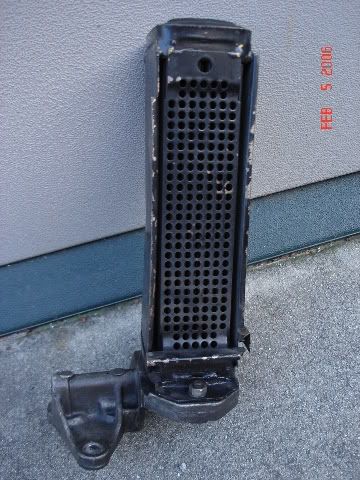

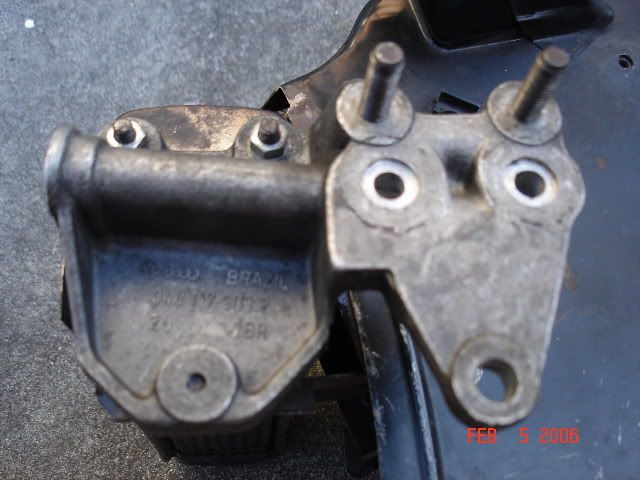

Brazilian doghouse oil cooler mount

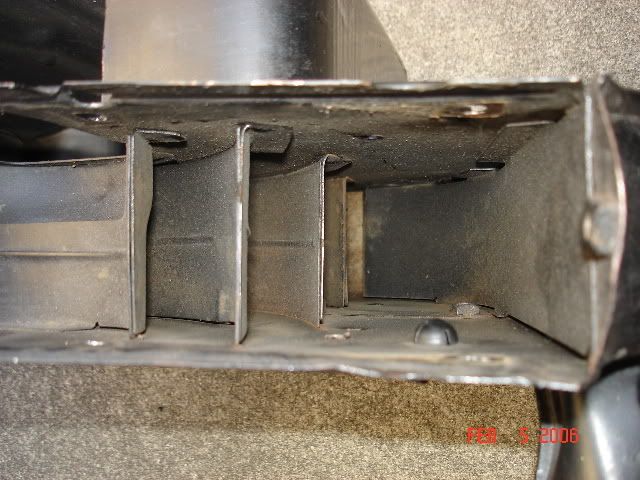

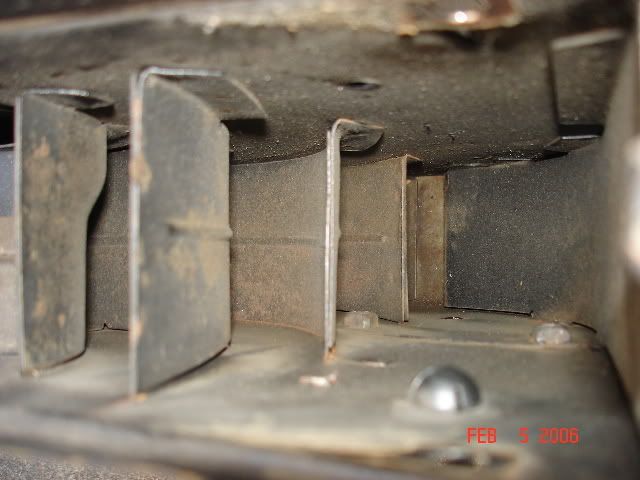

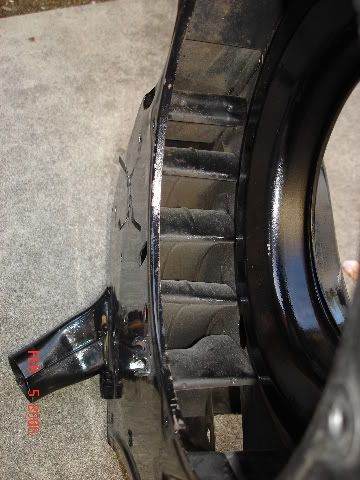

Internal directional airflow vanes

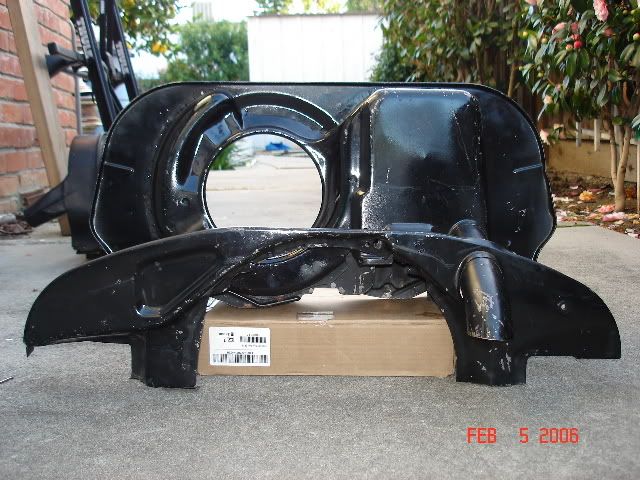

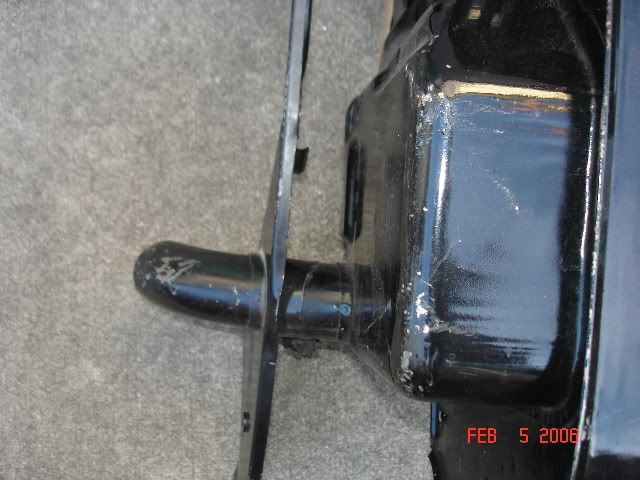

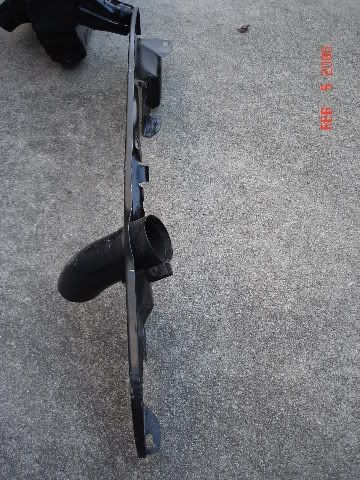

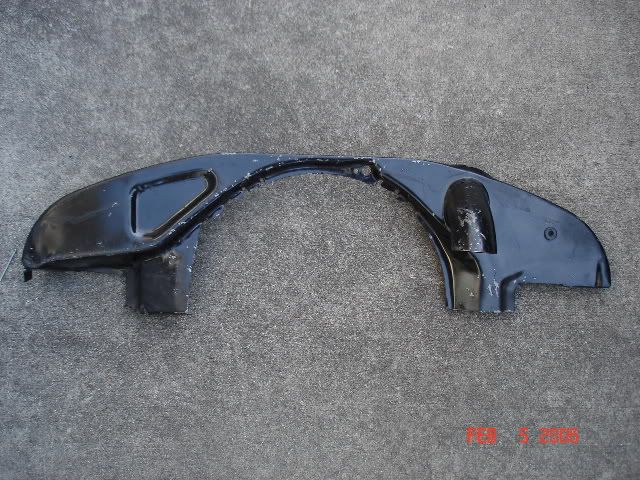

Front tin with round oil cooler outlet
_________________
Jim Kikuchi
Sunnyvale (near San Jose), CA
1964 Karmann Ghia coupe
V.V.W.C.A. - Golden Gate Chapter: http://www.ggcvvwca.org/
B.L.T.N. (Better Late Than Never) late model VW Club (San Jose/Santa Clara, CA): https://www.facebook.com/groups/bltnvw/
NorCal Aircooled Group (NAG) Facebook Goup: https://www.facebook.com/groups/NAGVW/
Last edited by Banzai KG on Sun Feb 05, 2006 7:26 pm; edited 1 time in total |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79249
Location: Sneaking up behind you
|
| Posted: Sun Feb 05, 2006 7:25 pm Post subject: |
|
|
Nice Jim... that's a sweet setup.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
67jason
Samba Member
Joined: August 28, 2005
Posts: 4741
Location: behind my back feet - Pittsburg CA
|
| Posted: Sun Feb 05, 2006 7:47 pm Post subject: |
|
|
very nice jimmy...when are you going to sell me one of them things?!  |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79249
Location: Sneaking up behind you
|
|
| Back to top |
|
|
67jason
Samba Member
Joined: August 28, 2005
Posts: 4741
Location: behind my back feet - Pittsburg CA
|
| Posted: Sun Feb 05, 2006 8:00 pm Post subject: |
|
|
thanks glenn, i know and im tempted, but i want heat when the 2110 is done. afterall it is my daily. |
|
