Seat Belt Mounting Locations?

fredy a · Samba Member Joined: January 17, 2005 Posts: 223

looking for he location of the outer mount
what to have lap belts and i have a new carpet inn Embarassed

any body have a photo
its a 65

thanks
_________________
sorry for the spelling

Insaniac · Posted: Sun Dec 13, 2009 1:22 pm Post subject:

Look underneath the car for the hole in the pan, and then you could just poke upward through the carpet. I believe seat belts were a dealer installed option, so if you've never had any you might not have the hole drilled.

fredy a · Samba Member Joined: January 17, 2005 Posts: 223

in finland was seat belts from early 60.
i have a look
is it not lokated on the heater canal ??
thanks man
_________________
sorry for the spelling

branston · Posted: Sun Dec 13, 2009 6:10 pm Post subject:

My '66 has them just in from the heater channels/inner rockers/sills and of course on both sides of the tunnel. Mine are are captive square nuts welded to a small plate on the underside of the car. When the rear pan half's were replaced my knowledgeable bodyman cut off the plates and welded them back in place on the new pan half's. So if your pans have been replaced then they may not have been saved. Photos here:

Image may have been reduced in size. Click image to view fullscreen.

My replacement lap seat belts came from Wolfsburgwest and they included all the mounting hardware and instructions to drill holes through the floor pan and fit the supplied 2"/5cm diameter washers inside and outside the floorpan to reinforce the seat belt fixing point for car that don't have the welded nut on the floor pans. I have their dimensions in .pdf if you want them emailed to you. I can get you more photos/dimensions if you need them

fredy a · Samba Member Joined: January 17, 2005 Posts: 223

thanks man
_________________
sorry for the spelling

branston · Posted: Mon Dec 14, 2009 7:00 am Post subject:

Hi Fredy a,

did you find the holes or do you need dimensions to drill them yourself?
let me know and I'll post here if necessary

fredy a · Samba Member Joined: January 17, 2005 Posts: 223

gasseous · Posted: Tue Dec 15, 2009 6:16 am Post subject:

Branston,

I too am getting ready to install some seat belts in our 65.... would you please send me a copy of that pdf? ([email protected])

Thank you,
_________________
Gasseous
You will never win a horserace by yelling Whoa!!

branston · Posted: Tue Dec 15, 2009 7:20 pm Post subject:

Sure can
You got mail

tb03830 · Posted: Thu Dec 17, 2009 1:45 pm Post subject:

Hey, I just put belts in my 64 vert and I want to put lap belts (x3) in the rear for safety. Is there a specific location to mount the belts. I see no wholes or points to connect to?
_________________
"Sic Vic Pacem, Para bellum - Pray for peace, prepare for war."

1964 Convertible Bug - 1600cc SP engine with a stock H30/31 Carb and SVDA Distributor - Swing Arm Highway Flyer Tranny, Gene Berg's Temperature Dipstick, 2.5" drop spindles, 2" narrowed adjustable front end. Chromed OEM fan tower.

branston · Posted: Thu Dec 17, 2009 3:26 pm Post subject:

There are only mounts for 2 seat belts in the back AFAIK. see my post here for the positions in my '66.
http://www.1966vwbeetle.com/Forum/viewtopic.php?t=800

Not sure if earlier cars had the 3 point mounts.

79SuperVert · Posted: Thu Dec 17, 2009 4:11 pm Post subject:

I wondered a lot about the number and placement of seat belt anchor locations in my very original 62, and looked at the owner's manuals and even at my Bentley. I've come to the conclusion that 62's only had two-point mounts front and back, and only for shoulder belts, not for lap belts. If you wanted lap belts in a '62 you (or the dealer) had to drill a third hole in either the sill or the pan (with some suitable reinforcement) for the outer lap belt mount.

Obviously shoulder belts alone were not safe, but back then standards were not yet in force requiring lap belts in all cars and all the science was not yet in confirming that shoulder belts alone were dangerous. Looking at pics and sales literature of other brands I remember seeing that even super-safe Volvos at some early point offered shoulder-belts-only for a short time.
_________________
Central Jersey VW Society

Wanted: Art Collins VW (Savannah, Georgia) items - license plate surrounds and other items. Also ivory "AM", "FM" and "SW" buttons for a US Blaupunkt Frankfurt.

glutamodo · Posted: Thu Dec 17, 2009 4:53 pm Post subject:

I was in the Car of the Century book looking at the 1962 color charts for a different thread, and found it interesting to note that it shows Silver beige for the upper seat belt mount hole covers/escutcheons and Anthracite for the lower ones. Well, my 62, which was pretty original when I got the car, does have the lower mounts, and they were capped off with Anthracite colored plugs/escutcheons.

79SuperVert · Posted: Thu Dec 17, 2009 5:27 pm Post subject:

By lower mounts do you mean at the bottom of the B pillar? Or on the transmission tunnel? Because mine doesn't have them at the bottom of the B pillar, and neither the Bentley nor the original owners manual refers to there being any there.
_________________
Central Jersey VW Society

Wanted: Art Collins VW (Savannah, Georgia) items - license plate surrounds and other items. Also ivory "AM", "FM" and "SW" buttons for a US Blaupunkt Frankfurt.

glutamodo · Posted: Thu Dec 17, 2009 5:36 pm Post subject:

It just says "LOW COVER& ESCUTCHEONS ON BELT MOUNTS". I know where you're going with that, and I think you are right - they mean the rear seat belts. Still the mount plates in my 62 look very well done, I'm sure it was some kind of dealer add-on plus they used the anthracite plugs and trim to match the carpet. Why they put them on, I don't know becuase they apparantly had never been removed before I took them out, my belts were mounted like you say, as shown in the owner's manual for the shoulder.

You know, I just had a thought, since this was an add-on, I'd like to see a Technical Service Bulletin regarding those lower mounts. So I dug through the ones in the Techincal archives here, and wouldn't you know, i found it!! Dang why didn't I think of that before, as we've talked out this more than once in the past! Check out the 1962 Type 1/3 Supplemant here:

http://www.thesamba.com/vw/archives/manuals/techbulletins/z14.php

-Andy

79SuperVert · Posted: Thu Dec 17, 2009 5:49 pm Post subject:

Wow! That's it. That's how mine is mounted. Excellent find! Should be a sticky.

And the apparent term of the time for the two-point belts was "diagonal".
_________________
Central Jersey VW Society

Wanted: Art Collins VW (Savannah, Georgia) items - license plate surrounds and other items. Also ivory "AM", "FM" and "SW" buttons for a US Blaupunkt Frankfurt.

xilly · Samba Member Joined: May 19, 2005 Posts: 171 Location: USA

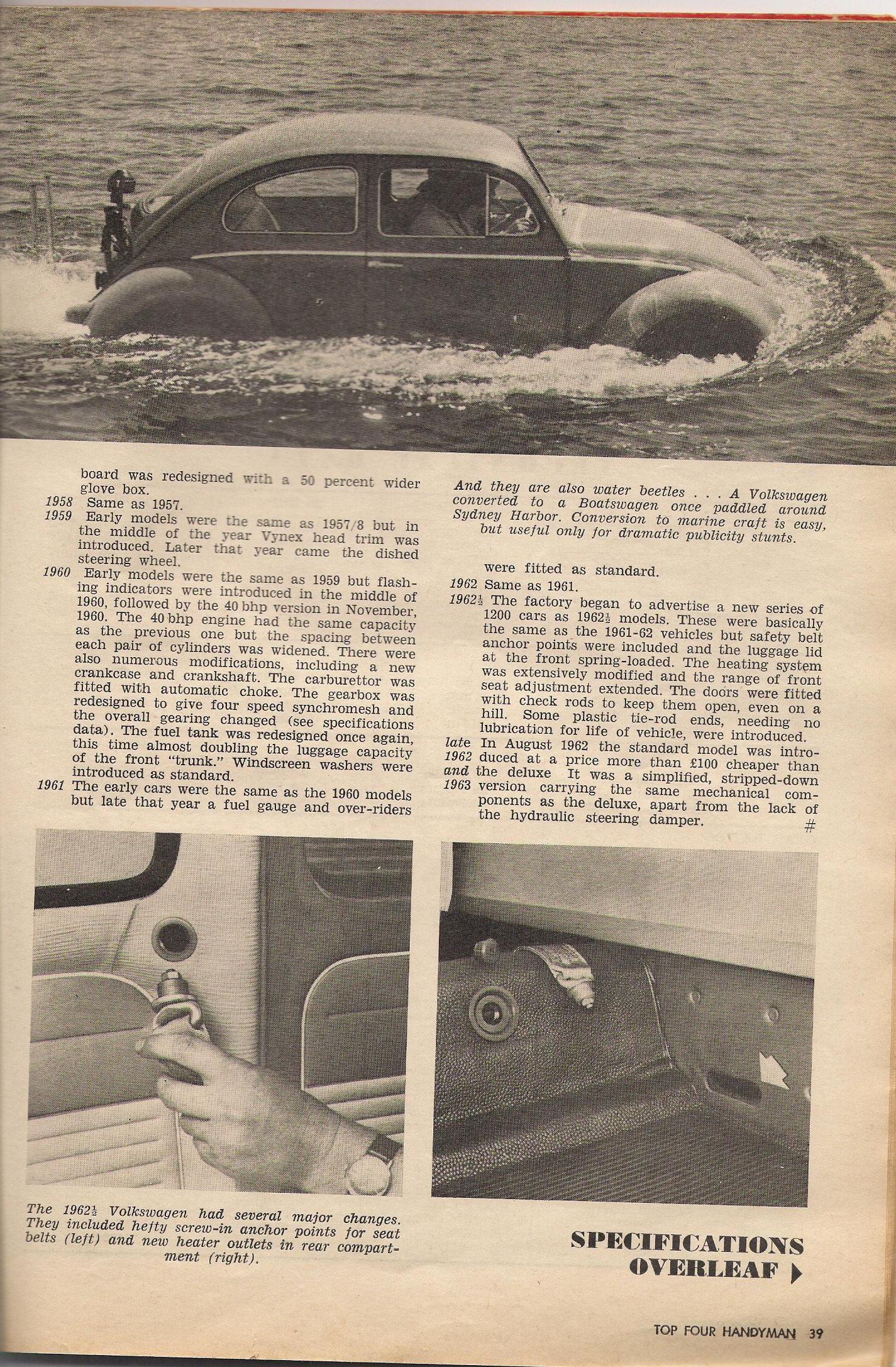

My Friend guillaume send me this article about the safety anchor points that was included in mid 62.

My 65 has this kind of anchors.

Very Hi res picture, you can zoom to read the article

William
www.oldspeed.net

oldvolkz · Posted: Thu Apr 07, 2011 11:34 pm Post subject:

glutamodo · Posted: Fri Apr 08, 2011 2:39 am Post subject:

M24 if I remember right. Sounds like you need these:

http://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=ZVW20PLUG

tb03830 · Posted: Fri Apr 08, 2011 8:34 am Post subject:
