 Posted: Sun Apr 30, 2006 1:03 pm Post subject: Dec. Zwitter floor pan / front seat question... |
 |
|

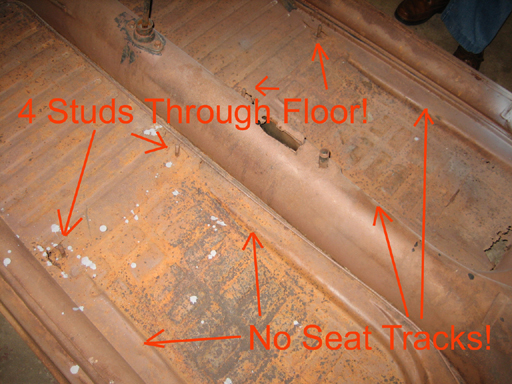

I own a Dec. (1952) Zwitter. This is what my floors look like. There are 4 studs through the floor and no seat tracks. Is this correct?
Close-up on the studs on the driver side...
I don't have any seats and am wondering what seats I need to be looking for to match up with what looks to be the original floor pans? If this is not an original floor pan / seat set-up I am going to replace the pan halves...any recommendations?
_________________
I do evil things to expensive carz:
www.carolinarodshop.com |
|
| Back to top |
|
 |
sconord
Samba Member
Joined: February 22, 2005
Posts: 704
Location: Dallas Texas
|
| Posted: Sun Apr 30, 2006 6:11 pm Post subject: |
|
|
Yes, kind of. They are ment for a wing nut style seat mount.
There is a wing nut which screws into it holding down the mount.
It is an early type seat mount BEFORE the tracks were invented
http://www.thesamba.com/vw/classifieds/detail.php?id=223094
_________________
| beatleeater wrote: |
| you're a freaking genius |
|
|
| Back to top |
|
|
coolairX2
Samba Member
Joined: September 08, 2003
Posts: 485
|
| Posted: Sun Apr 30, 2006 7:26 pm Post subject: Pan, Pan |
|
|
That's not totally correct, while its true standard cars pre-date Deluxes 49+ the studs & wing nuts where for standard cars and were produced in parallel for many years. Deluxes had seat tracks if not from the beginning then very early on.
If your car is a standard then its correct. if somehow the standard pans where put in a your Deluxe then obviously it's not right.
I certainly wouldn't take out German standard pans and replace them repro, just weld some tracks in. I suspect your car is a standard and has the correct pans.
-Craig |
|
| Back to top |
|
|
vw insanity
Samba Member
Joined: April 08, 2005
Posts: 6
|
| Posted: Sun Apr 30, 2006 10:47 pm Post subject: seat |
|
|

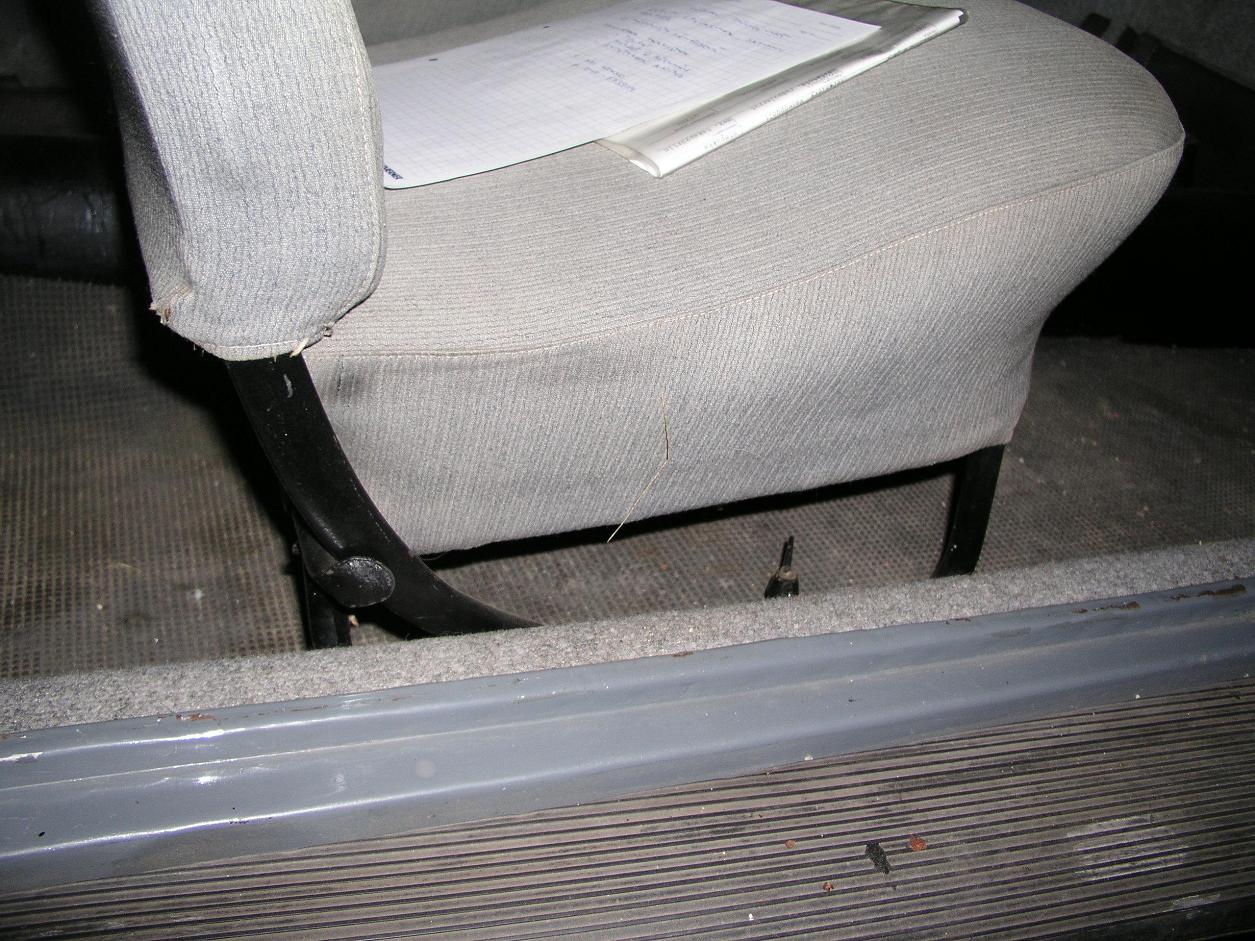

| I will take some pics and show you what they look like./ I purchased some standard seats and needed deluxe seats instead. |
|
| Back to top |
|
|
sconord
Samba Member
Joined: February 22, 2005
Posts: 704
Location: Dallas Texas
|
| Posted: Mon May 01, 2006 7:27 am Post subject: |
|
|
I have a 51 standard, so I thought that they were all like that.
_________________
| beatleeater wrote: |
| you're a freaking genius |
|
|
| Back to top |
|
|
p4ch00
Samba Member
Joined: July 29, 2004
Posts: 53
Location: r00t c3l4r, ch41n3d t0 b01l3r
|
| Posted: Mon May 01, 2006 7:54 am Post subject: |
|
|
Thanx for all the help so far...
Are the standard seats adjustable at all?
Once you wing nut them to the floor is that it?
One position?
What keeps the seat from tilting forward durring a hard brake?
From every indication my car looks to be a deluxe car...
What signs am I looking for to tell me standard vs. deluxe when this is pretty much all I have?
_________________
I do evil things to expensive carz:
www.carolinarodshop.com |
|
| Back to top |
|
|
Wiggy
Samba Member
Joined: April 17, 2003
Posts: 6606
Location: Downingtown, PA
|
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9405
Location: Northwood, NH USA
|
| Posted: Mon May 01, 2006 10:11 am Post subject: |
|
|
A std sunroof? Be interested to know.
Also, those studs look like they may have been welded in after the fact. Can you get a pic from underneath???
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
banana split
Samba Member
Joined: January 22, 2002
Posts: 1120
Location: Beautiful British Columbia Canada
|
| Posted: Mon May 01, 2006 12:09 pm Post subject: |
|
|
The easiest way to determine if your car is a standard or a deluxe is to see what kind of headliner it takes. If the body has the little crimping "teeth" for holding the headliner material in place going down the door pillar area, around the rear window etc, then you know it's a deluxe. Standards had a very small headliner that covered the roof area only. All the surounding areas were painted the body color of the car.
Cable brakes would also be a dead giveaway that it's a standard. Here in Canada, all of our standards still came with the exterior chrome body moldings unlike the European standards. |
|
| Back to top |
|
|
bill may
Samba Member
Joined: August 27, 2003
Posts: 14160
Location: san diego,ca
|
|
| Back to top |
|
|
KantDriveFast
Samba Member
Joined: January 08, 2005
Posts: 4293
Location: Caldwell, Id.
|
| Posted: Tue May 02, 2006 7:17 pm Post subject: |
|
|
| Also verify that pan and body VINs match, could be a standard pan/deluxe body? |
|
| Back to top |
|
|
p4ch00
Samba Member
Joined: July 29, 2004
Posts: 53
Location: r00t c3l4r, ch41n3d t0 b01l3r
|
| Posted: Wed May 03, 2006 5:23 am Post subject: |
|
|
Are the standard seats adjustable at all?
Once you wing nut them to the floor is that it?
One position?
What keeps the seat from tilting forward durring a hard brake?
_________________
I do evil things to expensive carz:
www.carolinarodshop.com |
|
| Back to top |
|
|
Major Woody
Samba Enigma
Joined: December 04, 2002
Posts: 9016
Location: Portland, OR
|
| Posted: Wed May 03, 2006 9:02 am Post subject: |
|
|
| They can be slid back and forth, you just have to loosen the wingnut clamps in order to do it. More work, vs a single lever as in the deluxes. |
|
