Mechanical Turning Brake

glenf · Posted: Sun Apr 26, 2009 5:46 pm Post subject: Mechanical Turning Brake

Years ago (yes I'm an old fart) you could buy two brake handles that would mount on either side of the hand brake, which would, if pushing them individually, operate the parking brake on whichever wheel it was attached. I want one of these for my Baja. Does anyone know where I could find one (new or used) that would work like this? I don't want a $100 hydraulic job!

Glasser · Posted: Sun Apr 26, 2009 5:49 pm Post subject:

They are not as effective as it only uses one brake shoe, but they do work.

http://www.cip1.ca/ProductDetails.asp?ProductCode=C26%2D798%2D605
_________________
Brent
My build up http://www.thesamba.com/vw/forum/viewtopic.php?t=265364&postdays=0&postorder=asc&start=0
Project#2. Neighbors build up. http://www.thesamba.com/vw/forum/viewtopic.php?t=327008

glenf · Posted: Sun Apr 26, 2009 6:28 pm Post subject:

bdkw1 · Posted: Mon Apr 27, 2009 10:04 am Post subject:

We had a similar set-up on our buggy when I was a kid. The only difference was you pulled up on the levers. The E-brake was still there and functional also. I haven't been able to find one pre-made, but looking at it, it doesn't seem that hard to fab up. After I get My current project mobile I'm going to tackle this.

Since I have giant bus drums on My Manx, I think they will work just fine.

dustymojave · Posted: Mon Apr 27, 2009 1:04 pm Post subject:

Here is a link to basically the same subject on another board:
http://www.shoptalkforums.com/viewtopic.php?p=940382#940382

Pay attention to the discussion of how the brakes work as well as the manual setups on Page 3.
_________________
Richard
Offroading VW based cars since 1965
Tech Inspection 1963 - 2012 SCCA/SCORE/HDRA/MORE/MDR +
Retired from building Bajas, Fiberglass Buggies and Rails in the Mojave Desert. Also Sprints & Midgets, Dry Lakes, Road Race cars. All types New and Vintage
SoCalBajas Member
Kicked Cancer's A$$...1st and 2nd round...Fight ain't over yet.

GA_Boy · Posted: Mon Apr 27, 2009 2:05 pm Post subject:

[quote="Glasser"]They are not as effective as it only uses one brake shoe, but they do work.

Actually on a stock system when you pull the E brake cable you actuate both shoes on that wheel albeit not nearly the force applied by hydraulics.
Where most designs loose mechanical leverage is by draging the cable across the stock e brake cam/fulcrum whereas the dual handles don't do this. There is no need for a center handle on the STF page 3 old one. Note the end cap lockouts on each handle. Flip them off and you have a functional e brake per rear wheel.
Marvin

BajaCowboy · Posted: Mon Apr 27, 2009 2:46 pm Post subject:

Here's what I saw on a local fellow off-roaders baja the other week. No pictures, sorry, but imagine if you will a picture... (please stop singing "when the doves cry" by prince...)
The stock e-brake setup. But in place of the rear pin that holds the actual brake lever in place, use a bolt. On either side of that bolt (the outer most edges) you put anoter lever that angles forward. On each opposing lever there's a tab that the e-brake cable is bolted or threaded into. On the main e-brake lever there will be a plate that catches both "steering brakes" as it is pulled up. If I can work out a drawing I'll posted it unless someone else beats me to it.
This in actually something I'm planning on doing as soon as i can get around to it. I miss having an e-brake, and from watching a buddie that has steering brakes, I'd really like to get some of that world also.

*EDIT*
Ok, I looked at the STF page and saw the pictures. Basically take the picture below and place it on either side of the original handle.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Chuck
Ashland, Oregon

glenf · Posted: Mon Apr 27, 2009 3:05 pm Post subject:

OK Chuck - So when are you going into production??

glenf · Posted: Mon Apr 27, 2009 3:08 pm Post subject:

Lotrat · Posted: Mon Apr 27, 2009 3:15 pm Post subject:

damquick1 · Posted: Mon Apr 27, 2009 4:20 pm Post subject:

HA HA HA ....
I have a set of those in my garage.....I kept them from 1985!
I had to trim the ends down and redrill them for the set-up to work on my 67.

joescoolcustoms · Posted: Mon Apr 27, 2009 4:42 pm Post subject:

I have the exact same handels and I am planning on using them on my '67 Baja build.

I have no intention of sliding my Baja sideways, just use it to give enough resistance to make it out of a stuck position with a swing axle.
_________________
Bad News Racing 2018 NORRA 1000 3rd in Class
Best Day Ever Racing 2022 NORRA 1000 2nd in Class and first All Female team to complete the race

Everyone is gifted. Some just do not open the package.

Looks like it was painted with a live chicken,polished with a brick and buffed with a pine cone

fusername · Posted: Mon Apr 27, 2009 4:45 pm Post subject:

so does that go around the stock e-brake handle so you have a left right all setup, or replace the handle and just leave you with a turning brake? if the former, I'ma build meself two.
_________________
[email protected]
Need something custom bent up? shoot me an email, maybe we can make it work!

FORSALE: Thrust cut T4 and 1.9 main bearings

glenf · Posted: Mon Apr 27, 2009 4:54 pm Post subject:

You've got it, fusername! One lever goes on each side of the existing hand brake (and housing) then the small ring catches the E-Brake cable on each side after it goes throught the hand brake handle. You can either pull up on the hand brake as you normally would, or just pull up on the left or right to brake that rear wheel by itself! Isn't that clever?? Wink

2gr8dgs · Posted: Mon Apr 27, 2009 5:13 pm Post subject:

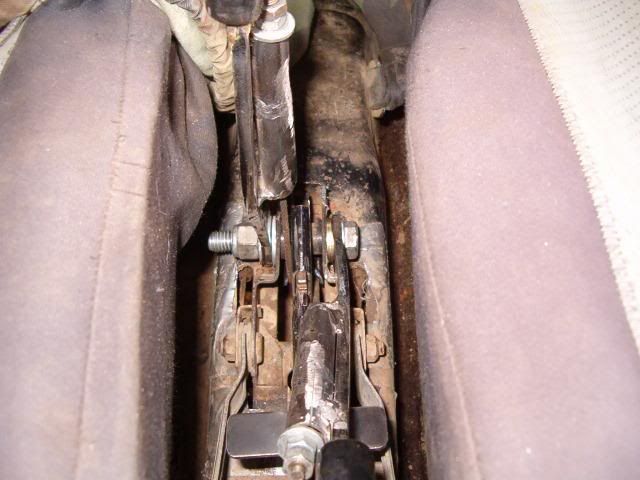

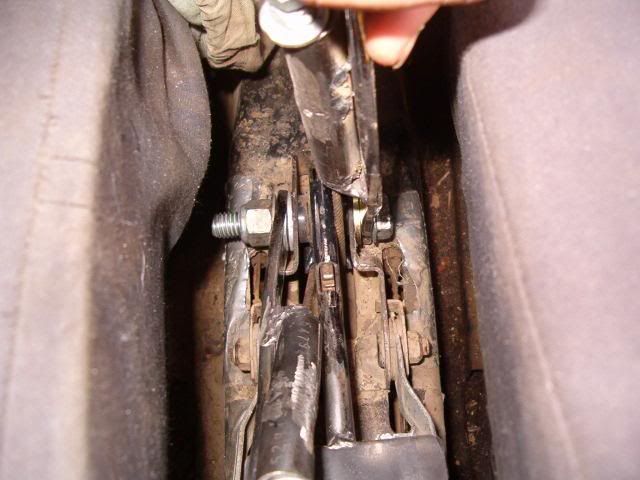

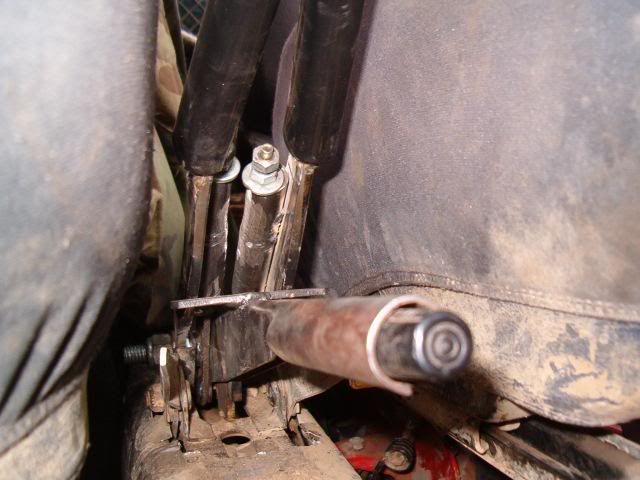

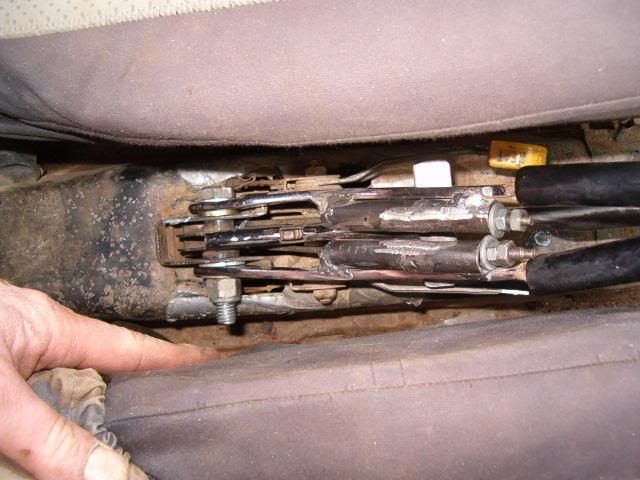

I had a pair like that in the baja, as i recall, i modified them a bit to fit better between the seats. hope these pics are of help.

Jason C · Posted: Mon Apr 27, 2009 5:36 pm Post subject:

Here's one that I haven't gotten around to putting on YET. Only for reference, not for sale. Wink

_________________
Throw me a bone here. All I wanted were
sharks with friggen laser beams attached to their heads.

64 Bug

Iowavw_217 · Posted: Mon Apr 27, 2009 6:10 pm Post subject:

I have the exact same setup as Jason C. Any offers? haha

glenf · Posted: Mon Apr 27, 2009 8:02 pm Post subject:

towd · Samba Member Joined: June 20, 2005 Posts: 2458

This is funny. I still have a set .... often guys that see them . ask what the hell are those.

In the day when making 5 bucks an hr was big money, these things cost $19.95

shok · Posted: Tue Apr 28, 2009 2:55 pm Post subject:

i made my own using handles from a bolt cutter Smile

_________________
1974 Baja Bug Hackjob
1968 Baja Bug

1971 Squareback parts car
