 Posted: Fri Jun 13, 2008 10:28 pm Post subject: Narrowed Beam- Major understeer...??? |
 |
|
I have a 6" KCW beam uner my fastback and I have real scary understeer. The tires are 135's. I have the "no shock" bounce/stiffness and the bumpsteer from the weird angle of the tierods, this I expected. But the understeer is freeky. When I turn, the outside tire (in relation to the turn) scrubs.
Is this normal for the narrowed beam-small tire setup. Does the Akerman effect really make that big a difference. I plan on re-doing the beam to make room for shocks, and flipping the tierods to reduce the bumpsteer.
Any thoughts? |
|
| Back to top |
|
 |
JSMskater
Samba Grease Gorilla
Joined: February 01, 2006
Posts: 5362
Location: Murrieta California
|
| Posted: Fri Jun 13, 2008 10:40 pm Post subject: |
|
|
go back to stock.
_________________
71 Squareback-FI -- 73 Bay (subaru powered)
TOOB Member #3
I make D-jet FI connectors |
|
| Back to top |
|
|
Tram
Samba Socialist
Joined: May 02, 2003
Posts: 23034
Location: Northwest of Normal
|
| Posted: Fri Jun 13, 2008 11:14 pm Post subject: Re: Narrowed Beam- Major understeer...??? |
|
|
| volksmike wrote: |
I have a 6" KCW beam uner my fastback and I have real scary understeer. The tires are 135's. I have the "no shock" bounce/stiffness and the bumpsteer from the weird angle of the tierods, this I expected. But the understeer is freeky. When I turn, the outside tire (in relation to the turn) scrubs.
Is this normal for the narrowed beam-small tire setup. Does the Akerman effect really make that big a difference. I plan on re-doing the beam to make room for shocks, and flipping the tierods to reduce the bumpsteer.
Any thoughts? |
Either it's a characteristic of the narrowed radius, or the caster got seriously screwed up when the beam was installed. I haven't seen people complaining of this on other narrowed beams, so I'm thinking maybe you have another problem.
You can lower a stock T3 beam very easily.
_________________
Немає виправдання для війни! Я з Україною.
| Bryan67 wrote: |
| Just my hands. And a little lube. No tools. |
Those who can- do.
Those who can't? Subaru. |
|
| Back to top |
|
|
Ghoti
Samba Member
Joined: May 30, 2007
Posts: 760
Location: Rollin' in 541
|
| Posted: Sat Jun 14, 2008 12:03 am Post subject: Re: Narrowed Beam- Major understeer...??? |
|
|
| Tram wrote: |
| volksmike wrote: |
I have a 6" KCW beam uner my fastback and I have real scary understeer. The tires are 135's. I have the "no shock" bounce/stiffness and the bumpsteer from the weird angle of the tierods, this I expected. But the understeer is freeky. When I turn, the outside tire (in relation to the turn) scrubs.
Is this normal for the narrowed beam-small tire setup. Does the Akerman effect really make that big a difference. I plan on re-doing the beam to make room for shocks, and flipping the tierods to reduce the bumpsteer.
Any thoughts? |
Either it's a characteristic of the narrowed radius, or the caster got seriously screwed up when the beam was installed. I haven't seen people complaining of this on other narrowed beams, so I'm thinking maybe you have another problem.
You can lower a stock T3 beam very easily. |
WHAT???  The VW purist of purists...
_________________
OH SNAP! |
|
| Back to top |
|
|
Slowlow
Samba Member
Joined: March 17, 2004
Posts: 4121
Location: Northeast Tennessee
|
| Posted: Sat Jun 14, 2008 12:22 am Post subject: |
|
|
You would most likely get better responce in a beetle forum, where people have more experience with narrowed beams.
Sounds like some sort of alignment issue to me.... a 6" beam shouldnt have that extreme of an Akerman angle.
Flipped tie-rods are a must to cancel out the bumpsteer.
_________________
• Metal Fab & Quality Suspensions, Type I-II-III. Since 2004 • |
|
| Back to top |
|
|
Tram
Samba Socialist
Joined: May 02, 2003
Posts: 23034
Location: Northwest of Normal
|
| Posted: Sat Jun 14, 2008 10:18 am Post subject: Re: Narrowed Beam- Major understeer...??? |
|
|
| Ghoti wrote: |
| Tram wrote: |
| volksmike wrote: |
I have a 6" KCW beam uner my fastback and I have real scary understeer. The tires are 135's. I have the "no shock" bounce/stiffness and the bumpsteer from the weird angle of the tierods, this I expected. But the understeer is freeky. When I turn, the outside tire (in relation to the turn) scrubs.
Is this normal for the narrowed beam-small tire setup. Does the Akerman effect really make that big a difference. I plan on re-doing the beam to make room for shocks, and flipping the tierods to reduce the bumpsteer.
Any thoughts? |
Either it's a characteristic of the narrowed radius, or the caster got seriously screwed up when the beam was installed. I haven't seen people complaining of this on other narrowed beams, so I'm thinking maybe you have another problem.
You can lower a stock T3 beam very easily. |
WHAT??? The VW purist of purists... |
I didn't say I approve of it. I said that original T3 beams could be lowered easily- which means that they can be brought back up to stock height easily, too.
Are we gonna make a T3 guy out of you, Ghoti?  See my sig line.
_________________
Немає виправдання для війни! Я з Україною.
| Bryan67 wrote: |
| Just my hands. And a little lube. No tools. |
Those who can- do.
Those who can't? Subaru. |
|
| Back to top |
|
|
Ghoti
Samba Member
Joined: May 30, 2007
Posts: 760
Location: Rollin' in 541
|
| Posted: Sat Jun 14, 2008 10:38 am Post subject: |
|
|
I dunno....really like my Bug.  I know you're not liking it about now.
I could add a T3 later! T will be needing a ride in a few years.
_________________
OH SNAP! |
|
| Back to top |
|
|
volksmike
Samba Member
Joined: May 17, 2002
Posts: 64
Location: Macedonia SC
|
| Posted: Sat Jun 14, 2008 11:16 am Post subject: |
|
|
Beam was in there when I got the car...
I'm trying to fix PO F-up.
The bottom of the frame head was cut away for ground clearence and so a stock beam won't go back in safely.
The way it was when I got it had the T1 beam held in place with the worn out rubber grommets and clamps from the stock set-up. The WHOLE beam flopped around on the frame head, I fixed that by welding the clamps to the beam and bolting the beam straight to the frame head. Aside from welding on a new frame head, I'm sort of stuck with the T1.
There are VERY few T-3's around here so there aren't parts cars... |
|
| Back to top |
|
|
Tram
Samba Socialist
Joined: May 02, 2003
Posts: 23034
Location: Northwest of Normal
|
| Posted: Sat Jun 14, 2008 11:23 am Post subject: |
|
|
| volksmike wrote: |
Beam was in there when I got the car...
I'm trying to fix PO F-up.
The bottom of the frame head was cut away for ground clearence and so a stock beam won't go back in safely.
The way it was when I got it had the T1 beam held in place with the worn out rubber grommets and clamps from the stock set-up. The WHOLE beam flopped around on the frame head, I fixed that by welding the clamps to the beam and bolting the beam straight to the frame head. Aside from welding on a new frame head, I'm sort of stuck with the T1.
There are VERY few T-3's around here so there aren't parts cars... |
I can fix you up with a good straight frame head if you need one. I was thinking "bent frame head" from the get- go. Sounds like whoever installed that beam wasn't exactly dainty about it.
_________________
Немає виправдання для війни! Я з Україною.
| Bryan67 wrote: |
| Just my hands. And a little lube. No tools. |
Those who can- do.
Those who can't? Subaru. |
|
| Back to top |
|
|
crede999
Samba Member
Joined: January 22, 2006
Posts: 197
|
| Posted: Sat Jun 14, 2008 11:43 am Post subject: |
|
|

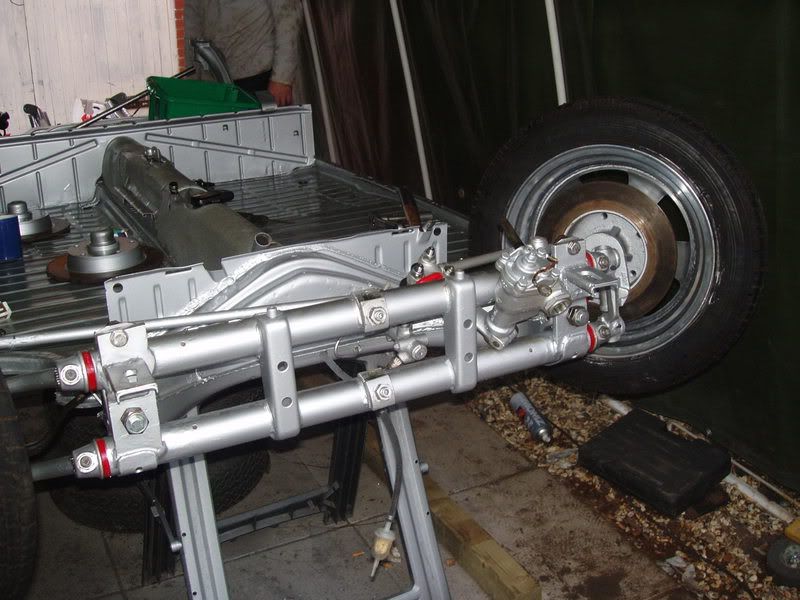

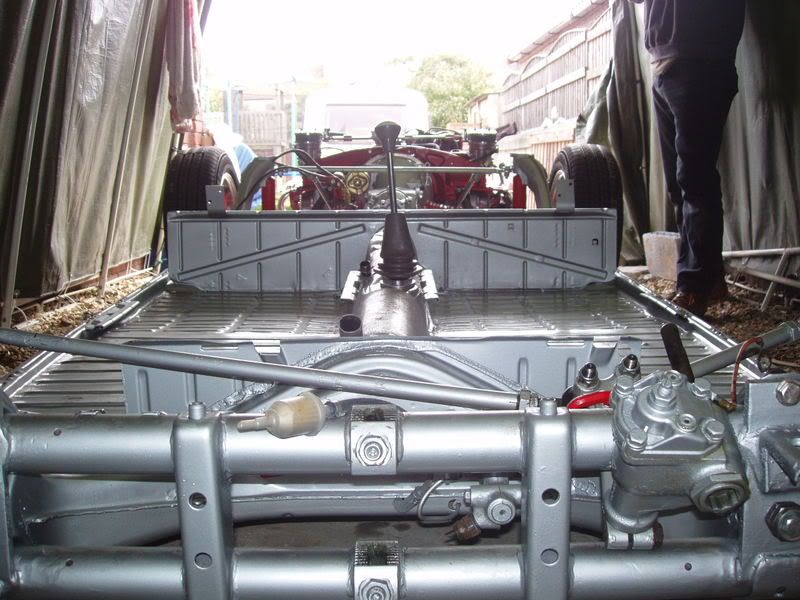

hi hope this helps heres some pics of my 6inch narrow beam ,it has drop spindels aswell , you maybe able to zoom in to see closer the set up i have , i did have rub issues til i fitted steering stops on th beam , i dont get understeer , and i have 125s on 4 inch wheels on the front, anyhow hope the pics help,
