| Author |
Message |
superflydisco
Samba Member
Joined: October 16, 2008
Posts: 7
Location: Ocean City, MD
|
 Posted: Sat Jan 31, 2015 6:29 am Post subject: Power Mirror glass removal |
 |
|
I had explained the process of removing the glass from it's backing on Vanagon.com but you can't put pix on there so here they are. I learned a little from the first one and applied that to my second attempt and it worked quite well. I actually got the glass off in one piece!! Starting with a corner, I wedged a small screwdriver in between the glass and the metal plate. Slowly working away from the corner in both directions I kept adding screwdrivers and tapping them in with a hammer up to the screwdriver handle. When I ran out of those, I started using wooden skewers to wedge into the largest opening and kept tapping them in as the glass slowly seperates along with a few squirts of Goo Gone to help he process I finally got the last 1/4 of glass to just pop off. Nice!!! I cleaned up the metal plates making sure I didn't lose the little retangle contacts (3) and glued them back into place. Now ready for the new glass mirror and then to get them wired and installed!! Oh, and whoever these mirrors came from must have been hearing a serious buzzing sound....LOL!!
|
|
| Back to top |
|
 |
coastdog
Samba Member
Joined: September 24, 2012
Posts: 93
|
| Posted: Sat Jan 31, 2015 7:32 am Post subject: |
|
|
Ha! that is very funny. Nice work on the mirrors. They look like they are in good shape except for the glass.
I got mine all working last winter. broken wires and some corrosion, and installed a new controller switch. They work perfectly now and the heat option for clearing them works great with the rear window defrost.
Post some pictures when the new glass is on.
Thanks |
|
| Back to top |
|
|
alaskadan
Samba Member
Joined: January 09, 2013
Posts: 1952
Location: anchor pt. alaska
|
| Posted: Sat Jan 31, 2015 9:20 am Post subject: |
|
|
Were the replacement mirrors convex? Where from. Do all power mirrors have heat. If my van is equipped with rear defrost is the wiring in place to just plug in power mirrors?
Nice work btw. Door shims work well too for popping glued mirrors off. |
|
| Back to top |
|
|
rmcd
Samba Member
Joined: October 29, 2010
Posts: 1350
Location: PNW - its a dry rain.
|
| Posted: Sat Jan 31, 2015 9:44 am Post subject: |
|
|
Thanks for posting. What is being shown in the close up picture? Is that something to be avoided with the shims during mirror removal?
Where to source replacement glass? Is there anything special about the glass?
_________________
VW LT40 build. Like a Vanagon but 30% larger in every direction and 40% slower even in metric.
https://www.thesamba.com/vw/forum/viewtopic.php?t=749359&highlight= |
|
| Back to top |
|
|
91syncro
Samba Member
Joined: May 29, 2006
Posts: 41
|
| Posted: Sat Jan 31, 2015 1:17 pm Post subject: |
|
|
| both of my power mirrors have now quit working. Ive been tempted to dig into them to see what is going on but haven't figured out how to get into them...yet. Can you explain how to get the glass and backing separated from the mirror (before removing the glass as you have shown here)? |
|
| Back to top |
|
|
16CVs
Samba Member
Joined: February 22, 2004
Posts: 4270
Location: Redwood City, California
|
| Posted: Sat Jan 31, 2015 1:49 pm Post subject: |
|
|
If you bought those mirrors from GW or VC they are designed to be an overlay. The heater will work as well as they did originally. If you look in my Gallery you will see where I froze one of them and hooked power to it and it worked like a dream.
Those mirror blanks are made from the finest German mirror and are totally distortion free.
I would not advise to remove the mirror from its backing as the plastic is flimsy and you can damage the heating unit. Once installed either way they are are a great low cost alternative to a complete plate.
Stacy
_________________
1987 Syncro Westfalia Triple knob (bastard)
1989 Syncro Tristar Triple knob "Swedish"
2013 Jetta Hybrid a true "Zwitter"
Samba member # 14980
Call anytime number 650 722 4914 .
Keep Your van running and upkept tastefully for the love of the hobby.
Don't let your van end up in an "abortions" thread. |
|
| Back to top |
|
|
T3 Pilot
Samba Member
Joined: January 10, 2011
Posts: 1509
Location: Deep South of the Great White North
|
| Posted: Sat Jan 31, 2015 2:24 pm Post subject: |
|
|
| 91syncro wrote: |
| both of my power mirrors have now quit working. Ive been tempted to dig into them to see what is going on but haven't figured out how to get into them...yet. Can you explain how to get the glass and backing separated from the mirror (before removing the glass as you have shown here)? |
Instructions on power mirror glass removal/replacement Bentley 66.3

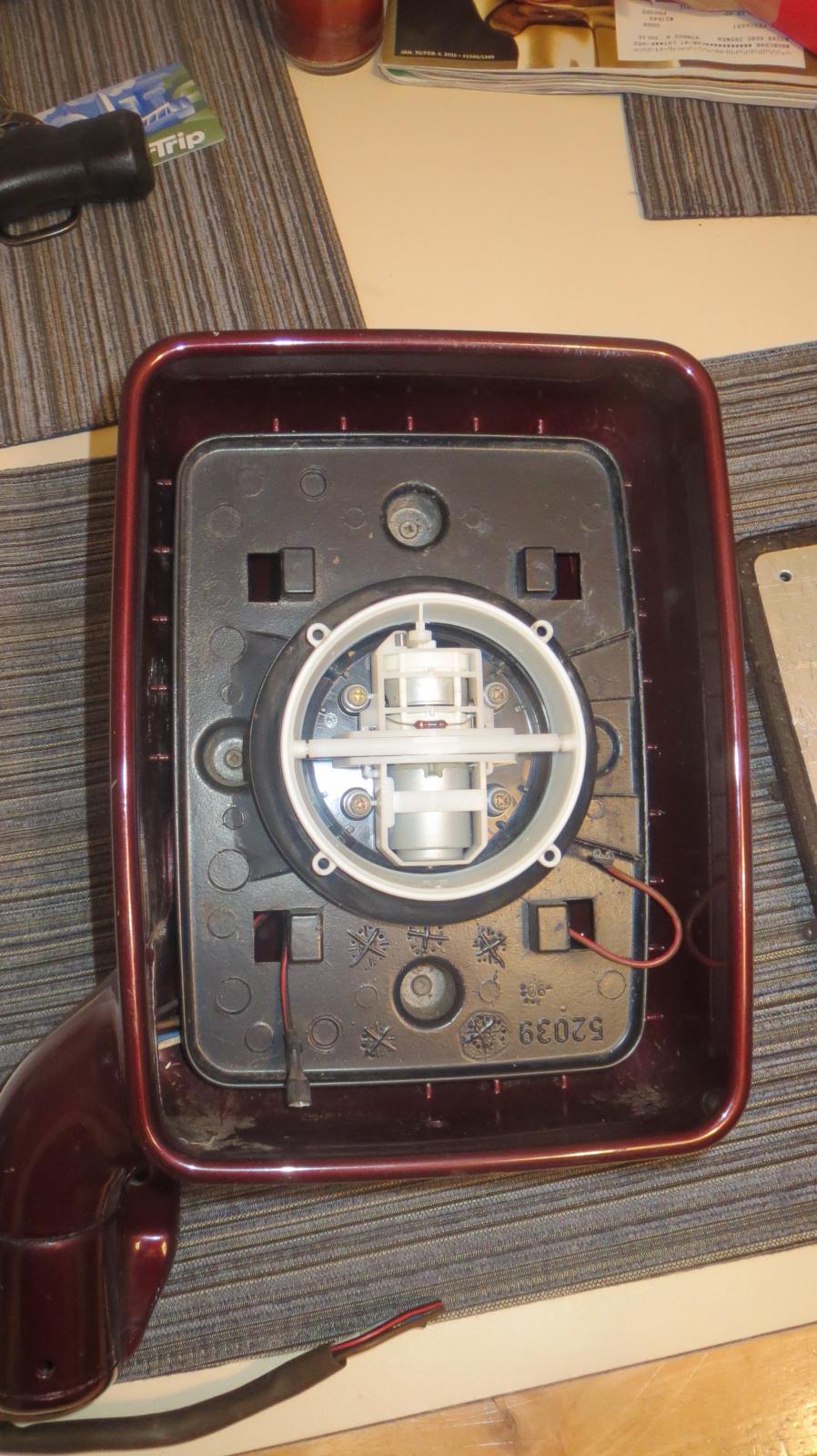

This illustrates how to remove the mirror plate from the electric motor assembly housed within the body of the mirror.
This would be the first step in the process that the OP is illustrating to separate the glass from the plate........
Removing the glass from the plate is painfully slow, but it does look better than a double layer of glass.
_________________
1988 Vanagon
The most important part in every vehicle is the nut behind the wheel...... |
|
| Back to top |
|
|
insyncro
Banned
Joined: March 07, 2002
Posts: 15086
Location: New York
|
| Posted: Sat Jan 31, 2015 2:29 pm Post subject: |
|
|
| Classic Parts has brand new heated mirror glass available again, big ticket item. |
|
| Back to top |
|
|
SCM
Samba Member
Joined: January 26, 2011
Posts: 3456
Location: Bozeman MT
|
| Posted: Sat Jan 31, 2015 3:13 pm Post subject: |
|
|
To repeat AK Dan's question, do all power mirrors on rear defrost equiped vans have heat?
_________________
'91 Westfalia GL Automatic (GTA "Turbo" Rebuild w/Peloquin) and 2.3L GoWesty Engine |
|
| Back to top |
|
|
16CVs
Samba Member
Joined: February 22, 2004
Posts: 4270
Location: Redwood City, California
|
| Posted: Sat Jan 31, 2015 3:26 pm Post subject: |
|
|
Yes all power mirrors have heating elements in them. They are powered up when you turn your rear defrost switch on.
As most vans that have Power Mirrors on them , most people do not have them hooked up.
If memory serves me it is a green set of wires. You could grab the wires and just hook them up to a switch.
Stacy
_________________
1987 Syncro Westfalia Triple knob (bastard)
1989 Syncro Tristar Triple knob "Swedish"
2013 Jetta Hybrid a true "Zwitter"
Samba member # 14980
Call anytime number 650 722 4914 .
Keep Your van running and upkept tastefully for the love of the hobby.
Don't let your van end up in an "abortions" thread. |
|
| Back to top |
|
|
Paulbeard
Samba Member
Joined: July 10, 2015
Posts: 2611
Location: Seattle
|
| Posted: Thu Aug 27, 2015 11:26 am Post subject: Re: Power Mirror glass removal |
|
|
What did you end up using for glass? I just removed a shattered mirror (I guessed Goo-Gone would work but a. I didn't have any and b. it wasn't salvageable, so a chisel and gloved fingers were fine). I didn't want to stick a new pane over a cracked one: it was irk me everytime I looked at it so I want to find a replacement.
_________________
Currently -> Frida: 87 Tizian Red (mostly) Vanagon GL Westfalia w/ 2.0L ABA conversion
Formerly -> Steward of a 73 Super Beetle (Beater) and 67 Beetle 1300 (Little Max) both names by POs
— dhaavers |
|
