 Posted: Thu Feb 15, 2007 4:46 pm Post subject: Match porting the intake gasket |
 |
|
What's the best way to match port the intake manifold gasket?
I bolted the gasket to the manifold and used a sanding drum on a dremel until I hit metal.
Is there a better way?
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי
Last edited by Glenn on Thu Feb 15, 2007 5:18 pm; edited 1 time in total |
|
| Back to top |
|
 |
cal63look
Samba Member
Joined: January 14, 2006
Posts: 1027
Location: Colorado
|
| Posted: Thu Feb 15, 2007 4:54 pm Post subject: |
|
|
Damn i never even thought of doing it like that  The only thing i could think of would be an exacto knife. But i think your way sounds pretty darn good to me. Im sure that would produce a nice consistent cut on the gasket and not look too butchered up. |
|
| Back to top |
|
|
Ace
Samba Member
Joined: July 07, 2003
Posts: 1903
|
| Posted: Thu Feb 15, 2007 4:56 pm Post subject: |
|
|
are you using metal gaskets? I used to use the old thick paper ones and an exacto using nuts and washers to keep it from moving while cutting. I would keep that one as the original for a template to cut the others when needed.
Last edited by Ace on Thu Feb 15, 2007 4:59 pm; edited 1 time in total |
|
| Back to top |
|
|
[email protected]
Samba Member
Joined: April 04, 2003
Posts: 492
Location: Sacramento, CA
|
| Posted: Thu Feb 15, 2007 4:57 pm Post subject: |
|
|
Glenn,
Thats pretty much the way I did mine, After your done with the first one...Take it and put up to another one and draw a bunch of them out. That way theres xtras for later.
_________________
Mike Soliven
2006 PRA Super Mod Champion
S/G 333
64 Sunroof 2276cc IDA's |
|
| Back to top |
|
|
Joval
Samba Member
Joined: January 15, 2007
Posts: 176
Location: Ireland
|
| Posted: Thu Feb 15, 2007 4:59 pm Post subject: |
|
|
There was an article in Volksworld a while back that suggested fitting the gasket and tapping it with, IIRC  the handle of a screwdriver to make an impression
then cut the gasket with a craft knife. |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79227
Location: Sneaking up behind you
|
| Posted: Thu Feb 15, 2007 5:17 pm Post subject: |
|
|
I'm using the Berg extra wide paper gaskets.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
RIS
Samba Member
Joined: December 18, 2003
Posts: 3044
Location: Youngstown, Ohio
|
| Posted: Thu Feb 15, 2007 5:22 pm Post subject: Re: Match porting the intake gasket |
|
|
| Glenn wrote: |
| I bolted the gasket to the manifold and used a sanding drum on a dremel until I hit metal. |
That's how I do mine, unless the engine is assembled - then I use an exacto knife...
_________________
Richard Sedoris - VW Performance & Machine - Youngstown, OH
http://rismachine.tumblr.com/
YouTube: https://m.youtube.com/channel/UCfTBCG4I61iVm_ROc8OAuOQ
Instagram: @rismachine |
|
| Back to top |
|
|
jamestwo
Samba Member
Joined: November 01, 2004
Posts: 2203
|
| Posted: Thu Feb 15, 2007 5:22 pm Post subject: |
|
|
Gaskets are old school, the new hottness is to run the intakes naked Baby!!!
o gaskets here, just a THIN layer of gaskets sealer.
_________________
hEY, lOOK, i'M WRONG HALF THE TIME, AND THE OTHER HALF i'M NOT SURE WHAT THE HECK i'M TALKING ABOUT. MY POST ARE FOR MY OWN ENTERTAINMENT VALUE ONLY. |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79227
Location: Sneaking up behind you
|
| Posted: Thu Feb 15, 2007 5:36 pm Post subject: |
|
|
| jamestwo wrote: |
Gaskets are old school, the new hottness is to run the intakes naked Baby!!!
o gaskets here, just a THIN layer of gaskets sealer. |
What sealer?
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
RIS
Samba Member
Joined: December 18, 2003
Posts: 3044
Location: Youngstown, Ohio
|
|
| Back to top |
|
|
cal63look
Samba Member
Joined: January 14, 2006
Posts: 1027
Location: Colorado
|
| Posted: Thu Feb 15, 2007 6:50 pm Post subject: |
|
|
| What type of sealer? anearobic(spellin?)? |
|
| Back to top |
|
|
Mad Manx
Samba Member
Joined: September 30, 2004
Posts: 304
Location: Redondo Beach California
|
| Posted: Thu Feb 15, 2007 7:44 pm Post subject: |
|
|
I have used Loctite 518 flange sealant on my manifolds for a couple
of years now, just a thin layer and manifolds straight onto the heads.
I have never had a leak or had a nut come loose from vibration even
in off road cars. I read about this over on the Cal-Look and it worked
great, I use it on my oil pumps to case also with no gasket . It fools
you by looking like it never dries around the edges but it is good and
sealed between the metal |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79227
Location: Sneaking up behind you
|
| Posted: Thu Feb 15, 2007 7:57 pm Post subject: |
|
|
| Mad Manx wrote: |
I have used Loctite 518 flange sealant on my manifolds for a couple
of years now, just a thin layer and manifolds straight onto the heads.
I have never had a leak or had a nut come loose from vibration even
in off road cars. I read about this over on the Cal-Look and it worked
great, I use it on my oil pumps to case also with no gasket . It fools
you by looking like it never dries around the edges but it is good and
sealed between the metal |
what about when you remove the manifolds and reinstall? Do you have to clean it off before reapplying and reinstalling?
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Mad Manx
Samba Member
Joined: September 30, 2004
Posts: 304
Location: Redondo Beach California
|
| Posted: Thu Feb 15, 2007 8:17 pm Post subject: |
|
|
| Glenn wrote: |
| Mad Manx wrote: |
I have used Loctite 518 flange sealant on my manifolds for a couple
of years now, just a thin layer and manifolds straight onto the heads.
I have never had a leak or had a nut come loose from vibration even
in off road cars. I read about this over on the Cal-Look and it worked
great, I use it on my oil pumps to case also with no gasket . It fools
you by looking like it never dries around the edges but it is good and
sealed between the metal |
what about when you remove the manifolds and reinstall? Do you have to clean it off before reapplying and reinstalling? |
Yea, it comes off pretty easy with a blade and Berrymans B12 will get
it off when applies directly onto it, I have never had the B12 affect it
when sprayed on it in the assembled condition. |
|
| Back to top |
|
|
HBRag
Samba Member
Joined: April 29, 2005
Posts: 735
Location: Huntington Beach, CA
|
| Posted: Thu Feb 15, 2007 8:34 pm Post subject: |
|
|
| jamestwo wrote: |
Gaskets are old school, the new hottness is to run the intakes naked Baby!!!
o gaskets here, just a THIN layer of gaskets sealer. |
'Old School', ha. 1940's era aircraft engines didn't use a gasket on the carburetor to manifold connection. The two surfaces are machined and assembled using a none hardening, fuel resistant sealer and a piece of sewing thread. The manifolds are laid out so that the thread can be run from stud to stud, and be centered on the mating portion of the flange.
The thread trick would be tuff with the VW manifold design. |
|
| Back to top |
|
|
nsracing
Samba Member
Joined: November 16, 2003
Posts: 9733
Location: NOVA
|
| Posted: Thu Feb 15, 2007 9:01 pm Post subject: |
|
|
Sanding drums will clog up quickly w/ aluminum. Use a HSS or carbide burr to port all the way to the outline if that is all you need. WD-40 for lube is okay. I use tallow sticks (used in bandsawing).
Didn't the heads get ported with the manifolds?
If the surfaces are machined perfectly flat and no burs, sure you can install naked. Or you can use a skinny paper like an oilpump cover gasket to seal the manifolds.
Hell..tranny intermediate carriers only has the skinny paper gasket. That thing is so flimsy, it will rip if you looked at it long enough.  |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79227
Location: Sneaking up behind you
|
| Posted: Thu Feb 15, 2007 9:08 pm Post subject: |
|
|
Nick,
I used a sanding drum since it will easily cut the gasket but not chew up the aluminum when it hits the manifold.
The manifolds were match ported to the heads.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
nsracing
Samba Member
Joined: November 16, 2003
Posts: 9733
Location: NOVA
|
| Posted: Thu Feb 15, 2007 10:12 pm Post subject: |
|
|

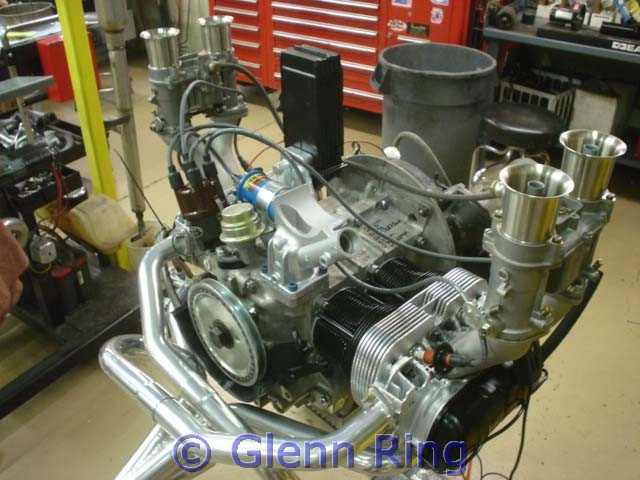

Somebody already mentioned Exacto knife. Them Berg gaskets are huge ain't they?
How far is the engine? I am getting excited too.  |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79227
Location: Sneaking up behind you
|
| Posted: Thu Feb 15, 2007 10:14 pm Post subject: |
|
|
| nsracing wrote: |
| How far is the engine? I am getting excited too. |
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
nsracing
Samba Member
Joined: November 16, 2003
Posts: 9733
Location: NOVA
|
| Posted: Thu Feb 15, 2007 10:28 pm Post subject: |
|
|
| That thing looks beasty hung up like that. Nice job, Glenn. |
|
