PostPosted: Mon Sep 17, 2007 10:40 pm    Post subject: Reply with quote

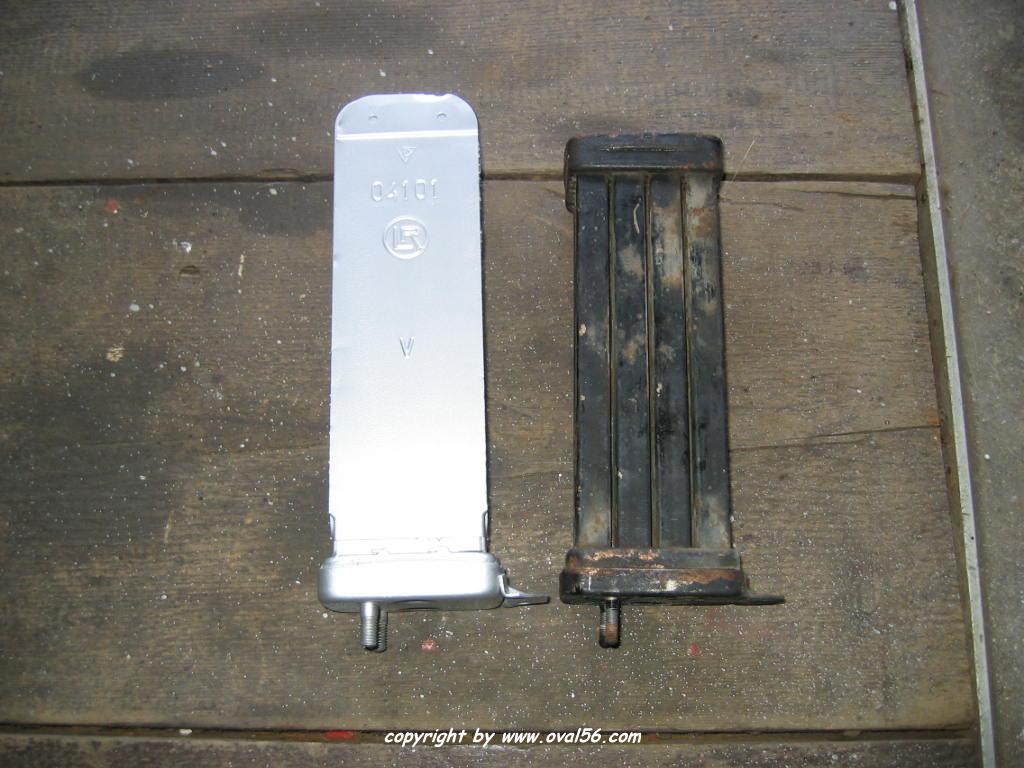

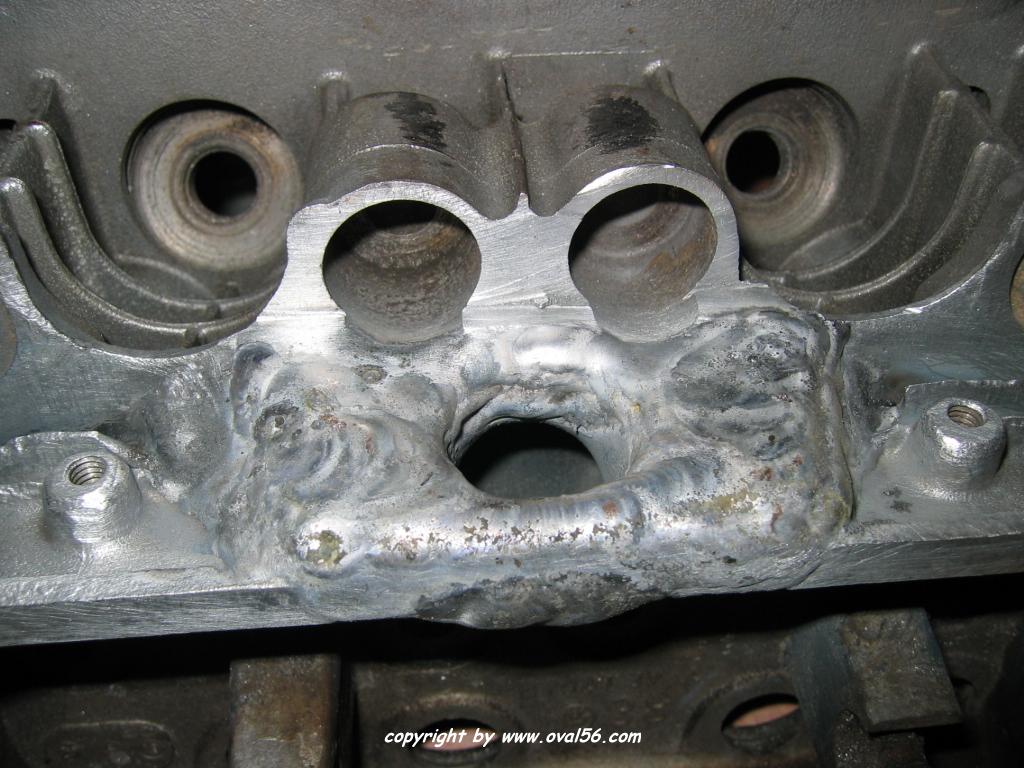

normaly you can use all 356 coolers, but some need some modifications, one type has 8mm studs, you ned to drill abigger whole in the enginecase to fix the oilcooler (6mmstud), the later 356c or 912 cooler have on top a nut to screw them on the fanhousing (vibration), you can cut this without any problem...

Image may have been reduced in size. Click image to view fullscreen.

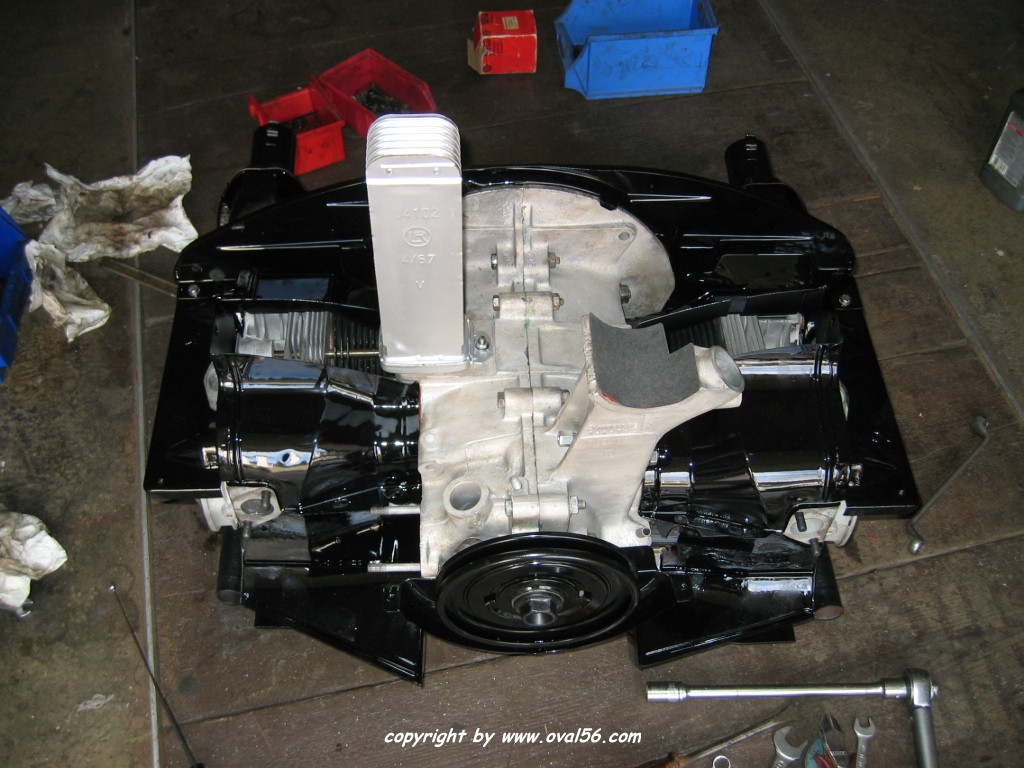

and also, there are different typs of fanhousings, one 36hp housings have on top in the front a dent, that ones whick have to be modified to fit on a 356 cooler... (have not enenough hight to some vanes)

Image may have been reduced in size. Click image to view fullscreen.

_________________
www.oval56.com

1956 Oval, 2364ccm typ4
1957 Oval Ragtop 1584ccm singel port modified
1950 Hebmüller, 1584ccm okrasa modified

DBK Germany!!!!!!!!!!
www.dbkvw.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
bvilletom
Samba Member


Joined: January 22, 2006
Posts: 95
Location: cedar rapids iowa usa
bvilletom is offline

PostPosted: Wed Sep 19, 2007 9:23 am    Post subject: Reply with quote

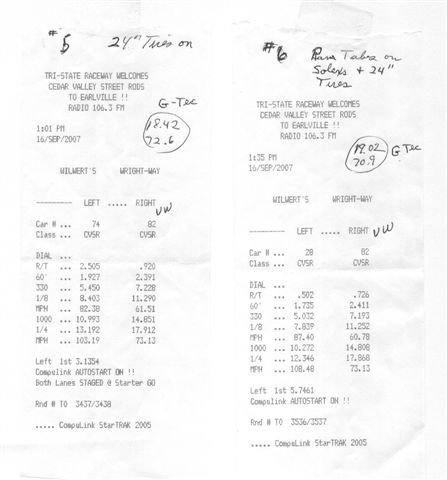

Attached are copies of the time slips from the Drag day last Sunday, September 16th for the Brukrasa 36HP VW beetle.

After rainouts a month ago, we finally got our drag strip day completed for test & tune. I got 8 passes in and tried different combinations of tire diameter & exhaust mods. The Brukrasa 36HP Vintage sedan ran 73.13 MPH @ 17.8 sec in the quarter mile. We had some wheel hop problems at first but had a really good time. The motor is still alive and ready to go to Maxton in October for the ECTA standing mile runs.

I don't know how these times compare to other vintage speed VW's but ThomasKaefer should know.

Bville Tom




Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
thomaskaefer
Samba Member


Joined: November 30, 2005
Posts: 79

thomaskaefer is offline

PostPosted: Wed Sep 19, 2007 11:15 am    Post subject: Reply with quote

Hello Tom!

Sounds great to me, really!

This weekend in germany there is race-weekend at Bitburg Airfield. I think, regarding on the last two years, a lot of oldspeed cars will be there!

I expect some comparing time to yours... so stay updated at oldspeed-register!

Regards

Thomas

P.S.: Would it be possible for you to send me a filled out version of this?


http://wiki.bildung-schadet-nicht.de/images/2/29/Oldspeed.pdf

http://oldspeed-register.blogspot.com/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wolfgang1
Samba Member


Joined: February 12, 2004
Posts: 139
Location: Germany
Wolfgang1 is offline

PostPosted: Sat Sep 29, 2007 2:54 pm    Post subject: Reply with quote

And here the latest news in vintage speed stuff:

the (W)okrasa

to kick off these high priced okrasa heads i`m creating my own out of stock heads.

I want to run double carbs, so i need a smooth flowing double port head Very Happy

at the bottom an orig. okrasa head
in the middle a "test" head to check thicknesses etc.
on the top the started prototype of my Wokrasa head

Image may have been reduced in size. Click image to view fullscreen.


http://myokrasa.oyla22.de

(W)olfgang
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
oval56
Samba Member


Joined: July 21, 2003
Posts: 1309
Location: oktoberfest maintown
oval56 is offline

PostPosted: Wed Oct 03, 2007 9:05 am    Post subject: Reply with quote

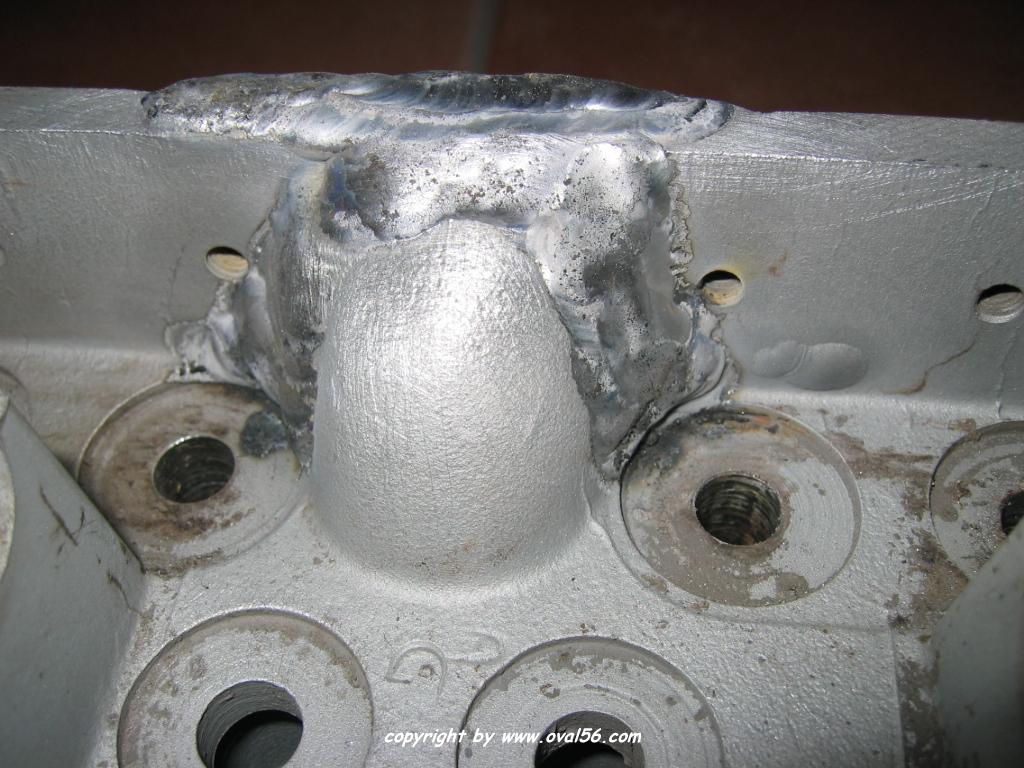

here are also some pictures of my new project, the Bukrasa inspires me a bit , and i try to make it at a little bit differnt way.

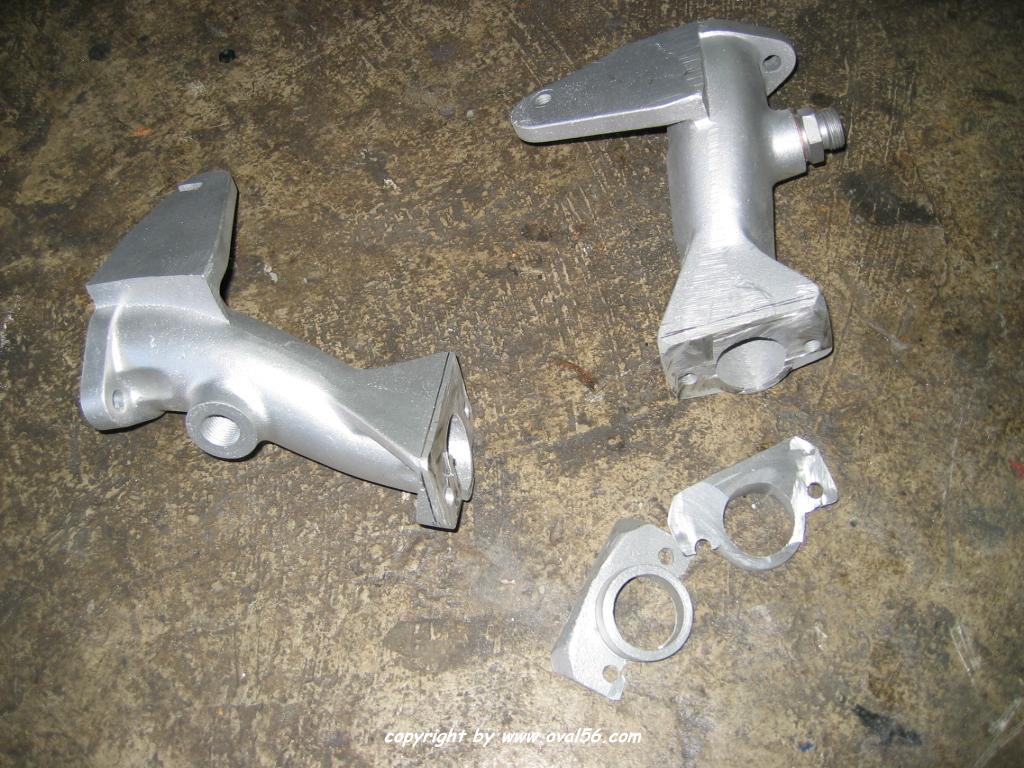

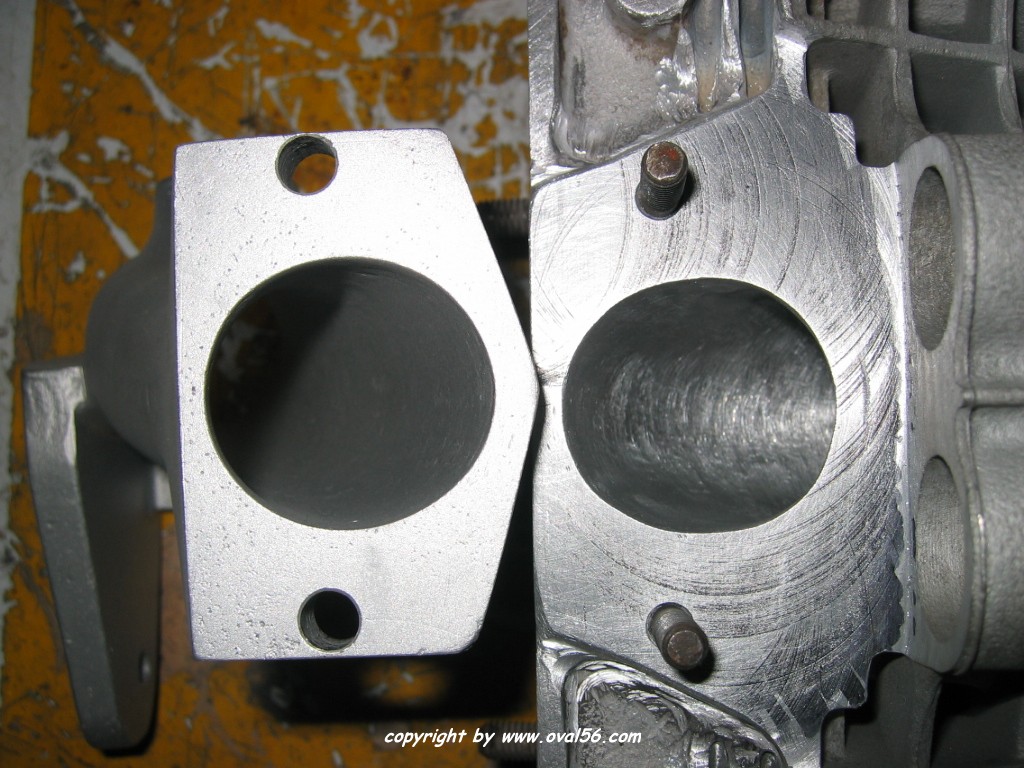

i used some riechert essen manifolds from a later 1300/1500 engine and modified them to use it later on my 36 hp heads with 2 34pci carbs on top

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

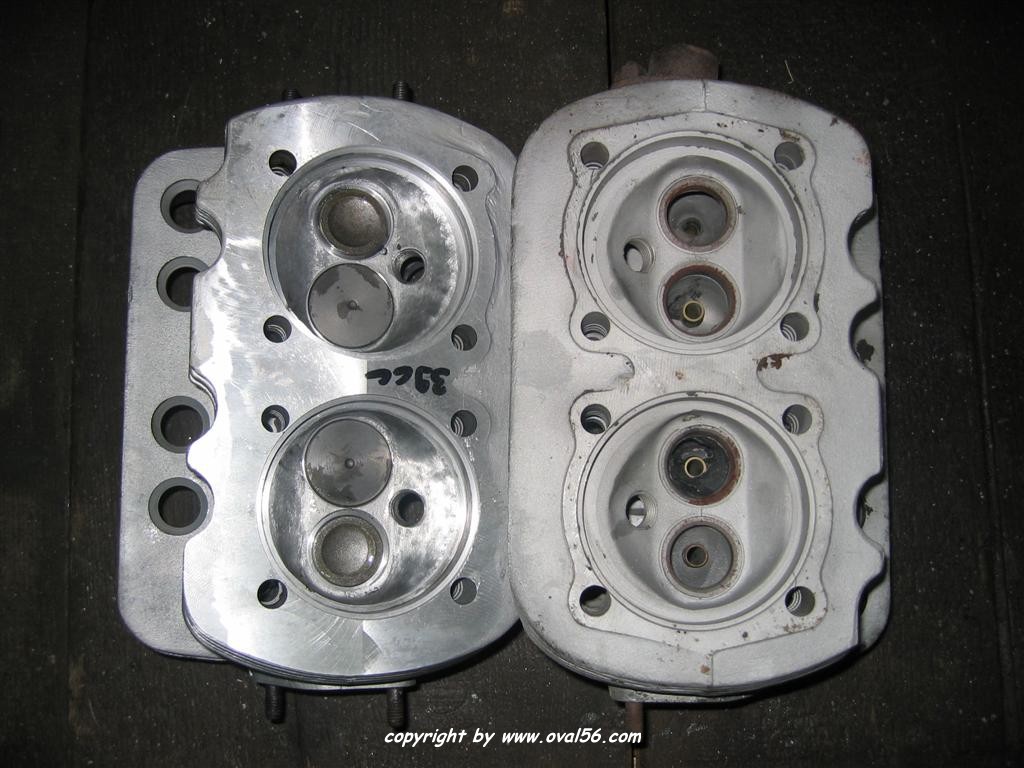

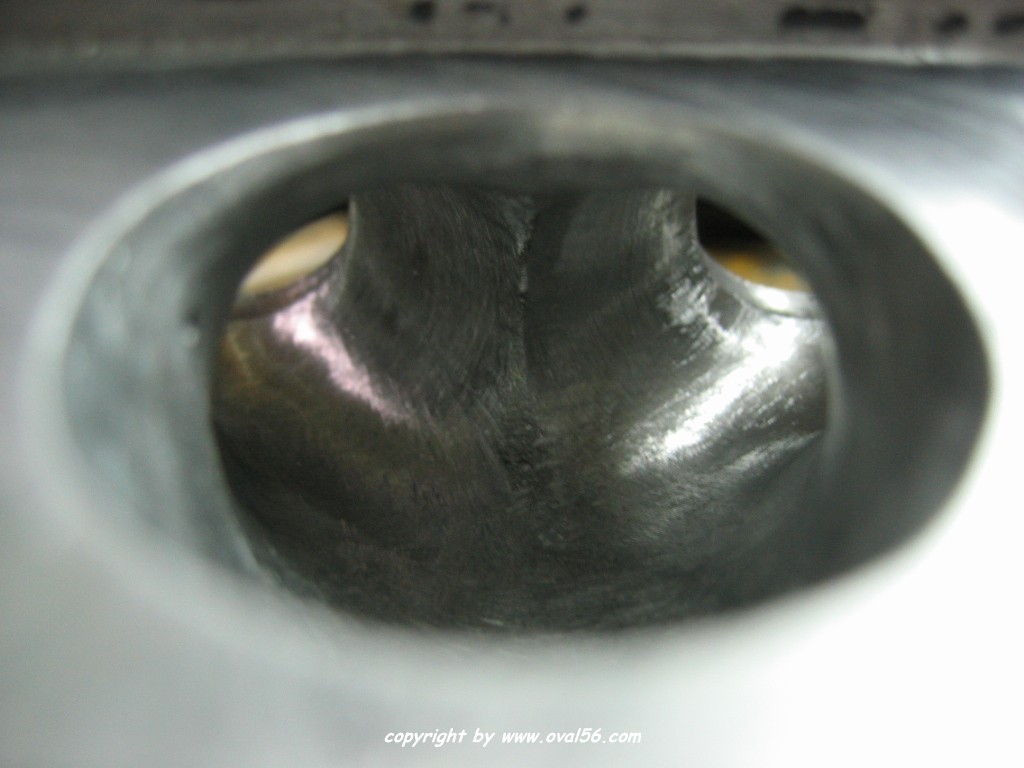

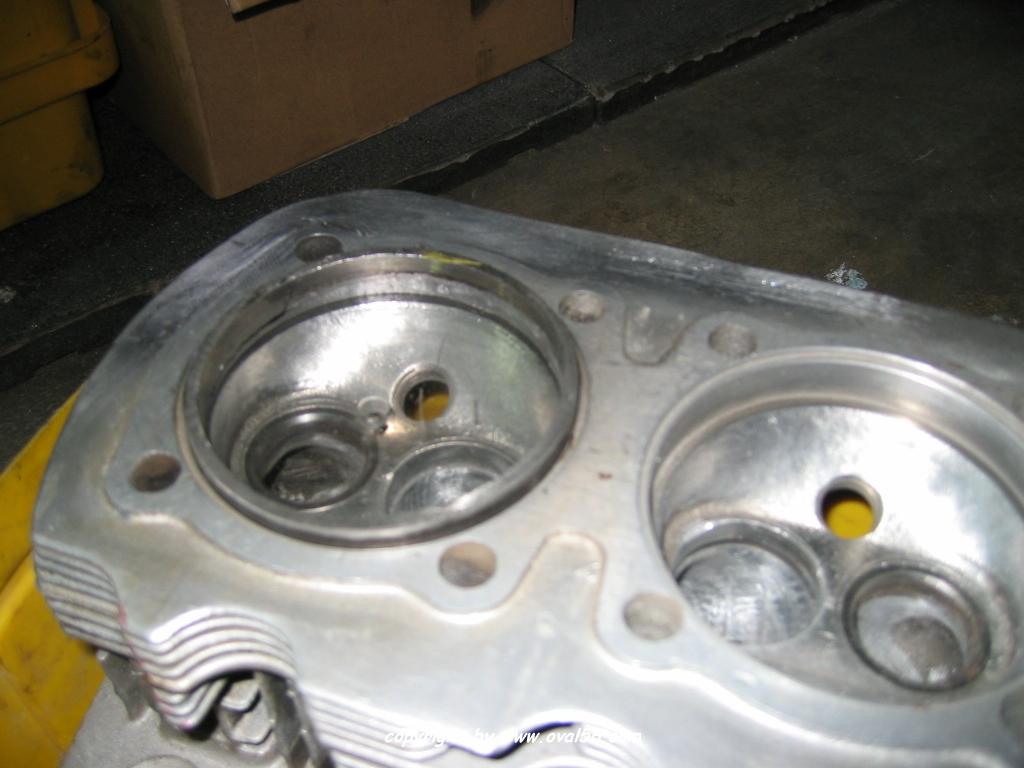

and now after som hours of grinding an porting:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

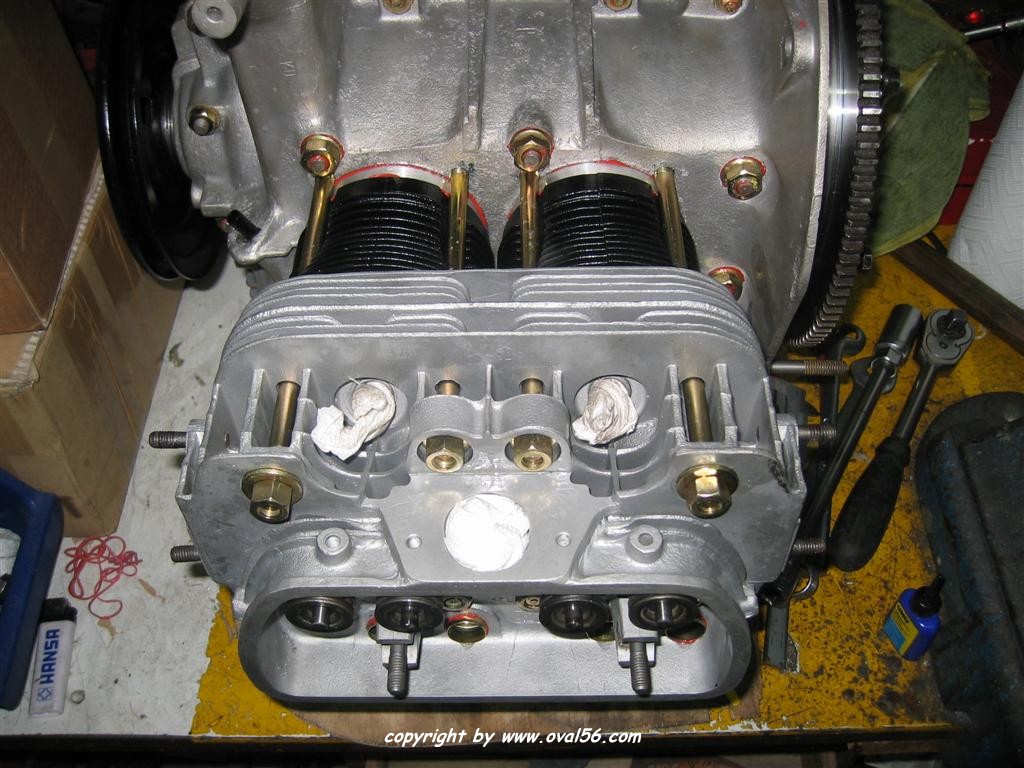

to the rest of the angine:

modified cam, 74mm 356 crank, 77,5 vw pistons..... 36mm inletvalve, 34 pci carbs
_________________
www.oval56.com

1956 Oval, 2364ccm typ4
1957 Oval Ragtop 1584ccm singel port modified
1950 Hebmüller, 1584ccm okrasa modified

DBK Germany!!!!!!!!!!
www.dbkvw.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
tommy-turtle
Samba Member


Joined: March 07, 2002
Posts: 165
Location: roseville
tommy-turtle is offline

PostPosted: Sun Oct 21, 2007 10:48 pm    Post subject: Re: Keep it Rollin' Reply with quote

OMT wrote:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Laughing Bettie's neu Heart......1.7 liter!
MFG,
Al


After seeing Al's car and motor at the treffin, I have much respect for him, his motor and his car. I know it is late but better late then never.
_________________
5 lbs into 3 lbs bag every day
Nitrous its what my dentist uses
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger Gallery Classifieds Feedback
Wiggy
Samba Member


Joined: April 17, 2003
Posts: 6606
Location: Downingtown, PA
Wiggy is offline

PostPosted: Mon Oct 22, 2007 7:37 am    Post subject: Reply with quote

Rolling the Okrasa in my ghia....

Smile

Image may have been reduced in size. Click image to view fullscreen.

_________________
Kevin "Wiggy"

My 58 Ghia Vert

My 51 Split 11G

My 57 Deluxe

My 56 Oval
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
ralphd
Samba Member


Joined: January 11, 2005
Posts: 126

ralphd is offline

PostPosted: Fri Oct 26, 2007 2:06 pm    Post subject: Reply with quote

My friend Tom just ran a 36hp NA engine at Maxton NC. In the standing mile they ran 91mph. The cam is too mild. They used a cam for a turbo setup. I have a few 36hp engines I'm restoring for running displays and my Oval. It's been really fun watching all the work that goes into a race 36hp. Who would have thought it? They're running at Bonneville next - after the cam gets swapped... Search the old Bonneville records for Tom Bruch and Bruch Motorwerks. -ralph

For Tom's current NA 36hp record:

http://www.thesamba.com/vw/forum/viewtopic.php?t=262456


Last edited by ralphd on Fri Nov 02, 2007 2:13 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tommy-turtle
Samba Member


Joined: March 07, 2002
Posts: 165
Location: roseville
tommy-turtle is offline

PostPosted: Fri Nov 02, 2007 10:52 pm    Post subject: Reply with quote

I want to know more about this Twisted Evil

Image may have been reduced in size. Click image to view fullscreen.


http://homepage3.nifty.com/yokohamabusstop/bug-in32.htm
_________________
5 lbs into 3 lbs bag every day
Nitrous its what my dentist uses
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger Gallery Classifieds Feedback
kever57
Samba Member


Joined: November 05, 2006
Posts: 23

kever57 is offline

PostPosted: Thu Nov 15, 2007 7:03 pm    Post subject: Reply with quote

hello,i am leslie from belgium,i also built a 36hp,it runs on the dynotest in the car,96hp,it runs 15.14 on the 1/4mile. now i am building a bigger engine and make from 1500c up to 1740cc,i have some shorrock to put on it and i have to make the manifold to put 48ida on it. i also have bigger heads,it was from 356a with 38x31 and have now 38x34. i will post some pictures for who have intrest. this picture is from my 1500c (std crank) from 2006.
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Classifieds Feedback
glandnut
40 horses of Fury


Joined: February 26, 2003
Posts: 1432
Location: J-ville, FL
glandnut is offline

PostPosted: Fri Nov 16, 2007 10:53 am    Post subject: Reply with quote

Anyone running the old Express kit?
Image may have been reduced in size. Click image to view fullscreen.

_________________
Looking for aluminum single port Kadron manifolds.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
oval56
Samba Member


Joined: July 21, 2003
Posts: 1309
Location: oktoberfest maintown
oval56 is offline

PostPosted: Sat Nov 17, 2007 9:35 am    Post subject: Reply with quote

kever57 wrote:
hello,i am leslie from belgium,i also built a 36hp,it runs on the dynotest in the car,96hp,it runs 15.14 on the 1/4mile. now i am building a bigger engine and make from 1500c up to 1740cc,i have some shorrock to put on it and i have to make the manifold to put 48ida on it. i also have bigger heads,it was from 356a with 38x31 and have now 38x34. i will post some pictures for who have intrest. this picture is from my 1500c (std crank) from 2006.
Image may have been reduced in size. Click image to view fullscreen.




Very Happy Smile WERE CAN WE SE SOME MORE DETAIS IN PICTURES Smile))))

sounds REALLY interesting!!!!
_________________
www.oval56.com

1956 Oval, 2364ccm typ4
1957 Oval Ragtop 1584ccm singel port modified
1950 Hebmüller, 1584ccm okrasa modified

DBK Germany!!!!!!!!!!
www.dbkvw.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Wolfgang1
Samba Member


Joined: February 12, 2004
Posts: 139
Location: Germany
Wolfgang1 is offline

PostPosted: Fri Nov 23, 2007 12:00 pm    Post subject: Reply with quote

kever57 wrote:

Image may have been reduced in size. Click image to view fullscreen.


Congrats kever57 to this engine, a real eye catcher! Shocked

BUT you overstep now a border where the question comes up where to stop.....

This engine is now 100% Porsche except the case (and this was also used one early Porsches). Are the cylinders and pistons vw?

You`ve tuned a porsche engine and not a 36hp, just my 2cents.

Oval56 and i want to use the 74mm crank and rods of Porsche, the same problem.
Where to stop with Porsche parts? No problem to get horsepower with this parts.

Wasn`t the aim of the game to power up with 36hp parts?

I don`t know....

Wolfgang
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
kever57
Samba Member


Joined: November 05, 2006
Posts: 23

kever57 is offline

PostPosted: Sat Nov 24, 2007 10:11 am    Post subject: Reply with quote

the engine on the piture have only the 356heads and 356 big bore cilinders,the pistons are vw typ1 87mm from 1641cc,the pushrods,flywheel, crank and rods are std from 36HP only the rods are small end up from 20mm to 22m. the cam is from 36hp and and have the degrees from 356s90.
this have also straight cut gears on the cam and crank.

i think that this engine have a lot of vw parts. denzel or okrassa heads are too expensive for me. if i found 1set for a good price then i put them on the next engine.

here in europe i think there is nobody that makes fast 36hp engines,i run whit my car between the others whit typ1 or typ4. only on dasdragday is there oldspeedchallange and then drive max5 cars with judson or okrassa kit. there is only 1 rule,it have to be an original crankcase.
next year whit my shorrock on it i hope to be much faster and then i hope to drive agains typ1 Rolling Eyes
Back to top
View user's profile Send private message Classifieds Feedback
Bengt H
Samba Member


Joined: September 11, 2005
Posts: 334
Location: Sweden
Bengt H is offline

PostPosted: Mon Nov 26, 2007 3:00 pm    Post subject: Reply with quote

kever57 wrote:


here in europe i think there is nobody that makes fast 36hp engines,i run whit my car between the others whit typ1 or typ4. only on dasdragday is there oldspeedchallange and then drive max5 cars with judson or okrassa kit. there is only 1 rule,it have to be an original crankcase.
next year whit my shorrock on it i hope to be much faster and then i hope to drive agains typ1 Rolling Eyes


There are some fast 36hp engines in europe to, mine 1620 has 81 hp and there are some others seen here in this thread with lots of power and more are coming.

btw I am from sweden Very Happy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
77ducci
Samba Beer Head


Joined: March 07, 2002
Posts: 408
Location: Gathering the Missing Parts
77ducci is offline

PostPosted: Mon Nov 26, 2007 4:00 pm    Post subject: Reply with quote

Bengt H wrote:
kever57 wrote:


here in europe i think there is nobody that makes fast 36hp engines,i run whit my car between the others whit typ1 or typ4. only on dasdragday is there oldspeedchallange and then drive max5 cars with judson or okrassa kit. there is only 1 rule,it have to be an original crankcase.
next year whit my shorrock on it i hope to be much faster and then i hope to drive agains typ1 Rolling Eyes


There are some fast 36hp engines in europe to, mine 1620 has 81 hp and there are some others seen here in this thread with lots of power and more are coming.

btw I am from sweden Very Happy


1620 what engine combo is that??
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bengt H
Samba Member


Joined: September 11, 2005
Posts: 334
Location: Sweden
Bengt H is offline

PostPosted: Tue Nov 27, 2007 1:40 am    Post subject: Reply with quote

83 x 74 mm, some engine fakts can bee seen on page 8 in this thread.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Reminou
Samba Member


Joined: May 28, 2005
Posts: 27
Location: Paris, France
Reminou is offline

PostPosted: Thu Nov 29, 2007 1:31 am    Post subject: Reply with quote

kever57 wrote:

here in europe i think there is nobody that makes fast 36hp engines,i run whit my car between the others whit typ1 or typ4. only on dasdragday is there oldspeedchallange and then drive max5 cars with judson or okrassa kit. there is only 1 rule,it have to be an original crankcase.
next year whit my shorrock on it i hope to be much faster and then i hope to drive agains typ1 Rolling Eyes


you're wrong dude... but not completely... actually, the BZH french crew isn't preparing vintage speed 36HP, but 25PS... The first one develops around 80PS, in a fully vintage 51 beetle. '50 block, Okrasa 25PS heads, 356 pre-A crankshaft, pre-A cylinders, and two 40 PII... First difficulty: find the right parts. Second difficulty: try to put them together so that everything works...

some infos here:

http://forums.pre67vw.co.uk/default.htm in the section forums/vintage speed/french okrasa

and here:

http://vwisgood4you.skynetblogs.be/

next projects: a prep for the '51 Barndoor and for my '53 Standard. The question is: which preps?... Very Happy
_________________
http://ruedelsarte.skynetblogs.be

http://lemansclassicvw.skynetblogs.be
Back to top
View user's profile Send private message Visit poster's website MSN Messenger Classifieds Feedback
Shorrock
Samba Member


Joined: January 02, 2005
Posts: 433

Shorrock is offline

PostPosted: Fri Nov 30, 2007 11:33 pm    Post subject: Reply with quote

kever57 wrote:
next year whit my shorrock on it i hope to be much faster and then i hope to drive agains typ1 Rolling Eyes


Which Shorrock are you going to use? C75 or C142?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
oval56
Samba Member


Joined: July 21, 2003
Posts: 1309
Location: oktoberfest maintown
oval56 is offline

PostPosted: Sat Dec 01, 2007 2:51 pm    Post subject: Reply with quote

some update on my projekt, i do have now all parts back from my machineshop ( heads / new valve guides, valveseats.....)

now i do have 36mm inletvalves, and bore 78,5mm, the crank is a 356 porsche ( 74mm ) also the rods are 356 ( balanced and ligthened )

also i have to use some spacers (11mm) for the cylinders, the compresion now is 8,7:1

the porting of the heads was a long and hard to do job for me, to get all in the same shape... now i will put all parts together step by step Smile

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.



more on my homepage ->

http://www.oval56.de/inhalt_ov57_21.html

http://www.oval56.de/inhalt_ov57_22.html
_________________
www.oval56.com

1956 Oval, 2364ccm typ4
1957 Oval Ragtop 1584ccm singel port modified
1950 Hebmüller, 1584ccm okrasa modified

DBK Germany!!!!!!!!!!
www.dbkvw.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vintage Speed All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3 ... 12, 13, 14 ... 24, 25, 26  Next
Jump to:
Page 13 of 26


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
