 Posted: Mon Jul 07, 2008 7:38 pm Post subject: hose from fan housing to charcoal canister |
 |
|
There is a hose on the right side of the engine fan housing that runs to the charcoal canister ( I think its a charcoal canister).........anyways, mine is split where it goes over the barb on the housing and won`t stay on..........
any effects performance wise with this off?
Roger
_________________
Roger |
|
| Back to top |
|
 |
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79414
Location: Sneaking up behind you
|
| Posted: Mon Jul 07, 2008 7:40 pm Post subject: |
|
|
Just cap the nipple on the fan shroud. I removed the charcoal canister and hoses years ago.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Rogeroo
Samba Member
Joined: June 15, 2008
Posts: 505
Location: Waterdown Ontario
|
| Posted: Mon Jul 07, 2008 7:42 pm Post subject: |
|
|
| Glenn wrote: |
| Just cap the nipple on the fan shroud. I removed the charcoal canister and hoses years ago. |
tryin' to shed a little weight were ya Glenn?
Thanks a lot, if there is no ill effect, I will remove any and all related items.
Roger
_________________
Roger |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79414
Location: Sneaking up behind you
|
| Posted: Mon Jul 07, 2008 7:43 pm Post subject: |
|
|
| Rogeroo wrote: |
| tryin' to shed a little weight were ya Glenn? |
yep, I got the car down to 1650lbs.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
2002sportside
Samba Member
Joined: January 27, 2004
Posts: 1496
Location: New England
|
| Posted: Mon Jul 07, 2008 7:44 pm Post subject: |
|
|
| Rogeroo wrote: |
tryin' to shed a little weight were ya Glenn?
|
I'm willing to bet your charcoal canister gave up the ghost years ago...
_________________
1973 Volkswagen Beetle never ending project |
|
| Back to top |
|
|
Rogeroo
Samba Member
Joined: June 15, 2008
Posts: 505
Location: Waterdown Ontario
|
| Posted: Mon Jul 07, 2008 7:48 pm Post subject: |
|
|
| 2002sportside wrote: |
| Rogeroo wrote: |
tryin' to shed a little weight were ya Glenn?
|
I'm willing to bet your charcoal canister gave up the ghost years ago... |
I have very little doubt about that........off she goes.....
_________________
Roger |
|
| Back to top |
|
|
mnussbau
Samba Member
Joined: August 26, 2006
Posts: 4610
Location: Central Maryland
|
| Posted: Mon Jul 07, 2008 7:49 pm Post subject: |
|
|
The canister is there for emissions purposes...having a working system really has no affect on engine performance, and prevents raw gas fumes from venting to the atmosphere. Up to you, but I restored the system on both my bugs. New hose is available, I think this is the stuff...
http://www.oeveedub.com/mm5/merchant.mvc?Screen=PR...gory_Code=
_________________
Mike
‘74 bug vert
Parts... |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79414
Location: Sneaking up behind you
|
|
| Back to top |
|
|
2002sportside
Samba Member
Joined: January 27, 2004
Posts: 1496
Location: New England
|
| Posted: Mon Jul 07, 2008 7:51 pm Post subject: |
|
|
| Rogeroo wrote: |
| 2002sportside wrote: |
| Rogeroo wrote: |
tryin' to shed a little weight were ya Glenn?
|
I'm willing to bet your charcoal canister gave up the ghost years ago... |
I have very little doubt about that........off she goes..... |
IMO the one in the trunk is a different story. Even if it is well past its prime, it still allows the gas tank to 'breathe'. Just replace all the hoses up there once in a while... There is a thread somewhere on rebuilding one of those.
_________________
1973 Volkswagen Beetle never ending project |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79414
Location: Sneaking up behind you
|
| Posted: Mon Jul 07, 2008 7:54 pm Post subject: |
|
|
| 2002sportside wrote: |
| Rogeroo wrote: |
| 2002sportside wrote: |
| Rogeroo wrote: |
tryin' to shed a little weight were ya Glenn?
|
I'm willing to bet your charcoal canister gave up the ghost years ago... |
I have very little doubt about that........off she goes..... |
IMO the one in the trunk is a different story. Even if it is well past its prime, it still allows the gas tank to 'breathe'. Just replace all the hoses up there once in a while... There is a thread somewhere on rebuilding one of those. |
I still have mine in the trunk.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Rogeroo
Samba Member
Joined: June 15, 2008
Posts: 505
Location: Waterdown Ontario
|
| Posted: Mon Jul 07, 2008 7:55 pm Post subject: |
|
|

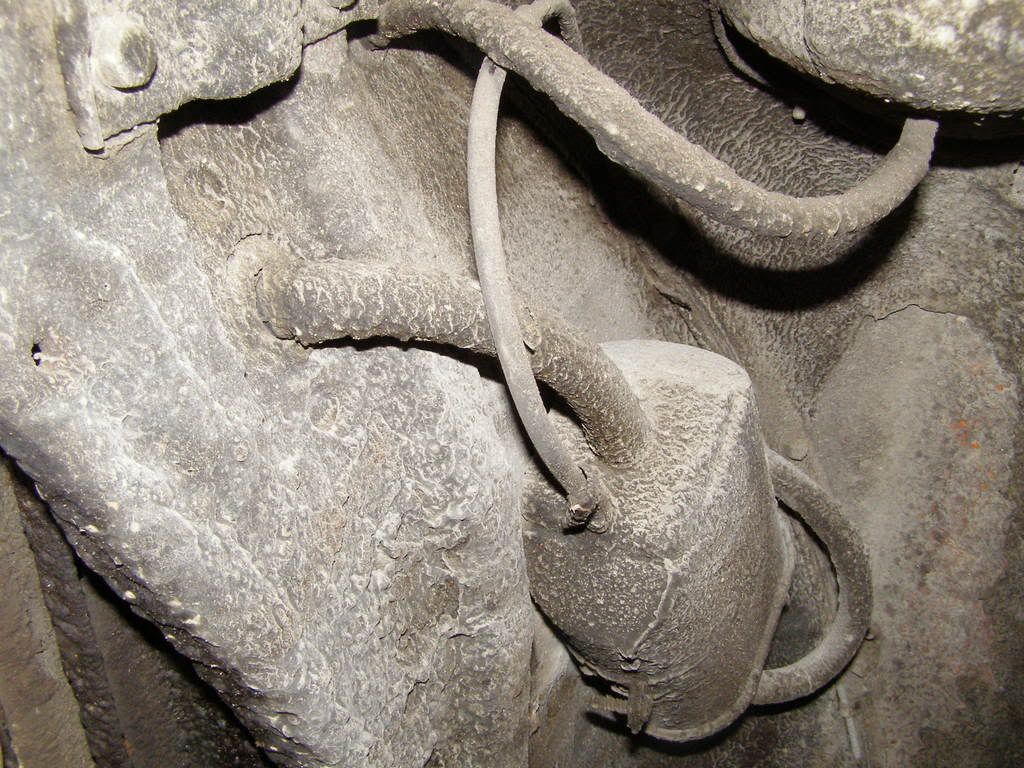

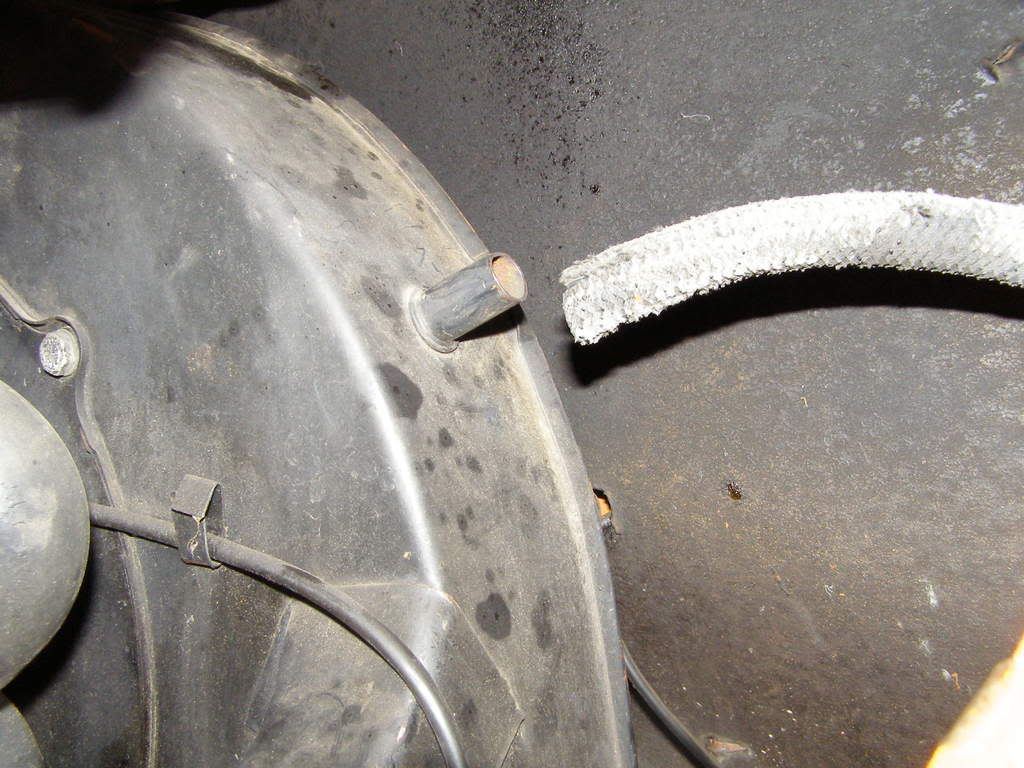

here they are here......
[img][/img]
[img][/img]
_________________
Roger |
|
| Back to top |
|
|
Rogeroo
Samba Member
Joined: June 15, 2008
Posts: 505
Location: Waterdown Ontario
|
| Posted: Mon Jul 07, 2008 7:56 pm Post subject: |
|
|
I too have the one in the trunk....
I`ll at the very least try to keep that one in tip top shape.
Roger
_________________
Roger |
|
| Back to top |
|
|
2002sportside
Samba Member
Joined: January 27, 2004
Posts: 1496
Location: New England
|
| Posted: Mon Jul 07, 2008 8:00 pm Post subject: |
|
|
| Rogeroo wrote: |
I too have the one in the trunk....
I`ll at the very least try to keep that one in tip top shape.
Roger |
You got some petrified hose up there...
I had to do mine in the trunk, the gas smell was getting bad. The filler neck hose wasn't the problem, it was all the other stuff. In the end it was worth going to a show and buying some of everything to get it fixed. Just need to replace or regut the canister someday...
_________________
1973 Volkswagen Beetle never ending project |
|
| Back to top |
|
|
66foot
Samba Member
Joined: November 19, 2006
Posts: 398
Location: Pacific Grove, California
|
| Posted: Mon Jul 07, 2008 8:44 pm Post subject: |
|
|
The canister in the trunk is just a hollow expansion chamber (2). It allows your gas tank to "breathe".
The canister in the wheel well is an evaporative emission canister (1). It allows the rest of us to breathe.
Pat (66foot)
|
|
| Back to top |
|
|
Joel
Samba Member
Joined: September 04, 2006
Posts: 11099
Location: NSW Australia
|
| Posted: Tue Jul 08, 2008 1:14 am Post subject: |
|
|
damn the underneath of ur bug needs a good pressure wash
_________________
Quick little bug, you got a Porsche motor in that?
1974 Germanlook 1303 2.5 Suba-Beetle |
|
| Back to top |
|
|
Rogeroo
Samba Member
Joined: June 15, 2008
Posts: 505
Location: Waterdown Ontario
|
| Posted: Tue Jul 08, 2008 5:23 am Post subject: |
|
|
| Buggin_74 wrote: |
| damn the underneath of ur bug needs a good pressure wash |
I will have to agree with you that, at a glance the underside appears to have the attraction of a red-headed stepchild, but I dare say whatever this glitch is that has been pasted over 95% of the underbody componants has done what it was intended to do.
With the exception of the front left fire-wall area and heater channel in that same area where I have recently found out was the fault of a drain tube running through the hole in the trunk........its been effective.
Ugly?..yes, effective.......so far it seems as though it has been.
I took a plastic putty knife and scraped away some of the junk and this is what it reveals..........everywhere that I have scraped little areas off prior to purchase for inspection purposes has revealed the same bright orange paint or in the areas that WERE shiny black, are still that way.
Even on outside end areas that typically get rusted first were covered and have shiny orange under the coating.
So yeah, it is ugly for sure but its one of the reasons I bought the car.
I looked at several cars and this one was the best in terms of hiding 'the good stuff'......
I just wished whomever ran that fresh air box drain , hadn`t of done it down onto the front left portion of the chassis head.
Anyways,,,,,

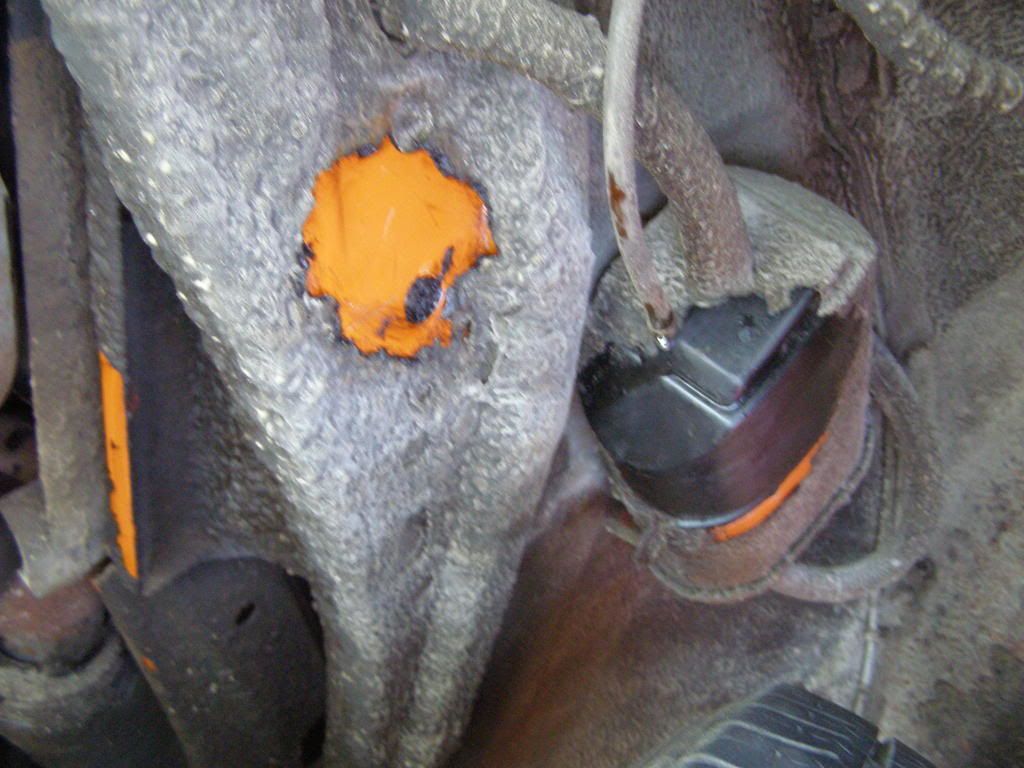

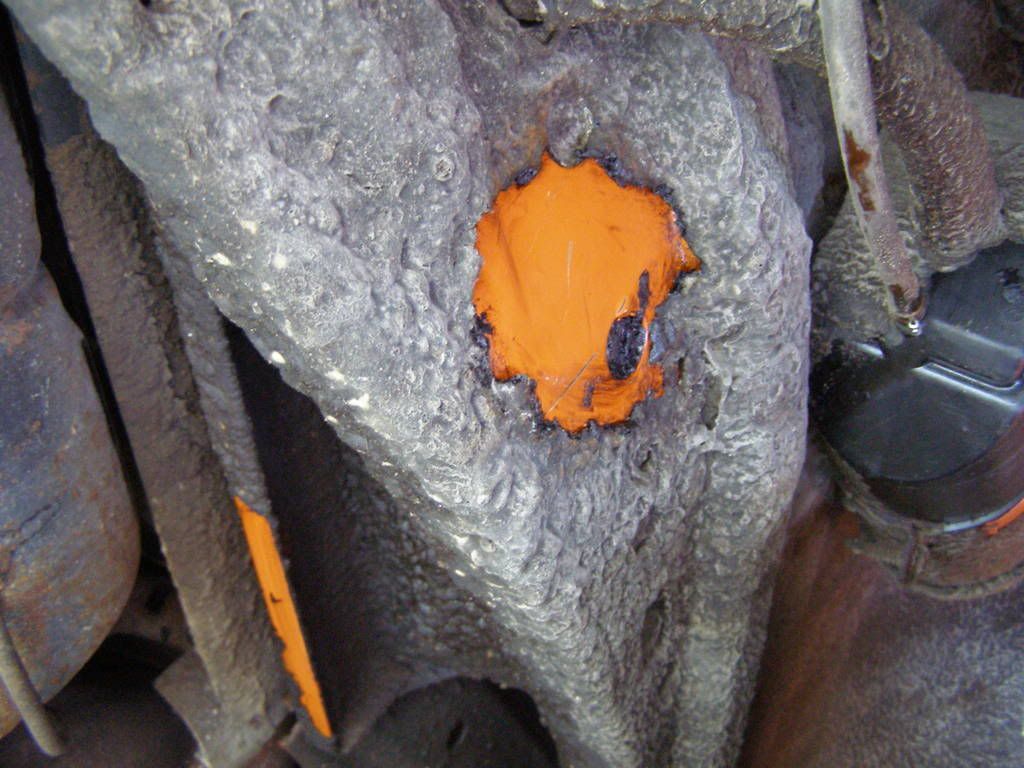

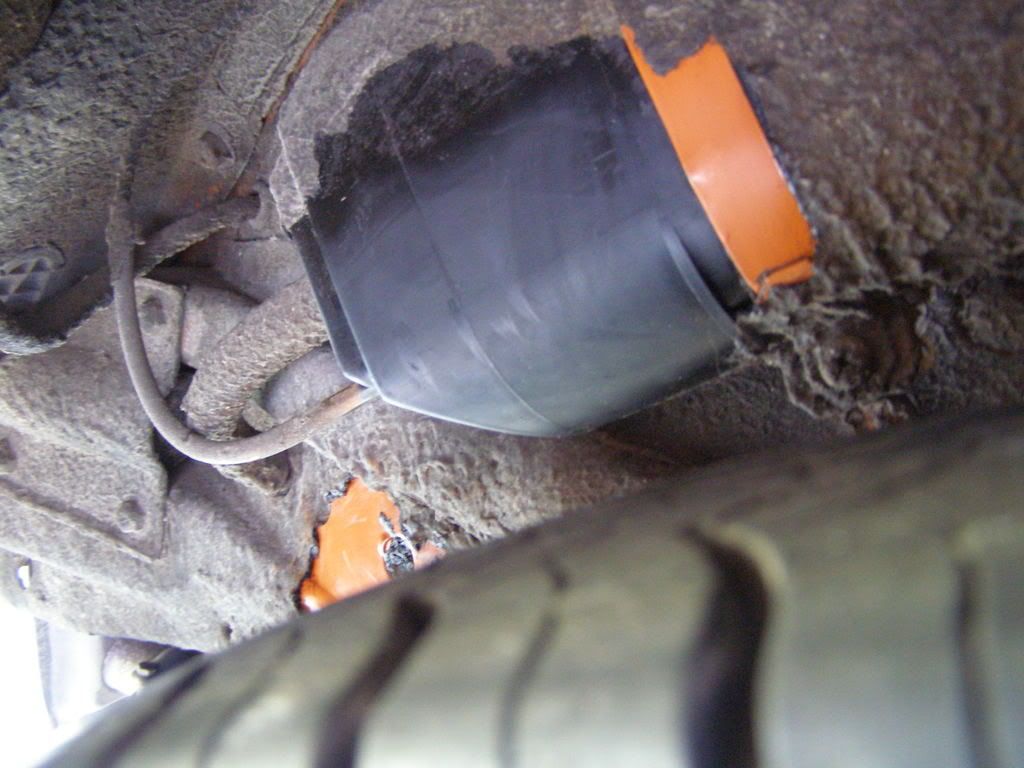

here is some pics, I just took a plastic putty knife and shaved away a couple of spots to see whats under it all.
Pehaps one day when the body comes off to do the firewall and portion of channel, I will scrape it all off and then recover with some sort of rust protection like a por-15 or rust bullet....but til then I`ll put a hand to it as I would that very same red headed stepchild.
I`ll love it like it was my own
[img][/img]
[img][/img]
[img][/img]
[img][/img]
_________________
Roger |
|
| Back to top |
|
|
ashman40
Samba Member
Joined: February 16, 2007
Posts: 16546
Location: North Florida, USA
|
| Posted: Tue Jul 08, 2008 5:56 am Post subject: |
|
|
I think it was last year (or the year before) that I replaced all the hoses in the trunk. I recall I had a real hard time finding the right size ones to fit the different connections.
I'm pretty sure I needed 14mm hose for the tank to filler neck segment and 4mm or 4.5mm hose (not 3.5mm) for the emission/fuel vapor runs.
And while I wanted to replace the "white" nylon tubing that runs under the cowling, I could never find a source. I ended up reusing what I had.
I think I bought the hose from Wolfgang Int., but now I can only see 4.5mm hose on their website.
http://www.wolfgangint.com/Parts/Hoses/Type+1/
Anyone know where you can find the 14mm "German" hose, or better yet the "white" nylon tubing?
_________________
AshMan40
---------------------------
'67 Beetle #1 {project car that never made it to the road  }
'75 Beetle 1200LS (RHD Japan model) {junked due to frame rot}
'67 Beetle #2 {2019 project car - Wish me luck!} |
|
| Back to top |
|
|
ashman40
Samba Member
Joined: February 16, 2007
Posts: 16546
Location: North Florida, USA
|
| Posted: Tue Jul 08, 2008 5:58 am Post subject: |
|
|
Well, I found the 14mm (15mm?) emission hose:
http://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=N203551
_________________
AshMan40
---------------------------
'67 Beetle #1 {project car that never made it to the road }
'75 Beetle 1200LS (RHD Japan model) {junked due to frame rot}
'67 Beetle #2 {2019 project car - Wish me luck!} |
|
| Back to top |
|
|
2002sportside
Samba Member
Joined: January 27, 2004
Posts: 1496
Location: New England
|
| Posted: Tue Jul 08, 2008 5:22 pm Post subject: |
|
|
Nice to see the actual hose is available. I don't even remember what I used there... either breather hose or rubber line from AZ. I think I just bought about four feet of everything the guy had and used whatever fit. Wasn't much info on it back then...
