 Posted: Sat Jan 23, 2010 9:50 pm Post subject: What do these heads fit? |
 |
|
Hi all. I have three single port heads I'm trying to find out what they fit so my FS ad is accurate. I think they are '60's era, but I'd like to know exactly. I believe the third one is for a '65?
Also can someone explain what is meant by square boss versus round boss?
Here are the basic pictures, there are more in my gallery.

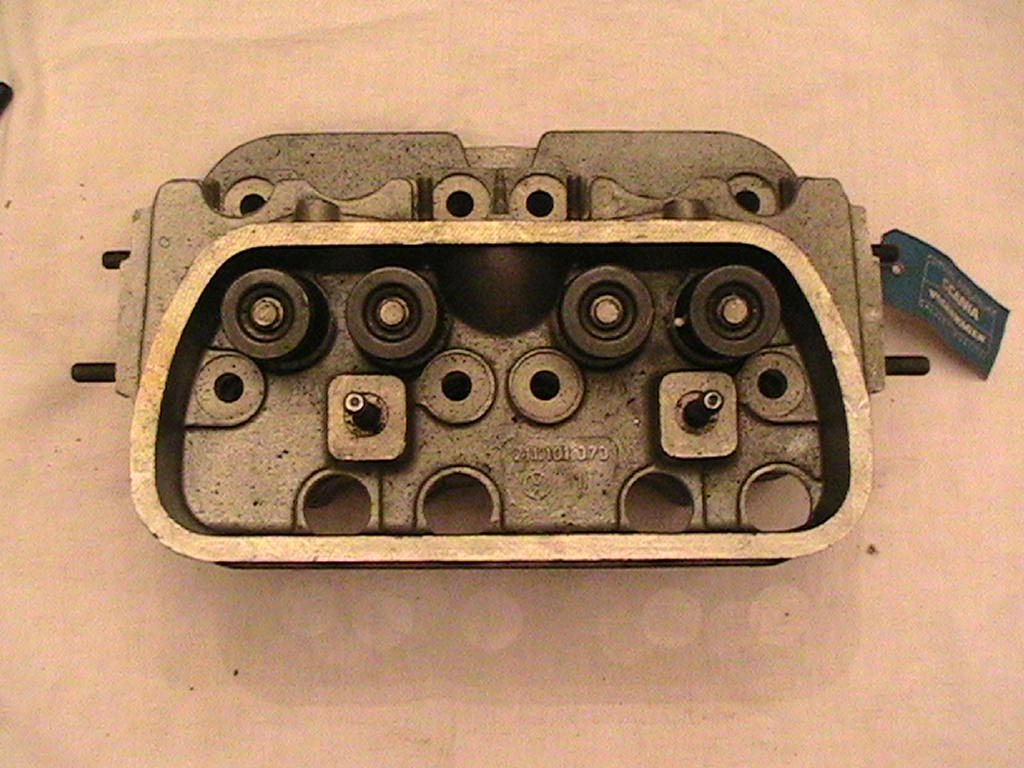

211.101.373
113.101.373D
113.101.373
Thanks much! |
|
| Back to top |
|
 |
blacklineracing
Samba Member
Joined: March 21, 2009
Posts: 128
Location: Salt Lake City, Utah
|
| Posted: Sat Jan 23, 2010 10:07 pm Post subject: |
|
|
| They are square rocker boss 40hp heads used in 1965 |
|
| Back to top |
|
|
AlteWagen
Troll
Joined: February 23, 2007
Posts: 8695
Location: PNW
|
| Posted: Sat Jan 23, 2010 10:20 pm Post subject: |
|
|
| Anyone know why the manifold mounting boss is shorter in the bus head?? |
|
| Back to top |
|
|
rustfree1967bug
Samba Member
Joined: November 16, 2006
Posts: 3440
Location: minnesota
|
| Posted: Sat Jan 23, 2010 11:20 pm Post subject: |
|
|
The difference between square and round boss is the block with the stud coming out where you mount the rocker.
_________________
'70 ghia
'69 ghia
'65 singlecab
'66 sunroof beetle
'74 bus
'67 so-42
IDA's...well... they talk dirty -MURZI |
|
| Back to top |
|
|
AlteWagen
Troll
Joined: February 23, 2007
Posts: 8695
Location: PNW
|
| Posted: Sun Jan 24, 2010 12:23 am Post subject: |
|
|
I was asking about the manifold boss. They look to be shorter for the bus (211 part number) vs. the bug heads
Does the bus need more clearance for the air cleaner? Is there a corresponding 211 part number manifold?? |
|
| Back to top |
|
|
rustfree1967bug
Samba Member
Joined: November 16, 2006
Posts: 3440
Location: minnesota
|
| Posted: Sun Jan 24, 2010 11:08 am Post subject: |
|
|
Sorry I was replying to the original poster about the bosses
_________________
'70 ghia
'69 ghia
'65 singlecab
'66 sunroof beetle
'74 bus
'67 so-42
IDA's...well... they talk dirty -MURZI |
|
| Back to top |
|
|
keifernet
Samba Search & Rescue
Joined: May 11, 2002
Posts: 19395
Location: Samba Center for Behavioral Science
|
| Posted: Sun Jan 24, 2010 11:12 am Post subject: |
|
|
| derluftwagen wrote: |
I was asking about the manifold boss. They look to be shorter for the bus (211 part number) vs. the bug heads
Does the bus need more clearance for the air cleaner? Is there a corresponding 211 part number manifold?? |
The top head is a later 1500-1600 head with different style intake... the other two pics are as stated late 40 hp heads. |
|
| Back to top |
|
|
nlorntson
Crazy VW Lady
Joined: March 13, 2004
Posts: 3855
Location: Twin Cities, MN
|
| Posted: Sun Jan 24, 2010 12:08 pm Post subject: |
|
|

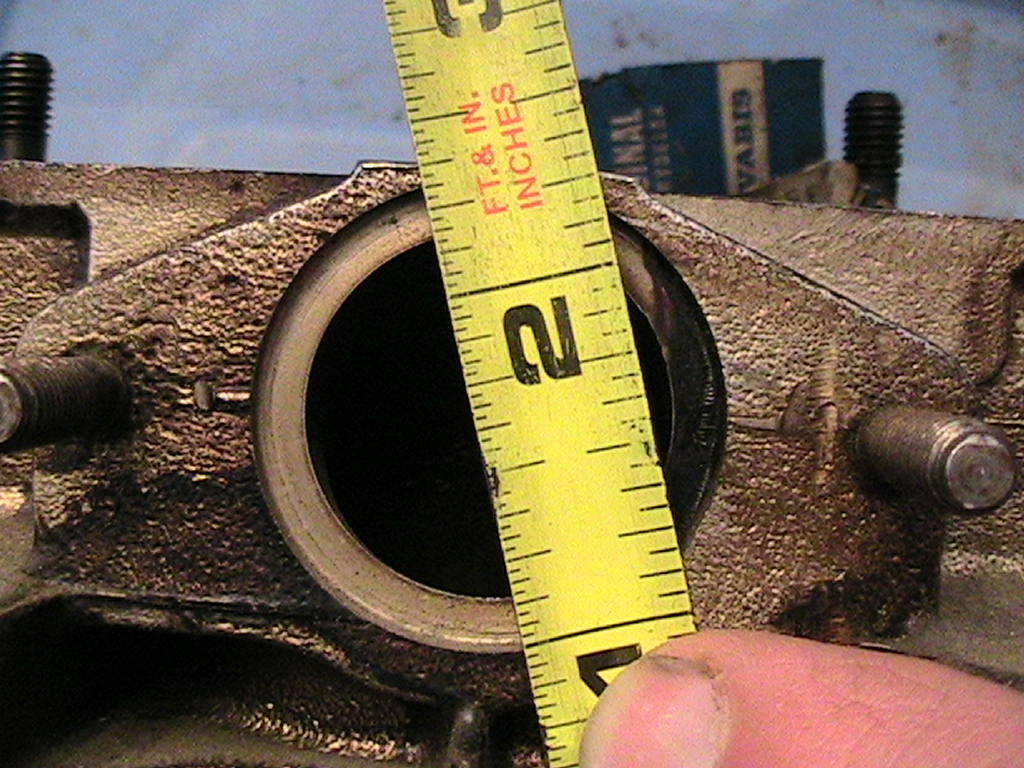

Here are a couple more pictures of these. If I understand correctly, the 211.101.373 is a 1500 or possibly 1600 head but not necessarily a bus head? So beetle 1968-72? The intake opening is larger and does not have the raised part.

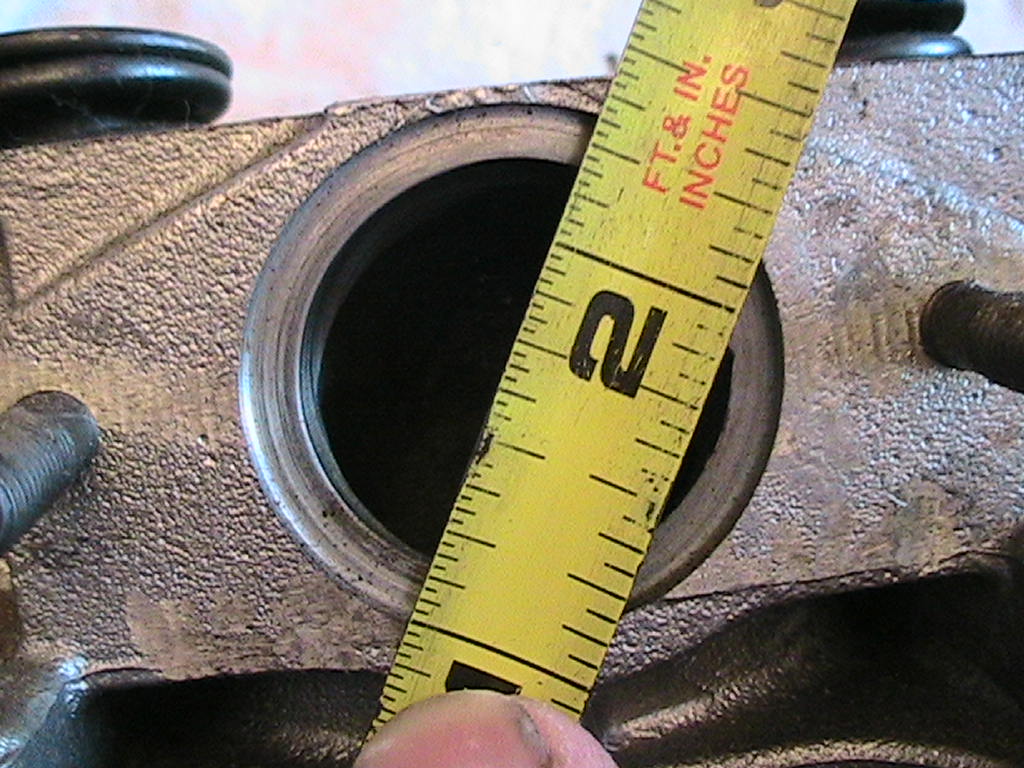

The other two have a smaller opening and a raised part at the intake. Thes are both 1965 beetle, 40HP? Does the D at the end of the one indicate later than 1965?
113.101.373
113.101.373D
|
|
