Race Bus / Fast Bus / Sleeper Bus **Info & Idea Thread

Bill T234 · Posted: Wed Aug 03, 2011 9:36 pm Post subject:

I'm ready for my sway bar! I need to slide this thing like Ken Block. Are they ready?
_________________
check my site @ www.letstalkdubs.com

DBK Las Vegas
www.Letstalkdubs.com

Snoop Bob · Posted: Thu Aug 04, 2011 6:48 am Post subject:

It looks like they are! I just saw a featured ad for them 2 days ago. They are under Kevin's ads. I wonder if we can get a discount for ordering the pair?
_________________

coolrydes · Posted: Fri Aug 05, 2011 9:13 am Post subject:

bill may · Posted: Thu Aug 25, 2011 10:19 am Post subject:

bump
_________________
Admin note: Bill Passed away - July, 2017

1965 panel bus-Kermit
"Camping is cheaper than therapy"
www.sv2s.com
www.steeringboxscrapers.net
SBS #100
http://www.thesamba.com/vw/forum/viewtopic.php?t=453617

gumbajv · Samba Member Joined: April 23, 2005 Posts: 217

If so, what is the track width? Rotor face to rotor face.
thanks.

panel · Posted: Sat Sep 03, 2011 11:18 pm Post subject:

Vanagon but still impressive.

Image may have been reduced in size. Click image to view fullscreen.

_________________
My '65-Subaru EJ20 Turbo conversion

mightymouse · Posted: Sun Sep 04, 2011 1:34 am Post subject:

siiiiiiiiiiiiiiiiiiiiiiiik
_________________
Nothing can stop the man with the right mental attitude from achieving his goal; nothing on earth can help the man with the wrong mental attitude.
Thomas Jefferson

Note to EVERYONE.
Know your ZDDP levels or you WILL lose a cam and lifters.

FG1732 · Samba Member Joined: March 03, 2004 Posts: 354

*

Lexan MR10 (Lexan Margard, coated Polycarbonate)

"Polycarbonate has an impact strength ten times greater than that of automotive glass. Endorsed by sanctioning bodies - Many organizations have endorsed the use of lexan mr10 polycarbonate windows for racing applications, and have made them a standard. The most valuable benefit of lexan mr10 is the enormous weight savings from factory glass, in standard applications polycarbonate can weigh 50 - 70 pounds less for a full set of windows."
PopDisplays, (MR10 distributor)

"Lexan* MR10 sheets improved Margard® II coating resists abrasion and defies graffiti to ensure a “like-new” appearance for many years to come. The next generation of UV absorbers, Margard® coating now incorporates enhanced UV absorbers to protect the sheet from the debilitating effects of sunlight. Virtually unbreakable. High light transmission common to all Lexan* sheet products. Easily maintained without marring, hazing, or yellowing. Compiles with major model building codes. Recommended by GE for use in residential vertical glazing applications. The ideal glazing for high traffic and high impact areas such as: educational institutions, psychiatric hospitals, storefronts and windows, low-level physical attack areas, entrance doors and patios, hurricane protection, railings and sound barriers. Will withstand -40° to 180° continuous and 220°F short term with no load."
USplastics.com

"Lexan Margard sheets have maximum toughness, with mar resistance approaching that of glass, and significantly improved resistance to weathering. MR-10 sheet provides extended service life. It has excellent clarity and durability, it is lightweight, and is superior glazing material for institutions, office buildings, stores, and more. It will withstand -40deg F to 270 deg F. Has a silicone hardcoat surface. It is non-formable and UV resistant. LEXAN MR10 sheet is mar- and graffiti-resistant. It combines the impact strength of LEXAN polycarbonate sheet with a proprietary abrasion and UV-resistant MARGARD® II surface. It is warranted against yellowing, breakage, coating failure and loss of light transmission and offers improved resistance to weathering and forced entry protection. It is useful for schools, store, transit shelters and other high-traffic areas."
K-mac-plastics.com

_____________________________________________________________________________________________

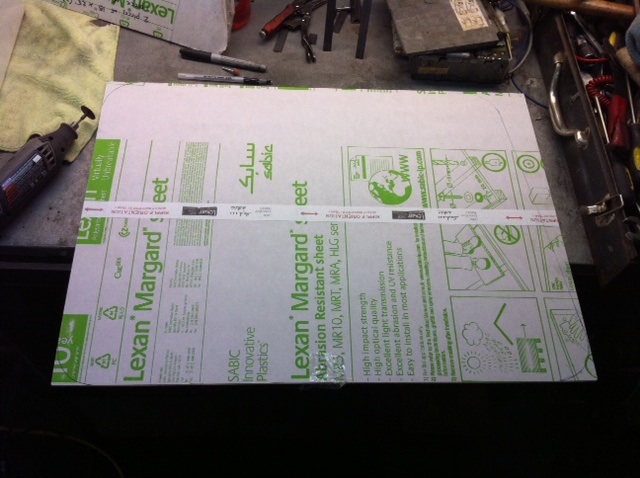

^ MR10 Margard Lexan, NOT standard lexan.

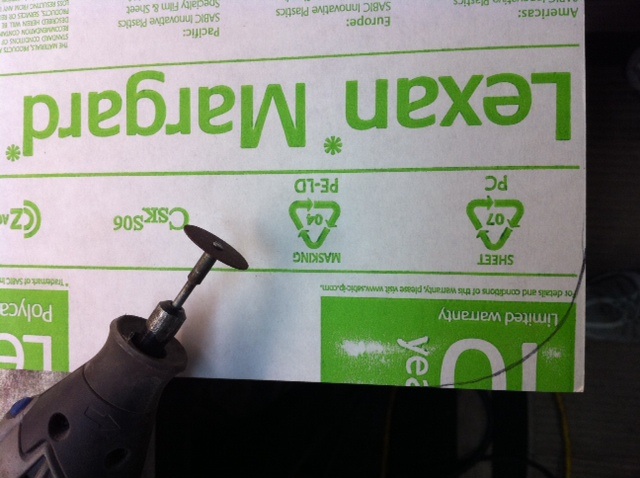

^ Easy to cut and shape.

^Extremely light, extremely strong. Both Type 2 front windshield pieces at roughly 7 lbs.

^ Complete Safari windows & hardware....roughly 25-28lbs.

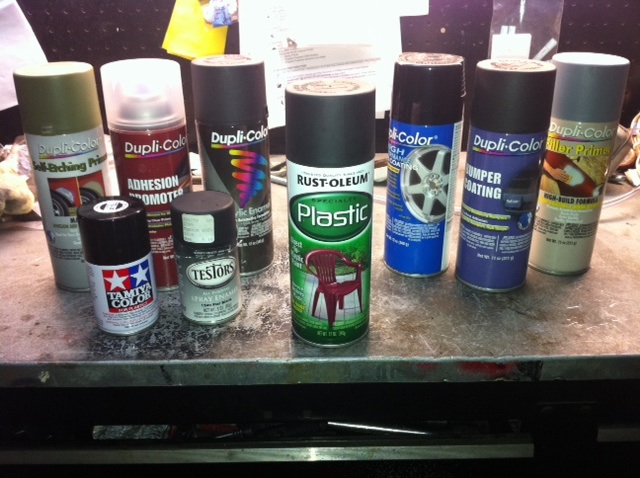

^ After testing nearly every plastic spray on the market (some paints not shown), surprisingly Rust-Oleum Plastic flat black was the best by far for creating a extremely strong holding black trim. Do NOT sand or primer.

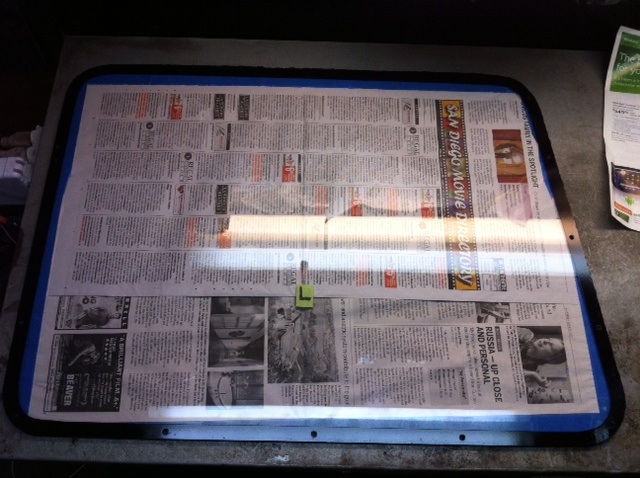

^ Prep. Always use quality 3M tape.

^ Several hours go into one window. Take your time cutting, shaping and painting. Practice on a junk piece of Lexan first. Be prepared to screw up. 3M Blue line tape used.

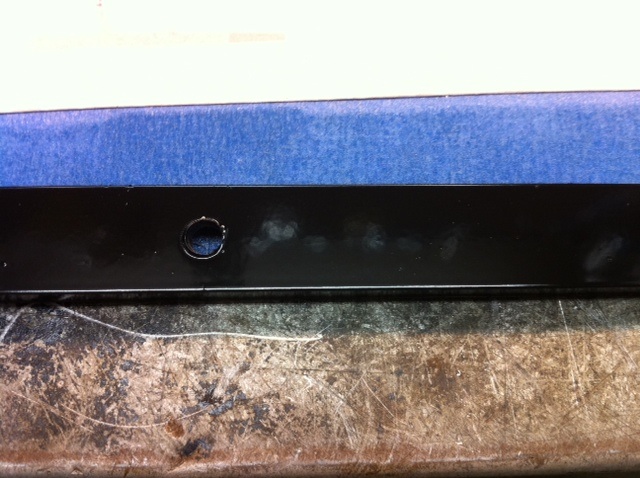

^ Rust-Oleum will come out beautiful if done right (some glare in pic). Trim can be painted on the inside or outside of the Lexan window, your choice.

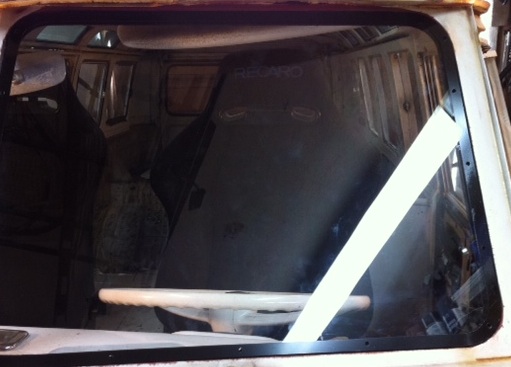

^ Installation methods can vary. Can be used in daily driving if needed. (Illegal pretty much everywhere on public roads. Near impossible to tell it's not glass unless tapped by hand).

^ MR10 weighs in at about 1.5-2 lbs as a side window.

^ Complete pop out w/latch, 6-7 lbs.

^ Installation methods can vary.

____________________________________________________________________________________________

MR10 Lexan Clear pricing (not set in stone...just a guideline)

1/8" x 19.5/8"x 15.3/8" $27.00

3/16" x 32" x 24" $72.00

3/16" x 18 x 25 (for two pieces) - $97.50

Contact this guy... he has the cheapest MR10 prices in town, excellent service, fast shipping and free cuts (square shapes only)...

Gene Wilkeson
POP DISPLAYS
Website www.go2popdisplays.com
Ebaystore http://stores.ebay.com/POP-DISPLAYS

______________________________________________________________________________________________________

More info..

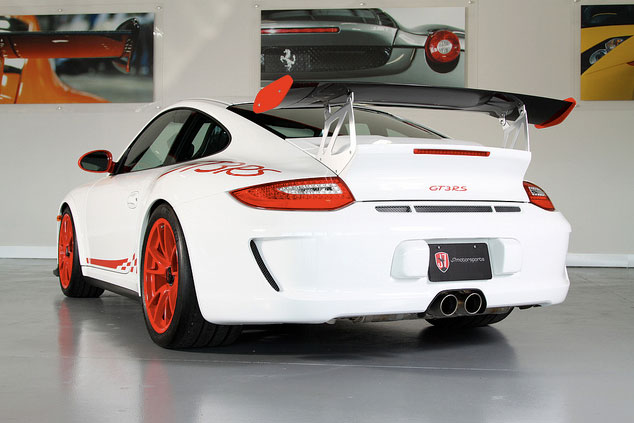

^GT3-RS comes with factory rear Polycarbonate Lexan rear window from Porsche.

^ Lexan windshield tabs (NASCAR truck series)

^ Lexan installed into 911 popout.

^ Clean install of Lexan onto 69 MGB GT V8, large black trim.

Factory Lexan onto new Cayman...

"According to the Planet 9 Forums, the new Cayman Club Sport will make its world Debut at the 2011 LA Auto Show. The specs are similar to the currently available Boxster Spyder. Weight will be reduced by anywhere between 164 and 184 pounds thanks to tricks like lexan windows, aluminum panels, optional stereo and air conditioning and the awesome fabric door pulls. This isn’t just a Cayman on a diet either, the engine will be pushing out 333 horsepower and the suspension will be stiffer and lowered. Those looking to track the car can order a Track package which includes a roll cage, racing harnesses and a fire extinguisher."
Motorauthority.com

*

nikke911 · Posted: Sat Sep 17, 2011 10:38 am Post subject:

Felt like i had to make my first contribution to this thread..
I´ve done pretty much everything to lighten my panel-65 and i´m now down on 1027 kilos with a full tank. Doesn´t sound like a big task,but the thing is the Panel is powered by a Porsche six including a 915 5-speed gearbox, 911 rear suspension AND has a full cage welded inside..Made all of the windows out of this same 4mm Margard lexan which helped to save a lot, but remember that they scratch very easily which is bad when driving in the sun..

kanniff · Posted: Sat Sep 17, 2011 11:20 am Post subject:

Andrew · Posted: Mon Sep 19, 2011 10:36 am Post subject:

bill may · Posted: Tue Sep 20, 2011 8:30 am Post subject:

FG1732 · Samba Member Joined: March 03, 2004 Posts: 354

.

TWIN WISHBONE/COILOVER IRS FOR SPLIT SCREEN

"We think we have got all the bases covered with this one! Once again a bolt on solution for the Split Screen IRS and so much more. Our setup includes everything you need except the gearbox. Why? Because you can use any gearbox you like from the ubiquitous Beetle IRS ‘box to Porsche or any other you care to try! We supply the whole suspension setup(Wishbones, coilovers and support framework), driveshafts and rear disc brake arrangement c/w handbrake…and the other bonus is they are all new parts. Our kit bolts on to your unmodified chassis, replacing all the stock parts. Comes complete just requiring you to add your choice of gearbox and bolt your wheels on. Fully adjustable for height(from 3”-5” drop), stiffness, camber, and toe."

*Red9Design.com

Price - £2750.00
Installation - £600.00

http://www.red9design.com/type2.htm

.

FG1732 · Samba Member Joined: March 03, 2004 Posts: 354

.

"Comedian JERRY SEINFELD has picked an unusual way to mark his 50th birthday - he's driving across America in an old van with his childhood pals to eat at their favourite New York diner. The former SEINFELD star, who celebrated his big day on 29 April (04), will hit the road with CHRIS MISIANO - who serves as one of the directors on THE WEST WING - and Oregon doctor CLIFF SINGER, both pals from his native New York. He says, "We are going to get in a '65 VW bus in Santa Monica, California, and we're going to drive it to the MASSAPEQUA DINER in Long Island. "There's only one change I did make to (the van). It's all original except I put a PORSCHE engine in it. So if you see a bus like this going a lot faster than it seems like it should be able to go, that will be us!" Seinfeld and his pals plan to set off on their journey on Monday (17MAY04)."
14/05/2004

_____________________________________________________________________________________________

Link

_______________________________________________________________________________________________

Link

.

Snoop Bob · Posted: Sun Oct 02, 2011 5:26 pm Post subject:

That's it right there. Sheesh.
_________________

mightymouse · Posted: Sun Oct 02, 2011 11:01 pm Post subject:

The red9 rear setup is amazing. Smile

_________________
Nothing can stop the man with the right mental attitude from achieving his goal; nothing on earth can help the man with the wrong mental attitude.
Thomas Jefferson

Note to EVERYONE.
Know your ZDDP levels or you WILL lose a cam and lifters.

Andrew · Posted: Mon Oct 03, 2011 8:00 am Post subject:

gumbajv · Samba Member Joined: April 23, 2005 Posts: 217

It would be interesting to know how much weight it adds, along with the weight of their front end package.

Plautos · Posted: Thu Nov 17, 2011 6:21 pm Post subject:

Awesome!

This one is mine... well it don´t has a Porsche neither a Subaru’s engine but it develops incredible 110cv on a VW AE 1,6 water-cooled engine. In a near future I will install a supercharger to increase its breath.

http://www.youtube.com/watch?v=AyGZY7OlxwQ

http://www.youtube.com/watch?v=-IL3IxzYlWA

VW Kombi / VW Bus por Ed Cunha Ph, no Flickr

oldschool64bus · Posted: Fri Nov 18, 2011 12:47 am Post subject:
