PostPosted: Sat Jun 15, 2013 10:23 pm    Post subject: Throttle Body Rebuild FAQ Reply with quote

To link to this thread
Code:
[url=https://www.thesamba.com/vw/forum/viewtopic.php?t=559556&start=0&postdays=0&postorder=asc&highlight=]Throttle Body Rebuild FAQ[/url]


Took the plunge and had the throttle body rebuilt.
Saw some pictures of the work whip618 did on Vanagon T/B's and asked if he would do a bay T/B. He said yes so here's a shameless plug for the quality of his work. He rebuilt the shaft, bored it out for a new butterfly valve, made new butterfly valve, new seals, and cleaned all parts and plated the hardware. Simply put, 38 years of wear have been reset to better than factory specs. I say better because I know the assembly line didn't take near the attention to detail Phil did.

Take a look at whip618's gallery for other work Phil has done and my gallery for addition pics of my T/B.

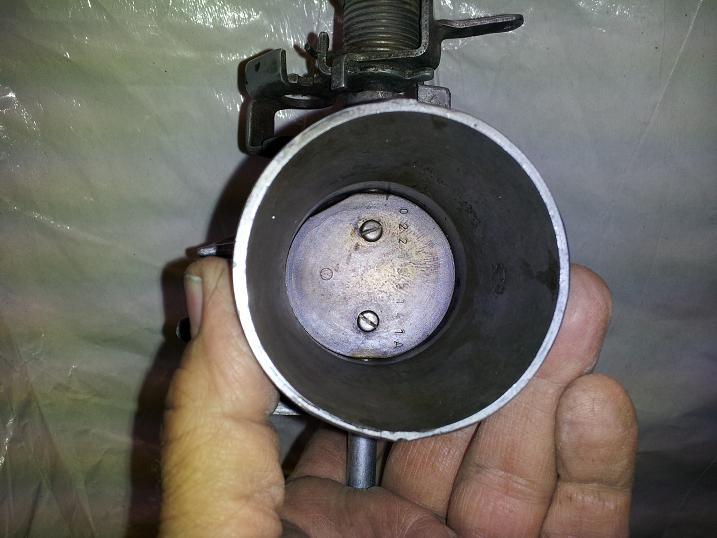

Before:
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

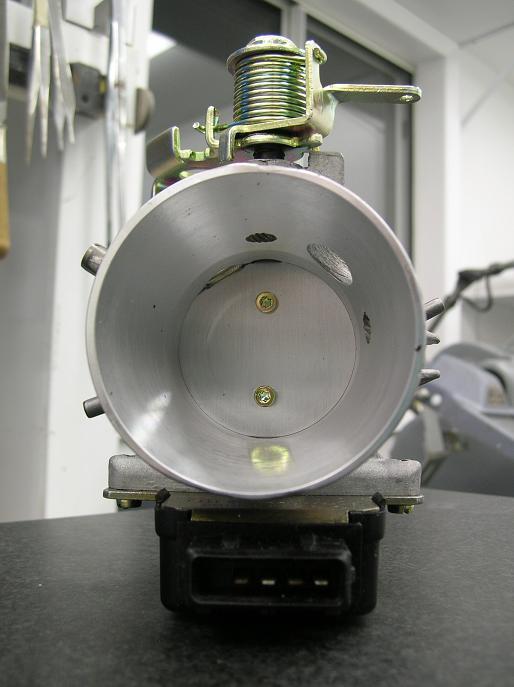

After:
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
'75 Westfalia Camper FI 1.8L
'75 914 2.0L
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tootype2crazy
Samba Member


Joined: October 08, 2007
Posts: 1276
Location: St. Louis Missouri
tootype2crazy is offline

PostPosted: Sat Jun 15, 2013 10:49 pm    Post subject: Reply with quote

Wicked! This guy's gonna be busy now. That is top notch work fo sho.
_________________
air-cooled or nothing for me
1978 Sunroof Deluxe Bus (daily driver)
1978 Transporter (mom's, making into a camper)
1970 Single Cab 2.1 turbo/EFI 6 Rib, 78 front beam, vanagon backing plates on rear (project)
2001 GTI VR6 (wife's)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
curtis4085
Samba Member


Joined: July 22, 2011
Posts: 4806
Location: Colorado
curtis4085 is offline

PostPosted: Sun Jun 16, 2013 7:42 am    Post subject: Reply with quote

Wow please PM me Phils contact info? I would love to have mine redone. If you can please include cost and how it performs on your bus.

Thnk you for posting this.
_________________
Special Thanks to:
Headflow Masters - Vista, CA
www.headflowmasters.com
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rustbus
Samba Member


Joined: June 18, 2009
Posts: 2079
Location: alberta
rustbus is offline

PostPosted: Sun Jun 16, 2013 8:12 am    Post subject: Reply with quote

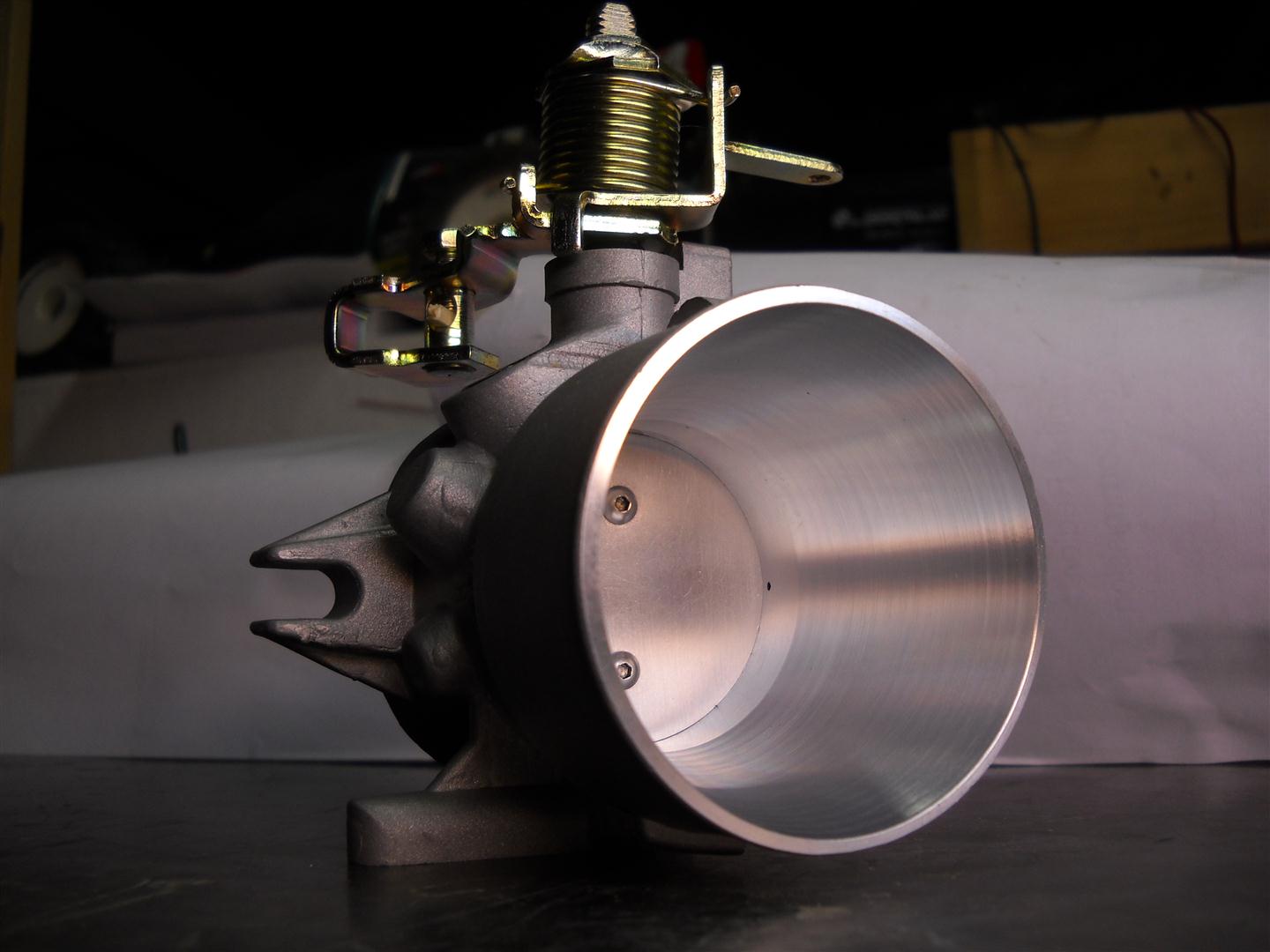

i had phil rebuild mine too a ear or two ago:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


super high quality work, and nice to know that the worn out TB and butterfly valve can no longer be the source of any idle problems.
_________________
May of '72 Deluxe. Red Bay Bus 2.0L L-Jet CS & 091 trans conversion
my Bus thread
Back to top
View user's profile Send private message Gallery Classifieds Feedback
curtis4085
Samba Member


Joined: July 22, 2011
Posts: 4806
Location: Colorado
curtis4085 is offline

PostPosted: Sun Jun 16, 2013 8:44 am    Post subject: Reply with quote

Did I miss Phil's contact info?? Would love to have mine done. Very nice quality work.
_________________
Special Thanks to:
Headflow Masters - Vista, CA
www.headflowmasters.com
Back to top
View user's profile Send private message Gallery Classifieds Feedback
1975 Kombi
Samba Member


Joined: August 12, 2007
Posts: 2459
Location: Acton, Ontario, Canada
1975 Kombi is offline

PostPosted: Tue Aug 06, 2013 8:33 am    Post subject: Reply with quote

How did whip redo the top throttle shaft bushing/seal mount. The OG bushing is no longer available so a mod is necessary to seal the shaft. Did he resize the seal mount for a new available bushing/seal??
_________________
Brett

“He’s decieving you boy! Reach into his pocket and take what he’s got.” Mr. Crabbs.

75 Westy auto
03 Jetta TDI
71 SB
74 Westy
2011 Touareg TDI
2001 NB TDI
Licensed pilot (single engine land VFR)
--
Rust In Pieces: 72 Bug, 73 Bug, 81 Rabbit LS D 2D, 83 Rabbit D 2D, 84 Jetta TD GL, 85 Jetta D, 68 Z28 RS 302, 91 Passat 16v


Last edited by 1975 Kombi on Tue Aug 06, 2013 9:14 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
webwalker
Samba Member


Joined: January 26, 2006
Posts: 2803
Location: Mount Laurel, NJ
webwalker is offline

PostPosted: Tue Aug 06, 2013 9:12 am    Post subject: Reply with quote

How many megabux was it? Deep into three figures?

M
_________________
"Consistent maintenance with quality products is the cheapest warranty you'll ever need."
1977 CE1 Transporter Deluxe, Subaru EJ22, Skills Cooling, Steedle HD 091 w/ GuardT .82 4th
Click to view image
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Randy in Maine
Samba Member


Joined: August 03, 2003
Posts: 34890
Location: The Beach
Randy in Maine is offline

PostPosted: Tue Aug 06, 2013 9:23 am    Post subject: Reply with quote

Send him a PM.....he is a good guy and a great machinist, which is why he is always busy..

http://www.thesamba.com/vw/forum/profile.php?mode=viewprofile&u=1316
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Chris_914
Samba Member


Joined: September 16, 2011
Posts: 344
Location: Las Vegas
Chris_914 is offline

PostPosted: Tue Aug 06, 2013 10:14 am    Post subject: Reply with quote

Everything was touched and made better than new.
Your looking at around 3 bills, need to contact for specifics.
He is a top quality machinist who is tooled for and familar with building these.
_________________
'75 Westfalia Camper FI 1.8L
'75 914 2.0L
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
Tcash is offline

PostPosted: Thu Aug 31, 2017 8:14 am    Post subject: Re: Throttle Body Rebuild Reply with quote

025 133 073 Throttle Body to Intake Plenum Seal
022 133 069 Throttle Body Shaft Seal

whip618 wrote:
You are probably suffering from a worn throttle body. VW did a poor job of design on these throttle bodies and as result they wear to the point of a sticky throttle at best and to an uncontrollable idle with very poor drive-ability at worst.

The throttle shaft and throttle plate being unsupported in the vertical position will actually wear into each other causing the excess gap between the throttle plate and bore of the throttle body with no way to really repair it without exchanging it for one with less wear or going to complete new re-machined throttle body that will not wear out.

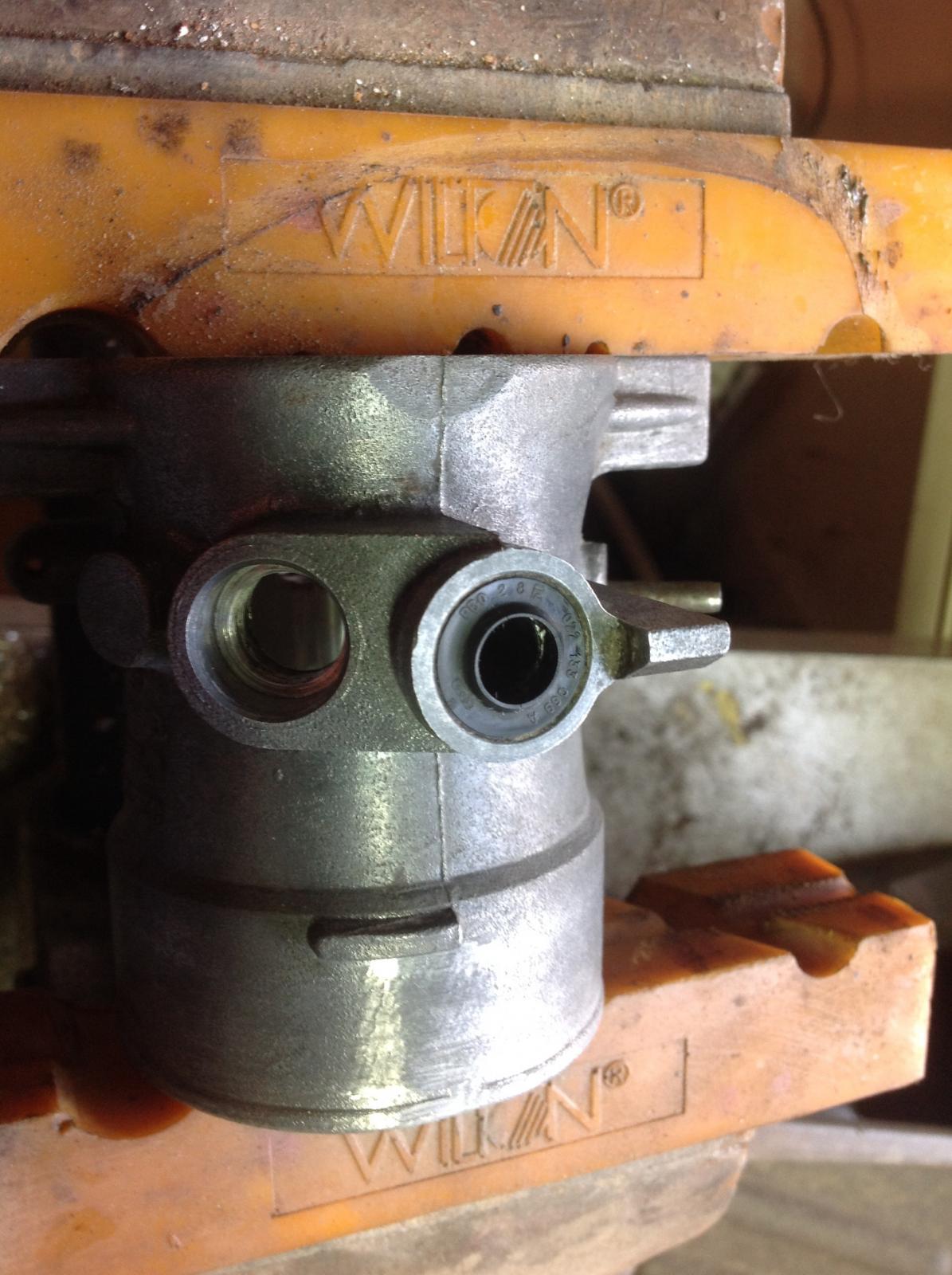

This is photo of a 2.1 water cooled throttle body that has been back lit to emphasize the gap between throttle plate and throttle bore

Image may have been reduced in size. Click image to view fullscreen.

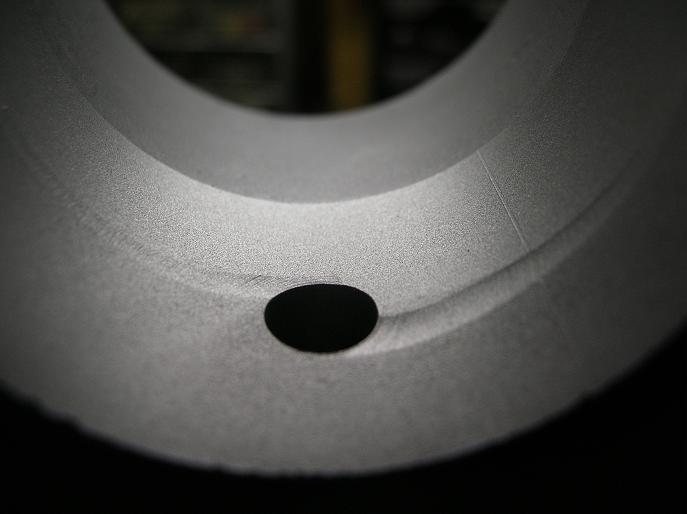

This image is of a re-machined air-cooled throttle body, for proper operation you would want yours to look more like this.
Image may have been reduced in size. Click image to view fullscreen.


whip618 wrote:
To help put a little finer point on what busdaddy said about the throttle binding when the idle screw has been turned in to far I have included a picture that shows the wear that occurs in the throttle bore from the throttle plate opening and closing while rubbing on the bottom of the throttle bore.

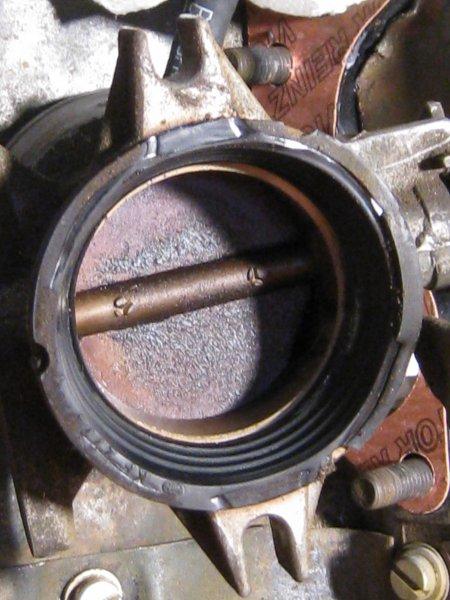

Image may have been reduced in size. Click image to view fullscreen.


With this amount of wear it is easy to visualize the air gap that would be present at the top of the throttle plate when in the idle position so if the idle air screw were turned in until it almost touched the throttle plate in this position it would certainly bind the throttle because the throttle plate in order to turn must first climb up out of this groove which sometimes are as much .030 deep so in that upward climb it would bind against the air screw.

on my rebuilds I machine the bore and the throttle plate to a radial clearance of.0015 so with the throttle shaft locked in the vertical position this produces a very stable idle that will not change over time.

Phil


whip618 wrote:

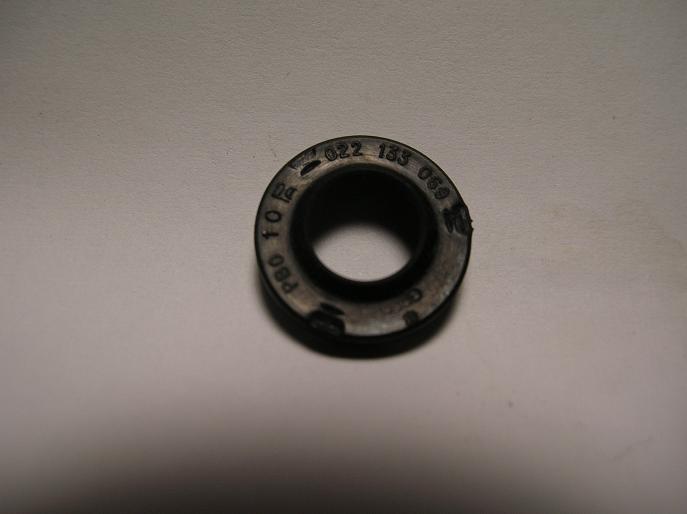

Steve, I have quit a few of these seals in good used condition if you need some.
Image may have been reduced in size. Click image to view fullscreen.

I remove these on the 2.1 throttle body's that I rebuild and replace them with an inch equivalent seal except that the OD is several thousandths over and I have to bore the throttle body anyway for a bearing so I just open up the seal counterbore at the same time so they are concentric
Phil


Throttle Body Shaft Seal
Image may have been reduced in size. Click image to view fullscreen.


djkeev wrote:

Here you go, perfect fit!

Harwal (That's why I included the package in the photo, company ID and item description)
This office was in Vermont but they have others. You do need to purchase from a distributor.
In my case it was Motion Industries in Teterboro NJ.
Harwal will tell you who is nearby if you call them.
The OG VW/Audi product is single lipped too.
Fact is......
These are better, a single lip with a shaft tensioning spring.
Image may have been reduced in size. Click image to view fullscreen.

Dave


Thrasher22 wrote:
Direct link to the product: http://harwal.com/product/15257
I can't find it listed on the Motion Industries website
EDIT: This looks like what we need.
http://www.ebay.com/itm/Metric-Oil-Shaft-Seal-7-x-...258324100f
Back to top
View user's profile Send private message Gallery Classifieds Feedback
obnoxiousblue
Samba Member


Joined: February 21, 2007
Posts: 3022
Location: East Northport, NY
obnoxiousblue is online now

PostPosted: Tue Sep 05, 2017 4:24 pm    Post subject: Re: Throttle Body Rebuild FAQ Reply with quote

Phil is building me a new TB now. I can't control my idle consistently from one minute to the next. I've never separated the Tab from the intake. Is it really as simple as disconnect the cable, unscrew the two Phillips heads and remove it from the car?
When reinstalling, just put the seal on screw it in, and reconnect the cables?
I'm sure I'm missing something - any words of wisdom before I tackle the project?
_________________
Mike
1964 Beetle
2001 Eurovan Camper
Back to top
View user's profile Send private message Visit poster's website AIM Address Gallery Classifieds Feedback
raygreenwood
Samba Member


Joined: November 24, 2008
Posts: 23106
Location: Oklahoma City
raygreenwood is offline

PostPosted: Tue Sep 05, 2017 5:45 pm    Post subject: Re: Throttle Body Rebuild FAQ Reply with quote

obnoxiousblue wrote:
Phil is building me a new TB now. I can't control my idle consistently from one minute to the next. I've never separated the Tab from the intake. Is it really as simple as disconnect the cable, unscrew the two Phillips heads and remove it from the car?
When reinstalling, just put the seal on screw it in, and reconnect the cables?
I'm sure I'm missing something - any words of wisdom before I tackle the project?


Pretty much!

I get much better results with the TB fitted seal/o-ring by carefully putting a VERY thin smear of high temp, oil proof RTV like permatex ultra.....on the tB side of the seal. Mount it up to the TB. Use something that will hold the seal in exact position until the RTV is conpletely cured.

I'm lucky....I have several plenums. I bolt the TB to a spare plenum to dry. I carefully open the plate and clean up any little bit of RTV that squeezes out.

Then carefully clean the plenum opening so its smooth. Repaint if necessary.

Then install the TB. Much better seal positioning. Ray
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
obnoxiousblue
Samba Member


Joined: February 21, 2007
Posts: 3022
Location: East Northport, NY
obnoxiousblue is online now

PostPosted: Tue Sep 05, 2017 5:51 pm    Post subject: Re: Throttle Body Rebuild FAQ Reply with quote

Great thanks Ray! I'm thinking since I dont have a spare plenum I could probably use something just to secure it in place.
_________________
Mike
1964 Beetle
2001 Eurovan Camper
Back to top
View user's profile Send private message Visit poster's website AIM Address Gallery Classifieds Feedback
raygreenwood
Samba Member


Joined: November 24, 2008
Posts: 23106
Location: Oklahoma City
raygreenwood is offline

PostPosted: Tue Sep 05, 2017 8:03 pm    Post subject: Re: Throttle Body Rebuild FAQ Reply with quote

obnoxiousblue wrote:
Great thanks Ray! I'm thinking since I dont have a spare plenum I could probably use something just to secure it in place.


The late seal kind of has a stepped/ribbed OD.

Anything cone shaped with a,weight,will do to put in the center to hold it in contact. Ray
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
obnoxiousblue
Samba Member


Joined: February 21, 2007
Posts: 3022
Location: East Northport, NY
obnoxiousblue is online now

PostPosted: Mon Sep 18, 2017 8:06 pm    Post subject: Re: Throttle Body Rebuild FAQ Reply with quote

So while I can't yet confirm it is THE problem, I'm certain that the play in my Tab is A problem. A friend let me play with his and it didn't move around like mine did. The rebuilt one is on its way from Phil.
Is there anything special to the install here, or is it really as easy as the two screws and the cable? Any settings or anything that need to be adjusted beyond the obvious idle screw?
_________________
Mike
1964 Beetle
2001 Eurovan Camper
Back to top
View user's profile Send private message Visit poster's website AIM Address Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 52737
Location: Surrey B.C. Canada, but thinking of Ukraine
busdaddy is offline

PostPosted: Mon Sep 18, 2017 8:42 pm    Post subject: Re: Throttle Body Rebuild FAQ Reply with quote

No, the 2 screws and the cable adjustment along with any attached vacuum lines is all there is, and reinstalling the S boot and an idle adjustment of course.

obnoxiousblue wrote:
A friend let me play with his and it didn't move around like mine did.

You really should proof read your posts, that statement leaves you wide open for many potential derails Wink Razz
_________________
Rust NEVER sleeps and stock never goes out of style.

Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!

Слава Україні!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
raygreenwood
Samba Member


Joined: November 24, 2008
Posts: 23106
Location: Oklahoma City
raygreenwood is offline

PostPosted: Mon Sep 18, 2017 9:13 pm    Post subject: Re: Throttle Body Rebuild FAQ Reply with quote

busdaddy wrote:
No, the 2 screws and the cable adjustment along with any attached vacuum lines is all there is, and reinstalling the S boot and an idle adjustment of course.

obnoxiousblue wrote:
A friend let me play with his and it didn't move around like mine did.

You really should proof read your posts, that statement leaves you wide open for many potential derails Wink Razz


Sounds like a technique issue......or lack of lubricant......just sayin.... Laughing

Ray
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
Tcash is offline

PostPosted: Tue Sep 19, 2017 6:55 am    Post subject: Re: Throttle Body Seal Reply with quote

Karl wrote:
What is still available is the late Vanagon gasket, 025 133 073. It
looks very similar in size and shape with the only differences I can
see being that it has more ribs along the circumference and the 3
small cutouts at the perimeter are missing.

022 133 073A 2L Type 2 76-79, Vanagon 80-85
025 133 073 Vanagon 86-up


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mlbegley
Samba Member


Joined: December 25, 2004
Posts: 1

mlbegley is offline

PostPosted: Wed Aug 24, 2022 10:44 am    Post subject: Re: Throttle Body Rebuild FAQ Reply with quote

Reviving an old thread, as my bus is also suffering from a worn throttle body and needs a rebuilt unit. I reached out to Phil but he is no longer doing this work.

Anyone have recommendations for where I could get a rebuilt throttle body, or have mine rebuilt?

Thanks!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vwmerckx Premium Member
Samba Member


Joined: August 12, 2012
Posts: 235
Location: Phoenix, AZ
vwmerckx is online now

PostPosted: Wed Aug 24, 2022 3:47 pm    Post subject: Re: Throttle Body Rebuild FAQ Reply with quote

Try Tim at Volkzblitz
https://www.thesamba.com/vw/forum/viewtopic.php?t=451227&postorder=desc
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
