 Posted: Sun Aug 25, 2013 7:30 am Post subject: Sound Deadener Write Up |
 |
|
So.
After all the nice feedback I got in the Samba I decided to get my van some sound proofing.
After all the reading online and in this forum, I chose the Second Skin product line. I bought the Second sking Factor Five Roadster kit (set me back north of $500), their wooden roller, and a can of their spray adhesive.
http://store.secondskinaudio.com/factory-five-roadster-1/
I did the rear hatch, sliding door, areas next to the rear bench seat, being the kitchen, and under the floor. I have yet to, but will, do the right rear panel (where the window washer fluid thing is), the front doors, and floor in the drivers and passenger areas. Not sure I will ever get up and under the dash (too much work).

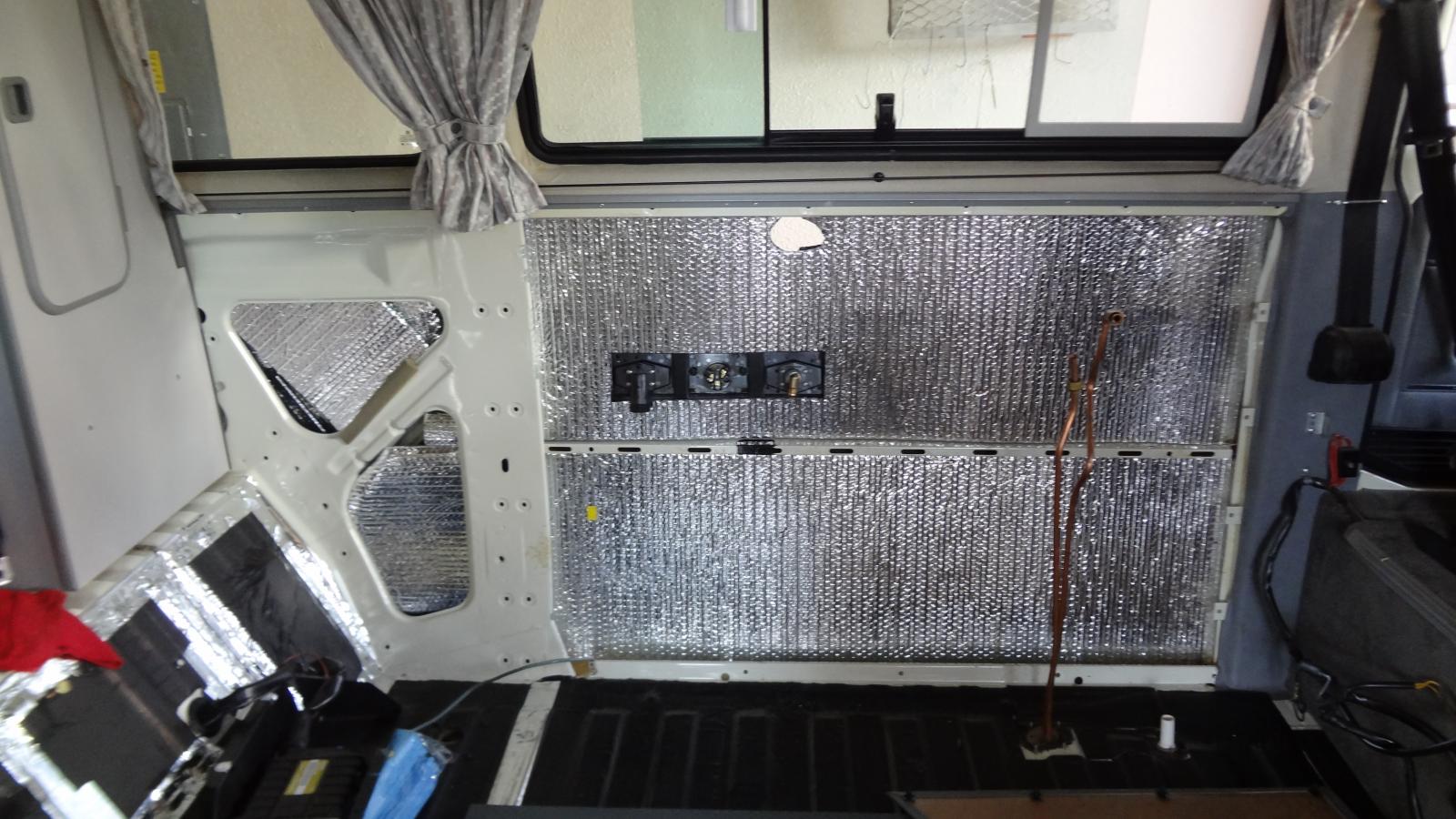

Everywhere that there was room, I did a layer of DamplifierPro, then glues one the Luxury Liner pro, and then a layer or two of Reflectix.
On the floor I only did DamplifierPro (I was nervous about raising the floor too much and messing with how the cabinets would go back in).
All in all, I am very pleased with the result. The van is noticeably quieter. I don't have any scientific measurements. But it is very very noticeably quieter.
BEFORE
THE SECOND SKIN SHIPMENT
GETTING STARTED
MOVING ALONG
MORE AND MORE
REFLETIX BEHIND GALLEY
_________________
----------------------------------------------------
'90 Syncro Westy 2.5Subi Turbo, BFGs 215/75/15 Rheins |
|
| Back to top |
|
 |
supa_fox
Samba Member
Joined: February 26, 2013
Posts: 24
|
| Posted: Sun Aug 25, 2013 10:24 am Post subject: |
|
|
| Thanks for the pics, in the beginning of the same process! Glad to hear it helps |
|
| Back to top |
|
|
randywebb
Samba Member
Joined: February 15, 2005
Posts: 3815
Location: Greater Metropolitan Nimrod, Orygun
|
| Posted: Sun Aug 25, 2013 12:28 pm Post subject: |
|
|
no need to use deadener over the entire panel
_________________
1986 2.1L Westy 2wd Auto Trans. |
|
| Back to top |
|
|
DeadSetMonkey
Samba Member
Joined: April 15, 2010
Posts: 532
Location: Denver, CO
|
| Posted: Sun Aug 25, 2013 3:28 pm Post subject: |
|
|
| randywebb wrote: |
| no need to use deadener over the entire panel |
Indeed... Overkill on my part.
In my reading on this all. 90% or more of the work of sound deadening can be done with 50-75% coverage... But with more coverage there are still gains in performance, just incrementally smaller gains as you increase coverage...
I decided to just go 'all in.'
_________________
----------------------------------------------------
'90 Syncro Westy 2.5Subi Turbo, BFGs 215/75/15 Rheins |
|
| Back to top |
|
|
randywebb
Samba Member
Joined: February 15, 2005
Posts: 3815
Location: Greater Metropolitan Nimrod, Orygun
|
|
| Back to top |
|
|
randywebb
Samba Member
Joined: February 15, 2005
Posts: 3815
Location: Greater Metropolitan Nimrod, Orygun
|
|
| Back to top |
|
|
DeadSetMonkey
Samba Member
Joined: April 15, 2010
Posts: 532
Location: Denver, CO
|
| Posted: Sun Aug 25, 2013 5:46 pm Post subject: |
|
|
| randywebb wrote: |
I understand. No use in doing a bunch of labor and not getting it done right...
"all in" will also involve a layer of MLV and then something like this next to the interior trim |
I did CLD then CCF then MLV then reflectix. 4 layers.
The CCF and MLV come 'melted I to one sheet' from second skin..
I only did the CLD on the floor and firewall, where I was worried the thickness would upset things.
_________________
----------------------------------------------------
'90 Syncro Westy 2.5Subi Turbo, BFGs 215/75/15 Rheins |
|
| Back to top |
|
|
R0Batt
Samba Member
Joined: April 05, 2021
Posts: 71
Location: Charlotte, NC
|
| Posted: Sat Mar 22, 2025 6:16 pm Post subject: Re: Sound Deadener Write Up |
|
|
How much square footage did you use of sound deadener?
_________________
85 Westy
Charlotte, NC |
|
