 Posted: Thu Jan 09, 2014 8:48 pm Post subject: VDO Vision Gauge Install |
 |
|
speedo, tach, electric H20 temp., fuel level, vdo fuel sender, intellitronix gps sender.
Work in progress, should be finished tomorrow.
If anyone is interested there are more photos and information here:
https://www.facebook.com/groups/241225701736/ |
|
| Back to top |
|
 |
goffoz
Samba Member
Joined: May 09, 2007
Posts: 1486
|
| Posted: Thu Jan 09, 2014 9:12 pm Post subject: |
|
|
Nice, are you painting the surrounds ? or staying white?
... where are the hazard switch et.al. going?
Love the workshop ...55gal.US drums are so useful...I need a few more  |
|
| Back to top |
|
|
luVWagn
Samba Member
Joined: February 21, 2008
Posts: 1342
Location: Snoqualmie (WA)
|
| Posted: Thu Jan 09, 2014 9:14 pm Post subject: |
|
|
Curious why you went with GPS speedo, especially if it takes a few minutes to "turn green" and track satellites (as mentioned on your blog)? Why not just convert the vanagon's signal from analog to digital using one of these:
http://www.ebay.com/itm/120821043652?item=12082104...mp;vxp=mtr, also used in various other VWs? This (and potentially a Dakota Digital box depending on gauge) would allow you to hook up all manner of speedos?
But very cool project! I'm in the middle of trying to wire up a Digifiz to my Westy
_________________
'91 Double Door Transporter |
|
| Back to top |
|
|
Colorado Yeti
Samba Member
Joined: August 25, 2013
Posts: 356
Location: Ft. Collins, Colorado
|
| Posted: Thu Jan 09, 2014 9:25 pm Post subject: |
|
|
| Rock on. Gauges look awesome. Analog rules. |
|
| Back to top |
|
|
DAV!D
Samba Member
Joined: September 10, 2013
Posts: 980
Location: EL CAMINO
|
| Posted: Thu Jan 09, 2014 9:40 pm Post subject: |
|
|
I'd paint the silver panels black to match the dash.
_________________
86 Syncro Build - Ecotec Motor Swap - Pop Top Conversion - Camper Build & Syncro Conversion |
|
| Back to top |
|
|
photogdave
Samba Member
Joined: April 05, 2004
Posts: 3141
Location: Vancouver Island, B.C.
|
|
| Back to top |
|
|
furrylittleotter
Samba Member
Joined: May 19, 2008
Posts: 1506
Location: West Seattle
|
| Posted: Sun Jan 12, 2014 3:30 pm Post subject: |
|
|

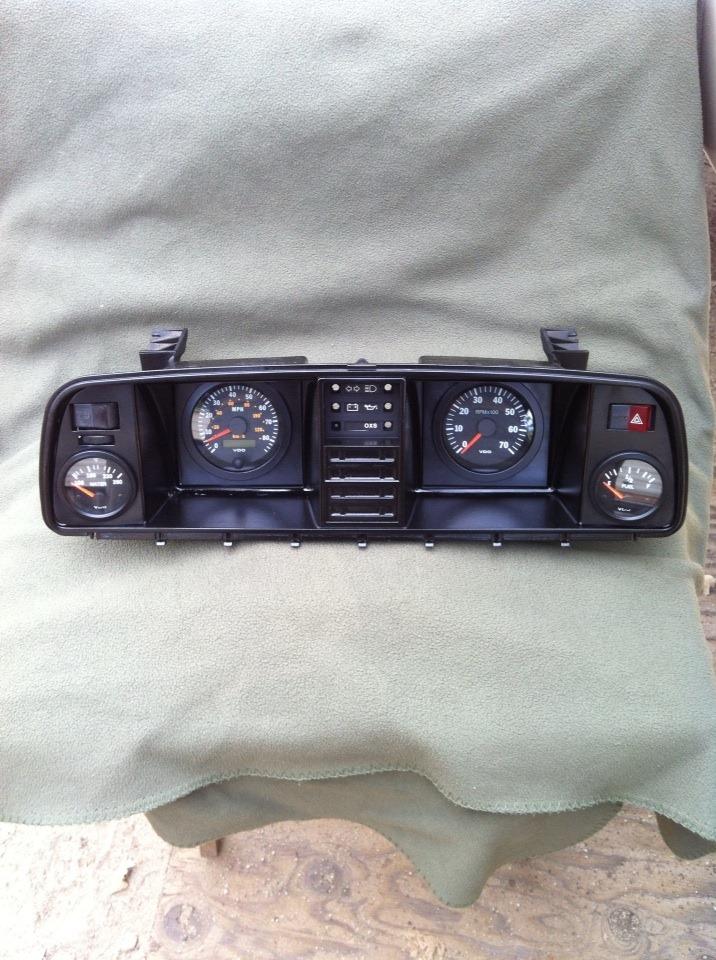

Further along down the road. while it isn't perfect, it should meet my needs and it is one of the better examples of integrating modern gauges with the stock cluster arrangement.
More information here: https://www.facebook.com/groups/241225701736/
Neil2 |
|
| Back to top |
|
|
DAV!D
Samba Member
Joined: September 10, 2013
Posts: 980
Location: EL CAMINO
|
| Posted: Sun Jan 12, 2014 3:37 pm Post subject: |
|
|
That looks very nice all painted black. I'm curious about something. How does the speedo and the fuel gauge hook up? I honestly don't know how a factory vanagon seedo hooks up, but with the fuel gauge are you wiring it to the stock sending unit or are you using one of vdo's fuel sending units?
_________________
86 Syncro Build - Ecotec Motor Swap - Pop Top Conversion - Camper Build & Syncro Conversion |
|
| Back to top |
|
|
furrylittleotter
Samba Member
Joined: May 19, 2008
Posts: 1506
Location: West Seattle
|
| Posted: Sat Feb 08, 2014 6:00 pm Post subject: |
|
|
Further down the road:
This is the first time I have seen my new gauges in place, complemented nicely by my new Audi center vent and Subaru HVAC control and added under dash space. (Bungee holding column temporarily)
More information here:
https://www.facebook.com/groups/241225701736/ |
|
| Back to top |
|
|
luVWagn
Samba Member
Joined: February 21, 2008
Posts: 1342
Location: Snoqualmie (WA)
|
| Posted: Sun Feb 09, 2014 12:57 am Post subject: |
|
|
| furrylittleotter wrote: |
| ...my new Audi center vent and Subaru HVAC control and added under dash space. (Bungee holding column temporarily) |
What, both hands on the steering wheel can get heat?! No fair!!!
_________________
'91 Double Door Transporter |
|
| Back to top |
|
|
furrylittleotter
Samba Member
Joined: May 19, 2008
Posts: 1506
Location: West Seattle
|
| Posted: Tue Mar 18, 2014 11:02 am Post subject: |
|
|
In place and appear to be working great.
|
|
| Back to top |
|
|
Gunldesnapper
Samba Member
Joined: July 16, 2013
Posts: 147
Location: Murika
|
| Posted: Tue Mar 18, 2014 12:33 pm Post subject: |
|
|
Looks snazzy there Ninja!
_________________
1990 Vanagon Carat "Pig"
USN RET |
|
| Back to top |
|
|
furrylittleotter
Samba Member
Joined: May 19, 2008
Posts: 1506
Location: West Seattle
|
| Posted: Tue Mar 18, 2014 12:35 pm Post subject: |
|
|
| ZEF! |
|
