 Posted: Sun Nov 16, 2014 8:59 pm Post subject: Fuel Tank Removal |
 |
|
| I was wondering how you can remove a tank without dropping the engine. I need to replace mine in my 1978 bay window automatic bus. Its fuel injected. I've seen it done and was wondering if it would be easier because i don't have a lift and many tools to remove the pancake engine. |
|
| Back to top |
|
 |
1967250s
Samba Member
Joined: May 02, 2007
Posts: 2137
|
| Posted: Sun Nov 16, 2014 10:02 pm Post subject: |
|
|
| It can be done. I've stripped my engine down to a short block and changed pistons, while still mounted. You just have to get everything out of the way of the fuel tank and be ready to crawl over the engine to get all the connections. If you can't get in-fit inside- the engine hatch, not a good idea. Don't expect it to be easy, you may have to remove much of the FI stuff and the front tin, top and fan house to get it out. |
|
| Back to top |
|
|
aeromech
Samba Member
Joined: January 24, 2006
Posts: 17593
Location: San Diego, California
|
| Posted: Mon Nov 17, 2014 9:25 am Post subject: |
|
|
The border patrol did it and so can you.
_________________
Lead Mechanic: San Diego Air and Space Museum
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound |
|
| Back to top |
|
|
jtauxe
Samba Member
Joined: September 30, 2004
Posts: 5935
Location: Los Alamos, New Mexico
|
| Posted: Mon Nov 17, 2014 9:40 am Post subject: |
|
|

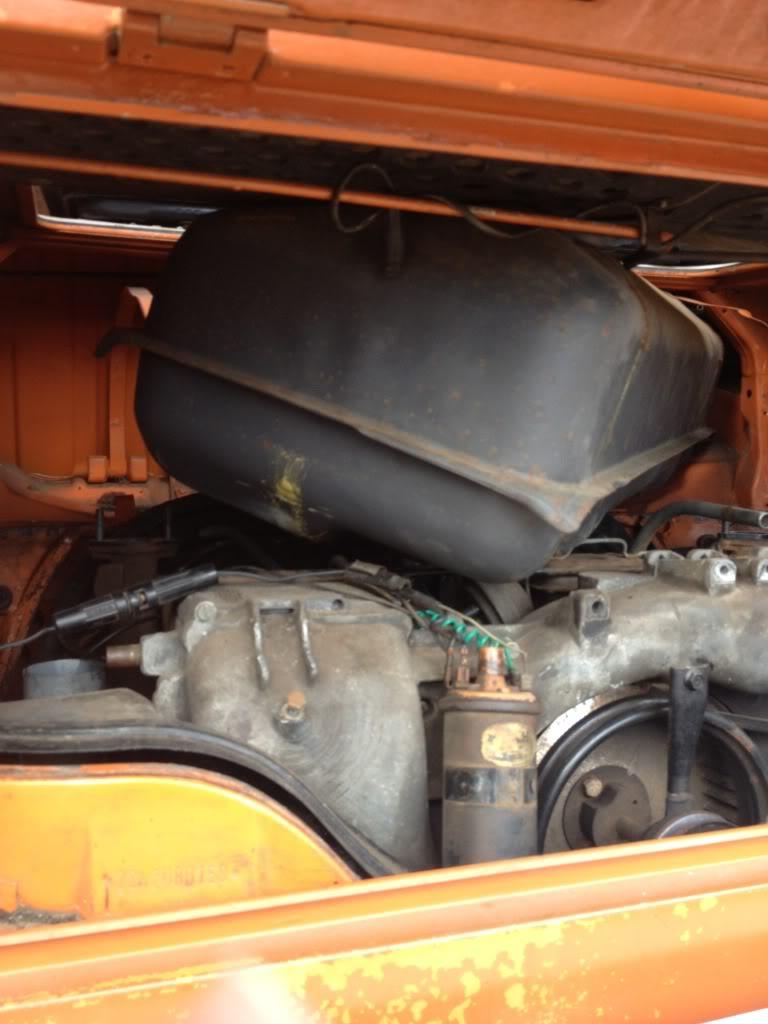

BTW, don't install it back the way that it was done in the preceding photos. Having those steel cables rubbing against the steel tank with no padding for protection is a bad idea. Use some of those heavy felt pads that you can get for furniture to protect floors. They are adhesive on one side, making installation easy.
_________________
John
"Travelling in a fried-out Kombi, on a hippie trail, head full of zombie..." - Colin Hay and Ron Strykert
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner, 1974 Westfalia parts bus, 1975 Mexican single cab *FOR SALE*, 1978 Irish 4-door double cab RHD
|
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12847
Location: San Jose, California, USA
|
|
| Back to top |
|
|
merlinj79
Samba Member
Joined: December 05, 2008
Posts: 379
Location: SOCAL
|
| Posted: Mon Nov 17, 2014 9:52 am Post subject: |
|
|
In the grand scheme of things it will probably be easier to drop the motor first.
It can be done with a cheap floor jack and some plywood, although a motorcycle jack is even better. It can be done solo, but better to have a helper. You only need the helper for about five minutes each dropping and installing, and he/she doesn't need skills.
_________________
Rick
"Pumpkin II"
Stock 2L FI '77 Westy
CA Smog Stuff |
|
