My 67 - 1500 (Help!)
Page: 1, 2, 3, 4  Next
Forum Index -> Beetle - 1958-1967 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
ocdbeetle
Samba Optimist


Joined: March 18, 2008
Posts: 1176
Location: South Carolina
ocdbeetle is offline

PostPosted: Thu Apr 24, 2008 12:26 pm    Post subject: My 67 - 1500 (Help!) Reply with quote

I'm sure I'll have a few more questions later so I'll plan to keep everything in this thread so I can keep the info together...

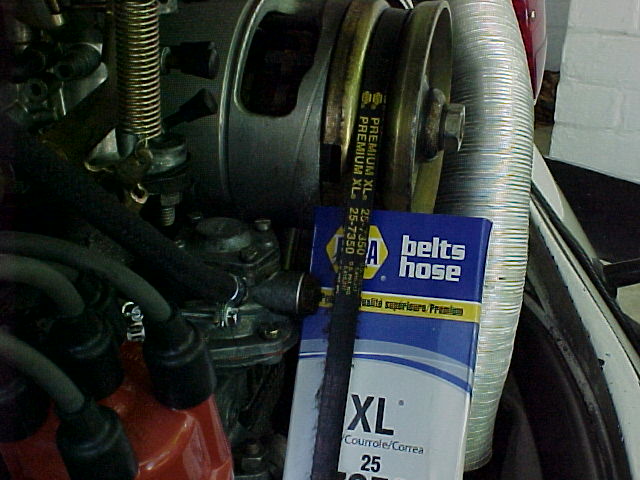

Why is my fan belt fraying??? It only does it on the Front side (front is front)...I turned it around this morning and drove for a couple miles to find it fraying the previously non frayed side...It seems to be lined up correctly but?? maybe not...
I checked for tightness (1/2" deflection) and it doesnt appear to be slipping..
Image may have been reduced in size. Click image to view fullscreen.

_________________
1967 Lotus White Beetle


Last edited by ocdbeetle on Tue Jun 03, 2008 1:25 pm; edited 4 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
fatalifeaten
Samba Member


Joined: November 16, 2006
Posts: 181
Location: Mesa AZ
fatalifeaten is offline

PostPosted: Thu Apr 24, 2008 12:36 pm    Post subject: Reply with quote

Check your pulleys for burrs. Could be your culprit as it seems to be increasingly common.
_________________
Daily Driven Dubz. Phoenix Family

"I want to know God's thoughts. The rest are details"
--Albert Einstein

'66 Beetle
'63 Beetle
Back to top
View user's profile Send private message Visit poster's website AIM Address Classifieds Feedback
herbie91
Samba Member


Joined: November 02, 2007
Posts: 216
Location: Cape Cod
herbie91 is offline

PostPosted: Thu Apr 24, 2008 1:32 pm    Post subject: Reply with quote

whats a burr? - for future refrence.
_________________
"you better close you mouth turkey,
'cause you gunna get our tire marks right across your teeth!"
- Don Knotts 1977
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
fatalifeaten
Samba Member


Joined: November 16, 2006
Posts: 181
Location: Mesa AZ
fatalifeaten is offline

PostPosted: Thu Apr 24, 2008 1:41 pm    Post subject: Reply with quote

Run your fingers through the pulleys and feel for rough spots or sharp pointy spots. Those are burrs. They can happen during the manufacture, or from debris hitting the pulleys during use. File them down and your belts will be happier for it.

Hopefully this goes without saying, but DON'T DO THIS WITH THE ENGINE RUNNING!

Smile
_________________
Daily Driven Dubz. Phoenix Family

"I want to know God's thoughts. The rest are details"
--Albert Einstein

'66 Beetle
'63 Beetle
Back to top
View user's profile Send private message Visit poster's website AIM Address Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Thu Apr 24, 2008 1:45 pm    Post subject: Reply with quote

If you don't find any burr's, try loosening the belt up about 1 maybe 2 shims. And put a new belt on.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
ocdbeetle
Samba Optimist


Joined: March 18, 2008
Posts: 1176
Location: South Carolina
ocdbeetle is offline

PostPosted: Thu Apr 24, 2008 2:13 pm    Post subject: Reply with quote

Okay - New belt..1 shim out...so far so good....
_________________
1967 Lotus White Beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Chad M
Samba Member


Joined: July 14, 2003
Posts: 723
Location: Alberta
Chad M is offline

PostPosted: Thu Apr 24, 2008 3:09 pm    Post subject: Reply with quote

ocdbeetle wrote:
Okay - New belt..1 shim out...so far so good....


To be clear, you need to add a shim between the pulley halves to "loosen it up".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ocdbeetle
Samba Optimist


Joined: March 18, 2008
Posts: 1176
Location: South Carolina
ocdbeetle is offline

PostPosted: Thu Apr 24, 2008 3:17 pm    Post subject: Reply with quote

Chad M wrote:


To be clear, you need to add a shim between the pulley halves to "loosen it up".


Thanks - Embarassed
_________________
1967 Lotus White Beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ocdbeetle
Samba Optimist


Joined: March 18, 2008
Posts: 1176
Location: South Carolina
ocdbeetle is offline

PostPosted: Thu Apr 24, 2008 3:27 pm    Post subject: Reply with quote

I'll keep an eye on the fraying belt...so good for now...

How do you analyze the pipe test?

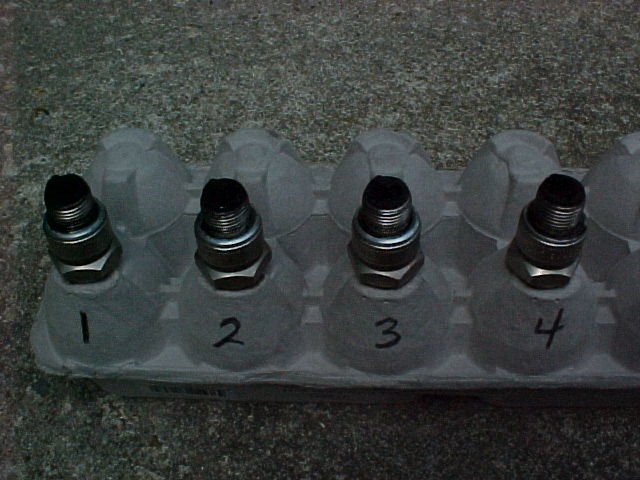

My Spark plugs are equally "smooty" (sorry about the pic quality)

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1967 Lotus White Beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Thu Apr 24, 2008 3:42 pm    Post subject: Reply with quote

First, do you have the thermostat and shutters in the fan housing??
Get the engine up to temperature as quick as possible.
How is your choke set? Back it off a little maybe. Is the choke pull off diaphragm working properly?
And what are you driving habits? Short trip, or long highway runs??
Short trip will look like that.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
mailman
Samba Member


Joined: March 24, 2005
Posts: 1663

mailman is offline

PostPosted: Thu Apr 24, 2008 3:56 pm    Post subject: Reply with quote

Looks like it's running rich....
_________________
'64 Bahama Blue Beetle / steel sunroof
'64 Bahama Blue Beetle Sedan (future ragtop)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ocdbeetle
Samba Optimist


Joined: March 18, 2008
Posts: 1176
Location: South Carolina
ocdbeetle is offline

PostPosted: Thu Apr 24, 2008 5:03 pm    Post subject: Reply with quote

Russ Wolfe wrote:
First, do you have the thermostat and shutters in the fan housing??

I'll check that -

Get the engine up to temperature as quick as possible.
How is your choke set? Back it off a little maybe. Is the choke pull off diaphragm working properly?

This is good as far as i can tell...

And what are you driving habits? Short trip, or long highway runs??
Short trip will look like that.


Short trips for sure...2-3 mile jaunts not over 40 mph in town...


I was thinking running rich but I wasnt sure...

It runs/idles wonderfully with that nice tweet sound...
Maybe runs a little warm but Im in the process of getting the "correct" heat risers, tins, aircleaner, etc...

I'll probably hit Glenn up for an 019 while i'm at it...

These plugs only have maybe 100 miles on them so I wanted to get your opinion...Thanks
_________________
1967 Lotus White Beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Thu Apr 24, 2008 5:32 pm    Post subject: Reply with quote

Take that sucker out on the highway, and blow the cobs out of it. 2-4 miles is not enough to warm one up completely.
Get the oil and the heads up to full operating temps. Then look at the plugs.
Make sure the choke comes off within 1-2 minutes. Make sure the choke pull off is working and doesnt have a hole in it. You can do that without pulling the carb. Just take the 3 screws out and look at it.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
67 Florida Deluxe
Samba Purist


Joined: June 21, 2005
Posts: 7987
Location: Gainesville and Tampa, Florida
67 Florida Deluxe is offline

PostPosted: Thu Apr 24, 2008 6:08 pm    Post subject: Reply with quote

!
Russ Wolfe wrote:
Take that sucker out on the highway, and blow the cobs out of it. 2-4 miles is not enough to warm one up completely.
Get the oil and the heads up to full operating temps. Then look at the plugs.
Make sure the choke comes off within 1-2 minutes. Make sure the choke pull off is working and doesnt have a hole in it. You can do that without pulling the carb. Just take the 3 screws out and look at it.


I do that with all my non-daily drivers. I pick a nice evening when there's not a lot of traffic and go for a long drive on roads where I can maintain 45 + mph. I also take them on the highway and run between exits. Short trips where the engine doesnt get up to full operating temp are horrible for an engine. In my 450 SL (which hates sitting for any length of time or just getting groceries), I'll take it up on the highway and nail it on the onramp. It'll buck and sputter and fart out lots of black smoke. After several of miles of driving like a wild banshee.... Embarassed I mean obeying all posted speed limits and varying my driving habits to fit weather and traffic conditions, it runs like new! Take it up the onramp again and no brownish black smoke and runnin' like a scalded dog Very Happy

Those plugs look like what I took out of my white '67 when I just petered around in it. I took it up on the highway and ran back and forth for a while. Got home, looked at them again, and there was no soot.

Here's another trick my Mercedes mechanic taught me. If a car sits for long periods, or only goes on "granny-grocery-getter" trips (and is in a high humidiy area), run a dollar bill back and forth between the points. It may seem odd, but it buffs off any corrosion and I can tell a big difference in the performance of the SL. I do this prior to taking it out on the highway and it's very helpful.
_________________
-Kent (BaT "daleallen")

OG member of the '67 Posse

A few of my toys, past and present
'56 Oval, '66 KG Conv't, '67 21-Window, '67 Bug, '79 SuperVert, '55 Pre-A Continental


Last edited by 67 Florida Deluxe on Thu Apr 24, 2008 6:19 pm; edited 4 times in total
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
ocdbeetle
Samba Optimist


Joined: March 18, 2008
Posts: 1176
Location: South Carolina
ocdbeetle is offline

PostPosted: Thu Apr 24, 2008 6:14 pm    Post subject: Reply with quote

Okay - tomorrow i'll go for a good old fashioned drive...I got a lead on some Beetles on the way to Myrtle Beach. Very Happy
_________________
1967 Lotus White Beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
67 Florida Deluxe
Samba Purist


Joined: June 21, 2005
Posts: 7987
Location: Gainesville and Tampa, Florida
67 Florida Deluxe is offline

PostPosted: Thu Apr 24, 2008 6:17 pm    Post subject: Reply with quote

ocdbeetle wrote:
Okay - tomorrow i'll go for a good old fashioned drive...I got a lead on some Beetles on the way to Myrtle Beach. Very Happy


...and this is the perfect weather for it, too Wink ! In a month, we won't be able to enjoy our non-air conditioned air-cooleds as much Sad
_________________
-Kent (BaT "daleallen")

OG member of the '67 Posse

A few of my toys, past and present
'56 Oval, '66 KG Conv't, '67 21-Window, '67 Bug, '79 SuperVert, '55 Pre-A Continental
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
ocdbeetle
Samba Optimist


Joined: March 18, 2008
Posts: 1176
Location: South Carolina
ocdbeetle is offline

PostPosted: Thu Apr 24, 2008 6:20 pm    Post subject: Reply with quote

67 Florida Deluxe wrote:
ocdbeetle wrote:
Okay - tomorrow i'll go for a good old fashioned drive...I got a lead on some Beetles on the way to Myrtle Beach. Very Happy


...and this is the perfect weather for it, too Wink ! In a month, we won't be able to enjoy our non-air conditioned air-cooleds as much Sad


True - and the Humidity...awful
_________________
1967 Lotus White Beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
67 Florida Deluxe
Samba Purist


Joined: June 21, 2005
Posts: 7987
Location: Gainesville and Tampa, Florida
67 Florida Deluxe is offline

PostPosted: Thu Apr 24, 2008 6:29 pm    Post subject: Reply with quote

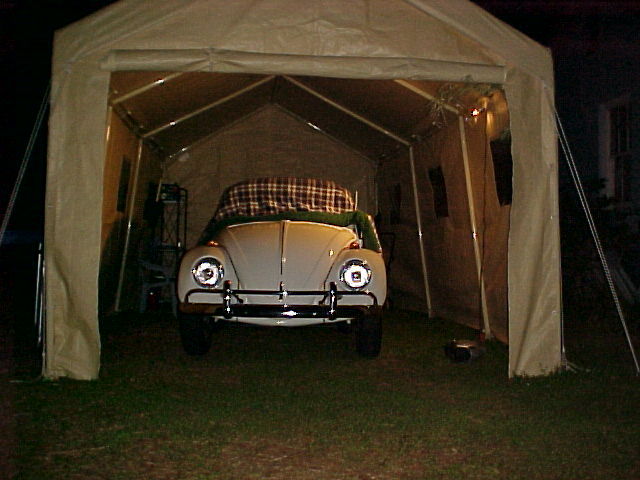

BTW, ocdbeetle, I love this picture! It reminds me of my cars under all their blankets Smile .

Interesting, though.... cars dont suffer from "red-eye" in flashed photos. They have "white-eye", instead Laughing

(I have one of those carports, too Smile )

Image may have been reduced in size. Click image to view fullscreen.

_________________
-Kent (BaT "daleallen")

OG member of the '67 Posse

A few of my toys, past and present
'56 Oval, '66 KG Conv't, '67 21-Window, '67 Bug, '79 SuperVert, '55 Pre-A Continental
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Thu Apr 24, 2008 6:48 pm    Post subject: Reply with quote

Here is what heads can look like if you don't run them once in a while.
Those are the "cobs" that need burned out.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
67 Florida Deluxe
Samba Purist


Joined: June 21, 2005
Posts: 7987
Location: Gainesville and Tampa, Florida
67 Florida Deluxe is offline

PostPosted: Thu Apr 24, 2008 6:54 pm    Post subject: Reply with quote

Russ Wolfe wrote:
Here is what heads can look like if you don't run them once in a while.
Those are the "cobs" that need burned out.
Image may have been reduced in size. Click image to view fullscreen.


Lemme guess.... low mileage and owned by a little old lady!

One of my mechanics when I was younger worked on Bentleys, Rolls Royces and exotics. His #1 complaint from customers was that the car "just seemed sluggish" and needed a tune-up. Honestly, all he'd do is drive the car on the highway over to Tampa and back (blowing out the "carbon") and the cars would run beautifully afterward. He'd tell them that's all he did and that's all they needed to do, but they were too set in their ways. Back it out on Sunday, wash it, drive it back into the garage and wax it, and bring it to Woody twice a year for a "tune up".

Stupid rich people Rolling Eyes


Razz
_________________
-Kent (BaT "daleallen")

OG member of the '67 Posse

A few of my toys, past and present
'56 Oval, '66 KG Conv't, '67 21-Window, '67 Bug, '79 SuperVert, '55 Pre-A Continental
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - 1958-1967 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4  Next
Page 1 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
