PostPosted: Sat Apr 14, 2012 9:13 pm    Post subject: Ford Cologne 2.8L V6 conversion (my 'Vanagord') Reply with quote

Hi all,
I recently bought a 1984 Westy with a 2.8L Ford Cologne (171 cid) conversion in it. Before I bought it, I tried to find some decent info on this engine and how it functions in a vanagon, and there was not a lot out there. I did find some good info on the engine: Here's a good description: http://www.therangerstation.com/tech_library/2_8L_Performance.html

Anyway, I thought I would post some pictures for those who are curious about the benefits vs. costs of American V6 conversions and what one looks like.

This van has newish paint form 2008 (not powder coated), nice alloy rims, and almost no rust anywhere. The undercarriage and stock metal coolant pipes are rust free - this van has been in Montana all it's life.
Image may have been reduced in size. Click image to view fullscreen.


It came with a butch custom rear bumper and trailer hitch. I know a bicycle shop in Missoula once owned this van, and they were the one's who put the nice custom bike rack on the back to hold three bikes. Not pictured is the Thule roof rack that could carry more bikes or a canoe or whatever. The stereo is pretty good too.
Image may have been reduced in size. Click image to view fullscreen.


Here's a view of the upwardly expanded engine compartment. This is not my favorite thing about this van, but the trade off is a simple, strong, reliable engine. The deck is raised 6", and there is some plywood in there to make the rear bed work.
Image may have been reduced in size. Click image to view fullscreen.

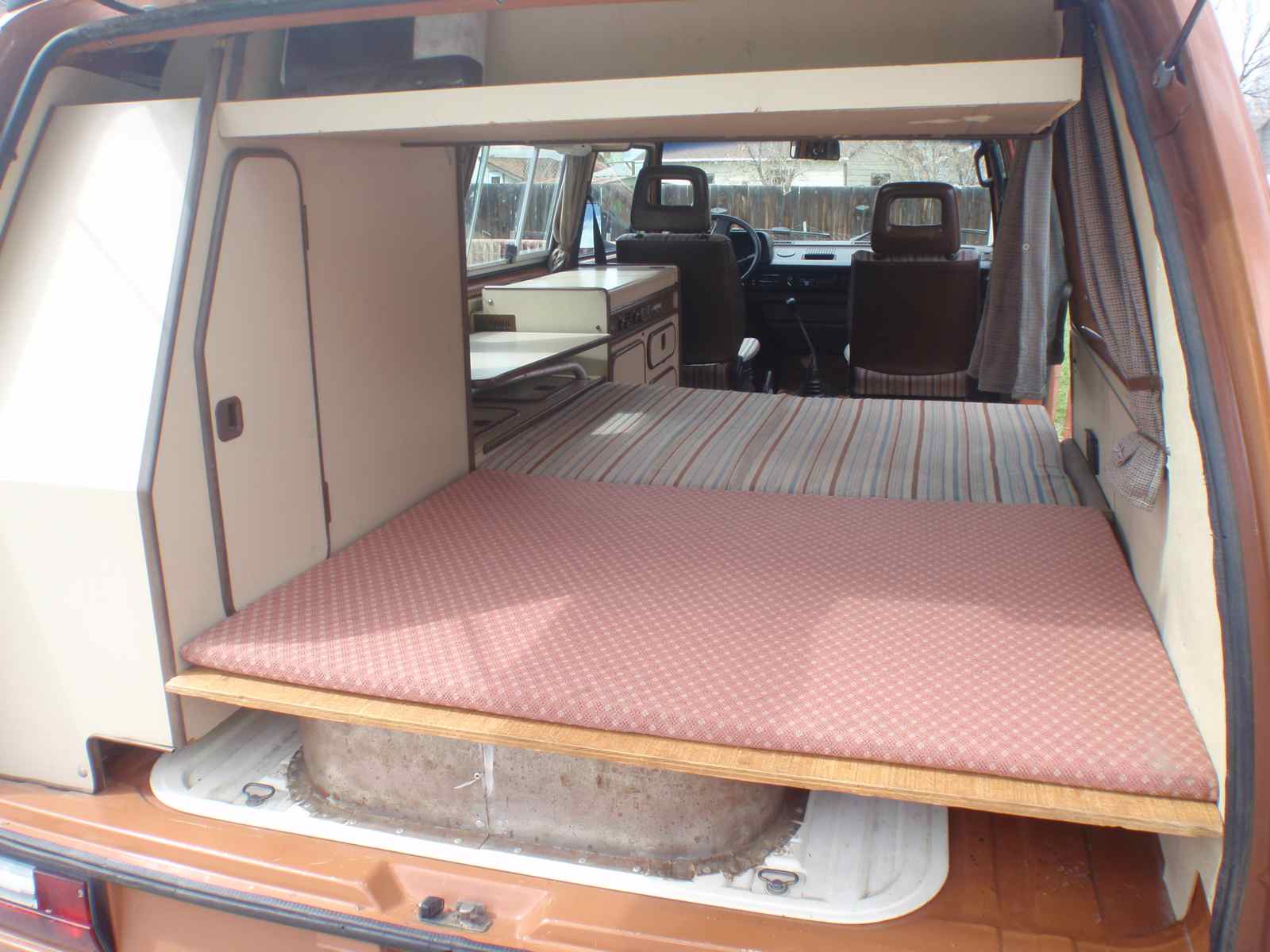

Here's a view of how the bed can and does fold out nicely. The original mosquito net was included (no holes).
Image may have been reduced in size. Click image to view fullscreen.


Unfortunately, the closet cannot be opened without removing all the foam padding from the trunk area. Also, the coolant expansion tank is in the closet! The original expansion tank is still in the engine compartment, and I don't understand why a new one was installed up in the closet. There must have been a good reason because this took some work to do.
Image may have been reduced in size. Click image to view fullscreen.


Here's the engine cover...
Image may have been reduced in size. Click image to view fullscreen.

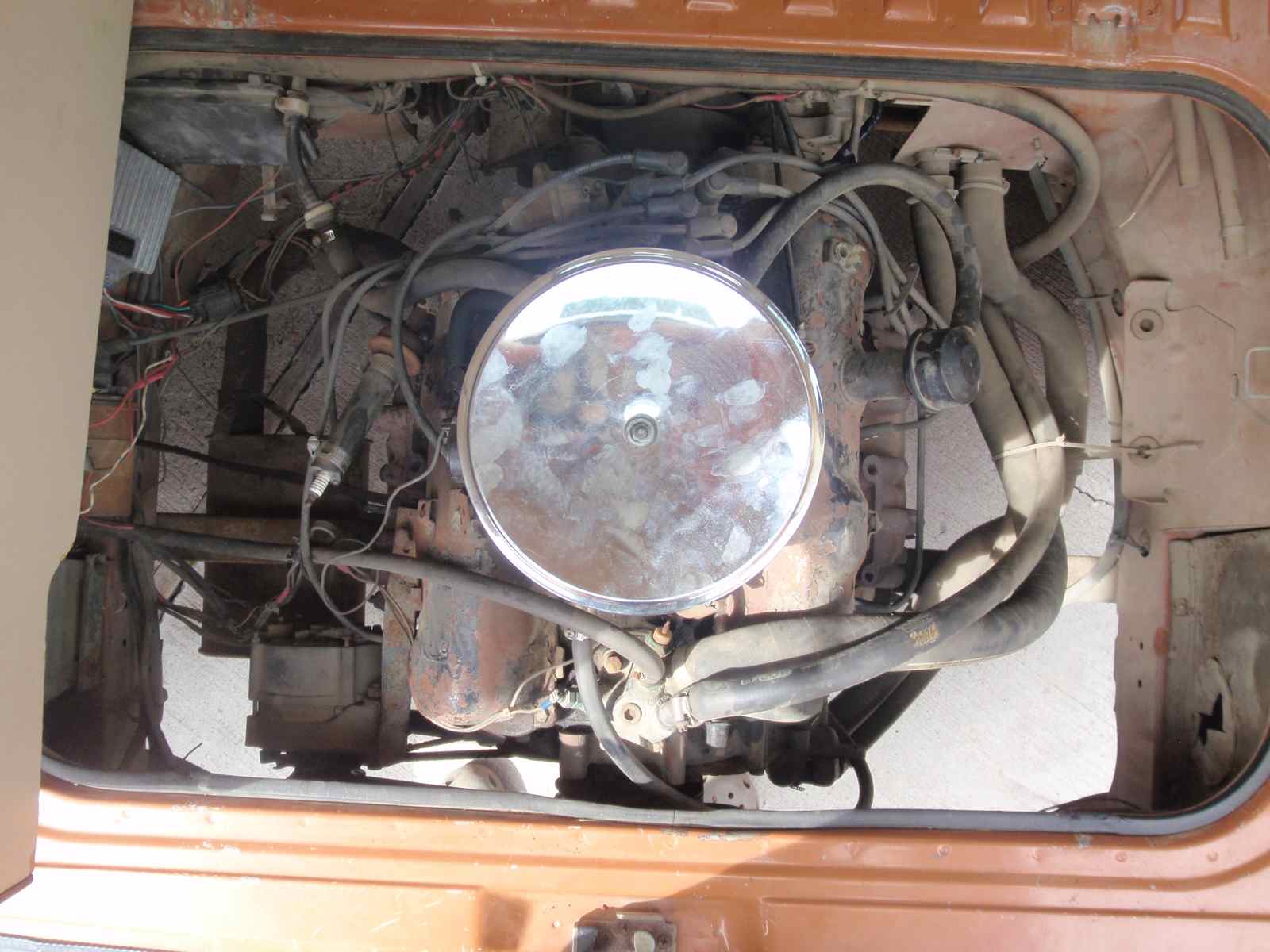

Here's the engine. It's super simple. There's the old school air filter with a carburetor under it, an alternator, some coolant hoses, and a dozen or so wires. Hard to get lost in there! Kinda reminds me of a lawn mower... and it would be about as likely to pass emissions inspections as a lawn mower. No inspections required in here Montana.
Image may have been reduced in size. Click image to view fullscreen.


Another view of the engine here. There's paint peeling and there's some dirt, but it's mostly cosmetic. I did have to clean the carb out after this picture to loosen the throttle up. It idles at a constant rpm now.
Image may have been reduced in size. Click image to view fullscreen.


Here it is with the air filter off. It has a Holley 2 bbl carb. I don't think this was stock on the Ford Capri. I have worked on 4cyl motorcycle carbs before, and this is way easier to work with.
Image may have been reduced in size. Click image to view fullscreen.


So how does it run? Great! A friend (who is on here) put together a subie syncro once, and said this felt like it had similar power. I have passed a couple of 18 wheelers on the interstate without problem. This van feels spunky to me. More importantly, like Johnny Ramone once said, it is important to look cool, and this van at least sounds cool with it's old school deep, throaty exhaust. It smells old school too - kinda like how I imagine Mad Max's Ford Falcon smelled. My four year old thinks it cooler than a hand full of quarters and a gum ball machine!

On the down side, the instrument cluster is not working (no idiot lights, gas gauge, or coolant gauge), and I'm working on that. Maybe a grounding issue?

Thanks for looking.
_________________
1984 Westfalia - Ford Cologne 2.8L conversion
2003 Passat GLX Wagon (4Motion)


Last edited by rlamb on Thu Apr 19, 2012 5:27 pm; edited 2 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SteveVanB
Samba Member


Joined: June 01, 2008
Posts: 1645
Location: This side of Daytona
SteveVanB is offline

PostPosted: Sat Apr 14, 2012 9:18 pm    Post subject: Reply with quote

Applause
That has to be the nicest smelling conversion out there.......
_________________
91 CARAT


Last edited by SteveVanB on Sat Apr 14, 2012 9:22 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
240Gordy
Samba Member


Joined: May 15, 2008
Posts: 2354
Location: Vancouver, BC
240Gordy is offline

PostPosted: Sat Apr 14, 2012 9:22 pm    Post subject: Reply with quote

Wow. I wonder if you could rig up mega squirt for that and get rid of the air cleaner and lower the deck some what.
_________________
Tencentlife said,
"So, now that you know what you're doing, go to town."
2010 GOLF TRENDLINE 2.5
1985 GL now with more! a 2.1L
H&R SPORT(RED) Springs FRONT , SLAM SPECIALTIES RE6 AIRBAGS REAR
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tbob
Samba Member


Joined: May 26, 2007
Posts: 436
Location: Pensacola, Fl.
Tbob is offline

PostPosted: Sun Apr 15, 2012 5:23 am    Post subject: v6 vanagon Reply with quote

20 years ago, I bought a 1980 vanagon that was converted to a 1984 Ford 3.8 liter v6. It used a modified Puegoet radiator mounted in the front with a lower hole cut in the front panel and a watercooled lower grill installed. The coolant was routed through 1 and 1/2 inch copper pipes slung under the van. A kennedy adapter hooked it all together, and it was throttle body injected. It had various problems, the greatest of which was the fact that the engine was designed to run at 1800 rpm at cruse, where the vanagon ac trans and even the tallest tires wouldnt bring the rpms down below 3200+. It reved its guts out, overheated and got 10 mpg as it was spinning too fast to be economical. It never felt calm or composed. A guy up the street was doing a 2.8/2.9 FI conversion out of a ranger truck, which IIRC, was the same engine as you have, a German derived(if not german built) v6. It appeared to be designed to run at much higher rpm smoothly, and I thought a much better choice. As I was moving to another state, I lost track of his conversion, but at the last, he was actually shortening the intake manifold to lower the bed height. The Colonge V6 was a semi popular conversion back in its day for kit cars and dune buggies. As a PS, I still have the van, and after fiddiling with it for way too long, I finally gave up and started a conversion to an audi 5 cyl. I could never solve all the issues of a big, slow turning engine to my satisfaction. I think your engine is a better choice for the vanagon than the bigger v6's.
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
r.e.wing_fc3s
Samba Member


Joined: April 16, 2010
Posts: 599
Location: Vanagon Capitol USA: Bellingham, WA
r.e.wing_fc3s is offline

PostPosted: Sun Apr 15, 2012 9:01 am    Post subject: Reply with quote

is that an afterburner igniter in the egr tube?
_________________
Reference Automotive: NW Washingtons Vanagon Specialist. (360)366-6965. referenceautomotive.com
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vanagon Nut
Samba Member


Joined: February 08, 2008
Posts: 10495
Location: Sunshine Coast B.C.
Vanagon Nut is offline

PostPosted: Sun Apr 15, 2012 10:39 am    Post subject: Reply with quote

Interesting. Cool to see pics. Thanks.

That engine name rang a bell. IIRC I was googling around curious of installing a V6 from a Ranger or Mazda.

re: MS. Maybe one could get the engine management from a later model year V6? Maybe more or less a bolt on affair?

In Wiki here:

http://en.wikipedia.org/wiki/Ford_Cologne_V6_engine

check out the 2.8 paragraphs. There is mention of this engine using carb, mechanical FI and electronic FI

"..... In Europe the 2.8 was produced with carburetor (132 bhp), mechanical fuel injection (Bosch K-Jetronic, 160 bhp), and electronic injection (Ford EEC-IV, 150 bhp). Electronic injection only featured on the 2.8 Granada models for one year before being replaced with the 2.9 unit.[citation needed] "

I wonder if either the Bosch or Ford FI system was installed on any North American vehicles?

Neil.
_________________
1981 Westy DIY 15º ABA
(VW Gas I4)

1988 Westy DIY 50º ABA

VE7TBN
Back to top
View user's profile Send private message Gallery Classifieds Feedback
getset
Samba Member


Joined: March 07, 2005
Posts: 438
Location: PNW | OLY
getset is offline

PostPosted: Sun Apr 15, 2012 12:45 pm    Post subject: Reply with quote

That's going to be a nice Rig, Glad it worked out for you. When we went to drive it I was very suprised. The engine was recently rebuilt by a local shop, and it really runs smooth. Not extremely powerful, but nice smooth acceleration. Turns out the van was once owned by my neighbor who used it for a shutttle rig when he owned the bike shop in Missoula, (hence the rack). They drove it to Vegas from MT every year for interbike. He told me they never once had any engine problems on those outings.

It is always neat to see the variety of customization people do to these boxes.
_________________
87 Syncro sunroof w/ 2.5 Subaru.
2015 VW golf TDI

Bikes, KTM motorcycles, sailboats, and busted knuckles.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
thevannmann
Samba Member


Joined: July 06, 2010
Posts: 62
Location: Brookfield, WI
thevannmann is offline

PostPosted: Mon Apr 16, 2012 7:15 am    Post subject: Reply with quote

Cool engine! Havent seen pics of one before. That looks like a roach clip to me....
_________________
1982 1.6 NA Diesel Westfalia "Bearly Muven"
1990 Volvo 740 Turbo Intercooler
Back to top
View user's profile Send private message Gallery Classifieds Feedback
GBA 88West LA
Samba Member


Joined: September 04, 2008
Posts: 1279
Location: New Hampshire
GBA 88West LA is offline

PostPosted: Mon Apr 16, 2012 8:25 am    Post subject: Reply with quote

probably good ol fashion cast iron on that bad boy no aluminum, i think the colognes stopped in the early eighties or so maybe late 70's , how miles do you think on the motor?
_________________
88 Westy GL Vanaru 07 2.5 EJ25/AA Trans/oiling plates, 1.14 3rd-.77-4th..solar powered cabin
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Mon Apr 16, 2012 10:11 am    Post subject: Reply with quote

Welcome to the herd.

I guess you can stick just about anything you want in a Vanagon!

I only worry about the transmission and fuel economy.

Good you can love it and keep it on the road.

Show us some clean pictures some time.

I agree you need to lower that engine cover some how, too!

Wowzers....that is tall.
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rlamb
Samba Member


Joined: March 26, 2012
Posts: 211
Location: Sweet Home, OR
rlamb is offline

PostPosted: Mon Apr 16, 2012 9:52 pm    Post subject: Reply with quote

Thanks for the comments. As for the ....

ENGINE COVER: I probably won't spend any time lowering this for some time, or at all. The mega squirt idea is new to me, and maybe someday I'll look into it more. However, their website says, "the MegaSquirt® family of EFI Controllers is not designed to be a 'no hassle' solution to user's EFI needs...a large amount of reading and study is required." Hmmm....for now I'm a fan of K.I.S.S. (I'm a grad student and a dad).

GAS MILEAGE: this rig gets 19-20 mpg. I'm OK with that and hope to improve it. BTW, what is proper inflation for R14/75/195 class C (50 psi max rated) tires on a camper vanagon? I've been going with the 185 standard specs .

FUEL DELIVERY: The FI from a newer model Ford 2.9L from a ranger can be retrofitted on this 2.8L engine. However, for now, I like the simplicity of the carb.

KENNEDY ENGINE CONVERSION CHOICES: This might be interesting to some. I have the original Kennedy Engineered Products (KEP) installation guide and catalog, which is cool. The KEP catalog lists a whole bunch of engine conversion choices and rates each in the following: performance, smoothness, durability, price [outdated], availability [outdated], expected gas mileage [mine is 18], and minimum radiator size. I can post a picture of this if anybody wants it. Interestingly, my engine was rated #1 for compromise - smoothness, power, and simplicity, which is why it was probably put in my van. They say the subie 2.2L is ideal if you can connect the "computer, etc...", which people seem to have conquered. I like my engine because it has pretty consistent power at all rpm's, and this is the only vanagon I have driven. I am betting a FI 2.9L out of a Ford Ranger would be nicer. I would prefer a subie engine given the choice. My engine adds a tad over 100lb of weight over the stock 1.9L boxer, but it does run nicely.

Next.....I'm fixing grounding issues in the instrument panel. The circuit foil connection is fried between the two grounds on the 14-pin female connector. Replace antenna, speedo cable, and grease cap, and clean it and stuff. Then....

Drive it to the west coast for an amazing family road trip in June! That's the whole point....right?!?!

BTW, I really love this forum and appreciate all the info posted on here. I have not had to ask any questions I can't find in older threads so far. I hope I can add to the "circle of knowledge" eventually. Thanks all....
_________________
1984 Westfalia - Ford Cologne 2.8L conversion
2003 Passat GLX Wagon (4Motion)


Last edited by rlamb on Mon Apr 16, 2012 10:28 pm; edited 3 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rlamb
Samba Member


Joined: March 26, 2012
Posts: 211
Location: Sweet Home, OR
rlamb is offline

PostPosted: Mon Apr 16, 2012 10:14 pm    Post subject: afterburner ignition Reply with quote

@r.e.wing_fc3s : Yes, that IS an afterburner ignition in the EGR tube that is currently non-functional. I didn't want to ruin my nice tires via burn out, so I unhooked it. I'm still considering a Gatling-potato gun retrofit to the Thule roof rack to deal with pesky tourists. Twisted Evil

Seriously though - somebody plugged it up for simplicity. Again - car inspections are not required in Montana, for better or for worse.
_________________
1984 Westfalia - Ford Cologne 2.8L conversion
2003 Passat GLX Wagon (4Motion)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
D Clymer
Samba Member


Joined: December 22, 2005
Posts: 2986
Location: Issaquah, WA
D Clymer is offline

PostPosted: Mon Apr 16, 2012 11:16 pm    Post subject: Reply with quote

While I'm certainly not a Ford Cologne V6 enthusiast, I do remember that the 2.9 liter fuel injected version that came in late 1980s Rangers was quite powerful. When I was in high school there was someone with a 2wd Ranger with the 2.9 V6 and 5 speed. As much as I hated to admit it (and still do), it was as quick as my 1984 Scirocco. Upgrading to one of these in your van would be a natural choice. It would probably be more compact too.

D
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
r.e.wing_fc3s
Samba Member


Joined: April 16, 2010
Posts: 599
Location: Vanagon Capitol USA: Bellingham, WA
r.e.wing_fc3s is offline

PostPosted: Mon Apr 16, 2012 11:39 pm    Post subject: Reply with quote

GBA 88West LA wrote:
i think the colognes stopped in the early eighties or so maybe late 70's
yes you would think. ford used this engine in 4.0l ohv form up until 2000.
_________________
Reference Automotive: NW Washingtons Vanagon Specialist. (360)366-6965. referenceautomotive.com
Back to top
View user's profile Send private message Gallery Classifieds Feedback
campism
Samba Member


Joined: September 07, 2007
Posts: 4673
Location: Richmond VA
campism is offline

PostPosted: Tue Apr 17, 2012 10:37 am    Post subject: Reply with quote

D Clymer wrote:
While I'm certainly not a Ford Cologne V6 enthusiast, I do remember that the 2.9 liter fuel injected version that came in late 1980s Rangers was quite powerful. When I was in high school there was someone with a 2wd Ranger with the 2.9 V6 and 5 speed.
D

Had this same combo in an '88 Aerostar van and loved it. Surprisingly quick for a van, at least subjectively.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rlamb
Samba Member


Joined: March 26, 2012
Posts: 211
Location: Sweet Home, OR
rlamb is offline

PostPosted: Tue Apr 17, 2012 12:52 pm    Post subject: Reply with quote

GBA 88West LA wrote:
probably good ol fashion cast iron on that bad boy no aluminum, i think the colognes stopped in the early eighties or so maybe late 70's , how miles do you think on the motor?


This motor was rebuilt in 2008 and came with a 6 mos/6k miles warranty from a local shop. The previous owner said he put about 7k on it, and then adjusted his estimate to 10k. He never had a working speedo, but I believe him. He has another car for getting around, and he works as a flight attendant. So, he was out of town a lot. I know he drove it to St. Louis twice without problems.
_________________
1984 Westfalia - Ford Cologne 2.8L conversion
2003 Passat GLX Wagon (4Motion)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
softtail
Samba Member


Joined: February 16, 2013
Posts: 2

softtail is offline

PostPosted: Sat Feb 16, 2013 1:12 pm    Post subject: Reply with quote

I'm the bike shop guy over in Msla who owned that van and had the conversion done. Glad to see the van getting loved, and amazingly appreciating in value! I saw it at a shop at the base of the hill by the hospital in Bozo a number of years ago.. it was for sale, and the engine looked blown. A year or two later it was on Craigslist for crazy $$.

I drove the snot out of that thing. The orig motor went 200k+... only one my VW mech had ever seen do that. He no longer does work for the public but is still in Msla. The van went faster than any van should, and got 2nd gear chirpies! The top hat over the air cleaner is a drag... I would for sure look into getting efi on there or some kind of remote air cleaner.

I was the third owner, previous to that it was the Bernices Bakery delivery van. The first owner towed a small boat with it.

I never got in an accident with it.. just good hard use. There was a mold issue due to the skylight gasket leaking all the time. I have a bunch of pictures of than van on all kinds of trips. Never let me down.

I sold it because it was well well used and I needed a more common sense daily driver. One day I stripped the teeth of the flywheel trying to bump start it, and decided it was time to get rid of the van. My VW mech sold it for me to someone in Bozo.

We never shuttled! Just good long road trips with bikes.

I'll probably not be checking in back here.. if you have any questions, hit me at

[email protected]
Back to top
View user's profile Send private message Classifieds Feedback
rubbachicken
Samba Member


Joined: October 05, 2004
Posts: 3058
Location: socal
rubbachicken is offline

PostPosted: Sat Feb 16, 2013 2:14 pm    Post subject: Reply with quote

nice looking bus, are you keeping the motor in there, it'd be much more useable with something a bit smaller in there, not being able to open the closet door is going to get old real quick, so is bashing your head on the shelf above you when you wake up in the morning.
_________________
lucy our westy

lucy's BIG adventure

meet 'burni'
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
softtail
Samba Member


Joined: February 16, 2013
Posts: 2

softtail is offline

PostPosted: Sat Feb 16, 2013 2:51 pm    Post subject: Reply with quote

Holy crap.. just saw someone welded on a trailer receiver on the bumper. I would NEVER tow with that. It's held on by two rinky dink bolts (at least it was). I wouldn't even put a receiver hitch bike rack on it.
Back to top
View user's profile Send private message Classifieds Feedback
fastwagens
Samba Member


Joined: March 01, 2004
Posts: 1028
Location: Michigan (The other west coast)
fastwagens is offline

PostPosted: Sat Feb 16, 2013 2:56 pm    Post subject: Reply with quote

cool
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
