| Author |
Message |
freshintulsa
Samba Member
Joined: July 16, 2006
Posts: 229
Location: Tulsa, OK
|
 Posted: Tue Dec 23, 2008 9:12 pm Post subject: |
 |
|
my mistake then, all hte parts i had were for a customer, who i thought purchased everything from van cafe, all the boxes were from van cafe. so i apologize for that. well, in that case, then the go westy wheels, if that is what this person purchased, will fit on the van cafe big brake kit, but barely. like paper thin.
_________________
"go slower, go lower!!!"
85 westy svx
Fresh front end rebuild
Front cab changed from brown to black with new homemade door panels, etc.
Soon to remove fridge/sink/cabinet and make custom bench seat!!!
89 wolfsburg/ bluestar.... finished the stick to automatic conversion,
tiico motor
Daily driver, 20mpgs and has enough hair in it to make a few dogs. |
|
| Back to top |
|
 |
HeftySmurf
Samba Member
Joined: June 15, 2008
Posts: 879
Location: Washington, USA
|
| Posted: Sun Dec 28, 2008 9:53 pm Post subject: |
|
|
Worked on the van today...
Seems only the drivers side is rubbing, so I may just end up grinding the insides of the rims and evening them out and grind the caliper a bit. Put all the tires on for the first time, look sweet.... no camera today though..
Too bad I waited a day too long to order those 16" steel rims from tirerack.com... The were $15 and now they're $39... oh well...... They look tight.
_________________
-Lorenzo
90 GL w/ Bostig |
|
| Back to top |
|
|
syncrodoka
Samba Member
Joined: December 27, 2005
Posts: 12301
Location: Santa Cruz, CA
|
| Posted: Sun Dec 28, 2008 11:38 pm Post subject: |
|
|

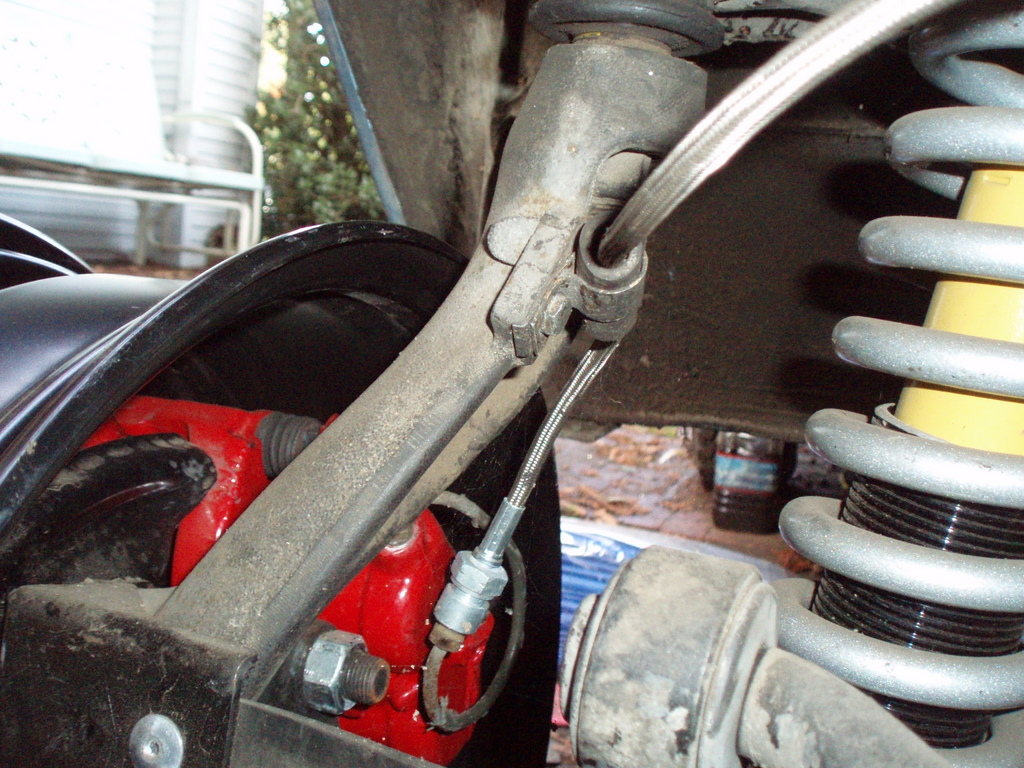

I mounted a one of the 16" steel rims on the front of my syncro to verify that they will work with my big brakes. I gave it the "hand test"- which is simply stick my hand between the rim and anything that it passes by and it passed with flying colors. My 15" SA steel wheel will not work with my Audi G60 brakes. Any custom rim made from a 14" center like the ones that GoWesty sells will not work as well.
|
|
| Back to top |
|
|
GrindGarage
Samba Member
Joined: October 14, 2008
Posts: 710
Location: Ocean City, NJ
|
| Posted: Mon Dec 29, 2008 8:35 am Post subject: |
|
|
syncrodoka is that a 16" benz wheel?
_________________
-cliff
91 Vanagon AUTO
97 Single Port EJ22 all smallcar.com |
|
| Back to top |
|
|
vanagonforever
Samba Member
Joined: July 29, 2007
Posts: 211
Location: Baltimore, MD
|
| Posted: Mon Dec 29, 2008 9:36 am Post subject: |
|
|
Will the old VW moon hub caps fit on those 16s?
_________________
1986 2WD 2.1L WBX Vanagon Weekender
1983.5 1.9L WBX Vanagon Westfalia |
|
| Back to top |
|
|
syncrodoka
Samba Member
Joined: December 27, 2005
Posts: 12301
Location: Santa Cruz, CA
|
| Posted: Mon Dec 29, 2008 4:27 pm Post subject: |
|
|
| Yes, GrindGarage that is the 16" mercedes steel wheel available through the tire rack. The price has gone up from $15 to $39 though. There are no provisions for a center cap like the 14" steel wheel. I am going to have mine painted or powdercoated silver and run them as is. |
|
| Back to top |
|
|
HeftySmurf
Samba Member
Joined: June 15, 2008
Posts: 879
Location: Washington, USA
|
| Posted: Tue Jan 06, 2009 8:17 pm Post subject: |
|
|
GOT THEM ON LOOKING TIGHT!!!!
In the midst of doing the BOSTIG CONVERSION... Got my Gary Lee Ladder and Go Westy Spare tire Carrier on as well.....
_________________
-Lorenzo
90 GL w/ Bostig
Last edited by HeftySmurf on Sat Mar 07, 2009 2:15 pm; edited 2 times in total |
|
| Back to top |
|
|
syncrodoka
Samba Member
Joined: December 27, 2005
Posts: 12301
Location: Santa Cruz, CA
|
| Posted: Tue Jan 06, 2009 10:10 pm Post subject: |
|
|
| Dude, I am loving the black on black on charcoal grey theme. Glad you got your rims to work for you. |
|
| Back to top |
|
|
WestyBob
Samba Member
Joined: June 11, 2004
Posts: 2346
Location: Portland, Oregon
|
| Posted: Wed Jan 07, 2009 1:02 am Post subject: |
|
|
| mike_z wrote: |
| GOT THEM ON LOOKING TIGHT!!!! |
That looks great, man !!! I was fortunate to have ordered 6 of those mercedes 16"ers at $15 each several days before they went up in price. Haven't put tires on yet though.
What size tires did you go with - are they Bfg 215-70R16's ?
Also, are you using the Loogy ball seat lug nuts ? |
|
| Back to top |
|
|
HeftySmurf
Samba Member
Joined: June 15, 2008
Posts: 879
Location: Washington, USA
|
| Posted: Wed Jan 07, 2009 7:40 am Post subject: |
|
|
Thanks brospeh,
I plan on gettting the portion around the windows painted black as well. An I am currently fussing with some stripe/graphic ideas I've seen on some orignal Syncros
These are actually the SA 15s, I got them to fit, just had to grind the bumps on the welds down a bit. Yeah I missed that sale by like a day so I am keeping these. Just ordered and another SA 15. Goiing to run a 6 tire rotation, seems the best route to go, but $$$$.
I'm not familiar with Loogy nuts. I'm simply running the stock ones, I added longer studs so the closed ended lugs dont fit..... Anyone know where to get ones for longer studs? Also, I'd really like to find some type of center cap that works with these I've seen some black rubber ones that look pretty dope.
_________________
-Lorenzo
90 GL w/ Bostig |
|
| Back to top |
|
|
WestyBob
Samba Member
Joined: June 11, 2004
Posts: 2346
Location: Portland, Oregon
|
| Posted: Wed Jan 07, 2009 12:58 pm Post subject: |
|
|
I also have a set of SA 15" from Vancafe and love em. You don't need the special lugnuts from Loogy if you're not using the Mercedes 16" steelies. But you might check with Loogy to see about open end or longer closed end lugnuts or even your local flaps.
http://www.thesamba.com/vw/classifieds/detail.php?id=656981
The black plastic center caps you mentioned are made for the OEM VW 16" steel wheels and are not available retail in NA. But you can get them from Germany - Lars Neuffer :
http://www.tristar-connection.de/index.php?lang=en
Like most dealings with overseas companies, they can be slow, communications spotty, but Lars eventually will come thru. And these caps will work with the SA 15" steels too. The cost varies all the time based on the dollar/euro fluctuation thing. |
|
| Back to top |
|
|
HeftySmurf
Samba Member
Joined: June 15, 2008
Posts: 879
Location: Washington, USA
|
| Posted: Wed Jan 07, 2009 1:58 pm Post subject: |
|
|
Hey Bob,
Thanks for the links, I did look at the stuff lars had on the german ebay, He couldnt verify if the would fit the 15" Steels though. I'd assume theyd fit based on the center hole being the same size.
Also that other link doesent work you posted at the end.
_________________
-Lorenzo
90 GL w/ Bostig |
|
| Back to top |
|
|
SockMonkey
Samba Member
Joined: October 19, 2008
Posts: 223
Location: Windham, Maine
|
| Posted: Wed Jan 07, 2009 2:14 pm Post subject: |
|
|
Do those 16" mercedes rims fit without modding? Spacers? boring?
_________________
'85 Vanagon GL |
|
| Back to top |
|
|
WestyBob
Samba Member
Joined: June 11, 2004
Posts: 2346
Location: Portland, Oregon
|
| Posted: Wed Jan 07, 2009 2:20 pm Post subject: |
|
|
| mike_z wrote: |
Hey Bob,
Thanks for the links, I did look at the stuff lars had on the german ebay, He couldnt verify if the would fit the 15" Steels though. I'd assume theyd fit based on the center hole being the same size.
Also that other link doesent work you posted at the end. |
I sent two links and when I rechecked they worked. Maybe you mean what I underlined at the end for emphasis - it's not a link.
Yes, the size of the wheel doesn't matter - if the caps can fit over the center hole and the 5x112 lug nuts/bolts can hold it on then it'll work. These caps have little tapered feet that slip under the bolt/nut heads. |
|
| Back to top |
|
|
WestyBob
Samba Member
Joined: June 11, 2004
Posts: 2346
Location: Portland, Oregon
|
| Posted: Wed Jan 07, 2009 2:36 pm Post subject: |
|
|
| SockMonkey wrote: |
| Do those 16" mercedes rims fit without modding? Spacers? boring? |
I haven't mounted mine yet but based on some research they'll bolt up to a syncro without mods/spacers/adapters/borings.
2wd requires spacers, I believe for the rear wheels only, but there has been quite a bit of chat recently on the Gerryvanagon list, Yahoo Syncro and Yahoo Westwesties, and even another thread somewhere here on theSamba.
The center hole is the same as for the SA 15"ers, but the 5x112 nut/bolt holes are a little smaller but will still fit the stock 14 mm fasteners without boring. Loogy sells the 22mm ball seat head, 14 mm nuts/bolts strongly recommended with this Mercedes 16" steel wheel. That is, the heads are a little smaller than stock and, for safety, make better contact with the slightly smaller holes.
http://www.thesamba.com/vw/classifieds/detail.php?id=656981
I believe everything mentioned is accurate but for 2wd fitment check some of those other chatroom discussions. I drive syncros so that's what I focused on more when researching. |
|
| Back to top |
|
|
syncrodoka
Samba Member
Joined: December 27, 2005
Posts: 12301
Location: Santa Cruz, CA
|
| Posted: Wed Jan 07, 2009 5:31 pm Post subject: |
|
|
| The 16" merc rims will bolt straight on with the correct hardware. The lugnuts from loogy have the correct size ball seat for the rim and the correct 14x1.5mm opening to fit the vanagon. I am not aware of any stock lugnuts that will work safely. I would never consider running any rim that the lug nuts do not correctly fit the profile of the lug bore from the fear of losing a wheel. I do not know what is needed to make them fit a 2wd but a syncro is not a problem. The pictures I posted have the correct hardware. |
|
| Back to top |
|
|
HeftySmurf
Samba Member
Joined: June 15, 2008
Posts: 879
Location: Washington, USA
|
| Posted: Wed Jan 14, 2009 3:15 pm Post subject: |
|
|
Got them on, had to smooth out all the welds.. real tight fit.
Put the safri basket on... dont like the towers though... going to use a pair of ladder racks and paint hem black..
Winter need to get over so I can put that damn Zetec in there.....
_________________
-Lorenzo
90 GL w/ Bostig |
|
| Back to top |
|
|
|
