PostPosted: Sun Oct 08, 2017 11:46 pm    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

I agree that Fox or King or other such rebuildable/revalvable shocks that cost 5X as much as KYBs will provide a better ride. They BETTER damned well work better.

Not all Bilsteins are rebuildable and the basic gas shocks intended to be installed on a VW bus tend to be harsh on a Bug.

The question of which shock works well for a given application tends to fit into the old hot rodder's saying - "Speed costs money, how fast can you afford to go?"
_________________
Richard
Offroading VW based cars since 1965
Tech Inspection 1963 - 2012 SCCA/SCORE/HDRA/MORE/MDR +
Retired from building Bajas, Fiberglass Buggies and Rails in the Mojave Desert. Also Sprints & Midgets, Dry Lakes, Road Race cars. All types New and Vintage
SoCalBajas Member
Kicked Cancer's A$$...1st and 2nd round...Fight ain't over yet.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
75baja
Samba Member


Joined: November 02, 2012
Posts: 19
Location: Tennessee
75baja is offline

PostPosted: Mon Jul 02, 2018 6:56 pm    Post subject: do i need these boots to go with my shocks? Reply with quote

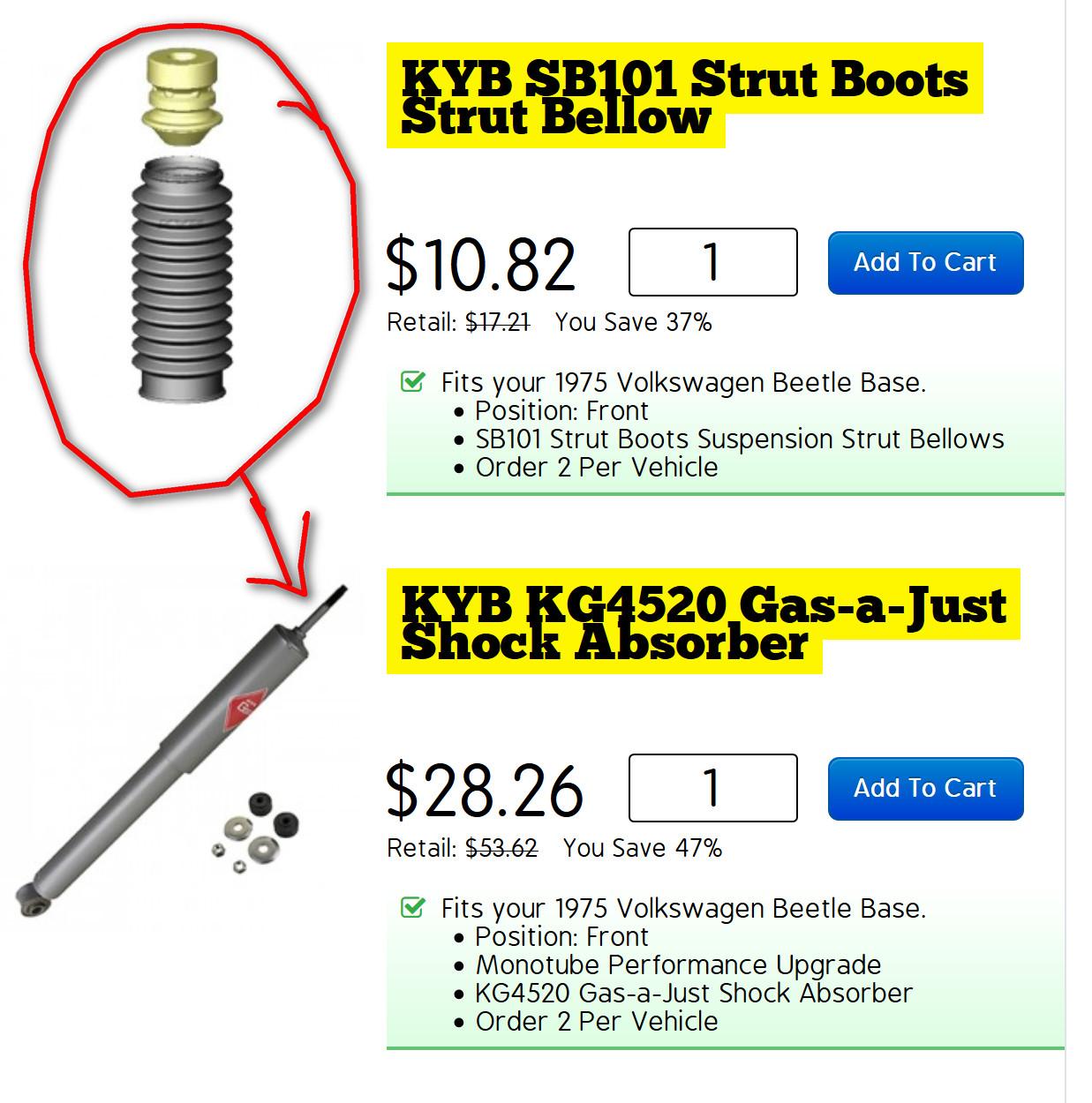

Working on my mild baja build and need to order some shocks for the the stock bj front end. Do I need these boots to go with the front shocks?
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dirtkeeper
Samba Member


Joined: February 19, 2008
Posts: 3231
Location: Left of everywhere
dirtkeeper is offline

PostPosted: Tue Jul 03, 2018 6:55 am    Post subject: Re: do i need these boots to go with my shocks? Reply with quote

75baja wrote:
Working on my mild baja build and need to order some shocks for the the stock bj front end. Do I need these boots to go with the front shocks?
Image may have been reduced in size. Click image to view fullscreen.


No. The shocks should come with the correct top rubber mounting.
Not sure but it looks like that boot is for a super beeetle with struts. Or it’s just for looks.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dustymojave
Samba Member


Joined: January 07, 2007
Posts: 5815
Location: Lake LA, Mojave Desert, SoCal
dustymojave is offline

PostPosted: Tue Jul 03, 2018 4:07 pm    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

I agree that boot and bump stop are for McPherson strut Super Beetle, not for a beam suspended Bug.
_________________
Richard
Offroading VW based cars since 1965
Tech Inspection 1963 - 2012 SCCA/SCORE/HDRA/MORE/MDR +
Retired from building Bajas, Fiberglass Buggies and Rails in the Mojave Desert. Also Sprints & Midgets, Dry Lakes, Road Race cars. All types New and Vintage
SoCalBajas Member
Kicked Cancer's A$$...1st and 2nd round...Fight ain't over yet.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
75baja
Samba Member


Joined: November 02, 2012
Posts: 19
Location: Tennessee
75baja is offline

PostPosted: Tue Jul 03, 2018 7:06 pm    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

Thanks, somebody along the line put them on front of my 75 standard. I thought it looked like it needed to be on a super. Gettin ready to order new shocks.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Albertoprop17
Samba Member


Joined: March 15, 2016
Posts: 196
Location: Valencia (Spain)
Albertoprop17 is offline

PostPosted: Wed Mar 27, 2019 5:44 pm    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

Does anybody used GAZ adjustable shocks? They have 20 positions of softest to hardest.

Maybe they would work well on a stocker...
_________________
'54 vintage speed beetle slow project

Visit my workshop site and leave a like:

https://www.facebook.com/talleresalacreu/
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
lostinbaja
Samba Member


Joined: December 19, 2004
Posts: 4036
Location: Frankfort, Illinois
lostinbaja is offline

PostPosted: Tue Apr 23, 2019 5:31 pm    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

I just picked up a Baja project and I need some advice. I only get an hour or so every couple days on the computer so I have to get to the point. This Baja will be for street and moderate sand use.

This bug has a 6" wider beam with 1.5 wider X 3/4" longer arms, set up for coil overs. I'm looking for a moderately priced shock/coil over, any thoughts?

The rear has aftermarket 3 X 3 arms also set up for coil overs.,

This is my first time with anything other than stock VW suspension.

Any advice is welcome. Thanks for your time,

Jerry...
_________________
Jerry...
If it's being towed, it must be a trailer!
"Vee Grow Too Soon Oldt Und Too Late Schmardt"
RIP Morgan

My photos
http://www.manxgallery.org/gallery/album92
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ringotuna
Samba Member


Joined: March 03, 2019
Posts: 25
Location: Texas High Plains
ringotuna is offline

PostPosted: Mon May 13, 2019 6:34 am    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

I need advice on mounting coil over rear shocks on my rail.

Should I lift the rear end off the ground before mounting?
Should I mount the shocks fully extended or somewhat compressed?

Thanks
ringo.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
lostinbaja
Samba Member


Joined: December 19, 2004
Posts: 4036
Location: Frankfort, Illinois
lostinbaja is offline

PostPosted: Thu Jul 04, 2019 2:18 pm    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

I'm trying to determine which direction to go with my Baja build and naturally money plays into this decision.

The Bug has 3 x 3 arms on the rear and 1 1/2 x 3/4" front arms I need a ballpark price on King or Fox coilover shocks to fit this car.

Any help would be appreciated,
Jerry....
_________________
Jerry...
If it's being towed, it must be a trailer!
"Vee Grow Too Soon Oldt Und Too Late Schmardt"
RIP Morgan

My photos
http://www.manxgallery.org/gallery/album92
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dustymojave
Samba Member


Joined: January 07, 2007
Posts: 5815
Location: Lake LA, Mojave Desert, SoCal
dustymojave is offline

PostPosted: Sat Jul 06, 2019 9:42 am    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

lostinbaja wrote:
I'm trying to determine which direction to go with my Baja build and naturally money plays into this decision.

The Bug has 3 x 3 arms on the rear and 1 1/2 x 3/4" front arms I need a ballpark price on King or Fox coilover shocks to fit this car.

Any help would be appreciated,
Jerry....


Does it have existing shocks that you want to replace? Does the car have shock mounts built? Or are you looking to build mounts to fit?

If it has existing shocks, you will need to take those off and measure full extended length mounting bolt to mounting bolt.

If it doesn't have current shocks, but has mounts, you will need to measure the distance from upper to lower mount extended, and compressed (bottomed out against the stop).

If you don't have existing mounts...You need a fabricator to figure out where to mount the shocks and figure out what travel length shocks you want. If not capable of doing that yourself, and your question here suggests that you are not, then you need a professional to do it for you.

Shocks are available from many sources. Kartek is one.
_________________
Richard
Offroading VW based cars since 1965
Tech Inspection 1963 - 2012 SCCA/SCORE/HDRA/MORE/MDR +
Retired from building Bajas, Fiberglass Buggies and Rails in the Mojave Desert. Also Sprints & Midgets, Dry Lakes, Road Race cars. All types New and Vintage
SoCalBajas Member
Kicked Cancer's A$$...1st and 2nd round...Fight ain't over yet.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Sqrbckguy38
Samba Member


Joined: December 21, 2004
Posts: 415
Location: Tooele, ut
Sqrbckguy38 is offline

PostPosted: Mon Sep 23, 2019 7:00 pm    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

Is there a company that sells the springs on the coilover shocks in a higher lbs rating? I'm guessing they are not a very stiff spring right? I'm looking to be able to hold a lot more weight than a beetle was probably ever meant to.
_________________
It's not the fall that hurts, it's the sudden stop at the bottom.
69 Square needs love, even after 15 years
70 Fasty former dd, now my daughter's
67 Beetle, Opal
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger Gallery Classifieds Feedback
MotoMike
Samba Member


Joined: June 13, 2013
Posts: 120
Location: Durango, CO
MotoMike is offline

PostPosted: Fri Sep 27, 2019 11:56 am    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

I just bought a set of Bilsteins for my 72 Baja, mail order deal, the rears are correct but the fronts are not even close. Part number 24-006200 is what it calls for in the catalog and pretty much any where else I look, but they are 3" shorter than what I have now and the stud on the top of the shock wouldn't work even if it was the right length. Good luck getting any one to talk to you where I bought them from (shockwarehouse.com, buyer beware)

Anybody out there have any suggestions?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Mikedrevguy
Samba Member


Joined: October 15, 2008
Posts: 2266
Location: No. Idaho
Mikedrevguy is offline

PostPosted: Sat Sep 28, 2019 6:40 pm    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

MotoMike wrote:
I just bought a set of Bilsteins for my 72 Baja, mail order deal, the rears are correct but the fronts are not even close. Part number 24-006200 is what it calls for in the catalog and pretty much any where else I look, but they are 3" shorter than what I have now and the stud on the top of the shock wouldn't work even if it was the right length. Good luck getting any one to talk to you where I bought them from (shockwarehouse.com, buyer beware)

Anybody out there have any suggestions?

What specs do you have now? Do the shocks you have measure up to what they should?
_________________
74 1303 (RevBug): plan for German Look
76 914 with 2260
79 VW Iltis
69 Bwajaja
"The wise speak because they have something to say; while the foolish speak because they have to say something." Plato

Illigitimi non-Carborundum!!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
dirtkeeper
Samba Member


Joined: February 19, 2008
Posts: 3231
Location: Left of everywhere
dirtkeeper is offline

PostPosted: Sun Sep 29, 2019 7:14 pm    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

MotoMike wrote:
I just bought a set of Bilsteins for my 72 Baja, mail order deal, the rears are correct but the fronts are not even close. Part number 24-006200 is what it calls for in the catalog and pretty much any where else I look, but they are 3" shorter than what I have now and the stud on the top of the shock wouldn't work even if it was the right length. Good luck getting any one to talk to you where I bought them from (shockwarehouse.com, buyer beware)

Anybody out there have any suggestions?


The front bilstein s. On mine are B46-0493VW
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MotoMike
Samba Member


Joined: June 13, 2013
Posts: 120
Location: Durango, CO
MotoMike is offline

PostPosted: Sun Oct 06, 2019 8:47 am    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

Mikedrevguy wrote:
MotoMike wrote:
I just bought a set of Bilsteins for my 72 Baja, mail order deal, the rears are correct but the fronts are not even close. Part number 24-006200 is what it calls for in the catalog and pretty much any where else I look, but they are 3" shorter than what I have now and the stud on the top of the shock wouldn't work even if it was the right length. Good luck getting any one to talk to you where I bought them from (shockwarehouse.com, buyer beware)

Anybody out there have any suggestions?

What specs do you have now? Do the shocks you have measure up to what they should?


I got it figured out, just a lack of knowledge on my part with ball joint shocks. They are the correct shocks, I just had to order the mounting stuff that goes on the end of the shaft
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Mikedrevguy
Samba Member


Joined: October 15, 2008
Posts: 2266
Location: No. Idaho
Mikedrevguy is offline

PostPosted: Sun Oct 13, 2019 6:08 pm    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

MotoMike wrote:
Mikedrevguy wrote:
MotoMike wrote:
I just bought a set of Bilsteins for my 72 Baja, mail order deal, the rears are correct but the fronts are not even close. Part number 24-006200 is what it calls for in the catalog and pretty much any where else I look, but they are 3" shorter than what I have now and the stud on the top of the shock wouldn't work even if it was the right length. Good luck getting any one to talk to you where I bought them from (shockwarehouse.com, buyer beware)

Anybody out there have any suggestions?

What specs do you have now? Do the shocks you have measure up to what they should?


I got it figured out, just a lack of knowledge on my part with ball joint shocks. They are the correct shocks, I just had to order the mounting stuff that goes on the end of the shaft


Post pics. I’d be I ter3sted to see what the issue was.
_________________
74 1303 (RevBug): plan for German Look
76 914 with 2260
79 VW Iltis
69 Bwajaja
"The wise speak because they have something to say; while the foolish speak because they have to say something." Plato

Illigitimi non-Carborundum!!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Panzerschreck
Samba Member


Joined: October 19, 2019
Posts: 16
Location: Pacific NW
Panzerschreck is offline

PostPosted: Sun Oct 20, 2019 12:16 am    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

MotoMike wrote:
Mikedrevguy wrote:
MotoMike wrote:
I just bought a set of Bilsteins for my 72 Baja, mail order deal, the rears are correct but the fronts are not even close. Part number 24-006200 is what it calls for in the catalog and pretty much any where else I look, but they are 3" shorter than what I have now and the stud on the top of the shock wouldn't work even if it was the right length. Good luck getting any one to talk to you where I bought them from (shockwarehouse.com, buyer beware)

Anybody out there have any suggestions?

What specs do you have now? Do the shocks you have measure up to what they should?


I got it figured out, just a lack of knowledge on my part with ball joint shocks. They are the correct shocks, I just had to order the mounting stuff that goes on the end of the shaft


What kit did you end up purchasing for the Bilsteins?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Double-Double
Samba Member


Joined: October 25, 2019
Posts: 640
Location: Oregon
Double-Double is offline

PostPosted: Sat Nov 02, 2019 8:05 pm    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

Is there a correlation between lift amount in the back and additional shock length needed or does it not work that way? I.e. 2” lift via preload and need 2” longer shocks?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dirtkeeper
Samba Member


Joined: February 19, 2008
Posts: 3231
Location: Left of everywhere
dirtkeeper is offline

PostPosted: Sun Nov 03, 2019 8:59 am    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

Double-Double wrote:
Is there a correlation between lift amount in the back and additional shock length needed or does it not work that way? I.e. 2” lift via preload and need 2” longer shocks?


I would suggest that there is a correlation but not direct.

One Is the shock is not at the wheel location and because the wheel is farther out and there are angles involved the wheel travel is greater than the shock travel.

Two Until you start to notch the spring plates you do not need a longer than stock shock
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Double-Double
Samba Member


Joined: October 25, 2019
Posts: 640
Location: Oregon
Double-Double is offline

PostPosted: Sun Nov 03, 2019 11:47 am    Post subject: Re: SHOCKS SHOCKS SHOCKS Reply with quote

dirtkeeper wrote:
Double-Double wrote:
Is there a correlation between lift amount in the back and additional shock length needed or does it not work that way? I.e. 2” lift via preload and need 2” longer shocks?


I would suggest that there is a correlation but not direct.

One Is the shock is not at the wheel location and because the wheel is farther out and there are angles involved the wheel travel is greater than the shock travel.

Two Until you start to notch the spring plates you do not need a longer than stock shock


Thanks! I figured there is probably some Pythagorean theorem for figuring it out. I have the Atomwerk 2” raise plates so I will have to play it by ear and measure when I get them on and do the cycle up and down thing.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> HBB Off-Road All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3 ... , 10, 11, 12  Next
Jump to:
Page 11 of 12


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
