Ok, I have spent hours going over lowering threads and now armed
with the concepts and lingo I can't find pictures of the finished look
and information all in one thread.

I am in the planning stages of lowering my bus and would like to see
what your bus looks like and specifications on your mods.

Please post a side or angled picture of your lowered bus and specs:
-Tire make and size.
-Wheel make, size or offset.
-Spindle drop, beam narrowed dimensions. Who's?
-Strait axle, spring plate mods. Who's?
-Tubbed, cut tortion, IRS, etc..
-Raised box, tie rod flip.
-Brakes, shocks.
-If I ever do this again I would have...........
_________________
1965 21-Deluxe-SWR/BG "Sonora"
1973 Type-181 Thing "Velma"

www.aircooledmissouri.com

RINC · Posted: Tue Feb 27, 2007 8:31 am Post subject:

Image may have been reduced in size. Click image to view fullscreen.

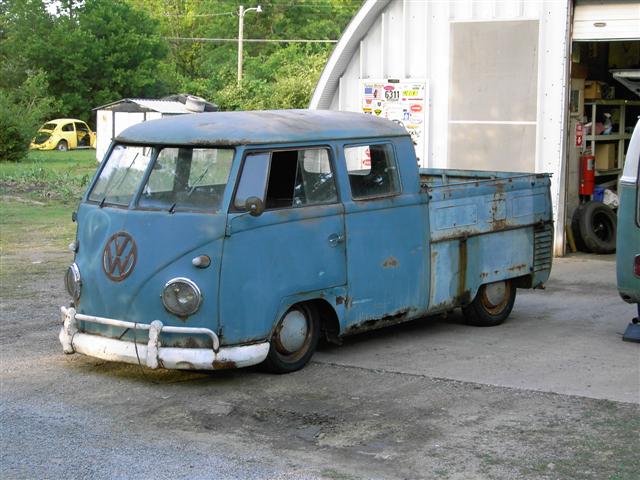

165-45-15 on the front. 195-50-15 on the rear with correct dated for my bus stock rims.

Nates 4in beam with adjusters an drop spindles.

68 Type 1 tranny with Nates spring plates.

No tubs or steeringbox raise.
_________________
This video makes me happy when I am sad.

Ron Paul "Setting a good example is a far better way to spread ideals than through force of arms."

NAES · Posted: Tue Feb 27, 2007 9:10 am Post subject:

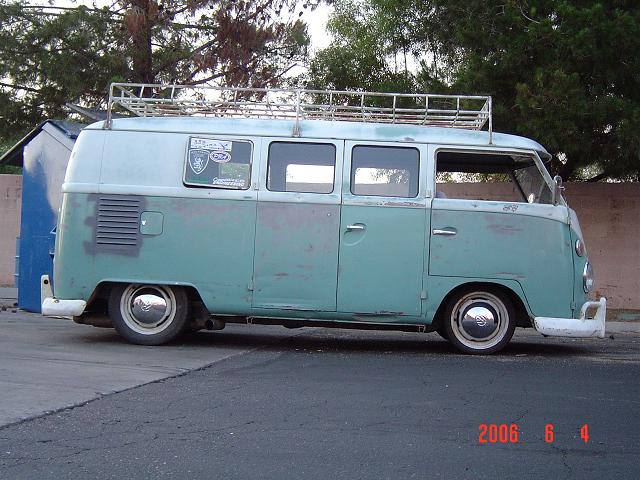

2" narrowed and adjustable beam (by me), Dropped spindles (by me), Straight axle (butcher shop), Spring plates cut about double normal amount with the cut metal welded to the other side for strength (by me), stock bus brakes all around w/machined snout, crowsfoot wheels up front with Kumho 195/45/15, non crowsfoot wheels out back w/ 3/8" spacer with Michelin 195/60/15, KYB white shocks all around with extended mounting perches front and rear.

If I were to do it again I'd powdercoat all the suspension, buy the CB performance tierod flip kit instead of welding and retapering the spindle, go for the 165/45/15 tires up front (will do eventually).

My single biggest piece of advice to you when you do this is to replace everything. Center pin, tie rod ends, seals, drag link, steering dampener, all of it. It'll cost more but you'll have a super tight setup.
_________________
BDM Hit Man.
BOW diehard.
SBS #00

Looking for
OG paint Mango drivers door
60 Standard build

RobzKombi · Samba Member Joined: July 15, 2003 Posts: 1942

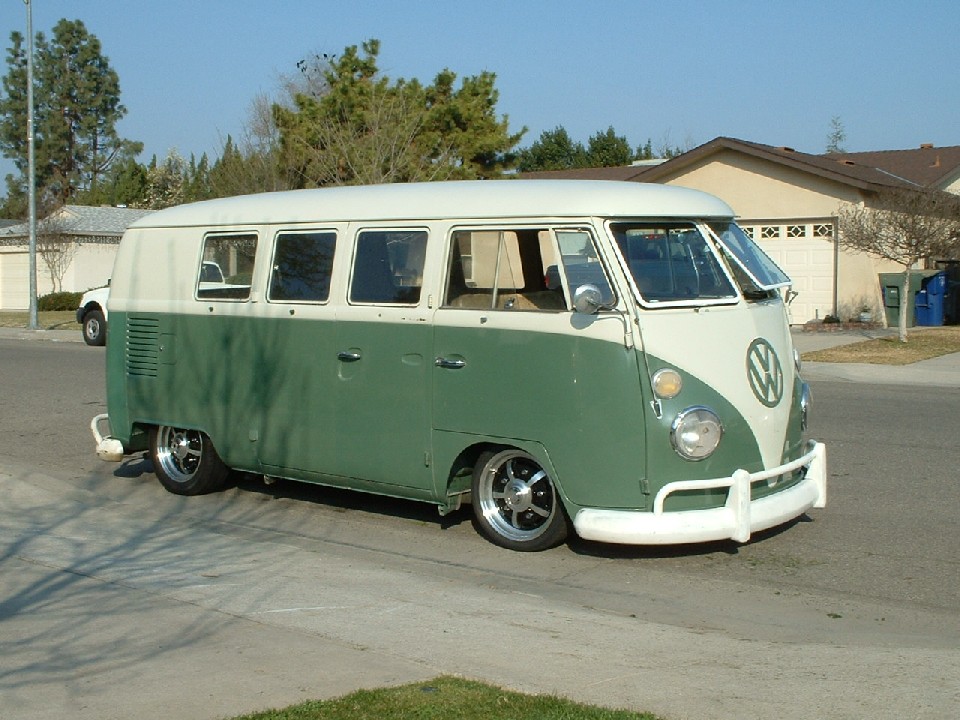

1. 4" narrow beam with adjusters. (Wagenswest)
2. flipped spindles (Micheal Anderson)
3. Wilwood disc brakes (Pete- Airkelwed)
Rear
1. Straight axle (Rancho transaxles)
2. lowered one notch
3. Type 3 brakes. (DDB in Oregon with Parking brake adapter from I think Wagonswest not too sure)

Tranny and wheels
1. Mike from Stuff transaxles built F/F
2. MSW BRM repros

Shocks
1. KYB silver

Tires
1.Front-195-45-15
2.Rear--195-60-15

Full flowed 2027cc with dual 40's
1-1/2" A1 ceramic coated header

rjonas · Posted: Tue Feb 27, 2007 9:36 am Post subject:

Those are awesome guys! Exactly what I am looking for.
Keep them coming.

Man, I forgot about tubbing the wells.
Also, I read someone in Japan narrowed his rear tortion
to get some fat tires in there. Anyone tried that?
_________________
1965 21-Deluxe-SWR/BG "Sonora"
1973 Type-181 Thing "Velma"

www.aircooledmissouri.com

Rynos63 · Posted: Tue Feb 27, 2007 10:18 am Post subject:

4.5 narrowed beam with drop spindles and raised steering box in the front and no tubs...
Type 1 I.R.S. in the rear
Brakes are stock Bus drum in the front and stock Type 1 with 4 to wide 5 lug adapters in the rear
All done by me...
As for tires 165 45/15 in the front and 185 55/15 in the rear
_________________
http://www.thesamba.com/vw/classifieds/detail.php?id=318624

www.RynosDubShop.com

bastardbus · Posted: Tue Feb 27, 2007 10:23 am Post subject:

Good idea for a thread!

superpilot · Posted: Tue Feb 27, 2007 11:11 am Post subject:

RINC · Posted: Tue Feb 27, 2007 11:13 am Post subject:

WideFive · Posted: Tue Feb 27, 2007 12:10 pm Post subject:

165/45/15, 195/60/15
Appliance Pacer rims
My dropped spindles, '64-'67 Bus Boys adjustable non-narrowed beam
Bus Boys (I assume) straight axle, Trans: '73 Type I converted to swing w/ super diff, 3:88R&P w/ 0.89 4th
Front: Stock, Rear: '68 backing plates, Type I drums and Super Beetle front wheel cylinders.
White KYB's all around
_________________
Aaron B.
WideFive.net

beelzibus · Samba Member Joined: March 01, 2005 Posts: 287

I've got a narrowed rear torsion tube,not my idea,it was like that when I bought it from a guy in AZ.(anyone know this bus?)
Trans is stock Type 3 swingaxle,fitted with 944 discs,and 5.5" Porsche spacesaver spares,the tyres are 195x65x15,the rims ET34 Shocks are KYB Gasadjust.

At the front i'm on a 64-67 beam,dropped spindles with adjusters, running 944 discs,again porsche spacesaver steel rims,only this time ET 53,tyres are 185x55x15s.Front shocks are gas cofaps.Also running an antiroll bar.

cdennisg · Posted: Tue Feb 27, 2007 3:36 pm Post subject:

I have a 65 riviera. Front has stock beam with drop spindles by Tom Conner. Stock brakes and KYB GR2 shocks. Tires are 195/60/15 Toyo on stock bus wheels. Rear is straight axle kit by longroofs with 60's beetle tranny and long axles built by Mitch at The shop, Sandpoint ID. Tubes lengthened by Multitrail Enterprises, here in Sandpoint ID. Stock 68 bug rear brakes with late beetle front wheel cylinders. 4-5 lug adapters from Wolfgang (I think they are 1/2" thick) with stock 15" bus wheels that I had the offset changed. I had the inner section cut out and moved outward about 5/8" which is about the max you can do with the stock VW outer hoops. All this was done by Watt Wheel in Spokane, Wa. All this was done to give me enough room to fit a wider and taller tire in the stock wheelwell. I am currently running a 205/65/15 rear tire. Plenty of clearance between tire and spring plate as well as tire and fender lip. They fill up the hole nicely and look better than the rubber bands I see often on busses. The rear height is adjusted so that when there is no extra load, (no camping gear, kid, dog, single wheel trailer) it sits slightly higher than the front. It has just a slight rake. I run the KYB GR2 on the rear also.

If I had it to do over I would have the rear wheels widened to 5.5 or 6 inches with the same (non-stock) offset. I may change the rear tire size if the gearing seems too tall, but I am in the break-in period of a new 1776 right now (also built right by Mitch at The Shop) so I haven't driven it over any passes yet or any long distances. I am considering building a 2-4 inch narrowed adjustable beam and installing bay window discs with small 5 to wide 5 adapters and full power assist. I may go to rear discs, too. I may also change to the KYB gas-adjust shocks, on the recommendation of some here on the samba. Especially on the front as it seems easy to bottom out the front tires on the wheel well over large bumps and I understand the white shocks are a little stiffer.

I do most of my own work but some things are best farmed out to those who have the skills and equipment to do it better than I.

Image may have been reduced in size. Click image to view fullscreen.

Skim · Posted: Tue Feb 27, 2007 4:17 pm Post subject:

My old 63 Kombi
4 3/4 narrowed beam with drop spindles
Type 3 trans
195x50 front -
195x65 rear -
2 notches down in the rear
polished 5 spokes
_________________
52 Split Rag
54 Barndoor 23

GFK
My 61 Impala Vert Build Up Topic Pics

Skim · Posted: Tue Feb 27, 2007 4:21 pm Post subject:

my old 64 standard

4 3/4 beam
drop spindles
67 Bug Tranny
3 notches in the rear
175x55 Smart Car tires
215x60 Yokohama rears
chrome 5 spoke empis
_________________
52 Split Rag
54 Barndoor 23

GFK
My 61 Impala Vert Build Up Topic Pics

Dewayne · Posted: Tue Feb 27, 2007 6:38 pm Post subject:

Dropped spindles with CNC disc brakes on front.

Bus Boys straight axles kit on rear with rebuilt Type III transaxle from German Transaxle of America and Type III rear brakes.

KYB white shocks all around.

Wide Five spoke wheels, with 185X60X15 Bridgestone Potenza tires.
Image may have been reduced in size. Click image to view fullscreen.

_________________
"My ex-wife had a hint of a beard and she looked like a manly-girl... that made no difference..."

Drive 'em if ya got 'em, and don't brag if you didn't do the work yourself...

59 Euro Ragtop Beetle
64 Crewcab
68 BMW R60 (VW Powered)
STEERING BOX SCRAPERS #27 62"

RobzKombi · Samba Member Joined: July 15, 2003 Posts: 1942

Nice!!

mike n kimmie · Posted: Tue Feb 27, 2007 7:13 pm Post subject:

Rust Box beam narrowed 4.5 adjusters and spindles
and Rust Box strait axel and springplates
165/45s 195/55s on flat 4 replica sprints.
All bolt in,no cutting.

DeadEndVW · Posted: Tue Feb 27, 2007 8:48 pm Post subject:

4" narrowed with bus boys adjusters - by me
Drop spindles - by me
Straight axle kit - by me
3.88 tranny with .082 4th gear - by Bill Shanks
175-55 up front
185-65 out back

75 miles an hour in third gear Shocked

_________________
Route 66 VW parts

sloans265 · Posted: Tue Feb 27, 2007 9:06 pm Post subject:

Wagenswest-spindles & offset springplates
CB performance 2" beam
"63 Type III tranny drum to drum
195/55/15's on front 195/65/15's on rear
No body mods.
_________________
Currently without a VW and looking for a pre 67 truck or Kombi

slow36hp · Posted: Tue Feb 27, 2007 9:53 pm Post subject:

this far i think my bus is getting the same setup as skims old kombi
_________________
1958 custom camper
http://www.thesamba.com/vw/forum/viewtopic.php?t=483656

1958 deluxe Parts needed
1 rear hatch
2 rear pressed bumper trim
3 locking t handle
4 safaris
5 front hurst
