Kill Switch Questions
Page: 1, 2, 3  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
ShotMagnet
Samba Member


Joined: September 07, 2007
Posts: 30

ShotMagnet is offline

PostPosted: Sat Sep 08, 2007 12:31 am    Post subject: Kill Switch Questions Reply with quote

I have done searches on this site and others and I cannot find a picture or diagram, nothing. Remember I am new to the wiring thing be nice and simple if it all.

Thanks in AdVance
Craig
Back to top
View user's profile Send private message Classifieds Feedback
tencentlife
Samba Member


Joined: May 02, 2006
Posts: 10067
Location: Abiquiu, NM, USA
tencentlife is offline

PostPosted: Sat Sep 08, 2007 9:21 am    Post subject: Reply with quote

You need to explain exactly what you wish to do, under what conditions, etc. Details.

And always begin any request for help by telling the year/model/equipment of your ride. They're not all the same, not by a long shot. Creating a signature line at the end of your posts including your vehicle info is a good way to do that automatically.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
ShotMagnet
Samba Member


Joined: September 07, 2007
Posts: 30

ShotMagnet is offline

PostPosted: Sat Sep 08, 2007 9:01 pm    Post subject: Reply with quote

thanx for the advise. It is a VW 82 Vanagon W/ westy camper. Aircooled if that helps
Back to top
View user's profile Send private message Classifieds Feedback
Dogpilot
Samba Member


Joined: October 03, 2005
Posts: 4205
Location: Flagstaff, AZ
Dogpilot is offline

PostPosted: Sun Sep 09, 2007 9:54 am    Post subject: Reply with quote

What he meant, besides the kind of car, is what you aim to achieve. A kill switch on a dragster is a different creature from lets say; an anit-theft type installation. If your going to actuate it from a keyless entry system or alarm or so on.

If your looking to do simple, cutting the power to the fuel pump is an easy one. There is also the power to the ECU makes the van dead as a doornail. The fuel pump is the most straight forward. I don't have any schematics for the 82, so you will have to resourceful on your own. However, it is not rocket science to run a pair of wires down to the pump and make a break point.
_________________
Geology with a Syncro rocks!
86 Syncro Westy AKA "The Bughunter"
98 Disco I
08 Range Rover SC
08 VW Rabbit S
1951 O-1G
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
bucko
Samba Member


Joined: December 09, 2004
Posts: 2617
Location: Coppell, Texas
bucko is offline

PostPosted: Sun Sep 09, 2007 4:06 pm    Post subject: Re: Kill Switch Questions Reply with quote

ShotMagnet wrote:
I have done searches on this site and others and I cannot find a picture or diagram, nothing. Remember I am new to the wiring thing be nice and simple if it all.

Thanks in AdVance
Craig


Lucy, you got some 'splaining to do....
_________________
Current VW drives: 1984 Westfalia

Past VW drives: 1967 Beetle, 1973 Beetle, 1977 Bus, 1971 Military Type 181
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ShotMagnet
Samba Member


Joined: September 07, 2007
Posts: 30

ShotMagnet is offline

PostPosted: Mon Sep 10, 2007 9:37 am    Post subject: Reply with quote

Dogpilot wrote:


If your looking to do simple, cutting the power to the fuel pump is an easy one. There is also the power to the ECU makes the van dead as a doornail. The fuel pump is the most straight forward. I don't have any schematics for the 82, so you will have to resourceful on your own. However, it is not rocket science to run a pair of wires down to the pump and make a break point.


lol I know it isnt rocket science. I am afraid of screwing something up. And I am blushing right now " I dont even know what a fuel pump looks like" How embarassing for me to say that!
_________________
Thanx in Advance,
Craig, Holly and Ross

'82 Westy Vanagon air cooled

http://vanagonshananigans.blogspot.com/

"There is more to life than increasing its speed." Mahatma Gandhi (1869 - 1948)
Back to top
View user's profile Send private message Classifieds Feedback
kevinbassplayer
Samba Member


Joined: June 15, 2006
Posts: 1041
Location: Nor-Cal
kevinbassplayer is offline

PostPosted: Mon Sep 10, 2007 9:44 am    Post subject: Reply with quote

Look under the van on the passenger side just behind the fuel tank. There will be a short piece of hose that may or may not have a filter attached, then you will see a roughly 6 inch or so long round thingy that the hose from the tank is attached to. that is the fuel pump. There is a clip with two wires that is attached to the fuel pump, these wires are what deliver power to the fuel pump. The basic idea behind a fuel pump cutoff switch is to cut one of these fuel pump wires and attach a switch in between them. dosen't matter which wire, either one will break the circuit when the switch is in the off position and not allow the pump to run. Switch on, all good. The more you learn about your van the better off you will be, this forum is probably the best "Vanagon University" I know of. (How about a t-shirt, Vanagon University class of xx? anyone out here make shirts, I'd buy one!)
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
tencentlife
Samba Member


Joined: May 02, 2006
Posts: 10067
Location: Abiquiu, NM, USA
tencentlife is offline

PostPosted: Mon Sep 10, 2007 9:51 am    Post subject: Reply with quote

Just get a big dog and let him live in your van. A better security system has never been devised. Ask the cops, they'll tell you the same: if you don't want your car stolen, you need active security, i.e. something that will rip a thieve's friggin arm off if he's stupid enough to stick it in the car.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
bucko
Samba Member


Joined: December 09, 2004
Posts: 2617
Location: Coppell, Texas
bucko is offline

PostPosted: Mon Sep 10, 2007 9:59 am    Post subject: Reply with quote

tencentlife wrote:
Just get a big dog and let him live in your van. A better security system has never been devised. Ask the cops, they'll tell you the same: if you don't want your car stolen, you need active security, i.e. something that will rip a thieve's friggin arm off if he's stupid enough to stick it in the car.


And make it a hungry dog...one that has not been fed for a day or so....
_________________
Current VW drives: 1984 Westfalia

Past VW drives: 1967 Beetle, 1973 Beetle, 1977 Bus, 1971 Military Type 181
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ShotMagnet
Samba Member


Joined: September 07, 2007
Posts: 30

ShotMagnet is offline

PostPosted: Tue Sep 18, 2007 3:08 pm    Post subject: Reply with quote

thanx everyone
_________________
Thanx in Advance,
Craig, Holly and Ross

'82 Westy Vanagon air cooled

http://vanagonshananigans.blogspot.com/

"There is more to life than increasing its speed." Mahatma Gandhi (1869 - 1948)
Back to top
View user's profile Send private message Classifieds Feedback
ShotMagnet
Samba Member


Joined: September 07, 2007
Posts: 30

ShotMagnet is offline

PostPosted: Tue Sep 18, 2007 3:10 pm    Post subject: Reply with quote

thanx everyone going to install it tomarrow
_________________
Thanx in Advance,
Craig, Holly and Ross

'82 Westy Vanagon air cooled

http://vanagonshananigans.blogspot.com/

"There is more to life than increasing its speed." Mahatma Gandhi (1869 - 1948)
Back to top
View user's profile Send private message Classifieds Feedback
tencentlife
Samba Member


Joined: May 02, 2006
Posts: 10067
Location: Abiquiu, NM, USA
tencentlife is offline

PostPosted: Tue Sep 18, 2007 3:33 pm    Post subject: Reply with quote

The dog?
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
ShotMagnet
Samba Member


Joined: September 07, 2007
Posts: 30

ShotMagnet is offline

PostPosted: Tue Sep 18, 2007 4:54 pm    Post subject: Reply with quote

yep a pack of them (will 10 chawawas (sp) work)
_________________
Thanx in Advance,
Craig, Holly and Ross

'82 Westy Vanagon air cooled

http://vanagonshananigans.blogspot.com/

"There is more to life than increasing its speed." Mahatma Gandhi (1869 - 1948)
Back to top
View user's profile Send private message Classifieds Feedback
tencentlife
Samba Member


Joined: May 02, 2006
Posts: 10067
Location: Abiquiu, NM, USA
tencentlife is offline

PostPosted: Tue Sep 18, 2007 5:46 pm    Post subject: Reply with quote

Only if they're wirelessly linked to coordinate their attacks.

(it's Chihuahuas)
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
climberjohn
Samba Member


Joined: January 11, 2005
Posts: 1840
Location: Portland Orygun
climberjohn is offline

PostPosted: Fri Nov 05, 2010 5:02 am    Post subject: Reply with quote

Okay, I'm reviving an old thread here, but I just did this today and this topic is still relevant.

My approach: Rather than mess with the fuel pump power supply, I added a switch to the fuel pump ground.

The following has more detail than needed if you are adept at 12 volt systems, but is wordy to aid my fellow 12 volt noobies.

Shopping list, get most of it at the car parts store:
- stout metal toggle switch, simple on-off with 2 connection points
- 1 roll 16 gauge black or brown wire (black is not mandatory, but it reminds you it's a ground wire.)
- 3 female spade connectors, blue plastic (for med/16 gauge wire, 2 for toggle switch, 1 for fuel pump)
- 1 ring connector, for ground wire to bolt connection
- small bolt and nut, about 1' long (to mount switch and be a ground)
- dozen zip ties
- roll of metal plumbers tape

Step by step:
1) Pulled off the spade connector for the fuel pump ground wire. (Left it in place for possible later use in case I screwed this up =^)

2) Crimped on a spade connector onto 16G wire, and plugged new spade connector onto fuel pump ground.

3) Routed wire along passenger side above gas tank, then out to the front right jack point, up thru small plastic plug in the body, allowing access to the pillar behind the front passenger seat.

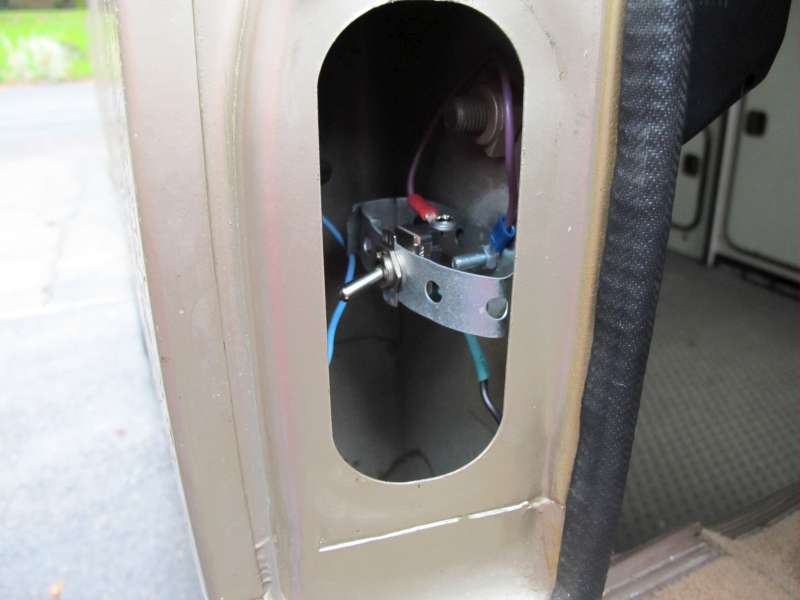

4) Pulled off the little air vent thingy, and mounted a stout toggle switch inside the pillar. Wire comes up from fuel pump, connects to one side to the toggle switch, then another short bit of wire (about 6") connect the other side of the switch to a ground bolt.

5) I made a mount for the toggle switch out of about 8" of metal plumber's tape, the ultra handy stuff that is a roll of flexible metal with small holes in it every inch or so. Not very pretty, but this switch will not get much use and will never be seen, so no worries. I had to enlarge the mounting hole a bit with a drill (1/2" bit?) to get the plumber's tape to fit the switch.

I thought a lot about the best place to mount the actual switch. Anyone who has pulled off the little air vent thing on either front door that allows easy access to the pillars probably has wondered about using this cavern as some sort of stash spot. It seemed to me a perfect place to hide the switch, giving fast and easy access from the front of the van yet still fairly stealth.

Tip: When working in the pillar, be sure and stuff a rag down inside below your work area to prevent small dropped items from getting lost forever, ask me how I know this.

If any part of this wiring ever gets cut, damaged, etc, all I need to do is pop off the new spade I added from the pump and reconnect the original spade, about a 10 second process.

I hope this write up helps someone give this project a try. If you are new to 12 volt projects this one is very simple, and a good place to get your feet wet.

Image may have been reduced in size. Click image to view fullscreen.


-CJ
_________________
'86 Westy, 2.5 Subaru power
Know your limits. Exceed them often.


Last edited by climberjohn on Mon Jan 17, 2011 6:43 pm; edited 3 times in total
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 15119
Location: Syracuse, NY
danfromsyr is offline

PostPosted: Fri Nov 05, 2010 7:57 am    Post subject: Reply with quote

very nice solution and execution to this Climberjohn.
Applause
_________________
Abscate wrote:
These are the reasons we have words like “wanker”
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
BlackDogVan
Samba Member


Joined: December 21, 2007
Posts: 855
Location: Vancouver Island
BlackDogVan is offline

PostPosted: Fri Nov 05, 2010 8:08 am    Post subject: Reply with quote

tencentlife wrote:
Just get a big dog and let him live in your van. A better security system has never been devised. Ask the cops, they'll tell you the same: if you don't want your car stolen, you need active security, i.e. something that will rip a thieve's friggin arm off if he's stupid enough to stick it in the car.


The guys at my work learned long ago to just come tell me when I leave my lights on...

Image may have been reduced in size. Click image to view fullscreen.


Don't forget to update your location in your profile when you're detailing your kill switch information.
_________________
Gone but not forgotten - 1991 Carat - AAZ transmogriffied to mTDi.
Still addicted, looking for Doka...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
singler3360
Samba Member


Joined: February 25, 2009
Posts: 1191
Location: Corvallis, Oregon
singler3360 is offline

PostPosted: Fri Nov 05, 2010 9:38 am    Post subject: Reply with quote

Climberjohn, excellent write-up. Thanks.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
msinabottle
Samba Member


Joined: September 20, 2005
Posts: 3492
Location: Denver Area, Colorado
msinabottle is offline

PostPosted: Fri Nov 05, 2010 1:09 pm    Post subject: Thank you! Reply with quote

That is a nice write-up. I need to get on that, myself. Thank you!


Best!
_________________
'Winston,' '84 1.9 WBX Westy
Vanagon Poet Laureate: "I have suffered in
many ways, but never, never, never in silence."
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
climberjohn
Samba Member


Joined: January 11, 2005
Posts: 1840
Location: Portland Orygun
climberjohn is offline

PostPosted: Fri Nov 05, 2010 1:36 pm    Post subject: Reply with quote

BlackDogVan wrote:

Don't forget to update your location in your profile when you're detailing your kill switch information.


Hee hee, you're funny. Just for that post, I'm going to add another kill switch to the ECU that you'll NEVER find Twisted Evil
_________________
'86 Westy, 2.5 Subaru power
Know your limits. Exceed them often.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
