Beauty Rings

[pedro sainz]

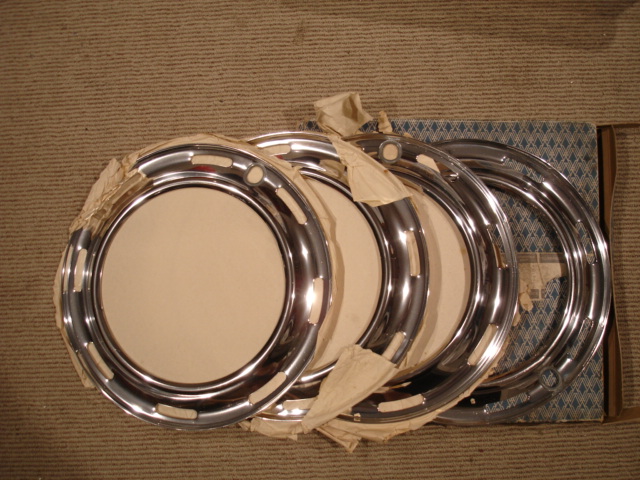

There is TWO kinds
of the Beauty Rings (EARLY TYPE)

Original EARLY Type 3 is Thin

NOT that DEEP around the edge

show ALL your Beauty Rings
you will SEE what I'm talking about
_________________
68 T34 1600 Automatic
62 T34 Cabriolet Prototype
N.O.N.A member #3
The Truth is Out There

[Russ Wolfe]

My 69 came with beauty rings, but they were T-1's. So I took them off.
I woon a set of used T-34 rings on Ebay, but the seller wanted cash. Like a dummy, I sent cash and never got the rings.
So, I am still looking for T-3 rings.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.

[EverettB]

What's the difference between Beetle and Type 3 rings? I thought all 4-lug rings were the same.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!

[blankmange]

if I remember correctly, it's the slots that are different...
_________________
póg mo thóin

Certified DHS Technician

Samba Member # 24517

[pedro sainz]

[Russ Wolfe]

No, they are not. There is a difference due to the wheel offset. 46mm vs 34mm.
T-1 rings on T-3 wheels will not tuck in tight to the rim.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.

[wolfman's brother]

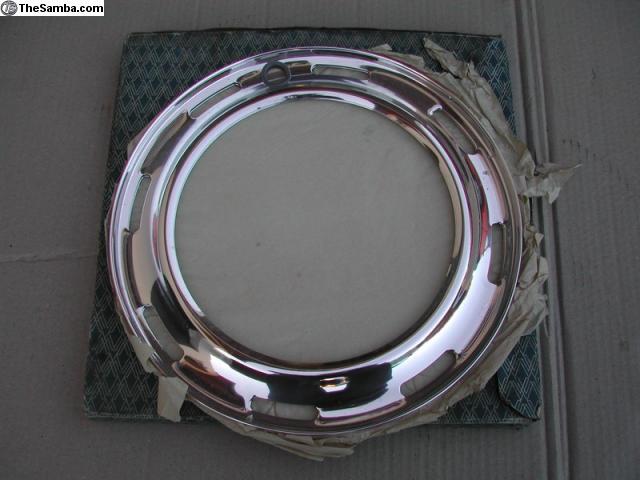

trim ring 1-set purchased from pedro

_________________
insanity takes it's toll,please have exact change ready.
my imaginary friends keep telling me I have a mental problem.

[wolfman's brother]

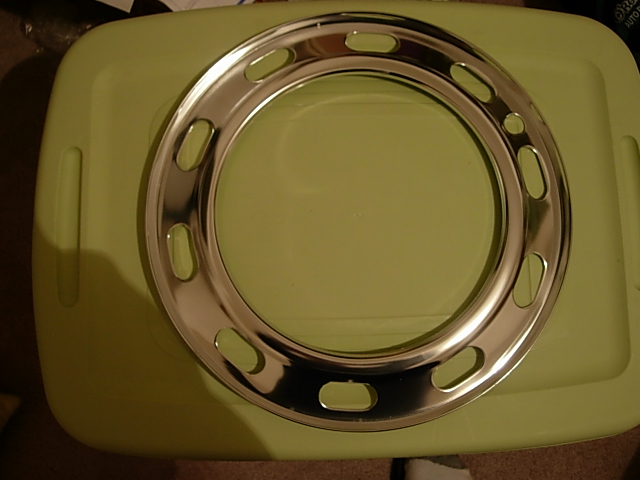

trim ring 2-another NOS set,different slots.forgot where I got these,oz maybe.

_________________
insanity takes it's toll,please have exact change ready.
my imaginary friends keep telling me I have a mental problem.

[wolfman's brother]

side by side comparison.see the difference,even in the valve stem hole.

_________________
insanity takes it's toll,please have exact change ready.
my imaginary friends keep telling me I have a mental problem.

[EverettB]

[blankmange]

[Houstonr]

Does anyone have a picture of the later style T3 rings next to the T1 rings? curious to see the difference as I am looking for a set as we speak

[Russ Wolfe]

The offset is the main difference.
T-1's are a flatter wheel. The T-1 trim ring will not lay against the wheel right.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.

[Adriel Rowley]

How you tell is the valve stem hole. See how Pedro's have a slot? This is due to the larger offset, where as type one has a round hole.

Anyone know of a shop that does anodizing? Just an idea I have had...
_________________
Please consider I am Autistic, so I process information differently and still working on social skills. Thanks.

Dad's 1964 Beetle purchased September 1968.
https://www.thesamba.com/vw/forum/viewtopic.php?p=9252810#9252810

1971 Sunroof Squareback with Fuel Injection
http://www.thesamba.com/vw/forum/viewtopic.php?t=219811&highlight=squareback+rejuvenation

[66311]

I have some aftermarket. I need to check and see if they are type3. If they are I'll let them go.

[MOCHABILL]

Anyone try these? They advertise that they fit TYPE3 wheels

Just wondering;

http://www.eisparts.com/EIS-3504.html

[toiletfish]

[Russ Wolfe]

Those are not offset dependent.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.

[VW-Variant-L]

Due to the offset difference, when T3 rings are placed on T1 beetle rims the centre of the trims doesn't seat on the metal but is 12mm above the centre seat of the rim ( so you can't fit the hubcaps).

Beetle rings conversely sit 12mm out from the outer rim edge when placed on type 3 rims ( but the hubcaps will fit).

An easy way to check: Looking at Type 3 rings from the side the centre is visible 2-3 mm further out than the outside edge, whereas T1 sit below.

[Houstonr]

thanks guys.. I was just wondering if anyone had some comparison shots of the later type 3 rings. (4 lug).

I am having difficultly determining if any of the classifieds are the correct ones. I do have T3 rims so I want the right rings.

thanks!


so if I am looking at these two pictures.. and making an educated guess...

Picture 1: this looks to be a correct T3/Ghia trim ring ... you can see that it fits snug and the valve stem seems to come close to the center most point of the slot

Now in this color picture.. I am guessing these are likely bug or aftermarket trim rings... they dont appear to be too tight, and you can see the valve stem is nearly resting on the outermost portion of the hole.
