 Posted: Mon Apr 21, 2008 9:10 pm Post subject: Metal-dash Bay Windows? |
 |
|
I see metal-dash Bay Windows for sale in Europe once in a while. What is the deal? What do they look like? Can I convert my '71 to look like that? Also, the area behind the front seats...can I just take off the black plastic material so that it looks clean and factory intended?  |
|
| Back to top |
|
 |
baywndwjunkie
Samba Member
Joined: August 28, 2007
Posts: 336
Location: El Dorado Hills, Ca
|
| Posted: Mon Apr 21, 2008 9:16 pm Post subject: |
|
|
the dash is a euro dash..not found here much in the states...might try a vw yad..i have seen one before. don't know about the black plastic stuff though bro..i'm sure you could do it if you wanted too!
_________________
\m/ (^_^) \m/
1977 Chrome Yellow Westy aka "Charlie Brown" |
|
| Back to top |
|
|
EZ Gruv
King of Plaid
Joined: December 10, 2002
Posts: 8577
Location: Las Vegas
|
| Posted: Mon Apr 21, 2008 9:24 pm Post subject: |
|
|
You dont want to take the black padded stuff off. There are a lot of extra holes in the metal under there.
_________________
Eric
1977 Deluxe Westfalia - 2.0L FI Type IV, Completely Original
Photographer for HotVWs, VolksWorld, AirMighty, VW Camper & Commercial, Hayburner, and more.
My Photography Page. |
|
| Back to top |
|
|
NinetyEight
Samba Member
Joined: February 12, 2008
Posts: 420
|
| Posted: Tue Apr 22, 2008 12:08 am Post subject: |
|
|

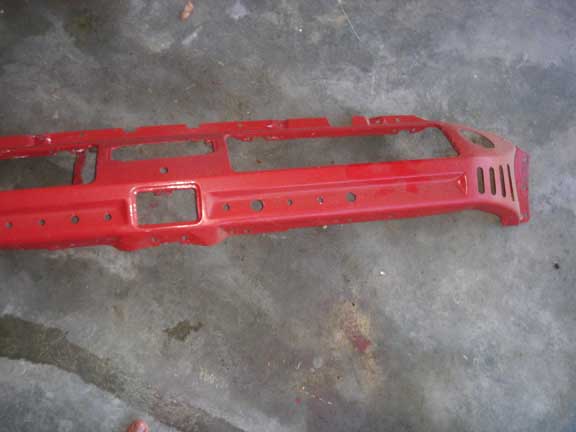

If I am correct the holes on the corner are only on the late bays. However, I do believe the holes in the lower section of the dash are in all models. There are a ton of threads on here if you use the search.
If you can live with the holes on the corners, or can weld them closed, there are a couple options I can think of for filling the other holes. You could possibly makes plates out of steel that fit right in the section over all of the holes, and drill the holes out for the ones you need. Or With as many modern features as most people are putting into their busses, you could easily fill the holes with switches and buttons.
_________________
Otto Bus - 1978 Daily Driver
Rico - 1975 Bay
http://www.FromTheEyesofABus.Blogspot.com |
|
| Back to top |
|
|
NASkeet
Samba Member
Joined: April 29, 2006
Posts: 3237
Location: South Benfleet, Essex, UK
|
| Posted: Tue Apr 22, 2008 6:42 am Post subject: Metal-dash Bay Windows? |
|
|
| EZ Gruv wrote: |
You dont want to take the black padded stuff off. There are a lot of extra holes in the metal under there.
|
| NinetyEight wrote: |
If I am correct the holes on the corner are only on the late bays. However, I do believe the holes in the lower section of the dash are in all models. There are a ton of threads on here if you use the search.
If you can live with the holes on the corners, or can weld them closed, there are a couple options I can think of for filling the other holes. You could possibly makes plates out of steel that fit right in the section over all of the holes, and drill the holes out for the ones you need. Or With as many modern features as most people are putting into their busses, you could easily fill the holes with switches and buttons. |
I have never before seen any 1968~79 VW Type 2 dashboards, with vertical slots close to the outboard "corners"! Perhaps it is only a feature of padded dashboards (concealed behind the padding), which were not available for right-hand drive vehicles and a relative rarity for European specification vehicles.
_________________
Regards.
Nigel A. Skeet
Independent tutor (semi-retired) of mathematics, physics, technology & engineering for secondary, tertiary, further & higher education.
Much modified, RHD 1973 VW "1600" Type 2 Westfalia Continental campervan, with the World's only decent, cross-over-arm, SWF pantograph rear-window wiper
Onetime member, plus former Technical Editor & Editor of Transporter Talk magazine
Volkswagen Type 2 Owners' Club (Great Britain)
https://vwt2oc.co.uk |
|
| Back to top |
|
|
EZ Gruv
King of Plaid
Joined: December 10, 2002
Posts: 8577
Location: Las Vegas
|
| Posted: Tue Apr 22, 2008 10:37 am Post subject: Re: Metal-dash Bay Windows? |
|
|
| NASkeet wrote: |
I have never before seen any 1968~79 VW Type 2 dashboards, with vertical slots close to the outboard "corners"! |
_________________
Eric
1977 Deluxe Westfalia - 2.0L FI Type IV, Completely Original
Photographer for HotVWs, VolksWorld, AirMighty, VW Camper & Commercial, Hayburner, and more.
My Photography Page. |
|
| Back to top |
|
|
iprangen
Samba Member
Joined: December 10, 2007
Posts: 474
Location: Centerport, NY
|
| Posted: Tue Apr 22, 2008 10:37 am Post subject: |
|
|
| Thanks for the info. Anyone have a pic. of a Euro spec. metal dash Bay Window ? |
|
| Back to top |
|
|
420GOAT
Samba Member
Joined: March 31, 2006
Posts: 3342
Location: Wilmington, CA on a nice quiet street but still in the 'hood
|
| Posted: Tue Apr 22, 2008 10:49 am Post subject: |
|
|
the guage pod is plastic and so is the upper pad so i think it looks better with the padded face. it's not a split.
_________________
once you realize im not impressed we will get along just fine |
|
| Back to top |
|
|
rjonas
Samba Member
Joined: July 24, 2004
Posts: 644
Location: Chandler, AZ
|
| Posted: Tue Apr 22, 2008 10:52 am Post subject: |
|
|
_________________
1979 Type-2 Westfalia “Sandy”
1973 Type-181 Thing "Velma"
1956 Type-1 Beetle Patina Project “Rosie”
www.azbusclub.org |
|
| Back to top |
|
|
krautwaggen
Samba Member
Joined: August 04, 2005
Posts: 376
Location: Midwest
|
| Posted: Tue Apr 22, 2008 10:52 am Post subject: |
|
|
| It may have blended better painted black. I'm planning on doing this to my 68 sc unless someone can tell me the secret to restoring a padded dash with many many cracks. Euro dashes had the padded top part with the handle didn't they? I wonder if speakers would work nicely behind the corners of the dash (near the door) or if the sound would be distorted excessively. |
|
| Back to top |
|
|
dwill49965
Samba Member
Joined: August 08, 2005
Posts: 1405
Location: Dartmouth, Nova Scotia
|
| Posted: Tue Apr 22, 2008 11:00 am Post subject: |
|
|
More views of this Euro metal dash in my gallery - page 7.
_________________
Darryl
--------------
'78 Westy, Boston Bob built 2.0 L, FI, MSD 6A
Last edited by dwill49965 on Wed Apr 23, 2008 8:32 am; edited 1 time in total |
|
| Back to top |
|
|
jah_B
Samba Member
Joined: March 18, 2008
Posts: 1147
Location: Tempe, AZ
|
| Posted: Tue Apr 22, 2008 11:46 am Post subject: |
|
|
I'm no big fan of plastic. Even leaving the inserts kind of defeats the purpose. I think if I wanted to go for this kind of look, I'd look for custom fiberglass dashes, or fabricate one in metal/glass from scratch, and plant a PIMPED OUT gauge and radio/gps/dvd player set up in it, ala custom hot rod. Now THAT could look extremely cool, and would quickly knock yer teeth out in a hard stop.
_________________
1984 CABRIOLET 6spd, quaife diff, Neuspeed springs, sway bars, tie bar, short shift kit, bilstein shocks, 16X7 RSE 3pc wheels, BFG TA 205 40s
1972 tintop P30 CAMPMOBILE: M/T, 1.7L, dual kadrons, 019 diz. Sunny the S'kool Bus
You gotta know what you don't know. That's the key to wisdom. man. |
|
| Back to top |
|
|
RZAR
Samba Member
Joined: September 01, 2007
Posts: 725
|
|
| Back to top |
|
|
NASkeet
Samba Member
Joined: April 29, 2006
Posts: 3237
Location: South Benfleet, Essex, UK
|
| Posted: Wed Apr 23, 2008 5:19 am Post subject: |
|
|
VW Heritage also show VDO Cockpit accessory gauges on this page, but it's strange to see Imperial calibrated (e.g. PSI and ºF, instead of Bar and ºC) instruments on VDO gauges for the British market!
_________________
Regards.
Nigel A. Skeet
Independent tutor (semi-retired) of mathematics, physics, technology & engineering for secondary, tertiary, further & higher education.
Much modified, RHD 1973 VW "1600" Type 2 Westfalia Continental campervan, with the World's only decent, cross-over-arm, SWF pantograph rear-window wiper
Onetime member, plus former Technical Editor & Editor of Transporter Talk magazine
Volkswagen Type 2 Owners' Club (Great Britain)
https://vwt2oc.co.uk |
|
| Back to top |
|
|
NASkeet
Samba Member
Joined: April 29, 2006
Posts: 3237
Location: South Benfleet, Essex, UK
|
| Posted: Wed Apr 23, 2008 5:24 am Post subject: |
|
|
Clicking on this link, merely results in the following "Information" message:
No photos met your search criteria
That's quite a fresh-looking pre-1973 VW 16/1700 Type 2 dashboard, but why position those three switches so far away, just below the glove-box aperture, when you appear to have a few vacant positions on the driver's side?
What is the large black box, just below the steering-column support bracket, close to where the fuse & relay box would be?
I have two six-position, relay mounting cum connector blocks (dimensions 110 mm x 75 mm x 25 mm), suspended unobtrusively, using home-made aluminium adapter brackets, beneath the steering-column support bracket, of my British specification, 1973 VW Type 2, to make provision for, an additional twelve accessory relays, as shown removed from the vehicle for illustration purposes, in the following pictures:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=327969
_________________
Regards.
Nigel A. Skeet
Independent tutor (semi-retired) of mathematics, physics, technology & engineering for secondary, tertiary, further & higher education.
Much modified, RHD 1973 VW "1600" Type 2 Westfalia Continental campervan, with the World's only decent, cross-over-arm, SWF pantograph rear-window wiper
Onetime member, plus former Technical Editor & Editor of Transporter Talk magazine
Volkswagen Type 2 Owners' Club (Great Britain)
https://vwt2oc.co.uk |
|
| Back to top |
|
|
rjonas
Samba Member
Joined: July 24, 2004
Posts: 644
Location: Chandler, AZ
|
| Posted: Wed Apr 23, 2008 5:49 am Post subject: |
|
|
| NASkeet wrote: |
That's quite a fresh-looking pre-1973 VW 16/1700 Type 2 dashboard, but why position those three switches so far away, just below the glove-box aperture, when you appear to have a few vacant positions on the driver's side?
What is the large black box, just below the steering-column support bracket, close to where the fuse & relay box would be?
|
Not my dash board so I have no answer, sorry. I found this picture on the www after I bought my 73 orange westy and I liked the euro dash look. Hmmm...maybe someday I will change it.
_________________
1979 Type-2 Westfalia “Sandy”
1973 Type-181 Thing "Velma"
1956 Type-1 Beetle Patina Project “Rosie”
www.azbusclub.org |
|
| Back to top |
|
|
fallinsquirrel
Samba Member
Joined: August 23, 2011
Posts: 8
Location: Kansas
|
| Posted: Thu Sep 22, 2011 6:59 am Post subject: |
|
|
| What do you guys think is the best way to paint the metal dashes? |
|
| Back to top |
|
|
dembus
Samba Member
Joined: February 02, 2005
Posts: 1272
Location: Fleming Island, Florida
|
| Posted: Thu Sep 22, 2011 11:26 am Post subject: Re: Metal-dash Bay Windows? |
|
|
| iprangen wrote: |
| I see metal-dash Bay Windows for sale in Europe once in a while. What is the deal? What do they look like? Can I convert my '71 to look like that? Also, the area behind the front seats...can I just take off the black plastic material so that it looks clean and factory intended? |

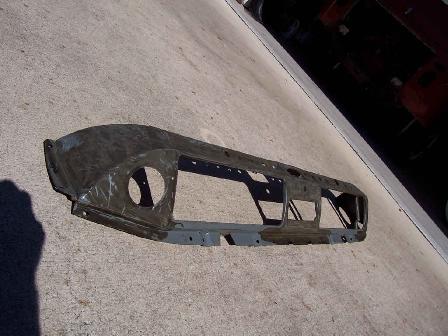

I asked this same question a few years back about metal dashes. I took a nasty one out of my first bus and stripped it down. I never sanded and painted it but it definitely can be done and then put the upper dash pad back on. I think they look awesome painted the same color as the bus.
Added this from my gallery...
_________________
"Want a little peace of mind, grab the lowest branch and start to climb"
JJ Grey
69 Westy (R.I.P.)
68 Kombi
70 Westy
68 Beetle Sedan
69 Beetle Sedan
68 Deluxe
71 Deluxe
71 HT Westy |
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42926
Location: at the beach in Northern Wokistan
|
| Posted: Thu Sep 22, 2011 11:50 am Post subject: |
|
|
Some day when good used dashes are available someone will say - It would have brought an extra $10,000 at the auction with the stock dash but some PO hacked it. Too bad.
1971 STOCK Westy top retail now is valued at $27,400 by NADA. A 1963 STOCK 23-window Split just sold at auction for $217,800. If you want to know what that dash will feel like in say 10 years, roll down the window and toss out a whole bunch of 20's today. That should be a pretty good test how much you'll love it then.
