 Posted: Tue Apr 22, 2008 4:46 am Post subject: Is this a small diameter 12V generator? |
 |
|
A friend of mine came across 3 NOS generators. He said the were small diameter Porsche generators & were 12V. The ones were he could upgrade his 356 from 6V to 12V using the 6V generator stand.

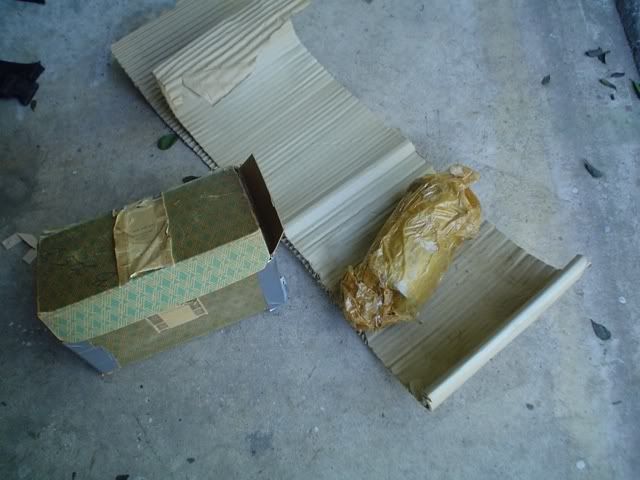

When I got there to see them, they were in the VW box, wrapped in cardboard and wax paper.
VW part number is: 113.903.031
Bosch part number: Bosch 0-101-206-116 14V/38A
I could not find this number referenced on line at Bosch. Can anyone confirm the compatibility of this generator?
My question is to confirm or refute that this generator is a possible option for replacement of a small diameter 6V generator with a small diameter 12V generator. Can this be substituted in a 12V upgrade.

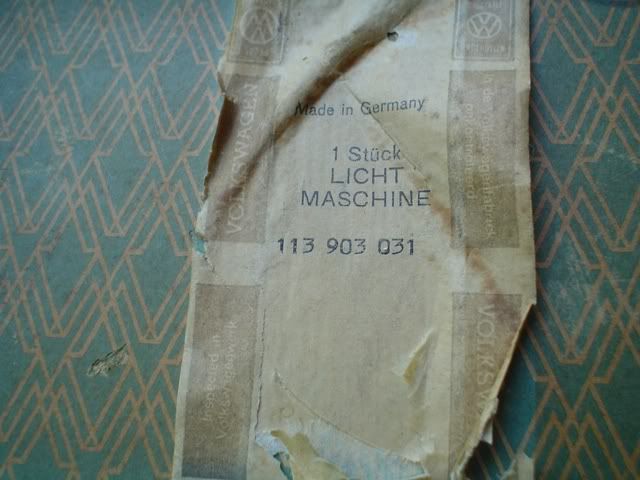

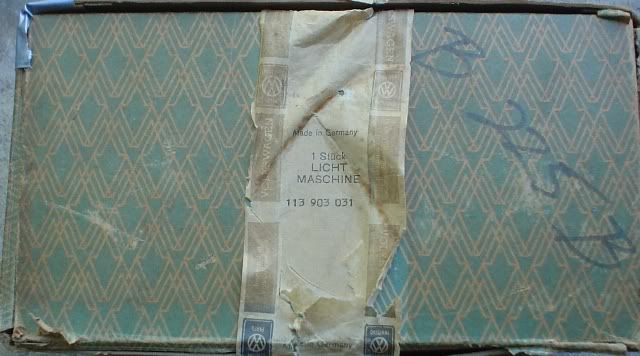

Here's some pics showing the markings and codes:
TIA[/quote]
_________________
Call your Cunado's:
https://vimeo.com/67661950 |
|
| Back to top |
|
 |
runamoc
Samba Member
Joined: June 19, 2006
Posts: 6028
Location: 37.5N 77.1W
|
| Posted: Tue Apr 22, 2008 6:09 am Post subject: |
|
|
| From what I remember, these can be used when changing over to 12v. You don't have to change out the gen stand. It can be used on those old 25 hp engines that can't change the gen stand, if need be. |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10794
Location: iT StiNgeD iTseLf tO dEAd
|
| Posted: Tue Apr 22, 2008 6:20 am Post subject: Re: Is this a small diameter 12V generator? |
|
|
| mpribanic wrote: |
VW part number is: 113.903.031
My question is to confirm or refute that this generator is a possible option for replacement of a small diameter 6V generator with a small diameter 12V generator. Can this be substituted in a 12V upgrade.
|
the part number, on the part, is 113 903 031 E, which, according to my parts book is a generator, 12V, without regulator, 90mm diameter. so yes, you could use this on a 25hp, 36hp, 40hp (that had a 90mm generator pedestal). measure the diameter of the generator. if it is indeed 90mm, and not 105mm like the later style 12V, you should be good to go, as long as you get the correct 38A regulator. |
|
| Back to top |
|
|
mpribanic
Samba Member
Joined: October 25, 2004
Posts: 3177
Location: Neptune Beach, Florida
|
| Posted: Tue Apr 22, 2008 9:56 am Post subject: Re: Is this a small diameter 12V generator? |
|
|
| hazetguy wrote: |
the part number, on the part, is 113 903 031 E, which, according to my parts book is a generator, 12V, without regulator, 90mm diameter. so yes, you could use this on a 25hp, 36hp, 40hp (that had a 90mm generator pedestal). measure the diameter of the generator. if it is indeed 90mm, and not 105mm like the later style 12V, you should be good to go, as long as you get the correct 38A regulator. |
Thank you.
I had the hardest time trying to look up the part number.
Which parts book did you use to reference the numbers?
_________________
Call your Cunado's:
https://vimeo.com/67661950 |
|
| Back to top |
|
|
towd
Samba Member
Joined: June 20, 2005
Posts: 2458
|
| Posted: Tue Apr 22, 2008 10:30 am Post subject: |
|
|
Do you have any Idea of the value of those ???
A core will go for 100 Bucks, I should say thats what I got not non working small gen's.. The good ones went a bit higher ...LOL. |
|
| Back to top |
|
|
runamoc
Samba Member
Joined: June 19, 2006
Posts: 6028
Location: 37.5N 77.1W
|
|
| Back to top |
|
|
Lionhart94010
Samba Member
Joined: January 04, 2005
Posts: 1418
Location: SF Bay Area / Silicon Valley / So Cal
|
| Posted: Tue Apr 22, 2008 1:11 pm Post subject: |
|
|
Interesting, all my Type 2 bus Generators are 38A, and they are longer than the standard 30A Bug units, it seems that it would be hard to put 38A in a smaller diameter than standard case if they had to lengthen the 30A to get the 38A?
Part numbers comes up at Bus depot for 113903031
Generator
New, Bosch
Part Reference Number*: 113903031PX $172.81
Brand: Bosch/Germany*
Dynamo
Part Reference Number*: 113903031E $1,022.27
Brand: Volkswagen/Germany*
Do you think they could be OEM VW bus generators, I bet if you e-mail www.busdepot.com they will tell you the difference :0)
_________________
Current VWs 71 T2 Westy SO-72/6(Miami), 71 Crew Cab, 2015 GSW TDI
Other owned VW’s 59, 68 1500s, 69 & 71 Bug’s; 72 & 73 S-Bug’s; 67 Westy, 67 Deluxe, Other 71 DC, 72 KG GT that now lives in Australia, 12 JSW TDI, 2015 GSW TDI, 2023 Tiguan
VW technical information sights
thesamba - www.ratwell.com - www.shoptalkforums.com/ - www.vw-resource.com - http://www.type2.com/
http://bobhooversblog.blogspot.com/ - www.aircooled.net/gnrlsite/resource/articles.htm |
|
| Back to top |
|
|
Ferdinand
Samba Member
Joined: September 01, 2008
Posts: 5
|
| Posted: Thu Jun 07, 2018 8:15 pm Post subject: Re: Is this a small diameter 12V generator? |
|
|
I intend to use this 101 206 116 generator on a Porsche 356 B engine, which correct regulator (part number) should I use for this generator ? Thanks

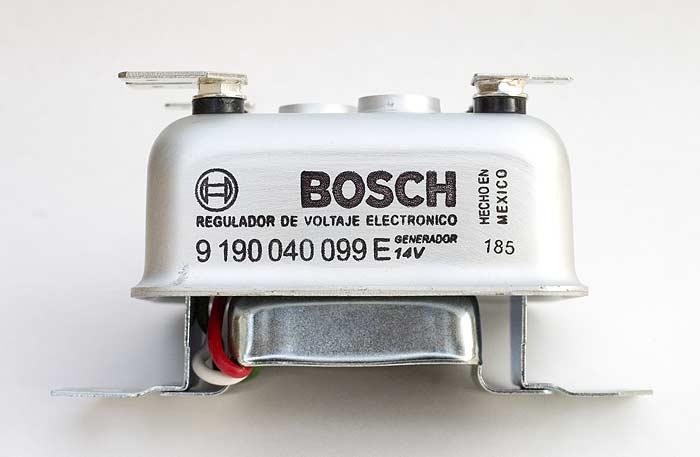

Can I use this voltage regulator with no risk ?
|
|
| Back to top |
|
|
perello
Samba Member
Joined: April 15, 2005
Posts: 878
Location: where social security comes for free
|
| Posted: Fri Jun 08, 2018 6:42 am Post subject: Re: Is this a small diameter 12V generator? |
|
|
No, that one is 30A
you need BOSCH F 026 T02 205
_________________
Aug '58 pressed bumper SO23
1974 German Thing
1978 Bug 1200 |
|
| Back to top |
|
|
Dale M.
Samba Member
Joined: April 12, 2006
Posts: 20765
Location: Just a tiny bit west of Yosemite Valley
|
| Posted: Fri Jun 08, 2018 8:00 am Post subject: Re: Is this a small diameter 12V generator? |
|
|
This quote from CIP1 ad... Also reflected in many other ad's...
"This is the new style SOLID STATE voltage regulator (Part # 919004009) which replaces the old style box regulator.
Will work with both the 30 or 38 amp Generators."
http://www2.cip1.com/ProductDetails.asp?ProductCode=BOS-30019
Dale
_________________
“Fear The Government That Wants To Take Your Guns"
"Kellison Sand Piper Roadster" For Street & Show.
"Joe Pody Sandrover" Buggy with 2180 for Autocross (Sold)
============================================================
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ... |
|
| Back to top |
|
|
FreeBug
Samba Member
Joined: March 12, 2012
Posts: 4277
Location: deepest, darkest Switzerland
|
| Posted: Fri Jun 08, 2018 8:52 am Post subject: Re: Is this a small diameter 12V generator? |
|
|
I used one of those electronic regulators on a 38 amp 12V gen, on my bus, for years, was very happy with it and highly recommend them: the overall voltage of the system went up, better lighting, faster starter, faster turn signal relay, happier battery, etc...
Finally, an actual improved product! |
|
| Back to top |
|
|
Brian
Samba Moderator
Joined: May 28, 2012
Posts: 8340
Location: Oceanside
|
| Posted: Fri Jun 08, 2018 11:17 am Post subject: Re: Is this a small diameter 12V generator? |
|
|
I have a few NOS 38 amp regulators for sale. Send me a PM if you want one.
But yes, you can use a 30a regulator with a 38a gen. You cannot use a 38a regulator with a 30a generator.
_________________
Wash your hands
'69 Bug
'68 Baja Truck
'71 Bug
'68 Camper
Only losers litter |
|
| Back to top |
|
|
Ferdinand
Samba Member
Joined: September 01, 2008
Posts: 5
|
| Posted: Fri Jun 08, 2018 9:24 pm Post subject: Re: Is this a small diameter 12V generator? |
|
|
| Thank you for your replies. |
|
