Steering wheel removal - tutorial (1971 bus)
Goto page 1, 2, 3, 4, 5, 6  Next
Forum Index -> Bay Window Bus Share: Facebook Twitter
Reply to topic
Print View
View previous topic :: View next topic
Author Message
Anchovy
Samba Member


Joined: August 05, 2000
Posts: 2525
Location: San Diego, CA
Anchovy is offline

PostPosted: Tue Jul 29, 2008 9:08 pm    Post subject: Steering wheel removal - tutorial (1971 bus) Reply with quote

I read through the forums and picked up some good ideas in a few threads. I consolidated them here into a short tutorial. I used the "flat washer" puller techniques discussed by BusDaddy. Here is how I did it:

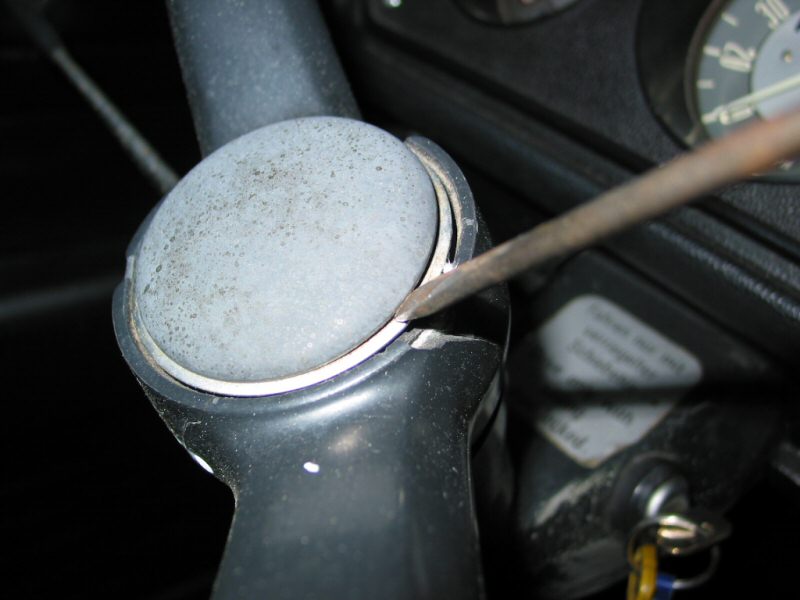

Use a thin tipped screw driver to carefully pry up the horn button:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

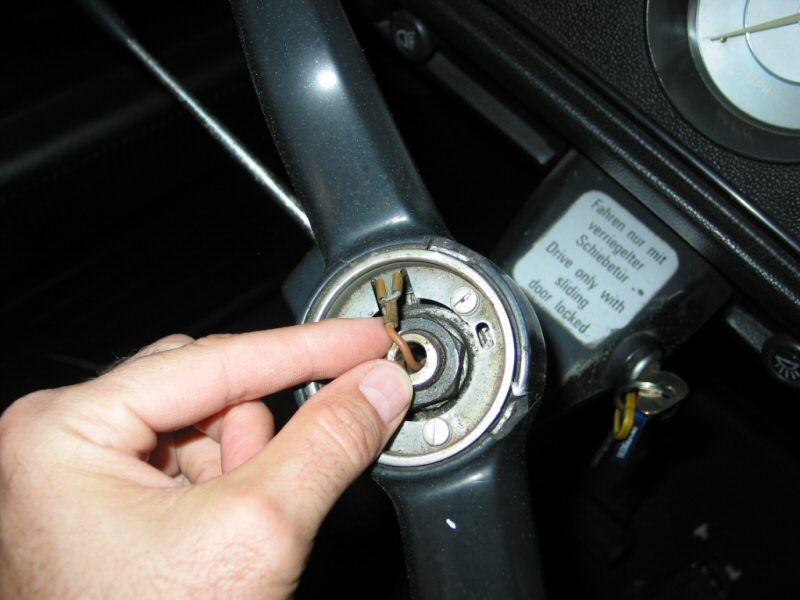

Unplug the ground wire from the horn button assembly and stuff it in the steering column shaft:
Image may have been reduced in size. Click image to view fullscreen.

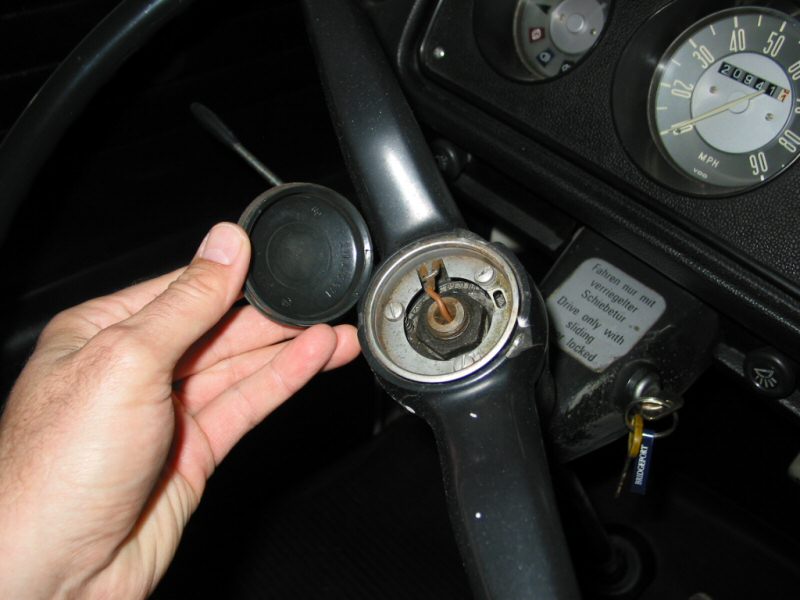

Unscrew the horn button assembly. Careful not to lose the three springs under the screws:
Image may have been reduced in size. Click image to view fullscreen.

Loosen the 27mm nut with a deep well socket or a use a short extension to get your ratchet above the wheel perimeter. Break the nut loose by using the steering wheel cross-arm as leverage. Do not loosen the wheel by twisting against the steering wheel lock:
Image may have been reduced in size. Click image to view fullscreen.

Remove the turn signal assembly but leave all wires in place:
Image may have been reduced in size. Click image to view fullscreen.

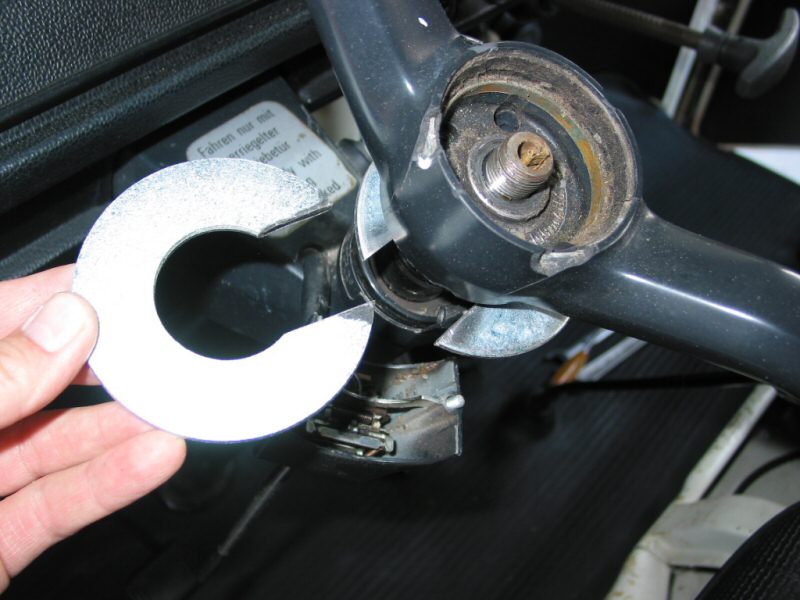

Cut a slot in two large washers 3 1/2" OD by 1 5/8 ID. Place washers under the wheel so that the slots do not line up. The top washer should contact the heads of the screws which hold the turn signal cancellation tab which is mounted to the underside of the wheel. One washer would probably do the trick if you align the slot properly and make sure you press against the cancellation screws:
Image may have been reduced in size. Click image to view fullscreen.

Place your Harbor Freight purchased 8" three arm gear puller on the washers with the center screw aligned over the steering column shaft being careful to not crush the ground wire terminal. Tighten the puller until the wheel pops loose:
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

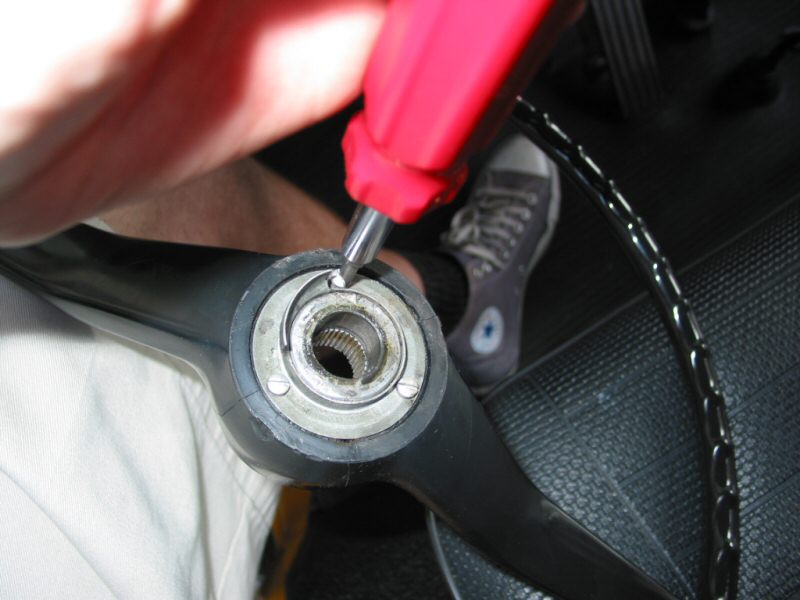

Remove the turn signal tab to install on the new wheel:
Image may have been reduced in size. Click image to view fullscreen.

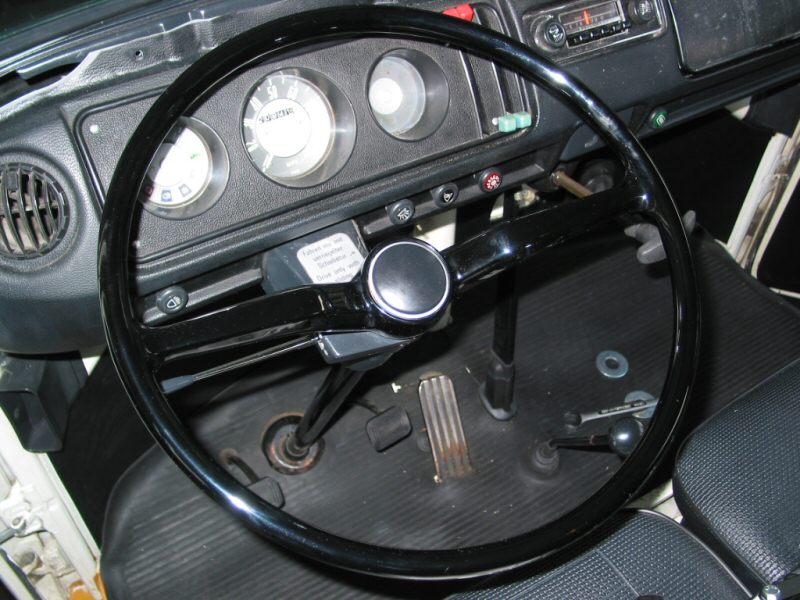

Install the turn signal tab on the bottom of the new wheel. Place the wheel on the steering shaft making sure that the front wheels are straight and the steering wheel is properly oriented. Install the 27mm nut. Install the horn button assembly. Connect the grounding wire terminal. Install the horn button. Done. Here is my newly restored Koch wheel installed.
Image may have been reduced in size. Click image to view fullscreen.

_________________
www.metalcombworks.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Caleb Melvin
Samba Member


Joined: July 19, 2006
Posts: 2738
Location: Seattle, WA
Caleb Melvin is offline

PostPosted: Tue Jul 29, 2008 9:10 pm    Post subject: Reply with quote

Nice writeup! Shocked
_________________
My Current Project

BABES AND BAYS
(5/27/12 Update) | Send Me Your Additions!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Yahoo Messenger Facebook Twitter Gallery Classifieds Feedback
Rubber Duck
Samba Member


Joined: January 18, 2006
Posts: 664
Location: Pitt Meadows BC
Rubber Duck is offline

PostPosted: Tue Jul 29, 2008 10:19 pm    Post subject: Reply with quote

Excellent writeup!! Very Happy

I suggest that everyone who has a technique to share do the same and especially name the end of the title "-Tutorial". This was newbies can easily find them on a search.

Maybe we could even have a sticky entitled: DIY Articles or something similar - I know, we have helpful threads- but perhaps something along these lines maybe? Like a repair Wiki? Razz
_________________
---------
Rubber Duck
1974 Westfalia
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Desertbusman
Samba Member


Joined: June 03, 2005
Posts: 14720
Location: Arizona
Desertbusman is offline

PostPosted: Wed Jul 30, 2008 1:18 am    Post subject: Reply with quote

Nice!

That should help out a lot of people. And also save a lot of steering wheels. Very Happy
_________________
The best thing that anyone can do for their Bay is get the Volkswagen of America Official Service Manual published by Robert Bentley. Without it the bus is pretty much doomed.
73kombi wrote:
when that red light goes on, you have to make a choice.
Amskeptic wrote:
I am not answering that.
Respectfully,
GoBuyABentley

71 Superbug
71 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RobWeidman
Samba Member


Joined: March 08, 2008
Posts: 271
Location: Pittsburgh, PA
RobWeidman is offline

PostPosted: Wed Jul 30, 2008 6:12 am    Post subject: Reply with quote

I loved the writeup and could have used it this past weekend. Seems that just enough time passes by between removals that I always forget the proper orientation of the turn signal tab and end up having to pull the wheel a second time.

One minor addition that I thought of was when collecting the three springs, there are also very small internal tooth lock washers sitting in the indents that the springs sit on If you fail to secure these washers they will disappear as soon as the wheel is removed and flipped over. I typically use a magnet of some sort to retrieve the washers and a less powerful magnetized screwdriver tip to reposition them when reassembling.

Great job!
_________________
Add life to your years, instead of years to your life.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
itlives
Samba Member


Joined: July 12, 2005
Posts: 1422
Location: Shreveport La
itlives is offline

PostPosted: Wed Jul 30, 2008 6:51 am    Post subject: Reply with quote

All those cracks in the steering wheel are usually from someone trying to take off the horn button from the silver ring up (ask me how I know!).

This pic is the best one of the bunch as it shows how the black button comes off with out cracking the wheel.
Image may have been reduced in size. Click image to view fullscreen.
Good job!
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
Agave58
Samba Member


Joined: March 14, 2008
Posts: 1163
Location: Oceanside California
Agave58 is offline

PostPosted: Wed Jul 30, 2008 8:13 am    Post subject: Reply with quote

Thanks Anchovy!! Your post will save me a lot of hassles when I remove my steering wheel! Applause
_________________
1958 Agave Beetle
Stateside Motors Inc
501 Foote Ave
Jamestown, New York 14701


Wanted!!! Stateside Motors Inc, Dealer Frame & Accessories.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Herbst '71
Samba Member


Joined: April 14, 2004
Posts: 245
Location: Augusta, GA
Herbst '71 is offline

PostPosted: Wed Jul 30, 2008 8:23 am    Post subject: Reply with quote

OUTSTANDING! This will save others from destroying the sides of the steering wheel around the horn button. I spent a lot of time trying to pry off the silver ring before discovering the black button is what is supposed to pop off. Live and learn. Now thanks to Anchovy others can search, read, learn and save themselves from breaking things.
_________________
Rik
'71 Deluxe/1600 DP

"Fortunately my mistakes are serving as a warning for others."
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Anchovy
Samba Member


Joined: August 05, 2000
Posts: 2525
Location: San Diego, CA
Anchovy is offline

PostPosted: Wed Jul 30, 2008 9:00 am    Post subject: Reply with quote

itlives wrote:
All those cracks in the steering wheel are usually from someone trying to take off the horn button from the silver ring up (ask me how I know!).

This pic is the best one of the bunch as it shows how the black button comes off with out cracking the wheel.
Image may have been reduced in size. Click image to view fullscreen.
Good job!


Thanks guys, I am glad you think the thread is useful.

Another tip: If the horn button is tight in the assembly, use a loose dull utility knife blade to get it started. The thin edge of the blade should wedge under the button easily.
_________________
www.metalcombworks.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
hazetguy
Samba Member


Joined: April 06, 2001
Posts: 9243
Location: unavailable at this time
hazetguy is offline

PostPosted: Wed Jul 30, 2008 9:11 am    Post subject: Reply with quote

nice write up. there are two things i would add:
-if you are simply removing the steering wheel to do other things, and will be reinstalling the same wheel, use a marker or paint pen on the shaft and the wheel to mark the orientation of the wheel, so you do not have to guess where it was when you removed it.
-i don't think it is totally necessary to remove the horn button metal contact to remove the steering wheel nut. i guess that would ultimately depend on what socket you are using, but i know i do not remove the metal piece when i remove a steering wheel. this helps keep the metal ring in the same place, and then there will also be less loose parts floating around later--ask me how i know. ever lose one of those springs?
_________________
EverettB wrote:
This topic is a cluster F of BS but I'll leave it for reference.
Locked.

Admin note: Please don't post non-VW pictures in the Gallery, they are deleted.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Anchovy
Samba Member


Joined: August 05, 2000
Posts: 2525
Location: San Diego, CA
Anchovy is offline

PostPosted: Wed Jul 30, 2008 9:29 am    Post subject: Reply with quote

hazetguy wrote:
...there are two things i would add:
-if you....will be reinstalling the same wheel, use a marker or paint pen on the shaft and the wheel to mark the orientation of the wheel, so you do not have to guess where it was when you removed it.

-i don't think it is totally necessary to remove the horn button metal contact to remove the steering wheel nut. .....


Good points. In my case I used a NAPA purchased 27mm, 12? point socket and it was too large to fit in the horn button metal contact. I could have ground the edge of the socket to make it fit but that was obviously more work than unscrewing the assembly.
_________________
www.metalcombworks.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Orangeena
Samba Member


Joined: February 06, 2008
Posts: 133
Location: Berkshire - UK
Orangeena is offline

PostPosted: Thu Jul 31, 2008 3:55 am    Post subject: Reply with quote

Anchovy,

This is really useful. As you can see from my picture, my steering wheel has been put on wonky by some PO, so I will be busy following your instructions when I get back from my holidays.
I am an inveterate picture straightener, so having a whonky wheel aggravates the heck out of me.

Image may have been reduced in size. Click image to view fullscreen.

Cheers
Max
_________________
1973 Bay in L20B
- Originaly a panel van
- Partial Westy Interior
- Viking Spacemaker roof
- Slider of a donor bus
- Doors imported from Australia
- 22nd Owner !
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Anchovy
Samba Member


Joined: August 05, 2000
Posts: 2525
Location: San Diego, CA
Anchovy is offline

PostPosted: Thu Jul 31, 2008 9:27 am    Post subject: Reply with quote

Orangeena wrote:
Anchovy,

This is really useful. As you can see from my picture, my steering wheel has been put on wonky by some PO, so I will be busy following your instructions when I get back from my holidays.
I am an inveterate picture straightener, so having a whonky wheel aggravates the heck out of me.

Image may have been reduced in size. Click image to view fullscreen.

Cheers
Max


Hey Max,

I am also a habitual picture straightener. My newly installed wheel is a spline or two off so this weekend I will be setting it straight.

Be sure to check the steering system under the bus. You may have other issues that have your wheel askew. Also, while you are at it you should put the wheel on the correct side of the bus. Wink

Jeff
_________________
www.metalcombworks.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Desertbusman
Samba Member


Joined: June 03, 2005
Posts: 14720
Location: Arizona
Desertbusman is offline

PostPosted: Thu Jul 31, 2008 9:43 am    Post subject: Reply with quote

Yes, with the wheel off is now the opportunity to put it back on correctly. Get underneath and make sure the steering box is correctly centered. Then put the steering wheel on level. When you then drive it with the wheel level if the bus doesn't go straight forward (it probably won't) get underneath again and correctly adjust the drag link. Since it isn't wise to work on a bus without a Bentley manual be sure you refer to one. You might even need to see if the tie rods are correct. Don't readjust the steering wheel until after you have the steering correct.
_________________
The best thing that anyone can do for their Bay is get the Volkswagen of America Official Service Manual published by Robert Bentley. Without it the bus is pretty much doomed.
73kombi wrote:
when that red light goes on, you have to make a choice.
Amskeptic wrote:
I am not answering that.
Respectfully,
GoBuyABentley

71 Superbug
71 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Orangeena
Samba Member


Joined: February 06, 2008
Posts: 133
Location: Berkshire - UK
Orangeena is offline

PostPosted: Fri Aug 01, 2008 2:15 am    Post subject: Reply with quote

Anchovy wrote:

Hey Max,

I am also a habitual picture straightener. My newly installed wheel is a spline or two off so this weekend I will be setting it straight.

Be sure to check the steering system under the bus. You may have other issues that have your wheel askew. Also, while you are at it you should put the wheel on the correct side of the bus. Wink

Jeff


Jeff,

Nah, then the missus would have to steer while I did the pedals!

Seriously though, what do you think might be wrong underneath that could cause the skewed wheel? I have taken a few pics of the underside.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

No laughing at what a british bus looks like underneath. They use salt here in the winter.

Cheers
Max
_________________
1973 Bay in L20B
- Originaly a panel van
- Partial Westy Interior
- Viking Spacemaker roof
- Slider of a donor bus
- Doors imported from Australia
- 22nd Owner !
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dansvans
Samba Member


Joined: October 25, 2003
Posts: 5159
Location: NY
dansvans is offline

PostPosted: Fri Aug 01, 2008 3:46 am    Post subject: Reply with quote

steering wheels are not the only thing that cracks when removing the horn button- the horn button can chip too. i always use my fingernails to remove- but if its tough, then i get started with woodworking chiesel-a tool with many uses on the bus.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
superman73
Samba Member


Joined: December 21, 2006
Posts: 2014
Location: Crystal Springs, Mississippi
superman73 is offline

PostPosted: Tue Jan 27, 2009 6:03 pm    Post subject: Reply with quote

i used this trick today and it worked great, the wheel popped right off no damage. thanks dude. i even found the washers at the local hardware store.
_________________
Chuck

Jesus Saves


98 TDI beetle 5-speed
70 deluxe bus
74 ghia 1776 dual carb
67 manx clone
66 safari trail
various other parts cars.


http://www.thesamba.com/vw/forum/viewtopic.php?t=228364&highlight=superman73sb+bellsouth
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
stevespeirs
Samba Member


Joined: June 10, 2008
Posts: 198
Location: Virginia Beach, VA
stevespeirs is offline

PostPosted: Tue Jan 27, 2009 6:55 pm    Post subject: Reply with quote

Tremendous! Thanks for taking time out to write-up the tutorial...
_________________
71 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
panicalum
Samba Member


Joined: May 06, 2008
Posts: 247
Location: Roseville, CA
panicalum is offline

PostPosted: Tue Jan 27, 2009 7:24 pm    Post subject: Reply with quote

What did you use to cut the washers?

What is the distance between the two cuts?
_________________
'63 Bug
gone:
69 Riviera - non walk thru-Turd
1971 Type 3 squareback
1974 Orange Westy -William
1970 Deluxe Sunroof - Tinkerbell
1973 Westy - Didn't stick around long
1976 Sage Green Westy
1959 Single Cab
1982 Vanagon Westy
1974 Thing
1962 Bug
1974 Baja Bug
1973 Blue/White Thing
1978 Sage green Westy (Mom and Dad's) got me hooked
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
dbo550
Samba Member


Joined: August 28, 2008
Posts: 364
Location: Kentucky
dbo550 is offline

PostPosted: Tue Jan 27, 2009 7:29 pm    Post subject: Reply with quote
