Oval heater channels...

[kdfwagon]

Hello one and all, looking for replacement heater channels for my 56 oval. All I seem to be able to find for replacements is later model heater channels. Does anybody reproduce heater channels for the oval? Thanks

_________________
Brianna's Grandpa

[mrsherbie]

In short, No. Not at the moment, but I expect in future someone will.

I am in UK, but I think my answer will apply to USA also?

If you cant find NOS ( not easy but possible, depends how much you want to pay)
You can use genuine ( Mexi painted grey) 68- but you need to do a little metal work on them to make them look correct. Dont use the pre67 (painted black) Brazil repro's they are cheap but rubbish.
But you can now at least get good correct oval pattern bottom plates from Wolfparts, easy airmail as they are in sections:

http://www.wolfparts.com/

Wolf is Honest, trustworthy, and a very nice man too.

I used them on my split and was very happy with them, you can see them here:

http://www.vwgarden.co.uk/annas50resto.html
_________________
Anna.

quote 50karmann " it'll wreck the patina you haven't worked so hard to create"

[kdfwagon]

Where do I get these Mexican heater channels? Thanks for your responce.
_________________
Brianna's Grandpa

[luv4skating]

[billmetric]

I got mine from CIP1 they advertize here on Samba in the banner ads, I think they are Brazilian and yes they are cheap, and I think my drivers side one had the running board screw holes about a 1/4'' too far forward, I used an old pair from like 10 years ago but I just ordered another set about a year ago for another early car and the quality looked a lot better, the new ones have a seat belt mount on them now in the middle but they are hollow and have none of the modern style heat outlet stampings and no inner heat channel, no heat inlet or outlet either, you have to cut that all out yourself but for early '56 and back they are the most correct, heres mine, they do a fine job of holding the car together compared to the rusty scraps that were there before :

_________________
There is an idea of a Billmetric; some kind of abstraction. But there is no real me: only an entity, something illusory. And though I can hide my cold gaze, and you can shake my hand and feel flesh gripping yours and maybe you can even sense our lifestyles are probably comparable... I simply am not there...

[luv4skating]

[54ovsemi]

[billmetric]

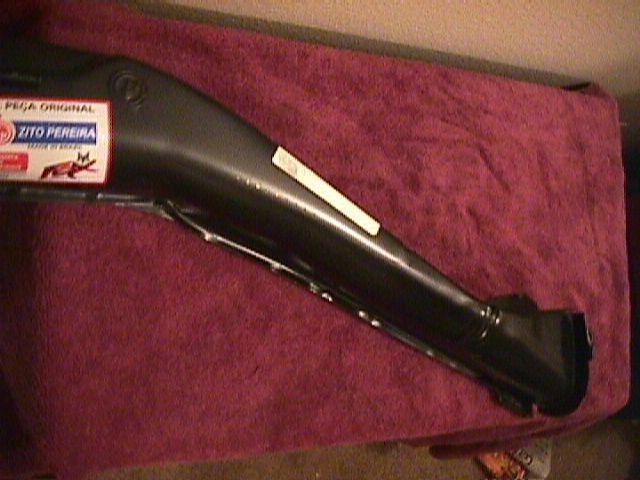

heres a few more pics from my gallery of the el cheapo Zito Pereira ones from CIP :

_________________
There is an idea of a Billmetric; some kind of abstraction. But there is no real me: only an entity, something illusory. And though I can hide my cold gaze, and you can shake my hand and feel flesh gripping yours and maybe you can even sense our lifestyles are probably comparable... I simply am not there...

[Mr. Bungle]

if you cant source out a set from a parts car and you have to but aftermarket...i would suggest the econo heater channels from cip. no heater outlets/inlets and no heat tube inside (so if you want heat, dont use these), but i found the shape/curvature to be "most" like original channels.

(disclaimer...we are dealing with a repro item so you do have to be wary about fit & finish, bolt holes lining up perfectly, etc.... )

link to part...

http://www2.cip1.com/ProductDetails.asp?ProductCode=VWC%2D111%2D801%2D045%2DD

not the greatest pics, but in my car....

_________________
Silas

Zundfolge Car Club

Stock Motor Challenge website

[johnshenry]

I'll agree that the best opt is original channels from dry parts car. They are out there, but you have to lie in wait for while usually.

I bought the CIP to use a donor material for my '51. I have a couple oval channels as well, and hope to have enough to fab something correct.

I was disappointed in the CIP ones though, at the forward bend, there is some ripple/kinking of the steel that I don't see in the pics above. Anyone else seen this??
_________________
John Henry

'57 Deluxe
'56 Single Cab

[splitjunkie]

[DrewP]

I bought the Demark heater channels from Cip1 and was very happy with the quality.

[Mr. Bungle]

[johnshenry]

[billmetric]

they do look like Zitos, the ripple is up front just behind the "firewall" I can just see a slight ripple in the greenish ones above, probably a gamble whether they will have a bad ripple or not ,but unless you dont plan on running carpet the ripples wont be noticable, I've never pulled back a carpet and found pristine smooth metal anyway, always a bunch of carpet nails, seam sealer and plenty of unsightly messy glue
_________________
There is an idea of a Billmetric; some kind of abstraction. But there is no real me: only an entity, something illusory. And though I can hide my cold gaze, and you can shake my hand and feel flesh gripping yours and maybe you can even sense our lifestyles are probably comparable... I simply am not there...

[Mr. Bungle]
