B pillar clips

iowa vw · Posted: Wed Sep 17, 2008 9:30 am Post subject: B pillar clips

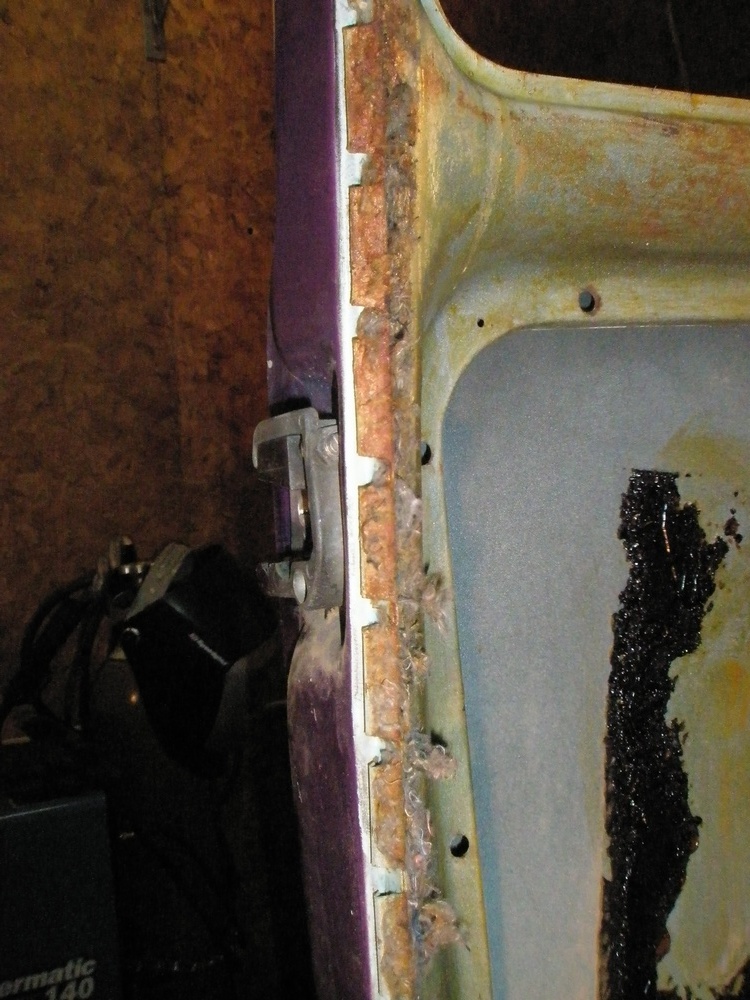

Ok I am in the middle of a 66 custom restoration. We are not putting in all of the original interior, just the seats, floor, a custom head liner, and panels. I am removing all of the clips that hold the other stuff on but am kind of stuck because I dont know if I should remove these on the side of the B pillar.

These hold the side interior and also a seal that hits the door. Should I remove them?

Image may have been reduced in size. Click image to view fullscreen.

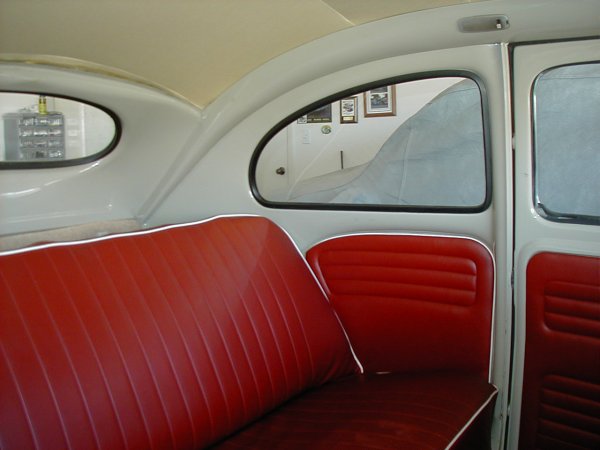

This is what I want but can't tell what they did by the door.

shano63 · Posted: Wed Sep 17, 2008 9:45 am Post subject:

I am not sure but I believe those clips help hold on the fabric for the headliner. If they hold a seal that hits the door I would keep them anyway.
_________________
63 T1 Ragtop Gulf Blue
20 Toyota Corolla 6spd
22 Wrangler 6spd
78 F250 4x4 4spd

Chris

Take it as it comes-- Morrison

crowe66 · Posted: Wed Sep 17, 2008 9:49 am Post subject:

are those the metal clips that are on the pillar

KTPhil · Posted: Wed Sep 17, 2008 9:49 am Post subject:

The "seal" is usually called a "windlace" and I think is held by that clip. It's been too long for me, though, so I defer to someone who's done this recently.

iowa vw · Posted: Wed Sep 17, 2008 10:05 am Post subject:

yes these are attached to the pillar and yes these hold the fabric and seal. I need to know if the seal is needed or is just an there for looks.

HerrrKafer · Posted: Wed Sep 17, 2008 11:06 am Post subject:

I *think* that seal is just there as a nice, finished edge to the headliner. The door rubber should provide all the necessary sealing. Standards came without that headliner rubber piece, so I would imagine it is primarily cosmetic. Don't hold me to it, though. Razz

_________________
Evan H.

iowa vw · Posted: Wed Sep 17, 2008 11:21 am Post subject:

That is what I was thinking. Now I have to figure out how to make that look nice without having any of the fabric rapped around it. Two pieces of metal come together here all of the way up and with it all exposed there will be a kind of ugly lip there. Maybe I will cut the lip off and weld it all together and sand it down to get a nice smooth corner.

KTPhil · Posted: Wed Sep 17, 2008 11:41 am Post subject:

The windlace stops some airflow from an imperfect door seal, and results in less noise also. It's not just cosmetic.

iowa vw · Posted: Wed Sep 17, 2008 11:48 am Post subject:

But the windlace is on the inside and only on the back side of the door. With good door seals there shouldn't be a problem with wind noise. Also even if there is some wind noise I think that the sound of the engine wouls most likely drown it out. Does this seem correct?

KTPhil · Posted: Wed Sep 17, 2008 12:53 pm Post subject:

I've noticed a difference in sound level when it is pulled away from the door on some cars. Not all door seals are perfect, especially as they age. Modern cars have two layers of door seals for this reason. This is all VW had. You can always leave them out and just turn the radio up louder! Wink

drscope · Posted: Thu Sep 18, 2008 9:30 am Post subject: Re: B pillar clips

This is what I want but can't tell what they did by the door.

[/quote]

My guess is thats a standard and never had headliner material or the wind lace installed, so it came through without the clips.
_________________
Mother Nature is a Mean Evil Bitch!

iowa vw · Posted: Thu Sep 18, 2008 2:18 pm Post subject:

My guess is thats a standard and never had headliner material or the wind lace installed, so it came through without the clips.

Well the discription to the pic says a 54 canadian. I dont know anything about that early of a beetle so I guess it is possible that they didnt come with them. I am pretty sure I am going to cut the clips and press weld lip off and weld the two panels together and sand it down so it is a nice smooth corner. thanks

HerrrKafer · Posted: Fri Sep 19, 2008 1:33 am Post subject:

iowa vw · Posted: Fri Sep 19, 2008 6:59 am Post subject:

Okay ill keep it posted. Right now I am doing the channels, wheel wells, pretty much the lower 6 inches of the car. This car was either save NOW or just trash it so we opted to put some cash in and save another bug.
