Posted: Sat Dec 27, 2008 7:12 pm Post subject: Use LEDs for a brighter speedometer |
|
|
While replacing a gear in the odometer I also decided to make the speedo brighter.
http://www.thesamba.com/vw/forum/viewtopic.php?p=3427186#3427186
I followed the advice from the thread above, and decided to paint the inside of the housing gloss white, as well as the back of the bezel ring. The front I painted red to go with my beetle.
Further down in the same thread MURZI recommended getting the LEDs from Walmart. From there I used a little innovation.
|
|
Back to top |
|
|
mack519 Samba Member
Joined: May 10, 2007 Posts: 221
|
Posted: Sat Dec 27, 2008 7:23 pm Post subject: |
|
|
They sell LEDs at walmart? What section? I have yet to see them there. I really would like to do that to my speedo. Are they dimmable?
Edit: Didn't read the picture text.
Also did you scuff the LED with sandpaper to make the light spread better? _________________ 1973 super beetle |
|
Back to top |
|
|
bugbyte Samba Member
Joined: November 12, 2005 Posts: 500 Location: Palm Bay, Florida
|
Posted: Sat Dec 27, 2008 7:27 pm Post subject: |
|
|
They're in the automotive area where they sell all the license frames, etc. |
|
Back to top |
|
|
fastinradford Samba Member
Joined: June 08, 2008 Posts: 2895 Location: Athens Ohio
|
Posted: Sat Dec 27, 2008 8:17 pm Post subject: |
|
|
I had red LEDs in my speedo for a while, but I found that (with the LEDs I used) it was a bit brighter stock. |
|
Back to top |
|
|
Mikedrevguy Samba Member
Joined: October 15, 2008 Posts: 2240 Location: Medford, OR
|
Posted: Sat Dec 27, 2008 9:55 pm Post subject: |
|
|
Well, I'm not totally sold on the led's - BUT - I've been looking at painting the speedometer as you have - glad to see how it looks. Although I'm planning to do mine yellow/white.
thanks for the photo _________________ 74 1303 (RevBug): plan for German Look
76 914 with 2260
79 VW Iltis
69 Bwajaja
"The wise speak because they have something to say; while the foolish speak because they have to say something." Plato
Illigitimi non-Carborundum!! |
|
Back to top |
|
|
Fattie I'd roll it
Joined: November 27, 2005 Posts: 5582 Location: louisiana
|
Posted: Sat Dec 27, 2008 10:08 pm Post subject: |
|
|
thanks for the props on what I did....
and props to you for going on with the LED idea... looks great
Could you show a pic of the speedo at night with the LED's ?
... I'll get one up of mine with the "stock" bulbs with the gloss yellow painted housing.. the light now has an antiqued look to it.. best I can describe it ........but is very bright _________________ Donate and help me get another aircooled dub to share with you guys www.paypal.me/WhosCare
Last edited by Fattie on Sat Dec 27, 2008 11:07 pm; edited 2 times in total |
|
Back to top |
|
|
fastinradford Samba Member
Joined: June 08, 2008 Posts: 2895 Location: Athens Ohio
|
Posted: Sat Dec 27, 2008 11:02 pm Post subject: |
|
|
Mikedrevguy wrote: |
Well, I'm not totally sold on the led's - BUT - I've been looking at painting the speedometer as you have - glad to see how it looks. Although I'm planning to do mine yellow/white.
thanks for the photo |
Dang, I didnt even notice it was painted until you brought it up, I was wondering why it looked so different, NICE JOB Bugbyte! |
|
Back to top |
|
|
jamesdagg Samba Member
Joined: August 18, 2007 Posts: 3364 Location: B.C.Canada
|
|
Back to top |
|
|
Randy in Maine Samba Member
Joined: August 03, 2003 Posts: 34890 Location: The Beach
|
Posted: Sun Dec 28, 2008 5:47 am Post subject: |
|
|
X2 Scott at German Supply did not have those yet when I bought these Sylvania 2723s from Pep Boys. Very pleased. |
|
Back to top |
|
|
Fattie I'd roll it
Joined: November 27, 2005 Posts: 5582 Location: louisiana
|
Posted: Sun Dec 28, 2008 7:08 am Post subject: |
|
|
how are those gonna work when our bulb holders use this style ........
_________________ Donate and help me get another aircooled dub to share with you guys www.paypal.me/WhosCare |
|
Back to top |
|
|
69 bugin Samba Member
Joined: September 01, 2008 Posts: 332 Location: electra,texas
|
Posted: Sun Dec 28, 2008 7:27 am Post subject: |
|
|
I'm going to use the led lights just to see what they will look like in my car and those other bulbs i don't think they will work just mu 2 cents _________________ i thought i could just sit by my car and let it fix itself but that didn't happen so i 'm trying to fix it my self |
|
Back to top |
|
|
bugbyte Samba Member
Joined: November 12, 2005 Posts: 500 Location: Palm Bay, Florida
|
Posted: Sun Dec 28, 2008 7:47 am Post subject: |
|
|
Hey Jamesdagg, thanks for the link. As many places as I looked I've never been to germansupply.com. I probably would like to give them a try too. Not sure yet how to rig up a socket though. Don't see any on their site. |
|
Back to top |
|
|
mnussbau Samba Member
Joined: August 26, 2006 Posts: 4589 Location: Central Maryland
|
Posted: Sun Dec 28, 2008 8:40 am Post subject: |
|
|
Fattie wrote: |
how are those gonna work when our bulb holders use this style ........
|
I didn't buy these, but the description on the site says
Part Number:
N 0177512 XB
12v 2.3 Watt Bulb for instrument lighting. These bulbs are used in the dashboard instruments of all 12v aircooled VW's. Found in the warning lights and dashboard illumination, pressed into a black plastic socket. These are the extra bright version, the standard version is 1.2 Watt, see link below. Sold each. _________________ Mike
Sold my sedan
Parts... |
|
Back to top |
|
|
efi67vw Samba Member
Joined: March 13, 2004 Posts: 558 Location: las vegas, nv usa
|
|
Back to top |
|
|
bugbyte Samba Member
Joined: November 12, 2005 Posts: 500 Location: Palm Bay, Florida
|
Posted: Sun Dec 28, 2008 1:40 pm Post subject: |
|
|
Here's a pic taken inside of a darkened garage. Long exposure and a little blurry, but you can see the results.
I plan on changing the others as well. |
|
Back to top |
|
|
jamesdagg Samba Member
Joined: August 18, 2007 Posts: 3364 Location: B.C.Canada
|
Posted: Sun Dec 28, 2008 2:42 pm Post subject: |
|
|
Has anyone ever done anything to illuminate the dash around the light and wiper switches. (and fan switch in a Super)
I'm always fumbling for switches especially wipers since there is no intermittent wiping.
jim _________________ '72 FI Westy
'71 Super rear inside defrost vents no longer available |
|
Back to top |
|
|
mnussbau Samba Member
Joined: August 26, 2006 Posts: 4589 Location: Central Maryland
|
Posted: Sun Dec 28, 2008 4:17 pm Post subject: |
|
|
bugbyte wrote: |
Here's a pic taken inside of a darkened garage. Long exposure and a little blurry, but you can see the results.
I plan on changing the others as well. |
Nice, very impressive! _________________ Mike
Sold my sedan
Parts... |
|
Back to top |
|
|
puddle pirate Samba Member
Joined: October 29, 2008 Posts: 390 Location: Powhatan, VA
|
Posted: Sun Dec 28, 2008 7:52 pm Post subject: |
|
|
Great job. I knew it would work. I am glad that other thread inspired someone to use the LED's. I just got another beetle with the speedometer out of it. I am going to make mine in the next week or two. My son ordered more LED's after we came up with the LED idea and they are sitting in the mailbox at his dorm. I have to wait to get some when I bring him back to school _________________ John
73 Super Beetle
87 Jeep Wrangler
99 Jeep Grand Cherokee |
|
Back to top |
|
|
Maimas13 Samba Member
Joined: July 06, 2004 Posts: 642 Location: Redwood City CA
|
Posted: Mon Dec 29, 2008 1:38 am Post subject: |
|
|
If you dont mind driling a few holes in the back of the speedo there is another option
I bought some blue led bulbs for my vdo gauges to match my radio (I like matching colors) they were quite an improvement from the regular bulbs. only problem was that then the speedo was white and not very bright. So when I redid the lenses for the signal,oil lights etc I added some leds. only problem was there were no led replacement bulbs for the stock bulb holder

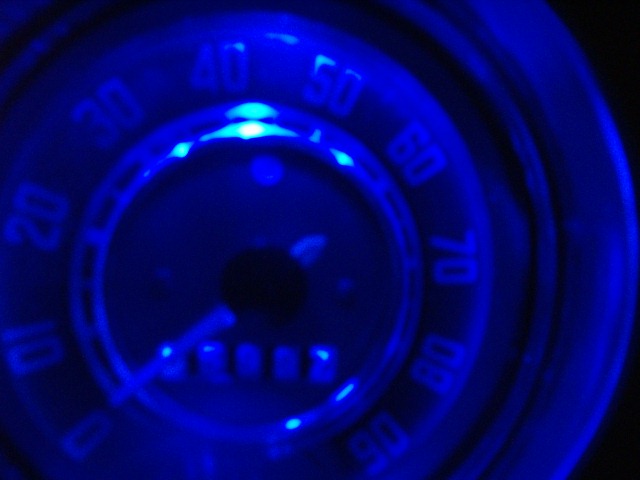

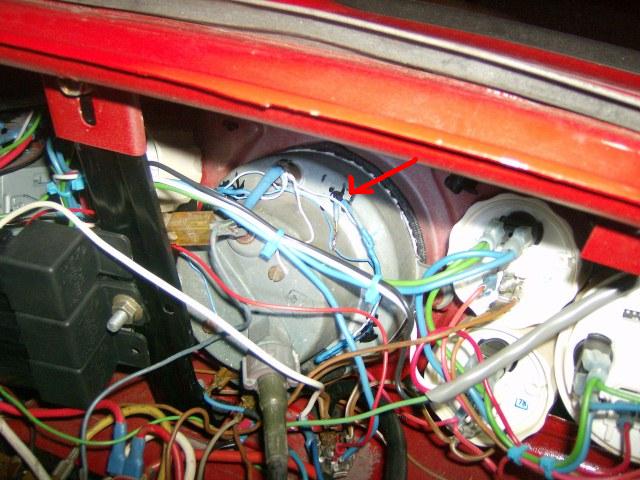

I used standard 5mm leds that I bought off ebay (like 8 bux for 50 with correct resistors) at first I just put in one led where the stock bulb was, but the light wasn't distributed very evenly, so I ended up drilling holes around the back of the speedo and inserting some leds in, simply wiring them to where the stock bulb was wired. Im pretty happy with the results
Painting the inside white is a great idea, Ill have to do this next time I pull the speedo apart.
Sorry for the kinda blurry pics I dont have a super nice camera so taken pictures in the dark is kinda mediocre
Im a sucker for leds, I also have a led third brake light and soon I will have led snowflakes to match _________________ MAIMAS... read it backwards
(.o\ ! /o.) 62 chopped, dropped, cal looked, oval grafted, 57 styled, ragtop with polk audio sound system, driven daily by an 18 year old
A must read for understanding tires sizes and wheel offsets
Go Bears!!! Mech E |
|
Back to top |
|
|
Joel Samba Member
Joined: September 04, 2006 Posts: 11099 Location: NSW Australia
|
Posted: Mon Dec 29, 2008 2:05 am Post subject: |
|
|
Maimas13 wrote: |
only problem was there were no led replacement bulbs for the stock bulb holder
|
u used to be able to get them
i got some off US ebay last year that were marketed for porsche but vw bulbs were the same _________________ Quick little bug, you got a Porsche motor in that?
1974 Germanlook 1303 2.5 Suba-Beetle |
|
