 Posted: Thu Feb 12, 2009 9:47 am Post subject: Dormobile top restoration |
 |
|
Well I bought a Dormy top to hack it in my 67 SO42.
I'll post here all the process from the cleaning, replacing, fixing the roof till the final cutting (  ) and fitting.
the day I picked up... I made 500+ km to get it.
most of the parts are there

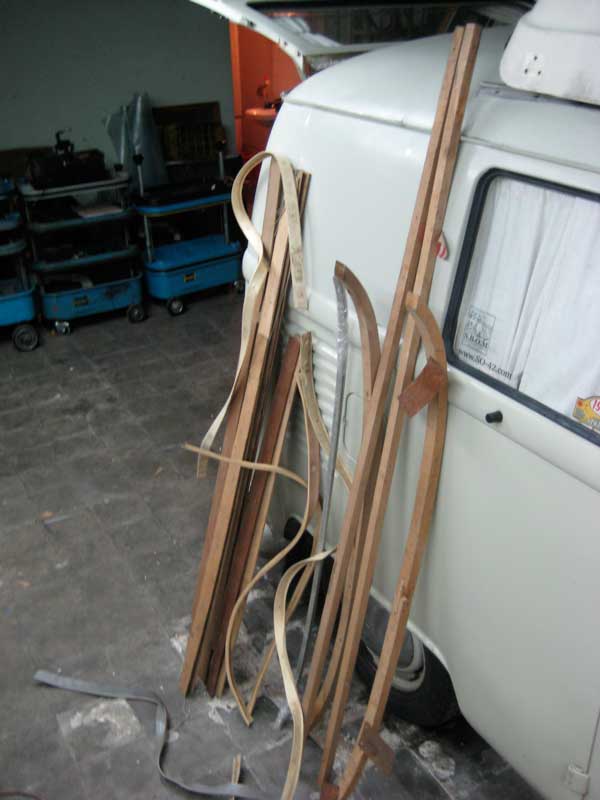

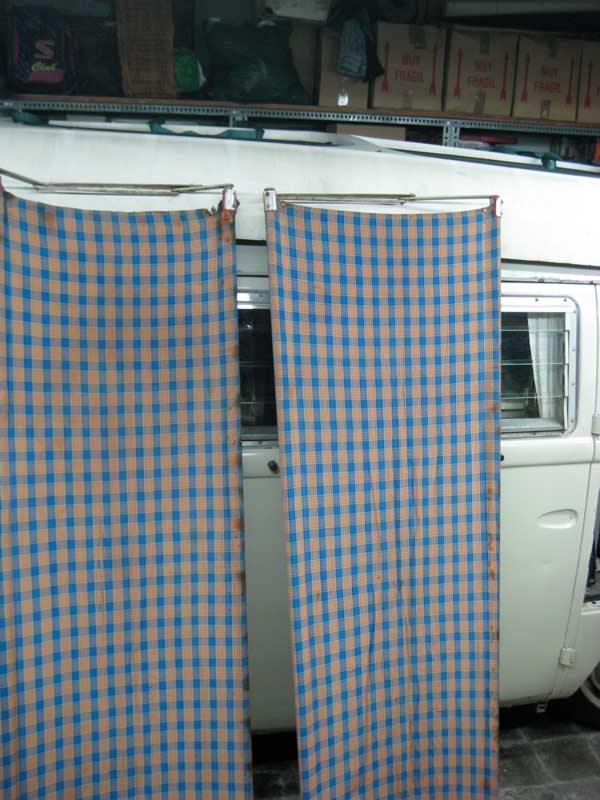

rotten cots at the edges... will try to save center of them...

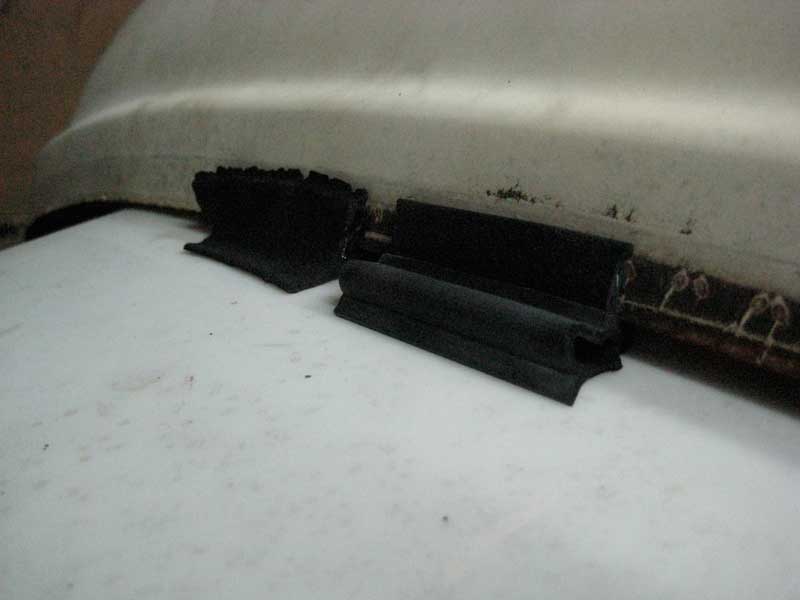

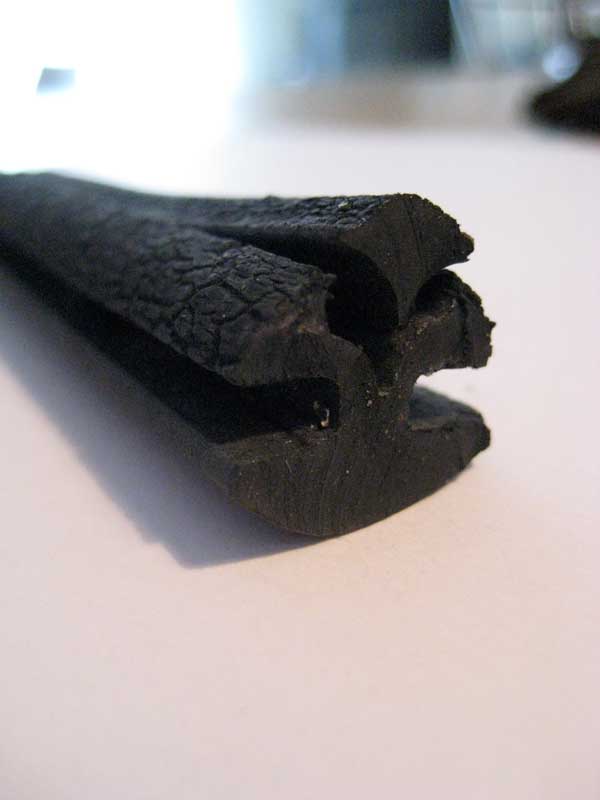

Top to body seal
window seal

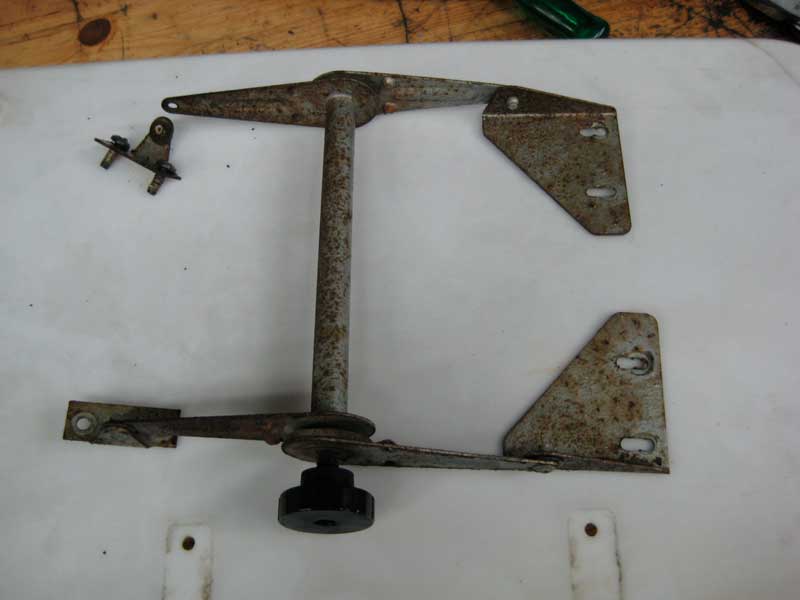

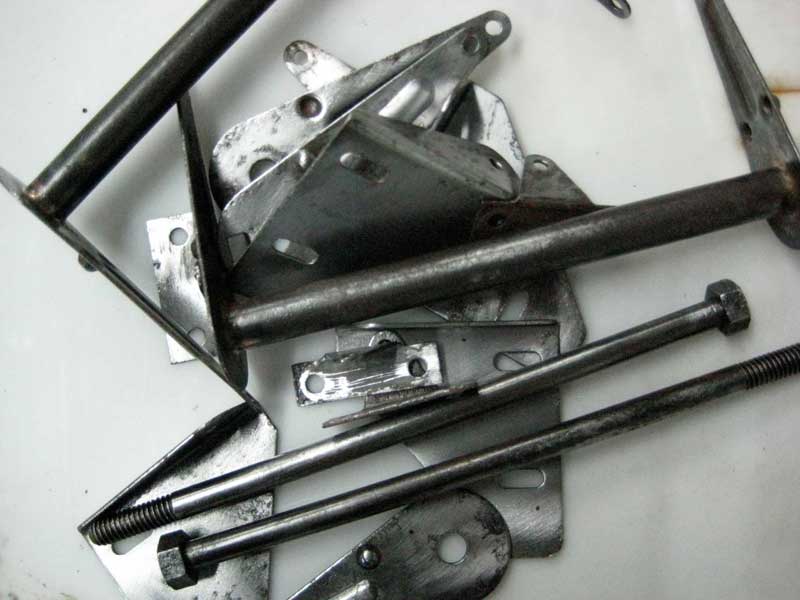

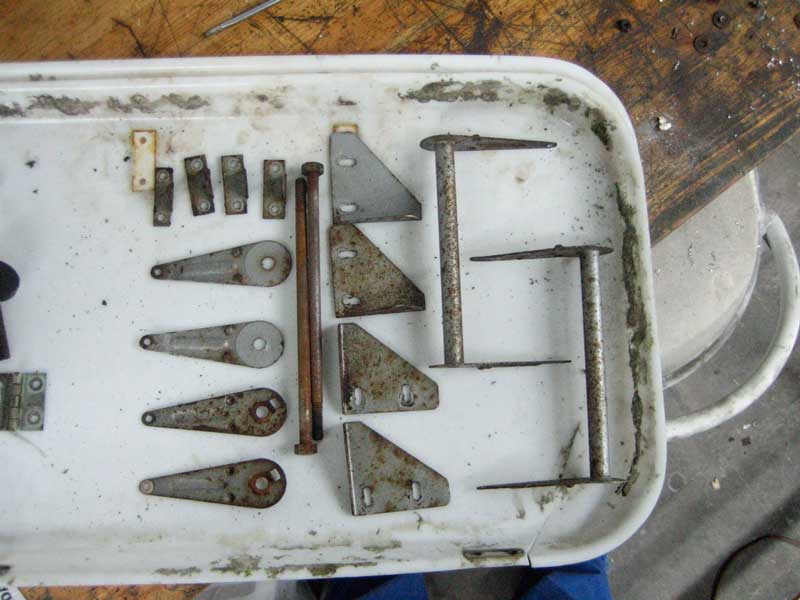

vent mechanism ready to be restored
Detail of how canopy attaches to top, Polyurethane was used alla round and in every bolt

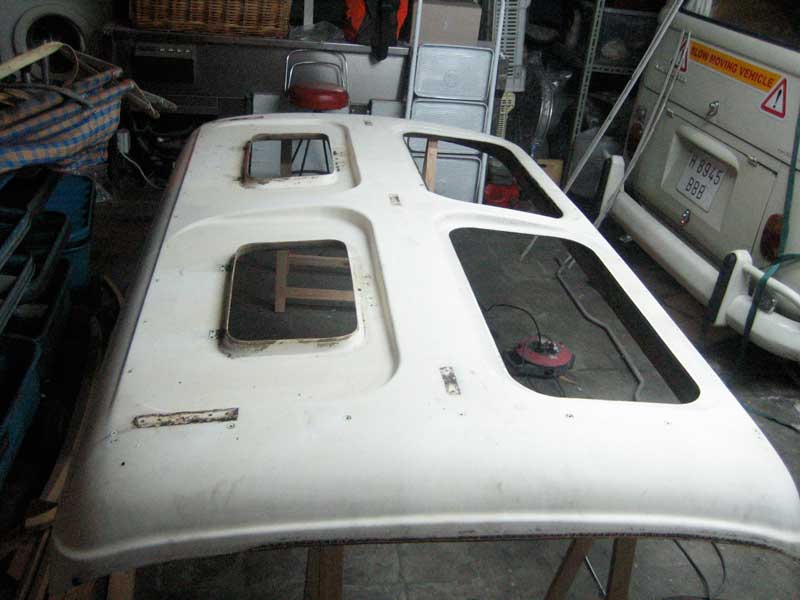

only fiberglass ready to 0000# wet sand and polish

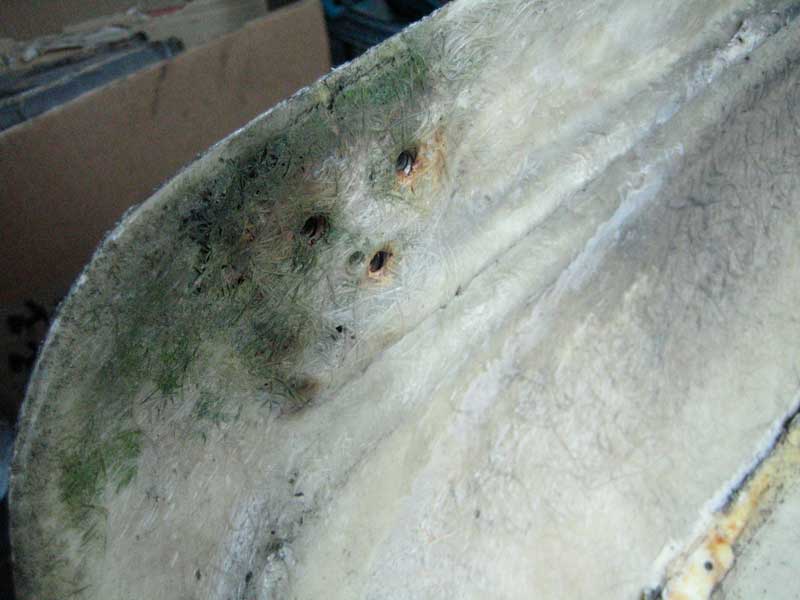

strange looking hinge reinforcement...
ouch!
I will made a new hinge reinforcement

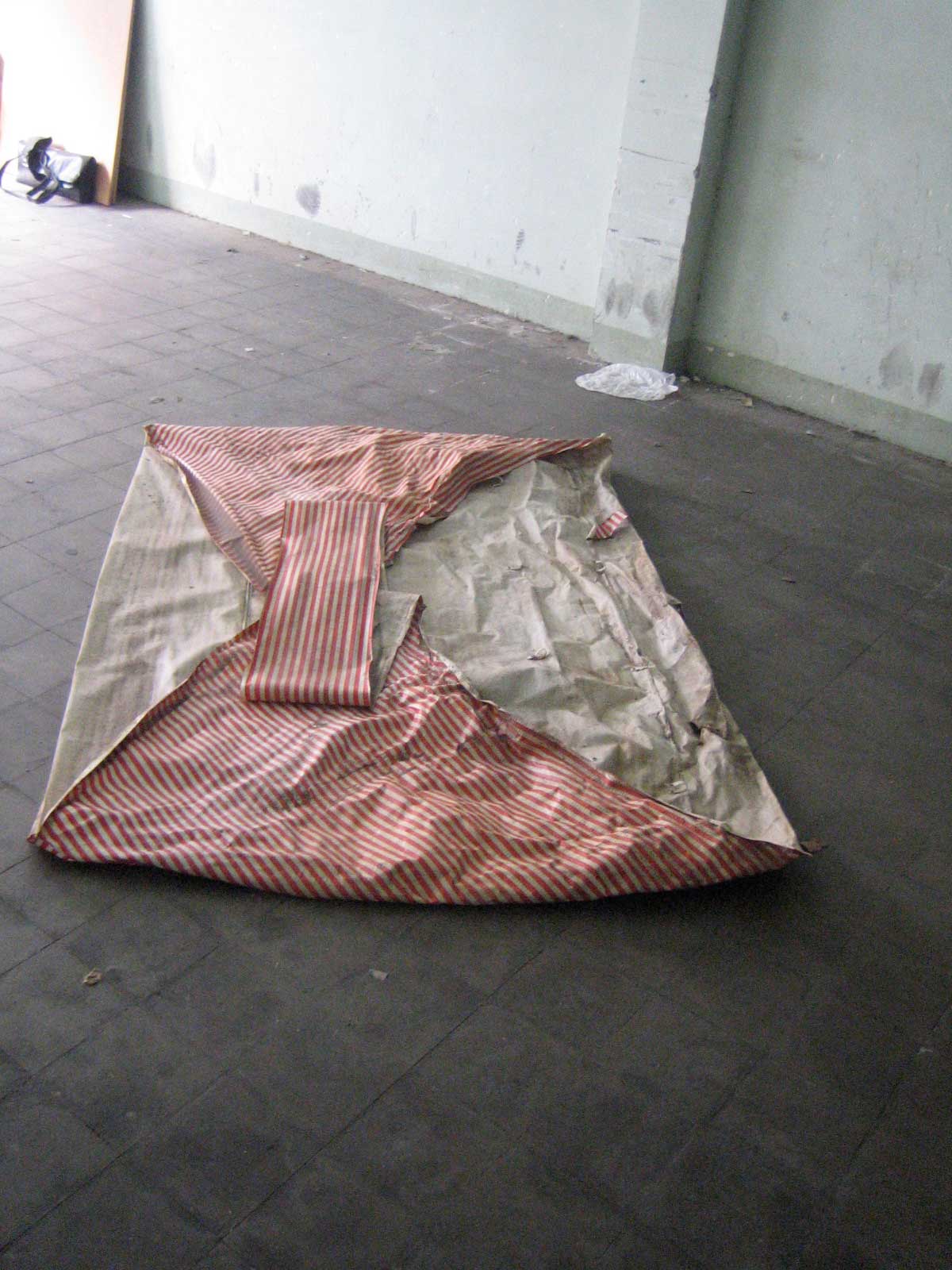

wanted to save canopy but there are zillions of small craks and some big tears... too dry and fragile...
more to come...
_________________
1967 Split SO-42 Dormobile |
|
| Back to top |
|
 |
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15010
Location: Casa de Oro, California
|
| Posted: Thu Feb 12, 2009 9:52 am Post subject: |
|
|
4
3
2
1
... |
|
| Back to top |
|
|
xavi_242
Samba Member
Joined: May 06, 2005
Posts: 1672
Location: Barcelona (SPAIN)
|
| Posted: Thu Feb 12, 2009 9:55 am Post subject: |
|
|
^^?? ^^
_________________
1967 Split SO-42 Dormobile |
|
| Back to top |
|
|
blackdog1999
Samba Member
Joined: October 17, 2004
Posts: 1209
Location: Rancho Cordova, CA 95670
|
| Posted: Thu Feb 12, 2009 10:06 am Post subject: |
|
|
I am really excited for you. I have one big bit of advice for you that I learned many years ago working in a body & paint shop. Before you cut the roof just make sure to measure twice so you only have to cut once. That is a big hole & you do not want to make it too big.
I am also getting ready to do another Dorm hack in the next few weeks. I will try to post some info & pics when I do the cutting.
_________________
Home of the one true split Bus Motorhome |
|
| Back to top |
|
|
Major Woody
Samba Enigma
Joined: December 04, 2002
Posts: 9016
Location: Portland, OR
|
| Posted: Thu Feb 12, 2009 10:18 am Post subject: |
|
|
| Enter Pyroman, stage left, in the Rush Limbaugh mask... |
|
| Back to top |
|
|
pyrOman
Fire Master
Joined: July 21, 2003
Posts: 12527
Location: Over 2002 posts deleted!
|
| Posted: Thu Feb 12, 2009 11:29 am Post subject: |
|
|
| Major Woody wrote: |
| Enter Pyroman, stage left, in the Rush Limbaugh mask... |
hussein says:
_________________
Some people are so busy being clever they don't have time enough to be wise. |
|
| Back to top |
|
|
xavi_242
Samba Member
Joined: May 06, 2005
Posts: 1672
Location: Barcelona (SPAIN)
|
| Posted: Thu Feb 12, 2009 11:35 am Post subject: |
|
|
| blackdog1999 wrote: |
I am really excited for you. I have one big bit of advice for you that I learned many years ago working in a body & paint shop. Before you cut the roof just make sure to measure twice so you only have to cut once. That is a big hole & you do not want to make it too big.
I am also getting ready to do another Dorm hack in the next few weeks. I will try to post some info & pics when I do the cutting. |
It will be fine if you post some info and detail pics
_________________
1967 Split SO-42 Dormobile |
|
| Back to top |
|
|
blackdog1999
Samba Member
Joined: October 17, 2004
Posts: 1209
Location: Rancho Cordova, CA 95670
|
| Posted: Thu Feb 12, 2009 1:41 pm Post subject: |
|
|
| xavi_242 wrote: |
| blackdog1999 wrote: |
I am really excited for you. I have one big bit of advice for you that I learned many years ago working in a body & paint shop. Before you cut the roof just make sure to measure twice so you only have to cut once. That is a big hole & you do not want to make it too big.
I am also getting ready to do another Dorm hack in the next few weeks. I will try to post some info & pics when I do the cutting. |
It will be fine if you post some info and detail pics |
I'll do you one better. I'll install your Dorm top for the cost of a plane tickect.
_________________
Home of the one true split Bus Motorhome |
|
| Back to top |
|
|
DormobileDave67
Samba Member
Joined: January 04, 2009
Posts: 114
Location: East Coast
|
| Posted: Thu Feb 12, 2009 4:58 pm Post subject: |
|
|
| hope it works for ya |
|
| Back to top |
|
|
originalo
Samba Member
Joined: February 14, 2007
Posts: 359
Location: Germany
|
| Posted: Fri Feb 13, 2009 10:22 am Post subject: Re: Dormobile top restoration |
|
|
wanted to save canopy but there are zillions of small craks and some big tears... too dry and fragile...
To my knowledge the canopy can still be ordered at DORMOBILE in the UK. Not cheap though. A buddy of mine ordered it last year. Although it came from the OEM, the fit was not too great and a bit tricky. But it worked out in skilful hands.
I think , they still carry some of the seals, too. To be doublechecked with DORMOBILE factory.
Good success!! |
|
| Back to top |
|
|
iveedubbin
Samba Member
Joined: August 31, 2003
Posts: 658
Location: San Diego
|
| Posted: Fri Feb 13, 2009 7:40 pm Post subject: |
|
|
I'll be keeping track on the progress of this install, I will also be doing a Dormy top install onto my 63 soon, with the help of pyrOman  |
|
| Back to top |
|
|
xavi_242
Samba Member
Joined: May 06, 2005
Posts: 1672
Location: Barcelona (SPAIN)
|
| Posted: Sat Feb 14, 2009 12:18 am Post subject: Re: Dormobile top restoration |
|
|
| originalo wrote: |
To my knowledge the canopy can still be ordered at DORMOBILE in the UK. Not cheap though. A buddy of mine ordered it last year. Although it came from the OEM, the fit was not too great and a bit tricky. But it worked out in skilful hands.
I think , they still carry some of the seals, too. To be doublechecked with DORMOBILE factory.
Good success!! |
yes I already checked at dormobile.co.uk and contacted Tim, he gave me all the parts he carry and of course the prices... Some parts are at a afine price but others like canopy are very expensive... canopy is 367GBP for a non UK resident and you should add shipping costs...
I saw pics from a guy installing that canopy and it is true that it don't fit as tight as a factory installed... maybe the skills when installing it are very important... I guess that replacing canopy will be a PITA
_________________
1967 Split SO-42 Dormobile |
|
| Back to top |
|
|
Damon22
Samba Member
Joined: January 03, 2006
Posts: 238
Location: New Forest, Ingerland.
|
| Posted: Sat Feb 14, 2009 12:59 am Post subject: |
|
|
At least the exchange rate is working in your favour these days!
Dormy tops are great. |
|
| Back to top |
|
|
xavi_242
Samba Member
Joined: May 06, 2005
Posts: 1672
Location: Barcelona (SPAIN)
|
| Posted: Sat Feb 14, 2009 7:35 am Post subject: |
|
|

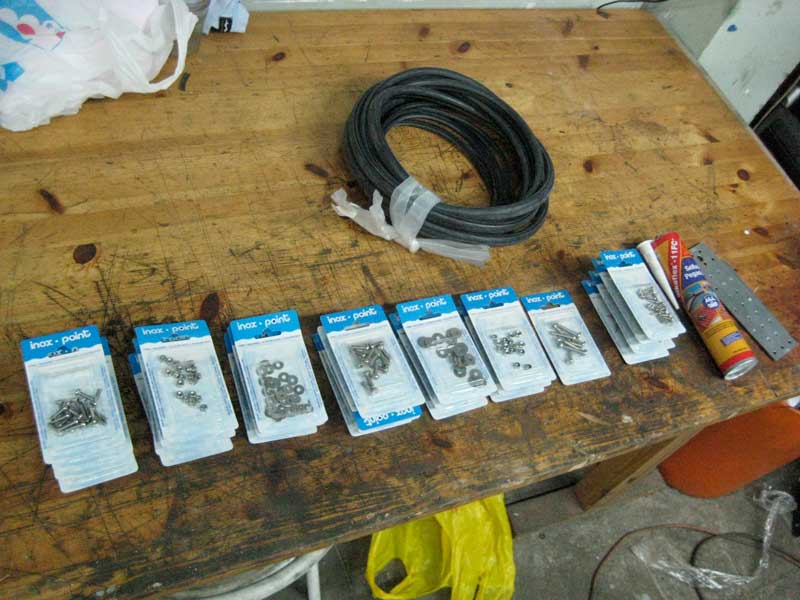

SS bolts and nuts all around... new window seals and polyhuretane sealer

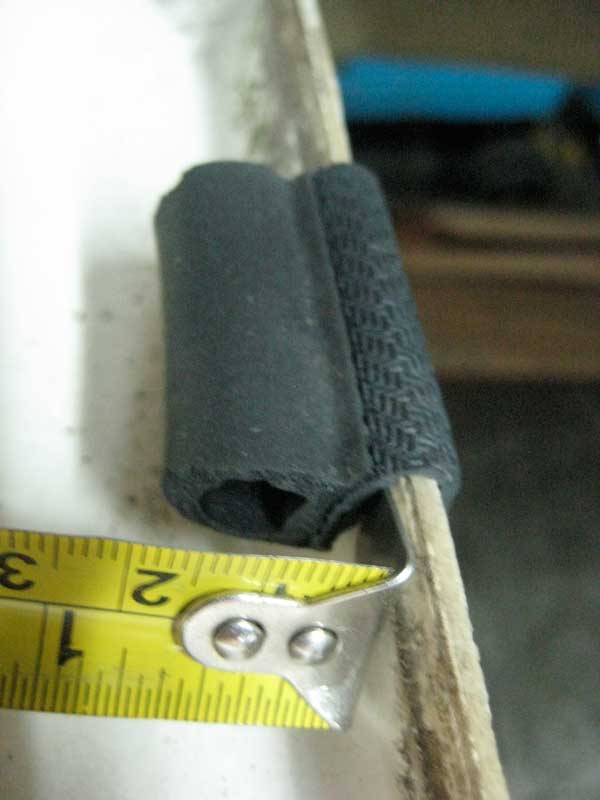

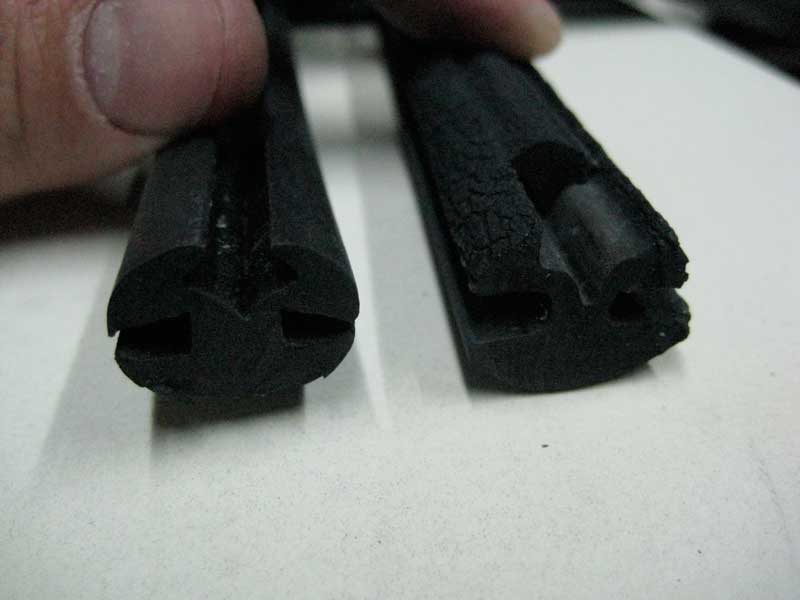

this seal will do the job... but not looks like the OG
vent seal...
the new I found at a hardware store... less than 1/2 price other sells for specyfic dormy windows...
ready to reassemble

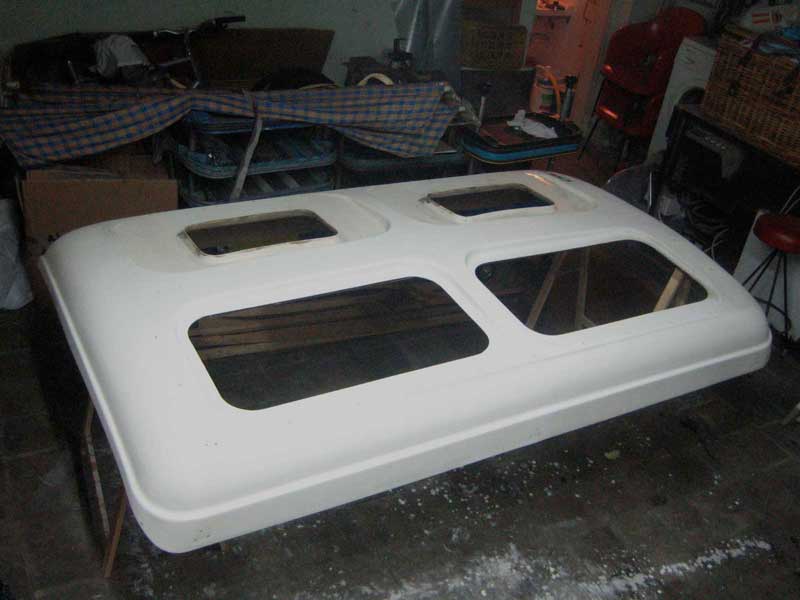

wet sanding...

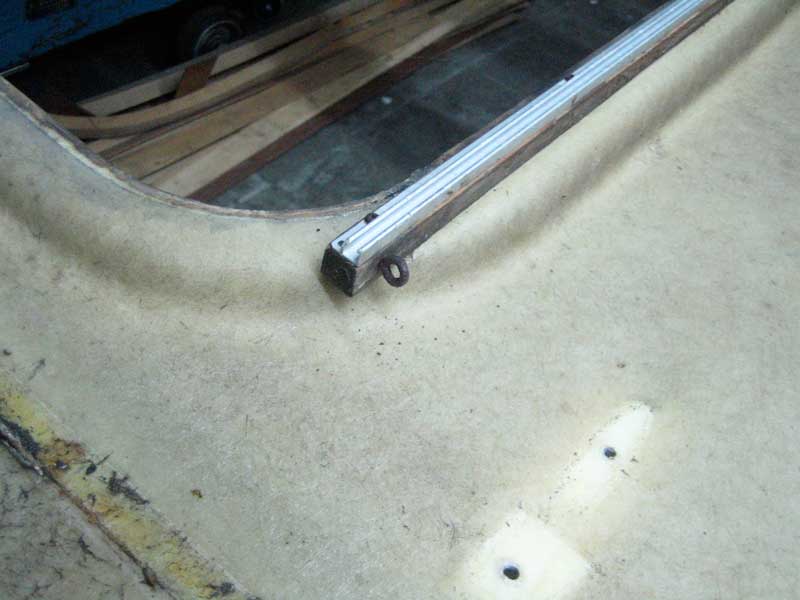

anyone knows the purpose of the ring screw?? there are 4.
my son was really happy and his looking fordward to go camping with the new top
_________________
1967 Split SO-42 Dormobile |
|
| Back to top |
|
|
xavi_242
Samba Member
Joined: May 06, 2005
Posts: 1672
Location: Barcelona (SPAIN)
|
| Posted: Sat Feb 14, 2009 8:51 am Post subject: |
|
|

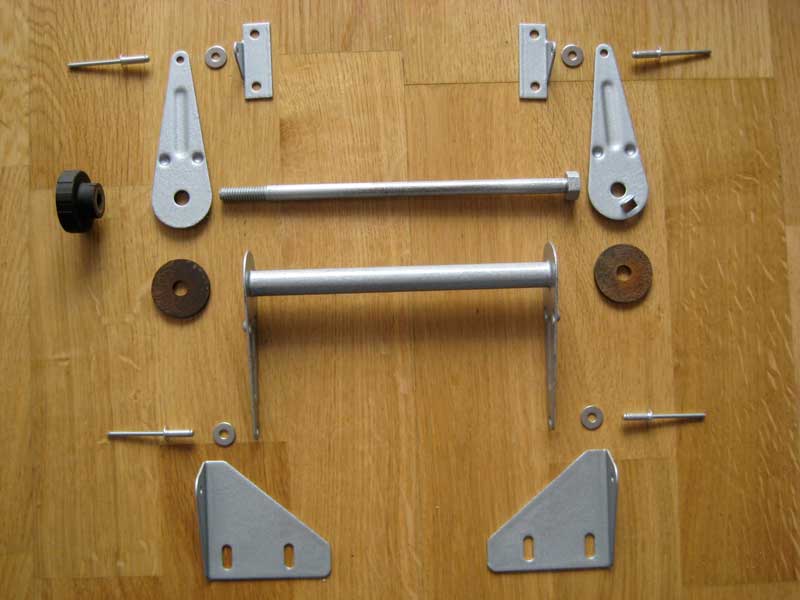

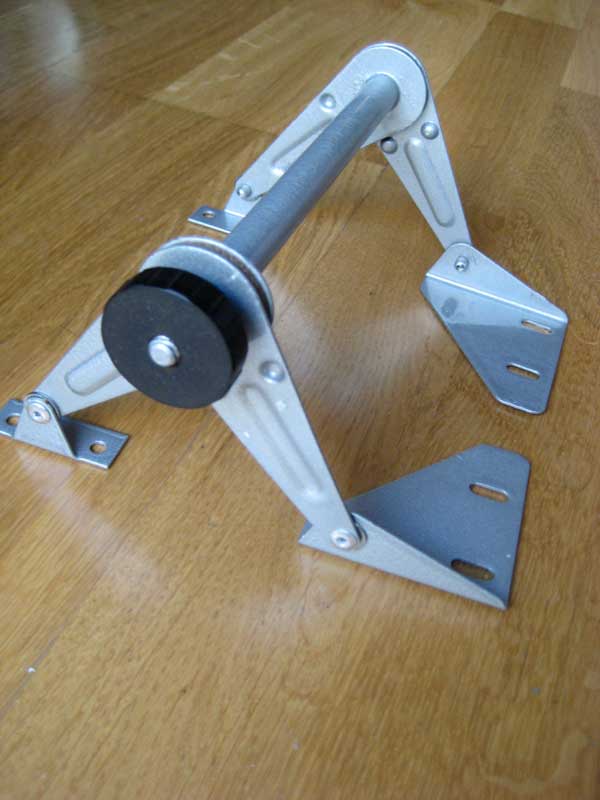

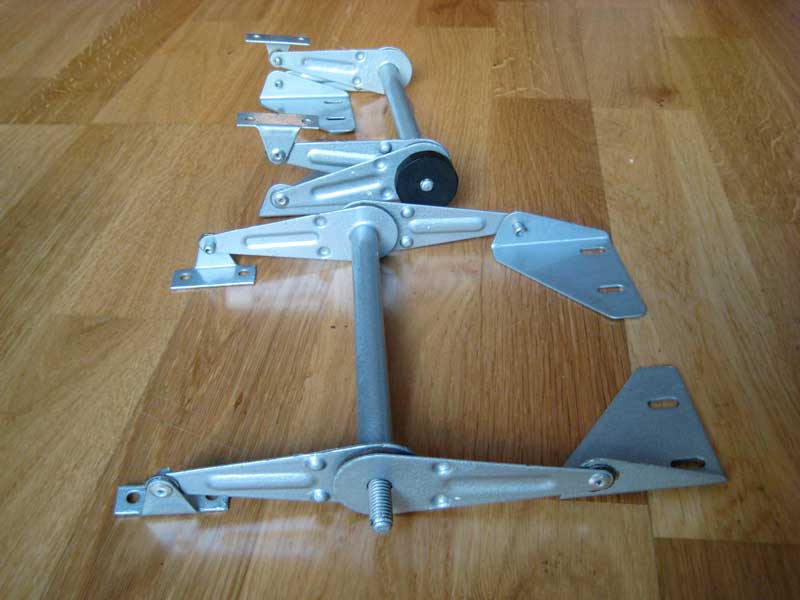

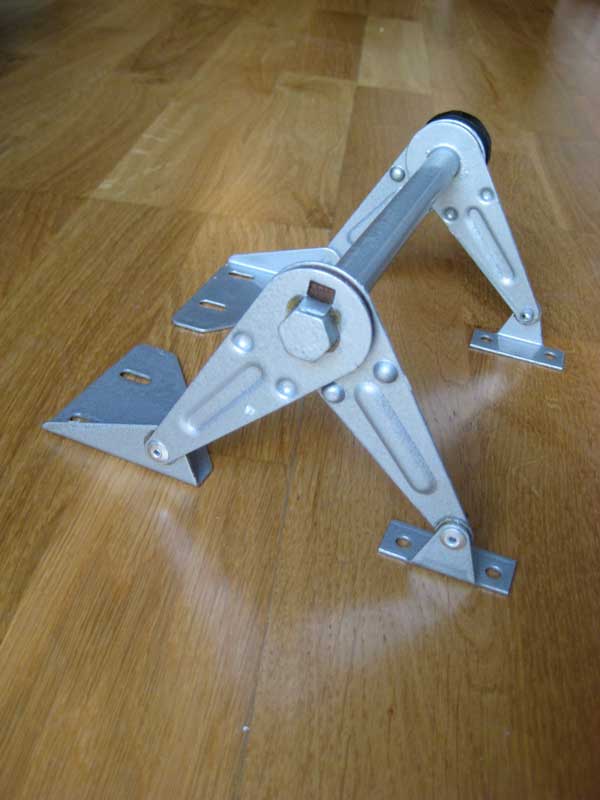

just ended assemblig the vents hardware... put washer like factory fitting but in SS and rivets. Lubed all joints with grease for a porper movement as the rivets left the joints very tight.
there is a missing adjusting knob, if anyone have one for spare please I need one
_________________
1967 Split SO-42 Dormobile |
|
| Back to top |
|
|
DormobileDave67
Samba Member
Joined: January 04, 2009
Posts: 114
Location: East Coast
|
| Posted: Sat Feb 14, 2009 12:26 pm Post subject: |
|
|
| iwas looking at my dormy and i didnt see a ring screw. |
|
| Back to top |
|
|
xavi_242
Samba Member
Joined: May 06, 2005
Posts: 1672
Location: Barcelona (SPAIN)
|
| Posted: Wed Feb 25, 2009 11:08 pm Post subject: |
|
|

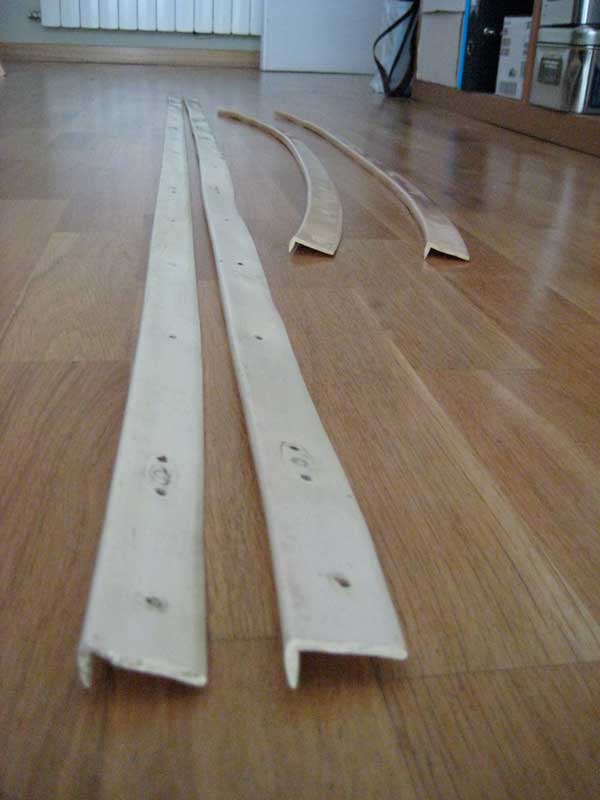

put the trim-snake that was hard in the bath with hot water and then left it the whole night sitting under a wardoble. After all it looks now much better, then I cleaned it.
before: http://www.thesamba.com/vw/forum/album_page.php?pic_id=527681

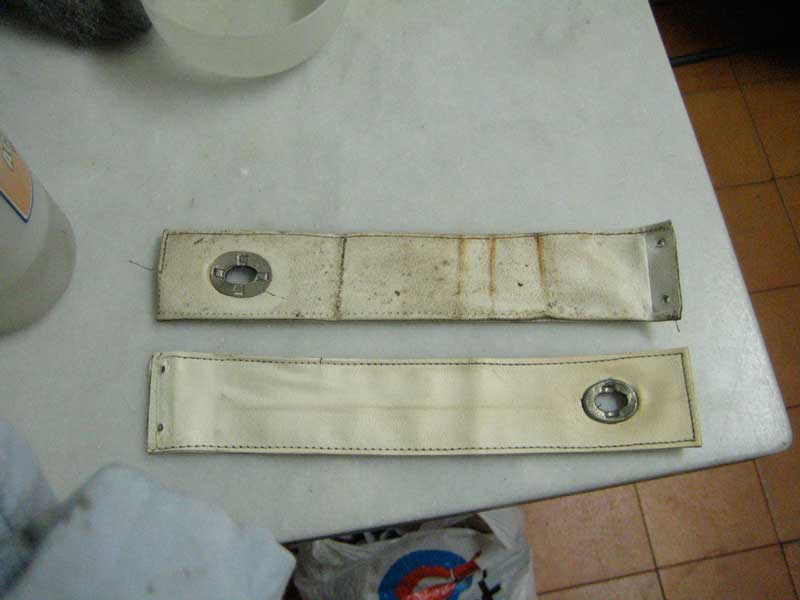

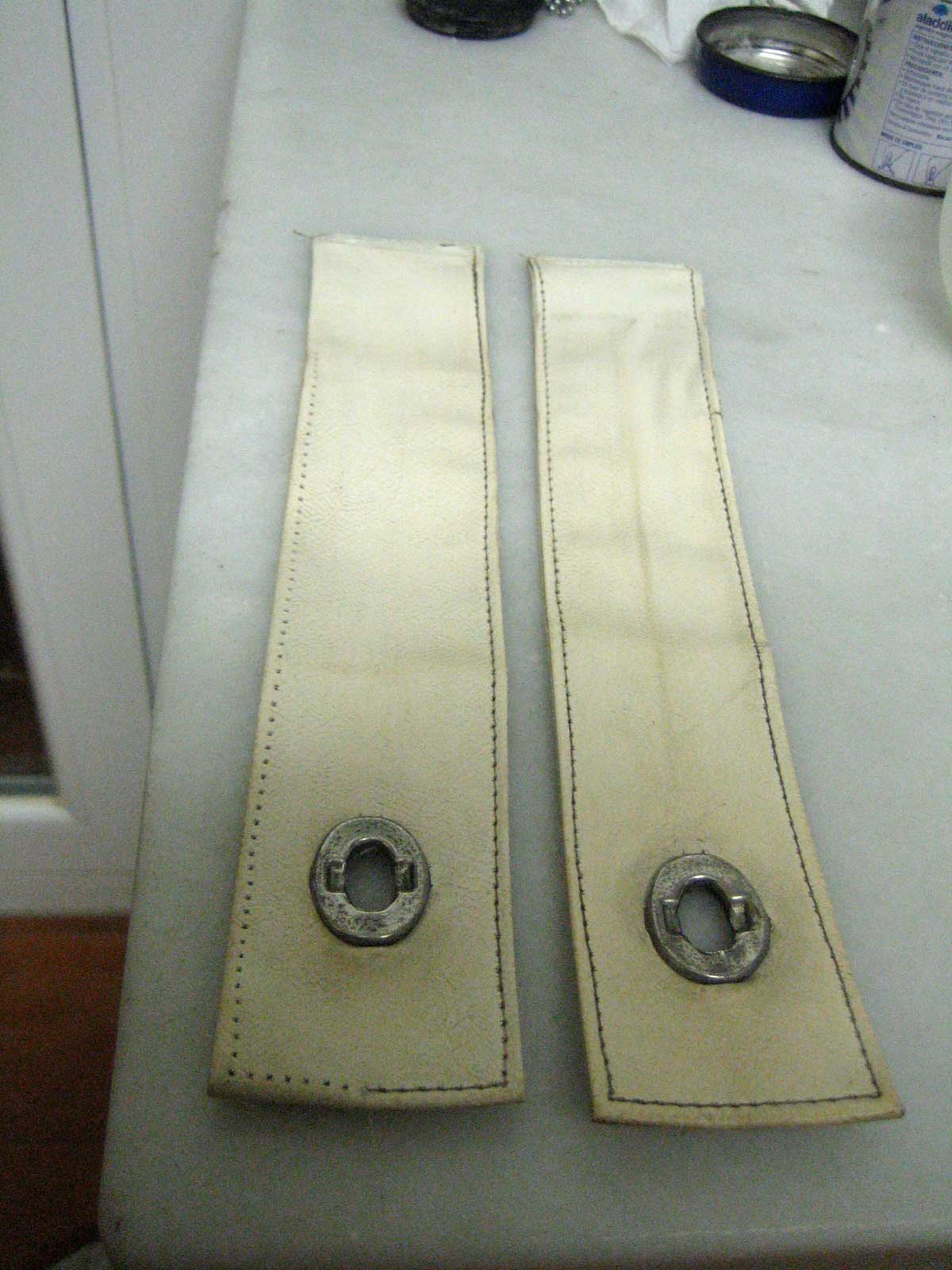

Also cleaned the retaining leather straps.
_________________
1967 Split SO-42 Dormobile |
|
| Back to top |
|
|
xavi_242
Samba Member
Joined: May 06, 2005
Posts: 1672
Location: Barcelona (SPAIN)
|
| Posted: Sat Feb 28, 2009 1:02 pm Post subject: |
|
|

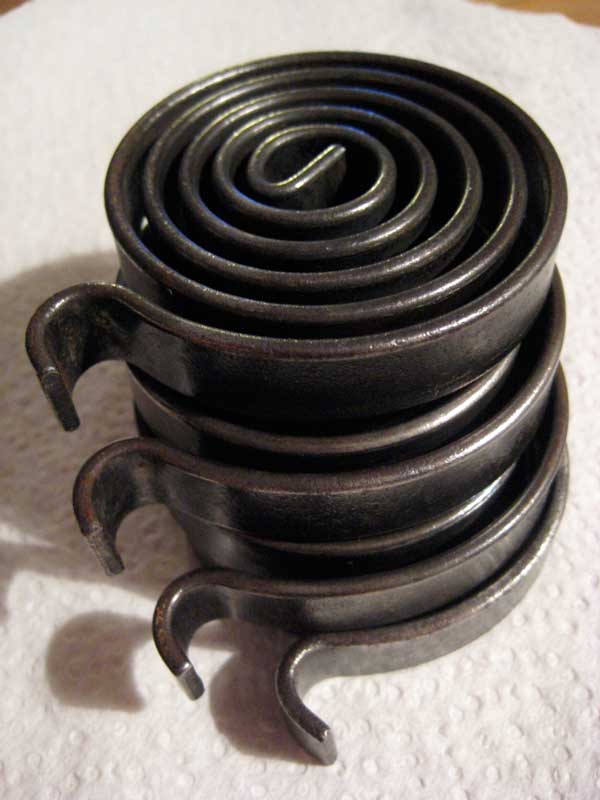

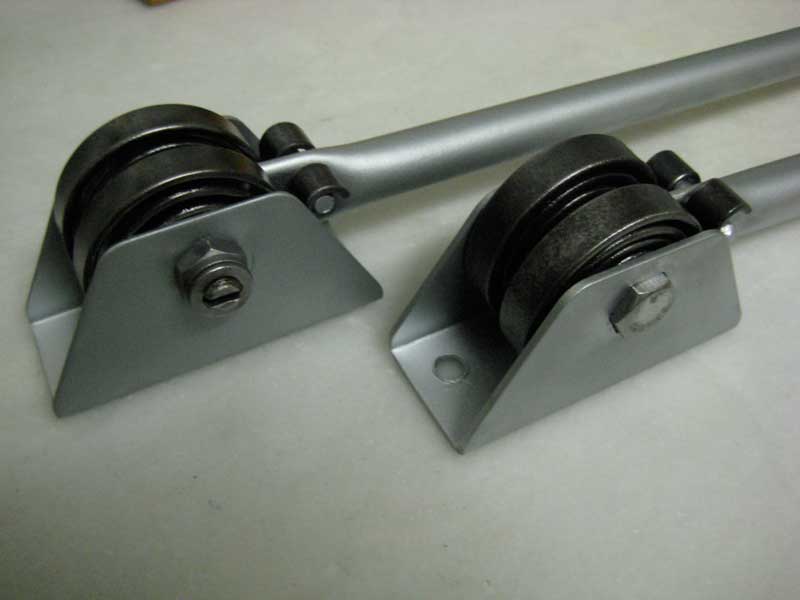

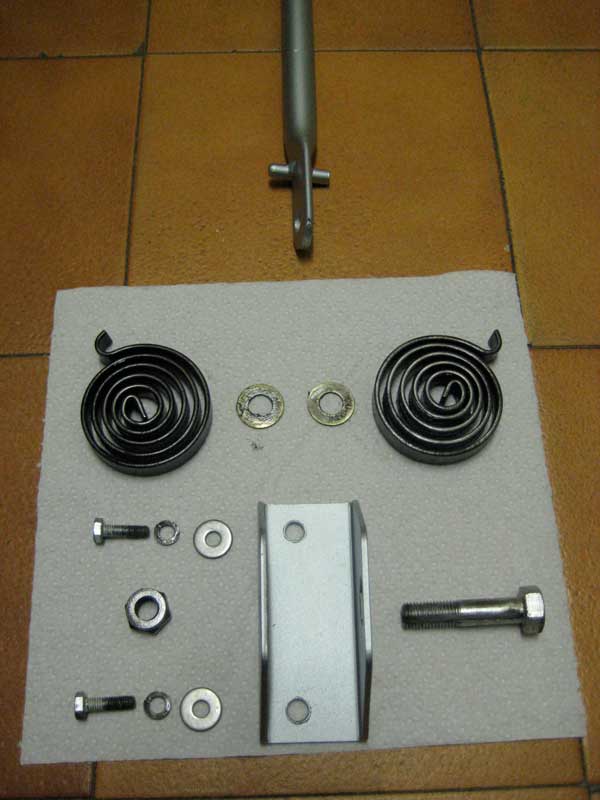

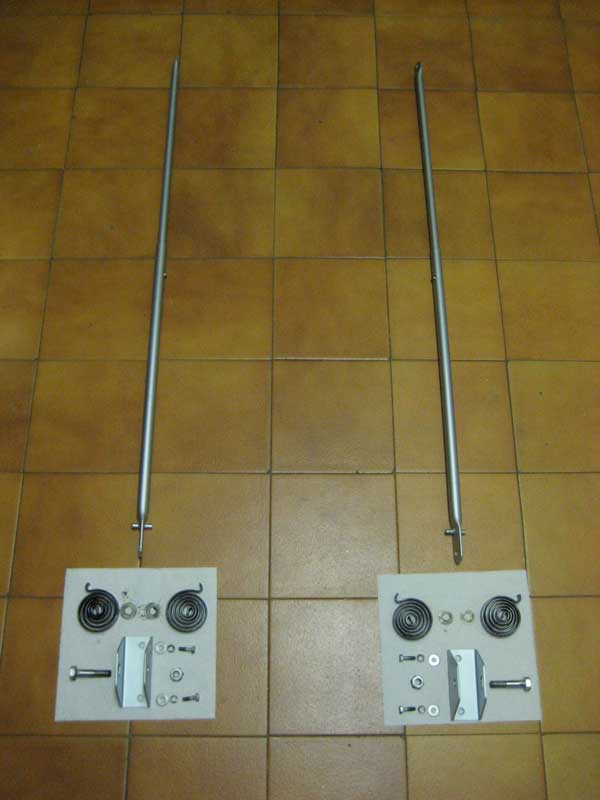

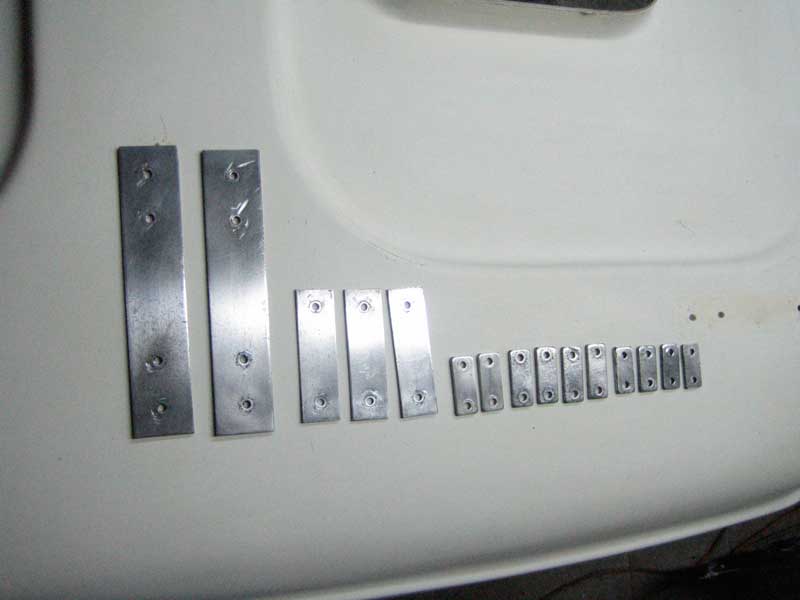

more work done today... polished aluminium plates. Didn't go to mirror finish, looks good. Removed rust from springs and cleaned it well.

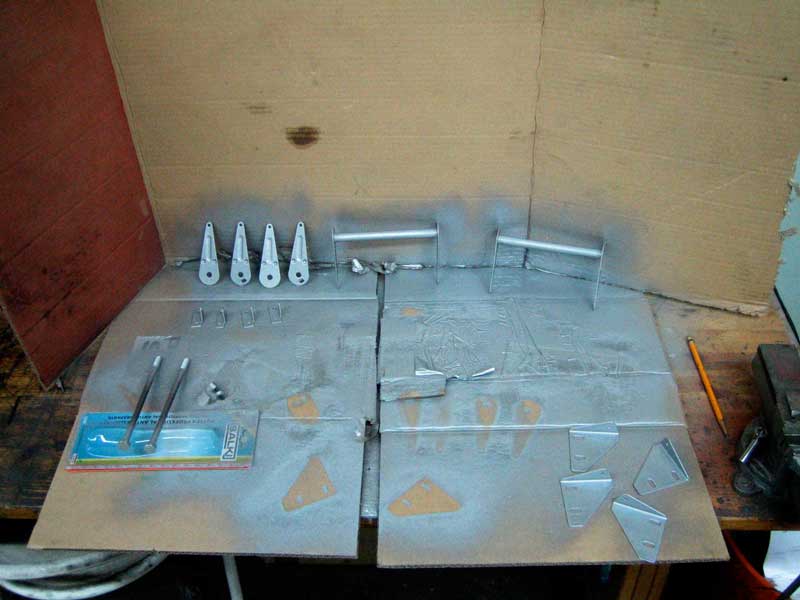

Also painted with galvanized paint the telescopic bars... didn't took pics...
_________________
1967 Split SO-42 Dormobile |
|
| Back to top |
|
|
westy_LA_fade_away
Samba Member
Joined: October 13, 2003
Posts: 243
Location: Kansas City
|
| Posted: Sat Feb 28, 2009 1:20 pm Post subject: |
|
|
Looking Good, Xavi! Can't wait to see it completed!
-Marc
_________________
| Quote: |
ratherb-buggin
I'm going to try to pick up a few other trannys for more options. |
| Quote: |
JacsWagen
Sometimes function over looks isn't bad, unless you're at a bar. |
Cheers!
Marc Schumer
1990 Westfalia Camper
[email protected]
_______ |
|
| Back to top |
|
|
xavi_242
Samba Member
Joined: May 06, 2005
Posts: 1672
Location: Barcelona (SPAIN)
|
| Posted: Tue Mar 03, 2009 12:41 pm Post subject: |
|
|
| westy_LA_fade_away wrote: |
Looking Good, Xavi! Can't wait to see it completed!
-Marc |
thanks Marc... I hope to have it finished for the summer holidays...
