 Posted: Sun Dec 06, 2009 6:46 am Post subject: Split running board, first handmade sample |
 |
|

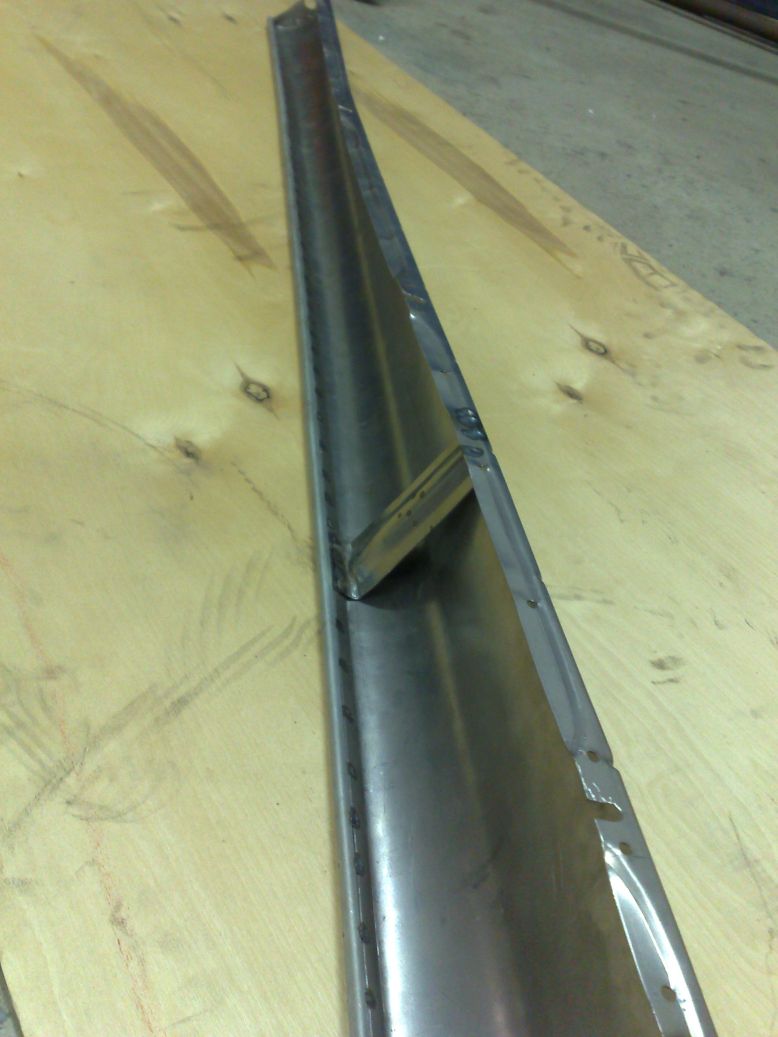

The idea to make running boards to my next project has been in my mind for awhile, now I have the first handmade steel sample ready. Material 1 mm sheet metal, rubber fixing strip 0.75 mm.
The master was my 6'52 original running board. Many details to make, strengtheners to edge and fitting side, holes for rubber mat fixing, outer strip for rubber mat fixing (fixed to board by spot welding), middle bracing, curved profil, fitting holes etc.
Sorry for poor pictures, the light is not enough, we have dark winter...
|
|
| Back to top |
|
 |
oval56
Samba Member
Joined: July 21, 2003
Posts: 1309
Location: oktoberfest maintown
|
| Posted: Sun Dec 06, 2009 8:28 am Post subject: Re: Split running board, first handmade sample |
|
|
really cool result  but i think a lot of work..
have you made it freehand or did you do a wooden fram for hammering it?
| virtanen wrote: |
The idea to make running boards to my next project has been in my mind for awhile, now I have the first handmade steel sample ready. Material 1 mm sheet metal, rubber fixing strip 0.75 mm.
The master was my 6'52 original running board. Many details to make, strengtheners to edge and fitting side, holes for rubber mat fixing, outer strip for rubber mat fixing (fixed to board by spot welding), middle bracing, curved profil, fitting holes etc.
Sorry for poor pictures, the light is not enough, we have dark winter...
|
_________________
www.oval56.com
1956 Oval, 2364ccm typ4
1957 Oval Ragtop 1584ccm singel port modified
1950 Hebmüller, 1584ccm okrasa modified
DBK Germany!!!!!!!!!!
www.dbkvw.com |
|
| Back to top |
|
|
virtanen
Samba Member
Joined: January 08, 2006
Posts: 1495
Location: Finland
|
| Posted: Sun Dec 06, 2009 9:07 am Post subject: |
|
|
Cutter, bead roller, binder, press, shrinker and other hand tools. No hammering, no wood  |
|
| Back to top |
|
|
oval56
Samba Member
Joined: July 21, 2003
Posts: 1309
Location: oktoberfest maintown
|
| Posted: Sun Dec 06, 2009 9:27 am Post subject: |
|
|
| virtanen wrote: |
| Cutter, bead roller, binder, press, shrinker and other hand tools. No hammering, no wood |
okay, i see professional tooling required
_________________
www.oval56.com
1956 Oval, 2364ccm typ4
1957 Oval Ragtop 1584ccm singel port modified
1950 Hebmüller, 1584ccm okrasa modified
DBK Germany!!!!!!!!!!
www.dbkvw.com |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10795
Location: iT StiNgeD iTseLf tO dEAd
|
| Posted: Sun Dec 06, 2009 9:48 am Post subject: |
|
|
| looks awesome. are you planning "production" of these, or are they just for your car(s)? |
|
| Back to top |
|
|
passoa55
Samba Member
Joined: June 10, 2004
Posts: 575
Location: Belgium
|
| Posted: Sun Dec 06, 2009 12:56 pm Post subject: |
|
|
Looks pretty nice and identical to my used ones.
Need a pair for my Heb, and Andi aswell I guess!
Keep us informed.
_________________
1950 Hebmuller #458
1953 original paint oval ragtop
1955 lowlight lizard green
1955 original paint oval
1956 1600 super V-sunroof Porsche
1958 lowlight ghia black
1963 firetruckred 23 window
1967 SO42 westy
1969 original paint Westy
1970 one owner 1300L bug |
|
| Back to top |
|
|
oval56
Samba Member
Joined: July 21, 2003
Posts: 1309
Location: oktoberfest maintown
|
| Posted: Sun Dec 06, 2009 1:11 pm Post subject: |
|
|
| passoa55 wrote: |
Looks pretty nice and identical to my used ones.
Need a pair for my Heb, and Andi aswell I guess!
Keep us informed. |
i have one original in cood condition, so i need only one i have to ckeck my running board
_________________
www.oval56.com
1956 Oval, 2364ccm typ4
1957 Oval Ragtop 1584ccm singel port modified
1950 Hebmüller, 1584ccm okrasa modified
DBK Germany!!!!!!!!!!
www.dbkvw.com |
|
| Back to top |
|
|
Sepi
Samba Member
Joined: October 04, 2008
Posts: 137
Location: Mikkeli Finland
|
| Posted: Sun Dec 06, 2009 1:24 pm Post subject: |
|
|
| Mika is The Pro with pro tools |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9405
Location: Northwood, NH USA
|
| Posted: Sun Dec 06, 2009 5:00 pm Post subject: |
|
|
I have one for my '51 but am missing the other side......
Nice work!!!
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
joebug1956
Samba Member
Joined: August 08, 2006
Posts: 362
Location: Richmond VA
|
|
| Back to top |
|
|
axel struwe
Samba Member
Joined: January 18, 2005
Posts: 298
Location: Germany
|
|
| Back to top |
|
|
passoa55
Samba Member
Joined: June 10, 2004
Posts: 575
Location: Belgium
|
| Posted: Mon Dec 07, 2009 4:30 am Post subject: |
|
|
A friend bought those but was not very satisfied....
_________________
1950 Hebmuller #458
1953 original paint oval ragtop
1955 lowlight lizard green
1955 original paint oval
1956 1600 super V-sunroof Porsche
1958 lowlight ghia black
1963 firetruckred 23 window
1967 SO42 westy
1969 original paint Westy
1970 one owner 1300L bug |
|
| Back to top |
|
|
Kaefer-Nostalgie
Samba Member
Joined: March 13, 2005
Posts: 90
|
| Posted: Mon Dec 07, 2009 4:38 am Post subject: Running boards |
|
|
No, we havent had those for a while. The company making them for us wasnt delivering enough quality so we decided to stop selling them. We actually asked them to make better units but we couldnt agree on a decent price for the work that needed to be done. Result, the running boards would be so expensive none would sell.
We should remove them from the website but just didnt get to that yet. |
|
| Back to top |
|
|
drscope
Samba Member
Joined: February 19, 2007
Posts: 15273
Location: Baltimore, Maryland USA
|
| Posted: Mon Dec 07, 2009 2:25 pm Post subject: |
|
|
So when these do get to market, is this going to be the same "Repro vs Original" debate as with the fenders?
_________________
Mother Nature is a Mean Evil Bitch! |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9405
Location: Northwood, NH USA
|
| Posted: Mon Dec 07, 2009 2:50 pm Post subject: |
|
|
| drscope wrote: |
| So when these do get to market, is this going to be the same "Repro vs Original" debate as with the fenders? |
Probably.
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
passoa55
Samba Member
Joined: June 10, 2004
Posts: 575
Location: Belgium
|
| Posted: Mon Dec 07, 2009 2:56 pm Post subject: |
|
|
Otherwise about what should we talk?
_________________
1950 Hebmuller #458
1953 original paint oval ragtop
1955 lowlight lizard green
1955 original paint oval
1956 1600 super V-sunroof Porsche
1958 lowlight ghia black
1963 firetruckred 23 window
1967 SO42 westy
1969 original paint Westy
1970 one owner 1300L bug |
|
| Back to top |
|
|
virtanen
Samba Member
Joined: January 08, 2006
Posts: 1495
Location: Finland
|
| Posted: Sun Jan 10, 2010 10:40 am Post subject: |
|
|

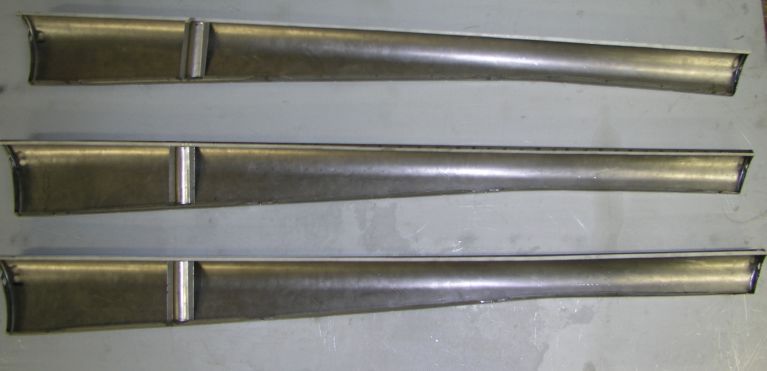

Update for this. The first 3 pcs of left side series made. Of course many protos needed to verify methods and tools, but as you know protos will be scrapped
Protos:
The pattern shape.
|
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9405
Location: Northwood, NH USA
|
| Posted: Sun Jan 10, 2010 2:07 pm Post subject: |
|
|
Nice work Mika. Are those being made on a die, or hand made? Either way, I could use a set for my '51. Looks like nice work!!!
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
Brezelwerks
Samba Member
Joined: March 17, 2003
Posts: 1421
Location: Tyngsboro, MA
|
| Posted: Sun Jan 10, 2010 4:42 pm Post subject: |
|
|
| johnshenry wrote: |
| Nice work Mika. Are those being made on a die, or hand made? Either way, I could use a set for my '51. Looks like nice work!!! |
| virtanen wrote: |
| Cutter, bead roller, binder, press, shrinker and other hand tools. No hammering, no wood |
|
|
| Back to top |
|
|
ZwitterND
Samba Member
Joined: September 08, 2005
Posts: 1453
Location: Fargo, ND
|
| Posted: Sun Jan 10, 2010 7:23 pm Post subject: |
|
|
Wonder why they are called "running boards"? When I go jogging I get running board....  ... Maybe because it's where you can board the car when its running? Somebody stop the voices...please!
