 Posted: Sun Jan 10, 2010 3:47 pm Post subject: 74 Westy - paint code 9643 - not on any list? |
 |
|
In trying to decode my M-code plate on my 74 Westy, I have found a paint code that is not on any list that I can find on the net. That section of code reads 992549
If I understand the code correctly, 9925 is the paint code and 49 is the interior code. Yes? If so, what was the original color with this code? |
|
| Back to top |
|
 |
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53104
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sun Jan 10, 2010 4:43 pm Post subject: |
|
|
Possibly, but it doesn't sound like a code for Westfalia, post a pic of your M plate.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
meester_jamie
Samba Member
Joined: June 14, 2005
Posts: 26
Location: Southern Ontario Canada
|
| Posted: Sun Jan 10, 2010 5:59 pm Post subject: |
|
|
Is there a sticker near your m-code plate,,
that sticker says the paint code L65K for example |
|
| Back to top |
|
|
fatwood1
Samba Member
Joined: December 23, 2009
Posts: 87
Location: Florida
|
| Posted: Sun Jan 10, 2010 6:30 pm Post subject: |
|
|
| busdaddy wrote: |
| Possibly, but it doesn't sound like a code for Westfalia, post a pic of your M plate. |
Cam is not working right now....found that out when I tried to take that very picture.
Here is the way the tag reads.
42 052 224
507
992549 D55 P22 073 227
42 4 7716 US 2219 41
Here is what alltheprettybuses.com had
Decode Results:
Production Date: October 25, 1973
Exported To: USA, Seattle
Designation: 7 Seater Micro Bus
Engine KW (BHP): 50 (6
Transmission Type: manual
Engine: *
Transmission Code: -
Extras Code: 147
Paint / Interior
Paint Scheme:
Paint Codes:
Paint Notes:
Interior Scheme: camping red
Interior Material: cloth
Interior Notes:
Options
507: Vent wings in cab doors
D55: Code Group: 020,032,047,094,103,187,240,507 (1970) / Specifications for the USA / Speedo in miles, Sealed beam headlamps, Rear window defroster, Back-up lamps, Side marker reflectors... (?) (1974)
P22: Westfalia interrior type P22
073: Pop-up roof campmobile
227: Detachable headrest in cab
Every thing matches what I have, just no listing for paint colors here either. |
|
| Back to top |
|
|
peaceful warrior
Samba Member
Joined: January 22, 2005
Posts: 5275
Location: Taoswest, USA
|
| Posted: Sun Jan 10, 2010 6:46 pm Post subject: |
|
|
I think the paint code sticker is behind the drivers seat. Check it out.
_________________
"Two things are infinite: The universe and human stupidity; and I'm not sure about the universe." Albert Einstein
"Notchboy" says "Man up!"
"Tram" says " My bus is bigger than your bus."
66 13W Deluxe, 68 Westfalia, 87 Syncro.
TOOB Member #15
Brian |
|
| Back to top |
|
|
fatwood1
Samba Member
Joined: December 23, 2009
Posts: 87
Location: Florida
|
| Posted: Sun Jan 10, 2010 6:54 pm Post subject: |
|
|
| Sorry, forgot to say there is no sticker, just the plate. |
|
| Back to top |
|
|
jusphotos
Samba Member
Joined: December 16, 2009
Posts: 64
Location: FL
|
|
| Back to top |
|
|
fatwood1
Samba Member
Joined: December 23, 2009
Posts: 87
Location: Florida
|
| Posted: Sun Jan 10, 2010 6:56 pm Post subject: |
|
|
| Thanks Justin...now that has me even more confused....? Lol |
|
| Back to top |
|
|
peaceful warrior
Samba Member
Joined: January 22, 2005
Posts: 5275
Location: Taoswest, USA
|
| Posted: Sun Jan 10, 2010 7:47 pm Post subject: |
|
|
I've got one in this color scheme. I will look and see if I can find a paint code in the morning.
_________________
"Two things are infinite: The universe and human stupidity; and I'm not sure about the universe." Albert Einstein
"Notchboy" says "Man up!"
"Tram" says " My bus is bigger than your bus."
66 13W Deluxe, 68 Westfalia, 87 Syncro.
TOOB Member #15
Brian |
|
| Back to top |
|
|
fatwood1
Samba Member
Joined: December 23, 2009
Posts: 87
Location: Florida
|
| Posted: Sun Jan 10, 2010 8:13 pm Post subject: |
|
|
| thanks PW....guess I should have mentioned I am sure this is not OG paint. Might be OG color, but not OG paint. That is what I was trying to figure out. |
|
| Back to top |
|
|
peaceful warrior
Samba Member
Joined: January 22, 2005
Posts: 5275
Location: Taoswest, USA
|
| Posted: Mon Jan 11, 2010 9:17 am Post subject: |
|
|
| fatwood1 wrote: |
| thanks PW....guess I should have mentioned I am sure this is not OG paint. Might be OG color, but not OG paint. That is what I was trying to figure out. |
The paint code sticker on my bus reads;
leuchtorange L 20 B
pastellweise L 90 D
Hope that helps you out. My bus is OG paint and looks similar.
_________________
"Two things are infinite: The universe and human stupidity; and I'm not sure about the universe." Albert Einstein
"Notchboy" says "Man up!"
"Tram" says " My bus is bigger than your bus."
66 13W Deluxe, 68 Westfalia, 87 Syncro.
TOOB Member #15
Brian |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10804
Location: the past
|
| Posted: Mon Jan 11, 2010 9:35 am Post subject: |
|
|
i am pretty sure that Westfalias of that year (and probably others) don't have paint code stickers. there has been much discussion about this in the past, and i don't think anyone has come up with a pic of a '74 Westfalia paint code sticker because (i'm pretty sure) Westfalia did the painting. i know my '74 does not have a paint code sticker.
here is an on-site link to a 1974 color brochure: http://www.thesamba.com/vw/archives/lit/74colors.php
here is a link to a lengthy discussion about this: http://www.thesamba.com/vw/forum/viewtopic.php?t=164390
|
|
| Back to top |
|
|
peaceful warrior
Samba Member
Joined: January 22, 2005
Posts: 5275
Location: Taoswest, USA
|
| Posted: Mon Jan 11, 2010 9:48 am Post subject: |
|
|
My 73 Westy has a paint code sticker behind the drivers seat. It reads;
leuchtorange L 20 B. It is the same color orange as the 73 deluxe that I got the other paint code from.
I can take a pic of it if you'd like to prove it.
_________________
"Two things are infinite: The universe and human stupidity; and I'm not sure about the universe." Albert Einstein
"Notchboy" says "Man up!"
"Tram" says " My bus is bigger than your bus."
66 13W Deluxe, 68 Westfalia, 87 Syncro.
TOOB Member #15
Brian |
|
| Back to top |
|
|
fatwood1
Samba Member
Joined: December 23, 2009
Posts: 87
Location: Florida
|
| Posted: Mon Jan 11, 2010 11:03 am Post subject: |
|
|
| PW... is your code on the M tag the same as mine? |
|
| Back to top |
|
|
Mark
Samba Member
Joined: January 20, 2003
Posts: 1523
Location: Victoria, BC Canada
|
| Posted: Mon Jan 11, 2010 11:14 am Post subject: |
|
|
Our 74' (gone but not forgotten Karl  ) had the paint decal behind the passenger seat. It's long gone since we had the bodywork/paint done, but I'll see if I can dig up an old photo of it, assuming I took one?!
_________________
www.zwerks.ca |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53104
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Mon Jan 11, 2010 11:24 am Post subject: |
|
|
My 1974 P27 has a sticker.
Fatwood, are you absolutely sure you are reading every number on that plate correctly? I can't say I've ever seen 7 seater microbus and Westfalia on the same plate. The model should be something like 2319 43.
Just for reference the M# for Brilliant orange with Camping orange upholstery is 922609.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
peaceful warrior
Samba Member
Joined: January 22, 2005
Posts: 5275
Location: Taoswest, USA
|
| Posted: Mon Jan 11, 2010 1:26 pm Post subject: |
|
|

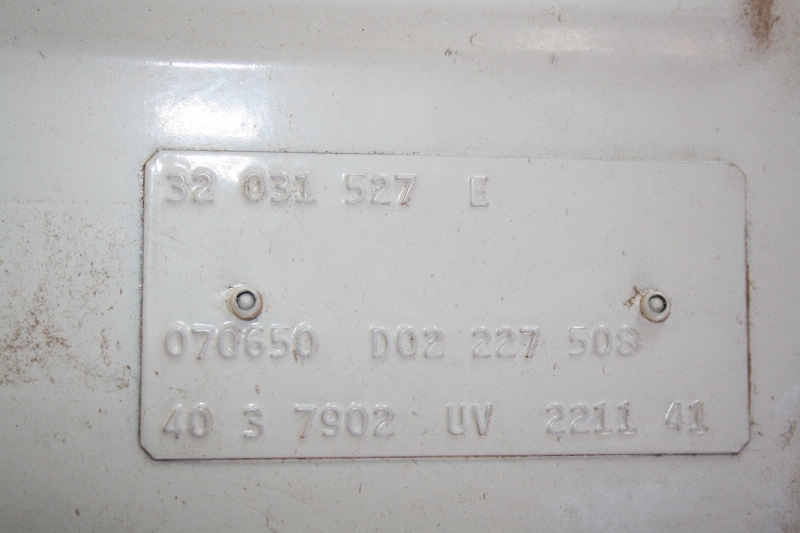

Here is the M-code plate from the 73 Westy.

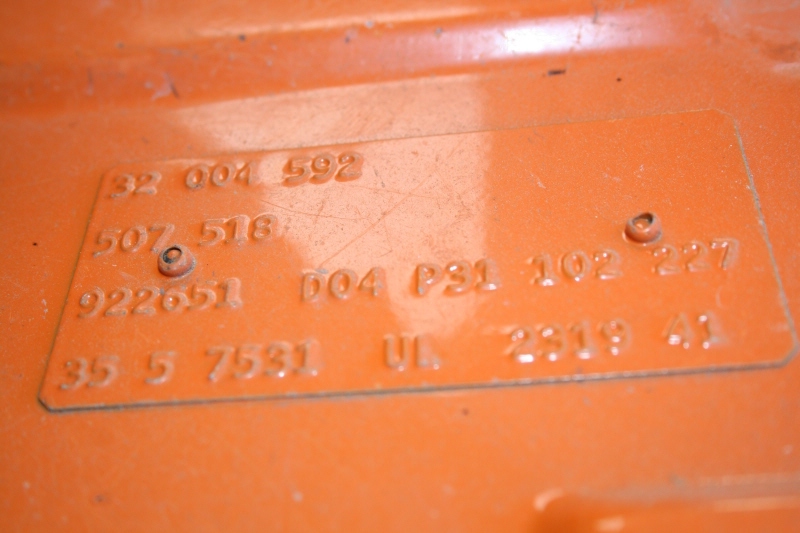

And from the 73 Hardtop conversion....2 tone paint.
_________________
"Two things are infinite: The universe and human stupidity; and I'm not sure about the universe." Albert Einstein
"Notchboy" says "Man up!"
"Tram" says " My bus is bigger than your bus."
66 13W Deluxe, 68 Westfalia, 87 Syncro.
TOOB Member #15
Brian |
|
| Back to top |
|
|
fatwood1
Samba Member
Joined: December 23, 2009
Posts: 87
Location: Florida
|
| Posted: Wed Jan 13, 2010 8:31 pm Post subject: |
|
|
Bus has been on blocks for the last couple of days waiting for the new Vanco's to be installed. Got them in today, but need to pick up a lug stud tomorrow before I can finish installing them.
Once I get it back on the ground, I will double check the code to be 100% sure I read it right. Cam is now working so I will either post a pic of the tag if I had it right from the beginning or feel like a real fool if I read it wrong. |
|
| Back to top |
|
|
fatwood1
Samba Member
Joined: December 23, 2009
Posts: 87
Location: Florida
|
| Posted: Thu Jan 14, 2010 7:26 pm Post subject: |
|
|
OK...my head is now in the very cold Florida sand. I read the tag wrong. The paint/interior code is 922649.
This means it was Pastel White.
Something a bit odd though. The interior code is 49 which comes back as camping red on all the de-code site, but the brochure hazetguy posted says Pastel White came with Blue Green Plaid. The interior in the bus IS Blue Green Plaid..... Who knows? |
|
| Back to top |
|
|
jusphotos
Samba Member
Joined: December 16, 2009
Posts: 64
Location: FL
|
| Posted: Fri Jan 15, 2010 2:28 pm Post subject: |
|
|
| Well, looks like you got to the bottom of it. Are you going to make her original? |
|
