PostPosted: Sun Feb 28, 2010 2:40 am    Post subject: HOW TO: Re-Bushing Kadron Throttle Bodies Reply with quote

So here's my super-duper triple-patented patented way to re-bush those old worn-out throttle bodies that Kadron is so well known for. If anyone has any suggestions as to how to improve this method, or any other insights, thoughts, or ideas; I'd love to hear them. I'm always eager to learn....

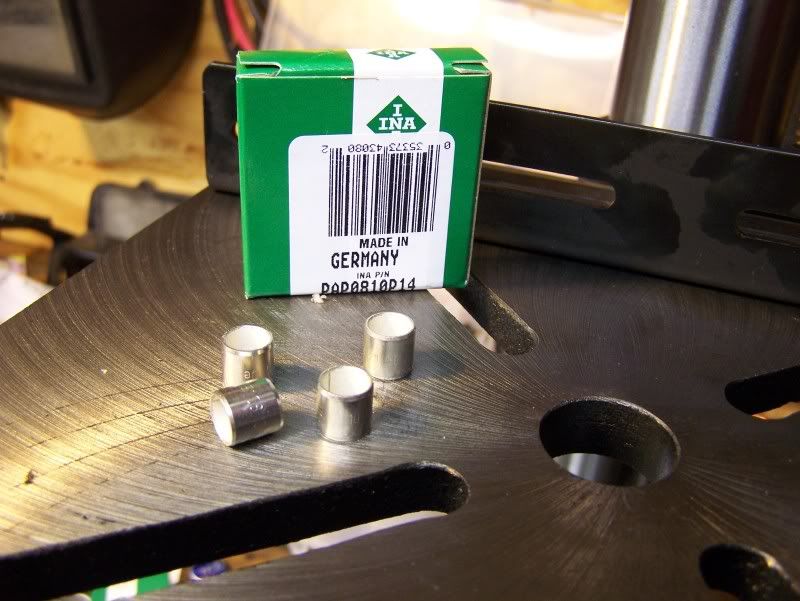

First, we start off with high-quality German bronze bushings manufactured inside in steel casings. These are impregnated with PTFE Teflon for maximum lubrication. These bushings should last for our generation, and many more after that. These are super beefy.


Image may have been reduced in size. Click image to view fullscreen.


Check one out against the stock bushing still inside the carb. Look how thin and skimpy that little dude is compared to these. Like I said... You won't wear these bad boys out! They're a little expensive, but well worth it.

Image may have been reduced in size. Click image to view fullscreen.


Here's another photo showing one of mine next to a different shop's that uses a tiny bushing like the stock one, and a urethane or plastic feeling seal. My bushing is the one on the upper left, while the other shop's "seal" is on the upper right, and their bushing on the bottom. When I cracked this one open, these pieces just fell right out there was so much play in them.

Image may have been reduced in size. Click image to view fullscreen.

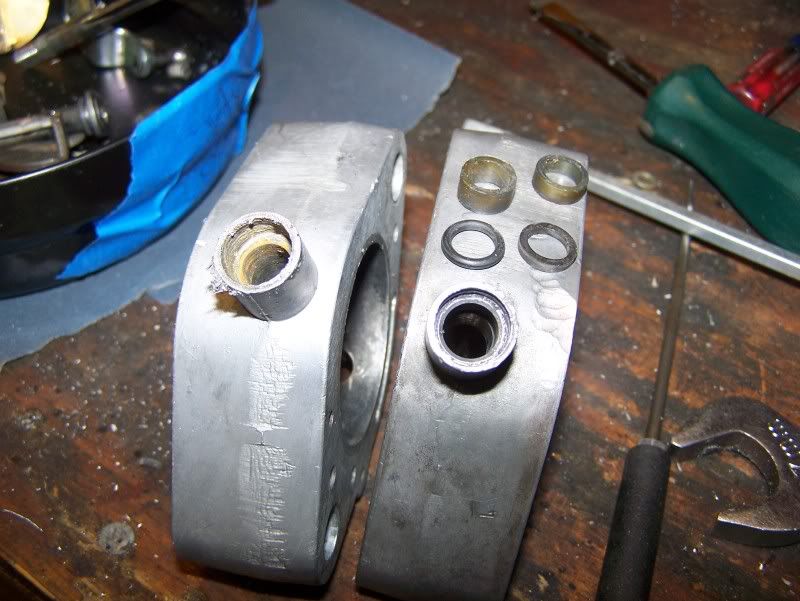

Here's another one that I had taken apart. I found one o-ring, one rubber seal, and two pieces of what looks like fish tank tubing inside it, cut to two different lengths. There were bushings in one side, and it was bare aluminum in the other! The holes were all four different depths, too!

Image may have been reduced in size. Click image to view fullscreen.


Back to the build...

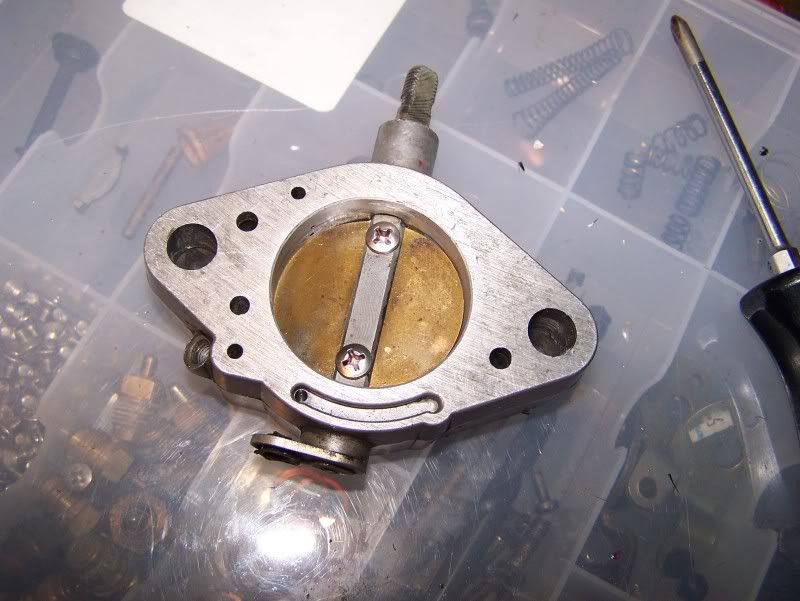

We see that if you try to get the screws out of these butterfly valves, they usually do this. They get all chewed up. They peen the back of these when they put them in so you don't suck one down in your intake system. Not a bad idea. We'll return to that thought later.

Image may have been reduced in size. Click image to view fullscreen.

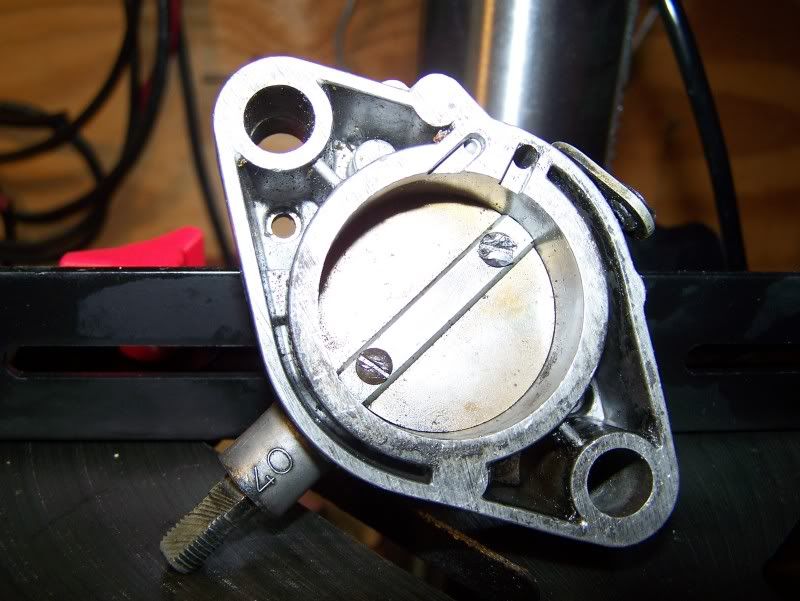

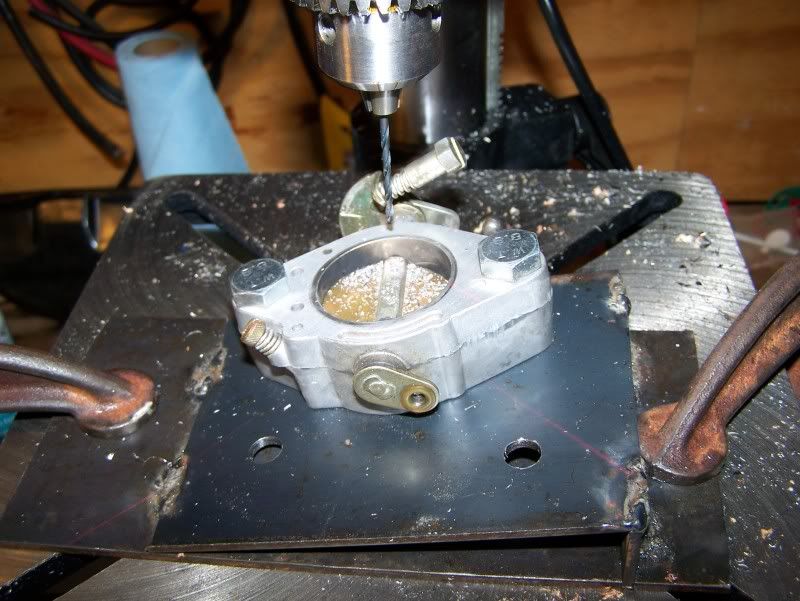

So what do you do? You drill them out. Better have some extras on hand. They'll need to be replaced, too. Also... I made a jig to hold the throttle body at he exact angle to facilitate drilling a straight hole through the retainer screw.

Image may have been reduced in size. Click image to view fullscreen.


When you drill the screws out, you'll need to probably remove the threaded middle with an ez-out.

Image may have been reduced in size. Click image to view fullscreen.

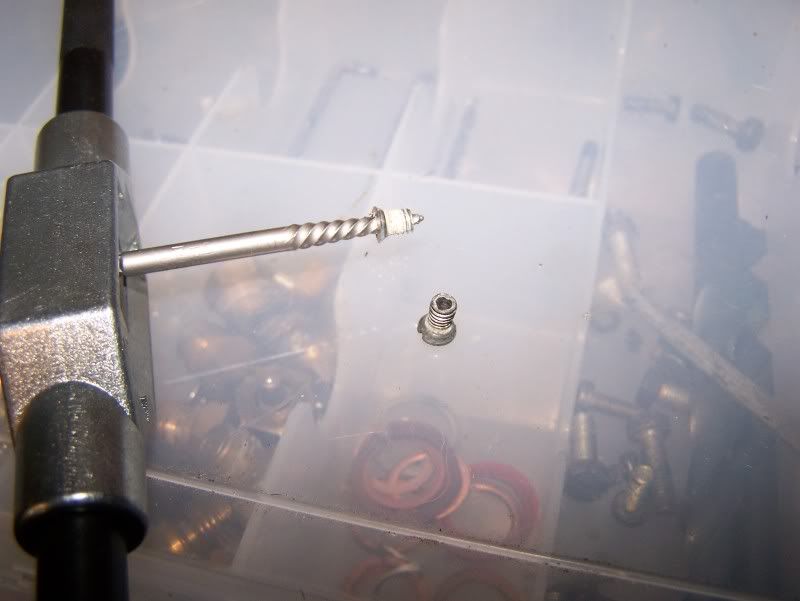

You might also need to chase the threads, so make sure you have a 4mm x 0.7mm tap handy Then, remove the throttle plate (butterfly). Remove the linkage arm and rotating stopper assembly and pull out the rod that goes through the throttle body.

Image may have been reduced in size. Click image to view fullscreen.

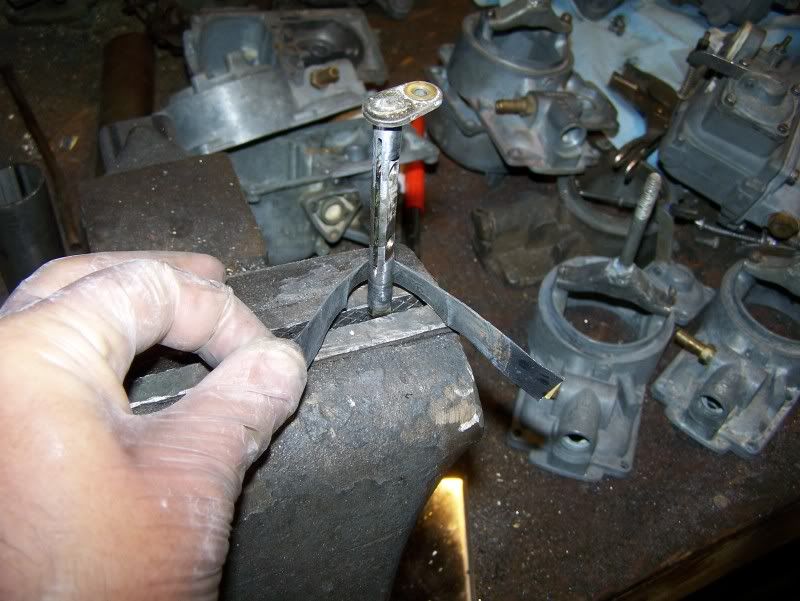

After removing the throttle body rod, I put it in a vise and polish the shaft with strips of very fine sandpaper. I also clean the butterfly. It just looks nicer that way.

Image may have been reduced in size. Click image to view fullscreen.

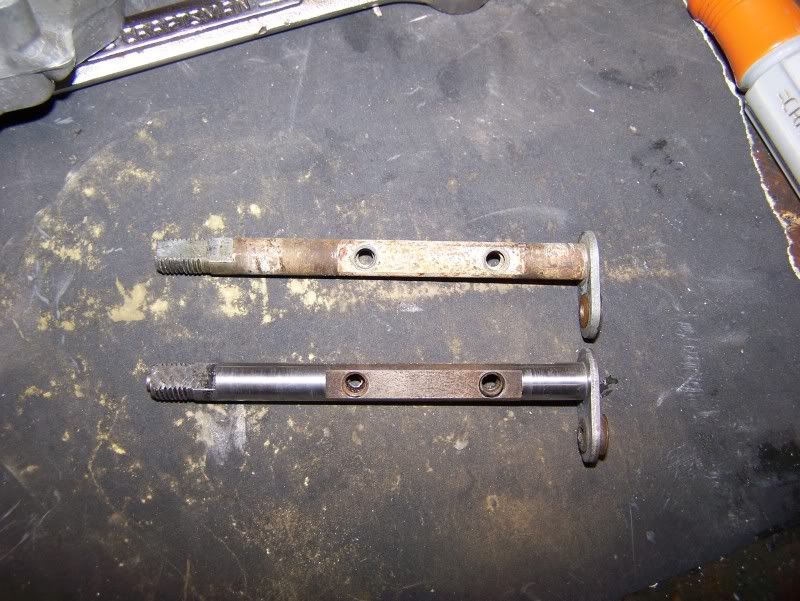

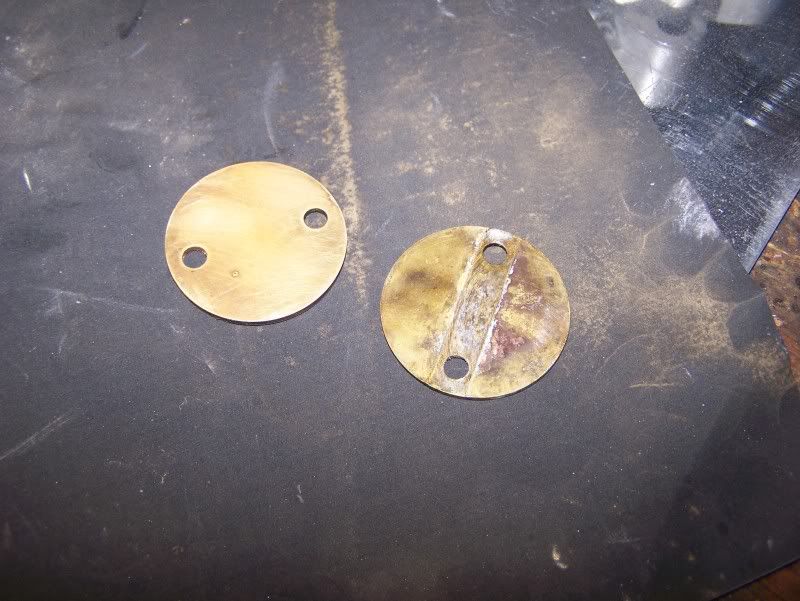

Here are a couple "BEFORE" and "AFTER" shots:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

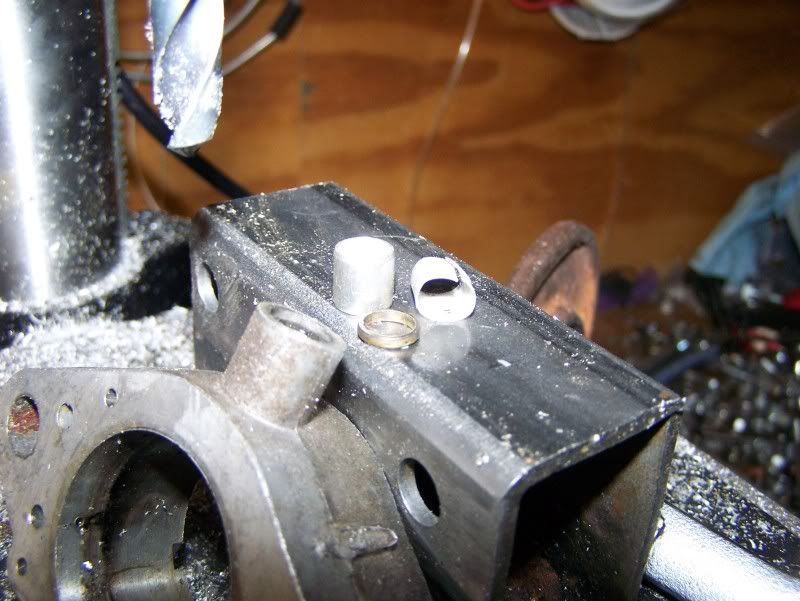

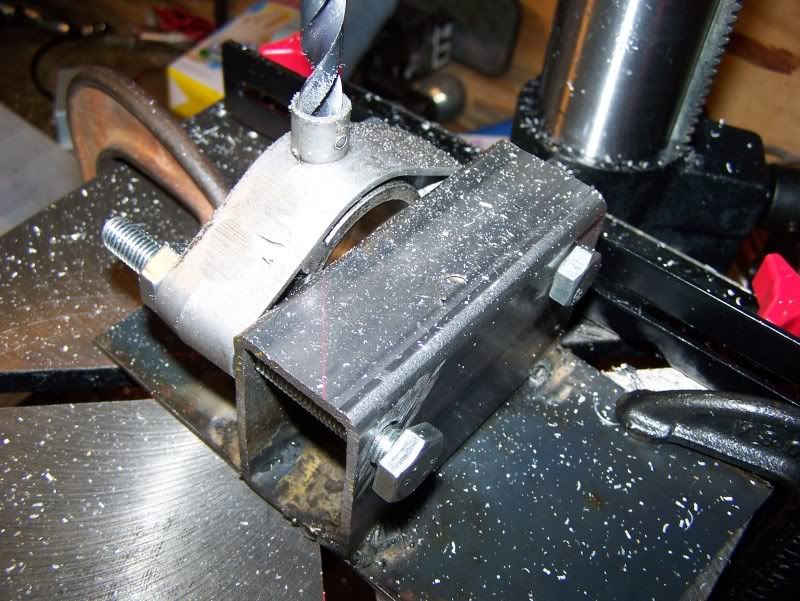

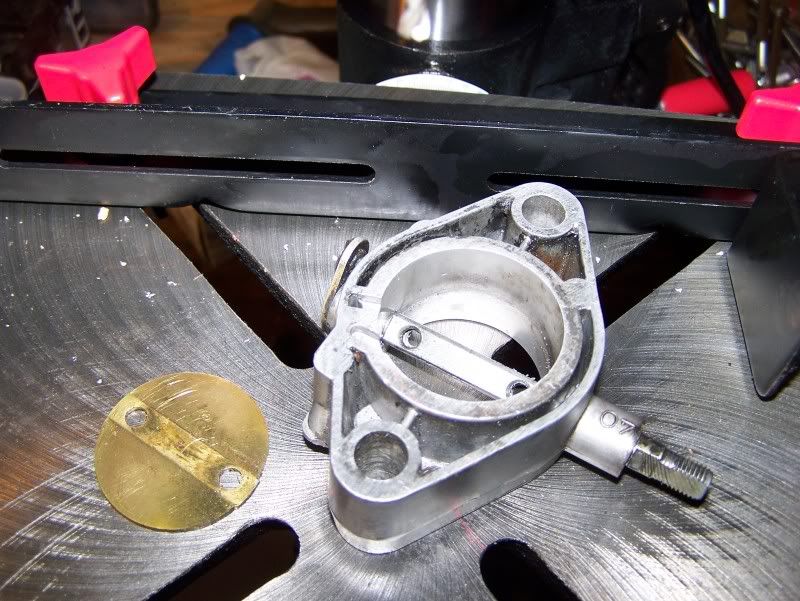

I made another jig to make the next part easy and keep the holes straight. Drill a hole in each side of the throttle body to fit the bushing. In this case, I use a 10mm diameter OD bearing (or bushing, depending on who you ask). The hole is 9.7mm deep to accommodate the bushing size.

Image may have been reduced in size. Click image to view fullscreen.

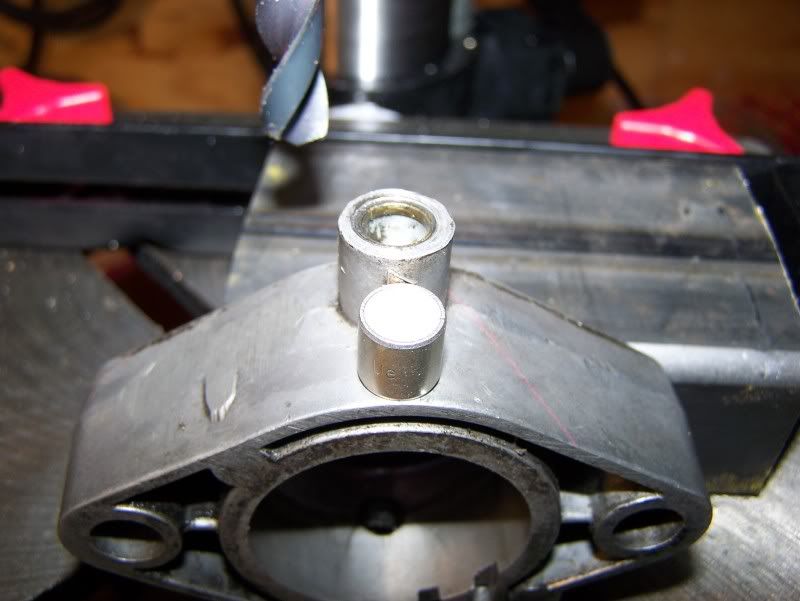

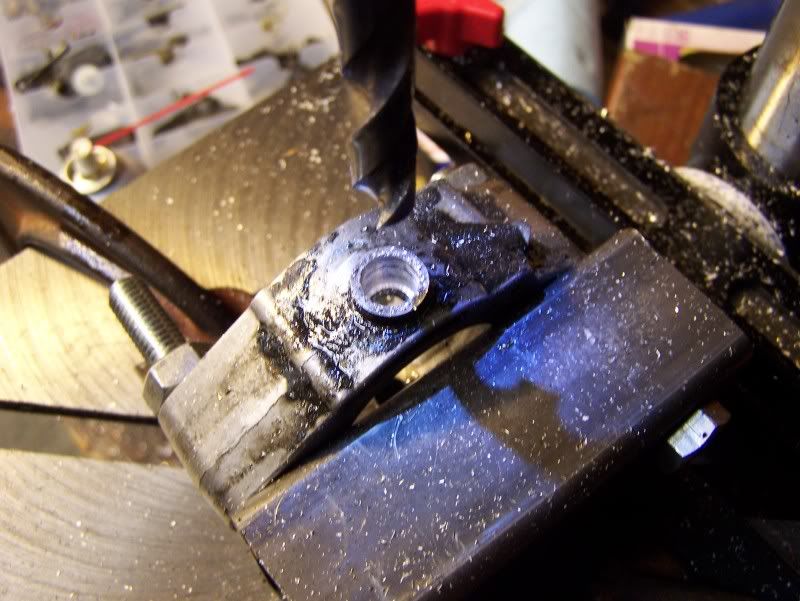

Be careful! It's super easy to drill all the way through. Holes are much harder to "undrill", I've found.

Image may have been reduced in size. Click image to view fullscreen.


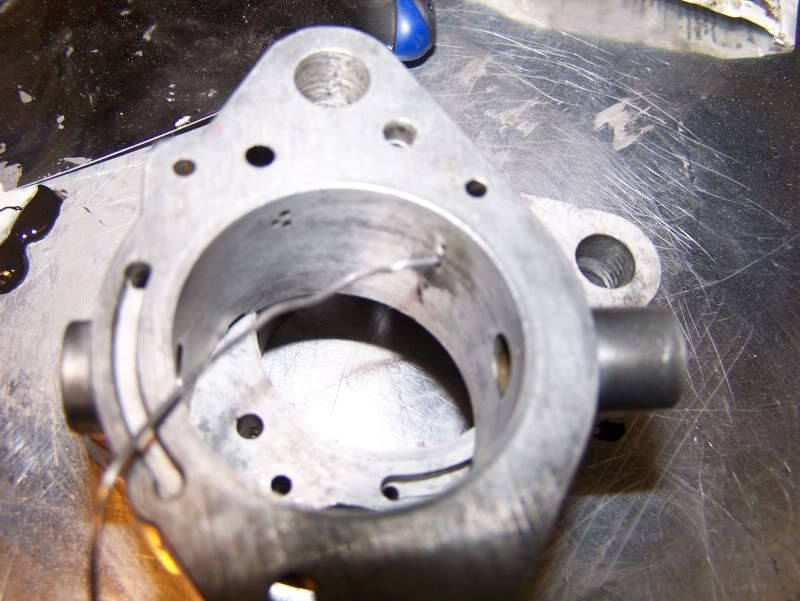

Tap your bushings in (or press, as necessary). I'm also using a little JB Weld on mine to keep them from spinning when they aluminum heats up. If I'm going to be modifying the carb for vacuum advance, I cut a small piece of .0403" aluminum wire, coat it in JB weld, and fill the little hole in the throttle body as shown. Don't fill the wrong hole or your throttle body will be instant junk! This creates the proper vacuum signal for the VW distributors when adding the port for the advance on the case of the carb. The carb was pre-designed like this, but never imported into the USA with this factory option.

Image may have been reduced in size. Click image to view fullscreen.


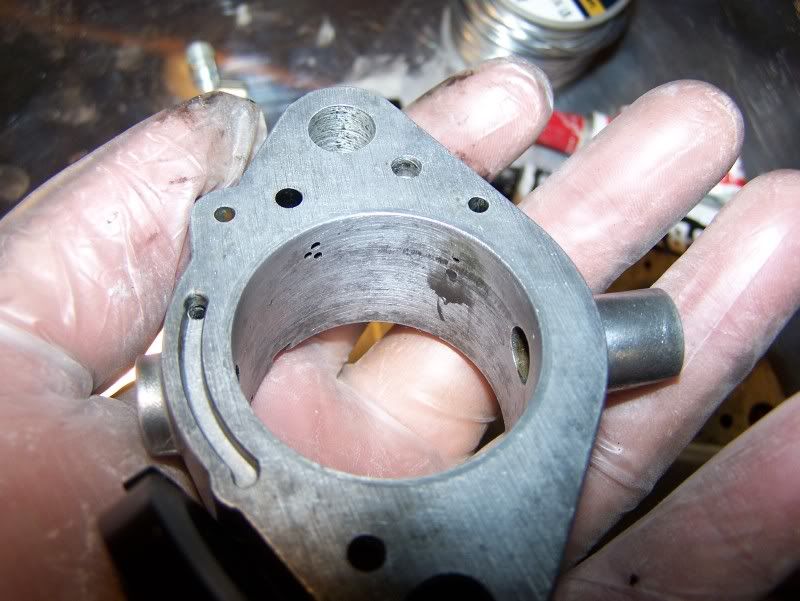

After 24 hours, I return and sand the filler smooth.

Image may have been reduced in size. Click image to view fullscreen.


Reassemble very carefully, especially when sliding the throttle plate back inside the holder. Make sure its orientation is correct, as it sits very tightly inside the body when the butterfly valve is closed. Install your new screws and tighten them only when it seats right, checking, and double-checking everything as it opens and closes.

Image may have been reduced in size. Click image to view fullscreen.


When everything's right peen the back of the screw. I also use Loctite on mine. Assemble the linkage connecting arms as needed. Remember: Stock ones have a left and right. The "Outie" is for the driver's side, and the "Innie" is for the passenger's side. Scat linkage has the ball drilled out and both offsets point the same way. The offset points out. I Loctite mine on, as well as re-bending the little thin washer.

Image may have been reduced in size. Click image to view fullscreen.




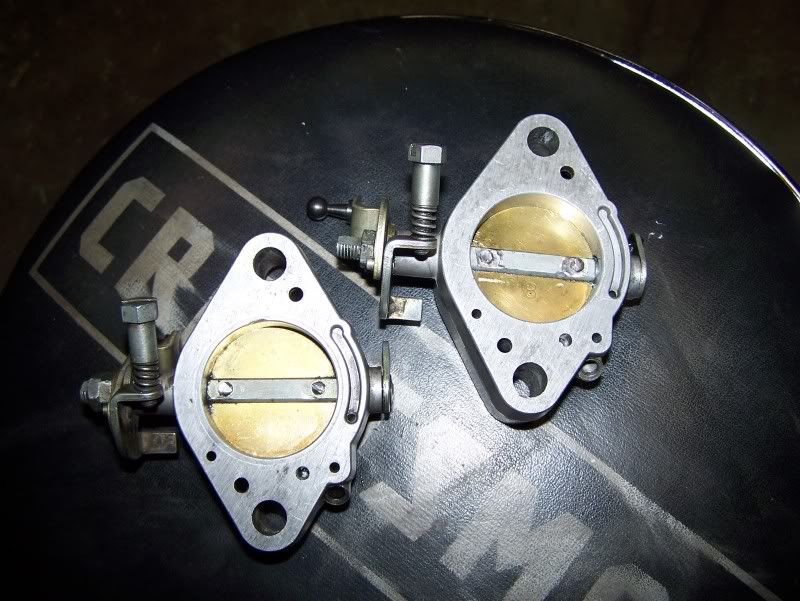

Voila, you're done!


.... And yes.... I can do this for you. PM me if interested.

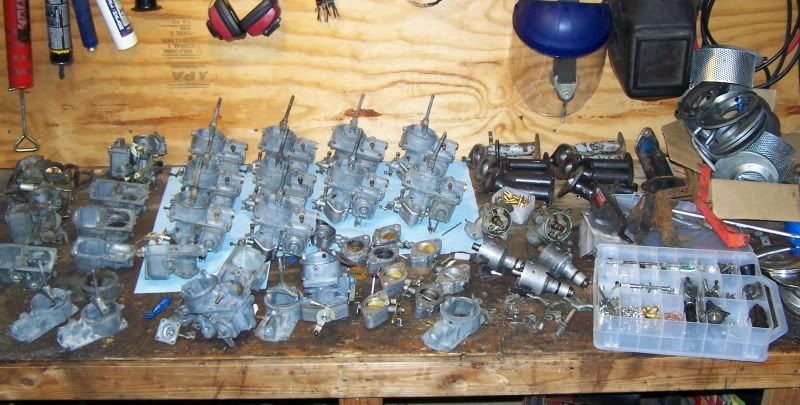

Here's what my garage often looks like:

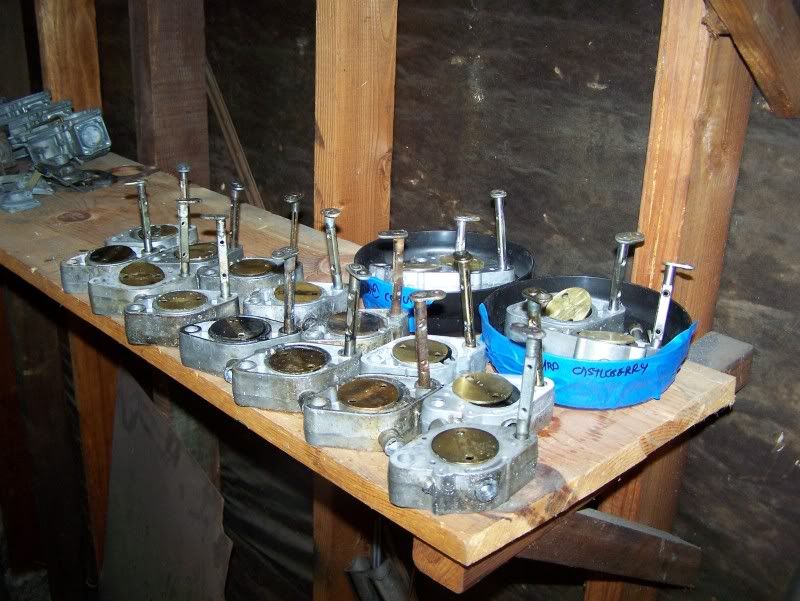

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


We call it the "Kaddie Shack".
_________________
KaddieShack.com - Kadron Carburetor Specialists, VW Parts and Accessories
Have fun with the KS crew on Facebook and keep up to date on the latest builds and happenings


Last edited by 57baja on Thu Mar 18, 2010 12:35 am; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: August 03, 2002
Posts: 12785
Location: Salt Lake City, Utah
john@aircooled.net is offline

PostPosted: Sun Feb 28, 2010 7:48 am    Post subject: Re: HOW TO: Re-Bushing Kadron Throttle Bodies Reply with quote

awesome write up! Very Happy
_________________
It's just advice, do whatever you want with it!

Please do NOT send me Private Messages through the Samba PM System (I will not see them). Send me an e-mail to john at aircooled dot net

"Like" our Facebook page at
http://www.facebook.com/vwpartsaircoolednet
and get a 5% off code for use on one order for VW Parts ON OUR PARTS STORE WEBSITE, vwparts.aircooled.net
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
Humanure
Samba Member


Joined: May 31, 2002
Posts: 376
Location: Pangea
Humanure is offline

PostPosted: Sun Feb 28, 2010 7:56 am    Post subject: Reply with quote

Nice how-to! I just checked my Kads that I recently bought and discovered detectable play in both shafts. Mad You may get a PM from me in the near future.
_________________
It is difficult to free fools from the chains they revere.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 79414
Location: Sneaking up behind you
Glenn is offline

PostPosted: Sun Feb 28, 2010 8:02 am    Post subject: Reply with quote

Added to the FAQS/Sticky

thanks.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
nsracing
Samba Member


Joined: November 16, 2003
Posts: 9737
Location: NOVA
nsracing is offline

PostPosted: Sun Feb 28, 2010 10:17 am    Post subject: Reply with quote

How are you setting the alignment on the shaft before you drill?

How much press-fit on the bushings w/ the drill bit? How about a sized reamer instead? They do come in fractional sizes for whatever bushing size you got, you know.

If the alignment is straight on the set up, you can ream right through, tap the bushings in and ream again to final size. And you will NOT need JB-Weld either if done this way. Money saved right there.

I would not use a drillbit on this job. But not bad considering.

Cool.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
57baja
Samba Member


Joined: April 15, 2008
Posts: 1166
Location: Kaddie Shack Temple City
57baja is offline

PostPosted: Sun Feb 28, 2010 10:41 am    Post subject: Reply with quote

nsracing wrote:
How are you setting the alignment on the shaft before you drill?

How much press-fit on the bushings w/ the drill bit? How about a sized reamer instead? They do come in fractional sizes for whatever bushing size you got, you know.

If the alignment is straight on the set up, you can ream right through, tap the bushings in and ream again to final size. And you will NOT need JB-Weld either if done this way. Money saved right there.

I would not use a drillbit on this job. But not bad considering.

Cool.


You do have some great points. I have considered getting a couple reamers, one for the ID on the throttle bodies, and one for the ID of the bushings. They're both metric sizes, 10mm and 8mm, respectively. However, my metric drill bits seem to be working OK for the time being.

As fas as the alignment on the shaft, the jig I built seems to be doing a good job of keeping that pretty straight. I just pay very careful attention to set-up before I start drilling.

Most of the time, the press-fit of the bushings goes fairly smoothly. I just start with the bushings in the holes, put the whole enchilada in the bench vise, and squeeze them in. The JB Weld is probably not even necessary, but I use it anyway, as it is already out and mixed to fill the hole for the SVDA modification.

Besides, if I had all the correct tooling, it would just make things too easy!

LOL. Thanks for the input. Eventually I may change my evil ways. If I do, I'll be sure to update this thread to reflect the changes.
_________________
KaddieShack.com - Kadron Carburetor Specialists, VW Parts and Accessories
Have fun with the KS crew on Facebook and keep up to date on the latest builds and happenings
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
jonvo4591
Samba Member


Joined: January 31, 2010
Posts: 113
Location: Grand Rapids, MI
jonvo4591 is offline

PostPosted: Sun Feb 28, 2010 10:58 am    Post subject: Reply with quote

Jeff, I just read the version of this that you have on your socalbajas site, and I see you've added the part about the vac advance. Nice to see what went on with my carbs Wink
_________________
1.) Good
2.) Fast
3.) Cheap

Pick two.
Back to top
View user's profile Send private message Classifieds Feedback
nsracing
Samba Member


Joined: November 16, 2003
Posts: 9737
Location: NOVA
nsracing is offline

PostPosted: Sun Feb 28, 2010 12:36 pm    Post subject: Reply with quote

The reamers have enough lead angle to ream/cut right through the bore. And as it passes through also size the hole to the proper size. You will not need the drillbit.

You need a more precise jig for drilling or reaming the body. Make that your new project. Wink

I can post a pic of a jig if you don't mind since this is your thread.

Cool man.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ralf
Samba Member


Joined: July 08, 2008
Posts: 1215
Location: r4
ralf is offline

PostPosted: Sun Feb 28, 2010 12:44 pm    Post subject: Reply with quote

see now i wonder,

drilling the hole for the throttle shaft, not all the way thru so the bushing sits well etc


i wonder, if ur gona bore the throttle body, to a bigger size..


do u drill the bushing hole shallower?


good stuff btw..


and nice inputs NSR!
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
jbrandt01
Samba Member


Joined: August 21, 2008
Posts: 267
Location: Livonia, MI
jbrandt01 is offline

PostPosted: Sun Feb 28, 2010 1:42 pm    Post subject: Reply with quote

Awesome, I'm going to do this sometime this week.
Back to top
View user's profile Send private message Classifieds Feedback
57baja
Samba Member


Joined: April 15, 2008
Posts: 1166
Location: Kaddie Shack Temple City
57baja is offline

PostPosted: Sun Feb 28, 2010 4:18 pm    Post subject: Reply with quote

It's not MY thread. It's for the edification of all. Like I said, I'm always up for improvement. This is the procedure I came up with, and I've done a bunch of them this way. To my knowledge, this is the only thread on the net where this topic is covered (except my threads on SoCal, STF, etc). There seems to be a blanket of silence as to how to re-bush these, even though Kaddies have a known issue of wearing out throttle bodies.

Like I said... I'm totally with you on the reamer idea. \Eventually I'll incorporate that into my approach at some point, I'm sure. For now, it seems to be working fine with the drill bit. Although it is not ideal, I'm getting pretty good results.

Post up the way you do it. I'm certainly interested in seeing what you've got to add.
_________________
KaddieShack.com - Kadron Carburetor Specialists, VW Parts and Accessories
Have fun with the KS crew on Facebook and keep up to date on the latest builds and happenings
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
VanderBus
Samba Member


Joined: April 26, 2005
Posts: 202
Location: Santa Paula, CA
VanderBus is offline

PostPosted: Mon Mar 01, 2010 7:43 pm    Post subject: Bushing source Reply with quote

Can you post where you bought those bushings from?
_________________
1969 Bug (in pieces)
1970 Bus (daily driver)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 42364
Location: at the beach
SGKent is offline

PostPosted: Mon Mar 01, 2010 10:54 pm    Post subject: Reply with quote

When you set the throttle plates be sure to check alignment of the 1st transistion hole. It should be 100% covered until the throttle just barely starts to open from idle. If not you can play with the plates to get them just right. It will enhance the smoothness of the transisition off idle.
_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin
Back to top
View user's profile Send private message Gallery Classifieds Feedback
57baja
Samba Member


Joined: April 15, 2008
Posts: 1166
Location: Kaddie Shack Temple City
57baja is offline

PostPosted: Wed Mar 03, 2010 1:51 am    Post subject: Reply with quote

SGKent wrote:
When you set the throttle plates be sure to check alignment of the 1st transistion hole. It should be 100% covered until the throttle just barely starts to open from idle. If not you can play with the plates to get them just right. It will enhance the smoothness of the transisition off idle.


Yes... and the butterflies only go in one way. They have a slight angle built in to where it seats against the throat. They will seat PERFECTLY if done correctly.

VanderBus wrote:
Can you post where you bought those bushings from?


Yes... but I'd have to kill you. I actually get them from a wholesale supplier I deal with at work. I order them 20 or 30 at a time, as I do a lot of carbs. There are a bunch of bushing suppliers out there. A Google search should turn up something, or perhaps your local machine shop has someone they can recommend. They're 8mm ID x 10mm OD x 10mm deep. Here's a link to the site. They have a dealer locator on the page. Just plug in your zip.



http://colinx.com/ptp/do/productDetail;jsessionid=...ge=English
_________________
KaddieShack.com - Kadron Carburetor Specialists, VW Parts and Accessories
Have fun with the KS crew on Facebook and keep up to date on the latest builds and happenings
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
thesatelliteguy
Samba Member


Joined: January 06, 2007
Posts: 1515
Location: Santa Rosa CA
thesatelliteguy is offline

PostPosted: Sat Aug 21, 2010 4:41 pm    Post subject: Reply with quote

MAN, i like the way you work. Im gonna be buying a set of your carbs as soon as i save up the money. Which will probably be a while since im back in school. But im dreamin' until then.
_________________
Toyotas are so bumpy it makes me sick, literally.

My build Page http://www.thesamba.com/vw/forum/viewtopic.php?t=383878
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bdkw1
Samba Member


Joined: December 08, 2008
Posts: 798
Location: SoCal
bdkw1 is offline

PostPosted: Sun Aug 29, 2010 12:42 am    Post subject: Reply with quote

nsracing wrote:
How about a sized reamer instead?


Reamers have the same drawback as a drill bit, they fallow the hole. If your hole is oval you will end up with a reamed hole that is off center of the original hole. plunging it with and end mill on a properly located jig would be the only way to ensure correct hole location. I skip the reamer entirely and circular interpolate the hole with an endmill.........


When reaming the bushing to size, make sure your reamer is long enough to hit both bushings at the same time......... But maybe I'm just being picky from being a machinist for so many years..........
Back to top
View user's profile Send private message Classifieds Feedback
nsracing
Samba Member


Joined: November 16, 2003
Posts: 9737
Location: NOVA
nsracing is offline

PostPosted: Sun Aug 29, 2010 3:17 am    Post subject: Reply with quote

Well if you want to get technical, how about just using a boring head and bore right through there?

There are also piloted reamers and/or can be made w/ pilots. A reamer will self-center better than a drill. And if the reamer is short enough and stiff enough, it can bore a very straight hole w/ just its leading edges.

An ovaled hole should really be bored w/ a single toolbit tip as in an adjustable boring head. But such set up requires a milling machine and proper angling/mounting on the table.

But an endmill will also be good, provided the alignment is done so both holes are in one single axis. Only problem is the finish on the bores. It will not be as smooth as a reamed one. The endmilled hole will have chatter marks.

I use an endmill to move over a guide bore and follow it w/ a proper sized reamer to finish the bore.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
57baja
Samba Member


Joined: April 15, 2008
Posts: 1166
Location: Kaddie Shack Temple City
57baja is offline

PostPosted: Sun Aug 29, 2010 9:08 pm    Post subject: Reply with quote

Technical - Schmechnical. Laughing


I'm sure someone could do it the "right" way, and I'd be the first to admit that I'm no machinist. You guys are obviously much more qualified than I. I'm just a schmuck with a home-brewed recipe for a good thing.

We do get excellent results doing it the way we're doing it, however: with our goofy hamster-driven drill press and all! We've done at least 200 of them this way, and it seems to be working really, really well. I think we've had only one failure of a bushing, and to date, that's unverified until we get it back. That's 99.5% success rate!!!

Our Kaddie Shack T-bodies are far superior to the factory bushings, and we're running into more and more urethane ones that another shop has done that are wallowed out, too. I'd have to go out on a limb and say we've got the best ones in the business now, although I've seen some pretty good ones that look like they've been done with bronze valve stem guides by professional machinists.

The trick is getting the drill centered as best as possible in the hole, and knowing when to stop the drill bit, as it is important that when we press in the new bearings, that they bottom out at a certain point, as the depth setting helps to center the butterfly in the hole and eliminate binding. As we do more and more, we've deviated a little bit from the original write up I did here, but the basic principles remain the same.
_________________
KaddieShack.com - Kadron Carburetor Specialists, VW Parts and Accessories
Have fun with the KS crew on Facebook and keep up to date on the latest builds and happenings
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
bdkw1
Samba Member


Joined: December 08, 2008
Posts: 798
Location: SoCal
bdkw1 is offline

PostPosted: Mon Aug 30, 2010 10:03 pm    Post subject: Reply with quote

nsracing wrote:
Well if you want to get technical, how about just using a boring head and bore right through there?


That would require Me to leave the CNC dept and go over to the manual dept......... I'm way to lazy for that! Laughing
Back to top
View user's profile Send private message Classifieds Feedback
nsracing
Samba Member


Joined: November 16, 2003
Posts: 9737
Location: NOVA
nsracing is offline

PostPosted: Tue Aug 31, 2010 5:30 pm    Post subject: Reply with quote

The tool room still support the CNCs you have, don't they? Someone still has to make your tools for the CNCs. Very Happy
Back to top
