PostPosted: Mon Mar 29, 2010 7:28 pm    Post subject: Power Window Motor Rebuild: How to Reply with quote

Hello,

After an intensive search of this Forum to address a Power Window issue that I had been experiencing, I found a gap in the literature on this subject. This is the reason for this write-up. Some of the terminology will be incorrect and some of the illustrations will be out of focus; I am NOT a professional mechanic, nor am I in this for pleasure, I just couldn’t find a write up for this on TheSamba and wanted to roll down my window. I could not rationalize spending $200, (insane), on new window motors and I know that I am not the only one with this problem. This post is purely meant to fill the hole in the documentation regarding this commonly malfunctioning and rather expensive to replace part.
Ok... with the lawyer talk out of the way, let’s get started.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

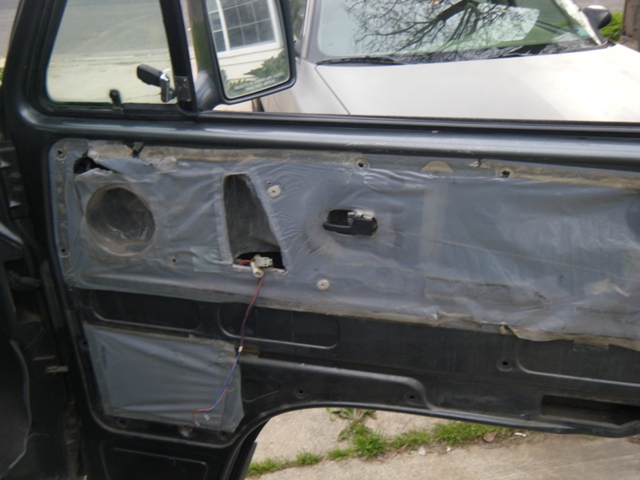

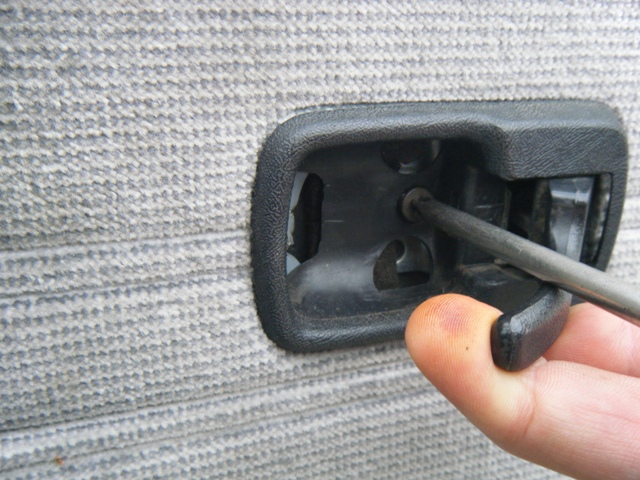

Get the door panel off, it should be straightforward enough. Be careful not to rip the plastic keepers from the panel.
Image may have been reduced in size. Click image to view fullscreen.

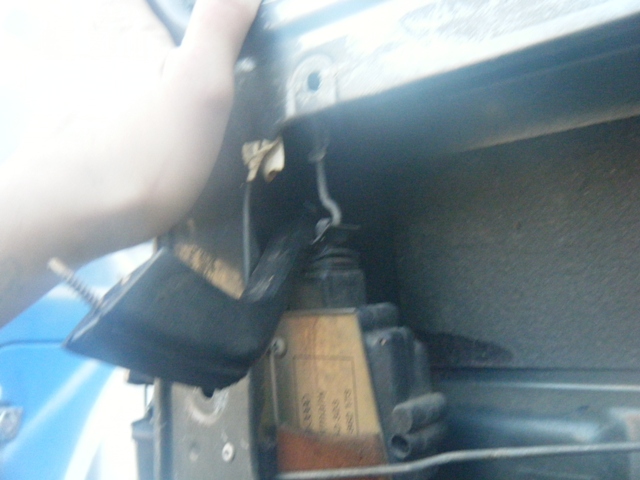

This is where you will begin. The vertical rail that the window holder rolls up and down on needs to come out. There are two bolts that hold this piece to the door, the one you see here and one on the underside of the door too.
Image may have been reduced in size. Click image to view fullscreen.

There are also two that hold the window in the guide that runs up and down this track; these must be removed before the vertical rail can be maneuvered from the door. This can be difficult depending on where the window is. The glass will stay in the door; you can wedge it up with the pull handle.
Image may have been reduced in size. Click image to view fullscreen.

Once you get the regulator out of the door this guide rail and slider mechanism is easier to understand.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

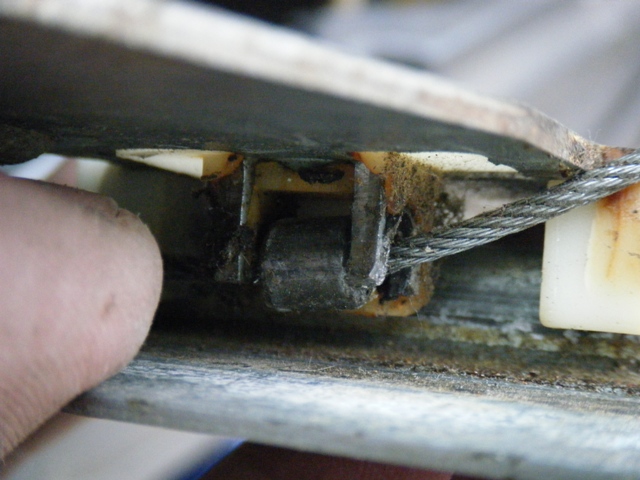

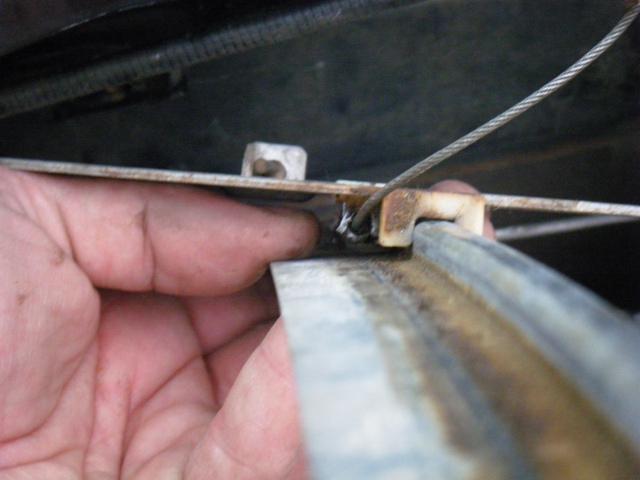

Mine had popped free from the cable that pulls the window holder along this channel piece.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

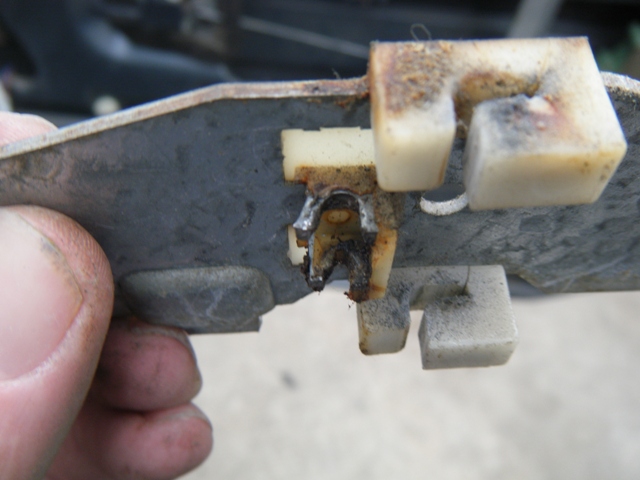

The rail has plastic points held on with plastic keepers at the top and bottom that the cable runs through; both of mine had broken these, one at the top, (white), and the other at the bottom, (grey). The top was badly worn. Anyway, when I was done rewinding the cable inside the “wheelhouse” of the motor, I used a metal bolt to hold them in place. The cable is under A LOT of tension, do not be surprised with this tension… it’s supposed to be this way.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

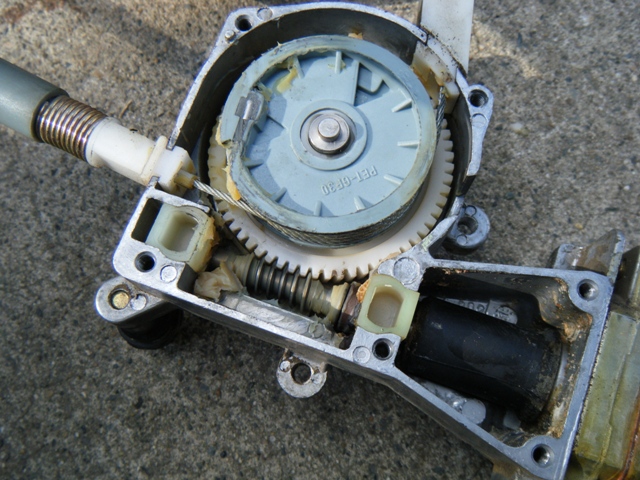

But let’s not get ahead of ourselves. This is the “wheelhouse”, and if either of the plastic points pop the tension is released and the cable gets bound up in this “W/H” and stops the motor from winding up the cable. Rewinding this cable in the W/H does NOT fix the motor. We’ll go through that though.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

As a side note, I had two slightly different motors, one with a grey wheel and the other with a white wheel.

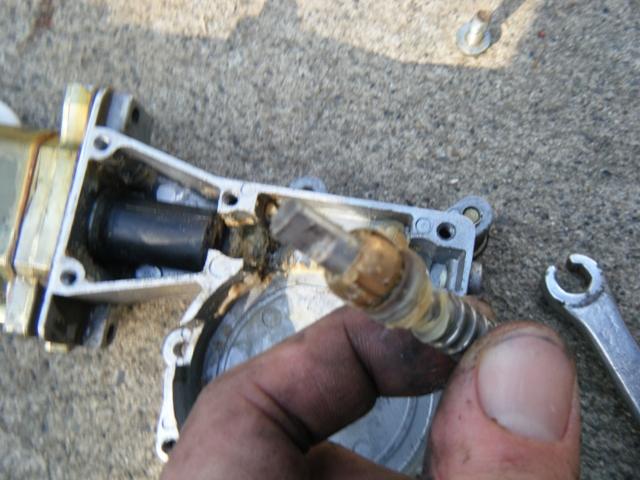

Pop the W/H cover off and pull the plugs that hold the worm gear in place to get the wheel out.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Tack out the cable guide tubes the same way as the plugs that hold the worm gear in place. The cable should be a contiguous piece that is comprised of the tubes, wheel, rail, and cable as a single unit, remove all of this as it will be in your way. Put everything in a Ziploc to keep it clean and put it somewhere safe for now. We will come back to this later.

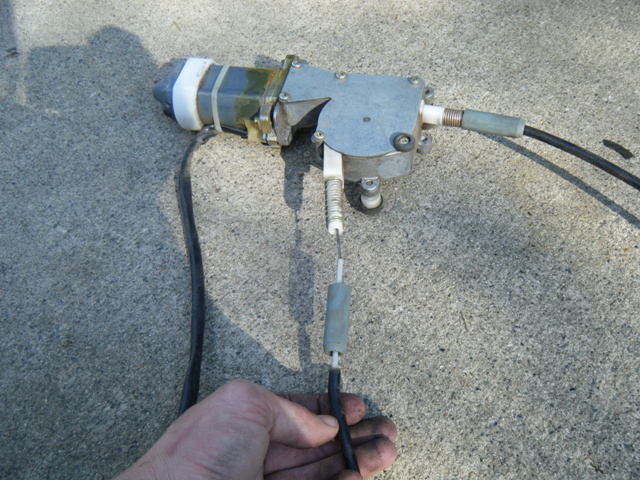

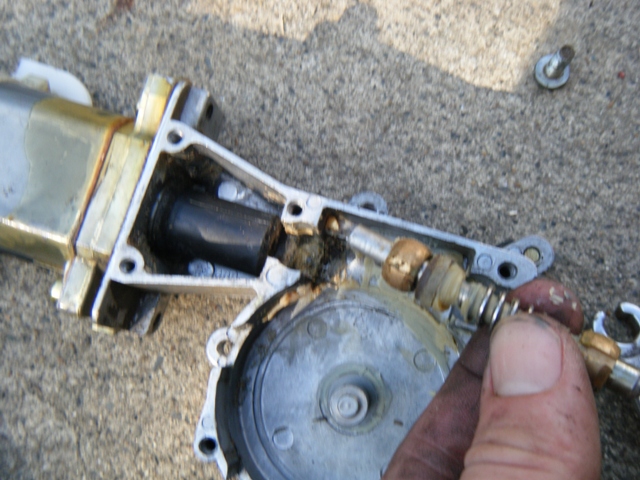

Let’s start the motor. Pull the “W/H” from the motor; this will be a tight spot. A 10mm socket and a flat-tip worked out well for me.
Image may have been reduced in size. Click image to view fullscreen.

You will need a star-tip screwdriver to remove the plate that sits between the “W/H” and the motor insides.
Image may have been reduced in size. Click image to view fullscreen.

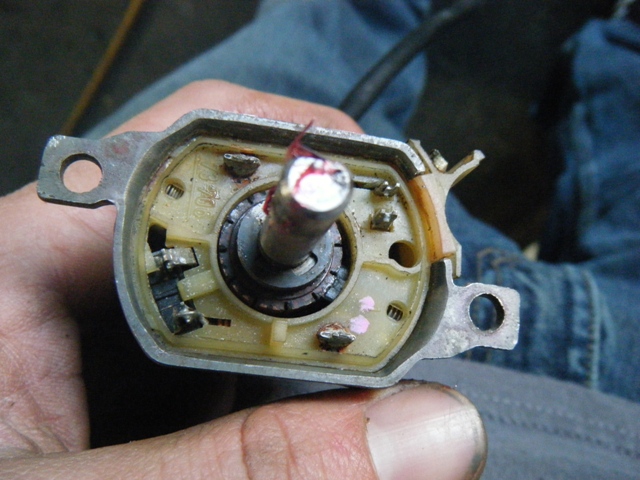

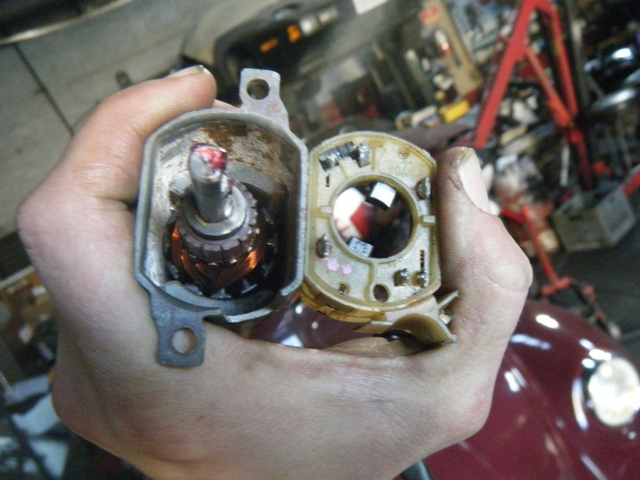

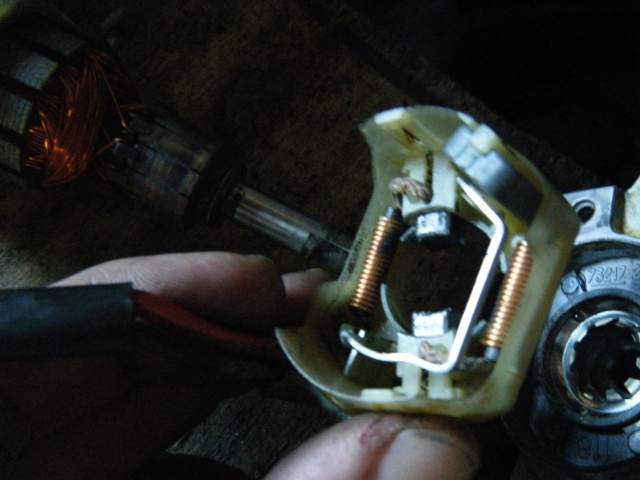

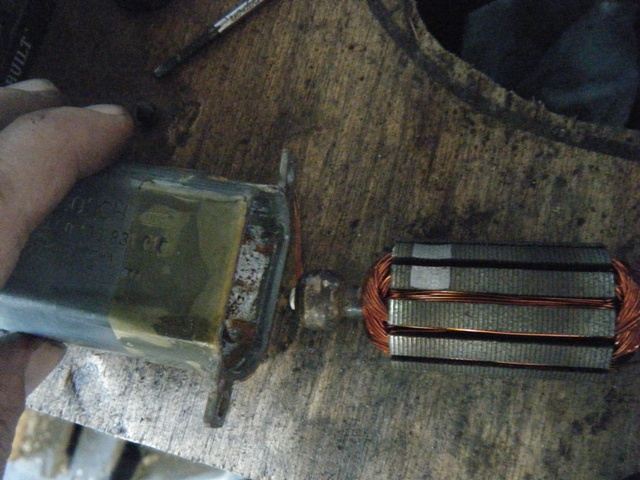

Under this plate is a plastic piece that holds the brushes that run along the center of the motor. The metal plate houses the bearing that holds the center shaft behind a fingered keeper. Water damage can freeze this up; there are two, top and bottom.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

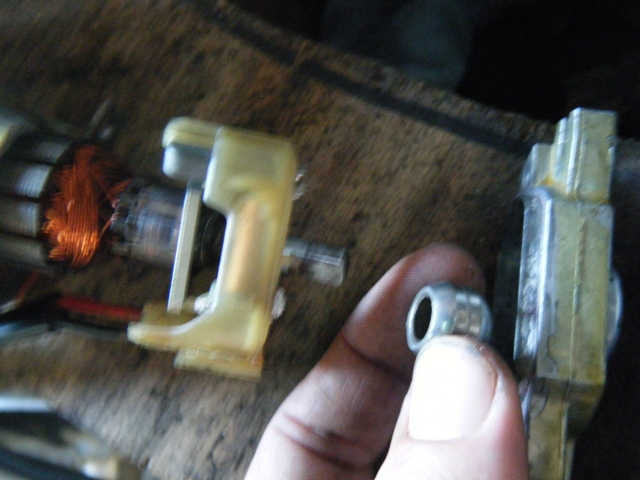

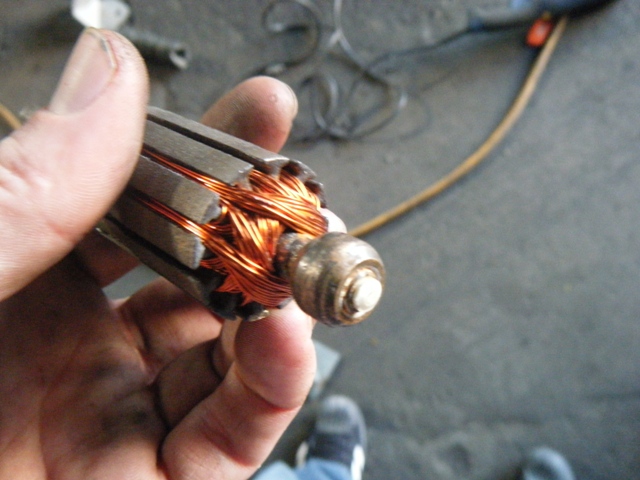

The top bearing:
Image may have been reduced in size. Click image to view fullscreen.

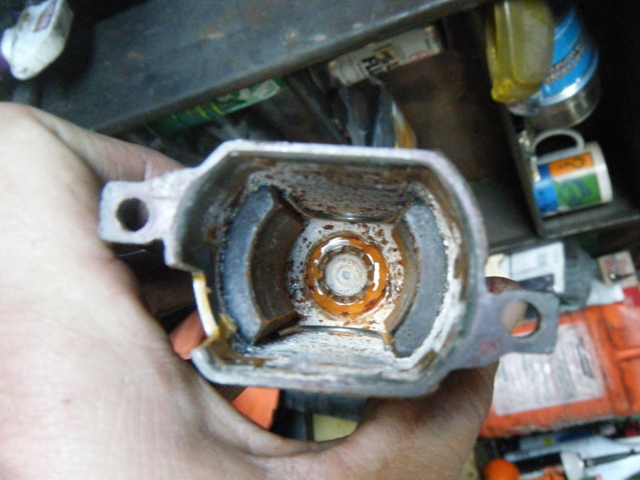

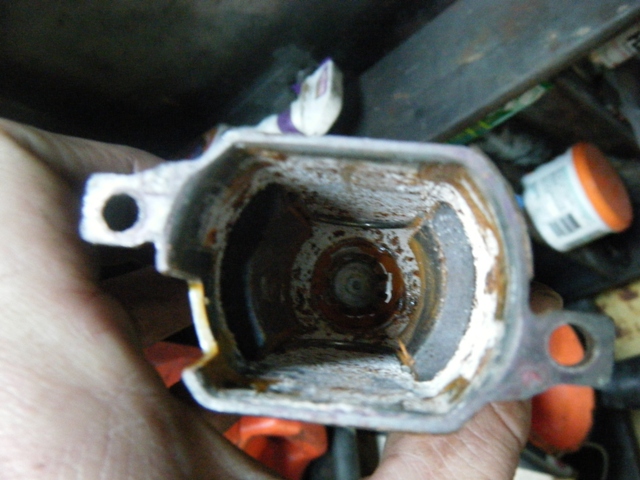

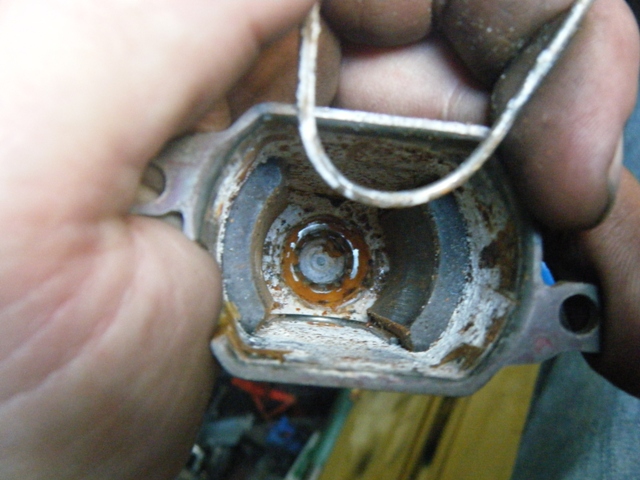

The bottom:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

The bottom was the frozen one on my motor.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

All of these point MUST be clean and freely spin on the shaft and in both top and bottom bearing keepers. There are two wire clips that hold the magnets that you see in the motor housing. They need to come out and the entire thing needs cleaned and lubed up before we reassemble this.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Fine sandpaper and a wire wheel were used to remove any corrosion from the shaft where the bearings ride and to clean up the track that the brushes run.
Image may have been reduced in size. Click image to view fullscreen.

Now it’s time to start putting everything back together. Fun. The hardest part here is getting that bottom bearing into the fingered keeper at the bottom of the motor housing, Be sure to lift the fingers enough to slip the bearing down inside it or you will have bigger problems. The top is much easier to work with. These bearings must go in first, before reassembly.
Image may have been reduced in size. Click image to view fullscreen.

I think that the brass bottom one is purposely so… corrosion resistant?
Image may have been reduced in size. Click image to view fullscreen.

Starting from the bottom of the motor, (with the lubed-up brass bearing inserted), slip the main shaft down into the bearing and retainer. Then slip the plastic plat with the brushes down onto the shaft. This can be tricky to get the brushes to squeeze up into their places while caressing them over their tracks on the main shaft. Be patient here.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Now we can replace the metal plate that holds the top bearing, (be sure to lube the top of the shaft last to keep grease from getting on the brush tracks), that we first removed to expose the motor’s guts.
Image may have been reduced in size. Click image to view fullscreen.

Bolt the housing back together in reverse.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

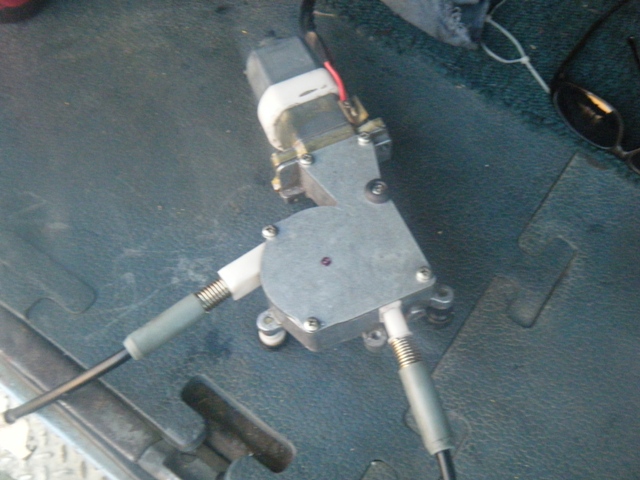

Ok… you’re done with the motor, (this was the easy part). Now go plug it in and watch it spin.

Slap yourself on the back and say something encouraging to yourself. Have a beer; this is not over.
We will rewind the “Wheel House” and set the tension, and reattach the end points more securely in the next post. I would rather do this rebuild than to sit here at my desk. I will post the rest as I have time.

Thanks for reading…

Damian
_________________
Lind wrote:
Apparently I was just the lucky asshole that showed up at the right time.


I am a Dick, hear me roar- Laughing

Me, an OVP Lifer...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
buildyourown
Samba Member


Joined: March 01, 2009
Posts: 1668
Location: Seattle
buildyourown is offline

PostPosted: Mon Mar 29, 2010 7:36 pm    Post subject: Reply with quote

Your timing couldn't be better. Mine crapped out last week.
Thanks.
I love this place.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
whynotvw
Samba Member


Joined: May 04, 2004
Posts: 1322

whynotvw is offline

PostPosted: Mon Mar 29, 2010 7:37 pm    Post subject: Reply with quote

great Job Applause Applause Applause
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
James 93SLC
Samba Member


Joined: January 21, 2009
Posts: 937
Location: NE Ohio
James 93SLC is offline

PostPosted: Mon Mar 29, 2010 7:38 pm    Post subject: Reply with quote

Nice write-up! Thanks!
This is on my Spring To-Do List
_________________
-------------------------
91 Vanagon Carat
93 Corrado SLC
-------------------------
Photos: http://picasaweb.google.com/slc.corrado
--------------------------------------------------------
tencentlife "Sometimes a pooka is a problem and sometimes it's just a pooka"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Busryder
Samba SuperHero


Joined: September 17, 2007
Posts: 1663
Location: In Your Face...
Busryder is offline

PostPosted: Mon Mar 29, 2010 7:49 pm    Post subject: Reply with quote

Thank you gentlemen Cool Some one had to do it. TheSamba has been up since 2000; ten years was just way too long to wait for this.

I will finish up with this later, enjoy!
_________________
Lind wrote:
Apparently I was just the lucky asshole that showed up at the right time.


I am a Dick, hear me roar- Laughing

Me, an OVP Lifer...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
solana_sc
Samba Member


Joined: November 04, 2006
Posts: 9
Location: Deep in the Southeast
solana_sc is offline

PostPosted: Tue Mar 30, 2010 7:12 am    Post subject: Reply with quote

Fantastic post! One question: what would be the best grease to use for the motor bearings as well as for the regulator assembly? White lithium grease, moly wheel-bearing grease, or ??

Thanks!
Back to top
View user's profile Send private message Classifieds Feedback
mike boland Premium Member
Samba Member


Joined: February 22, 2004
Posts: 158

mike boland is offline

PostPosted: Tue Mar 30, 2010 10:06 am    Post subject: Reply with quote

Busryder wrote:
Thank you gentlemen Cool Some one had to do it. TheSamba has been up since 2000; ten years was just way too long to wait for this.

I will finish up with this later, enjoy!


Nice write up.. I just did my power windows, I started about 3 months ago..mines not my everyday car so I had time. mine was combination of problems, bad wiring in door jams so I removed dash took all wires out redid those then stilll didn't work.. tracked it to bad switches and motors and cable off its track...I did whole thing rebuilt motors redid regulators soldiered new switches in work great now...
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
stevey88
Samba Member


Joined: January 16, 2008
Posts: 1317
Location: Fremont, SF Bay Area
stevey88 is offline

PostPosted: Tue Mar 30, 2010 10:25 am    Post subject: Reply with quote

Change your window scrapers while you are at it. They are not cheap but are worth it. A worn scraper allows too much water to enter the inside of the door and cause corrosion to the auto door lock actuator and the power window mechanism and motor.
_________________
Steve

87 Westfalia full camper 4 speed
Back to top
View user's profile Send private message Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15086
Location: New York
insyncro is offline

PostPosted: Tue Mar 30, 2010 10:27 am    Post subject: Reply with quote

Really nice picture tutorial.
Thanks for sharring.

dylan
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Howesight
Samba Member


Joined: July 02, 2008
Posts: 3255
Location: Vancouver, B.C.
Howesight is offline

PostPosted: Tue Mar 30, 2010 6:19 pm    Post subject: Reply with quote

Hey Busryder:

Now that you posted this excellent power window repair item, I may just use stock VW power windows after all instead of aftermarket when I retrofit my syncor westy for power windows.

Thanks for the effort!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rs4-380
Samba Member


Joined: August 13, 2006
Posts: 449
Location: Maine
rs4-380 is offline

PostPosted: Tue Mar 30, 2010 7:07 pm    Post subject: Reply with quote

I've taken both mine apart and cleaned them out/regreased them, it has made a world of difference (one wouldn't even work if the temp was below freezing and both were slow).

You can get the motors out without pulling the whole regulator with a little manipulation
_________________
Dave
87 EJ25 Syncro GL
Back to top
View user's profile Send private message Gallery Classifieds Feedback
msouth
Samba Member


Joined: December 05, 2009
Posts: 3
Location: McKinney, TX
msouth is offline

PostPosted: Fri Apr 02, 2010 9:57 am    Post subject: is it possible to put the magnets back in incorrectly? Reply with quote

I couldn't tell from the picture--is it possible to flip a magnet over when putting it back without realizing it? If so it might be good to point out to folks that they need to make sure not to reverse the polarity.
Back to top
View user's profile Send private message Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 50216

Wildthings is offline

PostPosted: Mon Apr 05, 2010 8:08 am    Post subject: Reply with quote

One of the things I did to mine years ago when I first had trouble was drill drain holes in the bottom of the motor housings. As can be seen on yours from all the corrosion, these things fill with water, this is true even with good window scrapers.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tozovr
Samba Member


Joined: June 03, 2009
Posts: 547
Location: York, ME
tozovr is offline

PostPosted: Mon Apr 12, 2010 10:30 am    Post subject: Reply with quote

Anyone have something like this for Manual windows?
_________________
...like a young Julie Andrews all whacked out on PCP, kinda fun but kinda scary too

'83 1.6TD
DX 5 Speed
"Whistler"
www.sinisterbikes.com
Back to top
View user's profile Send private message Classifieds Feedback
davideric9
Samba Member


Joined: January 21, 2009
Posts: 998
Location: Oakland CA
davideric9 is offline

PostPosted: Mon Apr 12, 2010 12:33 pm    Post subject: Reply with quote

Plastic guides, top and bottom, were you able to get these replacement parts 037-349-001? If so where and how much?

Image may have been reduced in size. Click image to view fullscreen.

_________________
1987 Syncro Westfalia, stock (bought 1994)
1986 Syncro Westfalia SVX, 3 knob (bought 2008)
1987 Westfalia (bought 2010)
1988 Wolfsburg GL (bought 2012)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Busryder
Samba SuperHero


Joined: September 17, 2007
Posts: 1663
Location: In Your Face...
Busryder is offline

PostPosted: Wed Apr 28, 2010 11:58 pm    Post subject: Reply with quote

I am sorry Gentlemen...

But I have not yet had the time to add information, nor comments, to this thread. And for this, I do apologize.

I will do so as time permits.

Damian
_________________
Lind wrote:
Apparently I was just the lucky asshole that showed up at the right time.


I am a Dick, hear me roar- Laughing

Me, an OVP Lifer...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
buildyourown
Samba Member


Joined: March 01, 2009
Posts: 1668
Location: Seattle
buildyourown is offline

PostPosted: Sat May 15, 2010 11:45 am    Post subject: Reply with quote

Ok, I just finished up doing this. It's actually quicker and easier to get the mess out of the door and back in than it looks. Don't get me wrong, it's a PITA, but it's worth it.
My issue was just a stuck motor. I couldn't even get it all apart. I shot some PB blaster in there and then some LPS3 to keep the moisture out.
Works great now.

I would recommend this as a PM to anybody who has a spare hour or 2. Greasing the cable and track made a huge difference. You could even do that with the assembly in the door.

Thanks again to the OP.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
grambo
Samba Member


Joined: September 25, 2009
Posts: 82
Location: Old Hangtown, USA
grambo is offline

PostPosted: Tue May 25, 2010 9:14 pm    Post subject: just replaced motor and serviced regulator Reply with quote

Thank you so much for posting this write up Busryder! I just replaced my weak passenger side motor and will refurbish it. I did not disassemble the regulator mechanism/gearing, as you mention, but merely cleaned it up and regreased, along with the cable and track. Unfortunately one of the white plastic parts is broken on my regulator, but still functional for now. If anyone can suggest a source for an OEM replacement, I'd be very grateful.

Once again, thanks to the OP. This is an easy, but somewhat tedious job.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ddonnell
Samba Member


Joined: September 04, 2007
Posts: 373
Location: Sunset Beach
ddonnell is offline

PostPosted: Wed May 26, 2010 1:35 am    Post subject: Reply with quote

Absolutely PERFECT timing for me as well. Mine driver side window makes a loud clunk clunk clunk noise about 1/2 the way down, then frees up.. Diagnosing tomorrow. I too will post up some pictures if all goes well...
_________________
1990 Vanagon Carat-SOLD
1995 Dodge Ram 2500 4x4 V10
1966 Baja "The Beast"

instagram #bajabugproject
Back to top
View user's profile Send private message Facebook Classifieds Feedback
AinNYC
Samba Member


Joined: March 30, 2010
Posts: 4
Location: Portland, Oregon
AinNYC is offline

PostPosted: Sat Jul 03, 2010 11:52 pm    Post subject: Reply with quote

Excellent post. I flew down to LA to buy a rust free 87 Vanagon...and the window went clunk during the test drive. I see from the photos that a screw fix will replace the tiny plastic locator part...which is gone on one end. Dust + grease in the regulator = a lot of friction...now for the fix....later next week I have repaired both the small nut that locates the cable in the slider with a permanent epoxy mold and a wheelhouse mod for a stretched cable...pictures soon as I do the final install after all new rubber.
Back to top
View user's profile Send private message Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5, 6, 7  Next
Page 1 of 7


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
