 Posted: Fri Apr 09, 2010 4:46 am Post subject: Seamless swingaxle boot clamps |
 |
|

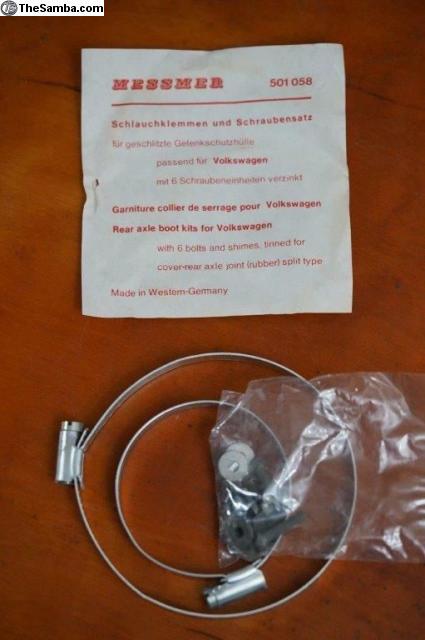

| I purchased some original style seamless axle boot clamps to secure the axle boots on my splitcase trans. The clamp kits consist of metal stips 9mm wide and about 10" long and these little keys that have what looks like a cut off cotter pin that you must thread the band through and then rotate to tighten around the boot. Any one ever install these before? Perhaps an instruction diagram? Clamps were purchased from Stoddard Porsche and no instructions were included. Thanks. |
|
| Back to top |
|
 |
caseydenise
Samba Member
Joined: April 25, 2004
Posts: 1639
Location: The Great Swamp, NJ
|
| Posted: Fri Apr 09, 2010 5:52 am Post subject: |
|
|
Can you post a picture of your clamps?
Little of topic- Did you press apart your axle tubes from the end piece? I want to order seamless boots, but don't if they can be stretched over the shock mount?
_________________
Central Jersey Volkswagen Society - President |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10797
Location: iT StiNgeD iTseLf tO dEAd
|
| Posted: Fri Apr 09, 2010 6:11 am Post subject: |
|
|
| caseydenise wrote: |
Can you post a picture of your clamps?
Little of topic- Did you press apart your axle tubes from the end piece? I want to order seamless boots, but don't if they can be stretched over the shock mount? |
http://www.stoddard.com/shop/shopexd.asp?id=575
you work the non-split boots over the flange at the transmission end (which means removing the axle tube). i've never tried going over the cast shock mount end, seems a little risky. |
|
| Back to top |
|
|
OvalWindowBucket
Samba Member
Joined: April 23, 2003
Posts: 694
Location: Reviving my Microbus
|
| Posted: Fri Apr 09, 2010 9:33 am Post subject: |
|
|
You can install seamless boots w/o pressing off the end casting on the axle tube. You have to turn the boot inside out and start the big end of the boot over the domed end of the axle tube the hard part is getting the little end of the boot over the end of the axle tube. Its like a skinny girl giving birth to a fat baby.
I ran mine under some hot water and used a little bit of liquid soap to make it easier. Holding the axle tube in a vice is a good idea as well but not absolutely necessary. I had a friend help hold the tube as I put the boot on.
You tube video of it here:
http://www.youtube.com/watch?v=AsLRVdcLdz0
Thread for reference:
http://www.thesamba.com/vw/forum/viewtopic.php?t=314234& |
|
| Back to top |
|
|
caseydenise
Samba Member
Joined: April 25, 2004
Posts: 1639
Location: The Great Swamp, NJ
|
| Posted: Fri Apr 09, 2010 12:11 pm Post subject: |
|
|
OvalWindowBucket, I knew it could be done. Thanks.
_________________
Central Jersey Volkswagen Society - President |
|
| Back to top |
|
|
3foldfolly
Samba Member
Joined: March 08, 2009
Posts: 894
Location: Edwardsville, Il
|
| Posted: Fri Apr 09, 2010 3:27 pm Post subject: |
|
|
| Thanks for the replies. The boots are on the axles. What I need to find out is how to install the above pictured band clamps. How the bands route through the tightening key and how it's secured against slippage once tight. Any ideas? |
|
| Back to top |
|
|
nlorntson
Crazy VW Lady
Joined: March 13, 2004
Posts: 3855
Location: Twin Cities, MN
|
| Posted: Fri Apr 09, 2010 4:32 pm Post subject: |
|
|

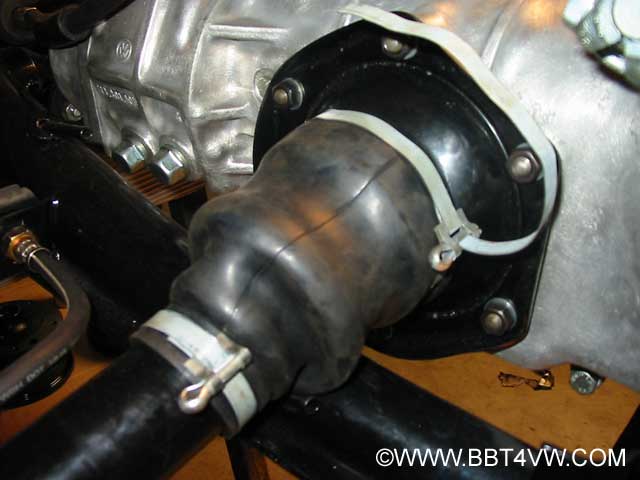

Here you go:
|
|
| Back to top |
|
|
3foldfolly
Samba Member
Joined: March 08, 2009
Posts: 894
Location: Edwardsville, Il
|
| Posted: Sat Apr 10, 2010 11:12 am Post subject: |
|
|
Thanks Nlorntson!
Great detail photos. Please excuse my stupidity but after the band is routed as pictured it looks like the band is then passed through the cotter key looking thing. How do you tension the band? Should I pull on the band with a vise grip and then rotate the key to lock in place, or do you stick a screw driver tip into the eye of the key and sort of wrap the band around the axle so to speak? Clockwise or counter-clockwise? Sorry for all the questions but I bought only 5 clamps so I can't afford to screw up the installation more than once. |
|
| Back to top |
|
|
Patty B.
Samba Member
Joined: July 14, 2005
Posts: 2181
Location: Brampton, Ontario, Canada
|
| Posted: Sat Apr 10, 2010 12:57 pm Post subject: |
|
|
| Never seen that before--that's kinda ingenious. |
|
| Back to top |
|
|
nlorntson
Crazy VW Lady
Joined: March 13, 2004
Posts: 3855
Location: Twin Cities, MN
|
| Posted: Sat Apr 10, 2010 1:19 pm Post subject: |
|
|
| 3foldfolly wrote: |
Thanks Nlorntson!
Great detail photos. Please excuse my stupidity but after the band is routed as pictured it looks like the band is then passed through the cotter key looking thing. How do you tension the band? Should I pull on the band with a vise grip and then rotate the key to lock in place, or do you stick a screw driver tip into the eye of the key and sort of wrap the band around the axle so to speak? Clockwise or counter-clockwise? Sorry for all the questions but I bought only 5 clamps so I can't afford to screw up the installation more than once. |
Yep, twisting the cotter is what tightens the band. It's sort of like the old twist key tuna or spam cans. Twist so the band feeds between the boot and the cotter on the bottom, rather than over the top.
I recall getting most of the slop out of the band prior to beginning to twist. I think at least two wraps on the cotter should do it.
I recall the band circles the boot twice, first time under the cotter and the second time through the cotter slit. The last picture from BBT seems to appear as though it goes around once and is then tightened I found that the first layer of band kept the cotter, etc. from digging into the boot and allowed it to slip and tighten.
HTH
Nancy |
|
| Back to top |
|
|
3foldfolly
Samba Member
Joined: March 08, 2009
Posts: 894
Location: Edwardsville, Il
|
| Posted: Mon Apr 12, 2010 4:28 am Post subject: |
|
|
| Thanks for taking the time to post such good directions. I installed my trans yesterday and installed the clamps without any problems.Thanks Nancy, thanks Samba! Mike |
|
| Back to top |
|
|
Alan Brase
Samba Member
Joined: March 28, 2004
Posts: 4570
Location: Cedar Falls, Iowa
|
| Posted: Sat Jun 23, 2018 12:26 pm Post subject: Re: Seamless swingaxle boot clamps |
|
|
Who sell these seamless boots and the authentic band clamps these days?
Al
_________________
Al Brase
Projects: 67 sunroof bug, 67 Porsche 912 Targa, 70 Westy
Dec 1955 Single Cab pickup WANT 15" BUS RIMS dated 8/55, thru 12/55
To New owners: 1969 doublecab, 1971 Dormobile
Vanagons:
80 P27 Westy JUL 1979, 3rd oldest known US
83 1.6TD Vanagon, 87 Wolfie Westy daily driver, swap meet home |
|
| Back to top |
|
|
nlorntson
Crazy VW Lady
Joined: March 13, 2004
Posts: 3855
Location: Twin Cities, MN
|
| Posted: Sat Jun 23, 2018 6:12 pm Post subject: Re: Seamless swingaxle boot clamps |
|
|
| Alan Brase wrote: |
Who sell these seamless boots and the authentic band clamps these days?
Al |
WW has clamps and stoddard.com has boots and clamps. |
|
| Back to top |
|
|
bnam
Samba Member
Joined: July 02, 2006
Posts: 3457
Location: El Dorado Hills CA/ Bangalore, India
|
| Posted: Mon Aug 19, 2024 9:46 pm Post subject: |
|
|
| nlorntson wrote: |
Here you go:
|
@nlorntson - Nancy, on the last time around, the band is inserted between the split in the cotter pin, correct? I'm getting to ready to install these on my 65.
Thanks,
Byas
_________________
1971 1302LS Convertible (RHD) owned since '74
Click to view image
1965 Karmann Ghia Coupe - under restoration
1966 Fiat 1500 Cabrio (with 1600 Twin cam)
1952 Citroen TA 11BL |
|
| Back to top |
|
|
nlorntson
Crazy VW Lady
Joined: March 13, 2004
Posts: 3855
Location: Twin Cities, MN
|
| Posted: Tue Aug 20, 2024 5:52 am Post subject: Re: Seamless swingaxle boot clamps |
|
|
| Yes |
|
| Back to top |
|
|
heimlich
VWNOS.com
Joined: November 20, 2016
Posts: 7464
Location: Houston, Texas
|
| Posted: Wed Aug 21, 2024 2:46 pm Post subject: Re: Seamless swingaxle boot clamps |
|
|
What year did VW change over to this style?
_________________
www.vwnos.com [email protected]
Classic Brands. Classic Quality.
Not all parts are made the same. NOS OE/OEM parts made mainly in West Germany, Early Germany, and Early Brazil are where VW produced the best quality parts and best fitting products.
5% Off your order with coupon code: 5%OFF
Restored Distributors Available (<--Click here) |
|
| Back to top |
|
|
52 split
Samba Member
Joined: December 19, 2007
Posts: 162
Location: the best island in the world, vancouver island
|
| Posted: Mon Aug 26, 2024 5:09 pm Post subject: Re: Seamless swingaxle boot clamps |
|
|
| any more info how to install those og tuna can boot clamps. turn clock wise? do you cut of excess, what keeps it from unfurling. any one got a how to video. thanks |
|
