 Posted: Sat May 01, 2010 3:54 pm Post subject: My black 58 euro bug or: "The Neverending Story" |
 |
|
Hello Sambaists
I thought of sharing with you the story of my black 1958 bug.

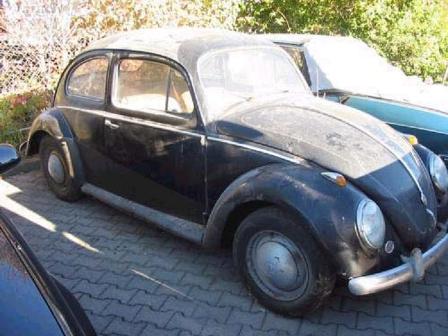

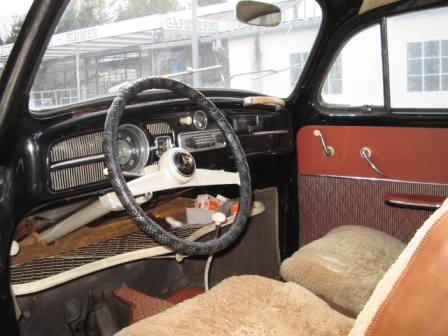

I bought this export beetle in 2003 near Stuttgart, where it sat in the back of a workshop of a local audi dealer since 1992. It looked like a real barnfind bargain, but turned out to be in need for a full-blown restoration soon.
I didn’t have the skills, time or money to do this, so the bug had to wait for another three years until my brother and I disassembled it in late 2006.
We then started the restoration of the car in my parents little one-car-garage.
It was going really slow and although my brother is a trainee for becoming a mechanic we had to figure out all the how-to’s ourselves and this always took us some time. But at the end we did get a lot done!
Between 2008 and this spring the restoration paused as working and studying for masters degree in parallel didn’t leave me any time to go on with it.
Now, I have restarted the restoration and I am absolutely certain that at some point in time, I will have my own fully-restored black 58.
My intention is not to build another show-winner, I only want to have a decent ride which does not hide its +50 year history. And my goal is to do it all by myself!!  (But please be patient with me, I am a business administration graduate and have no professional background with this kind of work  )
I am posting regular updates on my blog at http://black58.blogspot.com/and will do this here as well
_________________
cheers, Mario
* 22 Oct. '58 export bug
* 27 June 72 Westfalia Camper |
|
| Back to top |
|
 |
63CabDriver
Samba Member
Joined: November 10, 2006
Posts: 512
|
| Posted: Sat May 01, 2010 10:07 pm Post subject: |
|
|
| Hey great project! |
|
| Back to top |
|
|
doc1369
Samba Member
Joined: March 31, 2010
Posts: 2856
Location: Las Vegas, NV, again
|
| Posted: Sat May 01, 2010 10:31 pm Post subject: |
|
|
Looks good! Don't forget to enjoy the journey so the ride is that much sweeter  |
|
| Back to top |
|
|
mario_0609
Samba Member
Joined: June 08, 2008
Posts: 156
Location: Vintage VW place of pilgrimage; Germany
|
| Posted: Sun May 02, 2010 4:33 am Post subject: |
|
|
Thank you guys! - Here are some more pictures of the process so far...
All the dirty details can be found on the blog http://black58.blogspot.com
When we tore the bug apart in late 2006, the major problem was that the PO somewhen welded together body and pan with multiple layers of sheet metal in order to pass the German vehicle inspection (TÜV). And, in addition, they sealed off all this with silicone.
So, heater channels and the outer sills of the pan were pretty much gone.
We then sandblasted the pan in our garage - what a mess!!
replaced all rotten sections
and colored the pan and all attachment parts with POR 15
So, by mid-2007, the pan was complete again
Rookie Mistake: Back then, we thought we were half way through ... HAHA
Next step was to start with the body
and to fit in the new heater channels
We replaced the complete rear section
and all other typical areas in the rear section and most of the front part

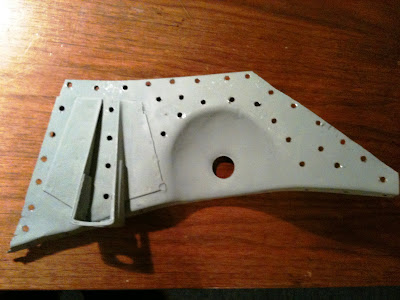

a big challenge were the enhancment parts of the inner rear wheelhouse because I did not want to use the replacement parts.
In the meantime, we disassembled the original 30 hp engine and gave it a fresh looking
So, now, May 2010, we removed the body again from the pan and i can start to finish off the bodyworks...
Next steps will include :
- Repair the lower corners of the front fire-wall
- Weld the fuel tank seating
- Renew the spare wheel front section
- Restore both lower windshield corners
- Finally weld, grind and seal all welding seams
- etc...
Again, my intention is not to build a perfect car, but i want to show with these non-pro pictures that i think that everybody can build an own bug (because i seem to can do it somehow too )
_________________
cheers, Mario
* 22 Oct. '58 export bug
* 27 June 72 Westfalia Camper |
|
| Back to top |
|
|
mario_0609
Samba Member
Joined: June 08, 2008
Posts: 156
Location: Vintage VW place of pilgrimage; Germany
|
| Posted: Wed May 05, 2010 2:47 pm Post subject: |
|
|
I was really busy the last nights, so here's a mid-week rear luggage compartment update for you
Check out the blog at  http://black58.blogspot.com/
From
to
_________________
cheers, Mario
* 22 Oct. '58 export bug
* 27 June 72 Westfalia Camper |
|
| Back to top |
|
|
mario_0609
Samba Member
Joined: June 08, 2008
Posts: 156
Location: Vintage VW place of pilgrimage; Germany
|
| Posted: Sun Jun 20, 2010 11:19 am Post subject: |
|
|
Today, I have updated my blog. I got quite some things done the last weeks so here we have a few news. Have a look!
http://black58.blogspot.com/
Happy Sunday!
_________________
cheers, Mario
* 22 Oct. '58 export bug
* 27 June 72 Westfalia Camper |
|
| Back to top |
|
|
slow36hp
scott wimberley
Joined: August 09, 2004
Posts: 3113
Location: mukilteo washington
|
|
| Back to top |
|
|
Kugen60
Samba Member
Joined: September 28, 2008
Posts: 178
|
| Posted: Tue Jun 22, 2010 5:24 pm Post subject: |
|
|
| She's gonna be a sweet ride when you get her done. |
|
| Back to top |
|
|
mario_0609
Samba Member
Joined: June 08, 2008
Posts: 156
Location: Vintage VW place of pilgrimage; Germany
|
| Posted: Tue Jun 22, 2010 10:58 pm Post subject: |
|
|
Thanks guys. She's still so much work, but I can't wait to have her up and running. Hopefully by next spring/ summer...
_________________
cheers, Mario
* 22 Oct. '58 export bug
* 27 June 72 Westfalia Camper |
|
| Back to top |
|
|
mario_0609
Samba Member
Joined: June 08, 2008
Posts: 156
Location: Vintage VW place of pilgrimage; Germany
|
| Posted: Thu Oct 14, 2010 11:58 am Post subject: |
|
|
Hi Folks,
I just added some fresh content to my blog http://black58.blogspot.com. I finally have got the front section finished. Enjoy the pics.
Approaching "Milestone 2010" --> Finish welding .. is going to get close...
_________________
cheers, Mario
* 22 Oct. '58 export bug
* 27 June 72 Westfalia Camper |
|
| Back to top |
|
|
mario_0609
Samba Member
Joined: June 08, 2008
Posts: 156
Location: Vintage VW place of pilgrimage; Germany
|
| Posted: Sat Oct 30, 2010 3:22 pm Post subject: |
|
|
Today I finished the wind shield frame. I first thought that this would become a tricky task, but it worked out to pretty well. Eventually, those corners will need some tin-coating, grinding and sanding and then this will suit good.
More, as usual on my website http://black58.blogspot.com/
_________________
cheers, Mario
* 22 Oct. '58 export bug
* 27 June 72 Westfalia Camper |
|
| Back to top |
|
|
mario_0609
Samba Member
Joined: June 08, 2008
Posts: 156
Location: Vintage VW place of pilgrimage; Germany
|
| Posted: Sun Apr 03, 2011 10:12 am Post subject: |
|
|

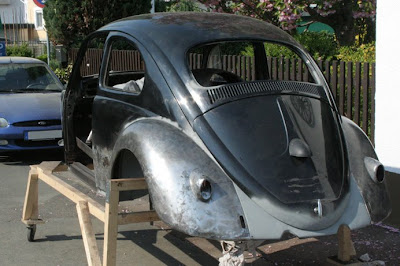

Finally, the "old lady" has got a pretty new butt - like it was when she was young
http://black58.blogspot.com/
Slowly it reminds me of a car again ... remotely
_________________
cheers, Mario
* 22 Oct. '58 export bug
* 27 June 72 Westfalia Camper |
|
| Back to top |
|
|
caseydenise
Samba Member
Joined: April 25, 2004
Posts: 1639
Location: The Great Swamp, NJ
|
| Posted: Sun Apr 03, 2011 10:19 am Post subject: |
|
|
Nice work on your resto. I have one of those black and decker work horse tables. It's good to know it will hold a VW body
_________________
Central Jersey Volkswagen Society - President |
|
| Back to top |
|
|
mario_0609
Samba Member
Joined: June 08, 2008
Posts: 156
Location: Vintage VW place of pilgrimage; Germany
|
| Posted: Sun Apr 03, 2011 10:33 am Post subject: |
|
|
hehe, The good old Black& Decker Table. Yeah, it absolutely does hold a body. But indeed, it's a bit shaky and I never fully trusted it when I was lying under it. My new frame is more reliable I'd say...
_________________
cheers, Mario
* 22 Oct. '58 export bug
* 27 June 72 Westfalia Camper |
|
| Back to top |
|
|
eastcoast63
Samba Member
Joined: April 29, 2004
Posts: 1424
Location: Ft. Lauderdale
|
| Posted: Sun Apr 03, 2011 12:54 pm Post subject: |
|
|
nice work....
Ant
_________________
Fort Lauderdale, Florida
1967 Standard Microbus
Wide 5 Vintage Volkswagen Club |
|
| Back to top |
|
|
mario_0609
Samba Member
Joined: June 08, 2008
Posts: 156
Location: Vintage VW place of pilgrimage; Germany
|
| Posted: Tue Apr 26, 2011 12:42 pm Post subject: |
|
|

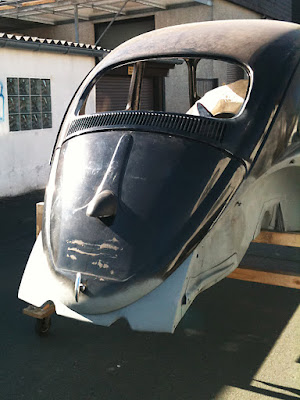

Got the back pretty much completely finished. Woohoo
From this point of view it almost looks like a car again
Now off, to get the front fenders finished as well
http://black58.blogspot.com/
