 Posted: Sun May 02, 2010 11:19 am Post subject: Reproduction Superior Control Bars |
 |
|
I decided to take on a project for myself and some friends to see if I could accurately reproduce the rarely seen or heard of Superior Control bars. I believe they came out rather nicely. They are powder coated red and silver and I use all grade 5 & 8 and class 10.9 hardware.
|
|
| Back to top |
|
 |
Herbie3Rivers
Samba Member
Joined: May 07, 2001
Posts: 1271
Location: Pittsburgh, PA
|
| Posted: Tue May 04, 2010 8:13 am Post subject: |
|
|
I picked up a set, I can't wait to install them on my 59.
_________________
Yeah I like Herbie AND New Beetles. Got a problem with it? Tough.
2010 New Beetle Final Edition
2009 Ford Mustang Bullitt
1999 New Beetle GLS
1983 Mercedes 300D
1974 Karmann Ghia
1972 Super Beetle
1970 Beetle Sunroof
1959 Original Herbie #6
1956 Oval
Three Rvers VW Club
Pittsburgh Vintage Grand Prix
Visit Herbie the Love Bug at LoveBugFans.com |
|
| Back to top |
|
|
53justin53d
Samba Member
Joined: November 26, 2005
Posts: 1
Location: BC
|
| Posted: Tue May 04, 2010 8:37 am Post subject: Control Bars |
|
|
Thanks, Bob, for my set of the control bars. They look superb!
Installed them on my Herbie replica as soon as I got them and noticed the difference in handling around corners immediately. Cheers. |
|
| Back to top |
|
|
willydozier
Samba Member
Joined: June 04, 2006
Posts: 32
Location: PDX
|
| Posted: Tue May 04, 2010 10:02 am Post subject: |
|
|
| I purchased two set of these bars after spending years trying to find an original set with no luck. I have to say, these bars are as well made or better than the originals and the powdercoat finish is much nicer. The workmanship is top notch and they fit perfectly. All welds are very clean and every thing is carefully deburred and smoothed. The hardware included is nice grade and complete. I'm very glad Bob took on this daunting project. Thanks, Bob! Worth every penny. |
|
| Back to top |
|
|
Lids
Samba Member
Joined: June 15, 2004
Posts: 263
Location: London, UK
|
| Posted: Tue May 04, 2010 11:02 am Post subject: |
|
|
| what do they do? |
|
| Back to top |
|
|
sharkskinman
Lateral Lunatic
Joined: April 26, 2006
Posts: 4045
Location: Deep In My Own Psyche
|
| Posted: Tue May 04, 2010 11:37 am Post subject: |
|
|
and how much do they cost and are they for different types??
_________________
74 Mexi Swamp Thing. 70 square volksrod (Swamp Rat)..65 C10
| Me of Course wrote: |
| Extremity is relative to how far your willing to jump |
| Ward Cleaver wrote: |
| You ever try a pink golf ball, Wally? Why, the wind shear alone on a pink golf ball can take the head off a 90-pound midget at over 300 yards |
PS4 "NKOGNEATO" |
|
| Back to top |
|
|
Komissar
Samba Member
Joined: May 18, 2008
Posts: 894
Location: Bucharest, Romania
|
| Posted: Tue May 04, 2010 11:41 am Post subject: |
|
|
I bleive they are only for swing axles modles... Irs VW's have those built in, so to speak...
And regarding their function, i presume they stabilize the lateral travel of the swing axles during hard cornering.
_________________
1965 Sunroof Beetle
1972 Type 3 Squareback
1978 Skoda 105S |
|
| Back to top |
|
|
sharkskinman
Lateral Lunatic
Joined: April 26, 2006
Posts: 4045
Location: Deep In My Own Psyche
|
| Posted: Tue May 04, 2010 11:53 am Post subject: |
|
|
well yeah i guess our IRS does
thats what the cross bar is
Duh.....
_________________
74 Mexi Swamp Thing. 70 square volksrod (Swamp Rat)..65 C10
| Me of Course wrote: |
| Extremity is relative to how far your willing to jump |
| Ward Cleaver wrote: |
| You ever try a pink golf ball, Wally? Why, the wind shear alone on a pink golf ball can take the head off a 90-pound midget at over 300 yards |
PS4 "NKOGNEATO" |
|
| Back to top |
|
|
Ace
Samba Member
Joined: July 07, 2003
Posts: 1903
|
| Posted: Tue May 04, 2010 12:25 pm Post subject: |
|
|
| Looks dead nuts. The clamps need to be chromed though. What are you using for bushings between the clamp and the arm? |
|
| Back to top |
|
|
5663 vdub
Samba Member
Joined: August 19, 2006
Posts: 27
Location: NE
|
| Posted: Tue May 04, 2010 4:01 pm Post subject: |
|
|
| Ace wrote: |
| Looks dead nuts. The clamps need to be chromed though. What are you using for bushings between the clamp and the arm? |
I thought about getting the clamps chromed but the quality of chrome sucks now days. The originals rusted under the car because of the cheap chrome job they received. Heck I've seen NOS sets with rust right out of the box. So I had them powder coated for durability. The bushing is a military spec grommet. I don't recall the durometer rating right now but it's similar to the rubber of a car tire. |
|
| Back to top |
|
|
coad
Samba Scapegoat
Joined: September 12, 2002
Posts: 7567
|
| Posted: Tue May 04, 2010 4:07 pm Post subject: |
|
|
| You need to place an ad in the classified section. |
|
| Back to top |
|
|
5663 vdub
Samba Member
Joined: August 19, 2006
Posts: 27
Location: NE
|
| Posted: Tue May 04, 2010 4:29 pm Post subject: |
|
|

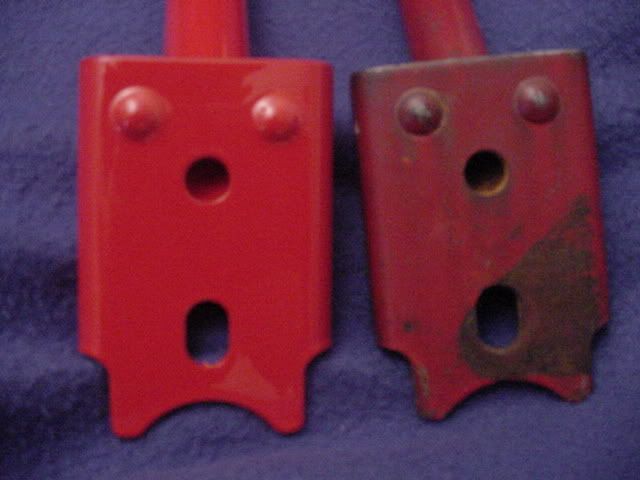

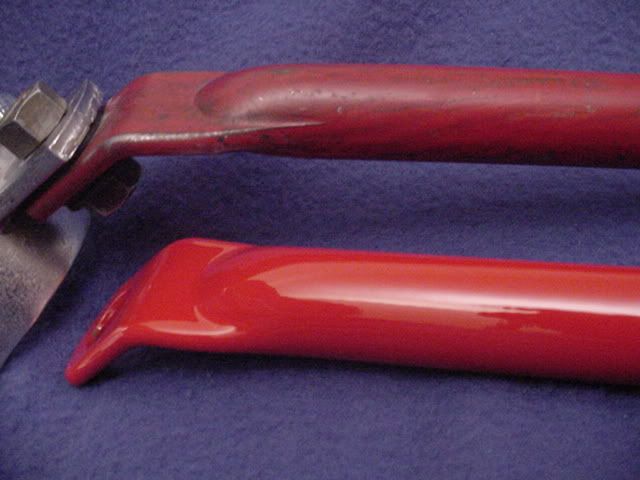

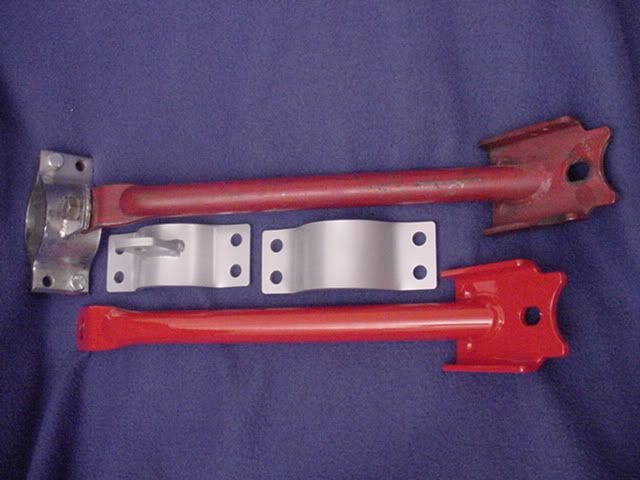

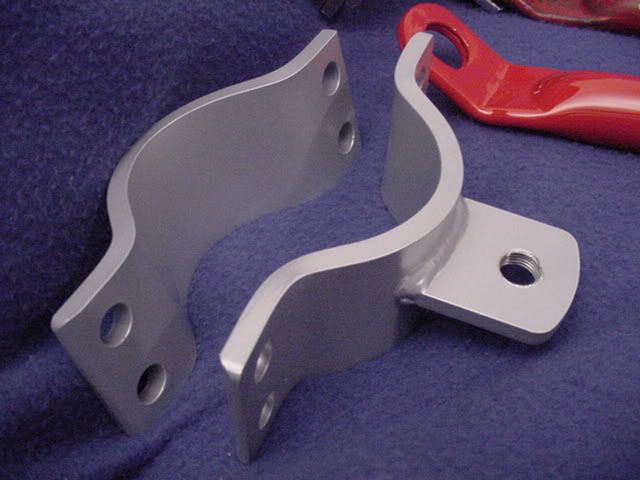

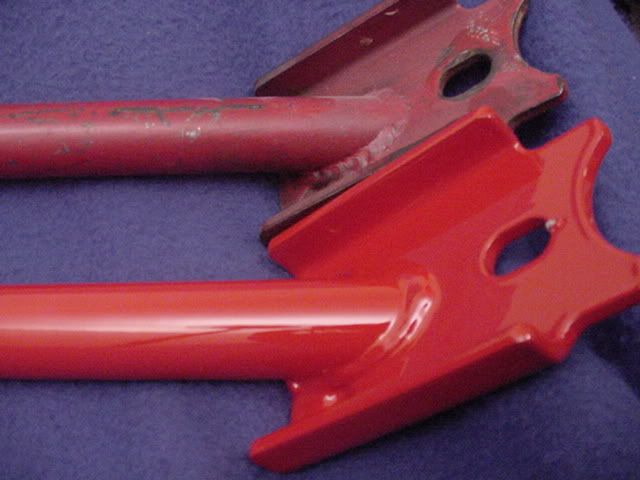

I had all of the parts laser cut for accuracy unlike the originals that were all stamp cut and had pretty rough edges. Here is a few more pictures including a side by shot shot of mine with my original bar.
Last edited by 5663 vdub on Thu May 06, 2010 6:46 pm; edited 1 time in total |
|
| Back to top |
|
|
5663 vdub
Samba Member
Joined: August 19, 2006
Posts: 27
Location: NE
|
| Posted: Tue May 04, 2010 4:46 pm Post subject: |
|
|
| Lids wrote: |
| what do they do? |
This should help explain them, this is from another thread talking about the original bars.
| Blue Baron wrote: |
The stock spring plates are spring steel and twist and bend without much control. You can see how much movement they have with the transaxle out. Just clamp a pair of vise grips to the end and twist.
These control bars anchor the springplates diagonally, limiting the twisting action and movement from side to side. They really do work, but work best on a suspension that is close to stock ride height. (Back in the day, we didn't lower them.) I've autocrossed with these control bars, and they are a big improvement.
The reason they stopped selling them is simple. They became obsolete with the introduction of IRS, and were sold up until the mid 70s when swingaxle Beetles started to disappear from the roads. The reason the camber compensator returned (which is not as good IMO) was due to the mythic reputation of EMPI. |
Thanks to the "Baron" he knows his stuff. |
|
| Back to top |
|
|
4nryde
Samba Member
Joined: August 12, 2009
Posts: 53
Location: Wisconsin
|
| Posted: Tue May 04, 2010 6:31 pm Post subject: |
|
|
I sent you a pm, let me know where to buy and how much they run.
[email protected] |
|
| Back to top |
|
|
Redbarnresto
Samba Member
Joined: May 29, 2007
Posts: 190
Location: Girard, OH
|
| Posted: Wed May 05, 2010 4:31 am Post subject: |
|
|
Anybody with the spare cash would be nuts not to ad these to their car. They're brilliant.
Dan
_________________
Red Barn Restorations |
|
| Back to top |
|
|
Merlin
Samba Member
Joined: August 19, 2004
Posts: 2111
Location: South Africa
|
| Posted: Wed May 05, 2010 4:52 am Post subject: |
|
|
Price?
_________________
| iowegian wrote: |
| People who are allowed to have signature lines annoy me. |
|
|
| Back to top |
|
|
5663 vdub
Samba Member
Joined: August 19, 2006
Posts: 27
Location: NE
|
| Posted: Wed May 05, 2010 5:46 pm Post subject: |
|
|
| I started this thread to show the bars. And to discuss them, an add has since been placed in the classified adds that will hopefully answer some of the other questions. |
|
| Back to top |
|
|
Merlin
Samba Member
Joined: August 19, 2004
Posts: 2111
Location: South Africa
|
| Posted: Thu May 06, 2010 12:41 am Post subject: |
|
|
| 5663 vdub wrote: |
| I started this thread to show the bars. And to discuss them, an add has since been placed in the classified adds that will hopefully answer some of the other questions. |
Thanks.
_________________
| iowegian wrote: |
| People who are allowed to have signature lines annoy me. |
|
|
| Back to top |
|
|
mikeyboy_85
Samba Member
Joined: March 08, 2004
Posts: 59
Location: Victoria Australia
|
| Posted: Sun May 09, 2010 9:20 am Post subject: where can we get them? |
|
|
| hey i am interested in a set, where can we order them? |
|
