 Posted: Wed Jun 16, 2010 4:28 pm Post subject: Gauge mounts |
 |
|
| After Chico builds my 1835 motor, I like to install a tach, oil pressure and oil temp. guage on my 62' Bug. Are there any dash mounts for these? Where do you guys mount your gauges? |
|
| Back to top |
|
 |
Randy in Maine
Samba Member
Joined: August 03, 2003
Posts: 34890
Location: The Beach
|
|
| Back to top |
|
|
oldskoolbug
Samba Member
Joined: December 07, 2008
Posts: 434
Location: Toronto, Canada
|
| Posted: Wed Jun 16, 2010 5:44 pm Post subject: Re: Gauge mounts |
|
|
| 62dcw wrote: |
| After Chico builds my 1835 motor, I like to install a tach, oil pressure and oil temp. guage on my 62' Bug. Are there any dash mounts for these? Where do you guys mount your gauges? |
I mounted a 5" tach w/ shift light on the radio block off plate using a custom billet bracket. As for the oil pressure and temperature gauges, those I mounted on a center console along with my cd player. Works for me!
P.S. never mind the spring attached to the gas pedal! I was having some issues with my linkage return springs, and thats the only thing I could wip up to get me on the road. lol |
|
| Back to top |
|
|
62dcw
Samba Member
Joined: February 03, 2010
Posts: 398
|
| Posted: Thu Jun 17, 2010 4:23 am Post subject: gauge mounts |
|
|
| I know this may sound dumb, but after you mount the gauges. How are you routing the wires to the gauges from the engine compartment? I've never hooked up guages before? |
|
| Back to top |
|
|
Ragman
The Sambinator
Joined: July 18, 2003
Posts: 3518
Location: Denver
|
| Posted: Thu Jun 17, 2010 8:01 am Post subject: Re: gauge mounts |
|
|
| 62dcw wrote: |
| I know this may sound dumb, but after you mount the gauges. How are you routing the wires to the gauges from the engine compartment? I've never hooked up guages before? |
I run them under the carpet, under the backseat, through the battery cable/starter cable hole into the engine bay. |
|
| Back to top |
|
|
Hotrodvw
Samba Member
Joined: July 06, 2004
Posts: 6327
Location: Orygun
|
| Posted: Thu Jun 17, 2010 9:29 am Post subject: |
|
|
Fast-Fab tach mount:

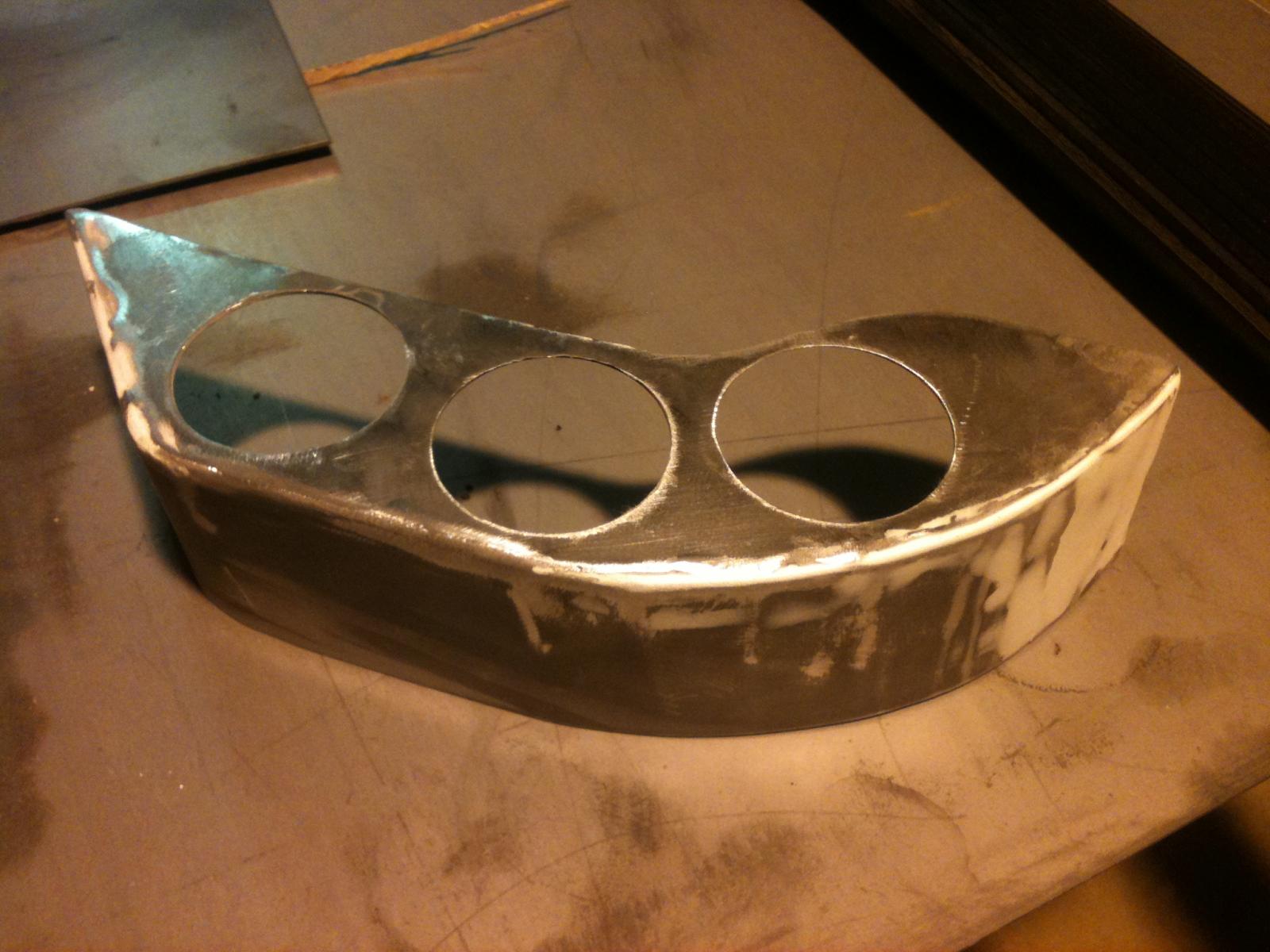

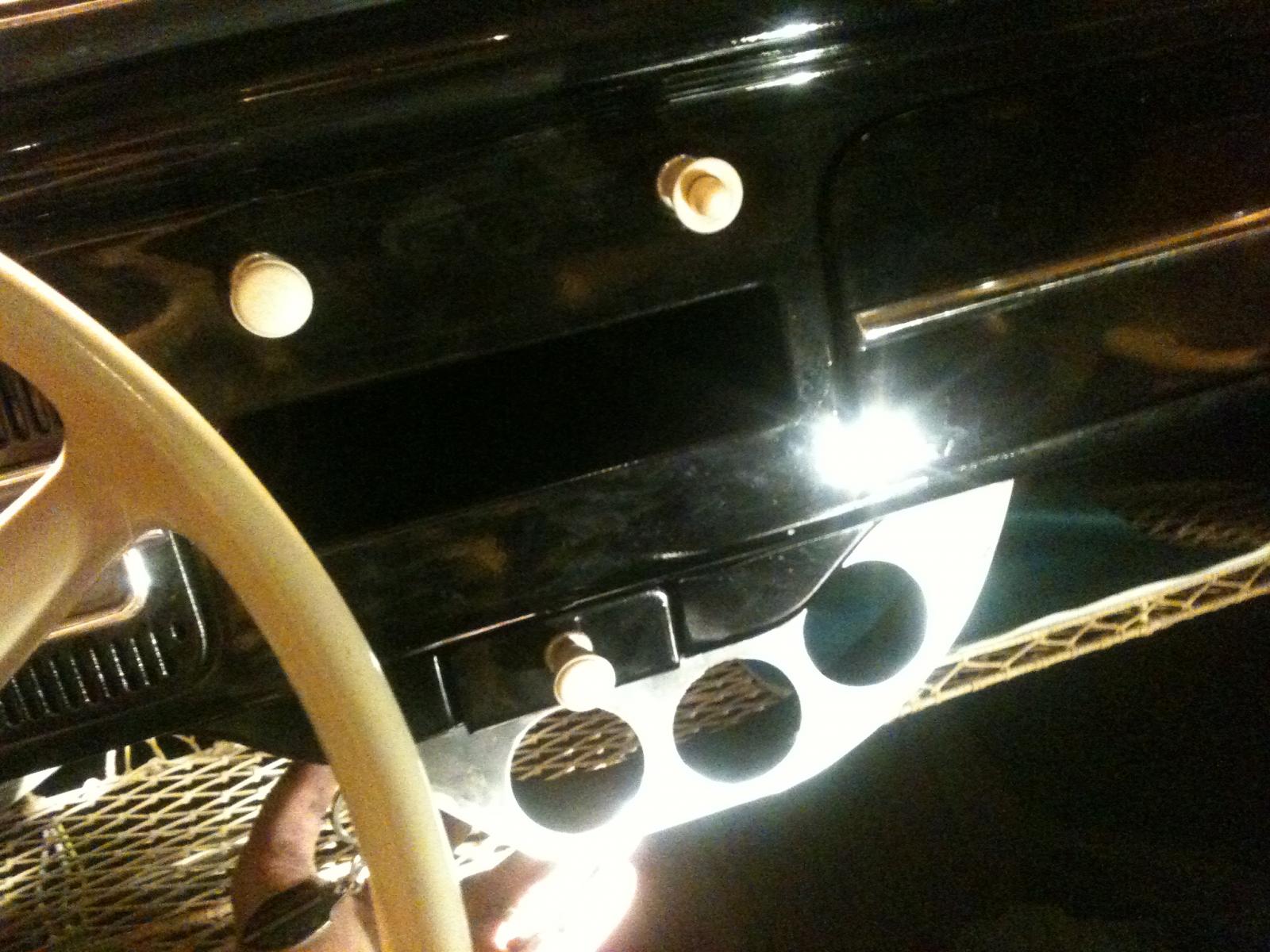

Custom gauge pod made by a fellow member here on the Samba:
_________________
'67 Sunroof
Eric
78x94 with IDA's....oober fun
Horsepower is an addiction........Addictions cost
lots of money!
Hose & Fittings |
|
| Back to top |
|
|
donmurray
Samba Member
Joined: December 30, 2008
Posts: 841
Location: Frisco Texas
|
| Posted: Thu Jun 17, 2010 9:47 am Post subject: |
|
|
I mounted 3 gauges in the dash slot that did house a radio receiver. Cut an aluminum plate to cover the receiver slot and attached it to the dash with 8 small brass machine screws. Gauge holes in the alum plate were cut using a hole saw. Looks pretty good and didn't make a big mess of the dash. Installed two more gauges centered just under the dash using a standard gauge mount. All gauges were 2 1/8" Dakota Digital. Tach, CHT, oil pres, oil temp, volts.
Except for the CHT, all wires were run under the drivers side door sill cover next to the original front to rear wiring. Have to remove the drivers side back pack panel to get them pulled through. CHT gauge wire is not supposed to be closer than 12" to any wire carrying current, so it is routed through the firewall near #3 cylinder, along the lower inside of the firewall over to the passenger side. Then forward under the passenger side door sill cover and then up under carpet through a hole near the gauge.
_________________
74 Ghia, with 2110 engine |
|
| Back to top |
|
|
62dcw
Samba Member
Joined: February 03, 2010
Posts: 398
|
| Posted: Thu Jun 17, 2010 5:37 pm Post subject: Gauge Mounts |
|
|
| Hotrodvw, Do you know who made the custom mounts under the dash and how to get a hold of them? It looks like most of you run your gauge wires under the carpet and door sills once it leaves the engine compartment. What gauge of wire do you use? |
|
| Back to top |
|
|
donmurray
Samba Member
Joined: December 30, 2008
Posts: 841
Location: Frisco Texas
|
| Posted: Thu Jun 17, 2010 6:04 pm Post subject: |
|
|
I considered mounting mine on a tunnel mounted console, but decided the viewing angle and distance was not right for old eyes.
_________________
74 Ghia, with 2110 engine |
|
| Back to top |
|
|
neil68
Samba Member
Joined: March 17, 2007
Posts: 3448
Location: Calgary, Canada
|
| Posted: Thu Jun 17, 2010 7:28 pm Post subject: guage mounts... |
|
|
I have oil temp & oil pressure gauges installed to the right of the speedo, using an aftermarket gauge panel.
Also, have a tach mounted under the ashtray. All gauges, mounts and senders are VDO.
_________________
Neil.
Der Kleiner Rennwagens
‘68 Beetle 2332 cc, 204 WHP
12.5 seconds @ 108 mph
Dynojet Test: https://www.youtube.com/watch?v=M9B_H3eklAo |
|
| Back to top |
|
|
marekv8
Samba Member
Joined: January 24, 2006
Posts: 276
Location: Louisiana
|
| Posted: Thu Jun 17, 2010 8:22 pm Post subject: |
|
|

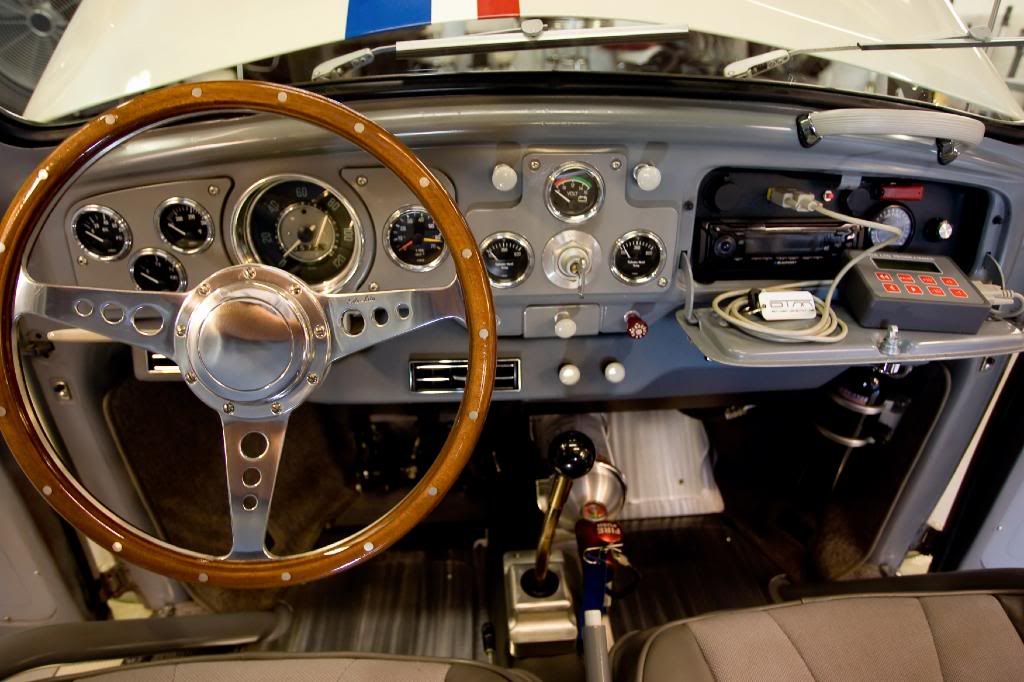

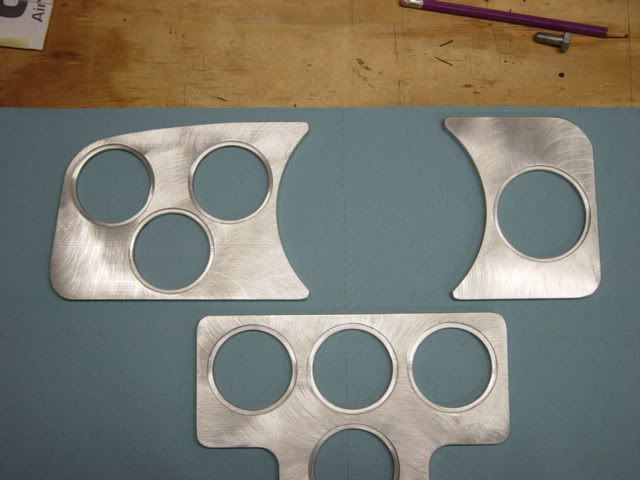

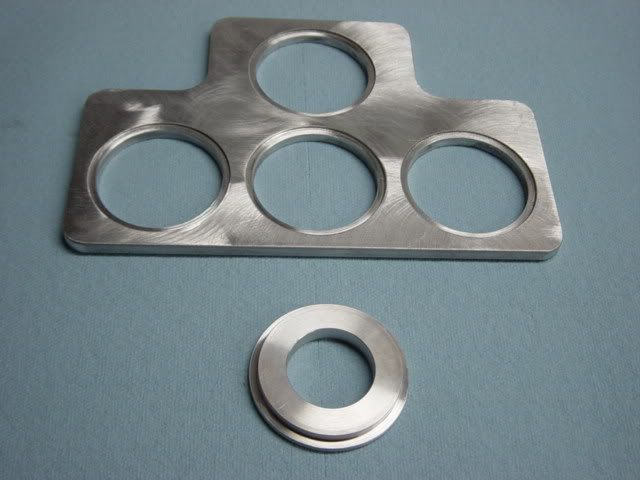

Had these machined from aluminum in order to countersink the gauge bezels. Started with a wide variety of modern and vintage VDO gauges and had North Hollywood Speedometer reface them cohesively to appear relatively stock.
|
|
| Back to top |
|
|
Hotrodvw
Samba Member
Joined: July 06, 2004
Posts: 6327
Location: Orygun
|
| Posted: Thu Jun 17, 2010 10:39 pm Post subject: Re: Gauge Mounts |
|
|
| 62dcw wrote: |
| Hotrodvw, Do you know who made the custom mounts under the dash and how to get a hold of them? It looks like most of you run your gauge wires under the carpet and door sills once it leaves the engine compartment. What gauge of wire do you use? |
Kiwi (Dylan Worsley) makes them. Here's a pic of mine in his ad. Hit him up! He made my breather box too! His craftsmanship is very nice, and you can't beat the price for a custom gauge pod.
http://www.thesamba.com/vw/classifieds/detail.php?id=889144
_________________
'67 Sunroof
Eric
78x94 with IDA's....oober fun
Horsepower is an addiction........Addictions cost
lots of money!
Hose & Fittings |
|
| Back to top |
|
|
Jordan16
Samba Member
Joined: May 18, 2014
Posts: 33
Location: Bristol
|
| Posted: Sun Jun 22, 2014 11:15 am Post subject: |
|
|
In my 71 I have a pod that fits 2 dials and placed it up side down and attached it under the glovebox.
_________________
1971 1300 beetle |
|
| Back to top |
|
|
57 Rag
Samba Member
Joined: October 24, 2006
Posts: 1145
Location: Paradise
|
| Posted: Sun Jun 22, 2014 11:48 am Post subject: |
|
|
Got the same one Hotrod has from Dylan. Real nice and solid piece. Mounted mine dead center under dash above shifter. Looks great. Gotta get a pic up.
_________________
57 Ragtop
84x94 86C
IDAs |
|
| Back to top |
|
|
W1K1
Samba Member
Joined: March 04, 2004
Posts: 5267
Location: Southern AB
|
|
| Back to top |
|
|
smkn_vw
Samba Member
Joined: August 22, 2004
Posts: 809
|
| Posted: Sun Jun 22, 2014 5:27 pm Post subject: |
|
|
| 62dcw wrote: |
| How are you routing the wires to the gauges from the engine compartment? |

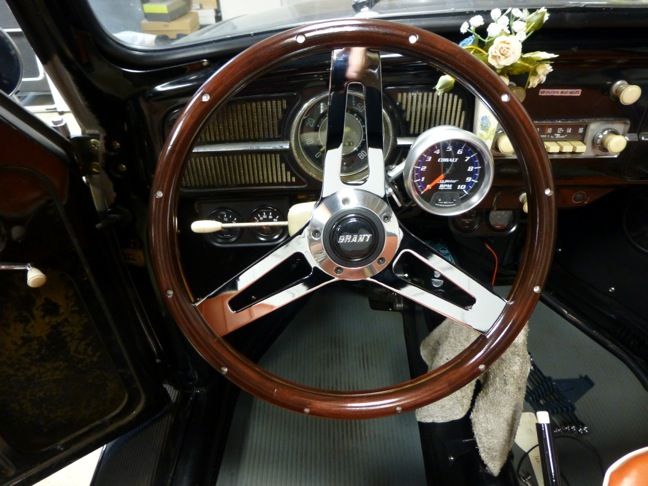

I run wires through the ceiling/roof cavity past the interior light using fish tape to pull it through. I left a pull string inside incase I need to pull more wires. Gauges down below are harder to read but I chose not to cut this one up. My tach is held down to the steering column by a home made bracket and those stainless steel hose clamps you see everywhere. Tach is not very stable when you punch it but acceptable.
_________________
"So didja?" -Bob Hoover
Last edited by smkn_vw on Sat Jul 12, 2014 10:40 am; edited 1 time in total |
|
| Back to top |
|
|
madmack
Samba Member
Joined: September 26, 2010
Posts: 93
Location: Indiana
|
| Posted: Sun Jun 22, 2014 7:07 pm Post subject: |
|
|
I went with a AirKewld Column mount and a north hollywood 5000 RPM tach " also comes in 6000 and 8000 RPM"
_________________
1972 Tintop Westfalia 2.0 091
1966 Bahama Blue Type 1 2017
| SgtSamy wrote: |
Drive slow and enjoy the ride, what is the hurry, we all reach the same destination at the end.  |
Volkswagens are not just a vehicle to drive. Its hobby to love and invest time into.
A work of art has no importance whatever to society. It is only important to the individual.
Vladimir Nabokov |
|
| Back to top |
|
|
esde
Samba Member
Joined: October 20, 2007
Posts: 6299
Location: central rust belt
|
| Posted: Sun Jun 22, 2014 9:12 pm Post subject: |
|
|

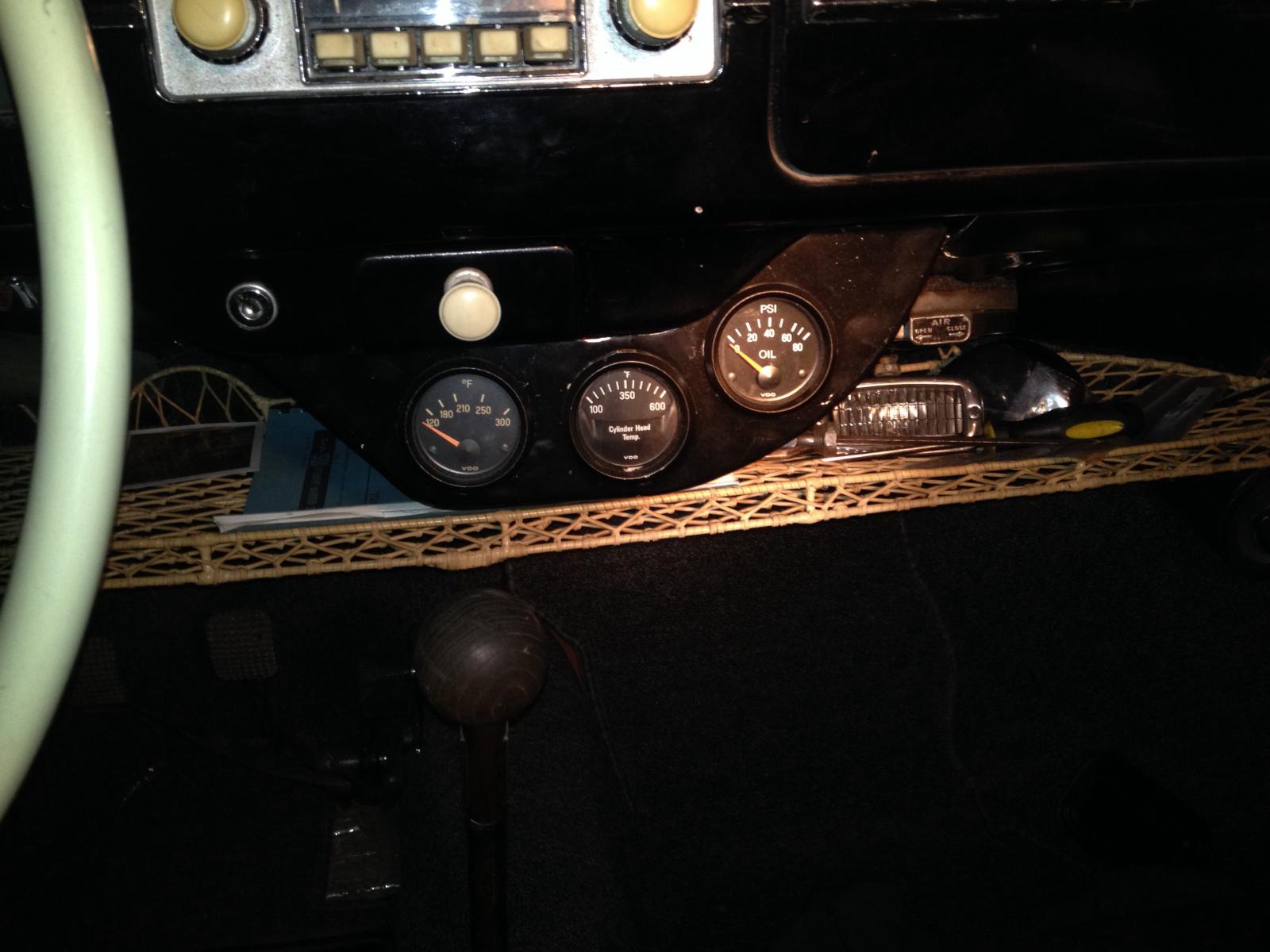

terrible pic, but you get the idea..
|
|
| Back to top |
|
|
Anvil
Samba Member
Joined: September 28, 2009
Posts: 248
Location: Golden, Colorado
|
| Posted: Sun Jun 22, 2014 10:22 pm Post subject: |
|
|

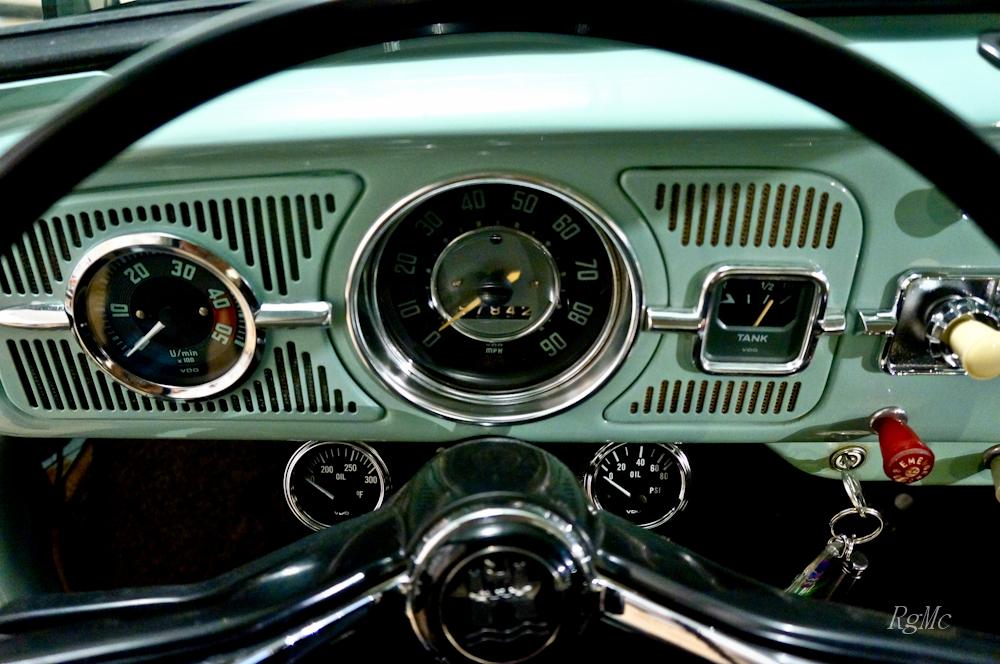

Went with a Porsche theme here:
_________________
A man with any character at all must have enemies and places he is not welcome—in the end we are not only defined by our friends, but those aligned against us. |
|
| Back to top |
|
|
Jordan16
Samba Member
Joined: May 18, 2014
Posts: 33
Location: Bristol
|
| Posted: Mon Jun 23, 2014 3:10 am Post subject: |
|
|

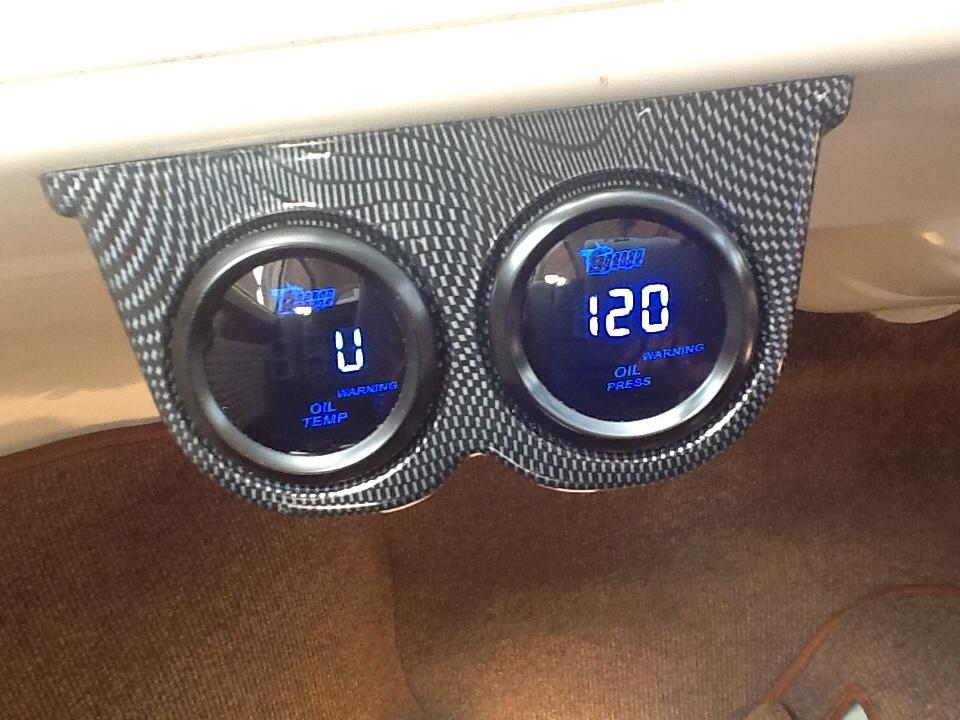

These are the dials I have under the dash, there an oil pressure and oil temperature. I only have the power and earth connected at the moment. The pod isn't the best it's dipped carbon fibre.
There are a couple more in the gallery
_________________
