vdubeetle
Samba Member
Joined: July 10, 2010
Posts: 40
Location: Merced, CA
|
 Posted: Fri Oct 22, 2010 4:00 pm Post subject: Pulley |
 |
|

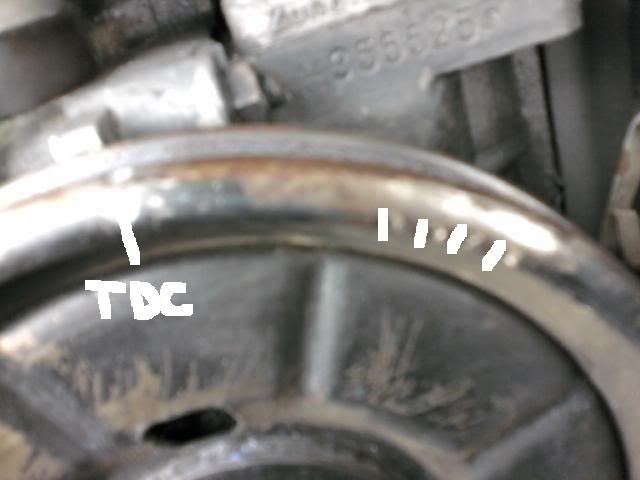

Ok so did some searching around here to look at different timing marks on pulley and couldnt find one like mine sorry for poor pic image  :
so question is the dent is TDC to the left of it is a notch and to the right of the dent are four notches (white erase marks are four notches) that my pulley has what are they or how should i time my car?
Im running 34pic3 carb 009 distributor and my car 68' struggles on hard acceleration as in when i floor it it stumbles bad
_________________
will you loosen up or will I have to take out the persuader(sledgehammer) |
|
| Back to top |
|
 |
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79113
Location: Sneaking up behind you
|
| Posted: Fri Oct 22, 2010 4:02 pm Post subject: |
|
|
Those are home made marks.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
volksbug70
Samba Member
Joined: August 22, 2005
Posts: 126
Location: Tallahassee, FL
|
| Posted: Fri Oct 22, 2010 4:04 pm Post subject: |
|
|
Do the "pencil test" on cylinder #1 to find TDC (top dead center). Then you will know for certain where TDC is and can go from there.
_________________
~Dave (Brother of Matts70Bug)
1970 Beetle
Undergoing Full Restoration as of February 2017! |
|
| Back to top |
|
|
EXJAY
Samba Member
Joined: October 04, 2009
Posts: 1109
Location: Myrtle Beach, SC
|
| Posted: Fri Oct 22, 2010 4:16 pm Post subject: |
|
|
| volksbug70 wrote: |
| Do the "pencil test" on cylinder #1 to find TDC (top dead center). Then you will know for certain where TDC is and can go from there. |
Or you can pull your distributer cap off along with your valve covers to check that way. Also while their off, check your valve clearance...
good video on how to do this--->
http://www.youtube.com/watch?v=Ozht-_iu3Ew
_________________
EXJAY
'74 Superbeetle (Family owned since new)
'73 181 Thing (sold)
Last edited by EXJAY on Fri Oct 22, 2010 4:22 pm; edited 3 times in total |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79113
Location: Sneaking up behind you
|
| Posted: Fri Oct 22, 2010 4:19 pm Post subject: |
|
|
| volksbug70 wrote: |
| Do the "pencil test" . |
But read abut all the a-holes that dropped it in before.
Remove the crank pulley and the keyway is at 9:00 when it's at TDC.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
EXJAY
Samba Member
Joined: October 04, 2009
Posts: 1109
Location: Myrtle Beach, SC
|
| Posted: Fri Oct 22, 2010 4:28 pm Post subject: |
|
|
| Glenn wrote: |
| volksbug70 wrote: |
| Do the "pencil test" . |
But read abut all the a-holes that dropped it in before.
Remove the crank pulley and the keyway is at 9:00 when it's at TDC. |
Heh...I know someone who did this and the eraser fell out inside the chamber.
_________________
EXJAY
'74 Superbeetle (Family owned since new)
'73 181 Thing (sold) |
|
| Back to top |
|
|
vdubeetle
Samba Member
Joined: July 10, 2010
Posts: 40
Location: Merced, CA
|
| Posted: Fri Oct 22, 2010 4:32 pm Post subject: |
|
|
| EXJAY wrote: |
| Glenn wrote: |
| volksbug70 wrote: |
| Do the "pencil test" . |
But read abut all the a-holes that dropped it in before.
Remove the crank pulley and the keyway is at 9:00 when it's at TDC. |
Heh...I know someone who did this and the eraser fell out inside the chamber. |
yea happened to a friend  and thats why i check tdc with the distributor
_________________
will you loosen up or will I have to take out the persuader(sledgehammer) |
|
| Back to top |
|
|
vdubeetle
Samba Member
Joined: July 10, 2010
Posts: 40
Location: Merced, CA
|
| Posted: Fri Oct 22, 2010 4:35 pm Post subject: |
|
|
Remove the crank pulley and the keyway is at 9:00 when it's at TDC.[/quote]
thanks will check this out tomorro
_________________
will you loosen up or will I have to take out the persuader(sledgehammer) |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79113
Location: Sneaking up behind you
|
|
| Back to top |
|
|
EXJAY
Samba Member
Joined: October 04, 2009
Posts: 1109
Location: Myrtle Beach, SC
|
| Posted: Fri Oct 22, 2010 4:37 pm Post subject: |
|
|
| vdubeetle wrote: |
| EXJAY wrote: |
| Glenn wrote: |
| volksbug70 wrote: |
| Do the "pencil test" . |
But read abut all the a-holes that dropped it in before.
Remove the crank pulley and the keyway is at 9:00 when it's at TDC. |
Heh...I know someone who did this and the eraser fell out inside the chamber. |
yea happened to a friend and thats why i check tdc with the distributor |
Not me....I swear.
_________________
EXJAY
'74 Superbeetle (Family owned since new)
'73 181 Thing (sold) |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 32754
Location: Hot Arizona
|
| Posted: Fri Oct 22, 2010 5:11 pm Post subject: |
|
|
Glenn's photo rotated to show notch at 9 o'clock position and TDC at top. Remember, this could be TDC for either #1 or #3, look at the valves or the distributor rotor position to be sure.
And don't use a pencil; if you feel you need to do something like that, use a plastic drinking straw.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
bugninva
Samba Member
Joined: December 14, 2004
Posts: 8858
Location: sound it out.
|
| Posted: Fri Oct 22, 2010 5:15 pm Post subject: |
|
|
| Cusser wrote: |
| And don't use a pencil; if you feel you need to do something like that, use a plastic drinking straw. |
bingo... can't tell you how many times over the years I've suggested a drinking straw to someone only to later read their thread on "how do i get a broken pencil out of my cylinder".....
I use a positive stop, myself...
_________________
| [email protected] wrote: |
| With a show of hands, who has built over 1000 engines in the last 25 years? Anyone? |
GEX has. Just sayin |
|
| Back to top |
|
|
justaguy
Samba Member
Joined: May 07, 2008
Posts: 457
Location: Cambridge, Ontario
|
| Posted: Fri Oct 22, 2010 5:36 pm Post subject: |
|
|
I didn't drop a pencil in the cylinder, but it did break off as I was trying to slowly cycle the engine to get it to TDC. I was however a good excuse to do a teardown and rering the cylinders and freshen up the engine  |
|
| Back to top |
|
|
bugninva
Samba Member
Joined: December 14, 2004
Posts: 8858
Location: sound it out.
|
| Posted: Fri Oct 22, 2010 5:39 pm Post subject: |
|
|
| justaguy wrote: |
| I didn't drop a pencil in the cylinder, but it did break off as I was trying to slowly cycle the engine to get it to TDC. |
haha...the key is to hold the pencil so it comes up straight... the pencil has a tendancy to drop to the bottom edge of the cylinder... damn gravity.... this puts the pencil in a bind as the piston comes up....
_________________
| [email protected] wrote: |
| With a show of hands, who has built over 1000 engines in the last 25 years? Anyone? |
GEX has. Just sayin |
|
| Back to top |
|
|
ashman40
Samba Member
Joined: February 16, 2007
Posts: 16443
Location: North Florida, USA
|
| Posted: Fri Oct 22, 2010 8:07 pm Post subject: |
|
|

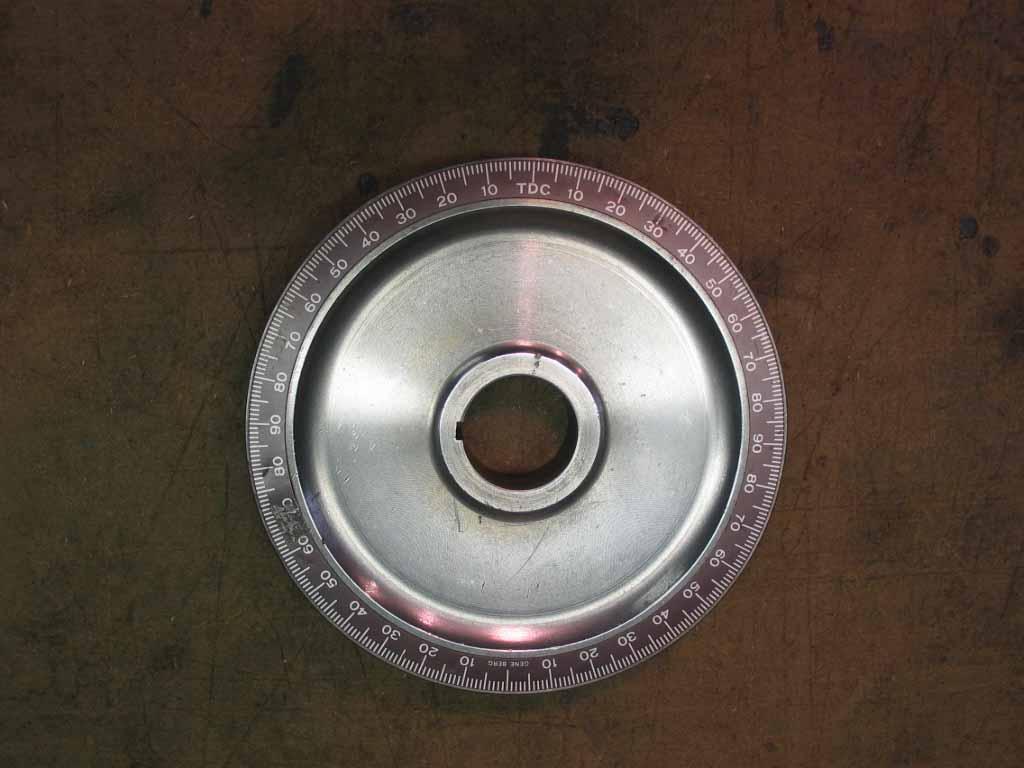

This pic shows you that the stock timing marks are along the front (front of car) edge of the pully.
Also, if your distributor and pulley have not been kept as a matched set, the timing mark on the pulley may not be correct for the distributor you have installed.... lots can happen over the decades since our cars have left the factory.
| vdubeetle wrote: |
| ... thats why i check tdc with the distributor |
That works when you are familiar with the motor and KNOW that the distributor drive gear is indexed correctly. But if you are unfamiliar with the motor, I'm not sure you should trust that the rotor will point to the mark on the distributor body rim when the cam/crank is set for TDC on #1. Also different distributors point to different posts for #1 cylinder. And the installation of an electronic point module can change where #1 fires.
_________________
AshMan40
---------------------------
'67 Beetle #1 {project car that never made it to the road  }
'75 Beetle 1200LS (RHD Japan model) {junked due to frame rot}
'67 Beetle #2 {2019 project car - Wish me luck!} |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79113
Location: Sneaking up behind you
|
| Posted: Fri Oct 22, 2010 8:09 pm Post subject: |
|
|
Or if the engine was rebuild and the builder installed the driveshaft 180 off and then just moved the wires to accommodate it.
Never ASSume.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
johnnypan
Samba Member
Joined: October 24, 2007
Posts: 7431
Location: sackamenna
|
| Posted: Fri Oct 22, 2010 8:18 pm Post subject: |
|
|
| bugninva wrote: |
| justaguy wrote: |
| I didn't drop a pencil in the cylinder, but it did break off as I was trying to slowly cycle the engine to get it to TDC. |
haha...the key is to hold the pencil so it comes up straight... the pencil has a tendancy to drop to the bottom edge of the cylinder... damn gravity.... this puts the pencil in a bind as the piston comes up.... |
the real key is to leave the Muir manual in the shithouse and the Bentley in the shop...people seem to gravitate to Muirs worst proceedures..hell I gotta pencil in the shop,I use it to write shit down,crank position and valve position is the only way to tell TDC 1,on compression. |
|
| Back to top |
|
|
TonyPgh
Samba Member
Joined: May 31, 2008
Posts: 1465
Location: Pa.
|
| Posted: Fri Oct 22, 2010 8:22 pm Post subject: |
|
|
| johnnypan wrote: |
| bugninva wrote: |
| justaguy wrote: |
| I didn't drop a pencil in the cylinder, but it did break off as I was trying to slowly cycle the engine to get it to TDC. |
haha...the key is to hold the pencil so it comes up straight... the pencil has a tendancy to drop to the bottom edge of the cylinder... damn gravity.... this puts the pencil in a bind as the piston comes up.... |
the real key is to leave the Muir manual in the shithouse and the Bentley in the shop...people seem to gravitate to Muirs worst proceedures..hell I gotta pencil in the shop,I use it to write shit down,crank position and valve position is the only way to tell TDC 1,on compression. |
I like the Muir for just reading for enjoyment. Like a comic book. But since I just got my Bentley recently..."wow", thats like having a vw mechanic in the garage with me.
_________________
1968 Type 1
https://youtube.com/c/SladesVWBeetle |
|
| Back to top |
|
|
bugninva
Samba Member
Joined: December 14, 2004
Posts: 8858
Location: sound it out.
|
| Posted: Fri Oct 22, 2010 8:47 pm Post subject: |
|
|
| johnnypan wrote: |
| [the real key is to leave the Muir manual in the shithouse and the Bentley in the shop...people seem to gravitate to Muirs worst proceedures..hell I gotta pencil in the shop,I use it to write shit down,crank position and valve position is the only way to tell TDC 1,on compression. |
I gotta be honest johnny.... I've never read Muir, and I don't even think I've ever had a copy in my hand... the pencil idea wasn't Muir's, its been around longer than muir...in a standard V8 or I4's and I6's, it's a viable indicator of when the piston is at TDC... I agree that valve position varification is the only way to know if you are on TDC on compression or exhaust.... that said, I pointed out earlier that I never suggest someone stick a pencil in their plug hole, if they need the visual(since pullies seem to vary) then use a drinking straw... I use a positive stop to check all my pullies(aftermarket) for accuracy, not a straw or pencil...
_________________
| [email protected] wrote: |
| With a show of hands, who has built over 1000 engines in the last 25 years? Anyone? |
GEX has. Just sayin |
|
| Back to top |
|
|
burdpete
Samba Member
Joined: October 24, 2007
Posts: 544
Location: Nebraska
|
| Posted: Sat Oct 23, 2010 12:32 pm Post subject: |
|
|
Why not just go by the pulley. Have any of you ever had a stock pulley that was made with the TDC mark or the keyway in the wrong place? How about an aftermarket? I guess Ive never heard of it.
_________________
72 Beetle |
|
