PostPosted: Fri Nov 05, 2010 11:55 am    Post subject: "NEW" Burley behind-bumper hitch Reply with quote

https://www.busdepot.com/s121

https://burleymotorsports.net/product-category/2wd-vanagon/vanagon-trailer-hitches/

Decided too upgrade from the GW hitch (in use for over 7 yrs) to a more stout design.

Was expecting to have one built, custom, given the loads I put on it.. but then saw the Burley hitch linked here on the Samba.


Emailed Burley and asked about the hitches he had and if he had built the f/g bumper version, yet.

2 weeks later it arrived via Fedex.

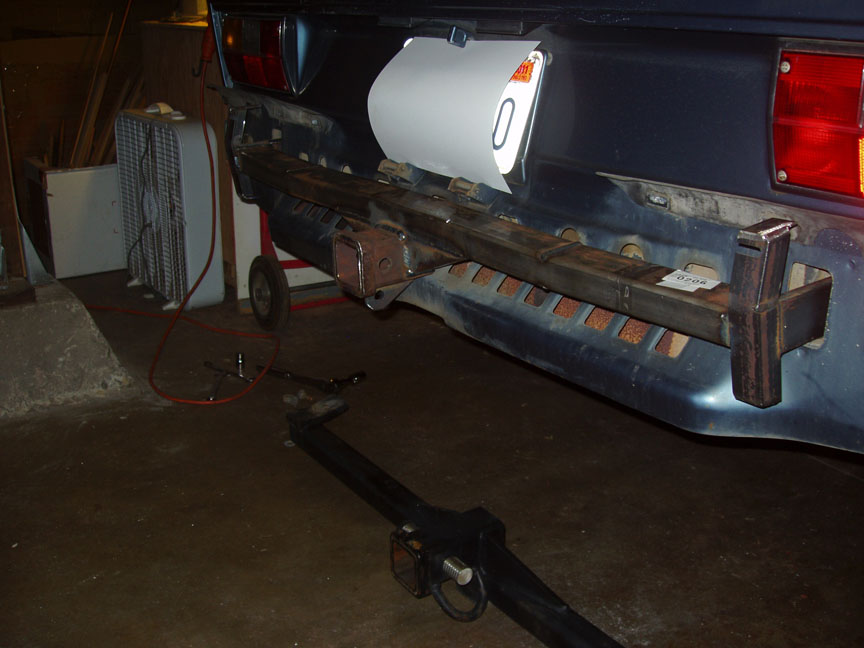

Out with the old. In with the new:
The new Burley hitch fastens to the subframe at 6 points.. replacing the tow hooks that are OE.
The hitch was delivered raw.. with no coating.. Living in the ocean air here, we'd decided it would be best if I applied my own choice of coating.

Burley added a bit more gusseting under the reciever after I'd traded a few emails with him discussing the intended use, (up to 200lbs, maybe more on racks and up to 300-325lbs of tongue weight with trailers).

Image may have been reduced in size. Click image to view fullscreen.




Initial fitment:
Bolts liined right up.. though you'll want to get them started only a thread or two before tightening down.

Image may have been reduced in size. Click image to view fullscreen.



Departure angle:

Image may have been reduced in size. Click image to view fullscreen.


Preliminary "205 lbs jumping on it" test done with a 4" drop inserted in the receiver already shows this to be a MUCH stiffer set up.


I'll be updating this thread as I put this hitch through its paces in the next several weeks/months.
Please feel free to post questions along the way.
If you have a specific camera angle shot you'd like, let me know.. I'll try and capture it, then post.


Next installment:
Fitting the f/g bumper over. Requires notching the bottom of the fg bumper to fit over the receiver.
_________________
-89 GL Westy, SVX.. finally.

-57 pan f/g buggy with a 67 pancake Type 3 "S"
"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MarkWard
Samba Member


Joined: February 09, 2005
Posts: 16972
Location: Retired South Florida
MarkWard is offline

PostPosted: Fri Nov 05, 2010 12:16 pm    Post subject: Reply with quote

How does the bumper cover fit?
_________________
☮️
Back to top
View user's profile Send private message Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4641
Location: Twain Harte, CA
j_dirge is offline

PostPosted: Fri Nov 05, 2010 1:12 pm    Post subject: Reply with quote

rsxsr wrote:
How does the bumper cover fit?

Fitting the 3 piece f/g bumper is a multi-step process.

The entire hitch assembly, except for the receiver, will be tucked in behind the f/g bumper. The only part that is visible in the finished setup is the receiver, which extends out 2-3 " or so.. just enough room to access the receiver pin.

First step is to notch the f/g bumper in the middle to allow the hitch to poke thru the bumper..
Then you set the bumper on..
Fasten the bumper at the OE points on either end cap side to the OE side brackets.
The bumper now rests on the new hitch brackets as shown in the middle photo. (same way it works on the OE tow hook brackets).

Once that is done, a hole is drilled thru the OE bumper mount hole in the underside of the bumper.
Burley provides a clip/nut that slides over his bracket and a new fastener holds it in place..

Now the hitch and bumper are one assembly.
The hitch is then unbolted at the frame..
You slide it out and then fasten the upper mount bolts from behind thru a slot cut in the brackets.

Future removal is done as one assembly.

I hope to get the f/g bumper fitted this weekend and will provded photos of the OE bumper attachment and how that compares to Burley's setup.
_________________
-89 GL Westy, SVX.. finally.

-57 pan f/g buggy with a 67 pancake Type 3 "S"
"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..


Last edited by j_dirge on Fri Nov 05, 2010 1:19 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4641
Location: Twain Harte, CA
j_dirge is offline

PostPosted: Fri Nov 05, 2010 1:17 pm    Post subject: Reply with quote

Go here:
http://burleysmotorsports.com/index.php?main_page=product_info&cPath=14&products_id=32
and then click on the hitch image.. There are three photos, there.. but you have to click on the first hitch mage to see them. Click over to 2nd and 3rd for photos of the steel bumper version, installed.

The f/g bumper version is pretty much the same thing.
_________________
-89 GL Westy, SVX.. finally.

-57 pan f/g buggy with a 67 pancake Type 3 "S"
"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
buspor63
Samba Member


Joined: February 17, 2005
Posts: 1179
Location: Knoxville,TN Where America stops for gas
buspor63 is offline

PostPosted: Fri Nov 05, 2010 11:58 pm    Post subject: Reply with quote

That looks like mine, only weaker.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Imagine that, theres not an "h" in either Westfalia or Syncro?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4641
Location: Twain Harte, CA
j_dirge is offline

PostPosted: Sat Nov 06, 2010 7:07 am    Post subject: Reply with quote

While the 3 yr old napped... I broke out the hacksaw.

Using the sketched template provided by Burley:
(instructions warn that it is very conservative in depth)

Image may have been reduced in size. Click image to view fullscreen.



After 3 more cuts, removing about 5/8" in total more than the template shows (resulting in a deeper notch) and checking fit each time, I am in the ball park.

This is a subtle adjustment process. But pretty important if you want the bumper to sit level and balanced. It was worth it taking my time.

Image may have been reduced in size. Click image to view fullscreen.



This hitch sits a full 2.5" higher than the GoWesty setup. And its tucked back in at least 2" closer to the bumper (buying me a few more inches in an already tight garage.. and improving that departure angle)


Today.. I'll fine tune the assembly. Drilling holes for the lower bumper to hitch bracket mounts.


Am leaning towards a POR-15 coating, with Rustoleum over.
_________________
-89 GL Westy, SVX.. finally.

-57 pan f/g buggy with a 67 pancake Type 3 "S"
"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15086
Location: New York
insyncro is offline

PostPosted: Sat Nov 06, 2010 7:23 am    Post subject: Reply with quote

Checkout
http://www.magnetpaints.com/
I only use POR15 on rusted material that will get bodywork now.
It is an excellent product, but my experiences have shown it excells for encapsualting and getting layers of work over top, but Chassis Saver may be better for your application.

Thank AlaricH., he turned me on to this stuff.

dylan
Back to top
View user's profile Send private message Gallery Classifieds Feedback
buspor63
Samba Member


Joined: February 17, 2005
Posts: 1179
Location: Knoxville,TN Where America stops for gas
buspor63 is offline

PostPosted: Sat Nov 06, 2010 10:15 pm    Post subject: Reply with quote

I would like to add that I think it's great that a vendor has made a ready to use bumper of this class. The need is definately there because we all often want to tow something without the flex that the tow hook type allows. There are also many accesories that use the 2" reciever mount. Also, it allows us to maintain a stock appearance an don't have to go the industrial bumper look route
_________________
Imagine that, theres not an "h" in either Westfalia or Syncro?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4641
Location: Twain Harte, CA
j_dirge is offline

PostPosted: Sun Nov 07, 2010 7:56 am    Post subject: Reply with quote

Dylan, Alaric.. thanks for the paint tip.. I'll check it out.
Buspor63.. Yes. I checked with local shop or two about this a few yrs ago.. And there was no interest.. and nothing in a reasonable price range.

When I contacted Burley.. the enthusiasm was obviously there. I showed him the boat I tow on occasion.. and after a weekend he replied by email saying "Been thinking bout you... I added some gusseting. This should work great"



The assembly from the back side (bumper upside down)

Image may have been reduced in size. Click image to view fullscreen.


Close up of bumper mount bracket, also shown upside down (uses the original bolt on the top mount.. and Burley provides new hardware for the bottom.)

Image may have been reduced in size. Click image to view fullscreen.

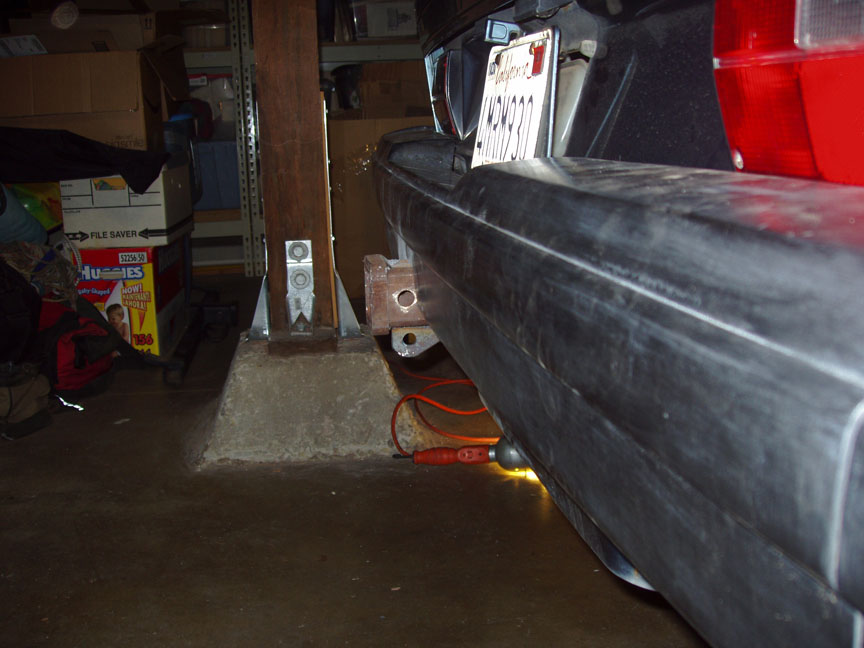

The last test fitting:

Image may have been reduced in size. Click image to view fullscreen.


Next up.. Some load testing and a coating if things look good. I am pretty confident this hitch will meet my needs.
Much more load than this and the my Westy needs more suspension help anyway... not to mention transmission and CVs.
_________________
-89 GL Westy, SVX.. finally.

-57 pan f/g buggy with a 67 pancake Type 3 "S"
"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
singler3360
Samba Member


Joined: February 25, 2009
Posts: 1191
Location: Corvallis, Oregon
singler3360 is offline

PostPosted: Sun Nov 07, 2010 8:54 am    Post subject: Reply with quote

That's a really clean look. Will this hitch fit inside any stock bumper?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4641
Location: Twain Harte, CA
j_dirge is offline

PostPosted: Sun Nov 07, 2010 9:30 am    Post subject: Reply with quote

singler3360 wrote:
That's a really clean look. Will this hitch fit inside any stock bumper?

Any stock Vanagon bumper.. I believe so.

Burley makes one version for the OE steel bumper.. and this one for the f/g bumper.

The link I provided earlier takes you to the steel bumper version.
_________________
-89 GL Westy, SVX.. finally.

-57 pan f/g buggy with a 67 pancake Type 3 "S"
"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
singler3360
Samba Member


Joined: February 25, 2009
Posts: 1191
Location: Corvallis, Oregon
singler3360 is offline

PostPosted: Sun Nov 07, 2010 9:50 am    Post subject: Reply with quote

j_dirge wrote:
singler3360 wrote:
That's a really clean look. Will this hitch fit inside any stock bumper?

Any stock Vanagon bumper.. I believe so.

Burley makes one version for the OE steel bumper.. and this one for the f/g bumper.

The link I provided earlier takes you to the steel bumper version.


Nice to know. Thanks dirge.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 12102
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Sun Nov 07, 2010 9:53 am    Post subject: Reply with quote

j_dirge wrote:

The last test fitting:

Image may have been reduced in size. Click image to view fullscreen.




That's much nicer looking and more stout than the version I cobbled together a few years ago. Mine was originally just a tongue bar with a ball hitch. I welded a generic 1.25" receiver and upper brace to the bar. About the only thing going for it, is that it bolts directly to the bumper brackets, rather than the factory tie down loops. It sticks out a ridiculous amount. I just use it for my hitch mounted bike carrier.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Casey--

'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender --> full camper
y u rune klassik?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
schwaia
Samba Member


Joined: November 07, 2004
Posts: 12
Location: West Sacramento, CA
schwaia is offline

PostPosted: Sun Nov 07, 2010 12:33 pm    Post subject: Reply with quote

I was wondering when someone would make a tow hitch that mounts like the European hitches. I understand the need for the receiver style, but I think the Euro ones look better. But it's good someone finally offers these. Well done.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Classifieds Feedback
presslab
Samba Member


Joined: September 29, 2008
Posts: 1730
Location: Sonoma County
presslab is offline

PostPosted: Sun Nov 07, 2010 12:39 pm    Post subject: Reply with quote

That Burley hitch looks very nice. My one comment is that the pin hole location looks too far out, it is normally 2" from the end. I use a Draw-tite J-pin, which is awesome, not sure it would work with that setup. And how hard is it to get a wrench in there for bike rack bolts?
_________________
1986 Vanagon Westfalia EJ25
1988 Subaru GL-10 EJ20G --- 2000 Honda XR650L
2010 Titus El Guapo --- 2011 On-One 456 Ti
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 12102
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Sun Nov 07, 2010 12:46 pm    Post subject: Reply with quote

presslab wrote:
That Burley hitch looks very nice. My one comment is that the pin hole location looks too far out, it is normally 2" from the end. I use a Draw-tite J-pin, which is awesome, not sure it would work with that setup. And how hard is it to get a wrench in there for bike rack bolts?


I was thinking the same thing. Mine sticks out so far 'cause I wanted to be sure that I could easily get access to the pin.
_________________
Casey--

'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender --> full camper
y u rune klassik?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4641
Location: Twain Harte, CA
j_dirge is offline

PostPosted: Sun Nov 07, 2010 2:17 pm    Post subject: Reply with quote

presslab wrote:
That Burley hitch looks very nice. My one comment is that the pin hole location looks too far out, it is normally 2" from the end. I use a Draw-tite J-pin, which is awesome, not sure it would work with that setup. And how hard is it to get a wrench in there for bike rack bolts?
All my accessories (inlcuding the bike rack), use a standard pin.. although I do have a MasterLock pin.. and the barrel does fit with a little room to spare against the bumper.
The wrench provided with the Draw-tite J-pin probably would not fit.. Could you use a standard open end wrench to work that?

I'll see if I can scrounge up a proper size bolt and see what wrench or socket, if any, will fit it.

And I'll get a photo of the Lock pin I use, in place.


edit tio add: You might contact Burley, too. I am fairly sure he would put a longer receiver on there for those who want/or need one.
_________________
-89 GL Westy, SVX.. finally.

-57 pan f/g buggy with a 67 pancake Type 3 "S"
"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
outwesty
Samba Member


Joined: June 06, 2006
Posts: 1074
Location: Tahoe City
outwesty is offline

PostPosted: Sun Nov 07, 2010 11:42 pm    Post subject: Reply with quote

Burly did a great thing making these. Any idea if the gowesty swing away tire carrier would work with it?

http://www.gowesty.com/ec_view_details.php?id=4251&category_id=4141&category_parent_id=
_________________
www.outwesty.com Vanagon / Syncro Repair in Tahoe City, CA
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4641
Location: Twain Harte, CA
j_dirge is offline

PostPosted: Mon Nov 08, 2010 9:26 am    Post subject: Reply with quote

outwesty wrote:
Burly did a great thing making these. Any idea if the gowesty swing away tire carrier would work with it?

http://www.gowesty.com/ec_view_details.php?id=4251&category_id=4141&category_parent_id=

I don't see why not.

I would caution, though.. On most hitch mount accessories, there is bound to be some wiggle-waggle due to slop between receiver female and male pieces.

The further out you hang items off that center point, the more force you introduce. (basic "lever' physics)

At a minimum, you'd want to use that Draw-tite item Presslab mentioned.

I, too, do not leave anything on or in my van when not on a trip.
My own plan is to use Gary Lee's (or similar) tire mount.. and removed the swing when I am not on safari.

If you plan to go that route.. with the GW hitch rack.. I highly reccommend you talk to Burley about modification's he might suggest to minimize the problems inherent in that type of structure.
I'd ask for the additional gusseting (if that isn't already a permanent design change).. and maybe a 1/2" to 1" long receiver so that you have plenty of room to use an anti-wiggle pin.
_________________
-89 GL Westy, SVX.. finally.

-57 pan f/g buggy with a 67 pancake Type 3 "S"
"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Dymaxion2004
Samba Member


Joined: May 14, 2009
Posts: 7
Location: New Brunswick, CANADA
Dymaxion2004 is offline

PostPosted: Tue Nov 09, 2010 8:55 am    Post subject: Reply with quote

Around here two points of attachment for safety chains are required. Also there was no need for the birds-mouth cut/weld part way along the cross bar. A straight run of tubing fits fine inside the bumper. I'll post a pic of mine shortly, with Hidden Hitch 1/2" x 2" removable draw bar. Cut the legs off a yard sale HH, added vanagon suitable 3 bolt legs. Been in use for 8 years, canoe/sailboat/gear trailer, around 2000lbs. Tim
Back to top
View user's profile Send private message Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
