 Posted: Fri Jan 28, 2011 1:21 pm Post subject: SA and IRS guys. How have you mounted your rear shocks? |
 |
|
Would like some pics and descriptions of various setups to look at the options.
Cheers |
|
| Back to top |
|
 |
Concept1
Samba Member
Joined: September 07, 2004
Posts: 334
Location: Calgary, Canada
|
|
| Back to top |
|
|
Lowdown Dirty Rat
Samba Member
Joined: June 25, 2005
Posts: 891
Location: Cornwall, UK
|
| Posted: Fri Jan 28, 2011 4:36 pm Post subject: |
|
|
Dude that is a nice setup. Would be a shame to not use those old shock mounts.
|
|
| Back to top |
|
|
Lowdown Dirty Rat
Samba Member
Joined: June 25, 2005
Posts: 891
Location: Cornwall, UK
|
|
| Back to top |
|
|
Jacks
Samba Member
Joined: July 15, 2006
Posts: 2439
Location: San Clemente, Ca.
|
| Posted: Fri Jan 28, 2011 10:59 pm Post subject: |
|
|
| I really like the kwc mount but the shock travel looks to be about 1" to 1 1/2", while the spring plate range is 3" to 4". |
|
| Back to top |
|
|
Franz
Samba Member
Joined: March 31, 2005
Posts: 346
Location: Grand Junction
|
|
| Back to top |
|
|
Lowdown Dirty Rat
Samba Member
Joined: June 25, 2005
Posts: 891
Location: Cornwall, UK
|
| Posted: Sun Jan 30, 2011 2:13 am Post subject: |
|
|
Pics guys? You'd think there were only stock buses out there.
Here's another SA, not the best pic. It's from that super low Japanese bus.

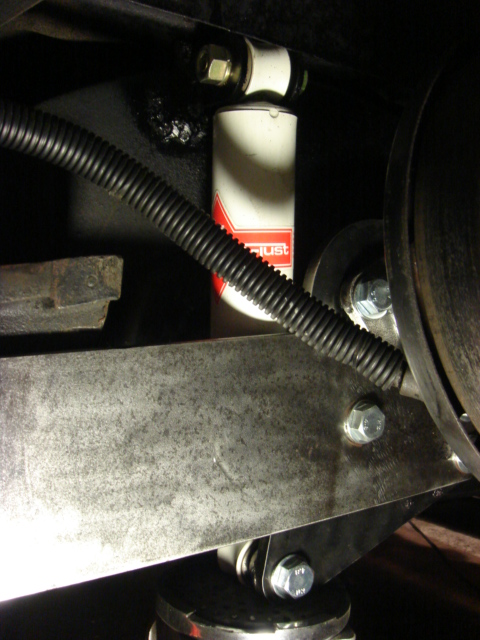

The more usual method. Just weld on a mount to the chassis legs.
|
|
| Back to top |
|
|
mr. warehouse
Samba Member
Joined: February 27, 2001
Posts: 5002
Location: Nor Cal 707
|
| Posted: Tue Feb 08, 2011 12:43 pm Post subject: |
|
|

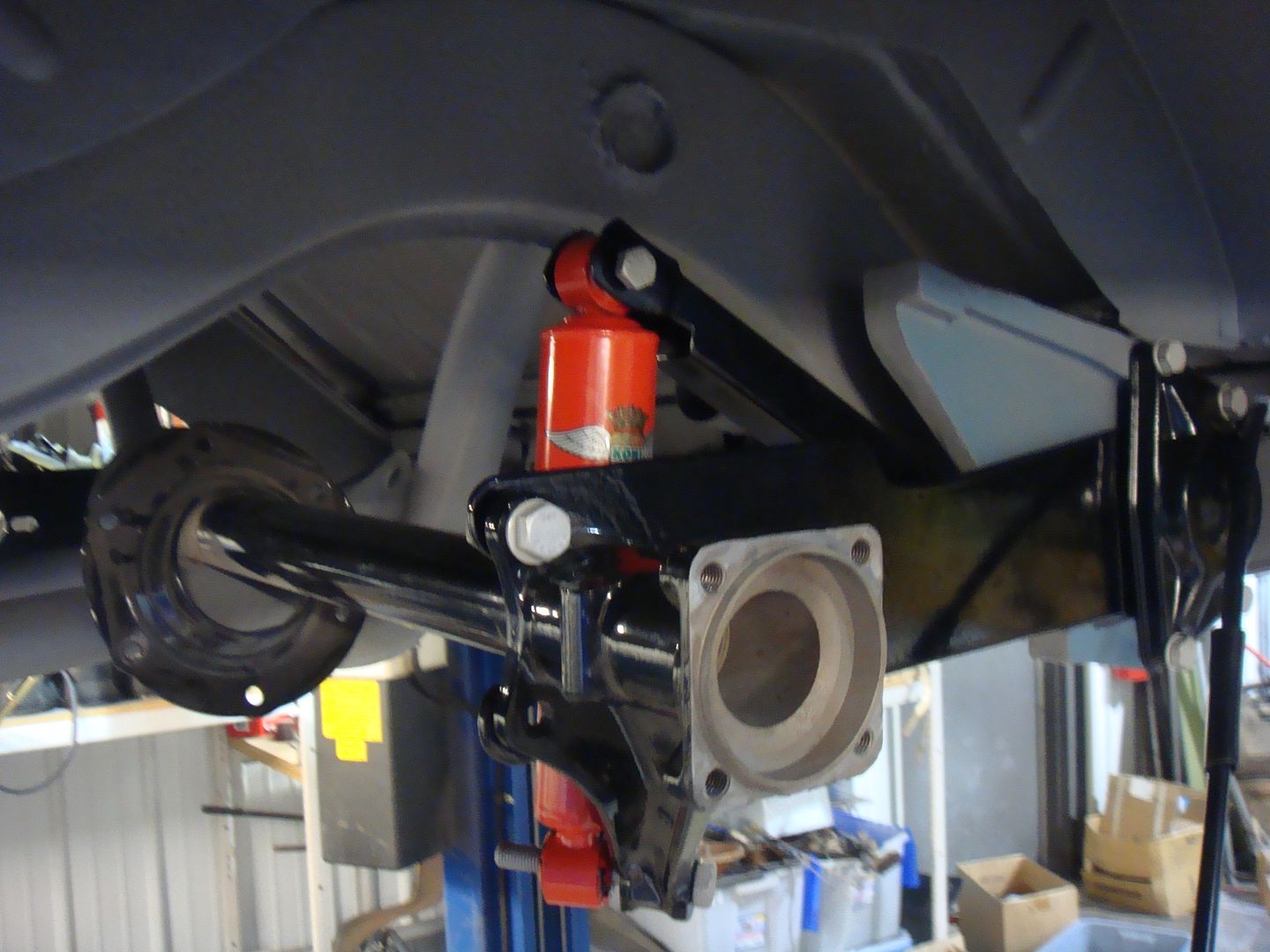

I just did a run of those upper shock mounts...I copied an original Split window bug piece.
That's what I use. |
|
| Back to top |
|
|
Blauhaus
Samba Member
Joined: June 18, 2003
Posts: 140
Location: Jacksonville, FL
|
| Posted: Tue Feb 08, 2011 1:41 pm Post subject: |
|
|
Very sweet Greg!
_________________
www.blau-haus.com
QUALITY CLOTHING. PRODUKTS. FÜR THE PEOPLE.
** WANTED **
Haines VW dealership (Sacramento) license frame |
|
| Back to top |
|
|
mr. warehouse
Samba Member
Joined: February 27, 2001
Posts: 5002
Location: Nor Cal 707
|
| Posted: Tue Feb 08, 2011 1:56 pm Post subject: |
|
|
| Blauhaus wrote: |
| Very sweet Greg! |
Thanks, I can make them longer for barndoors if needed. Also working on the lower mounts for non lower shock mounts trans (early split / pre-a / barndoor) I'll be making them "stock" and longer. |
|
| Back to top |
|
|
VWsArent4Hippies
Samba Member
Joined: April 13, 2005
Posts: 3081
Location: The Bull City
|
| Posted: Tue Feb 08, 2011 6:27 pm Post subject: |
|
|
| Those ends where the shocks mount don't seem very stout... They look good though |
|
| Back to top |
|
|
mr. warehouse
Samba Member
Joined: February 27, 2001
Posts: 5002
Location: Nor Cal 707
|
| Posted: Tue Feb 08, 2011 10:37 pm Post subject: |
|
|
| VWsArent4Hippies wrote: |
| Those ends where the shocks mount don't seem very stout... They look good though |
Copied from an original. Same dimensions same thickness metal, etc.
More on that in the split section here...
http://www.thesamba.com/vw/forum/viewtopic.php?t=449796 |
|
| Back to top |
|
|
BulletBus
Samba Member
Joined: August 17, 2005
Posts: 1276
Location: Panama City Beach
|
| Posted: Fri Feb 11, 2011 8:08 am Post subject: |
|
|
Will the new, longer ones enable me to replace my lever shocks on a stock barndoor setup with regular shocks? If so, I have a set of levers if someone wants them once these are on.
_________________
53 Hatch Barndoor
_______________________________________
If it's not a bus, it's bus money waiting to happen. |
|
| Back to top |
|
|
mr. warehouse
Samba Member
Joined: February 27, 2001
Posts: 5002
Location: Nor Cal 707
|
| Posted: Fri Feb 11, 2011 11:20 am Post subject: |
|
|
| BulletBus wrote: |
| Will the new, longer ones enable me to replace my lever shocks on a stock barndoor setup with regular shocks? If so, I have a set of levers if someone wants them once these are on. |
If it's not lowered you don't need longer ones. The above upper mounts and a set of triangle mounts for the bottom will do the trick.
I should have the lower mounts done next week sometime. |
|
| Back to top |
|
|
joe56vw
Samba Member
Joined: June 24, 2004
Posts: 3202
Location: Olympia wa
|
|
| Back to top |
|
|
mr. warehouse
Samba Member
Joined: February 27, 2001
Posts: 5002
Location: Nor Cal 707
|
| Posted: Fri Feb 11, 2011 2:46 pm Post subject: |
|
|
| joe56vw wrote: |
will those work on newer buses with narrowed rear end or those offset springplates?
and how much are they going to be sold for? |
With enough determination and fabrication anything can be made to work.
These however are made to bolt on through the existing lever shock holes and the triangles bolt on through the axle / spring plate holes.
I've used the upper mounts in early cars running later transaxle's that have lower shock mounts as well. Works very good.
As for a price, the uppers run $150 a set, not sure on the lowers. There will of course be a package price if they are bought together. |
|
| Back to top |
|
|
barnduude
Samba Member
Joined: July 22, 2008
Posts: 91
Location: belgium
|
| Posted: Mon Feb 14, 2011 2:01 pm Post subject: |
|
|
alo,
here is how i did it
there are others pics in my gallery
grtz to all.
_________________
www.everyoneweb.com/luftwaffenracing
'54 BD kombi.
'68 APAL samtrack.
hell is empty, all devils are here. |
|
