Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 12102
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Mon Apr 11, 2011 9:18 pm    Post subject: Big brake alternative: Jaguar and Eurovan combo Reply with quote

Paul (Franklinstower) and I thought that rather than continuing to hijack Alika's thread, we'd start another which is specific to the front 2WD upgrade to Jaguar calipers and Eurovan rotors.

First off, let me state that I've done zero innovation on this project, and all the inspiration and road map came from Alika and his French compatriots. I've long been unhappy with stock Vanagon brakes, so I merely jumped at the opportunity to replace these sub-standard pieces with what appeared to be a solid and relatively inexpensive option.

When all is said and done, I'll have somewhere around $300 in the entire swap. This is considerably less than many other relatively bolt-on swaps.

When Alika posted up his pics of the Jaguar calipers, I went onto ebay and found a set that sounded like the same units, so I pulled the trigger = $120 w/shipping.

Alika offered to sell me his machined 144mm hubs, which were matched to fit 280mm x 24mm Zimmermann Eurovan VR6 rotors = $115 w/shipping

Image may have been reduced in size. Click image to view fullscreen.


These hubs were machined with a slight chamfer on the outer edge of the hub face, so that they would fit neatly under the EV rotor hat. Additionally, they were drilled and tapped to include the retaining bolt for the rotor, which of course is completely missing on the stock hubs.

The caliper mounting holes need to be enlarged with a 37/64" drill bit and then tapped to accept the 16mm x 1.5 bolts running through the spindle uprights.

Image may have been reduced in size. Click image to view fullscreen.

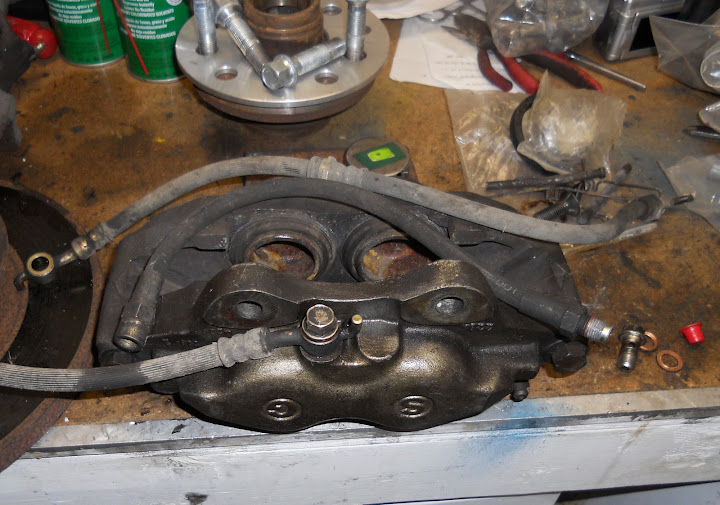

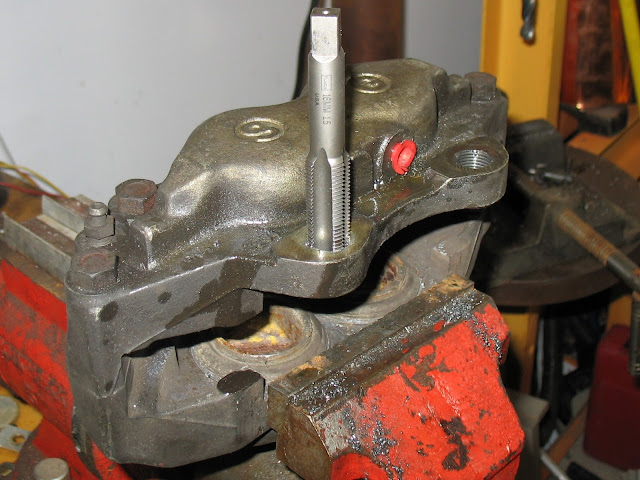

Since the fluid inlet ports are obscured by the spindle upright, there needs to be some grinding for clearance.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


The new hydraulic fittings need to be banjo style with a 10 mm X 1. standard 37 degree flare. I found that a '96 Ford Aspire had a hose with a correct size and angle banjo fitting, though it was too short. (will update once a suitable long-term solution is found).

Image may have been reduced in size. Click image to view fullscreen.

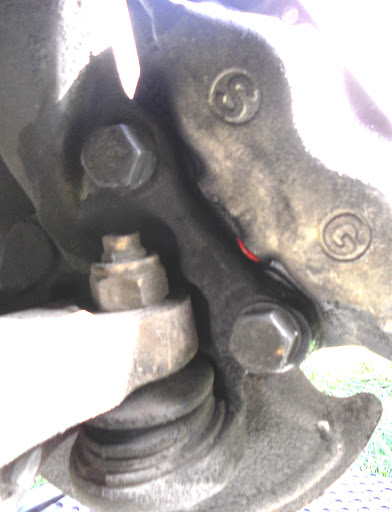

Once I bolted up the calipers over the rotors, I found that they weren't centered, which meant that I had to then shim them up with a couple large washers to the tune of about 4.5mm. The EV rotors have a hub face that measures 8.7mm. This caused the calipers to interfere with the rims, so I then added a 5mm wheel spacer to ensure that the rim and caliper had sufficient distance.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.



Parts list:

Calipers: Jaguar part # AAU2102 for the right # AAU2103
XJ6: 1976-1987 | XJS: 1976-1996 | XJ12: 1976-1987
They are called series 3. The Calipers are 4 piston with a bore of 48 mm.

Rotors: Eurovans in the US had two different 280 x 24 mm Rotors. '92 to '96 and '96 to 2000. The difference being the overall height of the rotors. Part # 701615301F

3.8mm - 4.5mm shims under each caliper mount, in order to center on the rotor

Banjo style hydraulic hose 10 mm X 1. standard 37 degree flare--approximately 22" to 24" long.

Depending on your rims, you'll need some sort of a wheel spacer to clear to the calipers. I used 5mm

Update:
I think this swap definitely requires a minimum of 16" rims, and just want to be sure anybody contemplating this adventure factors that into their budget.

Also, please be sure to read through this thread for some improvements to the approach I've detailed in this post.
_________________
Casey--

'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender --> full camper
y u rune klassik?


Last edited by Zeitgeist 13 on Thu Apr 21, 2011 6:06 am; edited 2 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
D Clymer
Samba Member


Joined: December 22, 2005
Posts: 2978
Location: Issaquah, WA
D Clymer is offline

PostPosted: Mon Apr 11, 2011 9:30 pm    Post subject: Reply with quote

Nice write up, Casey. I hadn't looked in on Alika's thread lately and didn't realize how quickly you'd progressed. What Jaguar model are those four piston calipers from? Who is the manufacturer? I'm not familiar with "SG". I'm assuming the Eurovan rotors are from the 99-00 12V VR6 Eurovan. IIRC, the 24V VR6 Eurovan had even larger 310mm rotors.

The only thing I'm not crazy about with this setup is that the thickness of the rotors widens the track as do the necessary spacers, but other than that the fitment looks good and the price certainly is right. Be sure to let us know how it stops.

David
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 12102
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Mon Apr 11, 2011 9:39 pm    Post subject: Reply with quote

Hi David, these are from an '87 Jaguar XJS (V12) and are Girling units. The rotors are from the 12v VR6 Eurovan.

I'm running ET37 MB rims, so the combined spacers set my new offset at ET23.3.

I'm extremely pleased with the stopping power of these calipers. We have some seriously steep hills here in Olympia, and I've tested each and found that the brakes bite nice and firm with little fade over the stretch. So far, I've observed no downside to the swap.

Casey
_________________
Casey--

'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender --> full camper
y u rune klassik?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ALIKA T3
Samba Member


Joined: July 30, 2009
Posts: 6304
Location: Honolulu,Hawaii and France
ALIKA T3 is offline

PostPosted: Mon Apr 11, 2011 10:04 pm    Post subject: Reply with quote

D Clymer wrote:
Nice write up, Casey. I hadn't looked in on Alika's thread lately and didn't realize how quickly you'd progressed. What Jaguar model are those four piston calipers from? Who is the manufacturer? I'm not familiar with "SG". I'm assuming the Eurovan rotors are from the 99-00 12V VR6 Eurovan. IIRC, the 24V VR6 Eurovan had even larger 310mm rotors.

The only thing I'm not crazy about with this setup is that the thickness of the rotors widens the track as do the necessary spacers, but other than that the fitment looks good and the price certainly is right. Be sure to let us know how it stops.

David


Not absolutely true,he could have get "better" offset by leaving the calipers flush on the spindle and put a 4.5mm-ish custom spacer between hub and Eurovan rotor,and the rim would have cleared the caliper Wink

Next step:the BMW booster Wink
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SyncroGhia
Samba Member


Joined: August 21, 2009
Posts: 2458
Location: Highnam, UK
SyncroGhia is offline

PostPosted: Tue Apr 12, 2011 12:57 am    Post subject: Reply with quote

I was wondering when the thread would go up as I was reading through Alikas post and saw this mod too. Well done for finding a caliper which actually fits!!

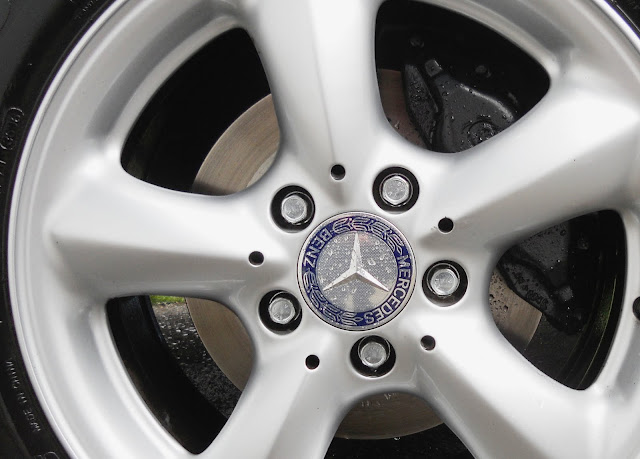

Image may have been reduced in size. Click image to view fullscreen.


Looking at the photo above, the disc is smaller than the caliper will cope with as there is an overlap. Do you have a measurement from the disc to the outer edge of the pads so we can work out what the ideal diameter of brake disc might be?

Wasn't someone trying some 300x24mm discs from a Mercedes 500SL with these calipers?

Looking up the specs of the T4 brake disc, the ones you have used have a 55mm overall height. If you had to use a spacer to get the disc to centre to the caliper, we need a slightly less tall disc, say 50mm to bolt on?

I'm all sorted with big brakes for my vans but have passed the details of this onto Dai who is looking into fitting them to his Syncro Camper. Not sure they'll go under his 15inch Mach 5 wheels though...

MG
_________________
T3 Syncro 16 S6 Westfalia Limey SOLD
T3 Syncro 6x6 SOLD
T3 RS6 Bluestar
T3 Tristar Syncro 16 SOLD
T3 Tristar Syncro RHD SOLD
Back to top
View user's profile Send private message Send e-mail Visit poster's website MSN Messenger Gallery Classifieds Feedback
McVanagon
Samba Member


Joined: February 19, 2007
Posts: 1684
Location: Northern part of the Virginia
McVanagon is offline

PostPosted: Tue Apr 12, 2011 2:38 am    Post subject: Reply with quote

Whew, I just had this nightmare about inboard disc brakes.

These make sense.
_________________
'69 Mike
'85 GL
'87 Wolfsburg Hardtop
Back to top
View user's profile Send private message Twitter Instagram Gallery Classifieds Feedback
Alaric.H
Samba Member


Joined: March 28, 2009
Posts: 2529
Location: Sandy Springs GA
Alaric.H is offline

PostPosted: Tue Apr 12, 2011 4:16 am    Post subject: Reply with quote

Looks good. saving 5 or 600$ is not a bad ideal.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 12102
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Tue Apr 12, 2011 6:33 am    Post subject: Reply with quote

SyncroGhia wrote:
I was wondering when the thread would go up as I was reading through Alikas post and saw this mod too. Well done for finding a caliper which actually fits!!

Image may have been reduced in size. Click image to view fullscreen.


Looking at the photo above, the disc is smaller than the caliper will cope with as there is an overlap. Do you have a measurement from the disc to the outer edge of the pads so we can work out what the ideal diameter of brake disc might be?

Wasn't someone trying some 300x24mm discs from a Mercedes 500SL with these calipers?

Looking up the specs of the T4 brake disc, the ones you have used have a 55mm overall height. If you had to use a spacer to get the disc to centre to the caliper, we need a slightly less tall disc, say 50mm to bolt on?

I'm all sorted with big brakes for my vans but have passed the details of this onto Dai who is looking into fitting them to his Syncro Camper. Not sure they'll go under his 15inch Mach 5 wheels though...

MG


I found that the 300mm MB discs were too big for the calipers, but I suspect discs up to 290mm might fit. The original Jag discs were 284mm. Paul is currently looking into some other disc options that would better optimize the pad to disc contact area. I think you're right that a shorter disc hat would obviate the necessity of spacing the calipers out further. Clearly there's still room for improvements in the fitment.
_________________
Casey--

'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender --> full camper
y u rune klassik?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vango Conversions
Samba Member


Joined: October 04, 2010
Posts: 1054
Location: Seattle, WA
Vango Conversions is offline

PostPosted: Tue Apr 12, 2011 8:53 am    Post subject: Reply with quote

Awesome writeup. The best part is that the caliper mounting holes are in the correct place. trying to machine the G60 callipers is a pain, these look sweet!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
buspor63
Samba Member


Joined: February 17, 2005
Posts: 1179
Location: Knoxville,TN Where America stops for gas
buspor63 is offline

PostPosted: Tue Apr 12, 2011 9:45 am    Post subject: Reply with quote

So, do you think this will work for syncros also? No need to machine the rotors down to hubs.
_________________
Imagine that, theres not an "h" in either Westfalia or Syncro?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Franklinstower
Samba Member


Joined: September 21, 2006
Posts: 1891
Location: PNW
Franklinstower is offline

PostPosted: Tue Apr 12, 2011 10:01 am    Post subject: Reply with quote

ALIKA T3 wrote:

Not absolutely true,he could have "better" offset by leaving the calipers flush on the spindle and put a 4.5mm-ish custom spacer between hub and Eurovan rotor,and the rim would have cleared the caliper Wink


Or find a Rotor with 4 - 4.5 mm more offset. I did some math, and actually the Jag rotor that matches those Calipers has exactly 4.5 mm more offset than the Eurovan rotor used. Only issue is the bolt pattern - The Jag Bolt pattern is 5 X 111.12 a mere .78 mm too narrow. but the bolt hole diameter is 11.5mm and would need to be enlarged anyway. EV holes are 16.65 which is way beyond the bolt diameter of 14mm. I am going to pick up a set of those Jag rotors from the Pick-n-Pull and see how the offset actually fits. Then you could either redrill the rotor for 5 X 112, drill the existing holes out to 16mm or just oblong the existing bolt holes. As long as a centering ring is used, oblonged or enlarged bolt holes won't matter. The Jag rotor is 284 x 24.2 which should use all the pad surface. This also would reduce total wheel offset by about 3.5 mm - The mounting flange is thicker on the Jag - 9.5 compared to EV at 8.7.

Another potential rotor option is MB 380 SEC or 500 SEC (S Class C126) Those might only need the holes opened to 14mm. They are 286 X 22.
_________________
'89 Westy - EJ25/22 Frank 4.44 5mt
'75 Miami Blue Sunroof FI Standard Bug
Back to top
View user's profile Send private message Gallery Classifieds Feedback
buildyourown
Samba Member


Joined: March 01, 2009
Posts: 1668
Location: Seattle
buildyourown is offline

PostPosted: Tue Apr 12, 2011 10:03 am    Post subject: Reply with quote

I'm not crazy about having to grind the upright for fitting clearance but time will tell.
For the rotors, I turned my 312mm audi rotors down to 305 and they work great. Might be worth it just for even pad wear.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
ALIKA T3
Samba Member


Joined: July 30, 2009
Posts: 6304
Location: Honolulu,Hawaii and France
ALIKA T3 is offline

PostPosted: Tue Apr 12, 2011 11:12 am    Post subject: Reply with quote

I did a test fit on my Syncro post,it`s even easier.

I agree with the oblong holes on Jaguar rotors,it doesn`t matter.
We mount some jeep rear rotors in France that are 114.3 PCD,as long as centering is done not on the bolts,it`s good.
I don`t remember clearly ,as it`s more than 6 years we started that set up,but I kinda remember something was not matching on the Jaguar rotors,maybe it was the PCD,but maybe was something else.I can`t wait to see your experiment fit.

About grinding,I didn`t grind that much,but those spindles are over built,no way you`re gonna break the ear tabs while breaking.

Enjoy Cool
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ALIKA T3
Samba Member


Joined: July 30, 2009
Posts: 6304
Location: Honolulu,Hawaii and France
ALIKA T3 is offline

PostPosted: Tue Apr 12, 2011 8:09 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Uploaded with ImageShack.us
Jaguar Rotor

For those who don't want to grind the spindle,I'm sure you can tap the top of the caliper,the foundry has been done for it.

Those calipers are identical to some Renault Master vans,which have the fitting on the top fortunately
http://www.budweg.com/budwegweb/catalogue/caliperQueryview.asp?key=2959 Jaguar
http://www.budweg.com/budwegweb/catalogue/caliperQueryview.asp?key=6541 Renault
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vango Conversions
Samba Member


Joined: October 04, 2010
Posts: 1054
Location: Seattle, WA
Vango Conversions is offline

PostPosted: Wed Apr 13, 2011 8:50 am    Post subject: Reply with quote

What's the specific year/model Renault? I can find the jaguar calipers for pretty cheap on Rock auto, but can't find a Renault "master van" listed. Wouldn't surprise me if they didn't have it, but it's cheap when they do.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vango Conversions
Samba Member


Joined: October 04, 2010
Posts: 1054
Location: Seattle, WA
Vango Conversions is offline

PostPosted: Wed Apr 13, 2011 8:53 am    Post subject: Reply with quote

I suppose I could have looked at more than 1 year before writing that. Whups. Looks like a 1988 Renault Master would work?

http://www.rockauto.com/catalog/moreinfo.php?pk=2538256

Bit more expensive at $148 each if you eat the core charge, but no grinding or drilling required.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Franklinstower
Samba Member


Joined: September 21, 2006
Posts: 1891
Location: PNW
Franklinstower is offline

PostPosted: Wed Apr 13, 2011 9:31 am    Post subject: Reply with quote

Yes, those are the right Calipers with the hydraulic fitting on top. Sure would make things easier. I have a spare set of Jag Calipers and i might attempt to drill and tap it for the 10 x 1mm fitting. You can have brake lines made up here: http://www.apexbrakes.com/custom.asp for pretty cheap with the right banjo and bubble flare on the other end. about $20 a piece plus shipping.

Paul
_________________
'89 Westy - EJ25/22 Frank 4.44 5mt
'75 Miami Blue Sunroof FI Standard Bug
Back to top
View user's profile Send private message Gallery Classifieds Feedback
buildyourown
Samba Member


Joined: March 01, 2009
Posts: 1668
Location: Seattle
buildyourown is offline

PostPosted: Wed Apr 13, 2011 9:48 am    Post subject: Reply with quote

Custom lines are worth it IMO. I found a local place that was very helpful and provided me with a very high quality product.
Ask at your local parts counter, they probably know who does them.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Franklinstower
Samba Member


Joined: September 21, 2006
Posts: 1891
Location: PNW
Franklinstower is offline

PostPosted: Wed Apr 13, 2011 10:08 am    Post subject: Reply with quote

buildyourown wrote:
Custom lines are worth it IMO. I found a local place that was very helpful and provided me with a very high quality product.
Ask at your local parts counter, they probably know who does them.


BYO, who did you find here in the Seattle Area? I found Banjos at Brake and Clutch off Airport way, but they are too thick. I also heard Western Fluid Components might make them, but that is a rumor.
_________________
'89 Westy - EJ25/22 Frank 4.44 5mt
'75 Miami Blue Sunroof FI Standard Bug
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Franklinstower
Samba Member


Joined: September 21, 2006
Posts: 1891
Location: PNW
Franklinstower is offline

PostPosted: Sat Apr 16, 2011 10:46 pm    Post subject: Reply with quote

The Jaguar Rotors - 284 x 24.2 - Brembo Number: 09.3825.10 center perfectly within the caliper and require no spacers between the caliper and mount. All they required to fit is enlarging the lug bolt holes on the rotors slighlty beyond 14 mm - something like 37/64" should do it.

Pictures to follow.

A couple of short vids showing the stock vanagon disc getting cut off and the hub turned down:


Link




Link


Paul
_________________
'89 Westy - EJ25/22 Frank 4.44 5mt
'75 Miami Blue Sunroof FI Standard Bug
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3 ... 19, 20, 21  Next
Jump to:
Page 1 of 21


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
