David Navarez 1963 23-Window @ VW Classic / Barrett-Jackson
Page: 1, 2, 3 ... 15, 16, 17  Next
Jump to:
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
RHD Notch
Samba Member


Joined: April 06, 2007
Posts: 1414
Location: Joshua Tree, CA
RHD Notch is offline

PostPosted: Sun Jun 19, 2011 4:35 pm    Post subject: David Navarez 1963 23-Window @ VW Classic / Barrett-Jackson Reply with quote

Trying to find out if the bus below is the David Navarez bus that received 2nd Place in the Pre-67 Passenger Bus Class V20 at the VW Classic last weekend? I posted a photo of it in the Gallery and was contacted by some Sambanistas as to the color codes...if it's David's and he is here or if there is another owner, please post the codes here...Thanks, RHD

Image may have been reduced in size. Click image to view fullscreen.

_________________
Lind wrote:
I am at the point where I hardly want to own anything that isn't original paint.
campingbox wrote:
I have some other projects I'd like to finish first and I want to drive this bus while I'm working on those to help stay motivated.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Kommercial
Samba Moderator


Joined: December 28, 2000
Posts: 1178
Location: San Tan Valley, Arizona
Kommercial is offline

PostPosted: Sun Jun 19, 2011 5:19 pm    Post subject: Reply with quote

Isn't that just Mouse grey / Pearl white?

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website AIM Address Gallery Classifieds Feedback
kanniff
Samba Member


Joined: October 12, 2009
Posts: 811
Location: West Coast
kanniff is offline

PostPosted: Sun Jun 19, 2011 5:33 pm    Post subject: Reply with quote

Looks like MG/PW to me too- but dont forget the red deluxe trim Smile
Back to top
View user's profile Send private message Gallery Classifieds Feedback
turkis-deluxe
Samba Security


Joined: January 06, 2001
Posts: 1551
Location: 94518
turkis-deluxe is offline

PostPosted: Sun Jun 19, 2011 5:39 pm    Post subject: Reply with quote

I saw this bus at the show and overheard the owner saying it is Mouse Grey but the color did appear to be slightly off in my opinion.
Especially when you compare it to Lind's bus.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sventinker
Samba Member


Joined: June 10, 2009
Posts: 1481
Location: the sandbox
sventinker is offline

PostPosted: Sun Jun 19, 2011 7:49 pm    Post subject: Reply with quote

I saw the bus up close at octo and the owner/builder insists it is mgr/pw. It is not in the least. It has a lot of brown and green in the gray and the pw is wrong too. Don't get me wrong it is a nice looking bus just a lot of money spent on the wrong color paint. IMO
_________________
April 3rd 62 standard mgr/pw
374 North American equipment
Includes 6 popouts
025 Safety belts
195 Adjustable bench seat/backrest (until 1963)
dawerks wrote:
Perfection only comes with delusion.

http://www.oacdp.org/
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
hitest
Samba Member


Joined: September 30, 2008
Posts: 10324
Location: Prime Meridian, ID
hitest is offline

PostPosted: Sun Jun 19, 2011 9:39 pm    Post subject: Reply with quote

I too drooled over that bus- and decided in person it looks a bit 'warmer' than Lind's Mouse Gray. I'm beyond caring due to it's inherent beauty.
_________________
EverettB wrote:

I wonder what the nut looks like.



'62 L390 151, '62 L469 117, '63 L380 113, '64 L87 311, '65 L512 265, '65 L31 SO-42, '66 L360 251, '68 L30k 141, '71 L12 113, '74 ORG 181

FU#5
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Douglas Denlinger
Samba Member


Joined: May 23, 2003
Posts: 1403
Location: Arizona's version of the east coast
Douglas Denlinger is offline

PostPosted: Mon Jun 20, 2011 9:03 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

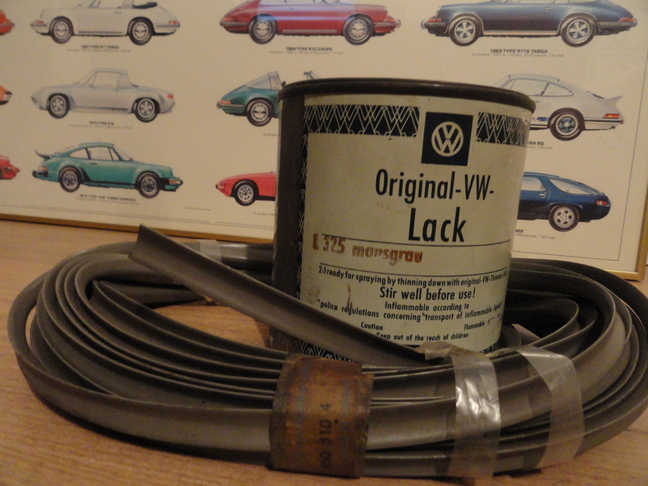

Mouse grey.....it's very very difficult to get an exact match straight from any paint supplier today as most don't even have a formula. If they do have a forumla the pigments used today are very different than 50 years ago due to all the new environmental regulations.....example water based paint, etc.

It's best to use an original paint part or a period VW color sample book to insure the best match.

This is a nice bus...I spoke to the owner at OCTO, not originally built MGR PW bus, rather Tur BLW.
_________________
Transporter Restorations
Upholstery Haus

Active 23 Window Samba Collector/Restorer,since 1986
Back to top
View user's profile Send private message Gallery Classifieds Feedback
krusher
Samba Member


Joined: September 24, 2002
Posts: 7662
Location: europe
krusher is offline

PostPosted: Mon Jun 20, 2011 10:40 am    Post subject: Reply with quote

colour codes

http://www.thesamba.com/vw/archives/info/colorstype2.php

Very Happy
_________________
(06:31:07) RoachGhia: "i drink dick way too fast"
Back to top
View user's profile Send private message Send e-mail MSN Messenger Gallery Classifieds Feedback
UZI
Platinum FUBU


Joined: February 08, 2002
Posts: 13335
Location: phila-DELFT-ia
UZI is offline

PostPosted: Mon Jun 20, 2011 6:06 pm    Post subject: Reply with quote

greys are the hardest colors to mix.
_________________
Extravagant Lifestyle

Quote:
mannys66: South Philly Van Club, only the most influential and freshest van club in the vw scene
Quote:
Cuñado: Chrome will get you home!!!!!!!!!!
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 71489
Location: Phoenix 602
EverettB is offline

PostPosted: Mon Jun 20, 2011 10:38 pm    Post subject: Reply with quote

Here's the Glasurit Formula for Mouse Grey

Mouse Grey / Color code 325 / Year of usage 62-66H

70.0 parts 1051 weiB (White)
18.0 parts 1052 schwarz (Black)
09.5 parts 1053 ocker (Ochre)
02.5 parts 1054 rotbraun (Reddish-Brown)

I'm assuming the ocker here is the brown/orange colored version of ochre.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram YouTube Gallery Classifieds Feedback
Lind
Samba Member


Joined: November 06, 2000
Posts: 10212
Location: idaho
Lind is offline

PostPosted: Tue Jun 21, 2011 9:26 am    Post subject: Reply with quote

the mouse grey looked too light, and the pearl white looked too dark. maybe they averaged out to the right colors... Wink

mouse grey is such an awesome color.
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
iamdonquixote
Samba Member


Joined: January 28, 2003
Posts: 2077
Location: M*ssholia
iamdonquixote is offline

PostPosted: Tue Jun 21, 2011 10:31 am    Post subject: Reply with quote

looks good, even if its not a puurfect match.

I used PPG to paint my mouse grey and it looked a little too brown in my opionion
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
sventinker
Samba Member


Joined: June 10, 2009
Posts: 1481
Location: the sandbox
sventinker is offline

PostPosted: Tue Jun 21, 2011 2:17 pm    Post subject: Reply with quote

EverettB wrote:
Here's the Glasurit Formula for Mouse Grey

Mouse Grey / Color code 325 / Year of usage 62-66H

70.0 parts 1051 weiB (White)
18.0 parts 1052 schwarz (Black)
09.5 parts 1053 ocker (Ochre)
02.5 parts 1054 rotbraun (Reddish-Brown)

I'm assuming the ocker here is the brown/orange colored version of ochre.


From the paint page

"March 1961 up to July 1964
From Chassis Number 749 001 up to 1 328 271"

I also remember seeing in the mouse gray pearl white buses that in 61 the dash would have been gray. What models did they use mouse gray on past 1964?
_________________
April 3rd 62 standard mgr/pw
374 North American equipment
Includes 6 popouts
025 Safety belts
195 Adjustable bench seat/backrest (until 1963)
dawerks wrote:
Perfection only comes with delusion.

http://www.oacdp.org/
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 71489
Location: Phoenix 602
EverettB is offline

PostPosted: Tue Jun 21, 2011 10:39 pm    Post subject: Reply with quote

I do not know of Mouse Grey being used later than '64 but I do see that Mouse Grey is the color used on some interior parts for post-64 Buses.

I do see it was a possible exterior color for Westys but I don't know if that went past 1964 either.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram YouTube Gallery Classifieds Feedback
RHD Notch
Samba Member


Joined: April 06, 2007
Posts: 1414
Location: Joshua Tree, CA
RHD Notch is offline

PostPosted: Thu Jun 23, 2011 11:59 pm    Post subject: Reply with quote

Looks like this bus will be sold @ Barrett-Jackson this weekend...

http://www.thesamba.com/vw/classifieds/detail.php?id=1155981
_________________
Lind wrote:
I am at the point where I hardly want to own anything that isn't original paint.
campingbox wrote:
I have some other projects I'd like to finish first and I want to drive this bus while I'm working on those to help stay motivated.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 71489
Location: Phoenix 602
EverettB is offline

PostPosted: Fri Jun 24, 2011 12:18 am    Post subject: Reply with quote

Yes, I am interested to find out the sales price at auction.

I dug up some more Gallery photos:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=817465
http://www.thesamba.com/vw/forum/album_page.php?pic_id=817464
http://www.thesamba.com/vw/forum/album_page.php?pic_id=817463
http://www.thesamba.com/vw/forum/album_page.php?pic_id=817462
http://www.thesamba.com/vw/forum/album_page.php?pic_id=817461
http://www.thesamba.com/vw/forum/album_page.php?pic_id=817460
http://www.thesamba.com/vw/forum/album_page.php?pic_id=817459
http://www.thesamba.com/vw/forum/album_page.php?pic_id=817458
http://www.thesamba.com/vw/forum/album_page.php?pic_id=817457

http://www.thesamba.com/vw/forum/album_page.php?pic_id=817853
http://www.thesamba.com/vw/forum/album_page.php?pic_id=817854
http://www.thesamba.com/vw/forum/album_page.php?pic_id=817855
http://www.thesamba.com/vw/forum/album_page.php?pic_id=817856

http://www.thesamba.com/vw/forum/album_page.php?pic_id=818835
http://www.thesamba.com/vw/forum/album_page.php?pic_id=818721
http://www.thesamba.com/vw/forum/album_page.php?pic_id=818722
http://www.thesamba.com/vw/forum/album_page.php?pic_id=818723
http://www.thesamba.com/vw/forum/album_page.php?pic_id=818724
http://www.thesamba.com/vw/forum/album_page.php?pic_id=818725
http://www.thesamba.com/vw/forum/album_page.php?pic_id=818726
http://www.thesamba.com/vw/forum/album_page.php?pic_id=818727
http://www.thesamba.com/vw/forum/album_page.php?pic_id=818728

Auction page
http://www.barrett-jackson.com/application/onlines...&pop=0
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram YouTube Gallery Classifieds Feedback
pyrOman
Fire Master


Joined: July 21, 2003
Posts: 12538
Location: Over 2002 posts deleted!
pyrOman is offline

PostPosted: Fri Jun 24, 2011 6:32 am    Post subject: Reply with quote

RHD Notch wrote:
Looks like this bus will be sold @ Barrett-Jackson this weekend...

http://www.thesamba.com/vw/classifieds/detail.php?id=1155981


Quote:
1963 Mouse Grey 23 Window Bus

Price: BARRETT JACKSON


Translation: YOU can't afford it! Laughing
_________________
Some people are so busy being clever they don't have time enough to be wise.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RHD Notch
Samba Member


Joined: April 06, 2007
Posts: 1414
Location: Joshua Tree, CA
RHD Notch is offline

PostPosted: Fri Jun 24, 2011 10:56 am    Post subject: Reply with quote

pyrOman wrote:
RHD Notch wrote:
Looks like this bus will be sold @ Barrett-Jackson this weekend...

http://www.thesamba.com/vw/classifieds/detail.php?id=1155981


Quote:
1963 Mouse Grey 23 Window Bus

Price: BARRETT JACKSON


Translation: YOU can't afford it! Laughing


BJ is always full of surprises being that everything sold is 'NO RESERVE'...could be 'bought right' or 'sold right'...only sure thing is there will be lotsa dickey-doo winners with their trophy wives....and you're right, I won't be one of them Laughing
_________________
Lind wrote:
I am at the point where I hardly want to own anything that isn't original paint.
campingbox wrote:
I have some other projects I'd like to finish first and I want to drive this bus while I'm working on those to help stay motivated.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
T2
Samba Member


Joined: February 15, 2003
Posts: 194
Location: Yachats, Oregon
T2 is offline

PostPosted: Sat Jun 25, 2011 4:30 pm    Post subject: Reply with quote

Did it sell yet? Curious how ridiculous the bidding went on it.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Snoop Bob
Samba Member


Joined: May 06, 2003
Posts: 2687
Location: Florida
Snoop Bob is offline

PostPosted: Sat Jun 25, 2011 4:46 pm    Post subject: Reply with quote

No...probably another hour or so...They are up to like 344ish.? now.
_________________
BarryL wrote:
Put your lips onto the little tit with the hole in it inside and make a good seal. You can suck and blow but with a little resistance. It gets better after it's wet.

EverettB wrote:
I would be interested in knowing the sizes of the various shafts.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3 ... 15, 16, 17  Next
Jump to:
Page 1 of 17


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
