Is my steering column missing something?

alexvw

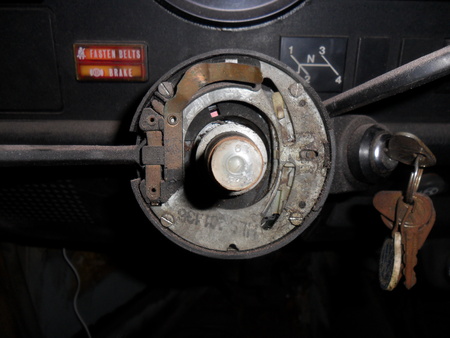

I took off my steering wheel today to investigate the half inch of play from all sides. It would wiggle all over the place and was thinking that it was missing a bushing of some sort. Does anything look out of place in this picture? While I'm in here should I replace anything? Confused

Image may have been reduced in size. Click image to view fullscreen.

_________________
1995 Mitsubishi 3000GT SL
1974 Volkswagen Superbeetle( Mitsubishi 4G63T Swap in Progress )

http://www.thesamba.com/vw/forum/viewtopic.php?t=575769&highlight=

gt1953 · Posted: Sun Jul 03, 2011 1:55 pm Post subject:

It is called the steerig wheel bearing that is missing or ? What year of bug?
http://www.karmannghia.com/viewDetail.asp?strMasterCat=&idproduct=8217

Look sorta like the picture link.
_________________
Volkswagen: We tune what we drive.
Numbers Matching VW's are getting harder to find. Source out the most Stock vehicle and keep that way. You will be glad you did.

72 type 1
72 Squareback
({59 Euro bug, 62, 63, 67, 68, 69, 73 type ones 68 & 69 type two, 68 Ghia all sold})

Glenn · Posted: Sun Jul 03, 2011 1:56 pm Post subject:

Joel · Posted: Sun Jul 03, 2011 2:10 pm Post subject:

Hi Alex, theres a bushing that sits between the steering shaft and the bearing in the housing that VW kindly changed from metal to plastic in 72.

They tend to go brittle and fall apart over time then that play starts.

You just have to remove the circlip under the steering wheel and pull out the grey spacer and its under that or what's left of it anyway.
_________________
Quick little bug, you got a Porsche motor in that?
1974 Germanlook 1303 2.5 Suba-Beetle

alexvw · Posted: Sun Jul 03, 2011 2:19 pm Post subject:

Its a 1974 super beetle. Yes, I expected it was a bushing not in place or something. Joel, You said that part of it was still in there? Do you know where I can get a new one?
_________________
1995 Mitsubishi 3000GT SL
1974 Volkswagen Superbeetle( Mitsubishi 4G63T Swap in Progress )

http://www.thesamba.com/vw/forum/viewtopic.php?t=575769&highlight=

Joel · Posted: Sun Jul 03, 2011 2:23 pm Post subject:

http://www2.cip1.com/ProductDetails.asp?ProductCode=C16%2D111%2D535D Wink

Just ignore that its for b/j, supers use the same one
_________________
Quick little bug, you got a Porsche motor in that?
1974 Germanlook 1303 2.5 Suba-Beetle

alexvw · Posted: Sun Jul 03, 2011 2:29 pm Post subject:

smokey503 · Posted: Sun Jul 03, 2011 4:15 pm Post subject:

Also missing that funny looking W spring clip that goes on the right side for the turn signals.
_________________
If a car travels the speed of light, would the headlights work?

Joel · Posted: Sun Jul 03, 2011 4:31 pm Post subject:

That spring clip is part of the self cancelling mechanism for the turn signals.
The little plastic hooks break off and the spring falls out.

I was forgetting yours would be a 74 taper shaft so no circlip.

Just pull that grey plastic spacer thing you can see slipped over the shaft out and then you will be able to see the bearing underneath.

That bushing sits in the gap between the bearing and the shaft and it can be a PITA to get in as it's a tight fit.
_________________
Quick little bug, you got a Porsche motor in that?
1974 Germanlook 1303 2.5 Suba-Beetle

alexvw · Posted: Sun Jul 03, 2011 4:43 pm Post subject:

alexvw · Posted: Sun Jul 03, 2011 4:43 pm Post subject:

Joel · Posted: Sun Jul 03, 2011 7:47 pm Post subject:

All good.

If you hunt around under the carpet you will probably find it.

Looks like this (not what the arrows point at, beside it.)

Trouble is if it;s actually fallen out it means one of the plastic hooks has probably broken which is new turn signal switch time.
You can replace them with second hand bits but its a bitch of a job and all it does is the self cancelling part
_________________
Quick little bug, you got a Porsche motor in that?
1974 Germanlook 1303 2.5 Suba-Beetle

smokey503 · Posted: Sun Jul 03, 2011 10:07 pm Post subject:

I am in a great mood today. So I thought I would offer you a free turn signal assembly if you need it. It is off a '72 Super but should work on yours.
_________________
If a car travels the speed of light, would the headlights work?

alexvw · Posted: Sun Jul 03, 2011 10:42 pm Post subject:

Ninian · Samba Member Joined: July 18, 2011 Posts: 14

I've recently had to replace the electrical part of my ignition switch and while removing the turn signal switch, the wires came loose from the plastic clip and now I can't find a diagram showing which order the wires are to be in. Can anyone provide a photo of the order of wires as well as if they should be on top or bottom? There are six wires. I'm pretty sure the brown ones are all in order but the black and green and the black and white ones are the ones causing me issues. Since plugging it all back in, my generator light comes on and my gas gauge won't work. I'm sure it's just a crossed wire. Thanks all for the help in advance. I also have a 1974 Super Beetle.

Side question, I have an extra spring. It's about half an inch long, quarter inch wide. I know it came out of the steering wheel column, but I can't figure out where it goes.

Thanks again!

mjenner · Posted: Tue Jul 19, 2011 4:17 pm Post subject:

i need this bushing for my 75 std but the canadian cip site shows this one - is it also a suitable replacement?

http://www.cip1.ca/ProductDetails.asp?ProductCode=C24%2D171%2D419%2D341

mjenner · Posted: Tue Jul 19, 2011 4:33 pm Post subject:

ninian - did the spring maybe come off your steering wheel? i just looked my switch housing over and i see no springs

alexvw · Posted: Tue Jul 19, 2011 7:31 pm Post subject:

Does anyone know the actual name or part number of that W clip for the turn signals? I mine as well put one in there now instead of having to take the steering wheel off again but I can't find it.
_________________
1995 Mitsubishi 3000GT SL
1974 Volkswagen Superbeetle( Mitsubishi 4G63T Swap in Progress )

http://www.thesamba.com/vw/forum/viewtopic.php?t=575769&highlight=

Ninian · Samba Member Joined: July 18, 2011 Posts: 14

I figured out the spring. It went inside the metal part of the windshield wiper switch.

I'm still having issues getting the wiring corrected. I thought I had it, didn't think to look at the wires I'm connecting to and matching up the colors. However, now my horn continuously goes off as soon as I turn on my bug. I unplug the turn signal wires and it stopped. Before that, I unplugged the horn from the front panel of the steering wheel, but that didn't do anything.

mjenner · Posted: Wed Jul 20, 2011 7:55 am Post subject:

Do a search for the horn problem - it is an odd circuit - you will find your answer. i have my switch pod off if you need me to take a pick of the wiring connectors
