New 72

werker · Posted: Tue Oct 18, 2011 10:51 pm Post subject: New 72

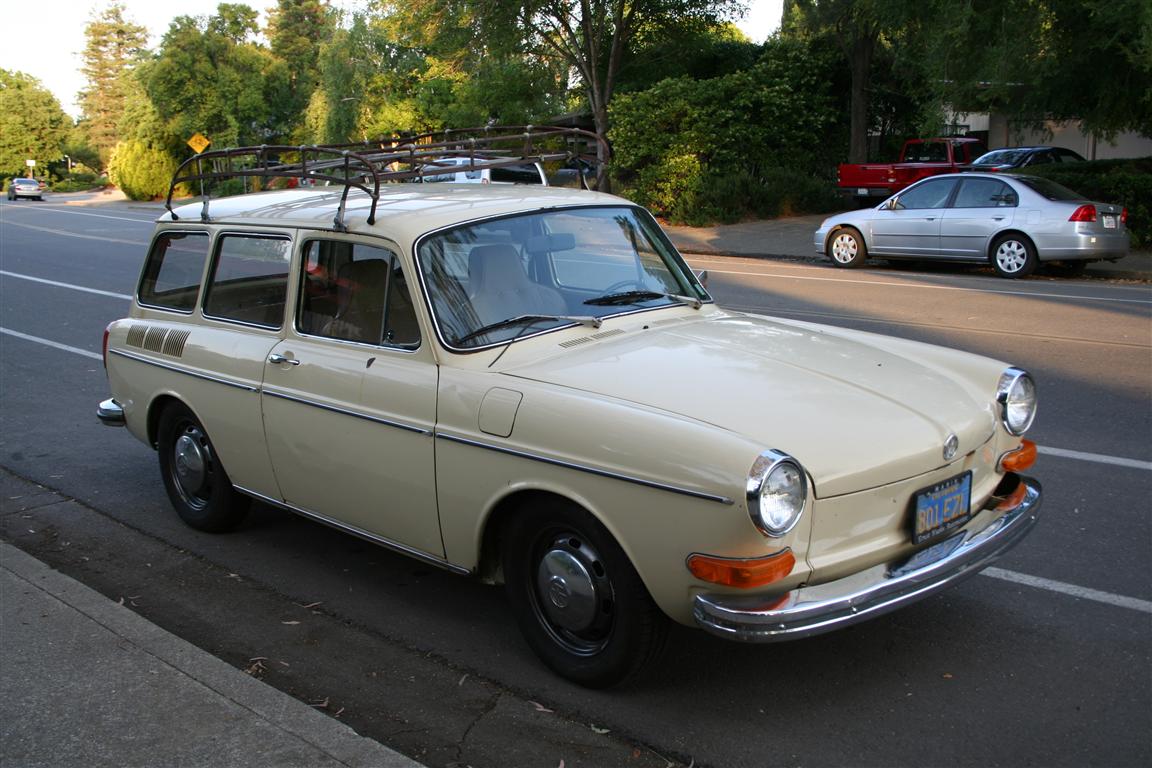

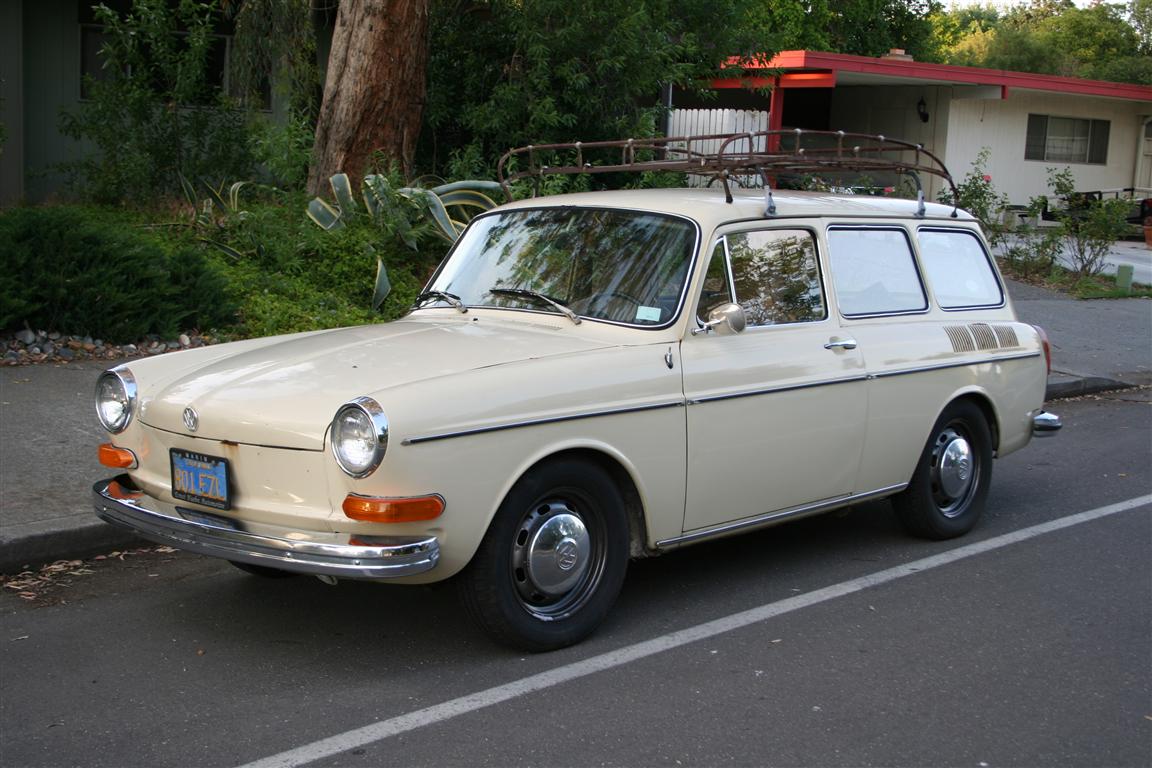

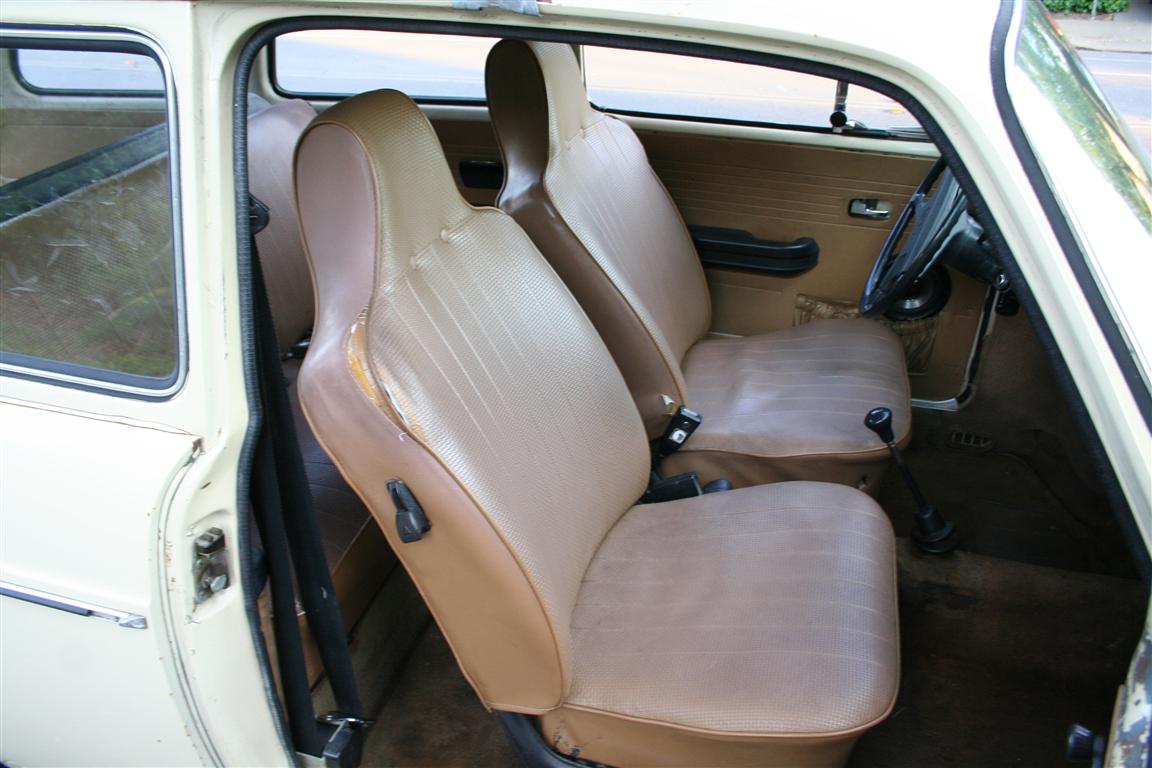

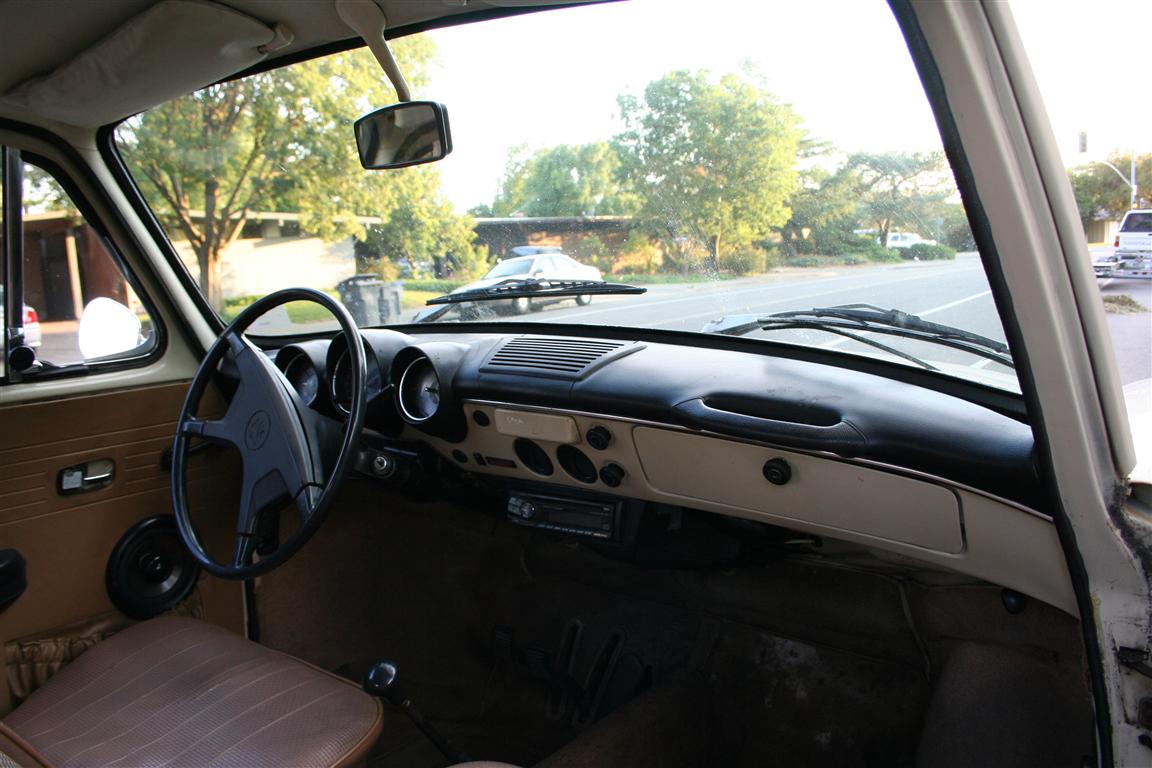

Thought I'd post up the 72 I've been working on lately. Sold off the 58 single cab because I needed a smooth vehicle to travel in. Don't get me wrong, I like the old split window, but it is more of a piece of farm equipment than an actual vehicle. With that in mind, I picked up this nice 72 from Berkeley Ca. So far it has been the most original, least molested and finest running of any VW I've ever purchased (as purchased). Even the clock works!

Image may have been reduced in size. Click image to view fullscreen.

Does anything appear to be missing or wrong in the engine compartment?
(I know about the air filter to body snorkel, and the missing start injector)

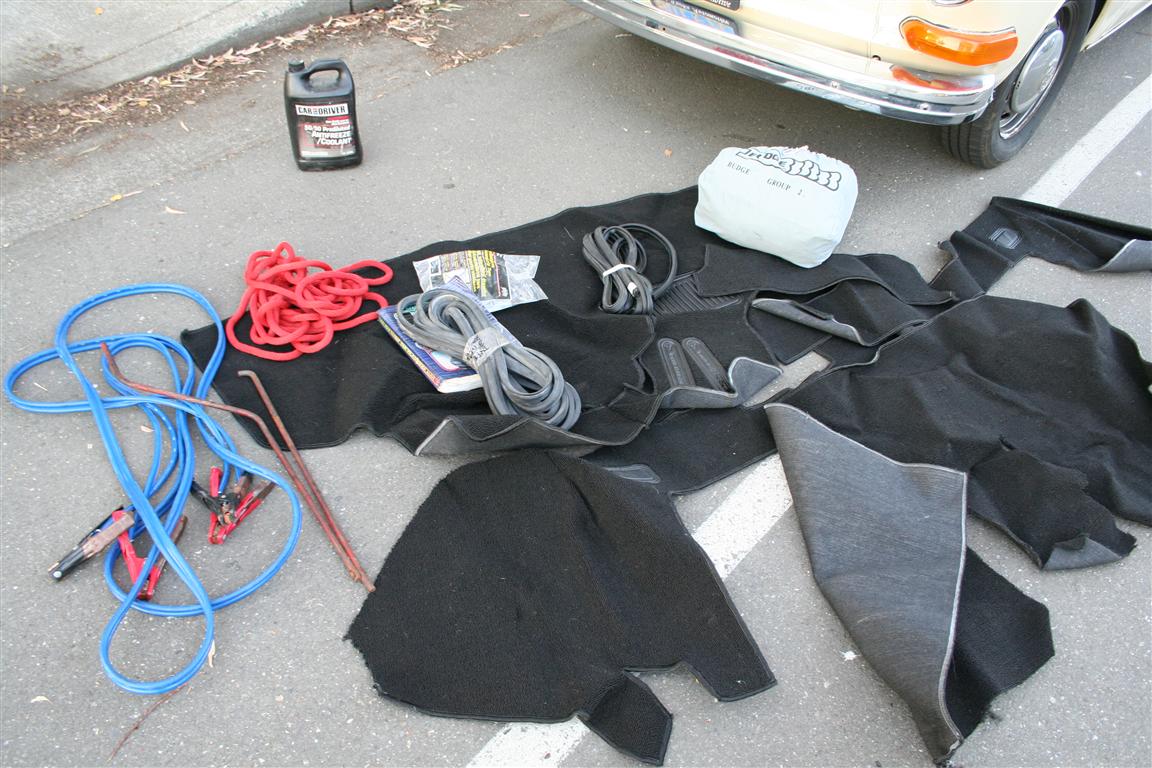

Best yet, look at all the stuff that came with it. A few extra rubbers, an interior kit I have no intention of installing, a muir manual, and even some bonus coolant. Shocked

(The PO had no idea about cars. He told me on the phone that it was carbureted and didn't know how to work the heater or vent controls.)

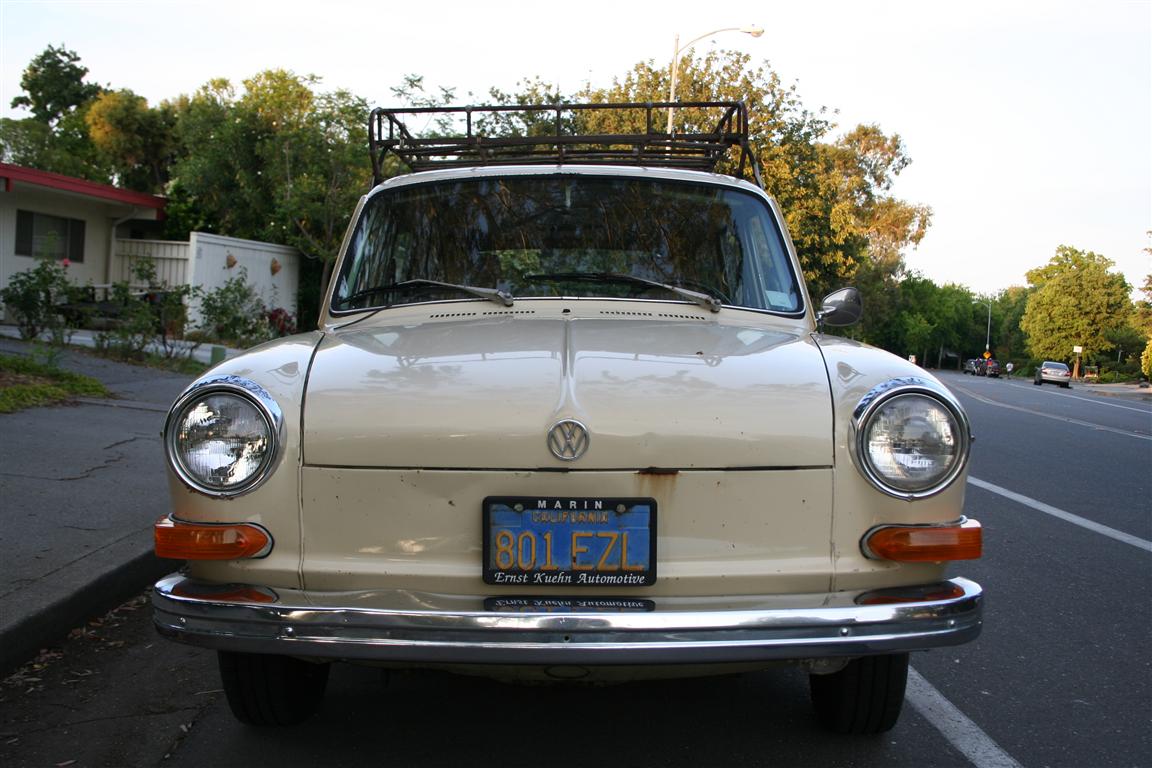

Finally, does anybody know what this rack is off of?

The four parts that connect the rack to the roof are hose clamped on and aren't part of the rack. But the four posts with rubber feet are. What the heck is this rack from??

Also, how would I know if this car came originally with overriders?

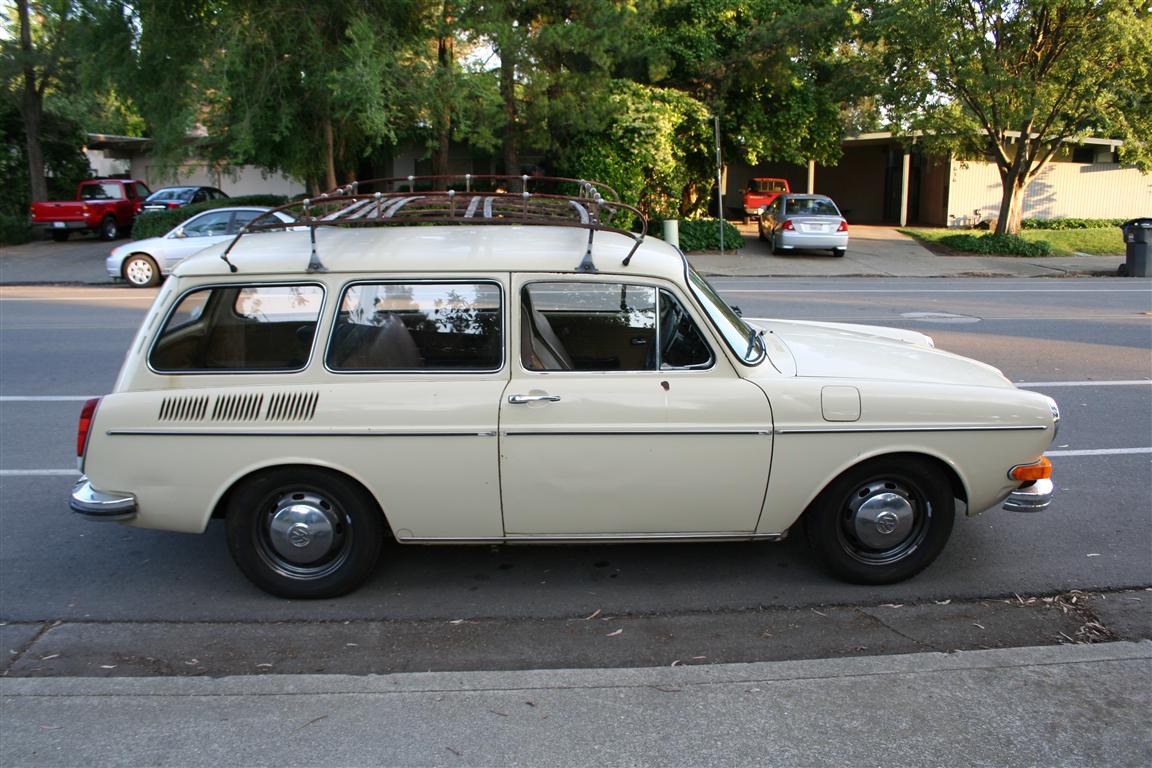

Check out the aftermarket side stripping that a PO put on. Instead of a chrome line, a black line. It almost doesn't look that bad. I will replace it eventually.

Does it look lowered a little? I can't tell.
_________________
72 Squareback
9th air-cooled
Proud Member #8, SBS (Stock Bus Society)
---------------------------------------
Gremlin Killer

Getdownthump · Posted: Wed Oct 19, 2011 2:43 am Post subject:

Looks great and does look like it escaped the molesters! Not sure on what's missing as I'm a twin carb guy but it does look OG in there too.

Mike Fisher · Posted: Wed Oct 19, 2011 8:21 am Post subject:

It does look like a Good Score! You'll need 20+ feet of 5/16" gas hose and new clamps to replace All your gas hoses. The original woven hoses will spring pin hole leaks any time now!
_________________
https://imgur.com/user/FisherSquareback/posts
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold

Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey

supaninja · Posted: Wed Oct 19, 2011 9:15 am Post subject:

kage · Posted: Wed Oct 19, 2011 9:19 am Post subject:

I made the switch from a 67 crew cab and I have to agree, ride is a bit smoother. I'm also in a 72 square (f.i.) which looks pretty identical to yours. It's white, but the original color was the same. Mines got over riders front and rear and the same bumper with the rubber strip in the center, I think that was stock. I've got the same carpet kit too ( in oatmeal not black), which I'm in the process of installing. Looks nice so far, you should try it.

werker · Posted: Wed Oct 19, 2011 9:50 am Post subject:

Hmmm fuel lines. I suppose that would be a good idea. I've actually seen now a few VW burning up in front of me. (Never mine). Nick, thanks for the jegs link. I'll pick that up and get replacing.

So there is a short soft span from the tank to the hard line, then again at the hardline to the rear. Right? And then it's all engine compartment lines. Will that hose work for my fuel rails as well? Or would I need different hose. Also, are we talking normal screw driver hose clamps or those weird ones that hold the fuel rail together?

And ideas about my rack?
_________________
72 Squareback
9th air-cooled
Proud Member #8, SBS (Stock Bus Society)
---------------------------------------
Gremlin Killer

Mike Fisher · Posted: Wed Oct 19, 2011 10:09 am Post subject:

There is a bunch by the fuel pump supply/return/filter/dampener etc. I eliminated my metal 'pancake' dampener. Replace ALL of it! I just bought 20 worm drive slotted/hex head clamps at my local Knecht's for $13.80. Use the hex head to tighten them. I think I'm gonna need more clamps!
_________________
https://imgur.com/user/FisherSquareback/posts
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold

Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey

Root_Werks · Posted: Fri Oct 21, 2011 8:41 am Post subject:

supaninja · Posted: Fri Oct 21, 2011 8:45 am Post subject:

The modern fuel hose is called "universal" but is rated to 50psi, more then plenty for djet Wink

SAE30R6 has a bust rating of 175psi, plus Jegs usually substitutes it with SAE30R7 which is even better stuff. It's 2011 there isn't a lot of carbed cars on the road anymore since FI has been standard for the last 25 years or so.
_________________
http://i5.photobucket.com/albums/y163/chucky1974/ninja.gif

Nick
Megasquirted Type 4 powered Notch http://www.thesamba.com/vw/forum/viewtopic.php?t=427890&postdays=0&postorder=asc&start=0
Blog of Doom http://supaninjanick.wordpress.com/

Root_Werks · Posted: Fri Oct 21, 2011 8:48 am Post subject:

Here:

http://www2.cip1.com/ProductDetails.asp?ProductCode=VHD%2DN20%2D2811
_________________
When I set my timing, why do I flush, then take a pee?

Mike Fisher · Posted: Fri Oct 21, 2011 8:49 am Post subject:

Russ Wolfe told us Mahle tested 'universal' fuel hose to 250lbs.
_________________
https://imgur.com/user/FisherSquareback/posts
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold

Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey

Root_Werks · Posted: Fri Oct 21, 2011 8:50 am Post subject:

supaninja · Posted: Fri Oct 21, 2011 8:58 am Post subject:

When I upgraded the entire fuel system on my honda (turbo and ethanol, giggity) I did a ton of research on fuel hose. For us the SAE30R6 and SAE30R7 is way overkill plus you can buy it at your local FLAPS or online from Jegs and Summit for cheap, it's a no-brainer. It also has the Russ and Jake R. stamp of approval, it's good stuff.
_________________
http://i5.photobucket.com/albums/y163/chucky1974/ninja.gif

Nick
Megasquirted Type 4 powered Notch http://www.thesamba.com/vw/forum/viewtopic.php?t=427890&postdays=0&postorder=asc&start=0
Blog of Doom http://supaninjanick.wordpress.com/

KTPhil · Posted: Sat Oct 22, 2011 9:42 am Post subject:

Use the right EFI hose clamps so you don't cut the jacket tightening them:

werker · Posted: Sat Oct 22, 2011 9:59 am Post subject:

Nice. So are there two sizes of line (7mm and 9mm inlet/outlet) that need replacing and the 5/16 universal will work for both? That sounds odd. But let me know if I'm understanding correctly.

And KTPhil, do you have a source for those improved clamps?
_________________
72 Squareback
9th air-cooled
Proud Member #8, SBS (Stock Bus Society)
---------------------------------------
Gremlin Killer

VWporscheGT3 · Posted: Sat Oct 22, 2011 10:17 am Post subject:

those hose clamps are the best... i got tired of hose get cut by the worm gear clamps so ive gone to these, best decision ever.. i even discovered that where i removed one of the hoses i had cut through the hose and was leaking fuel Shocked

im just glad i didnt turn into a fireball
_________________
If you have any questions about Forged ICON 4032 VW pistons just shoot me a line.

FergU · Posted: Sat Oct 22, 2011 10:43 am Post subject:

KTPhil · Posted: Sat Oct 22, 2011 11:23 am Post subject:

werker · Posted: Thu Dec 13, 2012 2:40 pm Post subject:

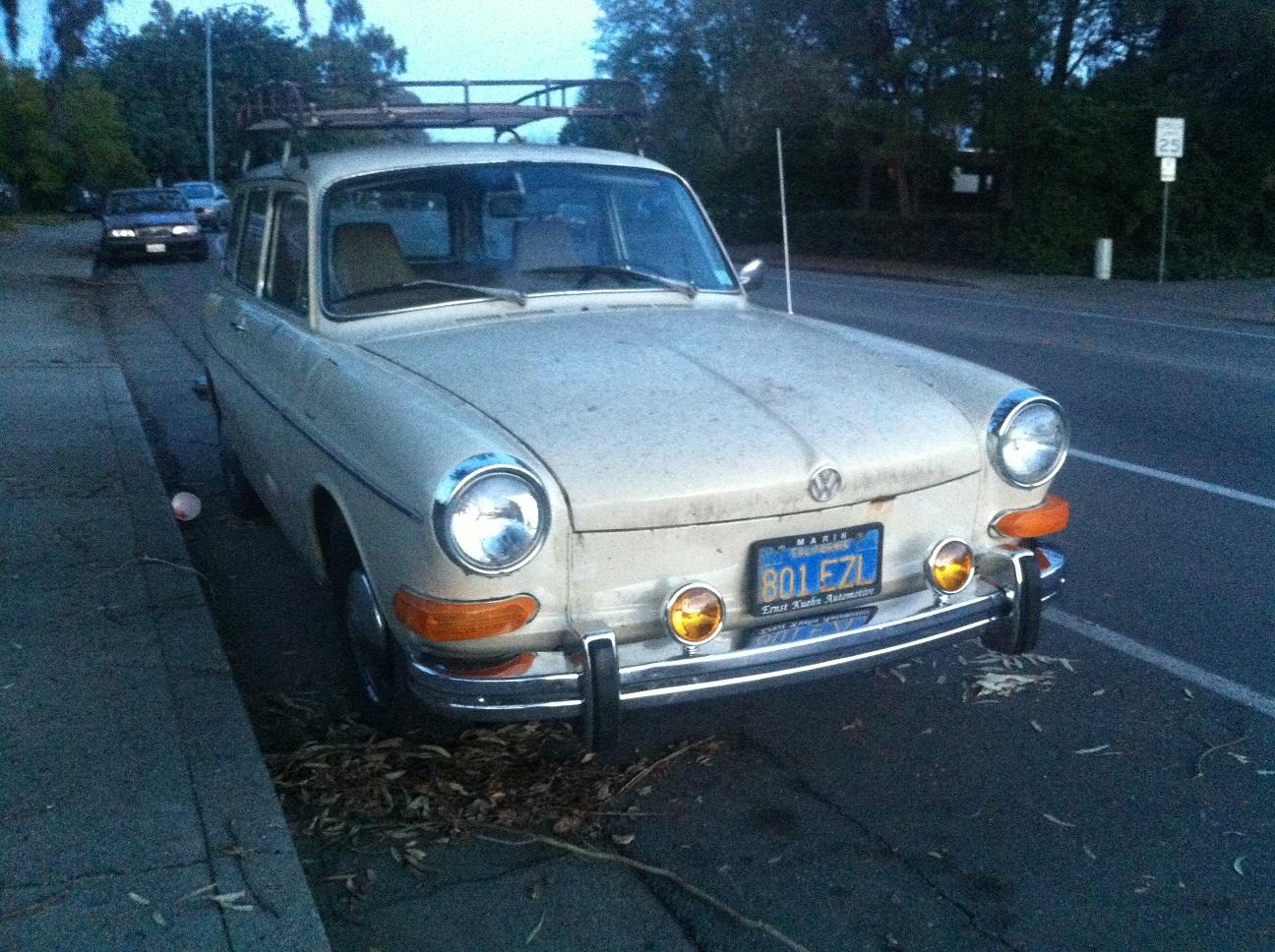

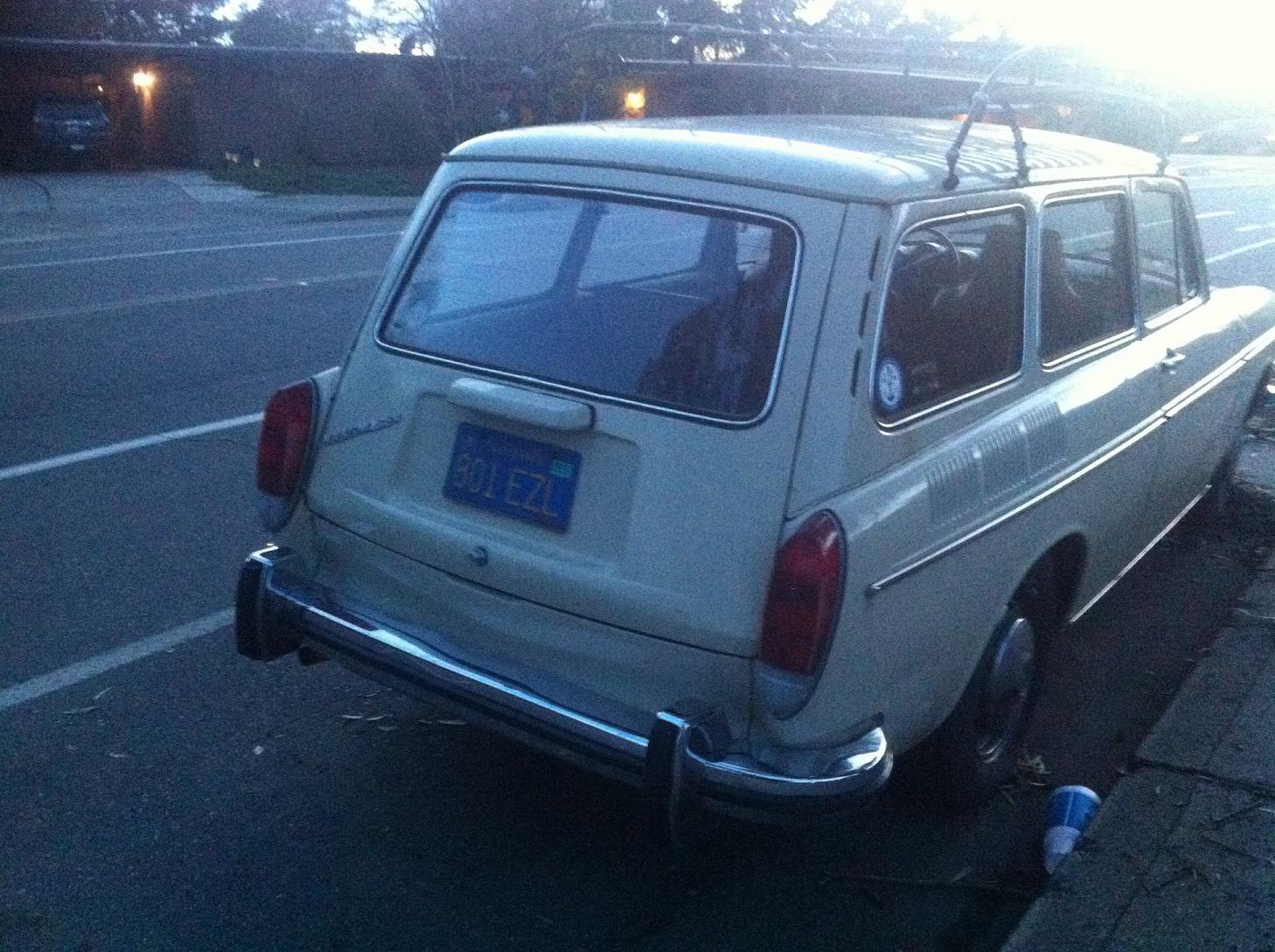

Small update, finally got the foglights and some bumper overriders installed.

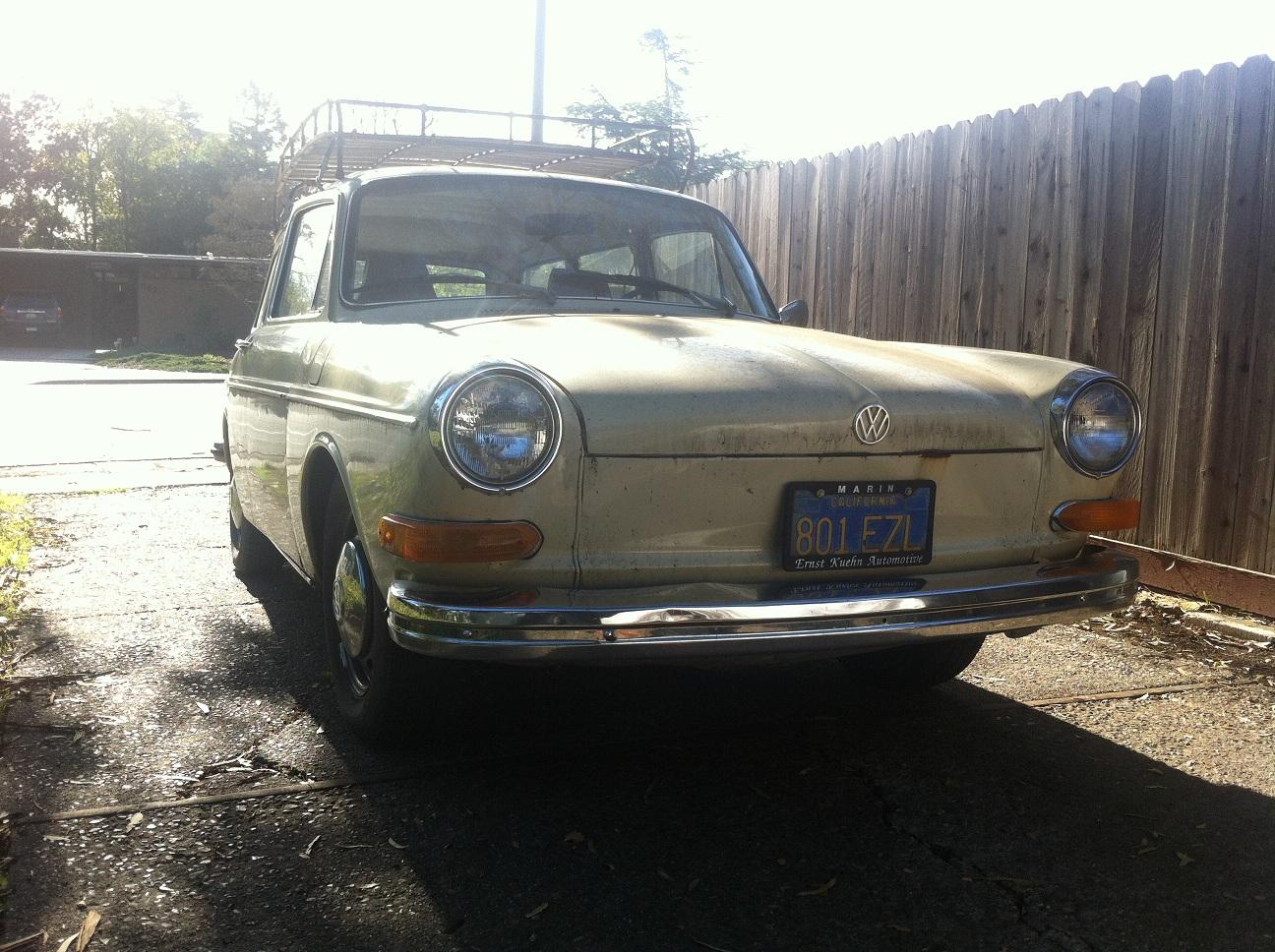

Before:

After:

_________________
72 Squareback
9th air-cooled
Proud Member #8, SBS (Stock Bus Society)
---------------------------------------
Gremlin Killer

oxsign · Posted: Sun Dec 16, 2012 2:39 pm Post subject:

Looks real good. I just picked up a '71 fastback and want to add the same fogs & bumpers.
