 Posted: Thu Oct 27, 2011 4:16 am Post subject: (another) 67 Squareback resto - in Australia |
 |
|
Been a while since I've had this car, 2006, and checked to see if i had put pics up before, but no. A lot of time, miles and money under the bridge and it's now time to get it going. Bit of a story first. I bought it from a cat who I knew in Perth*, when I lived in Sydney, so flew over two weekends on the trot to get it going - the car shipping people don't touch non-starters - and had it sent to Sydney (keep a running total of $$$ in your mind.. : ))
*the car had not been on the road since 1996 and partially dismantled since then. The paint was a blow over respray, if original would have kept it and not taken resto much further
A Type 2 resto got in the way a bit but the decision was made to go over the Type 3 in the same way, the odd bit of rust here and a previous repair which required correcting meant it got stripped down back in 2008.
Not many photos exist of panel work as I wasn't there during the days but all straight and ready for paint
Sexy bits cadmium plated

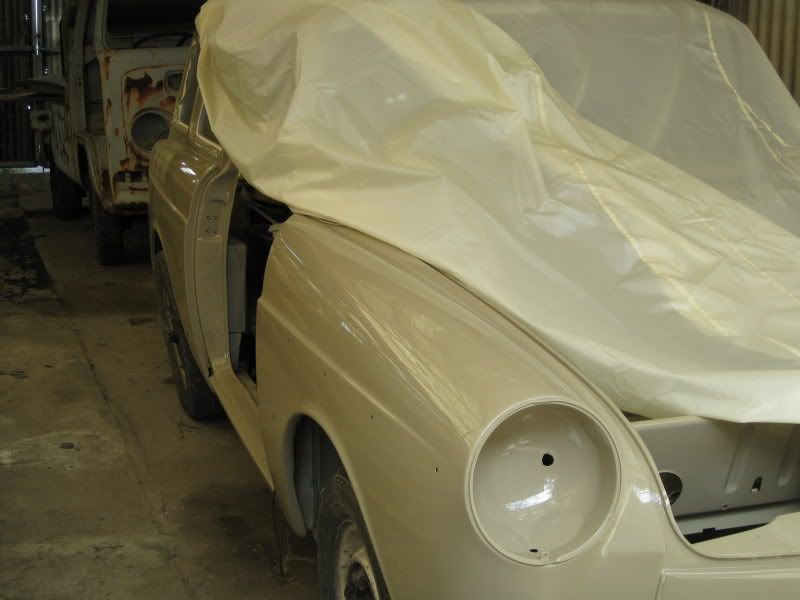

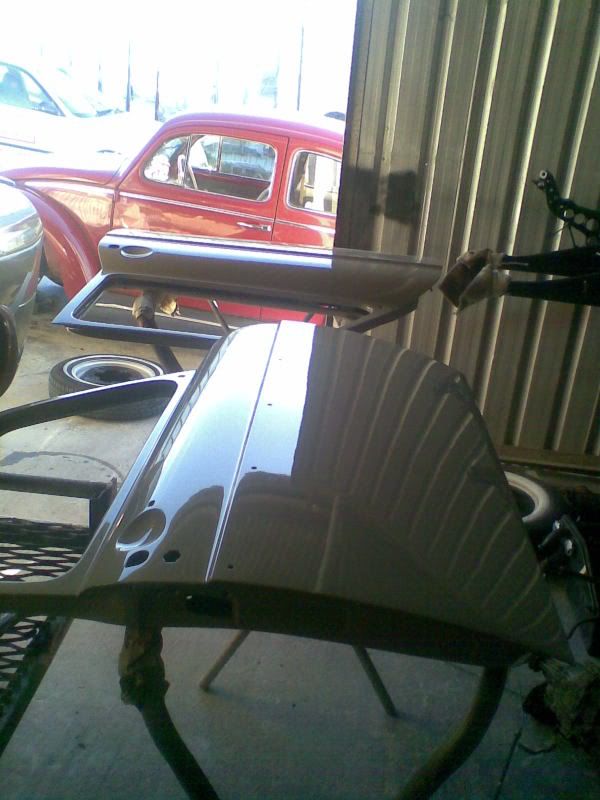

Great straight out of the gun...
New headlining
And that's where is sat for 2.5years I as I went to the UK and ended up staying on till 3 weeks ago, back purely to put this back together again!
So I'll be posting a lot of questions, Ive got the Bentley, Ball & an Aussie manual but I'm eyeballing this stuff for the first time in 3 years and it's all in bits...

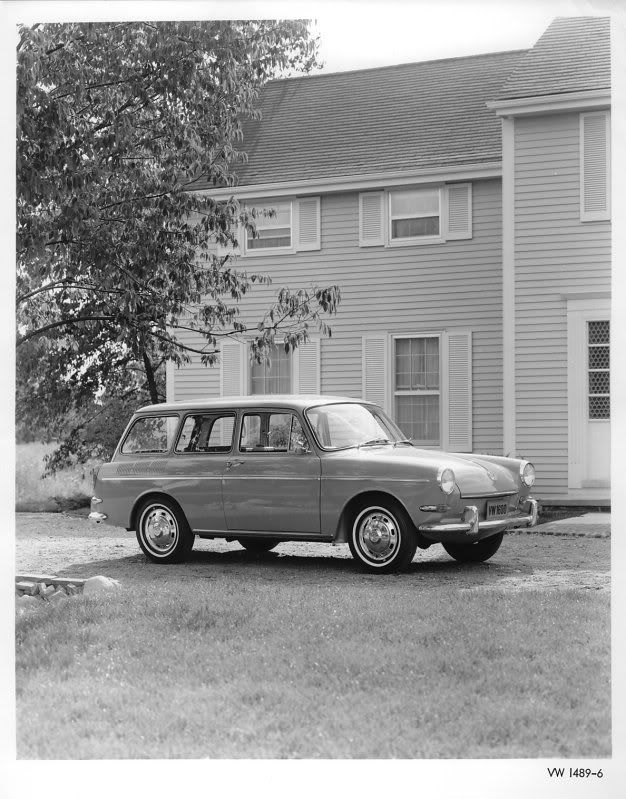

I hope to have it like this, I love the original look
_________________
1967 Australian squareback
Last edited by canyoudrivestick? on Tue Dec 27, 2011 1:11 am; edited 2 times in total |
|
| Back to top |
|
 |
canyoudrivestick?
Samba Member
Joined: September 27, 2007
Posts: 117
Location: Sydney Australia/London England
|
| Posted: Thu Oct 27, 2011 4:34 am Post subject: |
|
|
Ok, I've got a windlass question. I've got the pop out window windlass in place, two nice long bits for the driver and passenger doors - but too other short straight pieces? Where do they go?
The heater/vent knob at knee level on either side of the firewall - it has a plate with one screw and the plastic knob itself - how does this attach to the wire to pull the flap up and down? What am I missing?
The cable clips underneath the fresh air boxes - is this to secure the wire for the door switches running across the front of the car either side?
(and wasn't there a thread showing a refurb of the engine decklid and recommended materials?)
Thanks for any help
_________________
1967 Australian squareback |
|
| Back to top |
|
|
Mike Fisher
Samba Member
Joined: January 30, 2006
Posts: 18041
Location: Eugene, OR
|
| Posted: Thu Oct 27, 2011 6:09 am Post subject: |
|
|
The 2 short straight pieces might be for the Bottom edge of your doors?
There is a sliding rectangular plate behind the plastic knob that the wire clips into.
The cable clips hold the cable that releases the seatback to fold forward when the doors are opened.
BerT3 is selling a nice reproduction of the engine lid/rear deck material.
_________________
https://imgur.com/user/FisherSquareback/posts
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold
Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey |
|
| Back to top |
|
|
ALLWAGONS
Samba Member
Joined: June 03, 2000
Posts: 4543
Location: Pasadena CA/DTLA soon China
|
| Posted: Thu Oct 27, 2011 8:40 am Post subject: |
|
|
Wow! that's Nice! A RHD squareback! , were '66 type 3 in Australia wide 5?
_________________
I'd be UNSTOPPABLE if not for Law Enforcement and PHYSICS.
I recycle old cars and parts, other than when I rot, that's as Green as I am going to get.
Thanks to my Tesla driving neighbors, I feel more relaxed driving my SUBURBAN and old VW's.
Everything sounds good on paper! |
|
| Back to top |
|
|
canyoudrivestick?
Samba Member
Joined: September 27, 2007
Posts: 117
Location: Sydney Australia/London England
|
| Posted: Thu Oct 27, 2011 1:24 pm Post subject: |
|
|
| Mike Fisher wrote: |
The 2 short straight pieces might be for the Bottom edge of your doors?
- Hmm I've not fitted the long pieces yet so could be Mike, can't think of anywhere else
There is a sliding rectangular plate behind the plastic knob that the wire clips into.
- Ok i'll have to look for that, cant find any other pics or diagrams of it
The cable clips hold the cable that releases the seatback to fold forward when the doors are opened.
- Blimey thats the first I've heard of such a cable - I don't think I have it.
BerT3 is selling a nice reproduction of the engine lid/rear deck material.
Ok cool I'll look into that
Cheers Mike
|
_________________
1967 Australian squareback |
|
| Back to top |
|
|
canyoudrivestick?
Samba Member
Joined: September 27, 2007
Posts: 117
Location: Sydney Australia/London England
|
| Posted: Thu Oct 27, 2011 1:28 pm Post subject: |
|
|
| ALLWAGONS wrote: |
| Wow! that's Nice! A RHD squareback! , were '66 type 3 in Australia wide 5? |
Haha that's reallly funny, but my tears are genuine : ) Australian Type 3s are all over the shop. Which makes wiring diagrams fun, when comparing whats in there, and various other oddities. But to answer your question, yep, drums all round and wide 5 on this car.
_________________
1967 Australian squareback |
|
| Back to top |
|
|
IAMIROY
Samba Member
Joined: September 27, 2011
Posts: 294
Location: Palmdale, CA
|
| Posted: Thu Oct 27, 2011 4:07 pm Post subject: |
|
|
| Very nice! |
|
| Back to top |
|
|
vlad01
Samba Member
Joined: October 27, 2010
Posts: 3069
Location: Australia
|
| Posted: Thu Oct 27, 2011 7:49 pm Post subject: |
|
|
did you cadmium plate those yourself or a pro electroplater?
How much did that cost to get done? |
|
| Back to top |
|
|
dragsters for life
Samba Member
Joined: September 10, 2011
Posts: 1155
Location: MELBOURNE, type 3 contingent
|
| Posted: Thu Oct 27, 2011 11:38 pm Post subject: |
|
|
same year and color as the car my mate lewis just purchased
great color and cool car
_________________
new t3c merch coming soon |
|
| Back to top |
|
|
ALLWAGONS
Samba Member
Joined: June 03, 2000
Posts: 4543
Location: Pasadena CA/DTLA soon China
|
| Posted: Fri Oct 28, 2011 8:28 am Post subject: |
|
|
Nice!
_________________
I'd be UNSTOPPABLE if not for Law Enforcement and PHYSICS.
I recycle old cars and parts, other than when I rot, that's as Green as I am going to get.
Thanks to my Tesla driving neighbors, I feel more relaxed driving my SUBURBAN and old VW's.
Everything sounds good on paper! |
|
| Back to top |
|
|
canyoudrivestick?
Samba Member
Joined: September 27, 2007
Posts: 117
Location: Sydney Australia/London England
|
| Posted: Tue Nov 01, 2011 4:23 pm Post subject: |
|
|
| Mike Fisher wrote: |
The 2 short straight pieces might be for the Bottom edge of your doors?
There is a sliding rectangular plate behind the plastic knob that the wire clips into.
The cable clips hold the cable that releases the seatback to fold forward when the doors are opened.
BerT3 is selling a nice reproduction of the engine lid/rear deck material. |
^ got the sliding plate, but that's all it is a plate, can't see where that wire would secure - surely it's not just friction held with a washer is it once the knob is screw on? As the plastic rotates on the knob you can't fasten tight anyhow - I must be missing something. I see one of the wire bent at an angle but can't fathom with what I've got how it stays securely fixed...
_________________
1967 Australian squareback |
|
| Back to top |
|
|
Mike Fisher
Samba Member
Joined: January 30, 2006
Posts: 18041
Location: Eugene, OR
|
| Posted: Tue Nov 01, 2011 5:52 pm Post subject: |
|
|
The wire is just clamped between the square plate and the knob bolt. My '66 wire is still clamped to the knob inside.
The small plates are '66-67 I think. The large plate in the orange car is a '71
_________________
https://imgur.com/user/FisherSquareback/posts
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold
Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey |
|
| Back to top |
|
|
canyoudrivestick?
Samba Member
Joined: September 27, 2007
Posts: 117
Location: Sydney Australia/London England
|
| Posted: Tue Nov 01, 2011 6:01 pm Post subject: |
|
|
^ ah, fair-do's then, just need a washer and tighten her down. Just didn't 'feel' Volkswagen to have it like that with the risk of it not securing enough. Ill grease that wire make it easier to move then. Thanks Mike for putting that up
_________________
1967 Australian squareback |
|
| Back to top |
|
|
canyoudrivestick?
Samba Member
Joined: September 27, 2007
Posts: 117
Location: Sydney Australia/London England
|
| Posted: Tue Nov 01, 2011 6:04 pm Post subject: |
|
|
| vlad01 wrote: |
did you cadmium plate those yourself or a pro electroplater?
How much did that cost to get done? |
Sorry just seen this - I give it too a mate and he gets it sorted through his garage, can't remember the cost, was a while ago but I'll find out
_________________
1967 Australian squareback |
|
| Back to top |
|
|
canyoudrivestick?
Samba Member
Joined: September 27, 2007
Posts: 117
Location: Sydney Australia/London England
|
| Posted: Tue Nov 01, 2011 6:06 pm Post subject: |
|
|
| dragsters for life wrote: |
same year and color as the car my mate lewis just purchased
great color and cool car |
Yeah cool, that was the one in Newcastle? I was gonna ask the bloke if I could go up and take a heap of pics as it would help me no end in my resto. Lovely car. Has he painted the roof already? Dont remember it white? They will defo be sister cars, apart from the roof.
_________________
1967 Australian squareback |
|
| Back to top |
|
|
canyoudrivestick?
Samba Member
Joined: September 27, 2007
Posts: 117
Location: Sydney Australia/London England
|
| Posted: Tue Nov 08, 2011 3:05 pm Post subject: |
|
|

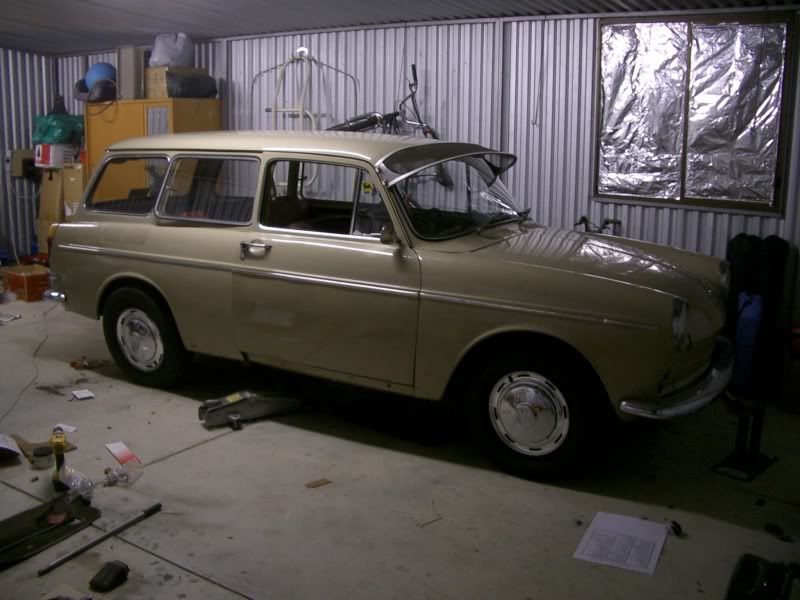

progress progress progress
with a little help from my friend....
_________________
1967 Australian squareback |
|
| Back to top |
|
|
drummerboycr
Samba Member
Joined: December 12, 2006
Posts: 216
|
| Posted: Tue Nov 08, 2011 4:45 pm Post subject: |
|
|
Wow!.. Great Job!
_________________
-Porsche Fan -
- Notchback 1500S - SunRoof 64´-
-Super Beetle 74´-
-Rabbit 82´- Cabriolet - |
|
| Back to top |
|
|
notchboy
Samba Member
Joined: April 27, 2002
Posts: 22646
Location: Escondido CA
|
|
| Back to top |
|
|
canyoudrivestick?
Samba Member
Joined: September 27, 2007
Posts: 117
Location: Sydney Australia/London England
|
| Posted: Tue Dec 27, 2011 1:18 am Post subject: |
|
|

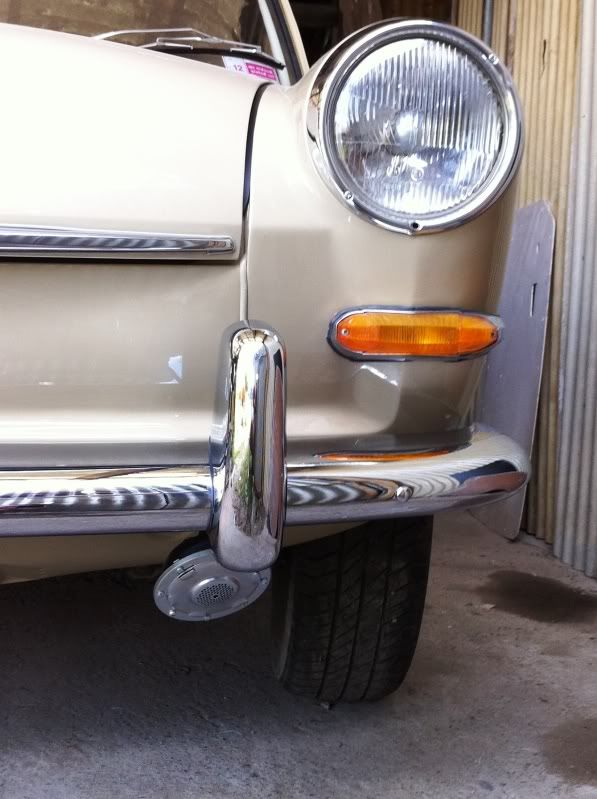

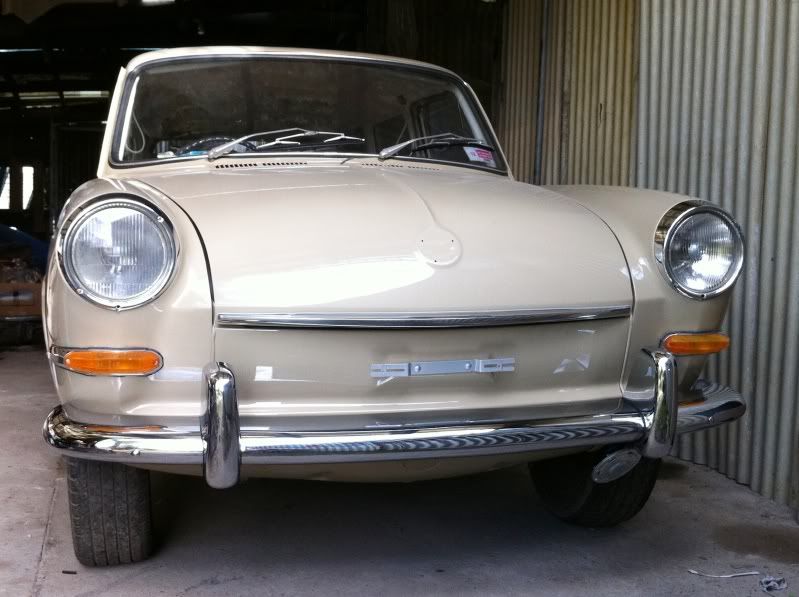

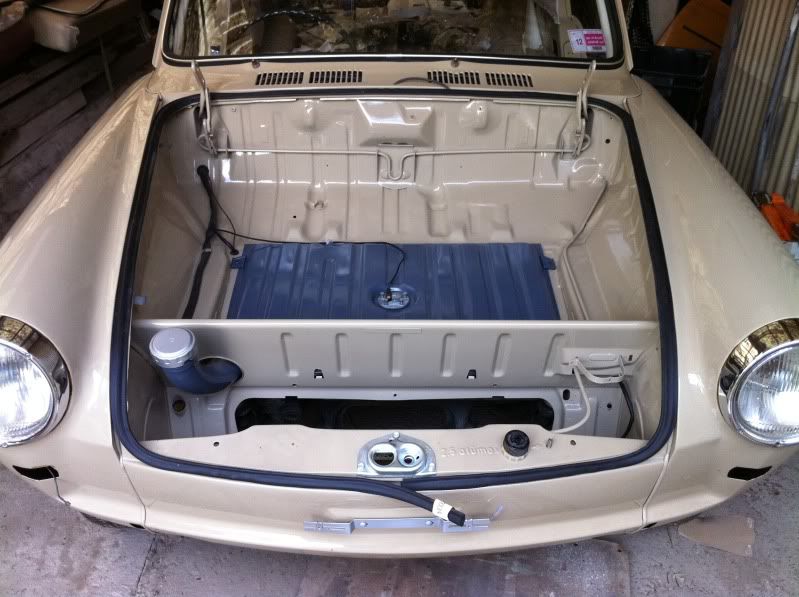

getting closer to being done..
cant wait to cruise around in it to this..
Link
_________________
1967 Australian squareback |
|
| Back to top |
|
|
canyoudrivestick?
Samba Member
Joined: September 27, 2007
Posts: 117
Location: Sydney Australia/London England
|
| Posted: Tue Dec 27, 2011 1:22 am Post subject: |
|
|
Got some orginal rims for it (mine got stuck on another car I sold...) blasted, zinc and powdercoated cloud white with stock 165's. Yet to go on, brakes being rebuilt. Front is down 1 spline, its still on axle stands at mo.
