PostPosted: Thu Dec 15, 2011 3:55 pm    Post subject: Official Upright fan shroud thread Reply with quote

WORK IN PROGRESS!!! PICS ADDED AS FOUND. If you have better pics please post.

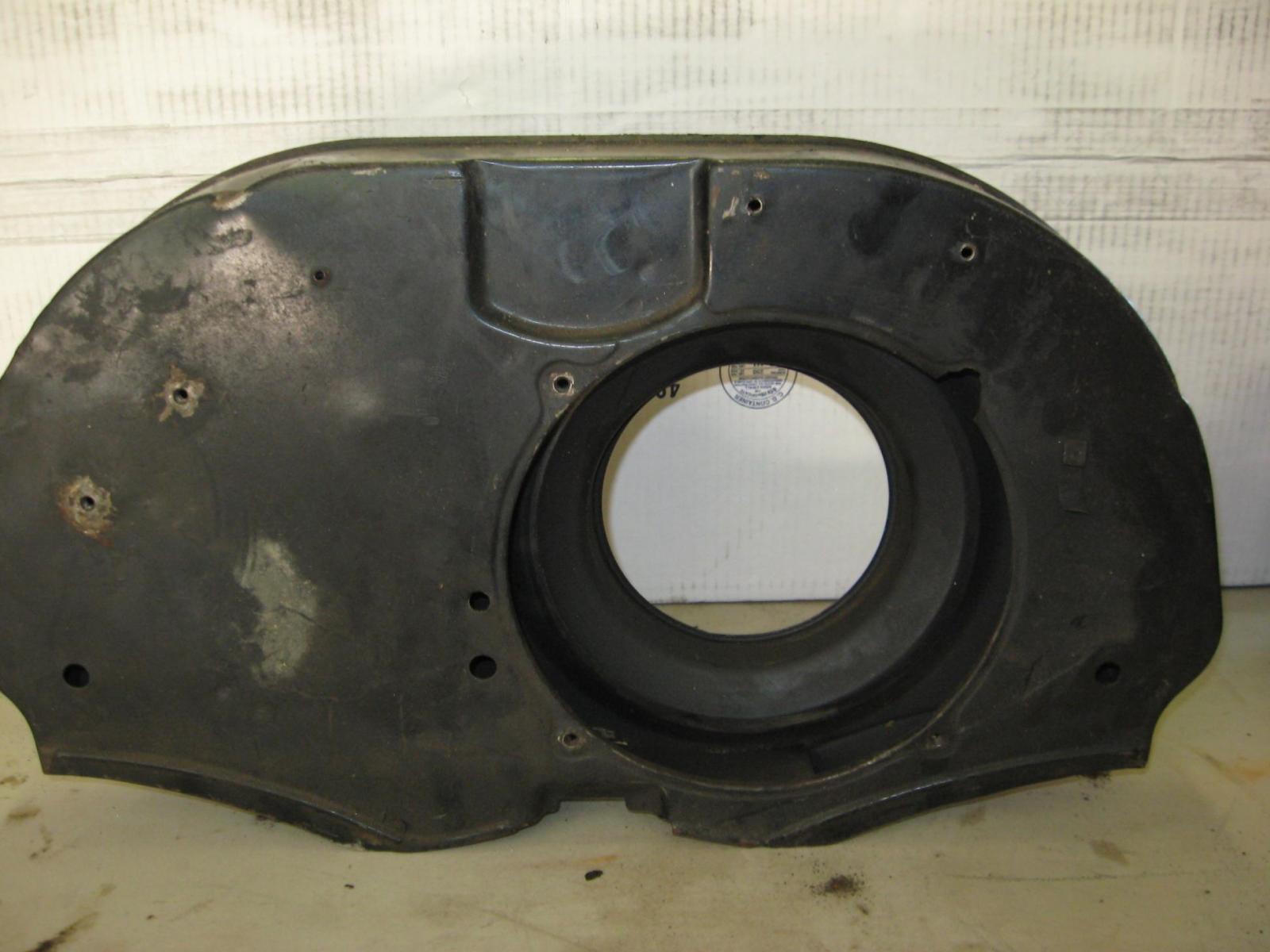

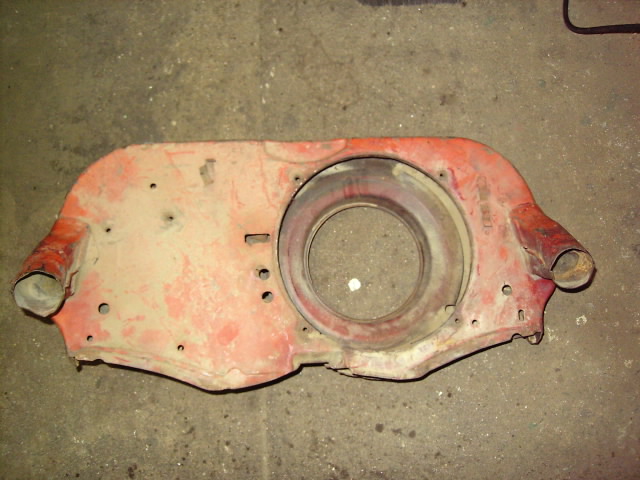

25hp shroud

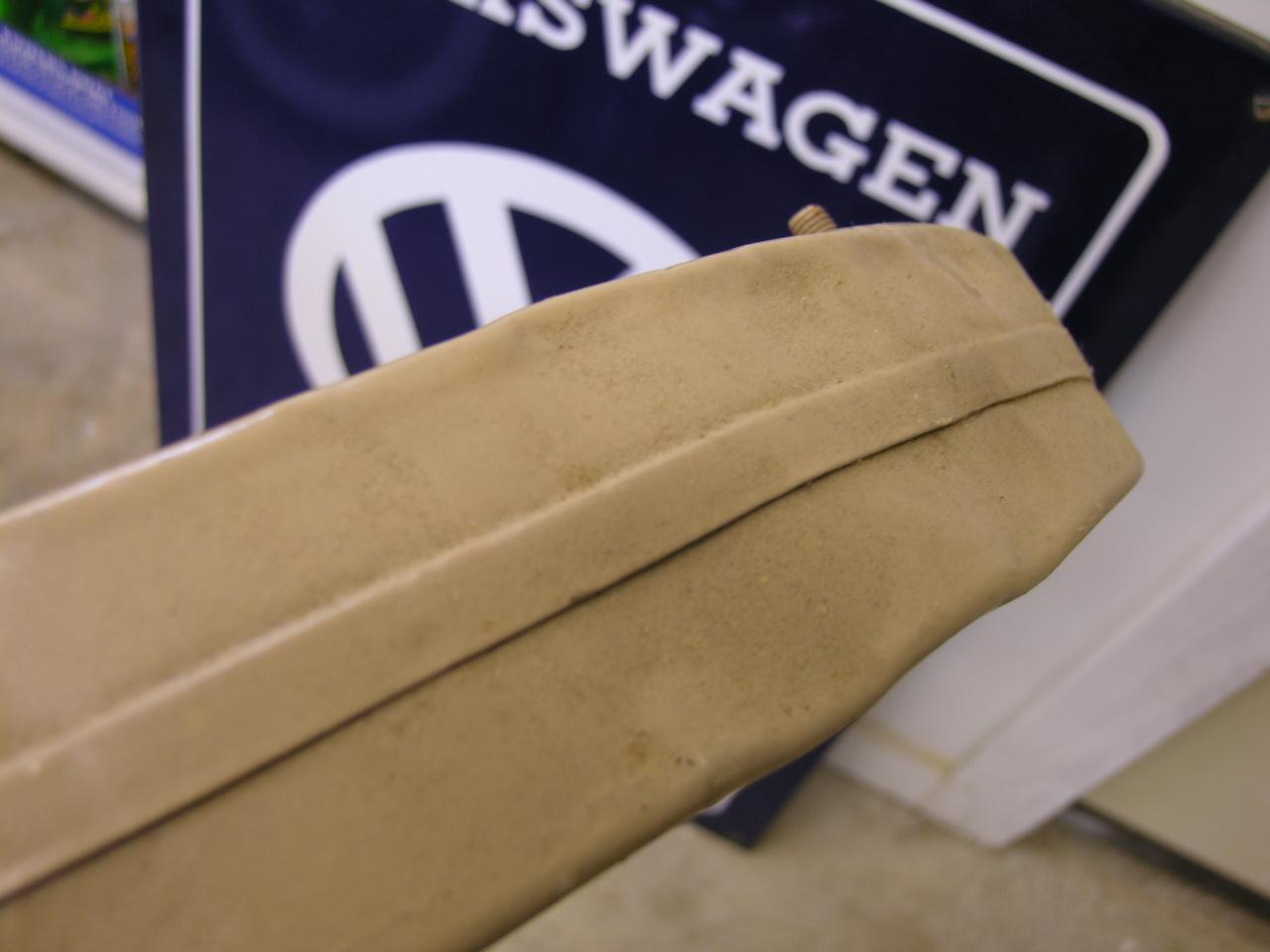

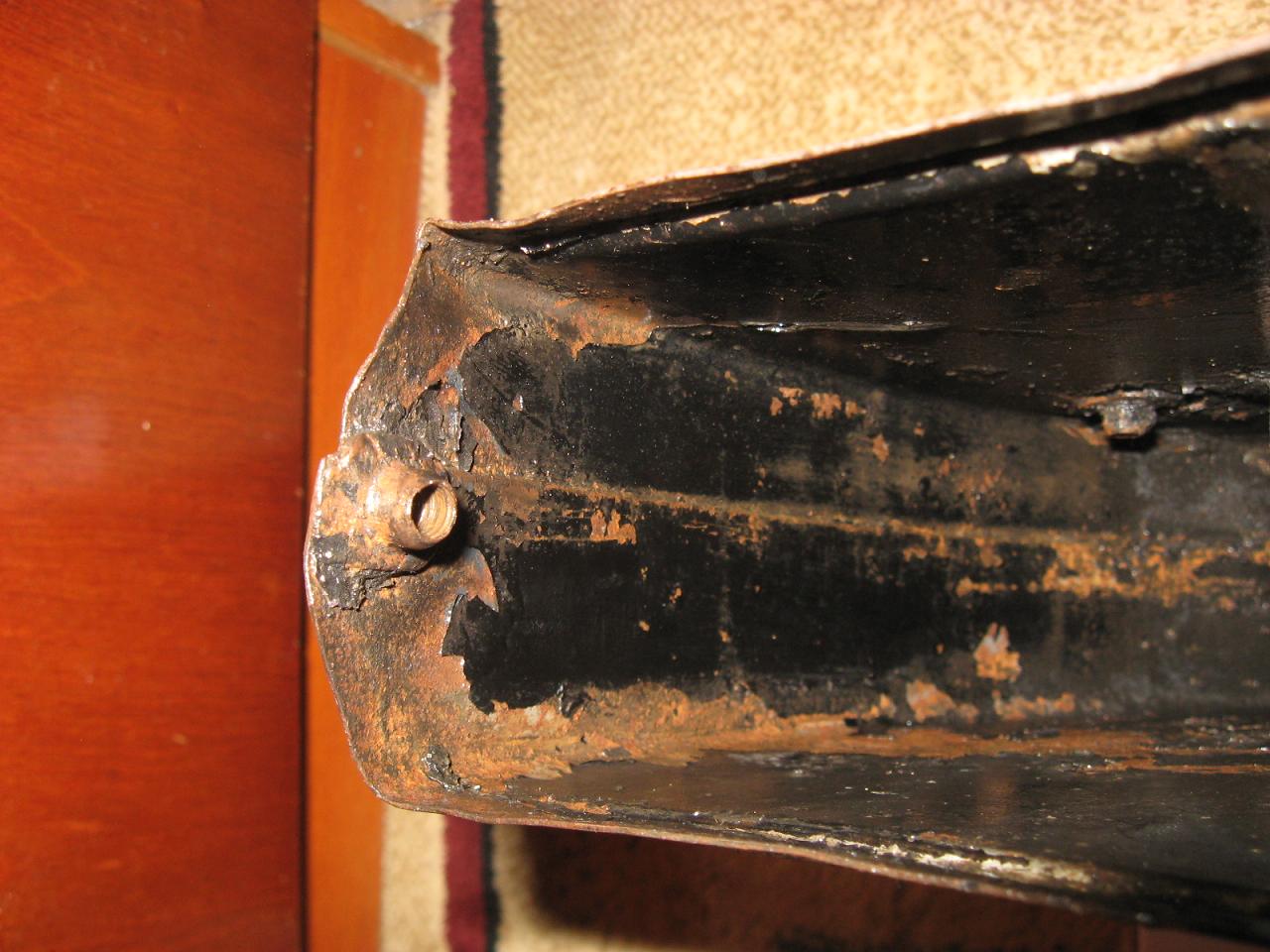

seamed at top of shroud

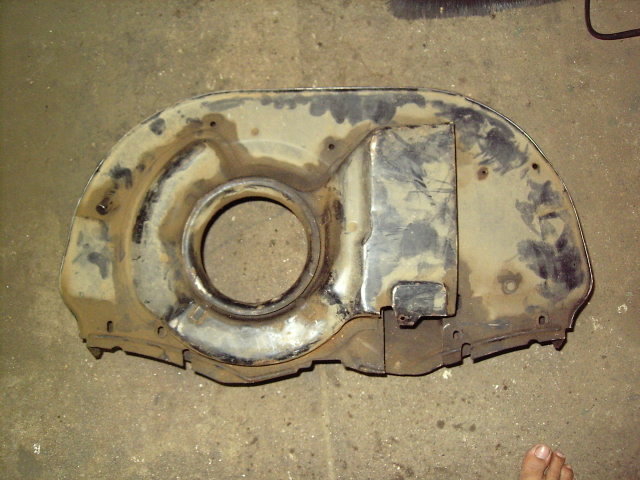

KDF shroud
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

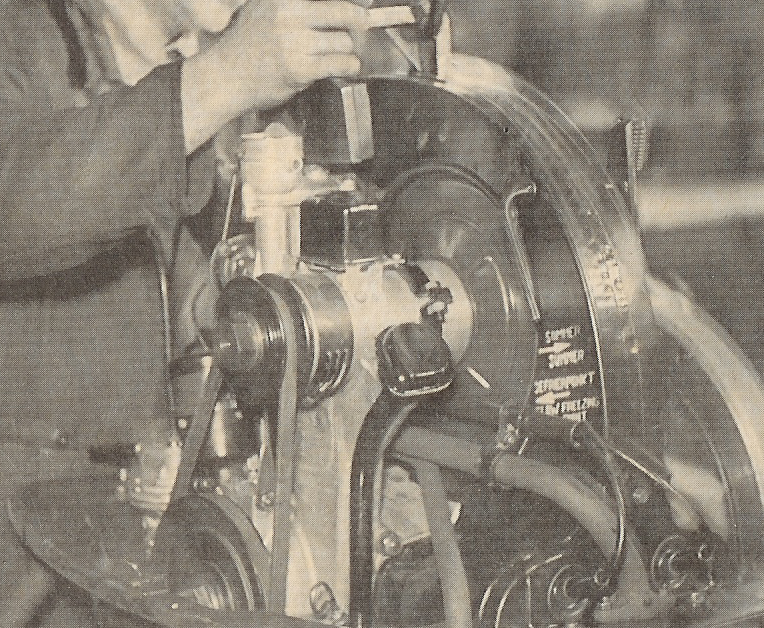

1946/1947
Manual lever for "summer/winter"

Image may have been reduced in size. Click image to view fullscreen.



Listed from PR

1947 Cooling air throttle ring
previously slide

March 1949 Now without throttle ring

May 1950 Automatic cooling air regulation
previously throttle ring with swing handle

December 1951 Throttle ring spot welded
previously screw mounted

September 1952 Throttle ring support guide projected for operating shaft
previously recessed

Oct 1953 Fan blade increased to 1.5mm thick
previously 1.25


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



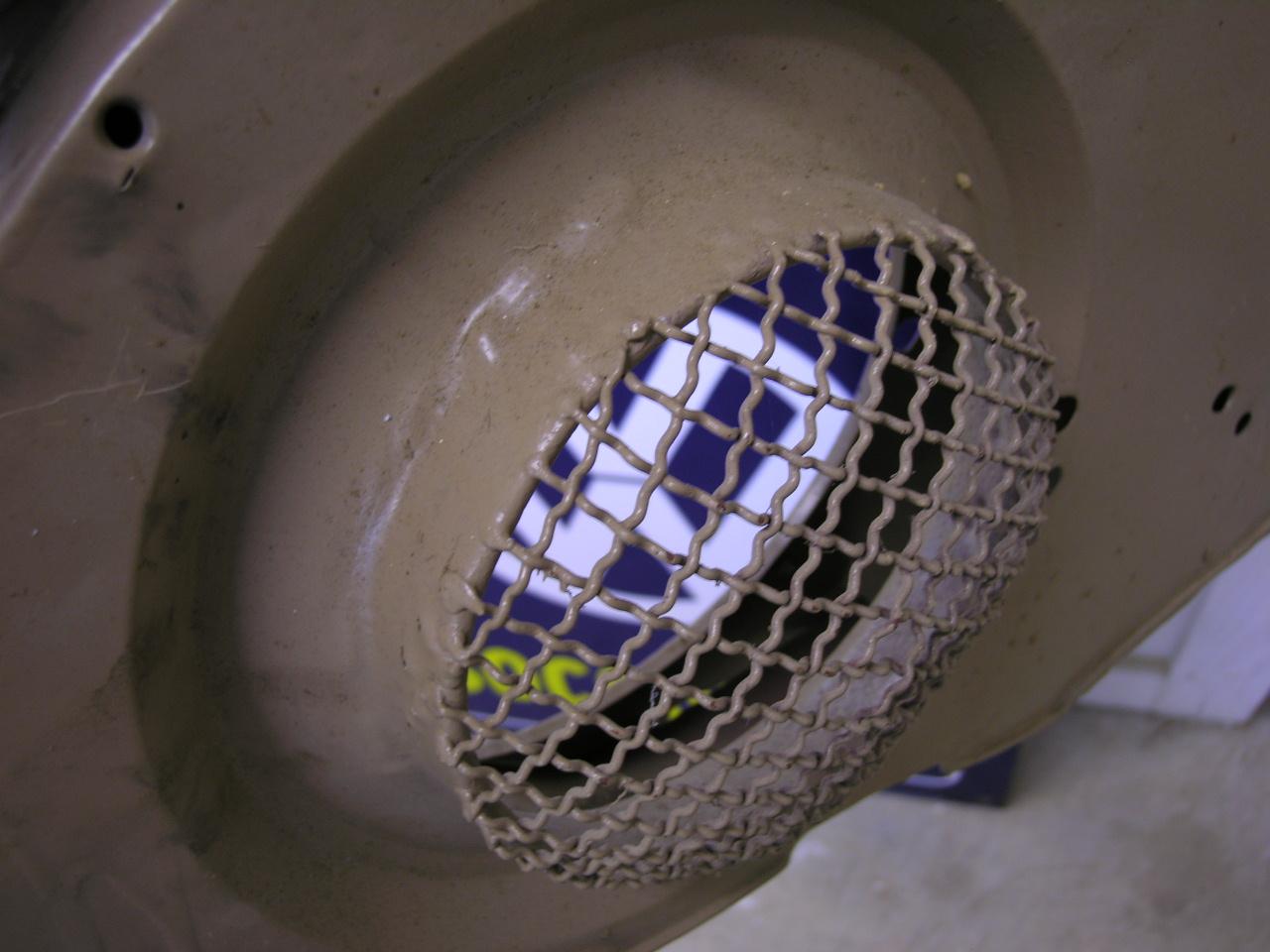

36 hp shroud

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

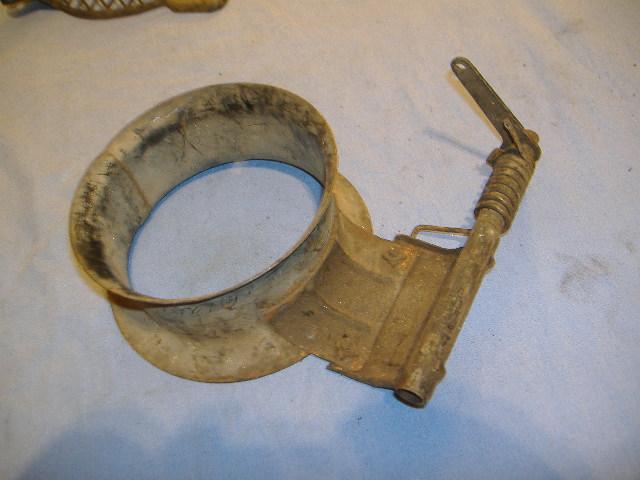

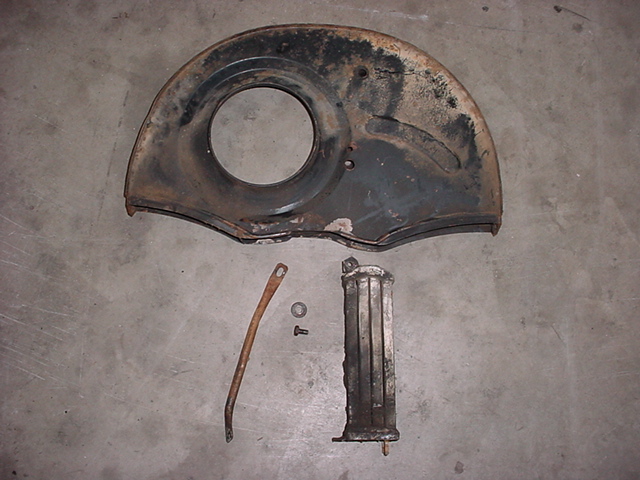

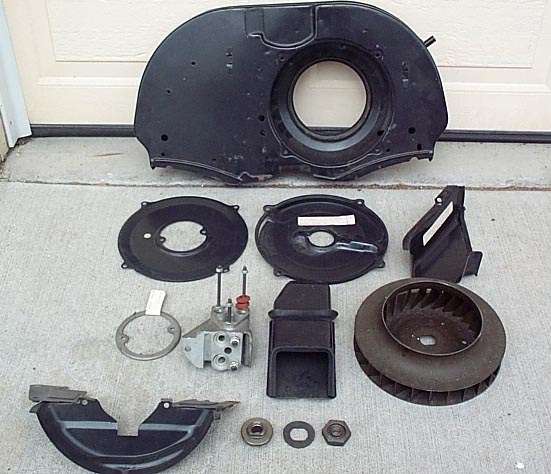

Throttle control ring and thermostat

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Aug 1959 Fan bore diameter increased to 28mm
previously 20mm

Nov 1960 Fan now has 28 blades with 20mm bore diameter
previously 16 blades 28mm bore diameter



40hp stale air shroud

Transitional?
Note holes for plug wires and choke

Image may have been reduced in size. Click image to view fullscreen.



May 1961 Throttle ring rubber stop now increased to 8-9mm
preciously flat



1961-1962
Note cutout for air cleaner no choke hole

Image may have been reduced in size. Click image to view fullscreen.


July 1962- December 1962
Non fresh air with larger housing

PR lists
Fan housing/fan
Now: Modified shape increased
cooling air throughput

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


63-70 fresh air shroud
Uses upright oil cooler

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


April 1964 Cooling flaps replace throttle ring
August 1964 Cooling flaps replace throttle ring (Type II)



Image may have been reduced in size. Click image to view fullscreen.



71-74 dog house shroud
Type I used a large negative oil cooler slot
Type II used a large positive oil cooler slot similar to a thing shroud (1971 only)
2 piece oil cooler exhaust ducting

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


All important hoover bit bolted to oil cooler to seal shroud and direct air through cooler

Image may have been reduced in size. Click image to view fullscreen.



Thermostat flap rod changed due to dog house addition

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Doghouse shroud with modified fresh air outlet for use with A/C

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Different left side A/C fresh air outlet

Image may have been reduced in size. Click image to view fullscreen.



73 thing shroud
One year only for export
Non fresh air heat
Uses large positive oil cooler slot

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



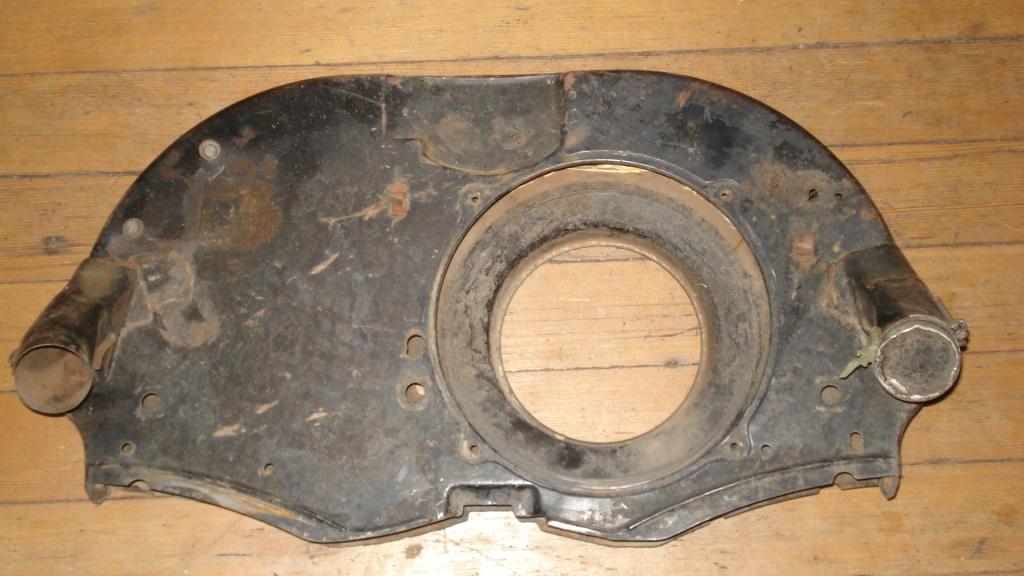

Early FI shroud
Large neagative slot
Velosity ring on back

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.





Late FI shroud
Small peanut oil cooler slot


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Puma shroud
Low profile
Non fresh air heat
Large negative oil slot
Both upright and doghouse versions available
Doghouse type has enclosed oil cooler with round exhaust outlet with matching front tin

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Brazilia shroud
Low profile
Fresh air heat
Large negative oil slot
Both upright and doghouse versions available
Doghouse type has enclosed oil cooler with round exhaust outlet with matching front tin



Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Last edited by AlteWagen on Fri Jan 06, 2012 1:55 pm; edited 14 times in total
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
torsionbar
Samba Member


Joined: December 11, 2010
Posts: 2215
Location: earf
torsionbar is offline

PostPosted: Thu Dec 15, 2011 4:18 pm    Post subject: Reply with quote

excellent, nice work!
_________________
Max Welton wrote:

[air cooled vw's] are no longer suitable for the general public. The owner has to be be able to maintain the car. And that is after fixing all the deferred maintenance items and ill-conceived modifications. If you can't do those things you are pretty much screwed.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KopfenJager
Samba Member


Joined: December 09, 2011
Posts: 582

KopfenJager is offline

PostPosted: Thu Dec 15, 2011 4:50 pm    Post subject: Reply with quote

And I wast just going to take a pic and post, asking what shroud do I have, but I see it is a 1963 Type II 1500
Non fresh air with larger housing . Sweet. Soon off to Don's powder coating.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
borninabus
Samba R&D Dept.


Joined: May 18, 2006
Posts: 4530
Location: Arizona Highways
borninabus is offline

PostPosted: Thu Dec 15, 2011 5:09 pm    Post subject: Re: Official Upright fan shroud thread Reply with quote

derluftwagen wrote:
71-74 dog house shroud
Image may have been reduced in size. Click image to view fullscreen.



that is a late model FI fan shroud.
note the venturi ring, coil & throttle cable location Wink
_________________
71 Ghia A/S - 88 Van A/T - 13 JSW TDI 6M/T
Back to top
View user's profile Send private message Gallery Classifieds Feedback
fivelugshortaxle
Samba Member


Joined: May 13, 2011
Posts: 4254
Location: Aumsville, Oregon
fivelugshortaxle is offline

PostPosted: Thu Dec 15, 2011 5:11 pm    Post subject: Reply with quote

Very cool thread.....
_________________
Good things come to those who wait.
2332 with lots of goodies....
Rotating assembly balanced by Brothers VW
4340 84mm crank
AA 94mm p&c' s
Total seal 2nd ring, rest are Grants
5.5 h beams
Magnum straight cuts
Steve Long XR310 on a 106
CB 1.4 rockers
CB Magnaspark 2 distributor
NGK D7ea plugs
A1 lowdown 1 3/4 with single muffler
Dellorto 48's with 40 venturies
Kennedy Stage 2 with Daiken disc
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
danielsan
Samba Member


Joined: September 18, 2008
Posts: 802
Location: Carson City, NV
danielsan is offline

PostPosted: Thu Dec 15, 2011 5:15 pm    Post subject: Reply with quote

Nice thread.

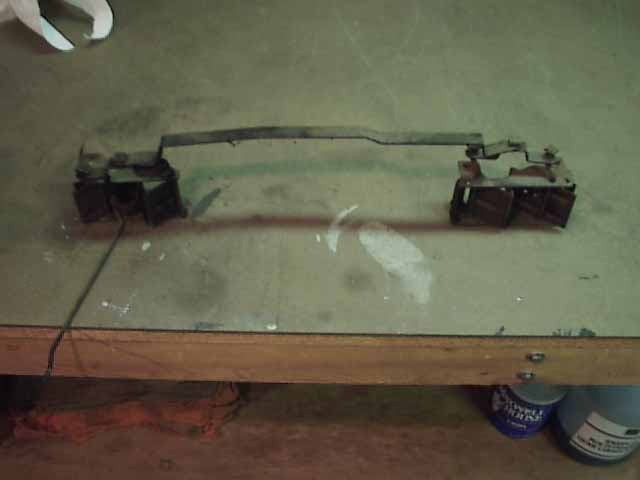

Puma shroud cooling flap linkage and puma shroud return spring. (German spring shown so you can compare)

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KopfenJager
Samba Member


Joined: December 09, 2011
Posts: 582

KopfenJager is offline

PostPosted: Thu Dec 15, 2011 6:03 pm    Post subject: Flaps? Reply with quote

Does anybod know if a 1963 Type II 1500 Non fresh air with larger housing originaly come with flaps and a thermostat? The one I scrounged out of a scrap pile doesn't have them on it.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
66brm
Samba Member


Joined: January 25, 2010
Posts: 3676
Location: Perth Western Australia
66brm is offline

PostPosted: Thu Dec 15, 2011 6:17 pm    Post subject: Reply with quote

Thermostat yes, flaps no, they use the control ring
_________________
Aust. RHD 66 Type 1
Aust. RHD 57 Type 1 Oval

modok wrote:
I am an expert at fitting things in holes, been doing it a long time
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jl_1303
Samba Member


Joined: July 01, 2006
Posts: 569

jl_1303 is offline

PostPosted: Thu Dec 15, 2011 6:29 pm    Post subject: Reply with quote

Out of interest, does anyone know if these seals are still available anywhere?

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KopfenJager
Samba Member


Joined: December 09, 2011
Posts: 582

KopfenJager is offline

PostPosted: Thu Dec 15, 2011 7:02 pm    Post subject: Reply with quote

Ok, where do I get the ring and thermo?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
danielsan
Samba Member


Joined: September 18, 2008
Posts: 802
Location: Carson City, NV
danielsan is offline

PostPosted: Thu Dec 15, 2011 7:47 pm    Post subject: Reply with quote

Brasilia shroud:

Tube for charcoal chamber. Uses the German style exhaust. No Kadron linkage slot. Fresh air tubes do not have an indentation that allows the Kadrons the clear the tubes.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


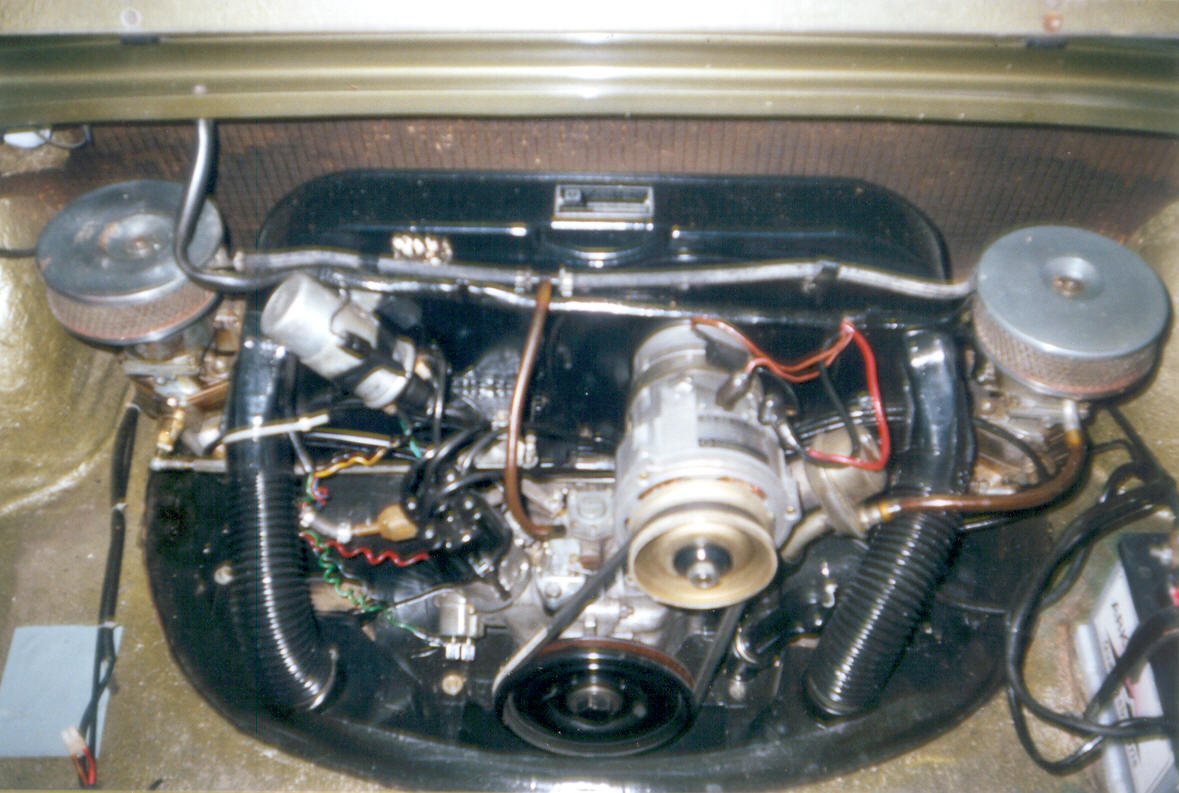

Photo of the stock puma with the provisions for the fuel lines and the Kadron linkage attached:

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SRP1
Samba Member


Joined: January 06, 2007
Posts: 4340

SRP1 is offline

PostPosted: Thu Dec 15, 2011 7:58 pm    Post subject: Reply with quote

jl_1303 wrote:
Out of interest, does anyone know if these seals are still available anywhere?

Image may have been reduced in size. Click image to view fullscreen.


The two metal pieces CB Performance has, and they come with the rubber
seals. I would bet they have the rubber pieces available seperatly too.
http://www.cbperformance.com/catalog.asp?ProductID=274

The soft seals are nothing more than foam weather stripping availble at
you local hardware store, home depot, etc...
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Almost Alive
Samba Member


Joined: October 12, 2009
Posts: 1345

Almost Alive is offline

PostPosted: Fri Dec 16, 2011 12:23 am    Post subject: Reply with quote

WOW! Long overdue my friend. I LOVE this post.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
74 Thing
Samba Member


Joined: September 02, 2004
Posts: 7357

74 Thing is offline

PostPosted: Fri Dec 16, 2011 12:34 am    Post subject: Reply with quote

Can you clarify with maybe an explanation or close up photo between the difference of a positve vs negative oil cooler slot?

Thanks
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nextgen
Samba Member


Joined: August 19, 2004
Posts: 5992
Location: CONGERS, N.Y.
nextgen is offline

PostPosted: Fri Dec 16, 2011 8:03 am    Post subject: Reply with quote

What fantastic amount of information.

I vote his post be a permanent information listing.

Excellent.

I like the Venturi Ring, ha!!!!
_________________
email: [email protected]
The TYPE IV UPRIGHT CONVERSION MANUAL
BEETLE MAGNETIC DEFLECTOR SHIELDS
LETS TALK DUBS https://www.youtube.com/results?search_query=joe+cali+ghia https://letstalkdubs.libsyn.com/ep-200-joe-cali-ty...qI3xJTCzjs
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 76706
Location: Sneaking up behind you
Glenn is offline

PostPosted: Fri Dec 16, 2011 8:06 am    Post subject: Reply with quote

nextgen wrote:
What fantastic amount of information.

I vote his post be a permanent information listing.

Excellent.

I like the Venturi Ring, ha!!!!

Added to the FAQS/Sticky.

Now if only people would look at it before posting Wink
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Almost Alive
Samba Member


Joined: October 12, 2009
Posts: 1345

Almost Alive is offline

PostPosted: Fri Dec 16, 2011 9:37 am    Post subject: Reply with quote

Glenn wrote:
nextgen wrote:
What fantastic amount of information.

I vote his post be a permanent information listing.

Excellent.

I like the Venturi Ring, ha!!!!

Added to the FAQS/Sticky.

Now if only people would look at it before posting Wink


Well deserved.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AlteWagen
Troll


Joined: February 23, 2007
Posts: 8497
Location: PNW
AlteWagen is offline

PostPosted: Fri Dec 16, 2011 12:39 pm    Post subject: Re: Official Upright fan shroud thread Reply with quote

borninabus wrote:
derluftwagen wrote:

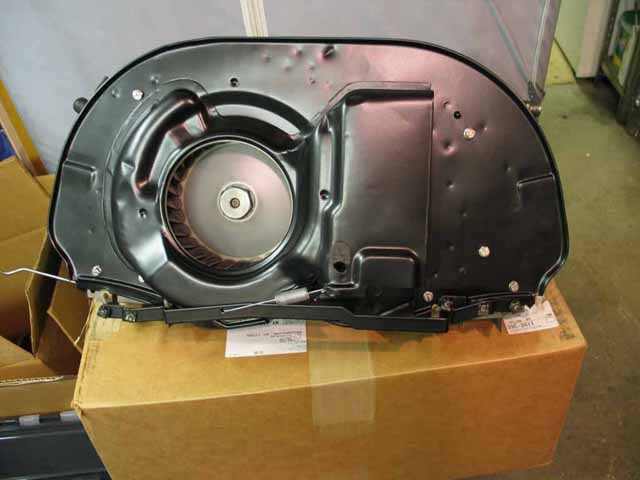

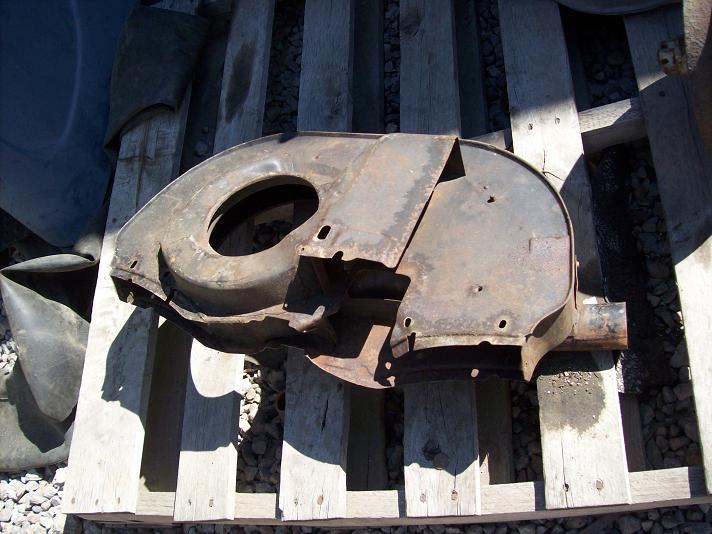

71-74 dog house shroud
Image may have been reduced in size. Click image to view fullscreen.

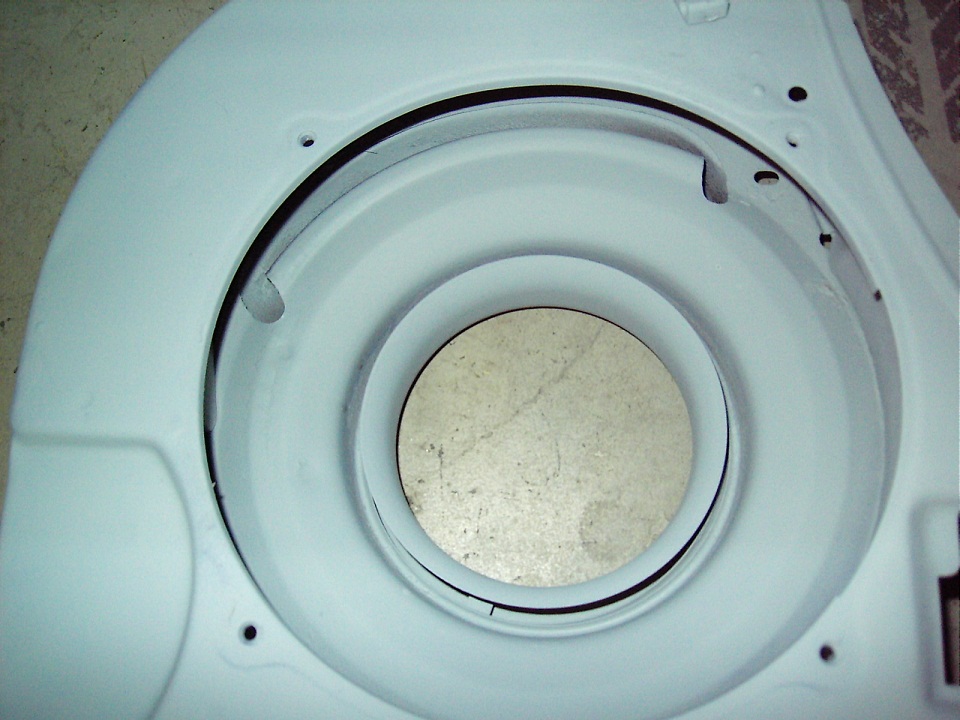

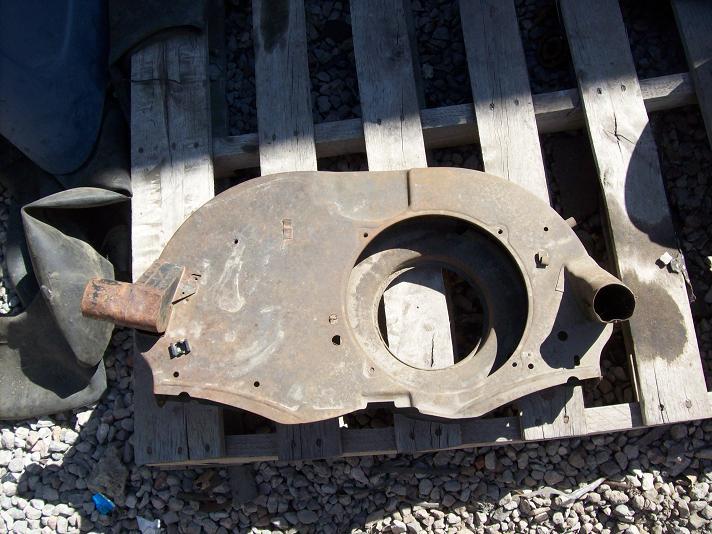

that is a late model FI fan shroud.
note the venturi ring, coil & throttle cable location Wink


Fixed! Very Happy
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
AlteWagen
Troll


Joined: February 23, 2007
Posts: 8497
Location: PNW
AlteWagen is offline

PostPosted: Fri Dec 16, 2011 12:43 pm    Post subject: Reply with quote

74 Thing wrote:
Can you clarify with maybe an explanation or close up photo between the difference of a positve vs negative oil cooler slot?

Thanks

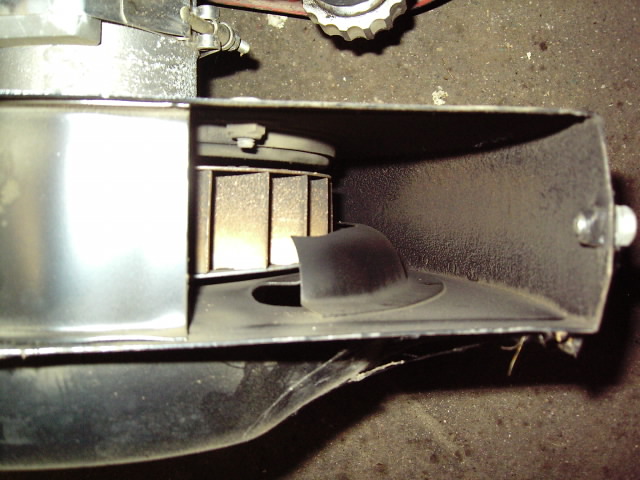

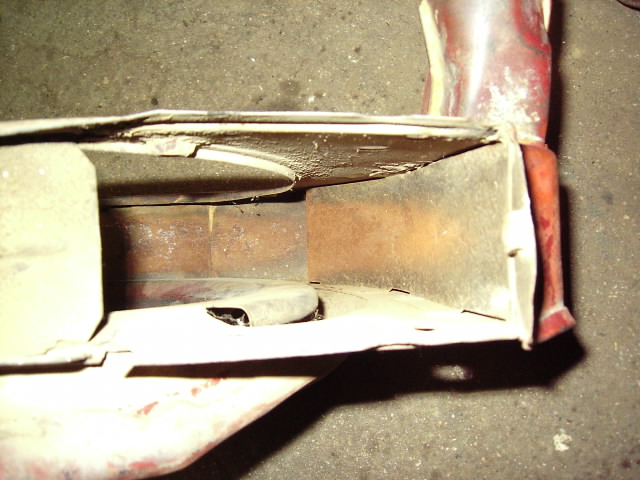

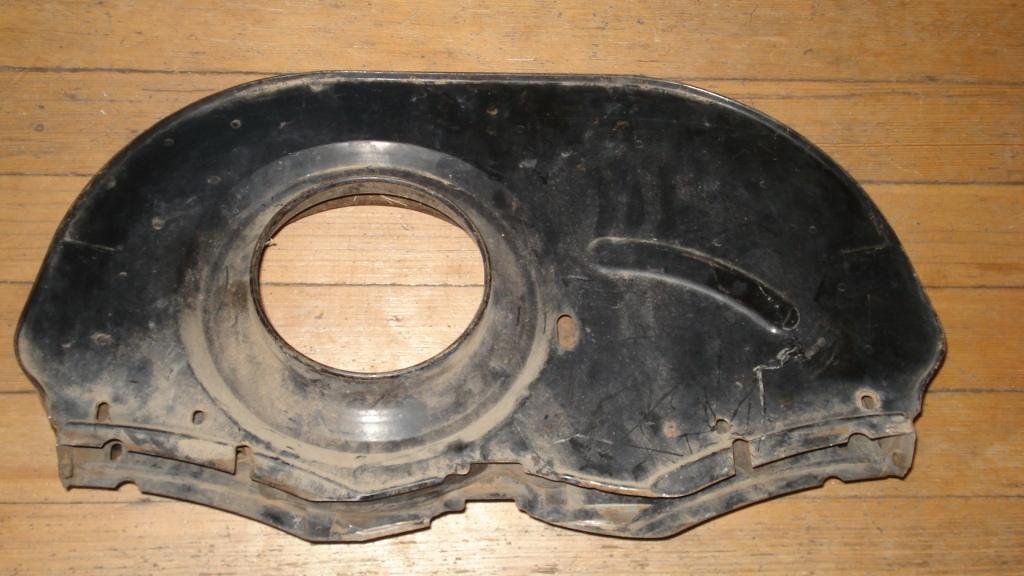

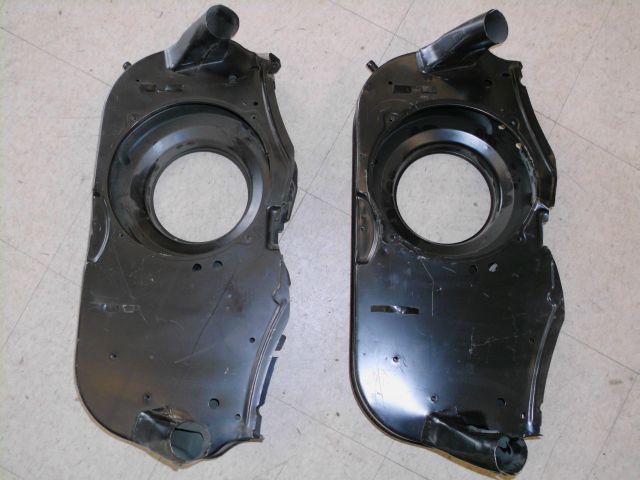

Negative oil slot (inverted scoop)

Image may have been reduced in size. Click image to view fullscreen.

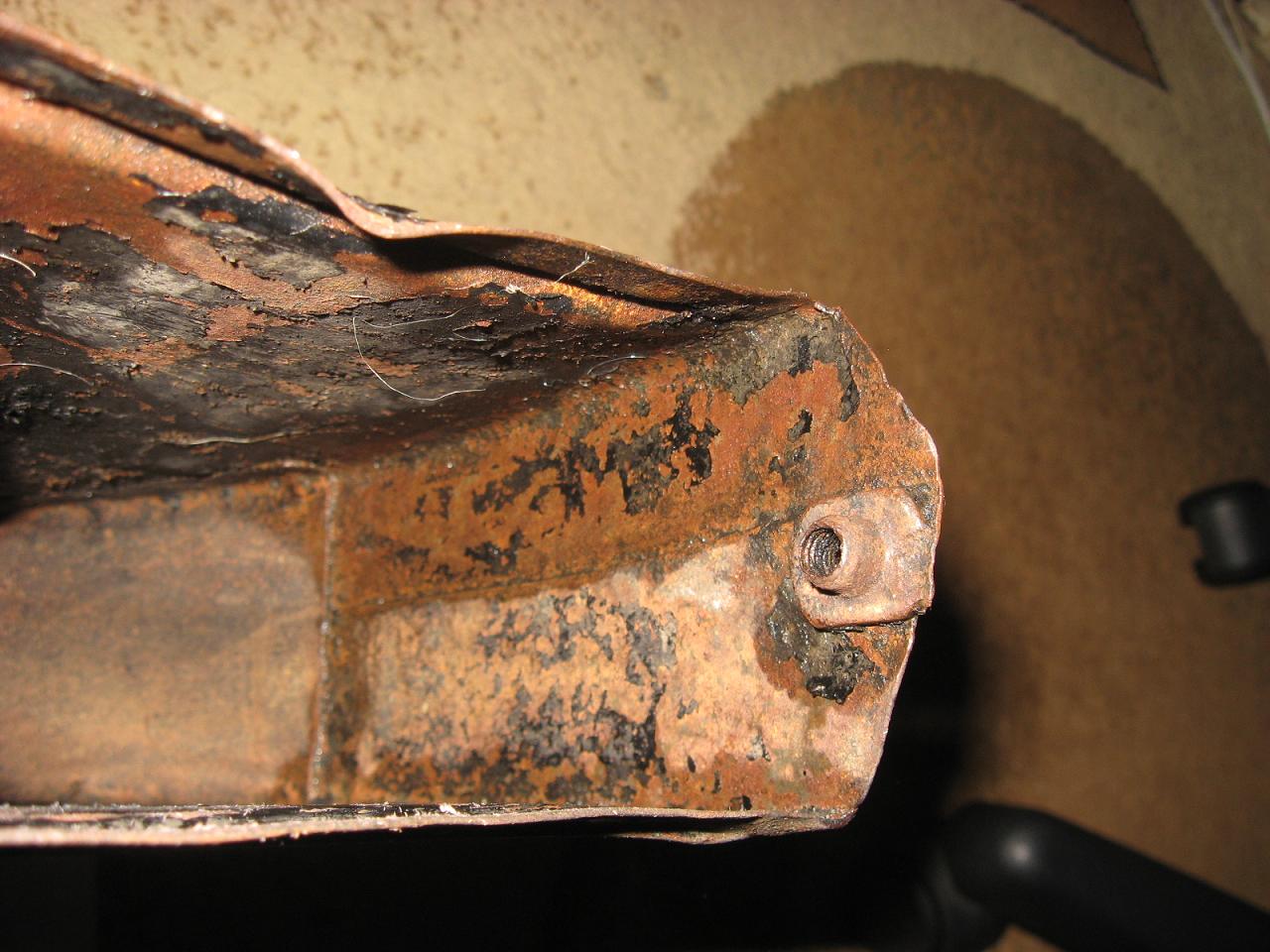

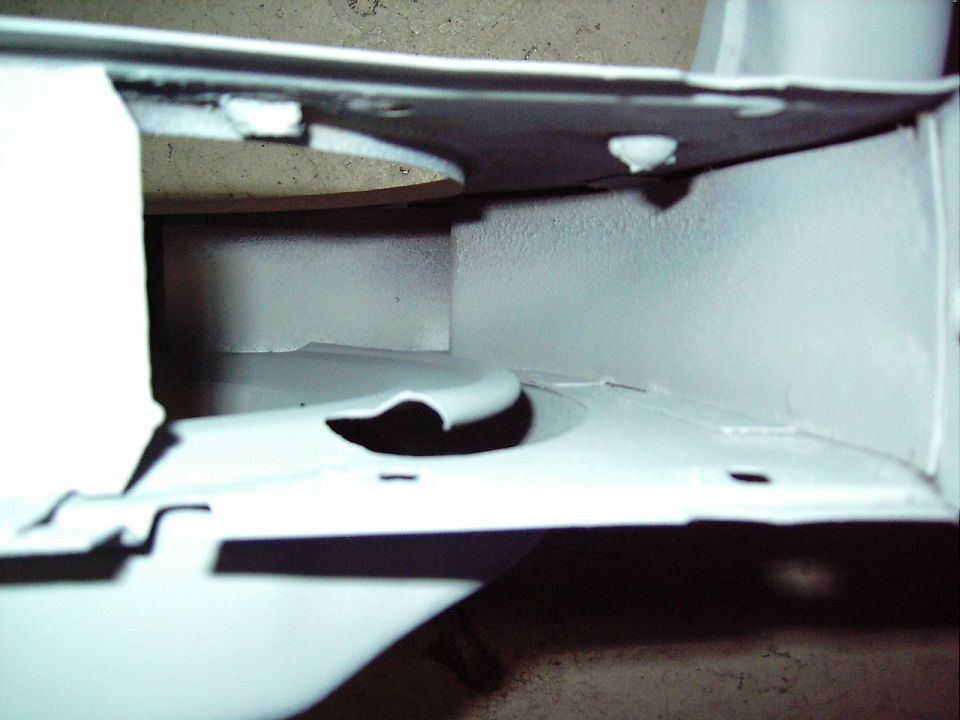

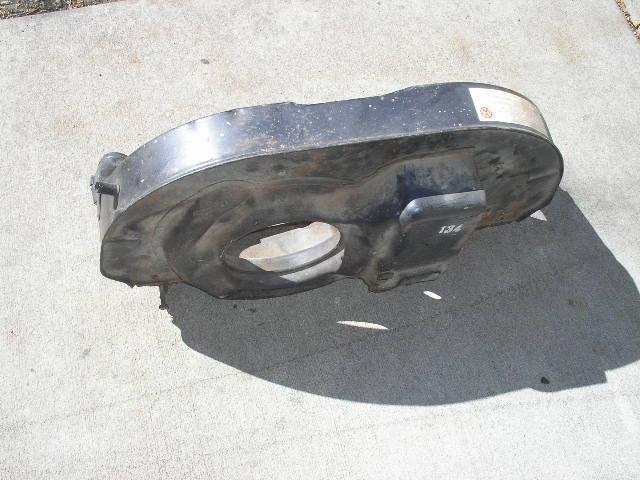

Positive oil slot (scoop)

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Joost
Samba Member


Joined: December 16, 2011
Posts: 30
Location: Holland
Joost is offline

PostPosted: Fri Dec 16, 2011 1:47 pm    Post subject: Reply with quote

Wich is better the late or early FI shroud?
The early shroud looks to be better due to the large slot,
But there must be a reason why they changed right?

I have got two late FI shrouds and one normal doghouse shroud with large negative slot, can i remove the venturi and weld it too the normal shroud as too have better cooling?
Back to top
View user's profile Send private message Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Performance/Engines/Transmissions All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4  Next
Page 1 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
