PostPosted: Fri Mar 02, 2012 12:16 pm    Post subject: Anti-Freeze Color? Reply with quote

.
For a Standard WBX engine....
Is there a Correct Anti Freeze Color.. When i go to buy it and read the labels mostly all of them say meets or exceeds standards, but I notice that Anti-Freeze seems to come in two Basic Colors. Yellow and Green..

So does the color go with a certin Quality, or can they be mixed and matched etc..

Also I notice that some say non corosive, while most say Meets or Exceeds and meant for all engines, Alum and Steel .. Wouldn't that be one and the same. Question

It just gets F-ing confussing Confused Confused Confused Confused Confused
Confused
Back to top
View user's profile Send private message Classifieds Feedback
Ahwahnee
Samba Member


Joined: June 05, 2010
Posts: 9770
Location: Mt Lemmon, AZ
Ahwahnee is offline

PostPosted: Fri Mar 02, 2012 2:14 pm    Post subject: Reply with quote

I think a key component is an absence of phosphate in the formulation. It seems that many long-life antifreezes are now phosphate free, but not all are.

I have used Sierra brand for many years, mainly because it was cheap, readily available and (at the time) one of the few phosphate free.

I do not mix colors even if the antifreezes in question claim to be compatible -- I like to see the pure color of what I put in there... then if I see something else I will know it is contaminated and investigate further.

Image may have been reduced in size. Click image to view fullscreen.


So I would say my 3 rules of anitfreeze are: phosphate free, always top up with same stuff & change it every 2 years.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SCM
Samba Member


Joined: January 26, 2011
Posts: 3096
Location: Bozeman MT
SCM is offline

PostPosted: Fri Mar 02, 2012 4:54 pm    Post subject: Reply with quote

Ahwahnee wrote:
So I would say my 3 rules of anitfreeze are: phosphate free, always top up with same stuff & change it every 2 years.


What kind of polish do you use when you're waxing your engine? Man, that's clean.

I think GoWesty says it's ok to mix and match colors as long as you use phosphate free, and dilute with distilled water. The point about being able to see the original color in order to identify problems is good one though.
_________________
'91 Westfalia GL Automatic (GTA "Turbo" Rebuild w/Peloquin) and 2.3L GoWesty Engine
Back to top
View user's profile Send private message Gallery Classifieds Feedback
buildyourown
Samba Member


Joined: March 01, 2009
Posts: 1668
Location: Seattle
buildyourown is offline

PostPosted: Fri Mar 02, 2012 5:48 pm    Post subject: Reply with quote

Color is usually a branding thing. One brand is "green" another is "gold" Gold is better, right? But green is better for the world, man.
My Toyota truck is pink. Not sure what that means. I'm comfortable with my myself?
I've found the properly rated stuff at Napa and it was expensive and gold. Check the back and it should give year ranges and makes that are compatible.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
schoonerman
Samba Member


Joined: May 14, 2008
Posts: 244
Location: vancouver
schoonerman is offline

PostPosted: Fri Mar 02, 2012 6:19 pm    Post subject: Reply with quote

I bought mine from VW dealer and it's PINK, no mention on the label if it's compatable with thier BLUE stuff they sold before????
I think I'd better check with them before I mix it.
_________________
87 Westy/Vanagon
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Corwyn Premium Member
Samba Member


Joined: December 29, 2009
Posts: 2226
Location: Olympia, Washington
Corwyn is offline

PostPosted: Fri Mar 02, 2012 6:28 pm    Post subject: Reply with quote

I stick with Pentosin (blue). Now if I can just get the mechanic to stop topping it off with windshield washer fluid!
_________________
'90 White Westy ("Knarr")
FAS Gen V 2.0
The Annual Baja Rally
https://www.thesamba.com/vw/forum/viewtopic.php?t=604813&highlight=baja

"If anything's" gonna happen, it's gonna happen out there"
~ Captain Ron ~
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
kamzcab86
Samba Moderator


Joined: July 26, 2008
Posts: 7877
Location: Arizona
kamzcab86 is offline

PostPosted: Fri Mar 02, 2012 7:02 pm    Post subject: Reply with quote

schoonerman wrote:
I bought mine from VW dealer and it's PINK, no mention on the label if it's compatable with thier BLUE stuff they sold before????
I think I'd better check with them before I mix it.


No. Blue = G11; pink = G12. Flush the system before putting the G12 in.
_________________
~Kamz Anxious
1986 Cabriolet: www.Cabby-Info.com
Blue Vanagon 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"Real knowledge is to know the extent of one's ignorance." - 孔子
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
hans j
Samba Member


Joined: May 06, 2006
Posts: 2712
Location: Salt Lake City UT
hans j is offline

PostPosted: Fri Mar 02, 2012 9:49 pm    Post subject: Reply with quote

Actually G12++ IS backward compatible with G11 but will turn it brown. Apparently they went back to silicates with G12+ and G12++? Only G12 is not compatible with G11. If you go into any dealer right now, you will be getting G12++

If you want to keep it G11, BMW still uses that formulation and color in their cars.

Flushes suck in these cars. We pull both drain plugs in the head, both radiator pipes and heater hoses, get them drained, run compressed air through them and then hook a hose up to them to flush. We pretty much half fill our 30 gallon coolant drain bucket with one flush, minus the stuff that gets all over the shop floor. We use an air-lift to create a vacuum in the coolant system and then air bubbles are kept to a minimum and easier to bleed out.

I tried looking but couldn't find the coolant TSB publicly, it's 1910-03 if you want to search. I downloaded it from Identifix so I can email it to anyone interested too.

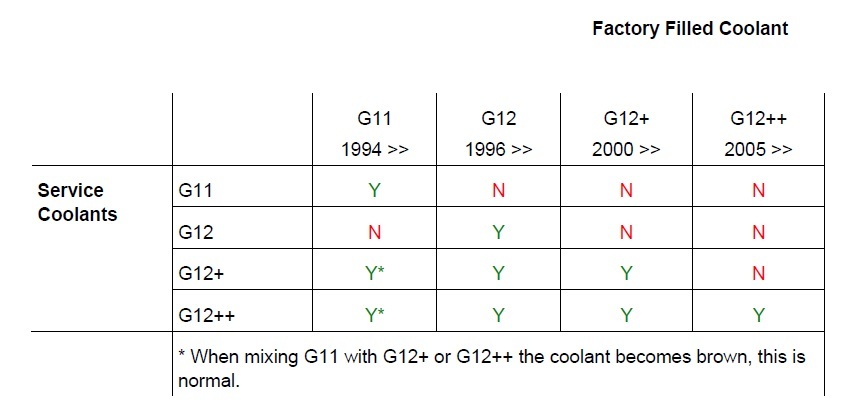

Here is the main gist of the TSB
Image may have been reduced in size. Click image to view fullscreen.

_________________
1986 Canadian Syncro Westy TDI - 1989 Syncro Single Cab - 2001 Audi S4 - 1981 VW Caddy ABA - 1980 VW Caddy EV - 1973 VW T-181
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
kamzcab86
Samba Moderator


Joined: July 26, 2008
Posts: 7877
Location: Arizona
kamzcab86 is offline

PostPosted: Fri Mar 02, 2012 10:19 pm    Post subject: Reply with quote

hans j wrote:
Actually G12++ IS backward compatible with G11 but will turn it brown. Apparently they went back to silicates with G12+ and G12++? Only G12 is not compatible with G11. If you go into any dealer right now, you will be getting G12++


Since this is a thread about colors, let's add some info to ^that:

G11 = blue
G12 = pink
G12+ = purple
G12++ = purple

G12 should not be mixed with G11. If you go into any VW/Audi dealer today, verify what you're getting because some will still sell G12 &/or G12+. In fact, several years ago I was still able to get G11 at my local Audi dealer.

Wink
_________________
~Kamz Anxious
1986 Cabriolet: www.Cabby-Info.com
Blue Vanagon 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"Real knowledge is to know the extent of one's ignorance." - 孔子
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
hans j
Samba Member


Joined: May 06, 2006
Posts: 2712
Location: Salt Lake City UT
hans j is offline

PostPosted: Sat Mar 03, 2012 8:42 am    Post subject: Reply with quote

kamzcab86 wrote:

Since this is a thread about colors, let's add some info to ^that:

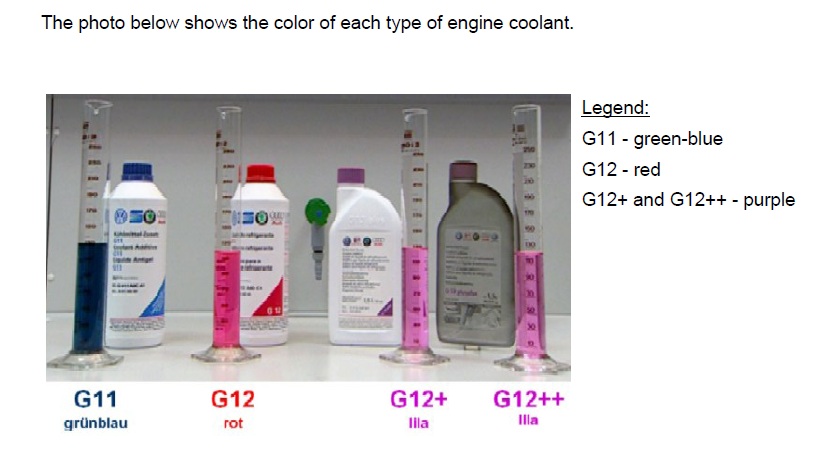

Here is the picture the TSB uses...
Image may have been reduced in size. Click image to view fullscreen.


Personally, over the last 12 years of adding coolant to VW/Audi's almost everyday at work, I can't tell the difference between the 'red' and 'purple', it's all pink to me. Our dealer sold G11 several years ago too, it's only been in the last 9 months or so it has been unavailable. And if you go buy G12, you will get G12++

Basically, your coolant should be all of one color; however I don't recommend anything that isn't OE VW. I have to flush all the green out of mine and will be running G12++ as it is formulated for my car and easy to get (especially since we buy it 5 cases at a time at work!)
_________________
1986 Canadian Syncro Westy TDI - 1989 Syncro Single Cab - 2001 Audi S4 - 1981 VW Caddy ABA - 1980 VW Caddy EV - 1973 VW T-181
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Vango Conversions
Samba Member


Joined: October 04, 2010
Posts: 1054
Location: Seattle, WA
Vango Conversions is offline

PostPosted: Sat Mar 03, 2012 10:35 am    Post subject: Reply with quote

I don't get why so many people think that these vans need the super expensive VW coolant. Most cars in recent years have either all aluminum engines or have iron blocks and aluminum heads. At my shop I've been using Prestone extended life antifreeze for everything I work on, for all makes and models. It's silicate free, available everywhere and they claim that it's compatible with all others including dex-cool and traditional green stuff. It has a light green color so it doesn't seem to change the color of whatever you're adding it to much.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
James 93SLC
Samba Member


Joined: January 21, 2009
Posts: 937
Location: NE Ohio
James 93SLC is offline

PostPosted: Sat Mar 03, 2012 2:50 pm    Post subject: Reply with quote

Vango Conversions wrote:
I don't get why so many people think that these vans need the super expensive VW coolant. Most cars in recent years have either all aluminum engines or have iron blocks and aluminum heads. At my shop I've been using Prestone extended life antifreeze for everything I work on, for all makes and models. It's silicate free, available everywhere and they claim that it's compatible with all others including dex-cool and traditional green stuff. It has a light green color so it doesn't seem to change the color of whatever you're adding it to much.


X2

Prestone

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
-------------------------
91 Vanagon Carat
93 Corrado SLC
-------------------------
Photos: http://picasaweb.google.com/slc.corrado
--------------------------------------------------------
tencentlife "Sometimes a pooka is a problem and sometimes it's just a pooka"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 12102
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Sat Mar 03, 2012 3:38 pm    Post subject: Reply with quote

Valvoline Zerex G-05 = Gold
_________________
Casey--

'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender --> full camper
y u rune klassik?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
greenbus pilot
Samba Member


Joined: March 14, 2008
Posts: 1285
Location: Wisconsin: Rustbelt, USA baby!!
greenbus pilot is offline

PostPosted: Sat Mar 03, 2012 6:17 pm    Post subject: Reply with quote

Vango Conversions wrote:
I don't get why so many people think that these vans need the super expensive VW coolant. Most cars in recent years have either all aluminum engines or have iron blocks and aluminum heads. At my shop I've been using Prestone extended life antifreeze for everything I work on, for all makes and models. It's silicate free, available everywhere and they claim that it's compatible with all others including dex-cool and traditional green stuff. It has a light green color so it doesn't seem to change the color of whatever you're adding it to much.


^^^ True dat. And I thought BMW guys were overly obsessed with coolant- so I run the same Prestone in my Bimmer. It has not objected. I use the WalMart all- color- stuff now, and mix it myself- why pay $5 per gallon for water- ( premixed coolant at $10/ gallon, half water= $5 per gallon water.).
_________________
Sent from a white van down the street.
Back to top
View user's profile Send private message Classifieds Feedback
SteelB12
Samba Member


Joined: December 21, 2010
Posts: 591
Location: Central Virginia
SteelB12 is offline

PostPosted: Sun Mar 04, 2012 5:36 pm    Post subject: Reply with quote

I was just about to ask about the pre-mixed stuff, but now I see its not a smart purchase. More convenient, though
_________________
1987 Westy
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
Tooharsh
Samba Member


Joined: February 22, 2012
Posts: 92
Location: Waynesboro, PA
Tooharsh is offline

PostPosted: Sun Mar 04, 2012 6:49 pm    Post subject: Reply with quote

I wish there were not so many choices on this stuff... A clear cut answer of what is bets would be nice Very Happy I do however appreciate the discussion!
_________________
1984 Vanagon Tin Top, 69,000 miles, Manual Transmission.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SteveVanB
Samba Member


Joined: June 01, 2008
Posts: 1645
Location: This side of Daytona
SteveVanB is offline

PostPosted: Sun Mar 04, 2012 6:52 pm    Post subject: Reply with quote

X6 on the Prestone. Good thing I'm color blind or I'd be in a heap o' shit Wink
_________________
91 CARAT
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
randywebb
Samba Member


Joined: February 15, 2005
Posts: 3815
Location: Greater Metropolitan Nimrod, Orygun
randywebb is offline

PostPosted: Sun Mar 04, 2012 6:58 pm    Post subject: Reply with quote

ok, who has used Prestone for how may years with no drama resulting?

and... who has done a teardown inspection to be absolutely sure...
_________________
1986 2.1L Westy 2wd Auto Trans.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
msinabottle
Samba Member


Joined: September 20, 2005
Posts: 3492
Location: Denver Area, Colorado
msinabottle is offline

PostPosted: Sun Mar 04, 2012 7:00 pm    Post subject: 3X on the Prestone Reply with quote

I went so far as to ask about the Nitrites in a letter to Prestone about the 'Extended Life.' They were quite positive, never had 'em, never will. By way of confirmation, my box of Anti-Freeze Test Strips always warns me of the severe lack of nitrites when I test Winston's coolant.

You can buy distilled water cheap from the Big Box stores, and after that, you're ready to rock. Of interest on a related topic: Gates Rubber and some of the parts suppliers are about to come out with a new 'jetting' system of coolant flushing that is supposed to completely free up systems from the old gunk and accretions therein. We are no longer, apparently, in possession of the most arcane and convoluted cooling system on Planet Earth.

Shocked

Watching... Let you know when shops start to offer it.

Best!
_________________
'Winston,' '84 1.9 WBX Westy
Vanagon Poet Laureate: "I have suffered in
many ways, but never, never, never in silence."
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sageandspirit
Samba Member


Joined: August 03, 2008
Posts: 46
Location: Taos,NM
sageandspirit is offline

PostPosted: Sun Mar 04, 2012 7:20 pm    Post subject: Reply with quote

FWIW, for the past ~4 yrs I have been using Prestone, but not the yellow container/green color version. I have been using the Dex-Cool type of Prestone which is bright orange in color ( the container is grey). I thought this was the preferred type of Prestone to use, instead of the green color, for these engines. But then again I am not particularly mechanically inclined. What "G" designation is this version? I always buy full strength coolant and gallons of distilled water and mix them half and half, alternating between them using a quart of each from a rinsed glass container(wide mouth).
_________________
1987 VW Vanagon, Wolfsburg Edition Weekender w/ pop top, 2.1L WBX & 4spd Tranny
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
