Using 72 gas tank extra vent for fuel injection return
Page: 1, 2  Next
Forum Index -> Bay Window Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
kowpeki
Samba Member


Joined: December 03, 2011
Posts: 44
Location: Austin, TX
kowpeki is offline

PostPosted: Thu May 31, 2012 10:26 pm    Post subject: Using 72 gas tank extra vent for fuel injection return Reply with quote

For some reason, my 79 fuel injected bus has a 72 gas tank in it. Since the 72 bus was not fuel injected there is no return line, so the return was tee'd into the fuel feed to the pump. The 72 has a third vent line that was plugged since there are only two vent lines in a 79. After some discussion about this on another forum topic, I decided to remove the tee and use the extra vent line as a fuel return.

Here is where I added a hole and rubber grommet for the fuel return into the gas tank compartment.
Image may have been reduced in size. Click image to view fullscreen.


Here is what it looks where the fuel line connects to the gas tank. Also seen is a fitting to size down the fuel line. Also, you can see the wire I wrapped around the hose coming out of the tank. This was done to prevent it from kinking when bent to a 90 degree angle. Later I found you can buy a wire coil at the automotive store for just this purpose. I used some stainless steel wiring to do this.
Image may have been reduced in size. Click image to view fullscreen.


The gas tank is silver because I used the extra POR-15 tank sealer to paint it. Ignore the bad pant job.

Here is a better look at the down sizing fitting.
Image may have been reduced in size. Click image to view fullscreen.


This out of focus picture is from the underside of the bus showing where the fuel line comes up.
Image may have been reduced in size. Click image to view fullscreen.


I haven't yet started the bus with this in place, but will post if I find any problems with it.
_________________
1979 Bus
VIN: 2292134777
Engine Code: EC004375 (1974 Porche?)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
old DKP driver
Samba Member


Joined: March 30, 2005
Posts: 4145
Location: Los Gatos,Ca.
old DKP driver is offline

PostPosted: Thu May 31, 2012 10:44 pm    Post subject: 72 tank Reply with quote

You should just use the Tee unless you like hearing a waterfall in
the backround Cool
And it is Dangerous too!!

you could always buy an FI tank but, many have used the tee method.
_________________
V.W.owner since 1967
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
blue77bay
Samba Member


Joined: February 11, 2006
Posts: 631
Location: Brisvegas Australia
blue77bay is offline

PostPosted: Thu May 31, 2012 11:34 pm    Post subject: Reply with quote

you should NEVER return fuel above the bottom of the tank,you aerate the fuel causing massive evaporation,far better to use the T or better yet get a Y fitting so the flow is less disturbed,or if your really keen plumb it to a swirl pot
_________________
I like hammers. Lots of hammers. Hammers and me go way back.
A large hammer collection is like an instant problem solver
Mark tucker wrote:,wack off as needed
Back to top
View user's profile Send private message Classifieds Feedback
kowpeki
Samba Member


Joined: December 03, 2011
Posts: 44
Location: Austin, TX
kowpeki is offline

PostPosted: Mon Jun 04, 2012 9:49 pm    Post subject: Reply with quote

I've heard not to use the tee. An aerospace engineering friend told me that the reason it can cause vapor lock is that when a high pressure liquid, for example the gas coming off of the gas pressure valve, mixes with a lower pressure liquid, the gas in the tank, the expanding liquid tends to produce bubbles. Of course that is theory and in practice the pressure difference might not be enough in the case of teeing the return line to the fuel pump feed.

Anyway, here is my fix to get the return line to return to the bottom (or close it) of the tank.

First off, I got some fuel line that was a snug fit into the vent line that goes into the tank. This stuff is what I found.
Image may have been reduced in size. Click image to view fullscreen.

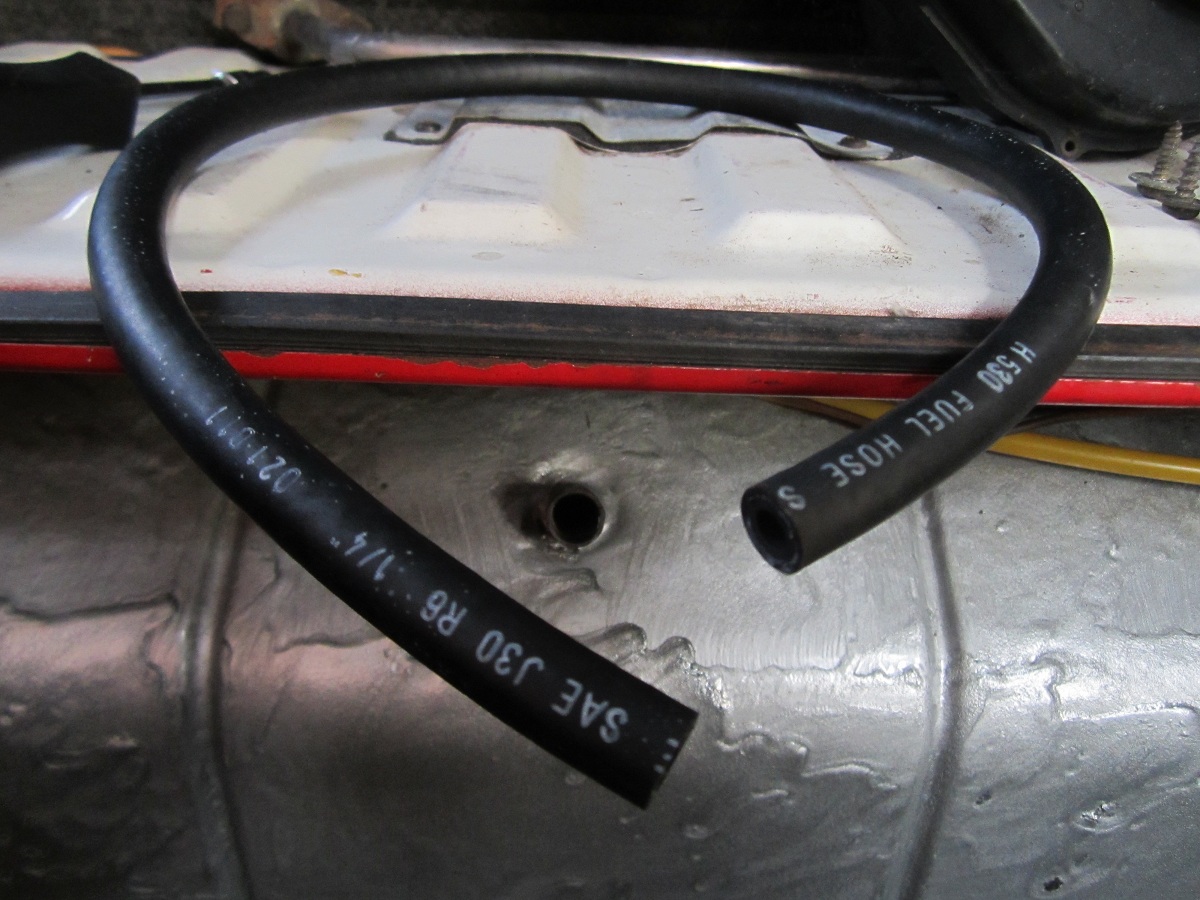

Here is a picture of the fuel line and the hole it will be going down. I did shorten the vent hose coming off the tank by about an inch to make things fit a little better.
Image may have been reduced in size. Click image to view fullscreen.


Fuel line going down into the tank.
Image may have been reduced in size. Click image to view fullscreen.

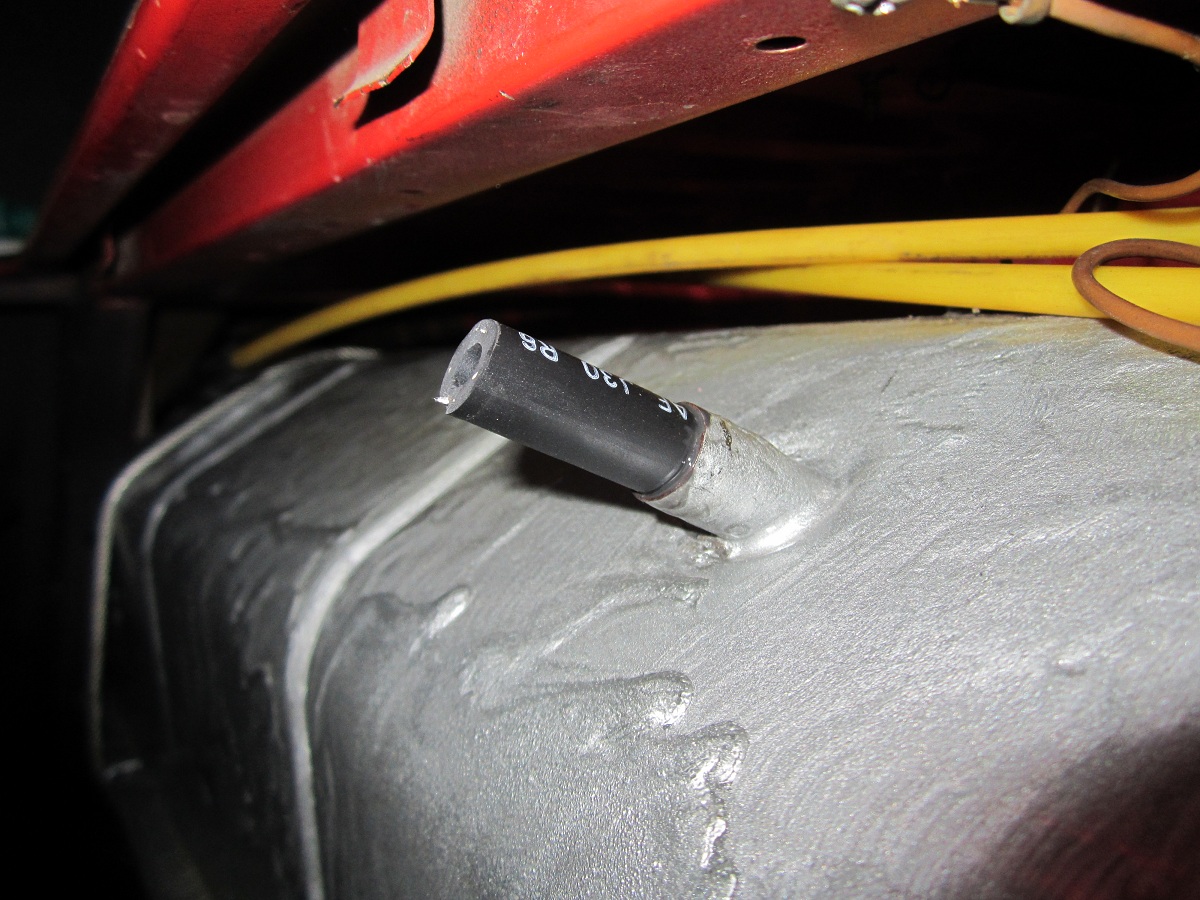

Here is a picture of the fuel line sticking out of the vent line. Not shown here is the outer hose that slips over the one I just added and clamps to the vent fitting. All is nice and snug.
Image may have been reduced in size. Click image to view fullscreen.

_________________
1979 Bus
VIN: 2292134777
Engine Code: EC004375 (1974 Porche?)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 52287

Wildthings is offline

PostPosted: Mon Jun 04, 2012 10:03 pm    Post subject: Reply with quote

You should get yourself a hunk of 30r10 submersible fuel line and use it inside the tank. The stuff you have is not designed to have continuous fuel contact on its outside sheath.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kowpeki
Samba Member


Joined: December 03, 2011
Posts: 44
Location: Austin, TX
kowpeki is offline

PostPosted: Wed Jun 06, 2012 7:16 am    Post subject: Reply with quote

Wildthings wrote:
You should get yourself a hunk of 30r10 submersible fuel line and use it inside the tank. The stuff you have is not designed to have continuous fuel contact on its outside sheath.

This sounds like great advice for the next guy doing this. For me, I think I'll cut a piece of that fuel injection hose, put it in a jar of gasoline, shelf it and monitor how fast it breaks down, then replace when necessary.

I would be interested in the science behind not being designed for continuous fuel contact on the outside sheath. From close examination of the line, it is homogenous, one continuous piece of material inside and out. How then can the outside not be rated the same as the inside? It's not that I don't believe it, it's just that it seems to defy common sense.
_________________
1979 Bus
VIN: 2292134777
Engine Code: EC004375 (1974 Porche?)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 52733
Location: Surrey B.C. Canada, but thinking of Ukraine
busdaddy is offline

PostPosted: Wed Jun 06, 2012 7:28 am    Post subject: Reply with quote

kowpeki wrote:
How then can the outside not be rated the same as the inside? It's not that I don't believe it, it's just that it seems to defy common sense.

Most has an inner lining of different material that may not be visible, that said the stuff I got recently looked like it was all one unit too so it may be in some cases.
_________________
Rust NEVER sleeps and stock never goes out of style.

Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!

Слава Україні!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 15345
Location: Syracuse, NY
danfromsyr is offline

PostPosted: Wed Jun 06, 2012 8:02 am    Post subject: Reply with quote

just an FYI,
i was lookign for a cheap fuel filter at the FLAPS and while opening boxes to get waht I was looking for (large, cheap, clear view plastic)
one filter had a labeled Return line as well as a supply line and a output line..
this I thought would be a nice option for those in this situation as I often convert non-FI cars to Fuel injection.

I'm not sure what the code is at this moment, and if I can remember next time I'm at the flaps I'll get the code.. but just goto a (*pepboys) and open the boxes till you find one that fits my description
_________________
Abscate wrote:
These are the reasons we have words like “wanker”
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 52733
Location: Surrey B.C. Canada, but thinking of Ukraine
busdaddy is offline

PostPosted: Wed Jun 06, 2012 8:16 am    Post subject: Reply with quote

My 85 F'nDodge van has a filter like that, the return off the filter (unfiltered side) heads back to the tank and there's a regulator on the return line down in the tank, keeps fuel flowing through the system at pressure that way. I guess it would be slightly better than a Tee but hmmm......
_________________
Rust NEVER sleeps and stock never goes out of style.

Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!

Слава Україні!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Sloride
Samba Member


Joined: February 09, 2002
Posts: 927

Sloride is offline

PostPosted: Sat Jun 30, 2012 1:09 pm    Post subject: Reply with quote

I'd like to revive this thread with a question. I have pulled the tank from my 72 to convert to FI and would like to put a return line in the bottom as per the FI tanks. What I am wondering is does the return line have go up into the tank above the fuel level otherwise gas will come out of that as well? Not sure if the question is clear or not. Hopefully someone will understand what I am saying. In other words what keeps the fuel from coming out of the return line?

Thanks.

Craig
_________________
1972 Westfalia - 1.8 VW in-line h2o conversion
Ottawa, Ontario, Canada

Link to the engine swap:
http://www.thesamba.com/vw/forum/viewtopic.php?t=565304&highlight=

1964 Ruby Red Beetle

https://www.thesamba.com/vw/forum/viewtopic.php?t=705757&highlight=ruby+red


Last edited by Sloride on Sat Jun 30, 2012 2:31 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 52287

Wildthings is offline

PostPosted: Sat Jun 30, 2012 1:21 pm    Post subject: Reply with quote

Sloride wrote:
I'd like to revive this thread with a question. I have pulled the tank from my 72 to convert to FI and would like to put a return line in the bottom as per the FI tanks. What I am wondering is does the return line have go up into the tank above the fuel level otherwise gas will come out of that as well? Not sure if the question is clear or not. Hopefully someone will understand what I am saying. In other words what keeps the fuel from coing out of the return line?

Thanks.

Craig


The bottom is obviously not above the fuel level. Yes fuel will run out of the return if the hose is removed. This is likely one of the main reasons FI buses burn up so easily. You might add a small check valve right at the tank to prevent fuel from back flowing out of the tank through the return.

Running the return into the top of the tank as shown earlier in this thread and then using 30r10 hose to run it to the bottom would also work and would lessen the risk of a fire consuming the whole van. This way once the return line burnt into in a fire, the back flow through the return would stop.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Sloride
Samba Member


Joined: February 09, 2002
Posts: 927

Sloride is offline

PostPosted: Sun Jul 01, 2012 4:07 am    Post subject: Reply with quote

Thanks wildthings. I'd like to try and keep the top vent pipes as they were intended. What are your thought on running the retun line on the bottom but running it as far as I can into the tank so it would be above the fuel level therefore hopefull keeping fuel from coming out of it?

Thank

Craig
_________________
1972 Westfalia - 1.8 VW in-line h2o conversion
Ottawa, Ontario, Canada

Link to the engine swap:
http://www.thesamba.com/vw/forum/viewtopic.php?t=565304&highlight=

1964 Ruby Red Beetle

https://www.thesamba.com/vw/forum/viewtopic.php?t=705757&highlight=ruby+red
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Sloride
Samba Member


Joined: February 09, 2002
Posts: 927

Sloride is offline

PostPosted: Sun Jul 01, 2012 4:07 am    Post subject: Reply with quote

Thanks wildthings. I'd like to try and keep the top vent pipes as they were intended. What are your thought on running the retun line on the bottom but running it as far as I can into the tank so it would be above the fuel level therefore hopefull keeping fuel from coming out of it?

Thank

Craig
_________________
1972 Westfalia - 1.8 VW in-line h2o conversion
Ottawa, Ontario, Canada

Link to the engine swap:
http://www.thesamba.com/vw/forum/viewtopic.php?t=565304&highlight=

1964 Ruby Red Beetle

https://www.thesamba.com/vw/forum/viewtopic.php?t=705757&highlight=ruby+red
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 52287

Wildthings is offline

PostPosted: Sun Jul 01, 2012 5:29 am    Post subject: Reply with quote

Sloride wrote:
Thanks wildthings. I'd like to try and keep the top vent pipes as they were intended. What are your thought on running the retun line on the bottom but running it as far as I can into the tank so it would be above the fuel level therefore hopefull keeping fuel from coming out of it?

Thank

Craig


That would mean running it up to the top of the tank internally and creating a fountain of fuel which might cause an excessive amount of fuel vapors. You want the return to be below the fuel level.

Most people adding a return line to an earlier system just "T" into the supply line before the pump.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
lugo2214
Samba Member


Joined: January 16, 2014
Posts: 134
Location: Pinckard, AL
lugo2214 is offline

PostPosted: Fri Nov 24, 2017 8:18 am    Post subject: Re: Using 72 gas tank extra vent for fuel injection return Reply with quote

How was this issue solved?
Weighing my options to go FI on a 73 bus and exploring the return line issue.

Who has experience with the return line “T” into the supply line before the pump?
_________________
RoRo's Campeter
1973 Tin Top Campmobile
Type 4 ENG / 2.0 HYD LIFT
003 Auto Trans 😆/😣
Dual Empi 44
009 Ignition
Ice Auto Air A/C kit 50% installed
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Sloride
Samba Member


Joined: February 09, 2002
Posts: 927

Sloride is offline

PostPosted: Fri Nov 24, 2017 8:23 am    Post subject: Re: Using 72 gas tank extra vent for fuel injection return Reply with quote

I added the return line in the bottom of the tank like I mentioned. Brought it to a rad repair shop and had them braze in a line. It has been like that for 5 years without an issue.
_________________
1972 Westfalia - 1.8 VW in-line h2o conversion
Ottawa, Ontario, Canada

Link to the engine swap:
http://www.thesamba.com/vw/forum/viewtopic.php?t=565304&highlight=

1964 Ruby Red Beetle

https://www.thesamba.com/vw/forum/viewtopic.php?t=705757&highlight=ruby+red
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
raygreenwood
Samba Member


Joined: November 24, 2008
Posts: 23104
Location: Oklahoma City
raygreenwood is offline

PostPosted: Fri Nov 24, 2017 8:51 am    Post subject: Re: Using 72 gas tank extra vent for fuel injection return Reply with quote

lugo2214 wrote:
How was this issue solved?
Weighing my options to go FI on a 73 bus and exploring the return line issue.

Who has experience with the return line “T” into the supply line before the pump?


I do. On some other systems like D-jet when replacing the original pump with a much larger two port pump like a Bosch 044 ..... It has some merit.....but only if your pump has some difficulty with self priming like an 044.

The original system already had a suppply outlet from the tank to the filter and pump and a return inlet from the ring main to the bottom of the tank. Since the D-jet were originally three port pumps.....the return/relief valve from the pump would tee into the return line from the injectors and feed into the tank.

When putting in a two port pump.....like the 044.....it really helped feeding to leave the tee....actually a "Y" in place.....and add another tee.....actually a "Y" ....into the tank outlet feeding the pump.....to actually cross connect the return line from the injectors to the inlet line for the pump. This helped to prevent cavitation.

Its not necessary on normal low preszurd L-jet pumps.....but can be a fine method for allowing to use a fuel injection system on with a nin fuel iniection single outlet tank.

But...you must use a "Y" and not a tee. A tee entrance to a line with fuel in motion causea turbulence that can cause cavitation. Ray
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
lugo2214
Samba Member


Joined: January 16, 2014
Posts: 134
Location: Pinckard, AL
lugo2214 is offline

PostPosted: Fri Nov 24, 2017 9:55 am    Post subject: Re: Using 72 gas tank extra vent for fuel injection return Reply with quote

Thank you both for the reply

Are there any pics of both the Y connector or the bottom braided inlet?
_________________
RoRo's Campeter
1973 Tin Top Campmobile
Type 4 ENG / 2.0 HYD LIFT
003 Auto Trans 😆/😣
Dual Empi 44
009 Ignition
Ice Auto Air A/C kit 50% installed
Back to top
View user's profile Send private message Gallery Classifieds Feedback
raygreenwood
Samba Member


Joined: November 24, 2008
Posts: 23104
Location: Oklahoma City
raygreenwood is offline

PostPosted: Fri Nov 24, 2017 10:43 am    Post subject: Re: Using 72 gas tank extra vent for fuel injection return Reply with quote

lugo2214 wrote:
Thank you both for the reply

Are there any pics of both the Y connector or the bottom braided inlet?


Give me a few to dig them out. In the past I have made diagrams in for:

1.L-jet stock
2. D-jet stock which is 3 port and shows the return line from the pump "Y"'d into the return line from the tank for reference.....and is important because it tells you the proper orienaltation of the "Y"

3. Going from D-jet to a two port L-jet style pump....and the return line cross connect

4. L-jet or any system using a two port pump with a single port carburettor tank and a feeder "Y".

I am driving for about two hours then I can sit,down and pull up the diagrams. Ray
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
lugo2214
Samba Member


Joined: January 16, 2014
Posts: 134
Location: Pinckard, AL
lugo2214 is offline

PostPosted: Fri Nov 24, 2017 10:46 am    Post subject: Re: Using 72 gas tank extra vent for fuel injection return Reply with quote

Awesome thank you
_________________
RoRo's Campeter
1973 Tin Top Campmobile
Type 4 ENG / 2.0 HYD LIFT
003 Auto Trans 😆/😣
Dual Empi 44
009 Ignition
Ice Auto Air A/C kit 50% installed
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
