Air cleaner oil level?

[onetuza]

Anybody know the proper oil fill level for this air cleaner?
Is it the Lowe level where there is an overhanging flap of metal or that seam line above the slope and just below the intake holes?

[Cadaver]

year?
up to the rim lip, see the ring, there that is the anti slosh ring
to there,

click tech tab above then owners manuals. bingo

http://www.thesamba.com/vw/archives/manuals/68bug.php

http://www.thesamba.com/vw/archives/manuals/69bug/page45.jpg

says fill to the line
but where is the line.?
in a 1968 , you off the lid and look inside.
on that inside lower rim is a pressed in ARROW this arrow point to the line.
_________________
for sale now.
in Samba classifieds....1968 T1.

[onetuza]

I'm not sure of the year. I bought it to replace also incorrect single snorkel cleaner on my 71 engine.
Not sure what a "rim lip" is.

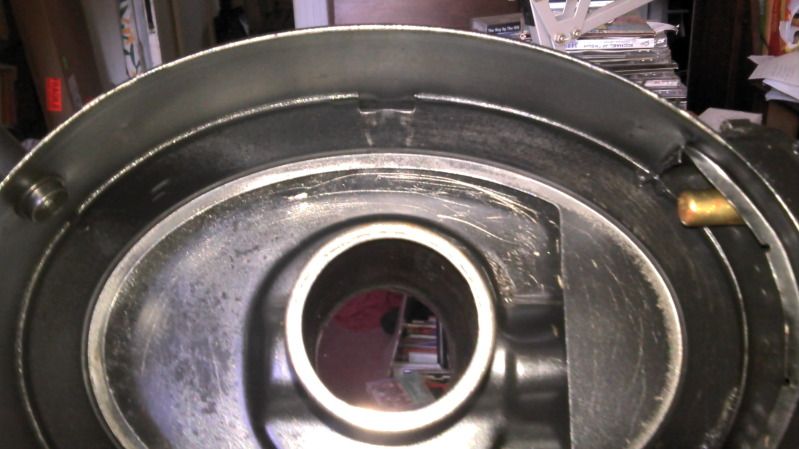

The lower part, just above the bottom, looks like this

Forgive my ignorance, but I don't see how looking at owner's manual pages that say "fill to the mark" is helpfull. Been there done that. My point is, where is the friggin "mark".

[D/A/N]

[ROCKOROD71]

first off, the single snout cleaner is correct for the '71 model year, that is a one year part with a thermostat controlled pre-heat flap (the cleaner will have a big spring thingy on the side) what you have pictured looks to be a double snout cleaner (the picture is awful and blocks all the parts important to identifying its year) from a 67 or 68. I digress however, there should be a lip just above the actual bottom of the air cleaner, you fill up to this lip. on later air cleaners there is an arrow stamped in the metal (an actual indent) to show the fill mark. earlier ones had a red line. sometimes this arrow is pretty hard to notice due to age and or grime.
hope this helps
happy trails
_________________
1971 STD BEETLE- DD-1st car, 1st love. keepin' it stock! 1600DP, Solex 34-3 Mexi Bosch SVDA Dist NOW w/POINTS
1977 WESTY "KrustyKamper" 2L FI

[Cadaver]

you did not read my post
i said, see the manual
then see the arrow

the manual shows where to look
then look and see the arrow
if you'd have photo'd the cleaner, 90degrees rotated, we'd be pointing fingers now. Am i right?

if its not there, then it must be some very odd vw air cleaner.
but mine is a 2 snout too , in 68 .

i cant speak (say) for all 2 million 68s Air-cleaners made world wide.
but the USA variant does have the arrow, (needs to be clean to see it)
maybe yours is like a mis-stamped coin, a rare collectors item

some cleaners have other stickers on the side, with ways and means ,
stated,

the Bentleys states 66-69 (cant speak for 70+)

there are 4 variants... in first paragraph.
S3-Pg8
the KG cleaner is unique. 4th variant.
66 single snout.
67 2 snouts.
in aug, 67 the 1500 , the engine thermostat operates, the.....xxxxxx

page 9
states FILL IT TO THE MARK.
use 0.95 pints of engine oil. (that is all it state)

for sure ,do not over fill it , or risk oil induction,
